Ranch Plan 4848-00231

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,544
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 69'
Depth 62'

Floorplan Drawings

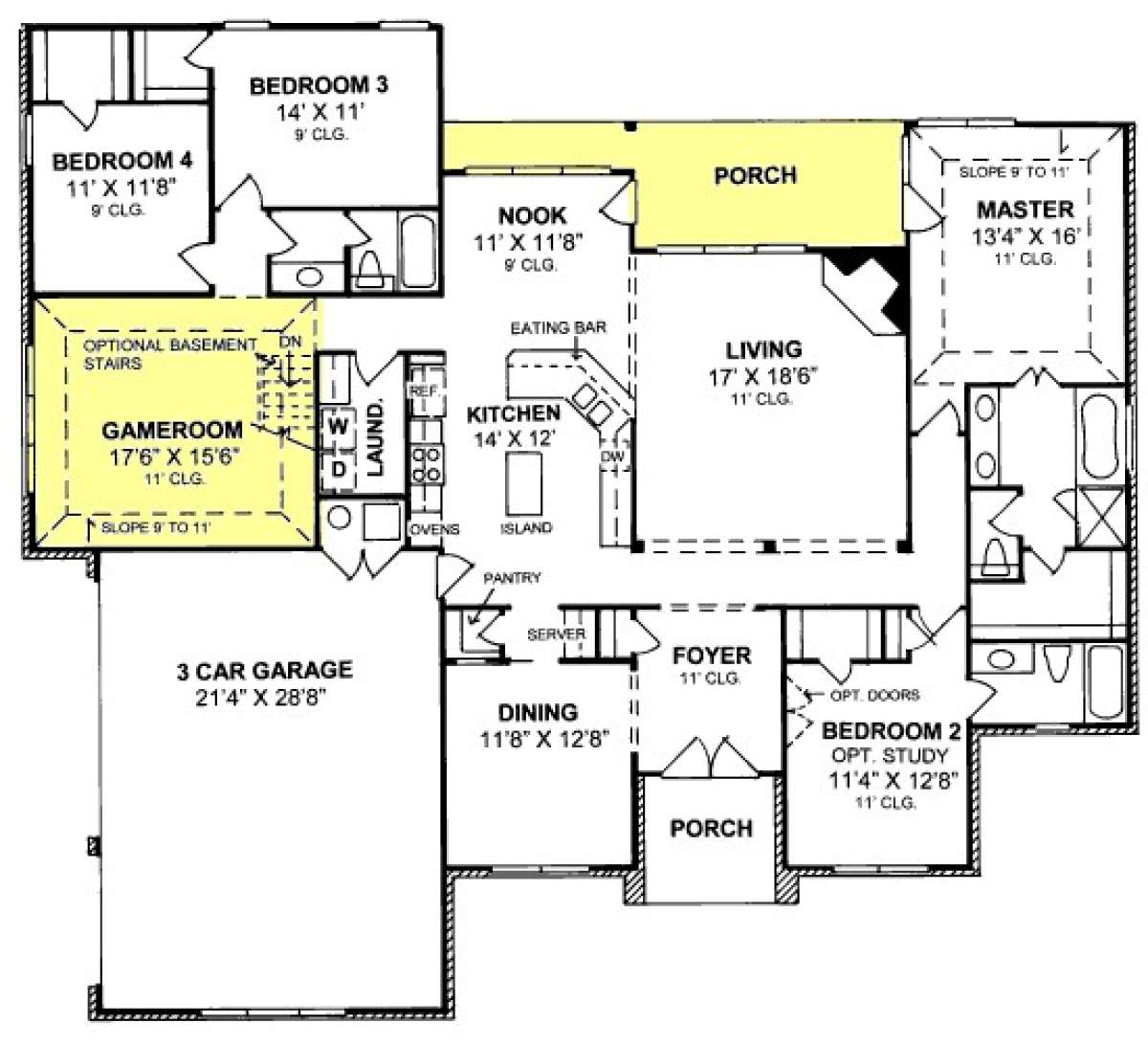

Floorplan 1
Floorplan 1 for House Plan #4848-00231


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

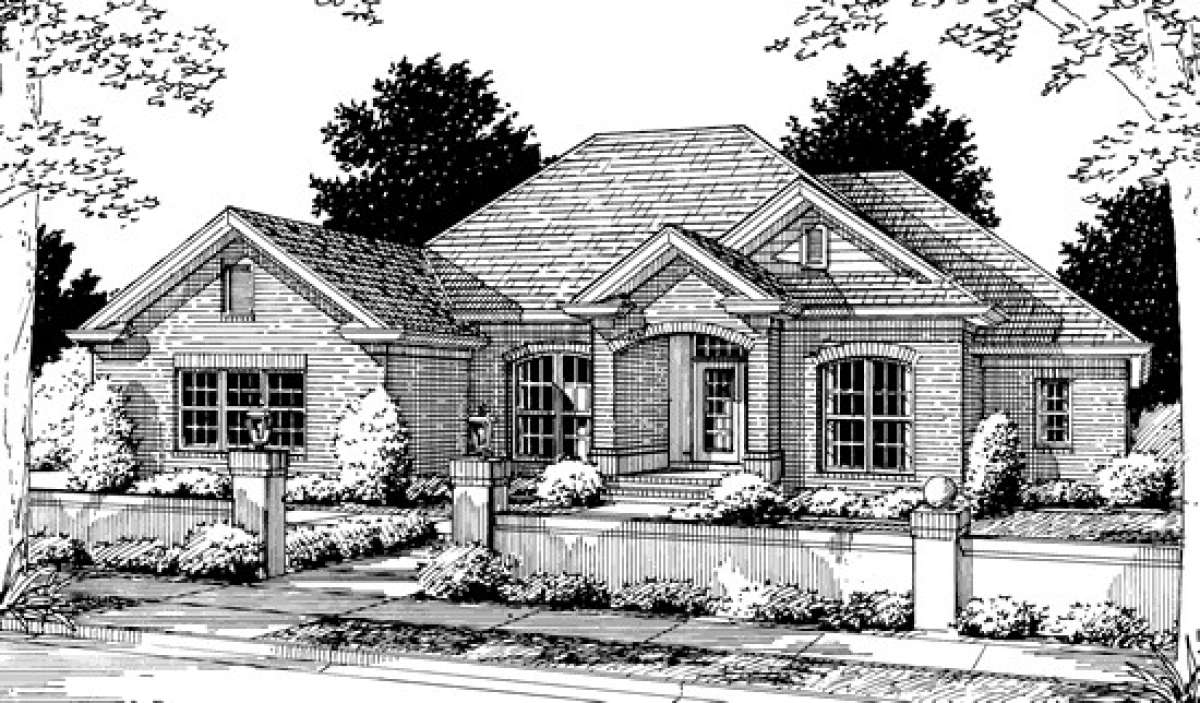

  • Elevations

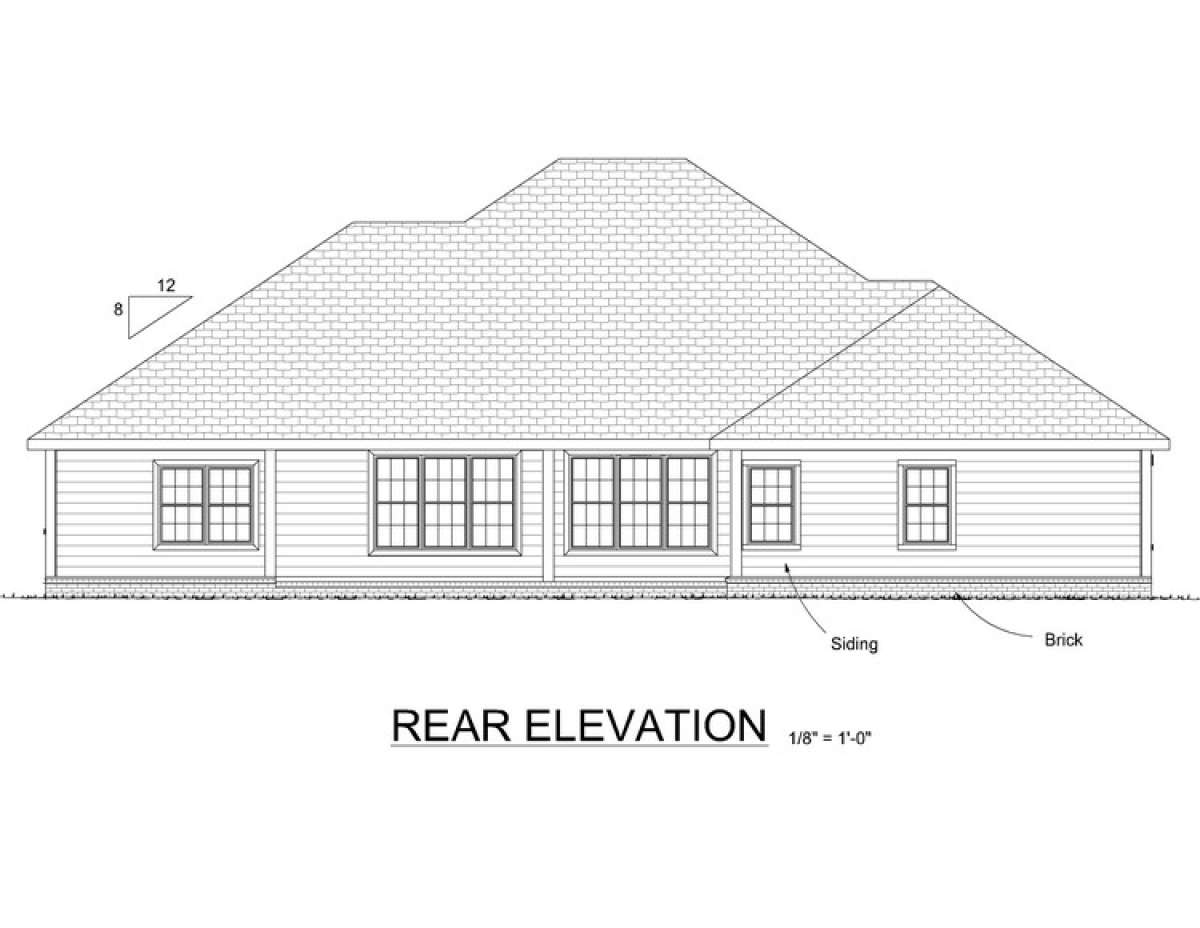

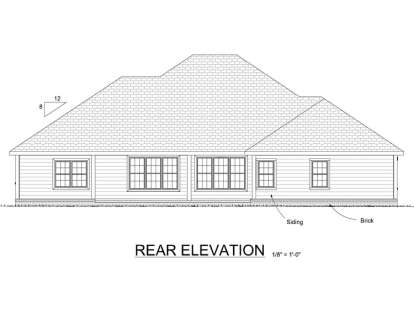

    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Ranch house plan features European styling on an exterior façade consisting of lovely design features which encompass an Old World feel. The low maintenance brick exterior is highlighted with multiple split gables and a front covered porch consisting of an arched opening above the double door entry. The one story home has an amazing array of versatile and spacious rooms that include four bedrooms, three baths and an open layout. The front foyer features soaring ceiling heights for a grand entrance where the formal dining room is situated on one side of the foyer and the study/second bedroom lies on the other. The dining room features a pass-thru that holds a serving area and pantry before entering the grand kitchen. An eating area sits atop the angled bar and there is a large center island and adjoining breakfast room as well. The breakfast room is bright and sunny with its triple window wall and access to the rear covered porch. Column detailing delineates space on the perimeter of the living room and there is a handsome corner fireplace as well as rear porch access. The second bedroom/study features optional French doors into the room, a large closet and private access to the full bath. The master suite is situated at the rear of the home for privacy and features a large bedroom with trey ceiling and private access onto the rear porch for early morning coffee. A sumptuous en suite bath incorporates modern amenities into the space including a separate shower, dual vanities and a large soaking tub before accessing the oversized walk-in master closet.
There are two additional bedrooms located on the other end of the home; each is spacious with a walk-in closet and 9’ ceiling heights. An enormous flex space which could be used as a game room or lounge for older children measures in excess of 17’x15’ and lies directly across from the bedrooms and there is a shared bath with large vanity within the suite of rooms. A large laundry room and three car side loading garage completes the floor plan. This home features an abundance of versatile spaces within the floor plan which can be configured to suit the needs of a large and active family.
