Ranch Plan 402-01027


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,679
Beds 4
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 65' 10"
Depth 75' 6"

Floorplan Drawings

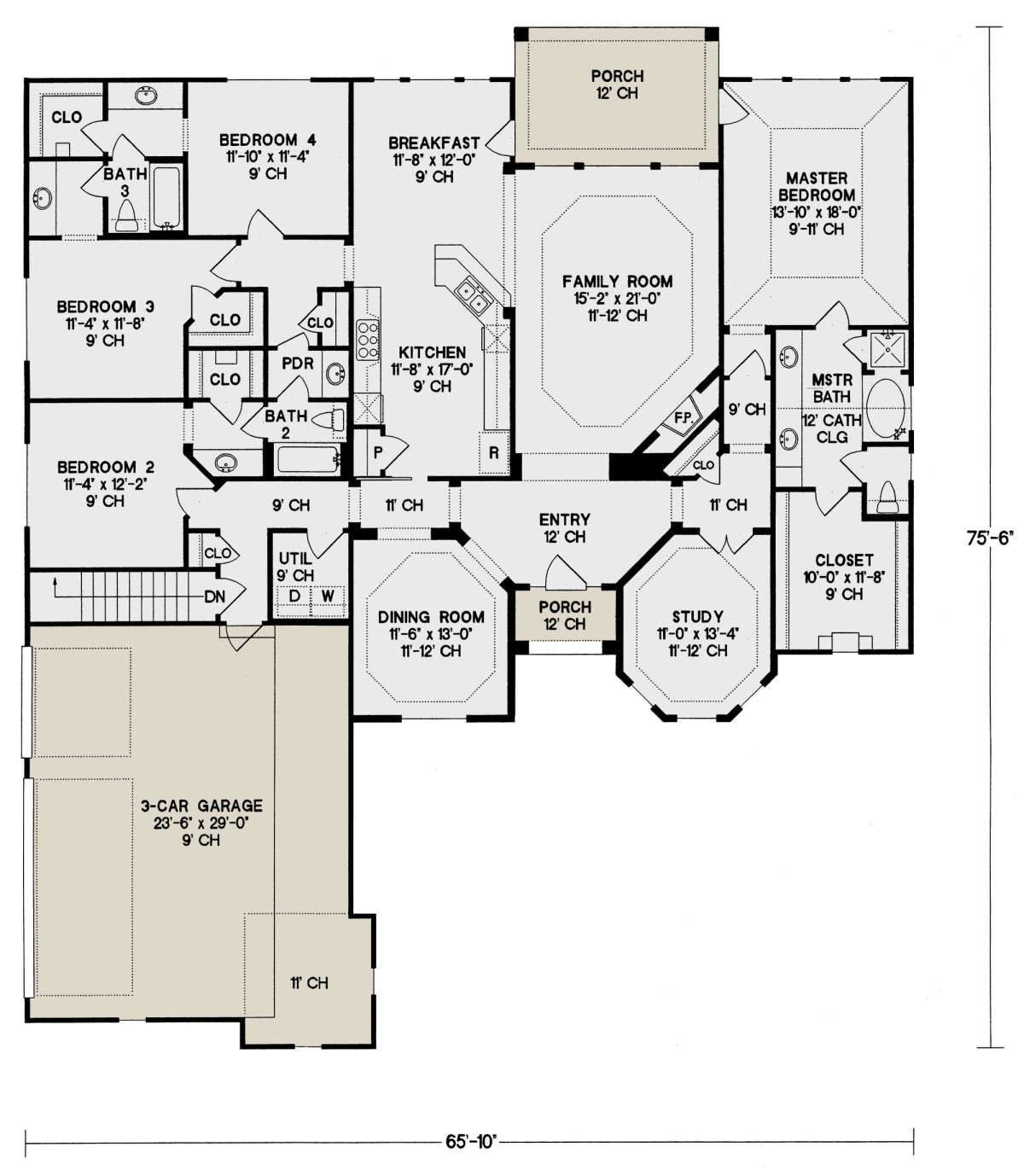

Main Floor
Main Floor for House Plan #402-01027

What's Included in these plans?

  • Most plans include the following:
  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

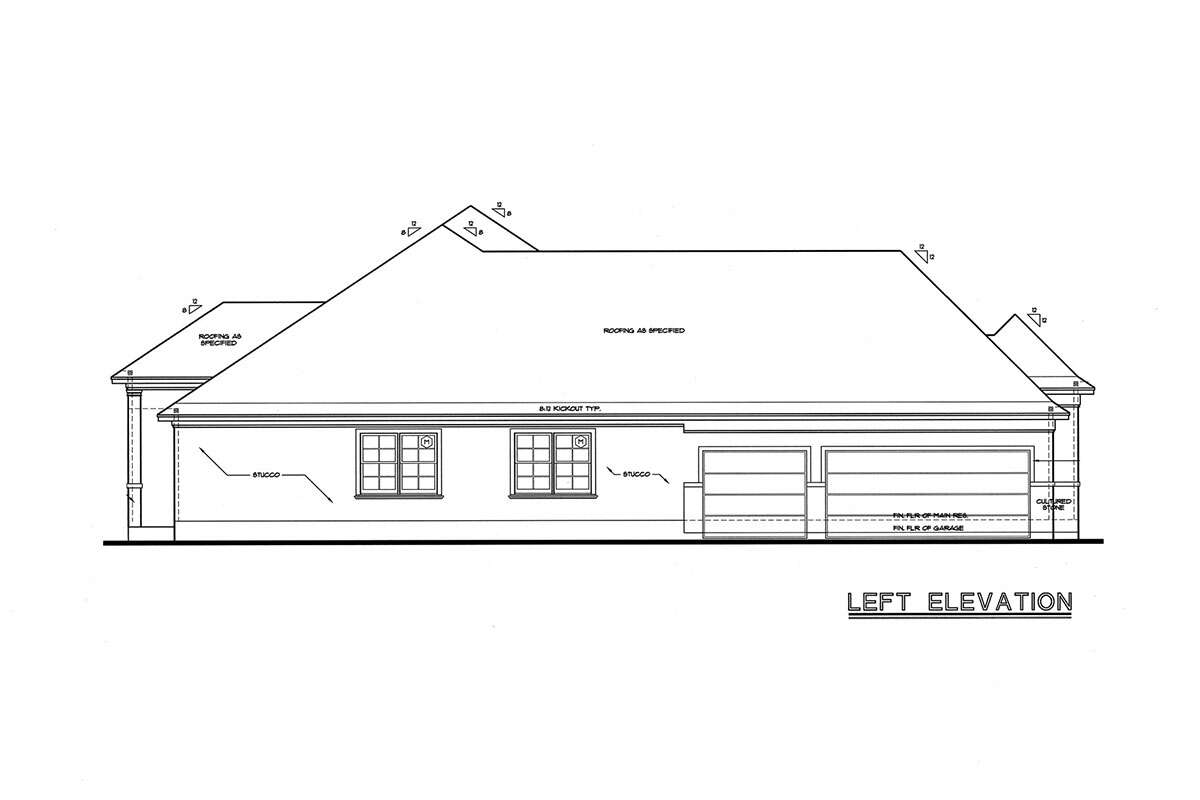

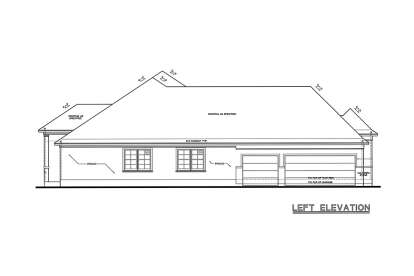

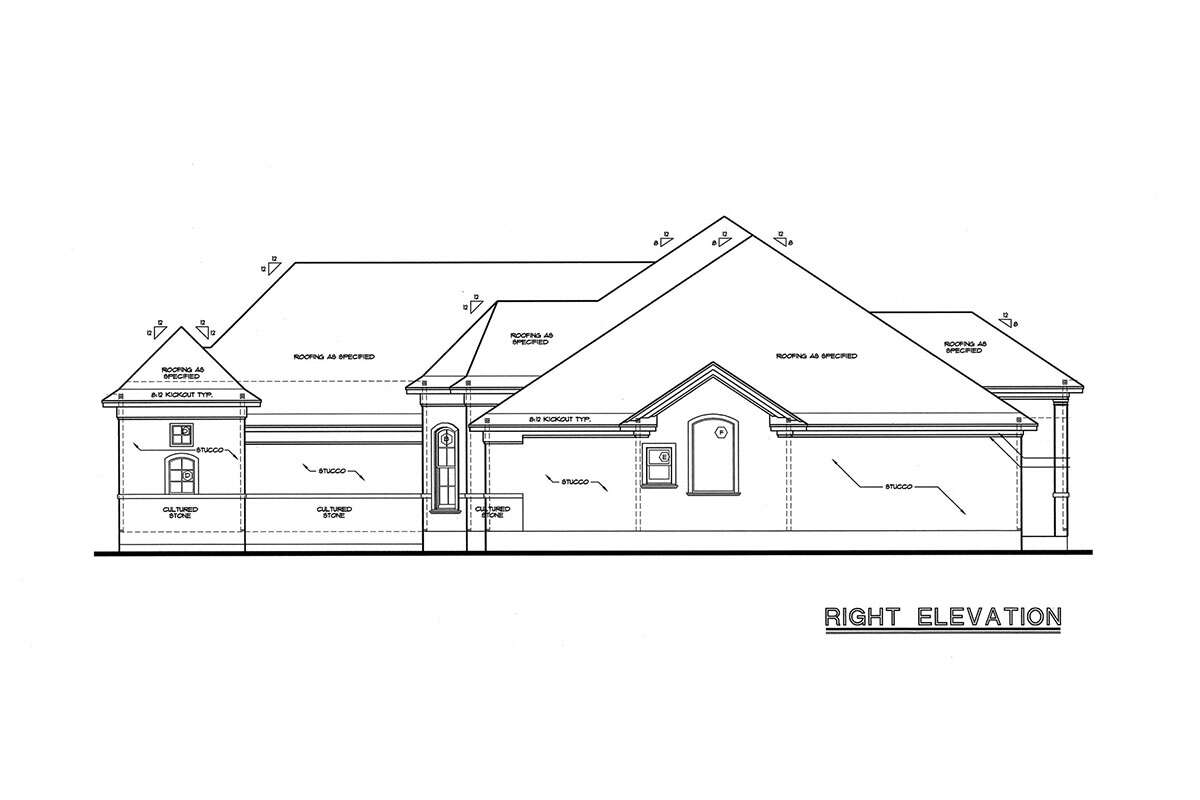

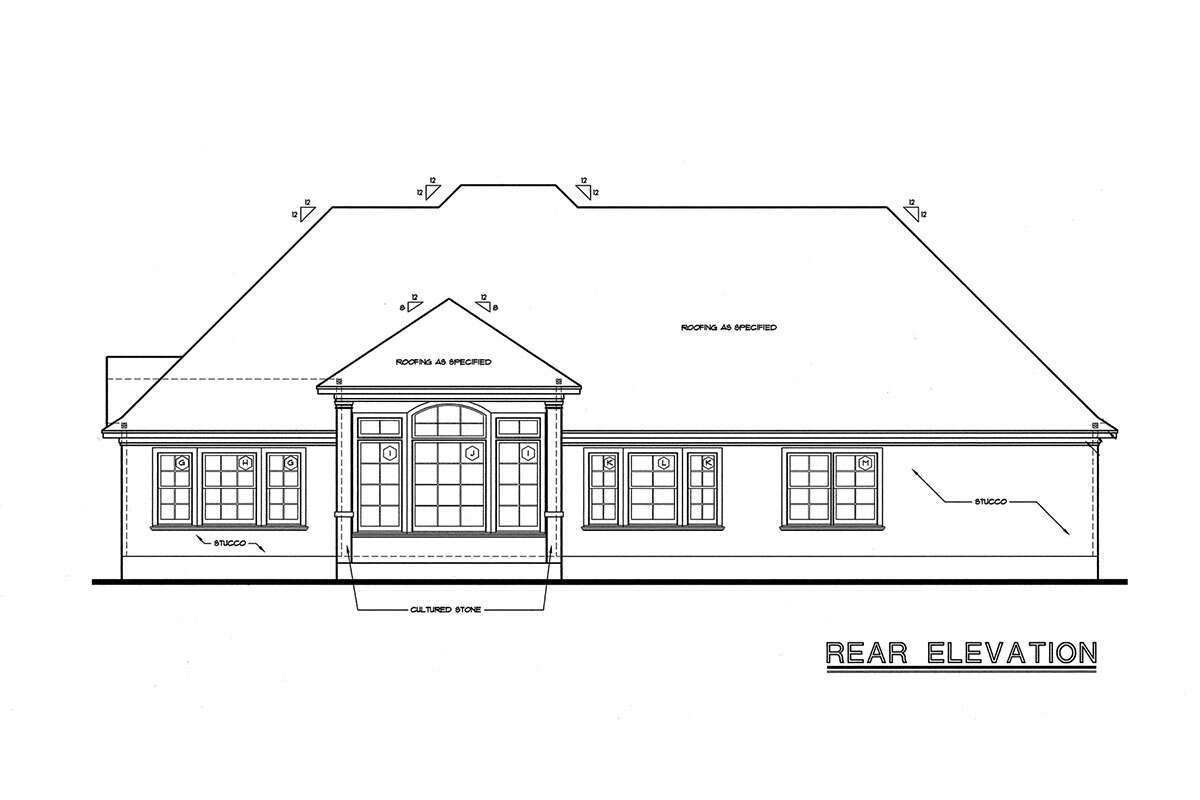

  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
  • Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
  • Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
  • Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
  • Full technical support is provided to purchasers of each plan to answer your plan-related questions.
  • *Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).


Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This sophisticated French Country single story house plan is reminiscent of homes that dot the landscape of European cities and townships. The elegant exterior is comprised of differing hues of brick and stone work, a turret inspired wall feature and interesting rooflines. The front covered entrance features a walkway, paved staircase and a covered porch that frames the house beautifully while offering an inviting space in which to enter the home. The interior floor plan is every bit as inspiring as the exterior featuring four bedrooms and three bathrooms in approximately 2,679 square feet of space. The Ranch home showcases an abundance of wide open entertaining spaces and plenty of private family spaces. The dramatic foyer is spacious with side points further enhancing the space and offering access into the formal dining room and study. French doors accentuate the entrance into the private study where there is a trey ceiling and the room is enveloped in amazing window views. The formal dining room also contains a trey ceiling and elegant space is provided for special family occasions and memory making meals. The great room features an expansive space with a corner warming fireplace, trey ceiling accent and a rear wall of windows overlooking the rear covered porch which is accessible from the breakfast room and master suite. There is a grand kitchen with an angled breakfast bar, a separate pantry and an adjoining breakfast room that is airy and bright. The three car side entry garage is overly spacious with storage space and conveniently leads to the family laundry room and hall closet.

There are three bedrooms and two bathrooms on one side of the home in the split bedroom plan. Bedroom two is generously sized with a walk-in closet and private access to the shared hall bath where is has its own vanity space. On the opposite side of the bath is a second vanity for guests and a hall linen closet. Bedrooms three and four are spacious, each contains a walk-in closet and there is a shared jack and jill bathroom with double but separate accessible vanities. The master suite is privately secluded and occupies one wing of the home; there is a large master bedroom with an exciting trey ceiling accent, a plethora of rear wall window views and private access onto the rear porch. There is a sumptuous master bath which offers luxurious accommodations including cathedral ceiling heights, dual vanities, a separate shower, a compartmentalized toilet and garden tub. The oversized master closet features enviable clothing storage space and sits at the rear of the master bath for privacy. This luxury home “has it all” ~ a spectacular exterior, excellent entertaining space and plenty of private family space.
