Mediterranean House Plan #168-00056 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,713

Beds 6-7

Bath 5

1/2 Baths 1

Car 3

Stories 2

Width 54' 9"

Depth 82' 2"

See What's Included

Select Package

PDF (Single Build)

$1,600.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,400.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

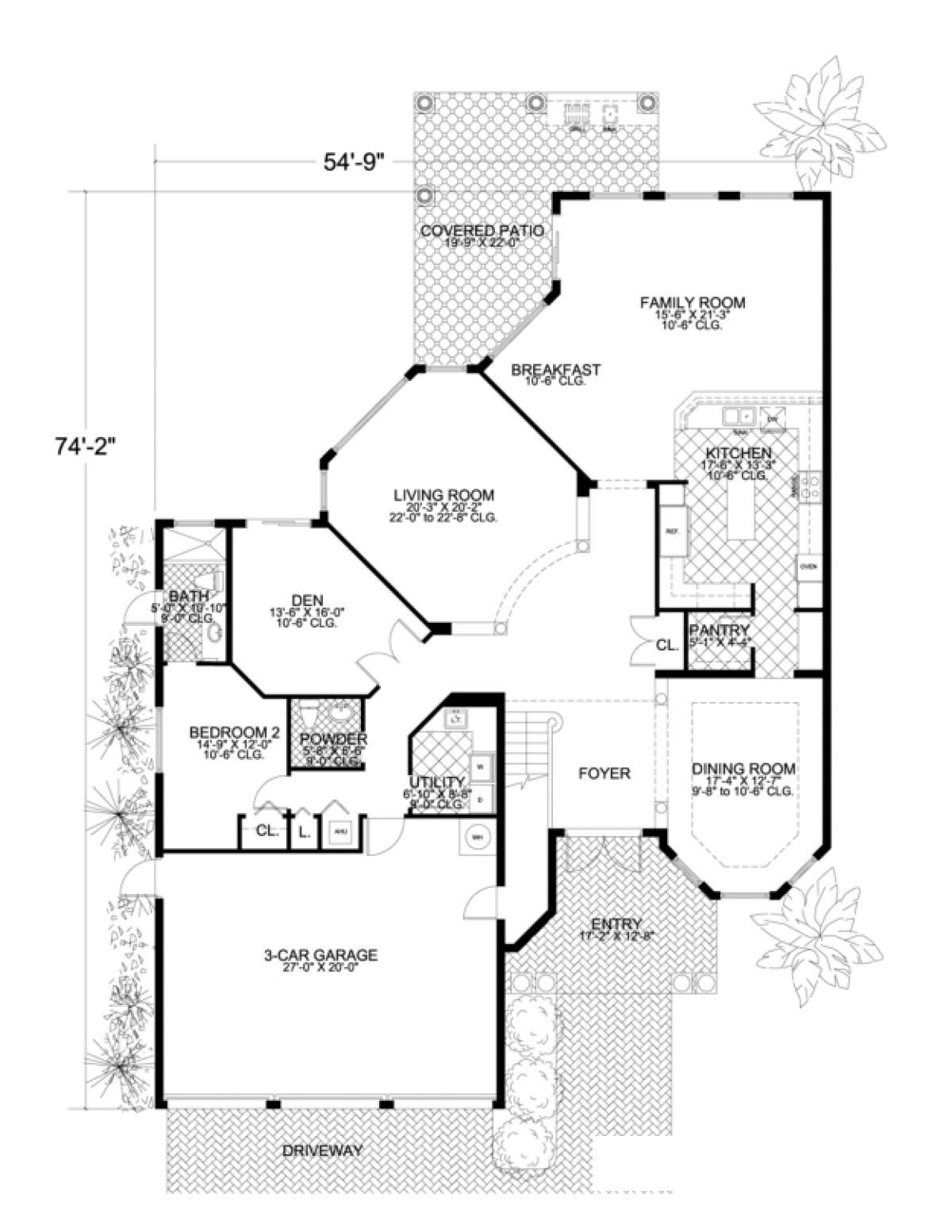

Floorplan 1

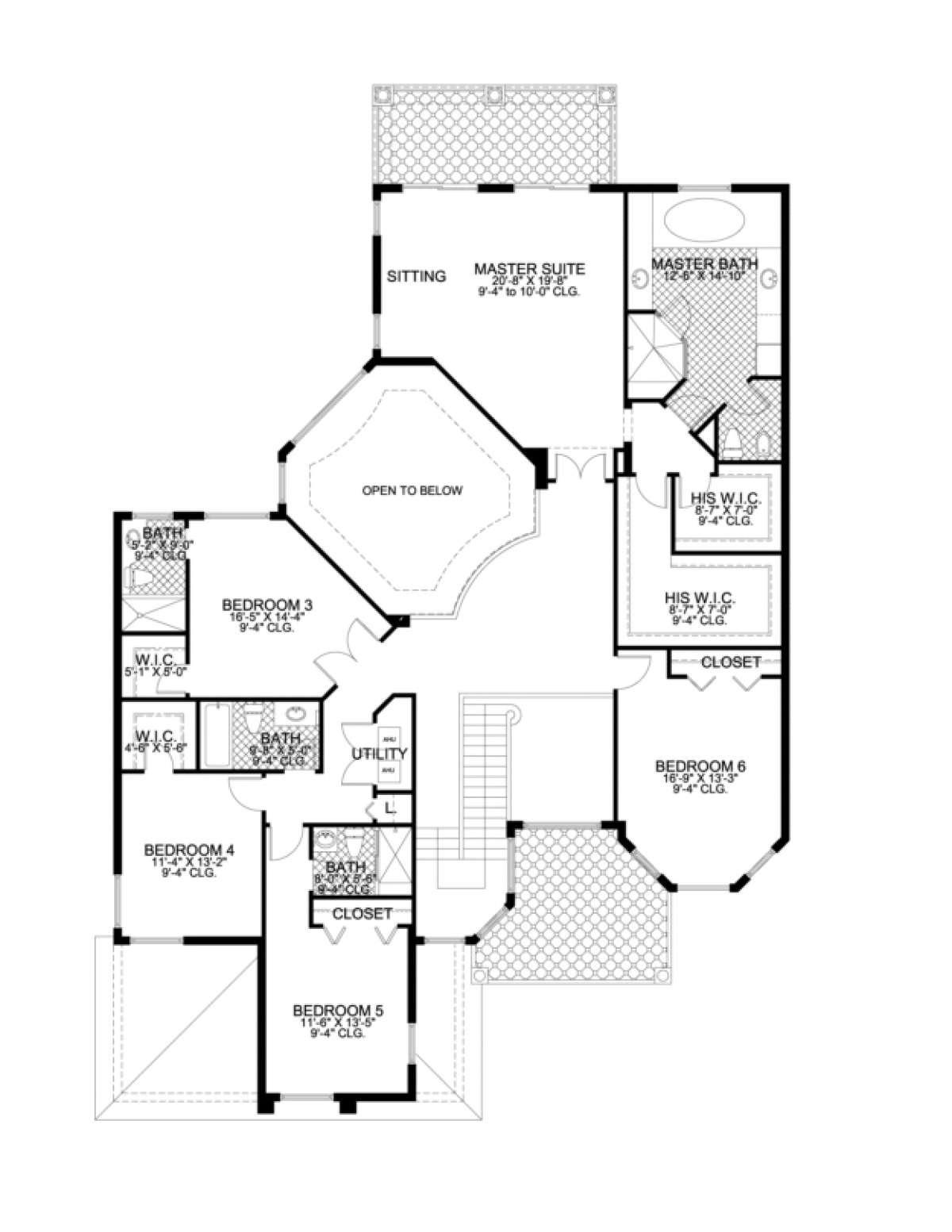

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This is an outstanding Mediterranean style floor plan for a large family; it has approximately 4,700 square feet of living space with seven bedrooms, four and ½ baths and a three car garage. The exterior of the home is a traditional Spanish style with paneled front doors and transom detail which adds to the elegance of the home. The covered front entrance spills into the spacious foyer which is open to the large, trey ceiling dining room. The gourmet kitchen anchors the dining room and informal breakfast room and features an oversized center island, breakfast bar and a separate walk-in pantry. The kitchen and breakfast are open to the family room which provides access to the rear covered patio and summer kitchen. The large living room has a two story ceiling and is open to the central living areas of the home. Additionally, there is a cozy den adjacent to the living room which would be ideal for an office, study or a quiet place to relax. There is a guest bedroom with walk-in closet and private bath on the main level of the home. A powder room, additional linen closet, large utility room and expansive three car garage completes the first level. As you traverse the staircase, you come to the main landing which is open to the first level and bridges to the master retreat, an additional utility room or the additional bedrooms. Bedroom three is oversized with a private bath and walk-in closet as is bedroom four. The fifth bedroom has double closets and a private bath with shower while bedroom six is spacious with a triple bay window and generous closet. Double doors lead to the luxurious master retreat which offers elegance and style with its large bedroom, sitting area and private access to the covered balcony. As you enter the master bath, his and her walk-in closets are located on your right. The master bath has a large footprint and offers dual vanities, an oversized shower and compartmentalized toilet area with bidet. This Spanish style home offers a variety of living space designed with your family’s comfort and love of architectural design in mind.
