Luxury House Plan #168-00075 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 5,690

Beds 6

Bath 5

1/2 Baths 3

Car 3

Stories 2

Width 67' 6"

Depth 85'

See What's Included

Select Package

PDF (Single Build)

$1,800.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,700.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

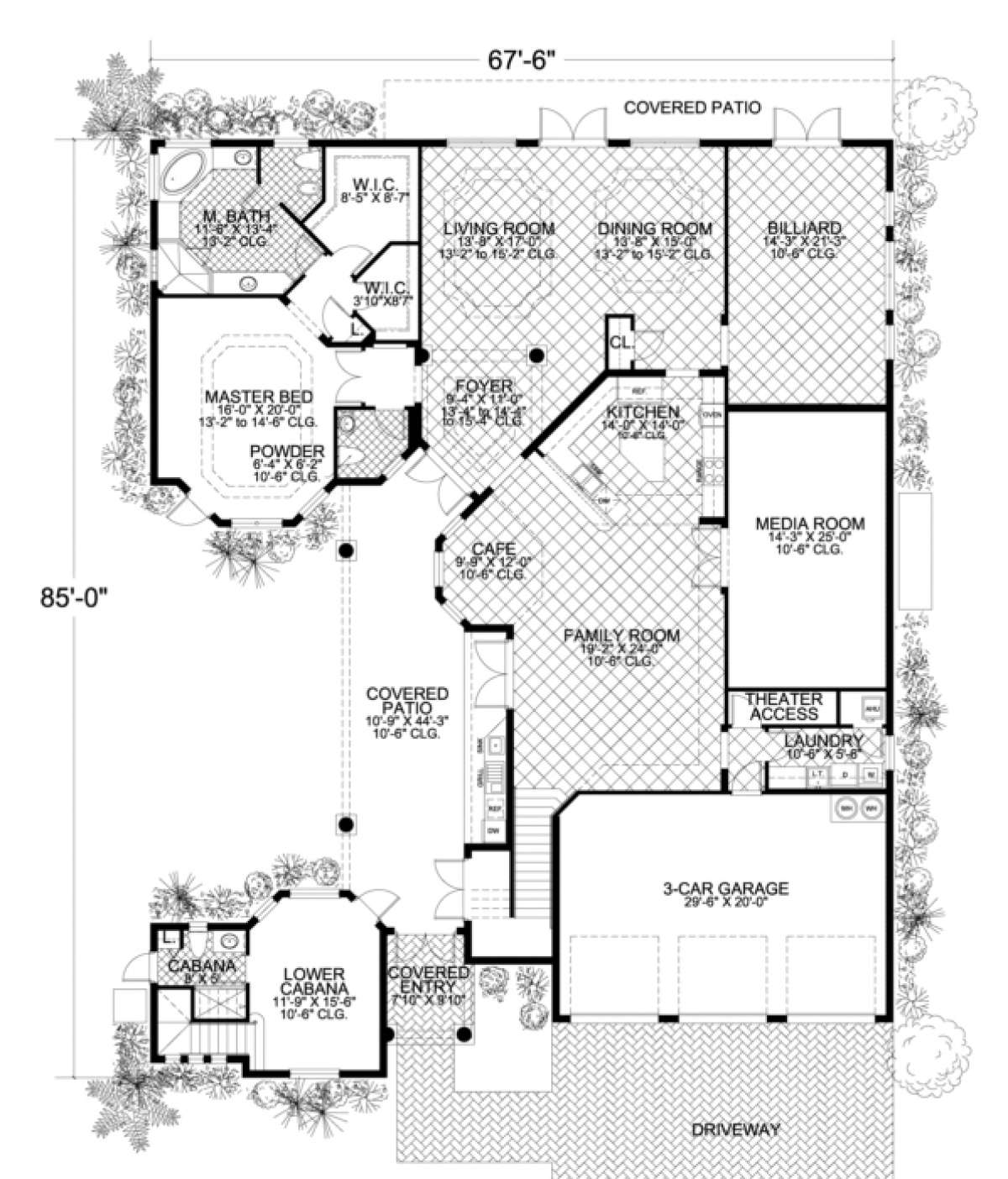

Floorplan 1

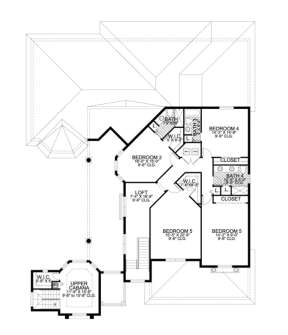

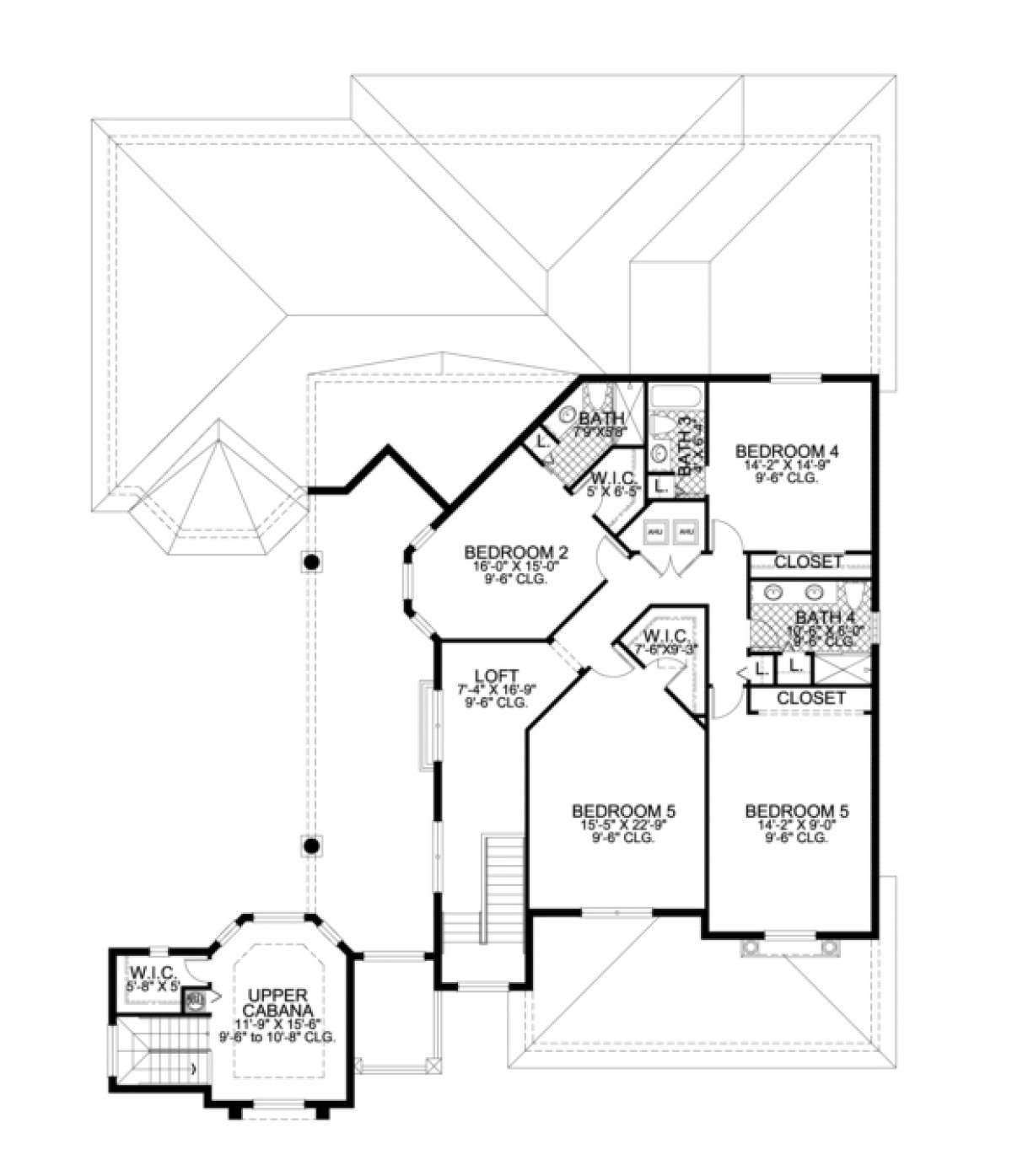

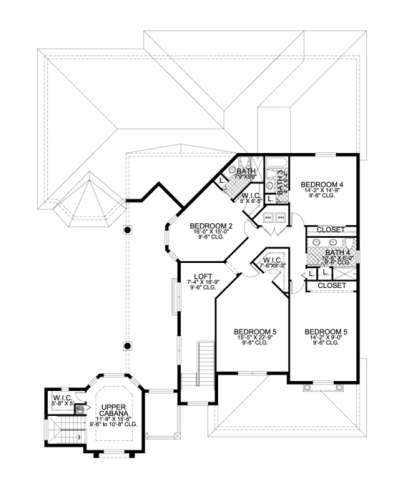

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This luxurious Mediterranean home offers outstanding architectural features which contribute to an exciting exterior façade. The combination of tiled roofing, gently arched windows and grand entrance blend beautifully and present outstanding curb appeal. The interior floor plan is equally stunning and offers a generous 5,600 plus square feet with six bedrooms, four plus baths and a three car garage. The beautifully designed entrance features covered access into the uniquely designed covered patio and courtyard combination with summer kitchen. This is an outstanding use of space and provides a relaxing and comfortable area in which to entertain family and friends. The grand foyer into the home features column detailing and fans out into multiple directions. The formal living and dining room are highlighted with trey ceilings and provide French door access to the rear covered patio. Adjacent to the formal dining room, is the billiard room and a media theatre is accessible from the family room. The gourmet kitchen features a large center island, an additional breakfast bar and an abundance of counter and cabinet space. It is open to the family café which boasts of a triple bay window and, the enormous family room. The master retreat is situated on one wing of the main floor for privacy and features a 16’x20’ bedroom with double trey ceiling and private access to the front covered patio/courtyard. His and her walk-in closets are situated to the rear of the bedroom adjacent to the master bath. The master bath is highlighted by an exquisite garden tub, separate shower, dual vanities and private toilet area. A large utility room houses a sink and additional counter space. A powder room and the three car garage complete the main level of living.
As you travel to the second floor, you are greeted with a loft area perfect for “hanging out” or doing homework. There are an additional four enormous sized bedrooms, two of which have walk-in closets and the other two offer ample closet space. Bedroom two and four have private baths and the other two bedrooms share a hall bath with dual vanities and double linen closets. The upper cabana features private access, a triple bay window and walk-in closet. This home is a gorgeous example of classic Mediterranean styled living and a spacious and versatile floor plan providing a plethora of entertaining options.
