Mediterranean House Plan 168-00046

Sq Ft3,956
Beds6
Baths4
1/2 Baths0
Stories2
Cars3
Width60' 0"
Depth76' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

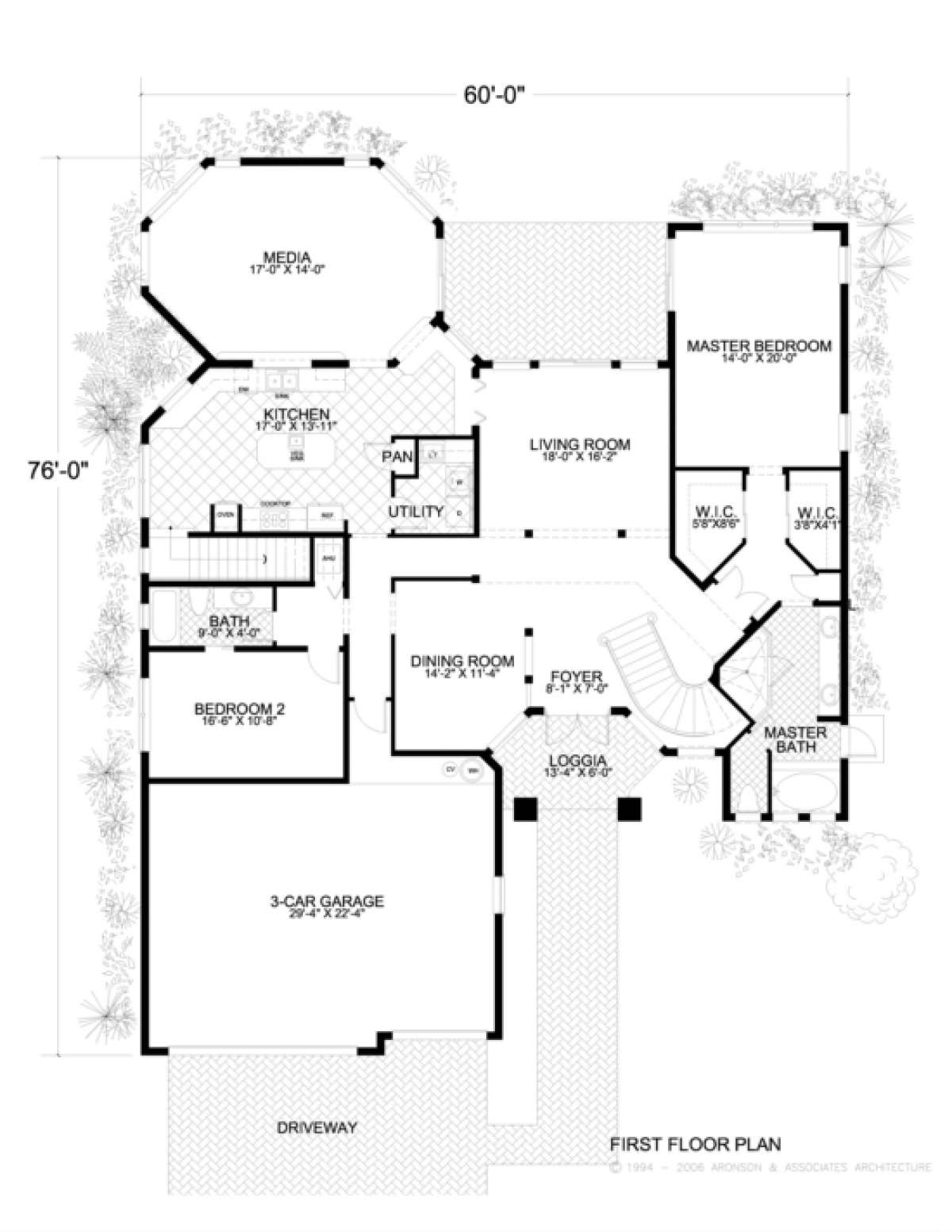

Floorplan 1 for House Plan #168-00046

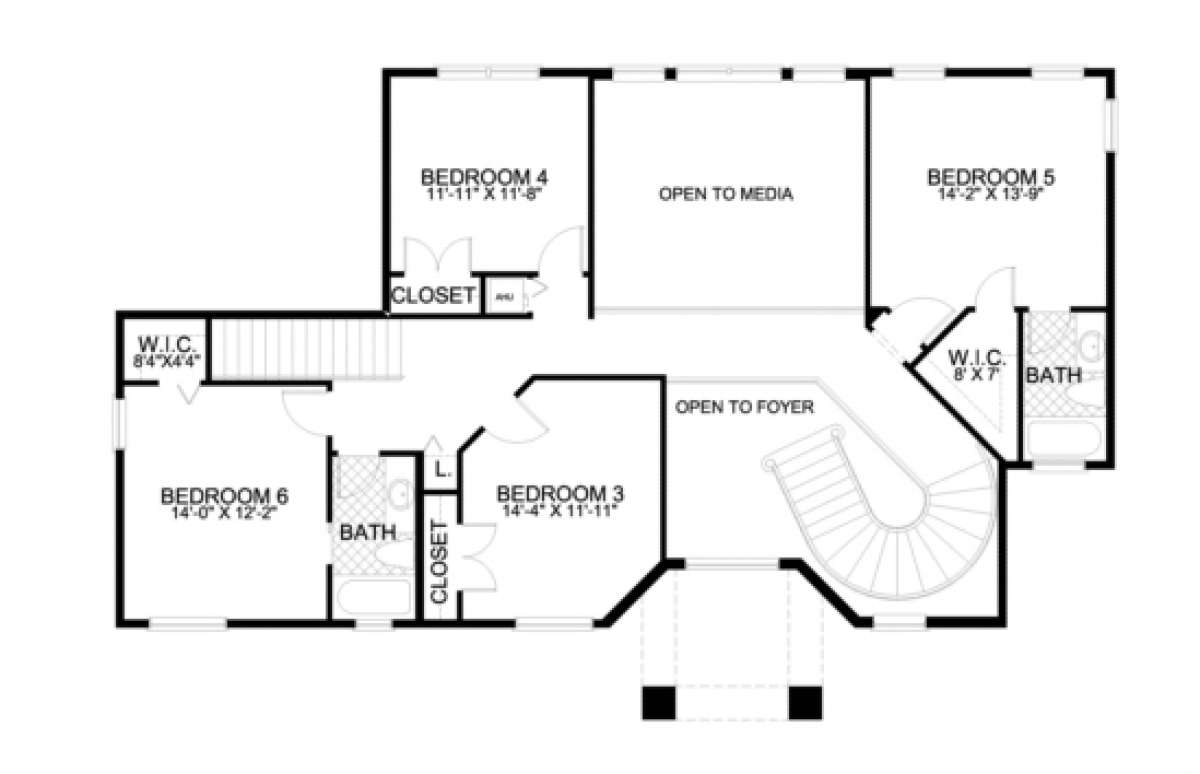

Floorplan 2 for House Plan #168-00046
Floorplan 1
Floorplan 1 for House Plan #168-00046
Floorplan 2
Floorplan 2 for House Plan #168-00046


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This architecturally stunning Mediterranean home is highlighted by classic Spanish features such as stately columns, tile roofing and a loggia ~ an architectural feature that refers to a gallery or corridor at ground level, sometimes higher, on the facade of a building and open to the air on one side, where it is supported by columns or pierced openings in the wall ~ more commonly referred to as an open gallery. The towering covered entrance features a custom double paneled door with arched transom which spills into the dramatic foyer. The two story foyer is highlighted by a handsome curved staircase and is open to the formal dining room and living room which has rear patio access. The gourmet kitchen has a superior footprint and features a large center island with breakfast bar, separate pantry, cafe and an abundance of additional counter and cabinet space. A 17’x14’ unique octagon shaped media room sits at the rear of this space and is an exceptional feature that offers an ideal spot in which to relax and unwind with family and friends. The guest bedroom is spacious and has a private bath while the master retreat occupies the other wing of the main floor for privacy. The master bedroom is quite large and is accessed through French doors. His and her walk-in closets line the hallway to the master bath which features dual vanities, an oversized shower, roman spa tub and a compartmentalized toilet. A powder room and three car garage complete the main level of the home and the second floor can be accessed by the grand curving staircase or the back staircase located at the rear of the kitchen. Upstairs, you will find four additional bedrooms. Bedroom three and four offer generous closet space and access to a hall bath while bedroom five has a walk-in closet and private bath. Bedroom six also has a walk-in closet and private access to the hall bath. This home is ideal for a large family and offers a versatile floor plan with many open living spaces in which to entertain while also enjoying cozy spots in which to privately relax.
