Coastal House Plan 168-00069

Sq Ft5,445
Beds6
Baths6
1/2 Baths1
Stories2
Cars2
Width61' 8"
Depth75' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

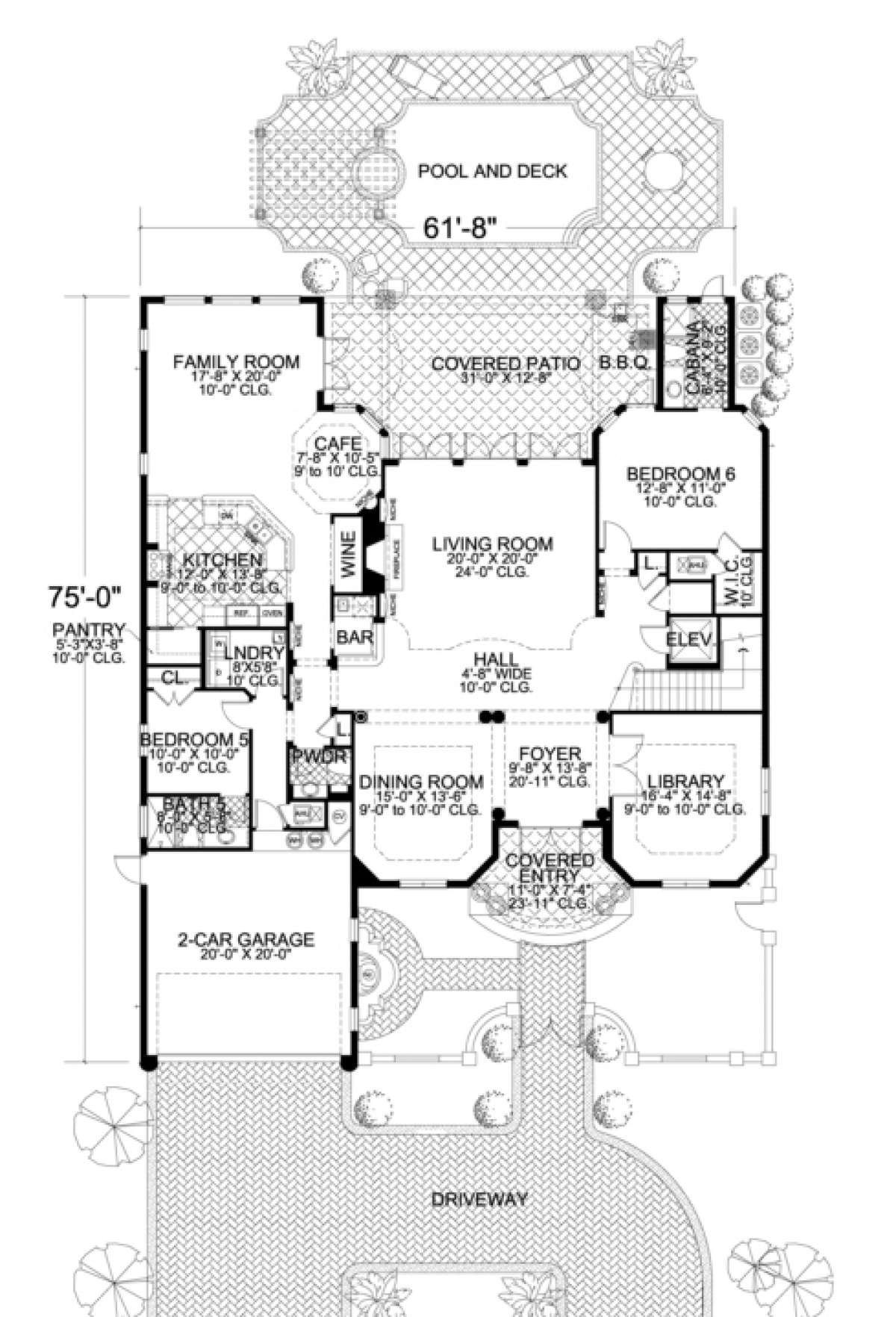

Floorplan 1 for House Plan #168-00069

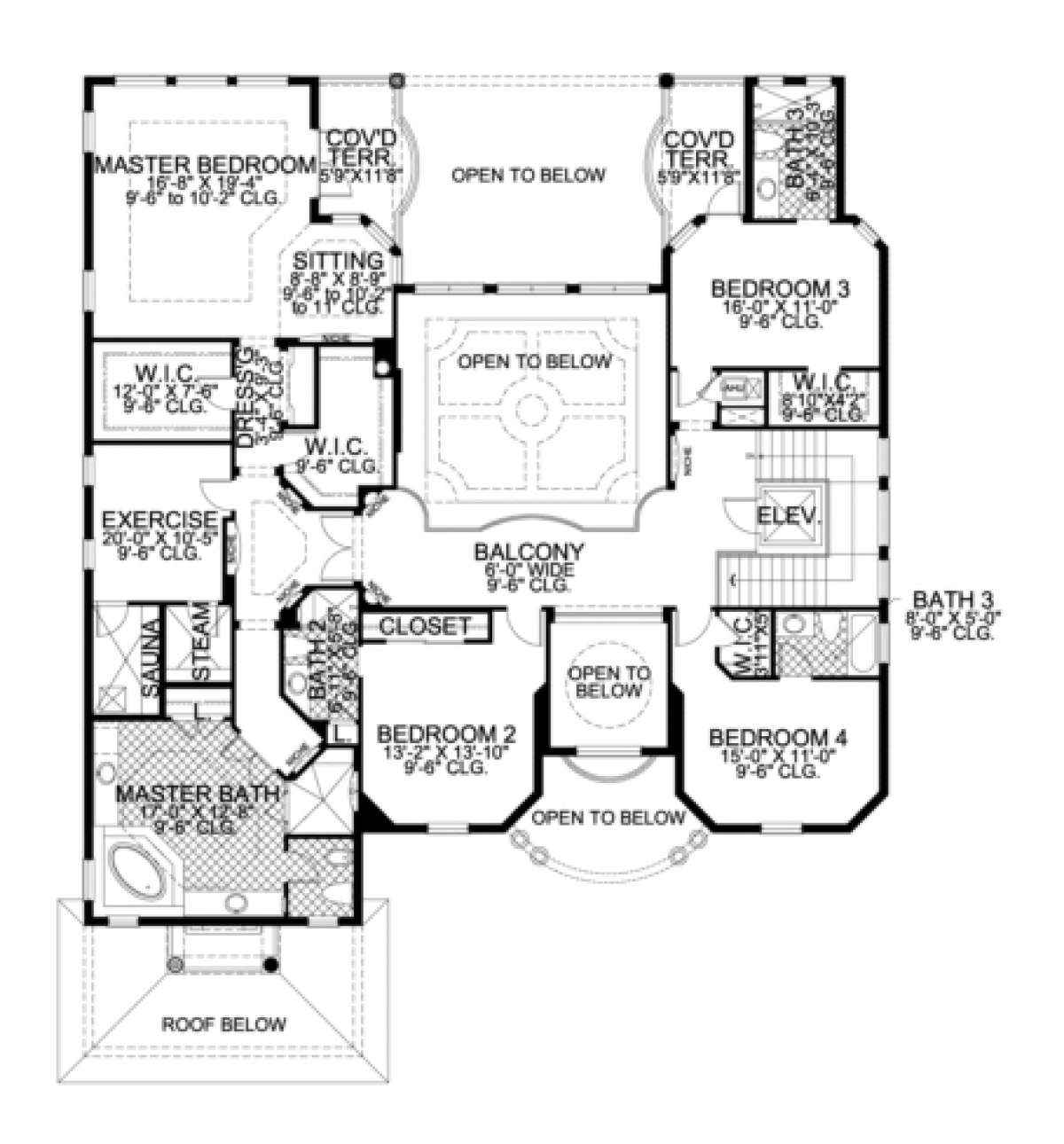

Floorplan 2 for House Plan #168-00069
Floorplan 1
Floorplan 1 for House Plan #168-00069
Floorplan 2
Floorplan 2 for House Plan #168-00069


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Floor Plan
    Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • Kitchen & Bath layouts
    The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
  • Elevations
    All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
  • Sections
    Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
  • Structural Plans
    All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
  • Foundation Plan
    Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
  • Roof Plan
    Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
  • Mechanical Plans
    Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
  • Electrical Plans
    Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
  • Plumbing Plan
    Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This commanding exterior façade highlights bold and bright design features in the Mediterranean style. The combination of warm colors, beautiful ironwork and towering features all work to create a beautiful home. The grand entrance is highlighted by columns, a “Juliet” balcony and a double door entryway which leads to the generous foyer. Flanked on either side of the foyer is the formal dining room and private library; the dining room is open and has a trey ceiling detail while the library is accessed through French doors. The gallery hallway opens onto the formal living room which is expansive and features a fireplace, built-in cabinetry, a wet bar/wine storage area and is highlighted by triple French door access to the rear covered patio. The rear courtyard houses a summer kitchen which would be the ideal spot for entertaining and hosting backyard bar-b-ques. The gourmet kitchen features a breakfast bar, plenty of additional counter and cabinet space and is open to the family room and octagon shaped café with a triple bay window. The family room is the ideal space to gather and relax family style and it has triple window views to the rear yard and patio access. There are two bedrooms, one with a walk-in closet and the other has ample closet space. Bedroom five has a private bath while bedroom six has access to the cabana bath. A staircase and residential elevator sit off the foyer for your family and guest’s convenience. A powder room, laundry room and two car garage completes the main level of living.
Upstairs is a plethora of additional living and sleeping spaces; two of the bedrooms offer walk-in closets and private baths and one has access to a private covered terrace. The third upstairs bedroom has ample closet space and a private bath. The master retreat is just that, a retreat that occupies one half of the second level. The master bedroom is sizable with an additional sitting area and private covered terrace. His and her walk-in closets have a dressing area and there is an exercise room with a steam room and sauna attached. The master bath is simply stunning and features a corner garden tub, separate shower, dual vanities and a compartmentalized toilet. This home exudes grandeur and luxury at every turn and offers an exciting and versatile floor plan sure to please the most discriminating homeowner.
