Coastal House Plan 1018-00235

Sq Ft5,653
Beds5
Baths5
1/2 Baths2
Stories2
Cars3
Width83' 8"
Depth104' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

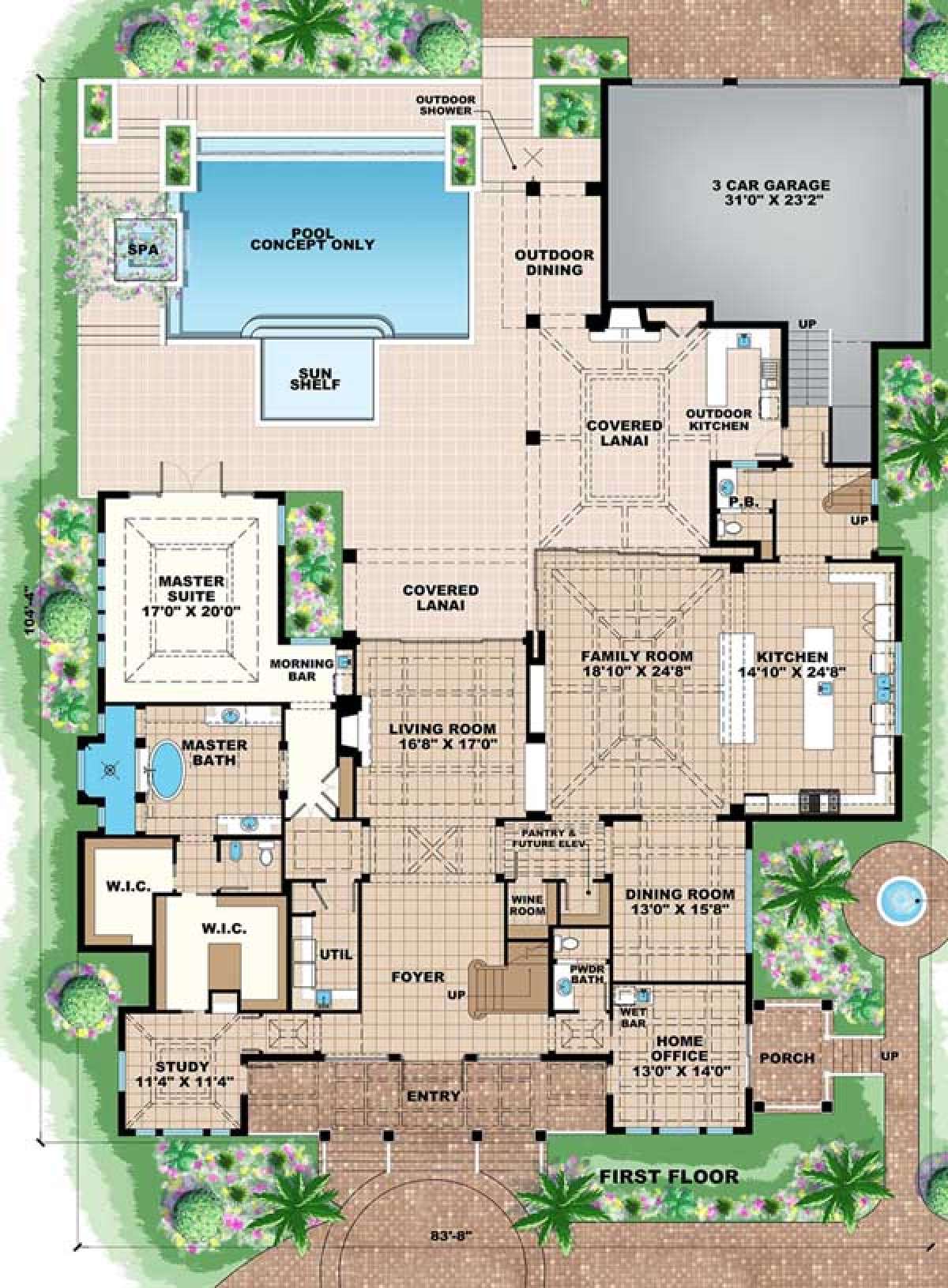

Main Floor Plan

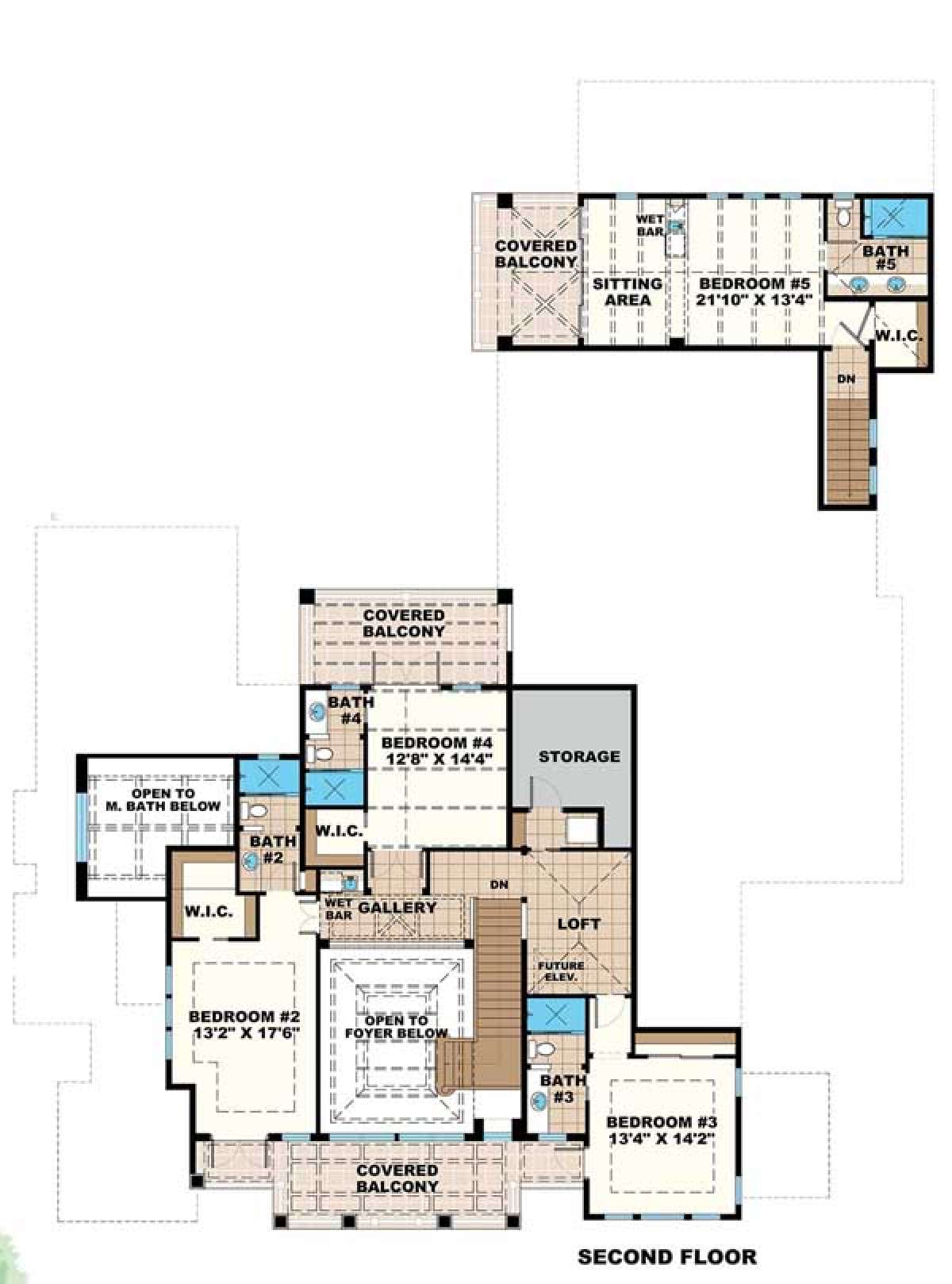

Upper Floor Plan


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Elevations: Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes, Material Labels, Floor-to-Floor Heights, Roof Slope Indicators
  • Floor Plans: Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes, Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes
  • Electrical Layouts: Building Section Markers, All Electrical Outlets, Fixtures, and Switching
  • Slab Plan: Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable)
  • Roof Design Plan: Drawn at 1/8" to 1/4" = 1′-0"scale, and Includes, All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
  • Building Sections: Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes, Floor Joist Size and Spacing, Floor-to-Floor Heights, Non-Typical Plate Heights Indicated
  • Typical Wall Sections: Drawn at 1/8" to 1/2" = 1′-0" Scale, and Includes, All Labels Indicating Wall Construction, Foundation Wall Thickness and Reinforcing, Insulation Type and Thickness
  • Miscellaneous Notes and Details: Miscellaneous General Notes, Stairway details (if applicable)

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This plan is not for sale for use in the following areas without the written consent of the designer:
Collier County, Florida
Lee County, Florida
