Ranch House Plan 5633-00170

Sq Ft3,233
Beds3
Baths2
1/2 Baths1
Stories1
Cars3
Width88' 0"
Depth67' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

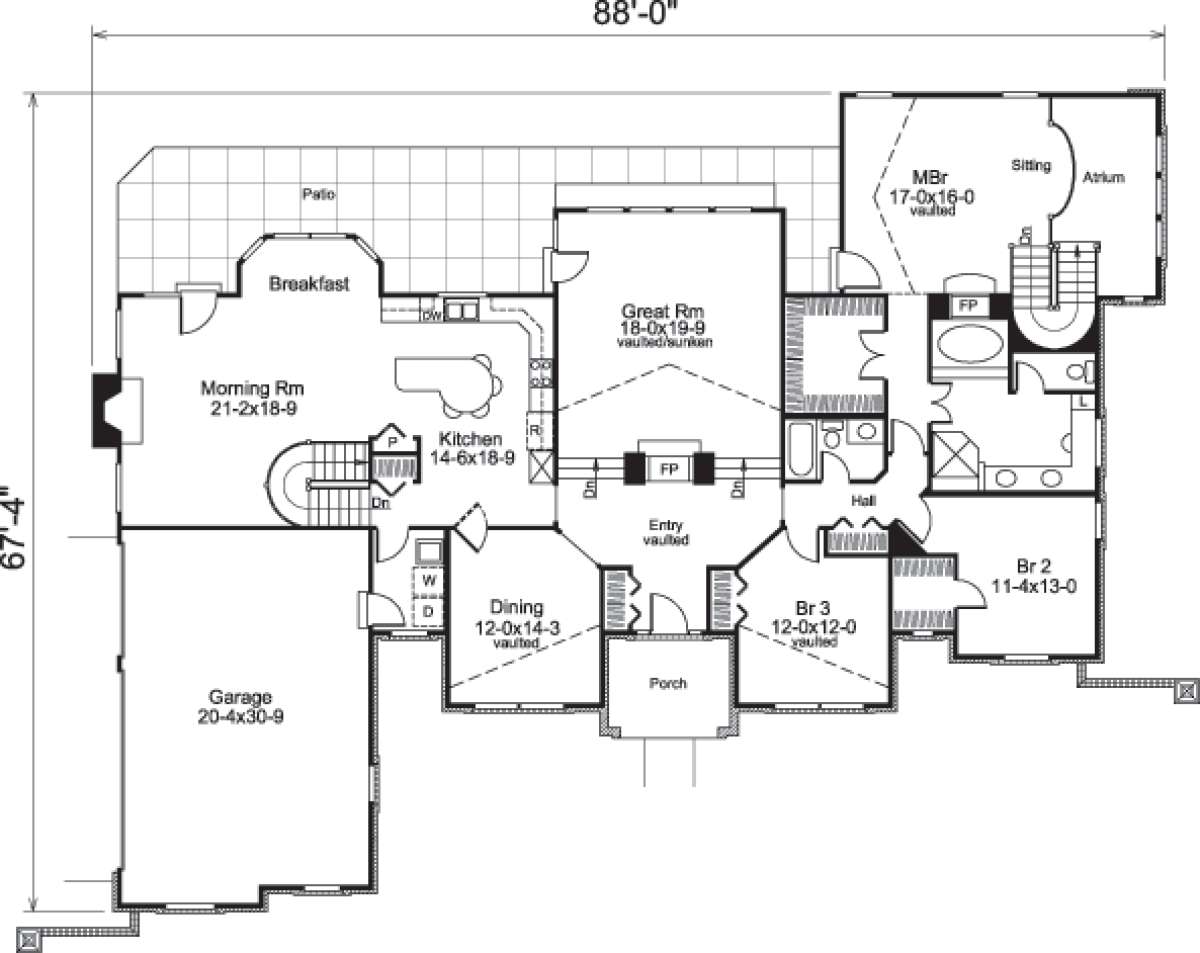

Floorplan 1 for House Plan #5633-00170

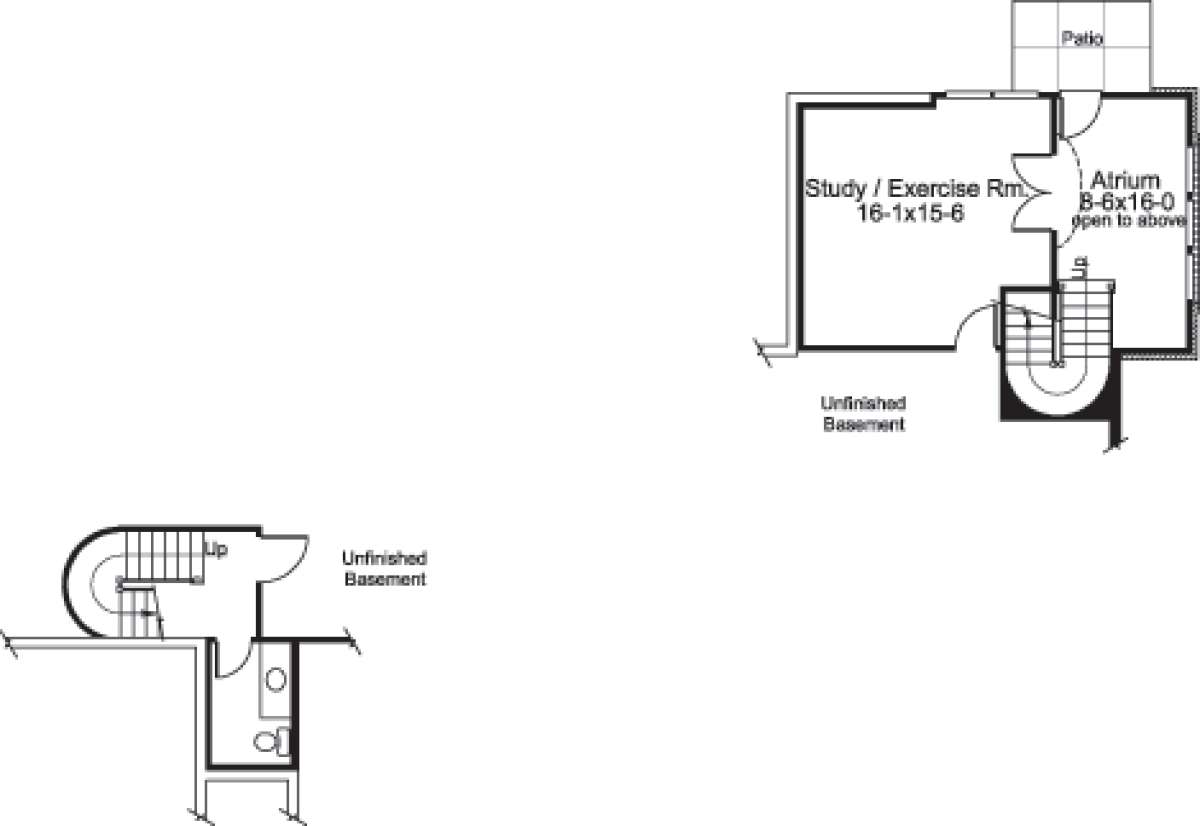

Floorplan 2 for House Plan #5633-00170
Floorplan 1
Floorplan 1 for House Plan #5633-00170
Floorplan 2
Floorplan 2 for House Plan #5633-00170


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

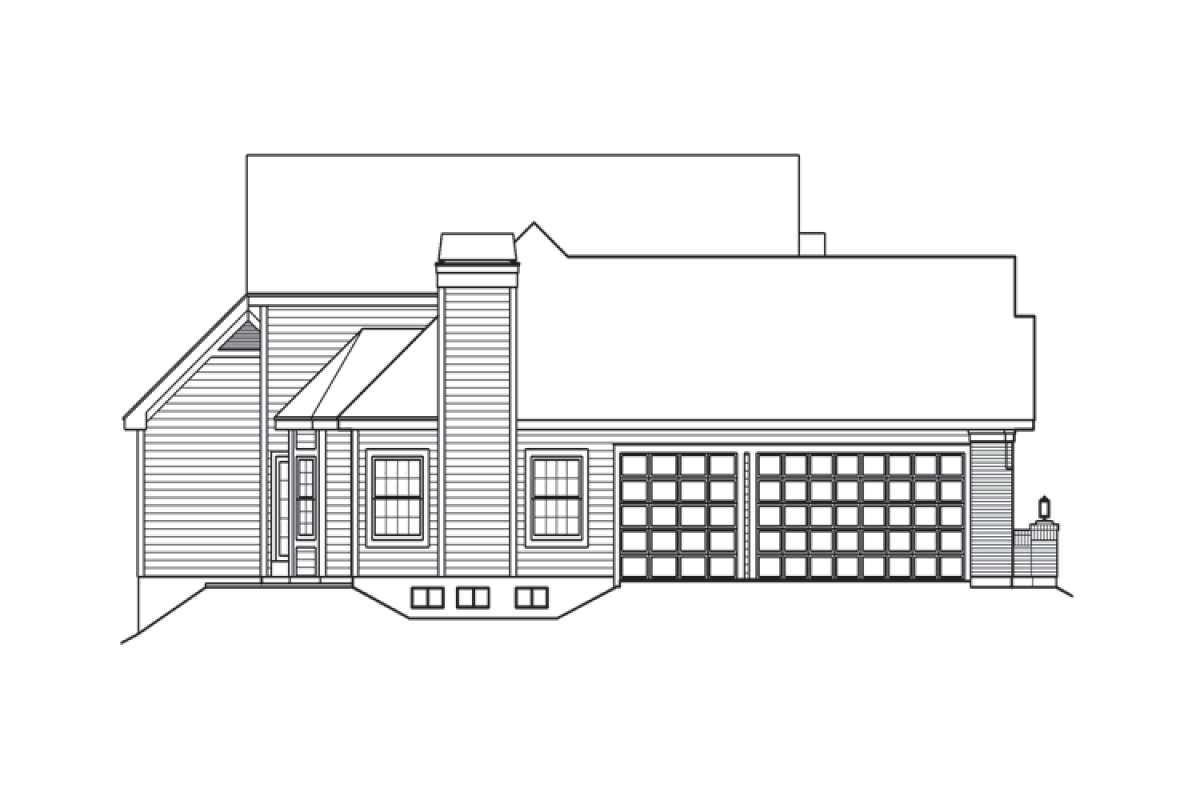

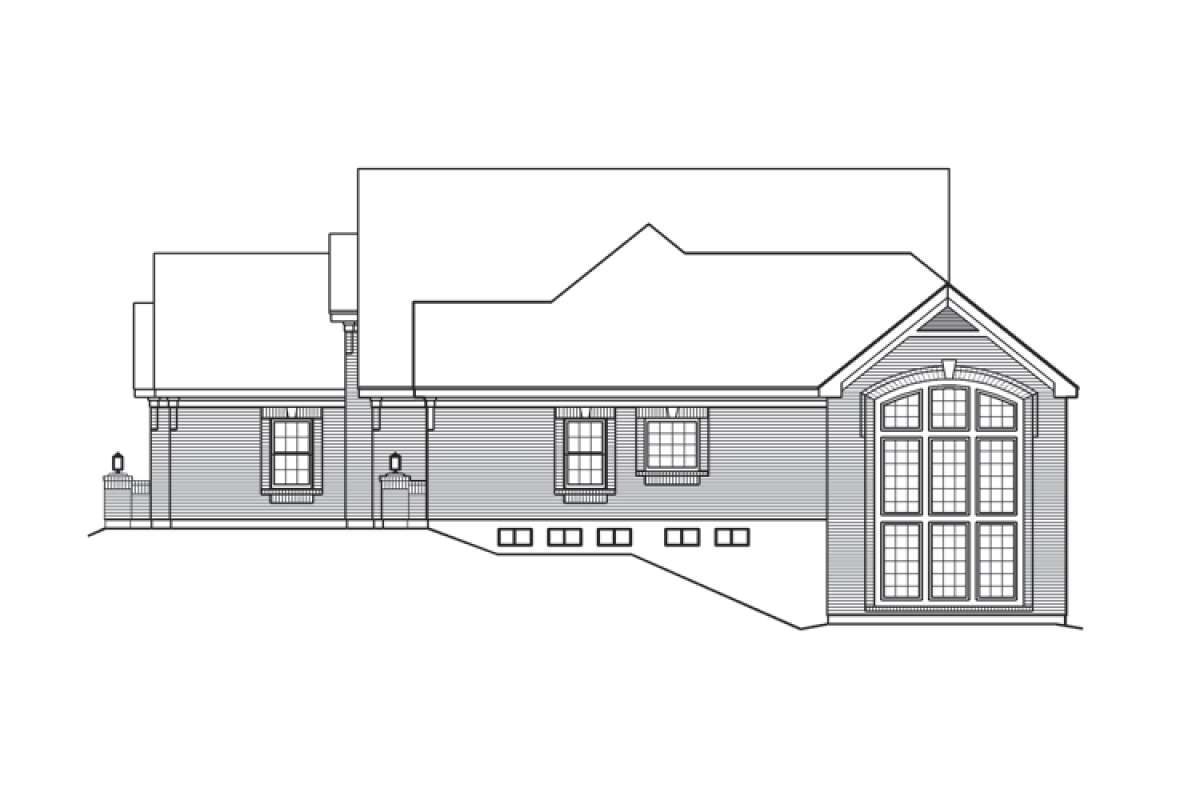

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This luxurious brick face Ranch house plan combines modern living with ergonomic design features. Clean lined and welcoming, the one story home features multiple gables, a grand entrance and brick garden walls. A walk-out basement houses an exercise room/study, a half bath and a multitude of unfinished basement/storage space which in combination with the main floor’s approximate 2,886 square feet of space encapsulates a large and spacious home. The centrally located great room has amazing space, a see-thru fireplace separates the great room and foyer, there is a rear wall of windows and the room is vaulted and sunken. A vaulted dining room basks in sunlight and provides a pass-thru to the gourmet kitchen which boasts of the absolute best in modern conveniences and amenities. There is an island breakfast bar, separate pantry and a host of additional counter and cabinet space. The kitchen opens onto the family breakfast room, which is nestled into an oversized bay window and provides rear patio access. An enormous morning/hearth room is situated at the rear of the space and is highlighted with a warming fireplace flanked by picturesque window views. A three car, side entry garage leads to the conveniently located laundry room where tidiness is a priority.
The main hallway of the home features two family styled bedrooms, a master suite and bathing facilities. Bedroom two is spacious with a walk-in closet while the third bedroom features soaring ceiling heights and ample closet space. There is a shared hall bath and linen closet as well. The master retreat is true luxury and consists of an enormous vaulted bedroom with adjoining sitting room and balcony overlooking the two story atrium window wall. This luxurious space is joined with a cozy fireplace which creates warmth and ambience for the retreat. French door access leads to the oversized master walk-in closet and the adjacent en suite bath comes complete with a spacious footprint and well designed features such as dual vanities, a compartmentalized toilet, linen closet, separate shower and a garden tub. This home defines beauty and grandeur providing a striking exterior façade and a fully functional and comfortable interior layout.
