Luxury House Plan 028-00114

Sq Ft4,357
1/2 Baths0
Width94' 0"
Depth82' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

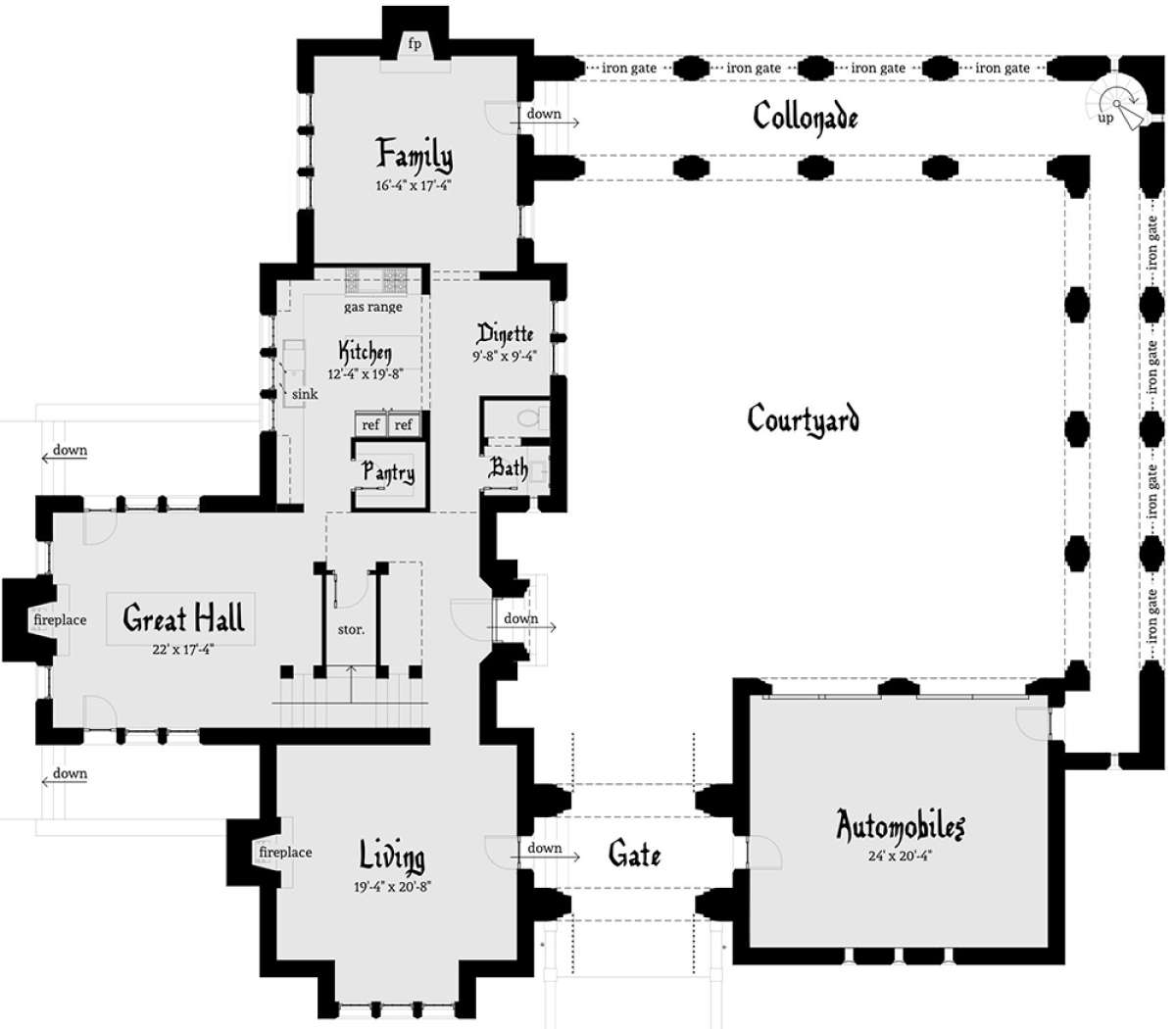

Main Floor for House Plan #028-00114
Second Floor for House Plan #028-00114
Main Floor
Main Floor for House Plan #028-00114

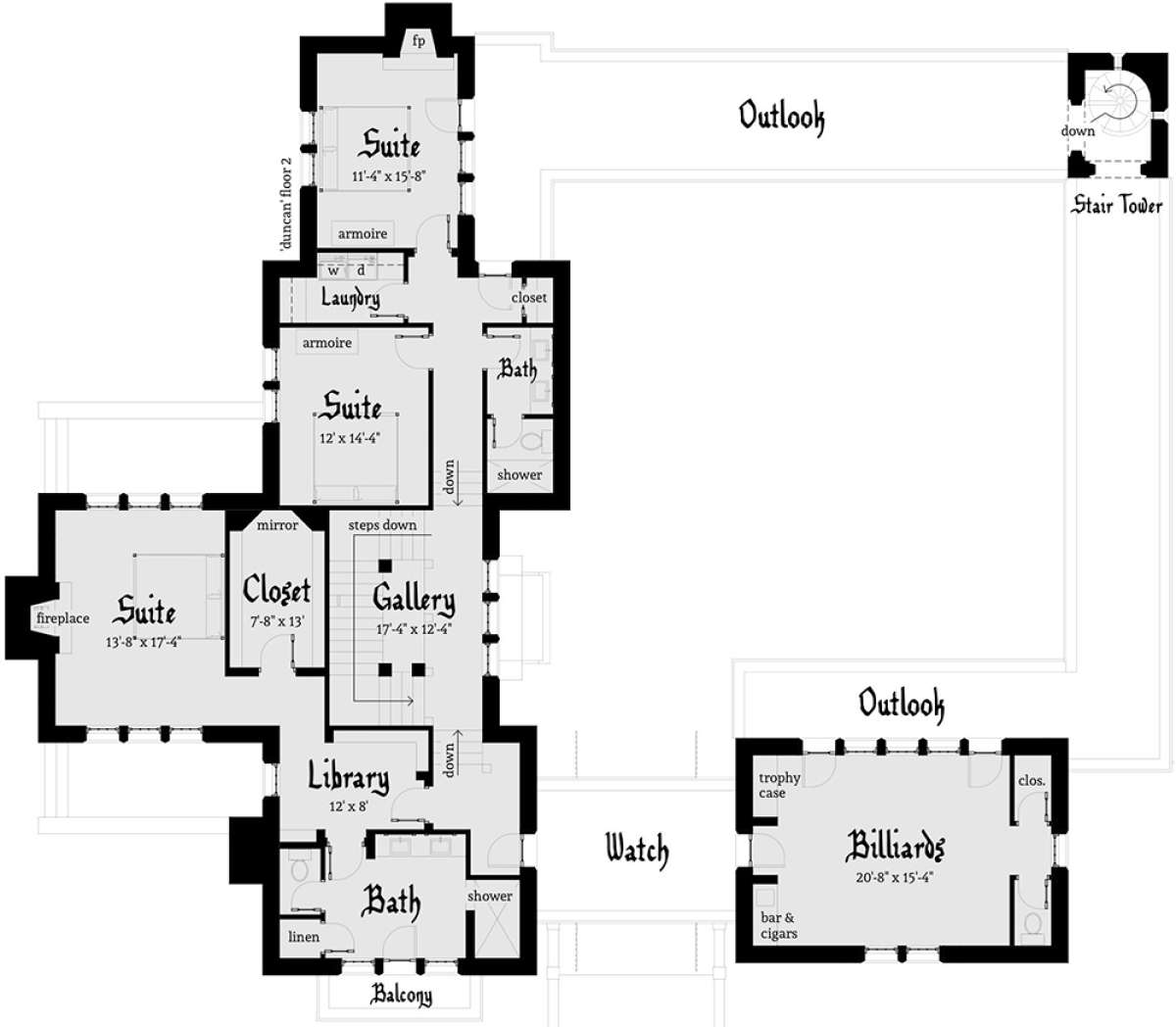

Second Floor
Second Floor for House Plan #028-00114

Frequently Asked Questions


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets


E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This superior manor house design combines the essence of yesteryear with extravagant building materials and a modern floor plan which give it a 21st century time stamp. The “castle” features wonderful vertical composition highlighting walls of stacked stone, beautifully encased window features and a regal entrance. Grandeur and elegant define the home’s exterior and interior which is in excess of 4,350 square feet. There are three bedrooms and two bathrooms and the two car garage adds an additional 613 square feet to the structure. Entrance into the home is highlighted by a cathedral inspired wrought iron gate which opens onto a wide open courtyard with ornate and lavish design features. A colonnade with a series of iron gates frames the exterior of the home on two sides while the garage and home complete the equilateral structure. There is three point access into the home’s interior; one such entrance is into the home’s great hall ~ during the Middle Ages, royal and noble residences used the great hall as a multi-functional room to receive guests and it was the place where the household would gather and dine, including the lord of the manor, his attendants and, most often, some of the servants. This house plan includes such a room which is designed to entertain large groups of family and friends and the stately fireplace sits at the end of the hall. Off the great hall is the formal living room which, once again, features a lovely fireplace and an abundance of room in which to relax and/or entertain. The gourmet kitchen exceeds expectations and features a large center island, a plethora of counter and cabinet space, two refrigerators and an enormous walk-in pantry. The casual dining space overlooks the courtyard and opens onto the family room. This room provides casual family space in which to relax and a fireplace is provided along with access onto the outdoor colonnade.
The second floor of the home is as equally stunning as the first; a gallery hall punctuates the second floor and leads to the family bedrooms. Suite one features a large bedroom with a built-in armoire while the second suite showcases a spacious bedroom with a handsome fireplace, built-in armoire and adjacent access to the outdoor space. The outlook encompasses the length and width of the courtyard below with a corner stair tower and the adjoining watch tower sits above the gated entrance. A shared hall bath with double vanities and the family laundry room is situated alongside the bedrooms. The master suite fully occupies one wing of the home for privacy and enjoys a large footprint. The master bedroom features a rear wall fireplace and adjoining, oversized walk-in closet. The master bath is elegantly designed and highlighted by dual vanities, a compartmentalized toilet, linen closet, large shower and access to the balcony. There is a private library with public access within the suite’s walls. Crossing through the watch tower, there is a large billiard room with a bar and cigar area, trophy case, closet and a half bath; this room is ideal for entertaining intimate friends and business associates. This “one of a kind” home has a bold exterior façade, excellent interior design features and an abundance of entertaining and private family space.
