Coastal House Plan #168-00061 Elevation Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 5,016

Beds 5

Bath 5

1/2 Baths 1

Car 3

Stories 2

Width 65'

Depth 60'

See What's Included

Select Package

PDF (Single Build)

$1,700.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

CAD Files (Single Build)

$2,600.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. Requires a CAD program to open the files by a design professional. This package comes with a license to construct one home.

Select Foundation

Slab Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Additional Sets $50.00

Dont see the right plan package for you? Add additional sets to create the perfect plan package for your needs.

Right Reading Reverse $250.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

ABHP Material List $295.00

A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample ABHP Material List

Return Policy, Building Code & Copyright Info

IMPORTANT NOTICE

FRAMING: This plan uses CMU framing. Lumber framing conversions may be available in the purchase options, or the plan can be altered through a modification.

Floorplan Drawings

REVERSE PRINT DOWNLOAD

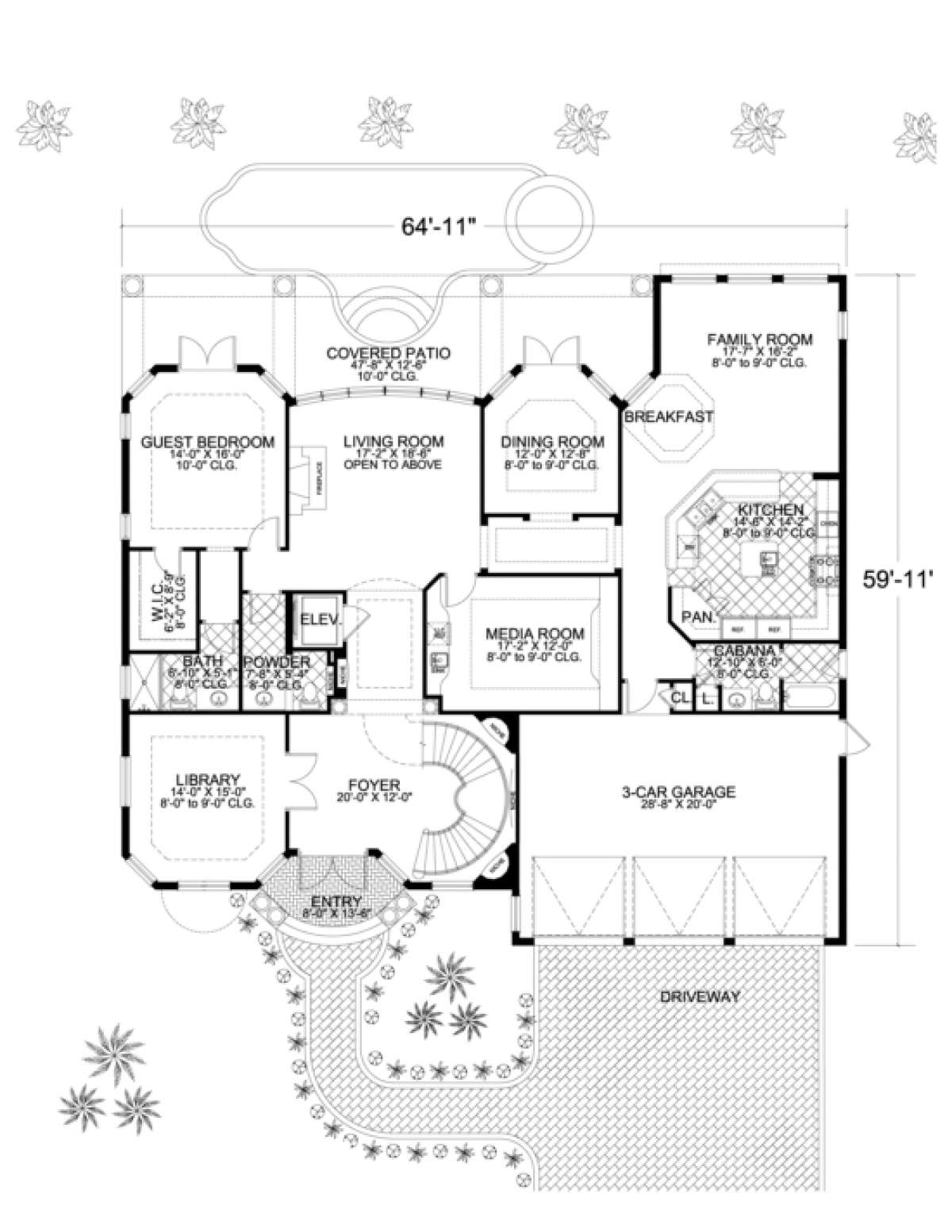

Floorplan 1

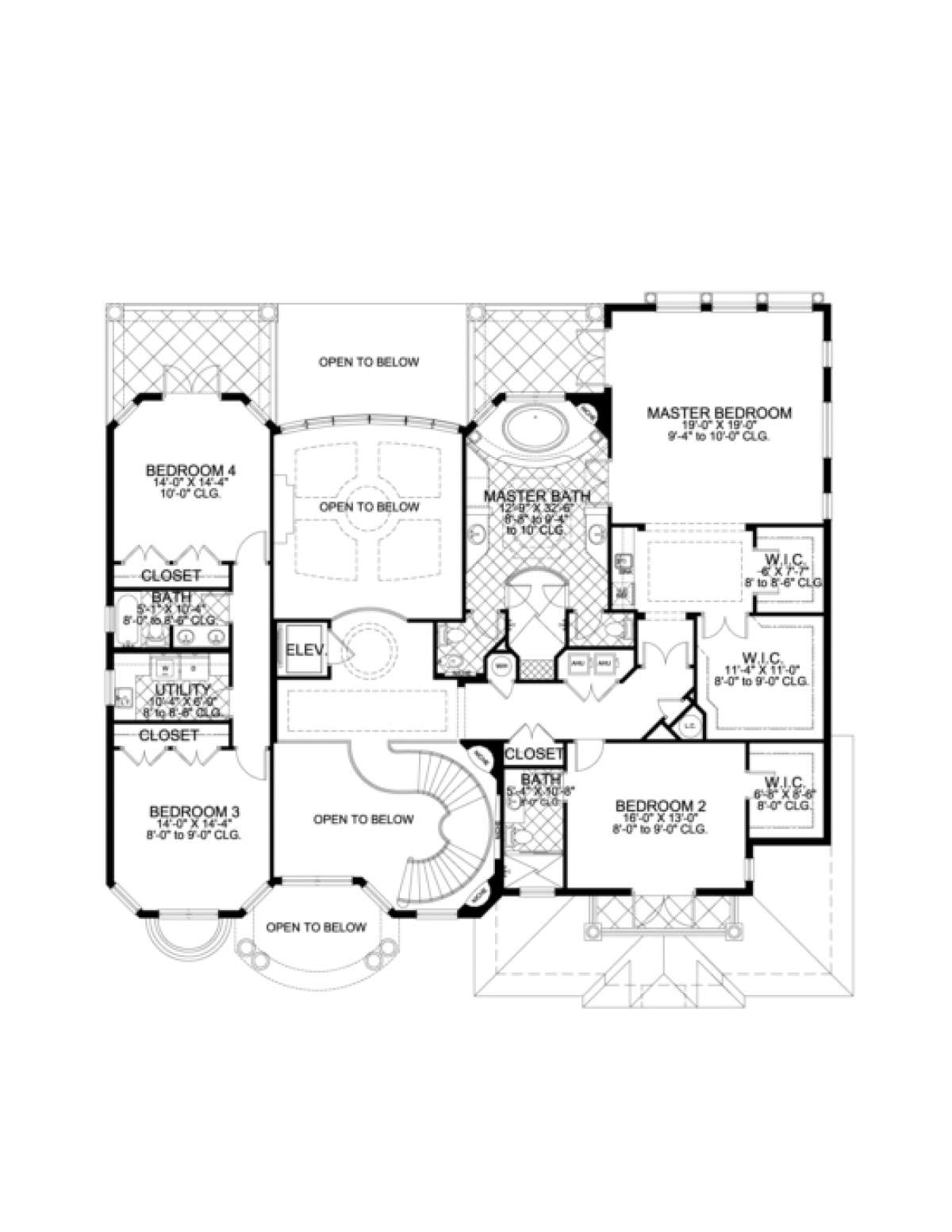

Floorplan 2

Images copyrighted by the designer.

What's Included in these plans?

Floor Plan
Each of our distinctive plans comes with a professionally designed, fully dimensioned Floor Plan indicating the size and location of all walls, doors, windows and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
Kitchen & Bath layouts
The general layout of kitchens and baths is shown on the floor plan and include fixtures and cabinetry.
Elevations
All Plans have scale exterior elevations that show front, rear, left and right sides. These are detailed representations that graphically display heights of significant building features and design elements. Exterior finishes, ornamental design elements, roof type and roof pitch are generally shown on the elevations.
Sections
Wall Sections and Building Sections are incorporated into the set to show a profile slice of the building to indicate recommended methods and materials of construction, including second floor joist framing.
Structural Plans
All building structural requirements are engineered and fully detailed with beam, ledger, footing, column, and header schedules, notes and any special condition (like stairs and residential elevators) and framing details. Connector schedules are based on engineered uplift calculations.
Foundation Plan
Most of the Aronson & Associates Foundation Plans come with engineered reinforced slab foundations. These include thickened edge and footing sizes, section markers, and mechanical equipment locations, as well as all building code related notes.
Roof Plan
Roof and Roof Framing plans are aerial views showing roof slopes, ridges, hips and valleys. In addition to the basic roof lines, our roof plans have specifically engineered truss drawings that show the length, spacing and layout of all roof structural members.
Mechanical Plans
Most plans have separate, fully engineered Mechanical Plans that show detailed information regarding building mechanical systems, and specific equipment details and specifications.
Electrical Plans
Electrical Plans are included separately to provide the level of detail you could only expect from an experienced architect. These drawings fully represent the location of all fixtures, switches and outlets. Lighting calculations, electrical symbol legend, typical Arc Interrupting Current calculations, riser diagrams and panel schedules are also included.
Plumbing Plan
Plan sets include the layout of all plumbing fixtures and normally have a plumbing isometric riser diagram with each fixture labeled.

Ask Us A Question

About This Plan

This two story, classic Mediterranean design boasts of five bedrooms, five and ½ bathrooms plus a cabana bath along with a three car garage. The towering, covered entry offers a dramatic backdrop to the 8’ French doors with arched transom accents that flank the entryway. The two story foyer with curved staircase adds flair and elegance to the home and is open to the luxurious library. A media room with wet bar is the perfect spot to relax and entertain while the large living room features a gorgeous fireplace and a wall of windows view to the rear covered patio. The formal dining room offers a trey ceiling and double French door access to the rear. The gourmet kitchen features a huge island, breakfast bar, separate walk-in pantry and is open to both the breakfast nook and family room. A large three car garage with additional storage and side yard entry and cabana bath are situated on this side of the home while a guest bedroom with private patio access is located on the opposite side. The guest suite also includes an oversized walk-in closet and private bath. In addition to the show stopping staircase, you will find an elevator available for your elderly or infirmed family members or guests. Upstairs, you will find three additional bedrooms, a large utility room and the master retreat. Bedroom two features a large walk-in closet, private bath and oversized bedroom along with private balcony access. Bedroom three has a generous closet, spacious bedroom and share a hall bath with dual vanities with bedroom four. Bedroom four also has a generous closet and private access to a balcony. The master retreat is beautifully designed and continues the trend of luxurious design with its 19’x19’ bedroom, access to a private balcony and morning kitchen. Two walk-in closets grace the master suite and one is the size of a small bedroom. The master bath is huge and offers dual vanities and toilet areas, a separate shower and roman tub with magnificent detail. It’s easy to recognize the value of this Mediterranean style home with its use of outstanding architectural detail and excellent designed floor plan.
