Coastal Plan 028-00189

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,687
Beds 5
Bath 5
1/2 Baths 2
Car 3
Stories 3
Width 34' 8"
Depth 125' 9"

Floorplan Drawings

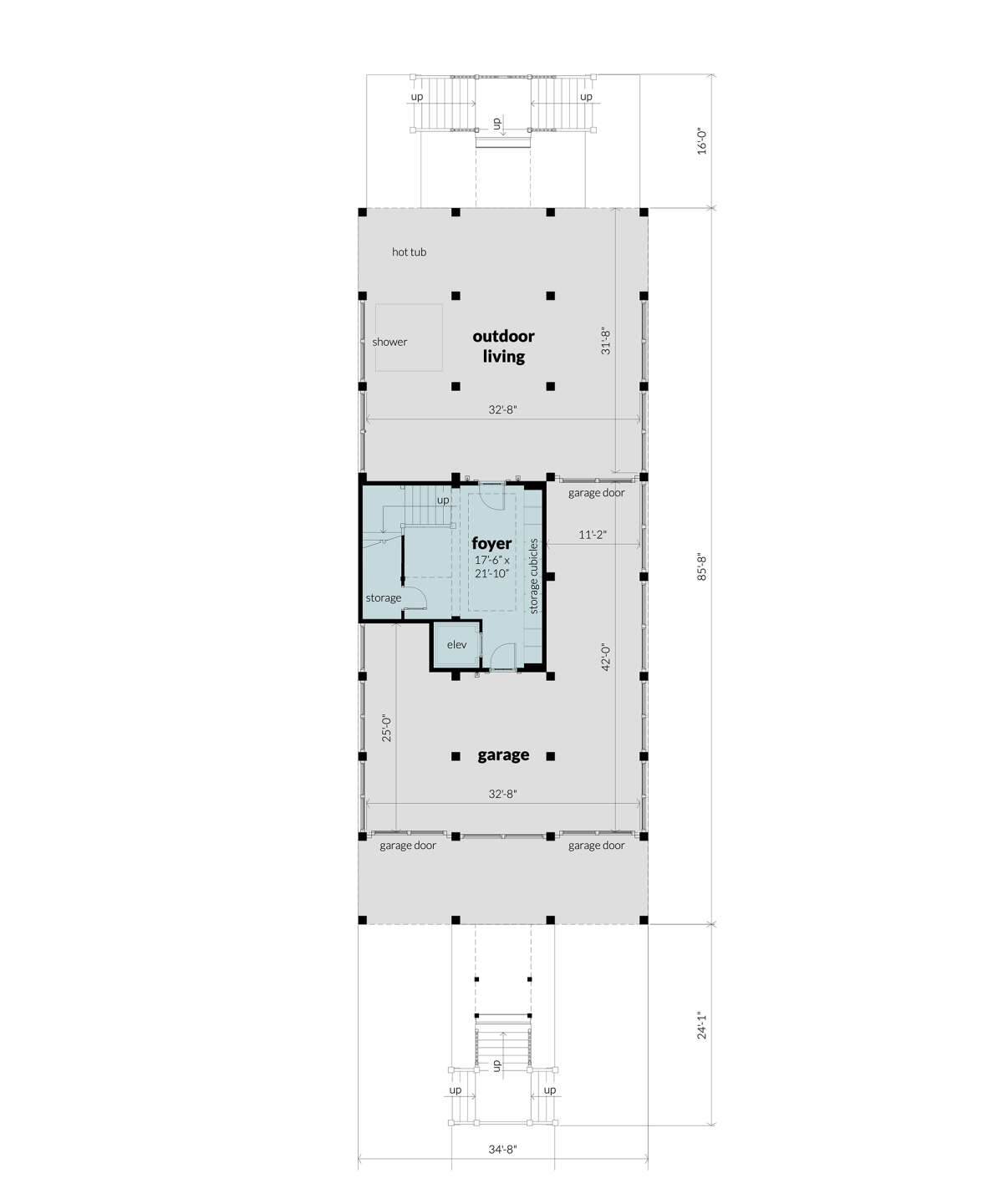

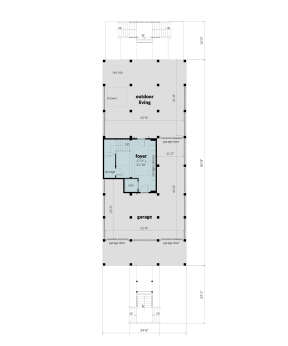

First Floor
First Floor for House Plan #028-00189

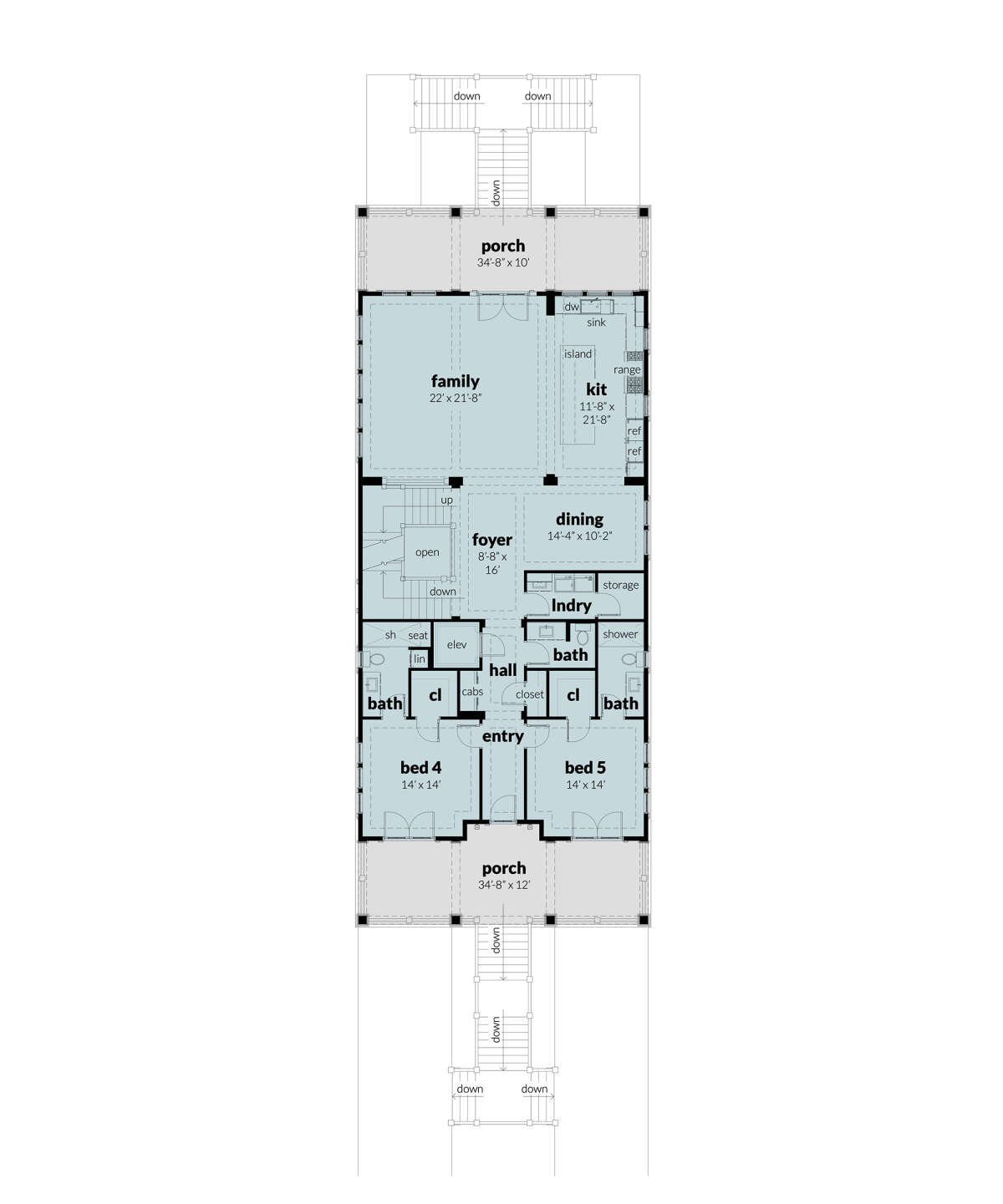

Main Floor
Main Floor for House Plan #028-00189

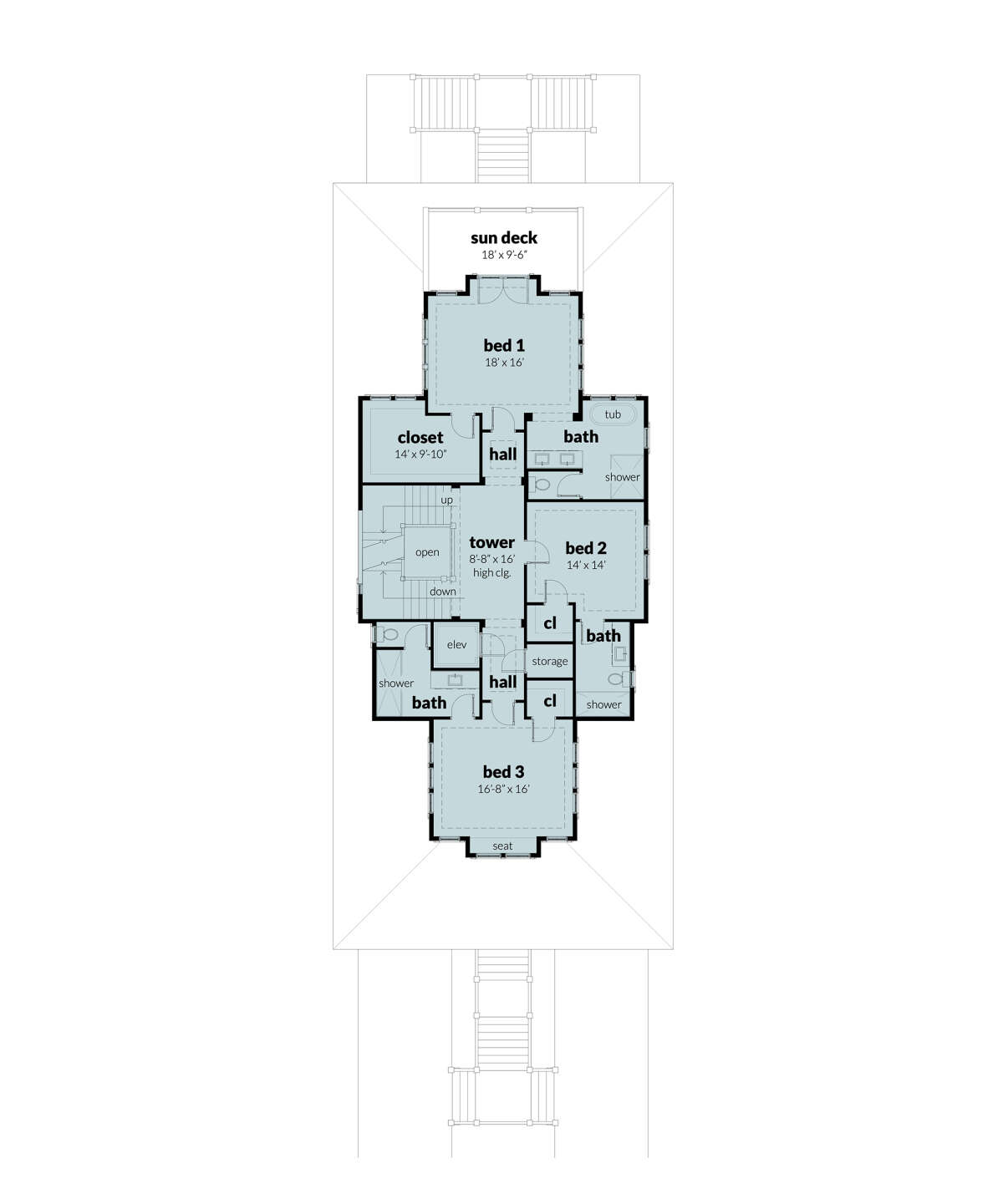

Third Floor
Third Floor for House Plan #028-00189

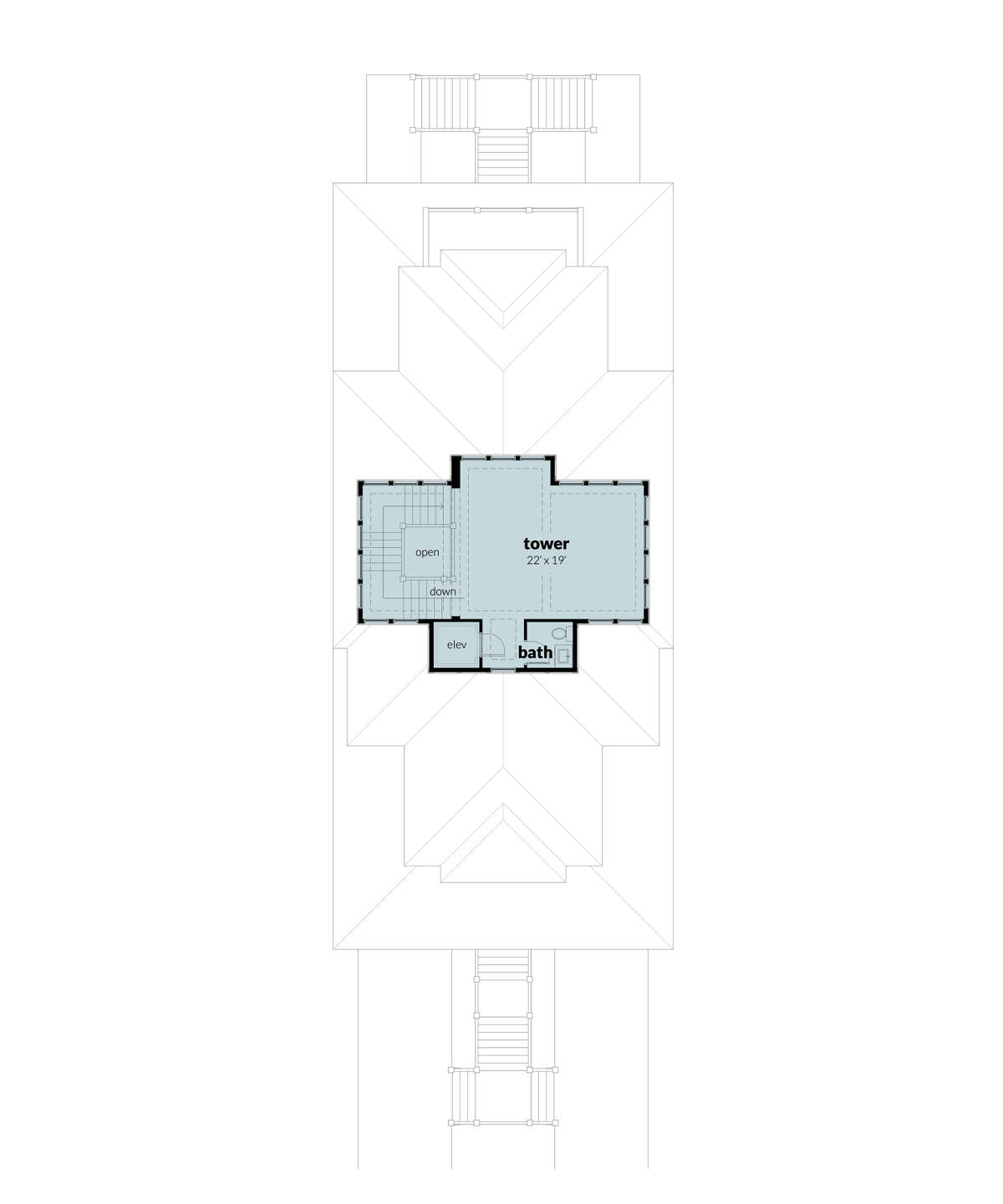

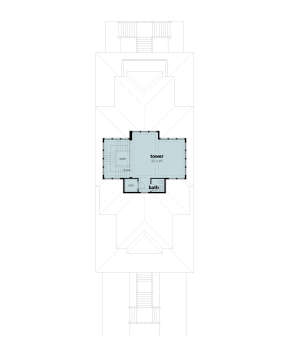

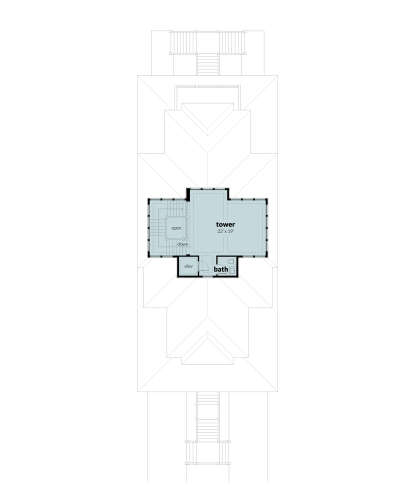

Tower Level
Tower Level for House Plan #028-00189


What's Included in these plans?

  • Floor plan(s) with Electrical
  • Exterior Elevations
  • Building Sections
  • Foundation Plan, Structural and Roof Plans
  • Wall Sections
  • Detail Sheets

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 5 bedroom, 5 bathroom Coastal house plan features 4,687 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
