Split Foyer House Plan 036-00024

Sq Ft1,459
1/2 Baths0
Width49' 0"
Depth28' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Garage Floor for House Plan #036-00024
Main Floor for House Plan #036-00024

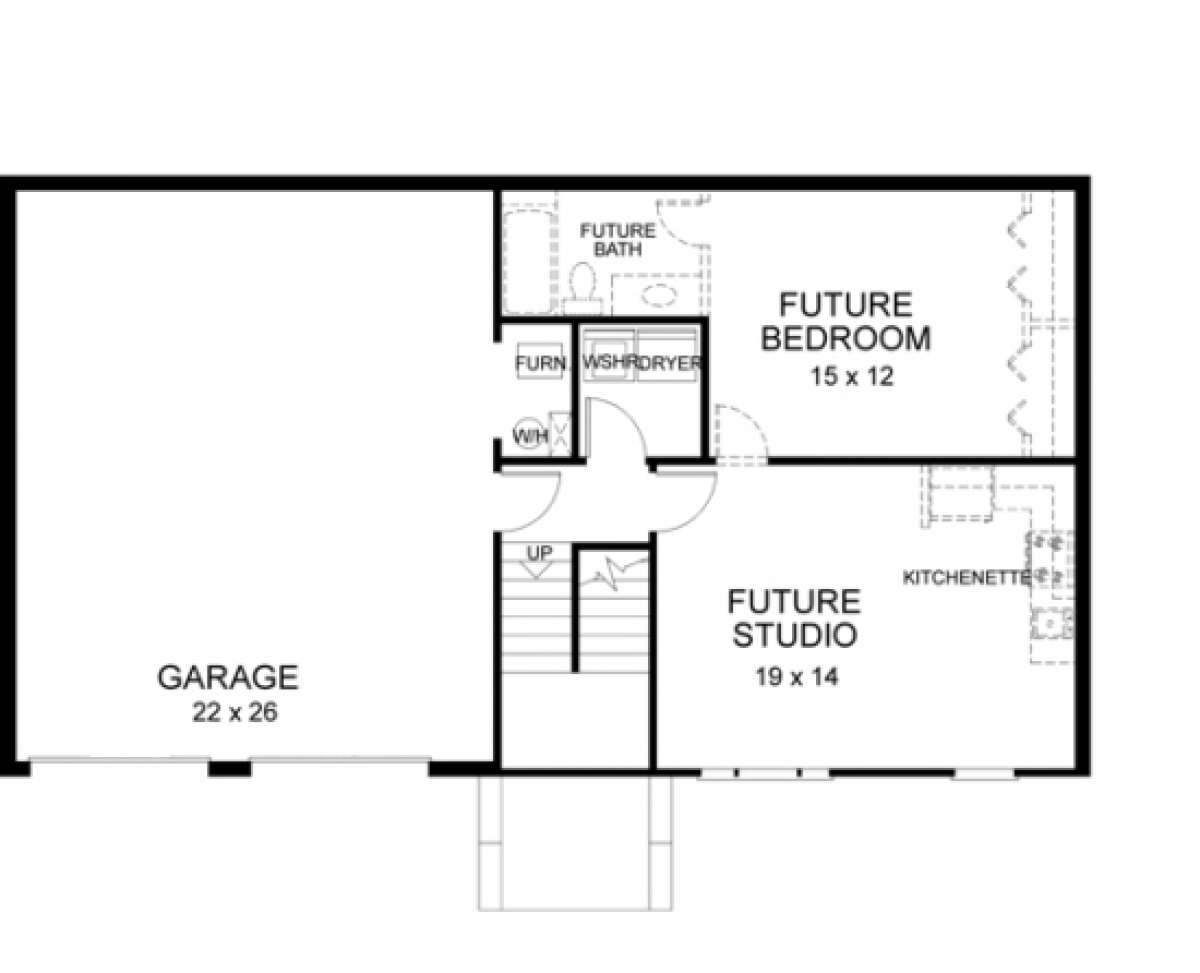

Garage Floor
Garage Floor for House Plan #036-00024

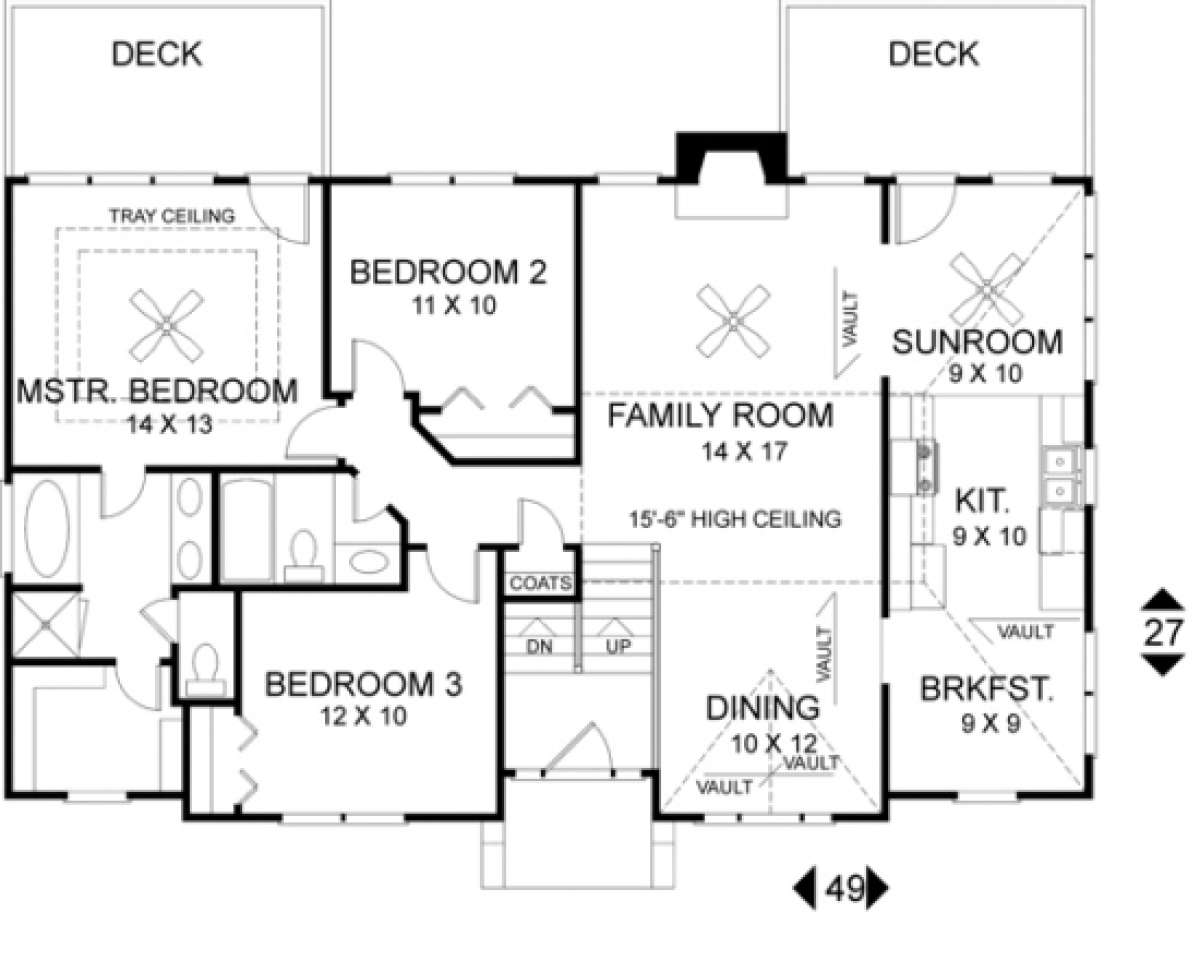

Main Floor
Main Floor for House Plan #036-00024

Frequently Asked Questions


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This traditional split level home is design friendly, highly functional and aesthetically pleasing. The covered entry way is highlighted by the glass door with sidelights, an arched transom and hints at the careful attention to detail that awaits you as you step into the interior of the home. The family room is large, vaulted and contains a back wall fireplace with windows on both sides and leads into the sunroom. The sunroom is situated at the corner of the home and is open to both the family room and kitchen and offers rear deck access making this an ideal space in which to relax and entertain family and friends. The kitchen is spacious with plenty of counter and cabinet space and is open on the opposite end to the breakfast room which is airy and sunny with three windows. There is a formal dining option adjacent to the breakfast area which offers a Palladian style window and is open to the family room. The living spaces in this home are functional, yet inviting, when entertaining large groups of people as the floor plan has an exceptional flow. Two spacious bedrooms with ample closet space and a shared hall bath are down the hallway along with the master suite. The master suite is true luxury and includes the bedroom with trey ceiling and rear access to the private, second deck along with an oversized walk-in closet. The master bath offers dual vanities, garden tub, a separate shower and compartmentalized toilet. Downstairs, you will find a drive under, two car garage, large laundry room and an incredible 520 square foot optional studio which includes a kitchenette, bedroom and full bath which could be used as an in-law or teen suite. This home has so many design options for the way in which your family wants to live that you will find yourselves content in this home for years to come.
