Traditional Plan 036-00029

Traditional House Plan #036-00029 Elevation Photo

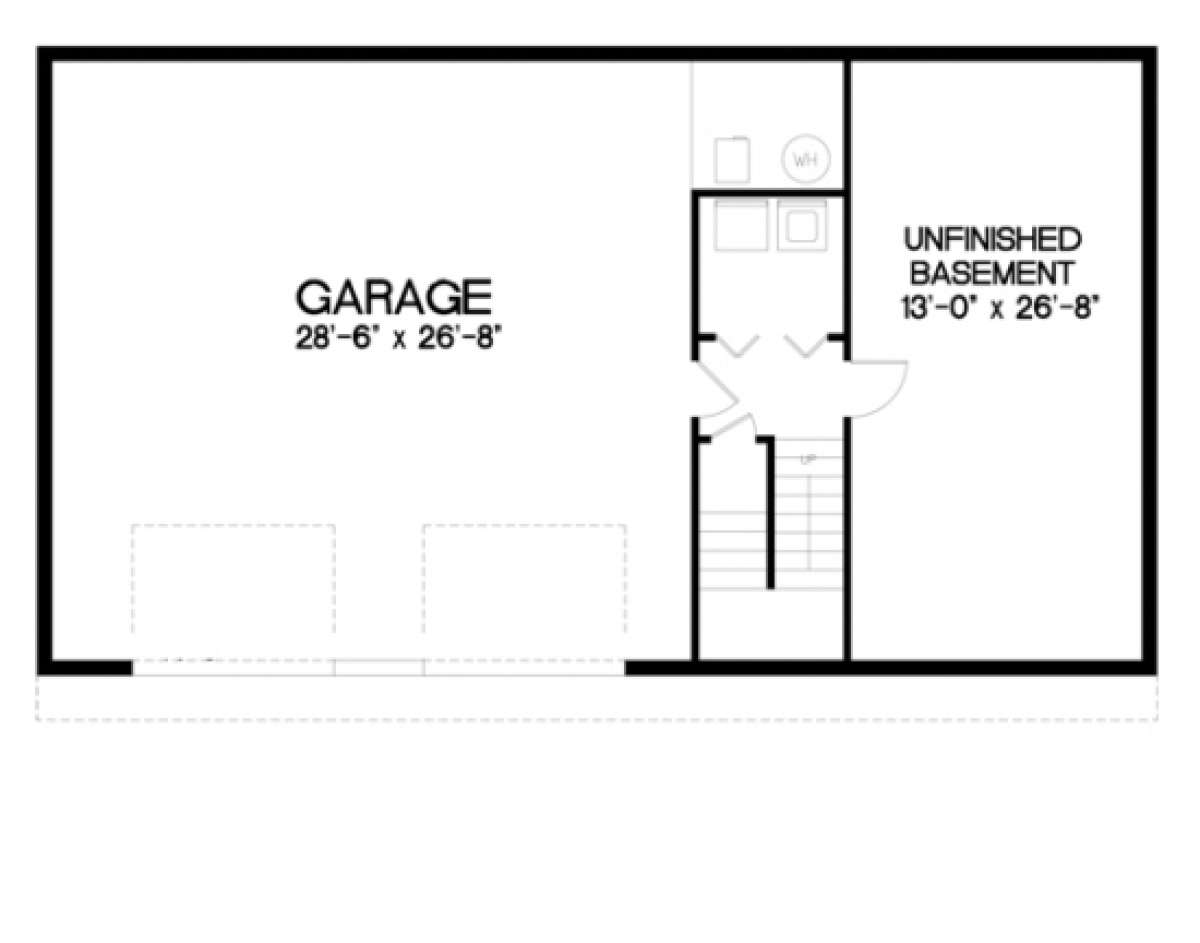

Garage Floor for House Plan #036-00029

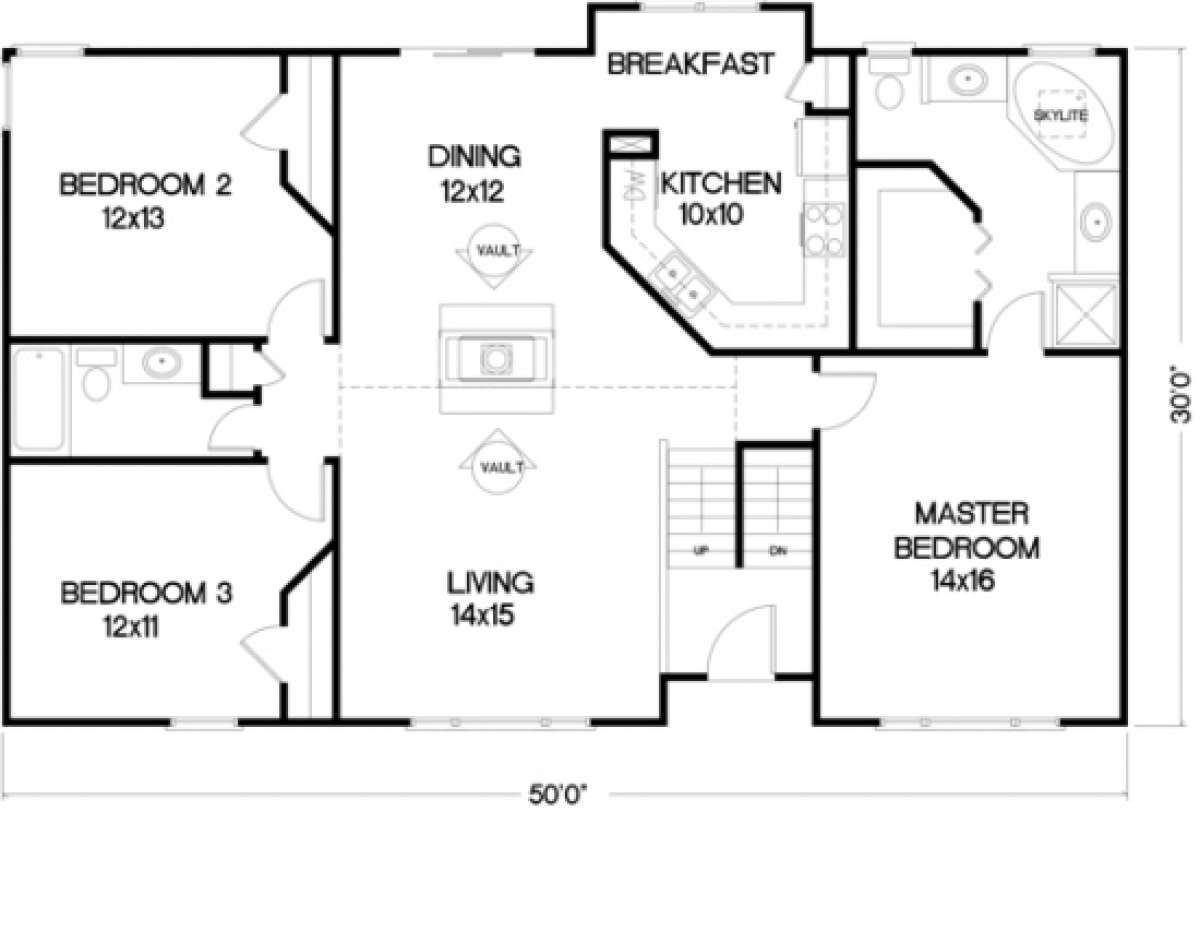

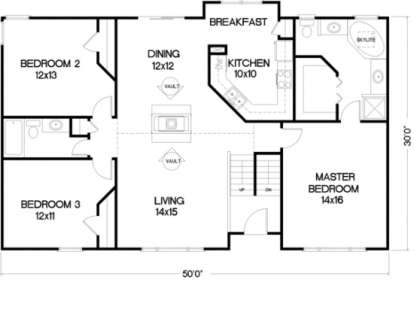

Main Floor for House Plan #036-00029
Traditional House Plan #036-00029 Elevation Photo
Garage Floor for House Plan #036-00029
Main Floor for House Plan #036-00029

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Images copyrighted by the designer. Photographs may reflect a homeowner modification.
Sq Ft 1,579
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 50'
Depth 30'

Floorplan Drawings

 PRINT  DOWNLOAD
Garage Floor for House Plan #036-00029
Main Floor for House Plan #036-00029
Garage Floor
Garage Floor for House Plan #036-00029
Main Floor
Main Floor for House Plan #036-00029
Images copyrighted by the designer.


What's Included in these plans?

  • Artist Rendering
  • Exterior Elevation Views: Scale: 1/4"=1' Front and 1/4" or 1/8"=1' Sides and Rear
  • Floor Plans: Scale: 1/4"=1'
  • Foundations: Scale: 1/4"=1' (Though on occasion, Optional foundations may be 1/8"=1')
  • Electrical Layout: Most often shown on floor plan drawing, though sometimes on separate sheet
  • Roof Plan: Scale: Either 1/4" or 1/8"=1'
  • Building Sections: Included with most plan sets
  • Wall Sections: Included with all plans in Detail Sheet Package
  • General Notes and Details: Included with all plans in Detail Sheet Package

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This delightful split-foyer design features 1,579 sq. ft. of living space plus future expansion area in the unfinished basement. The main level is a split-bedroom design with the master suite isolated from the remaining two bedrooms. The master bedroom measures 14'x16' and has a vaulted ceiling. Highlighting the master bath are separate corner garden tub and shower and twin vanities. A roomy walk-in closet completes the master suite. The vaulted living and dining rooms are separated by a dramatic see-thru fireplace. The sunny kitchen/breakfast area features double windows for maximum sunlight exposure. Bedrooms #2 and #3, measuring 12'x13' and 12'x11' respectively, share a hall bath. The lower level houses the laundry area and room for future expansion.
