Traditional Plan 5633-00078

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,340
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 40'
Depth 40' 8"

Floorplan Drawings

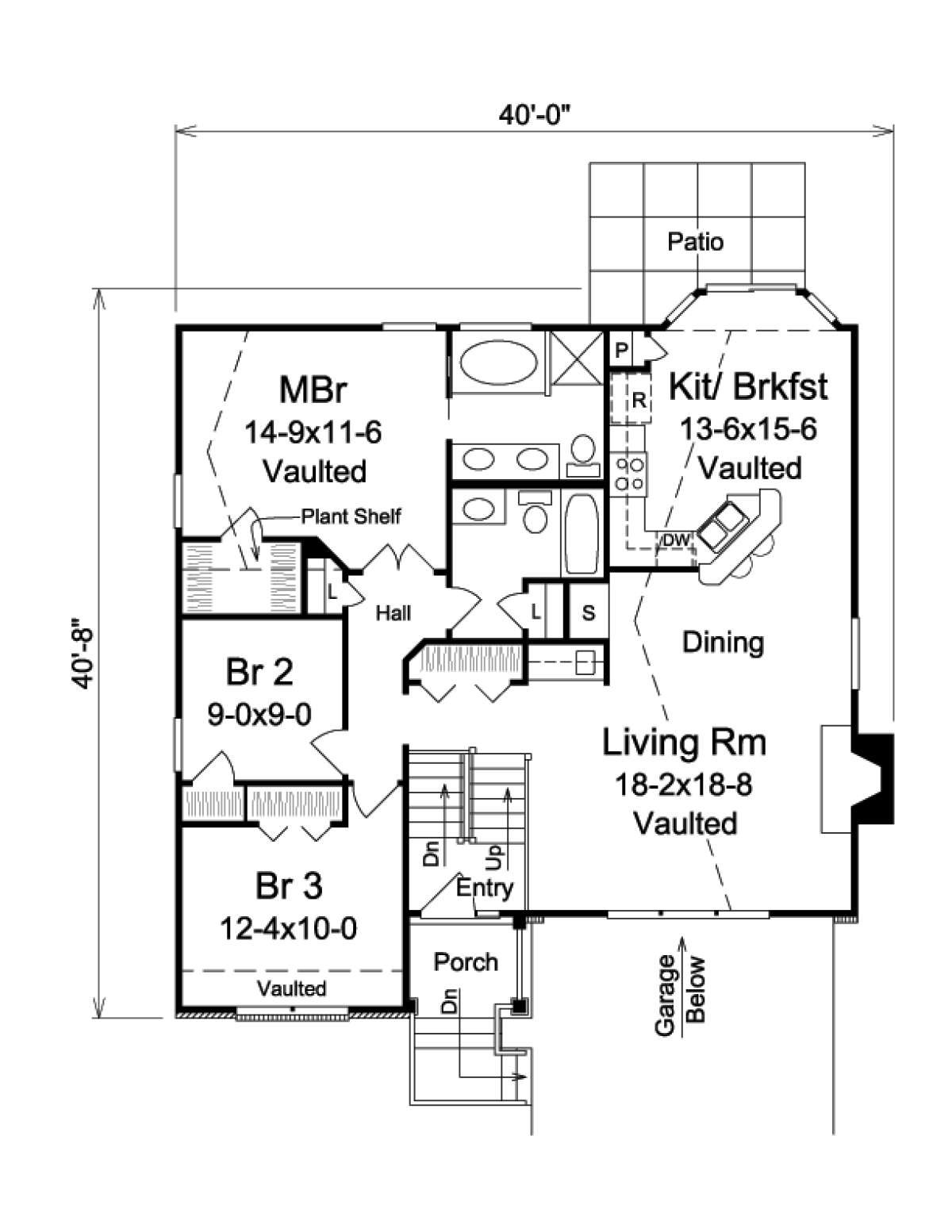

Floorplan 1
Floorplan 1 for House Plan #5633-00078

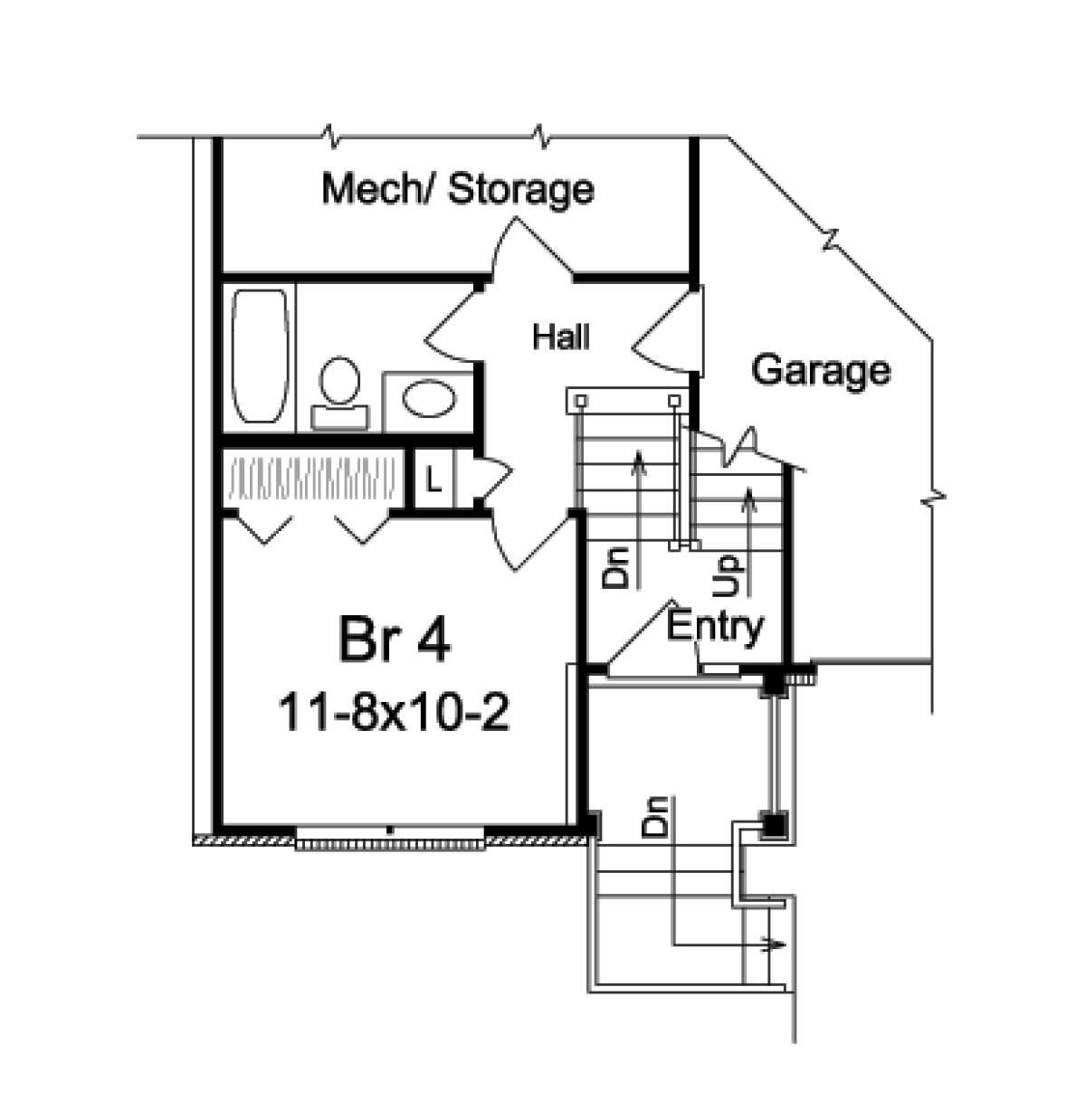

Floorplan 2
Floorplan 2 for House Plan #5633-00078


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

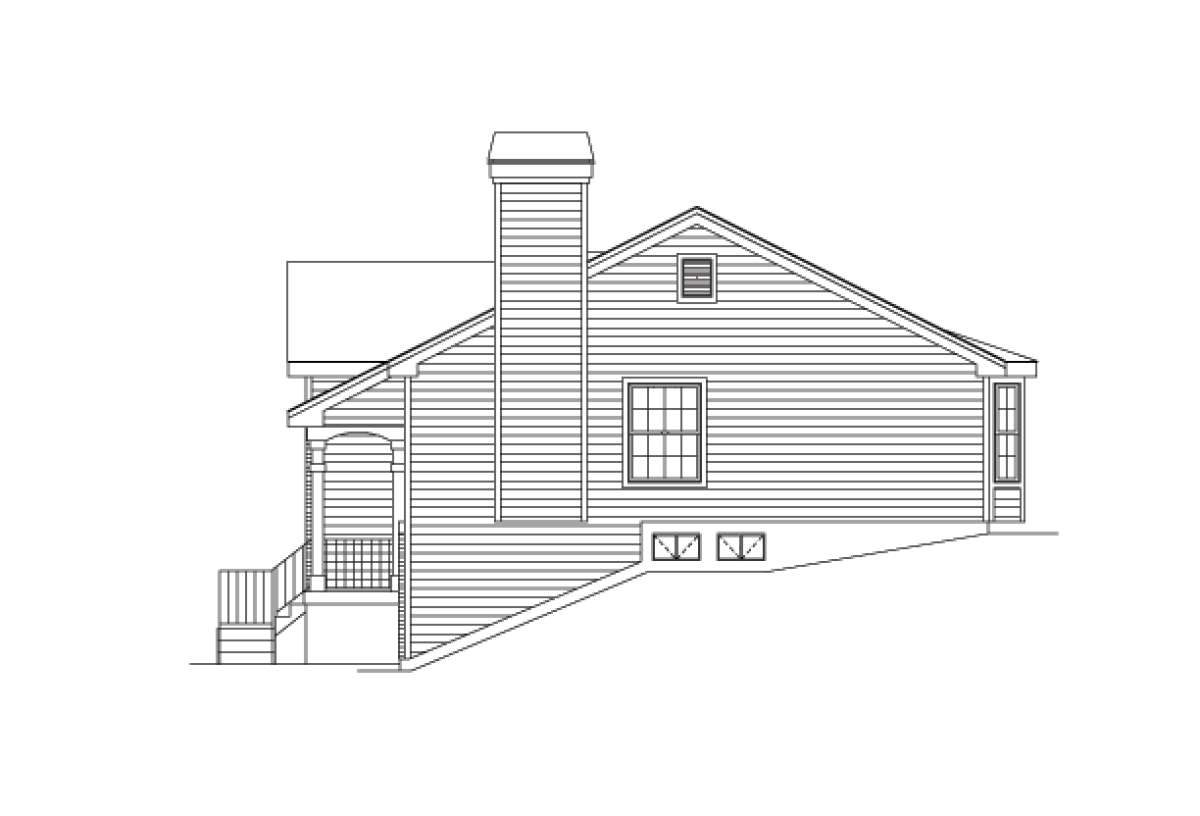

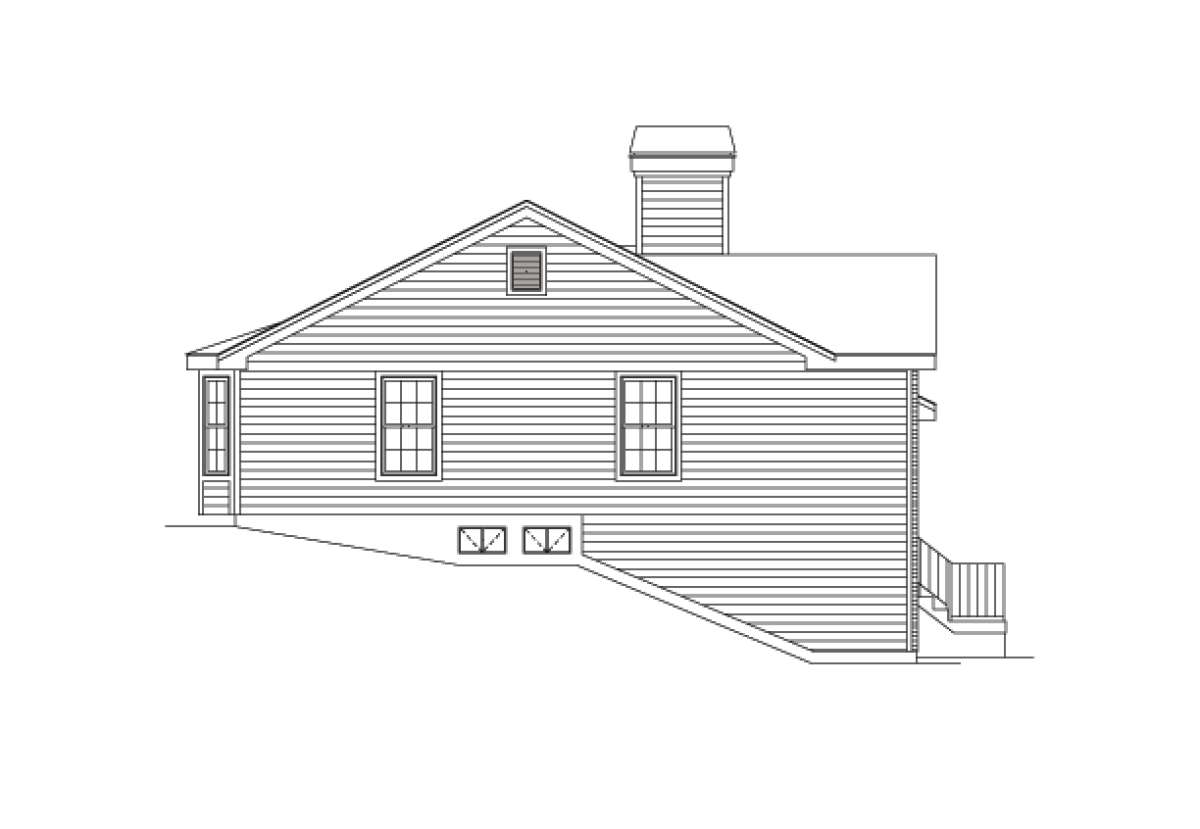

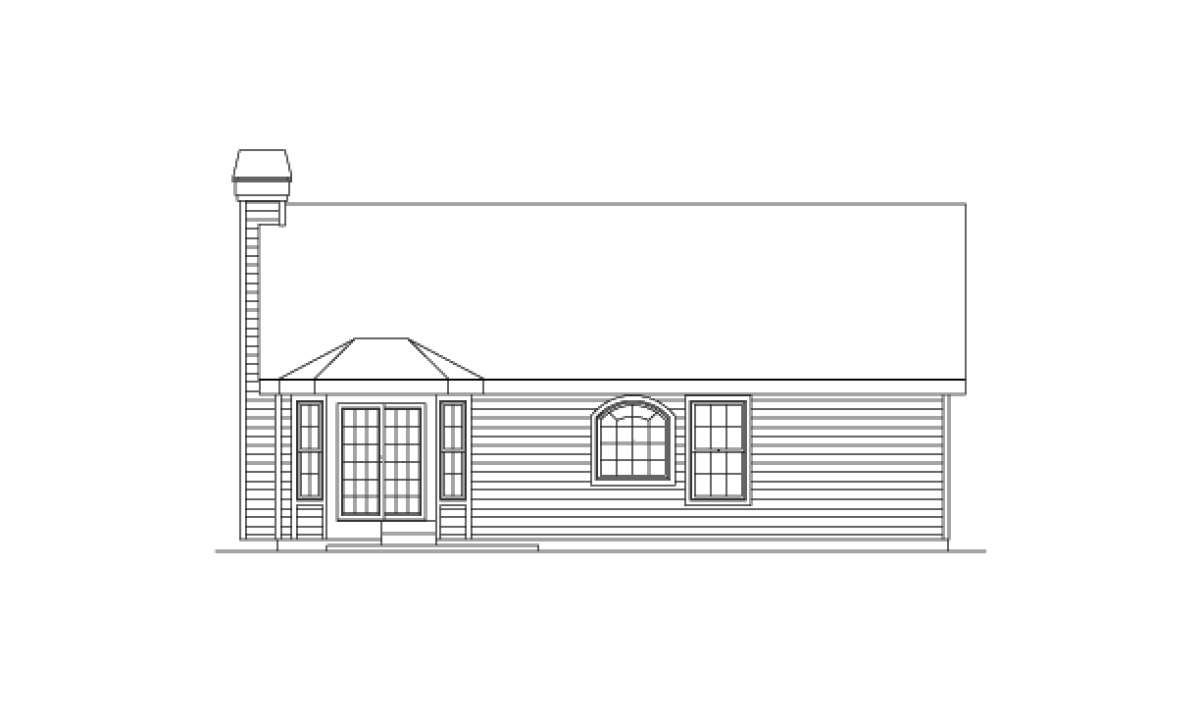

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

An attractive Traditional home is highlighted by additional square footage situated on the lower level of the home and an exterior façade exuding charm and character. The exterior of the home is highlighted by a front covered porch featuring wide beams and a double window feature brick wall. Additional brick work, siding and a basement foundation add to the visual interest and versatility of the home. The main level of the home contains approximately 1,340 square feet of living space with three bedrooms and two bathrooms. The lower level features an additional 636 square feet of space and the enormous two car garage adds another 727 square feet which is plentiful for vehicle and other equipment storage. This distinctive home is beautifully suited for a sloping terrain and has been configured to include plenty of living and entertaining space for the family. The entry foyer features a double staircase to both the lower and upper levels of the home. An enormous living room features vaulted ceilings heights, a handsome fireplace and a triple wall of windows. The open concept design and soaring ceiling heights continue into the dining space and gourmet kitchen. The kitchen is highlighted by an open breakfast bar, a separate pantry and an abundance of additional counter and cabinet space. The breakfast nook sits in the four window bay area which also provides accessibility to the rear patio. This abundance of living spaces is ideal for large gatherings of family and friends and ensures gracious and effortless entertaining options.
A large coat closet sits in the main hallway and provides access to the family sleeping quarters and bathrooms. Bedroom two is ideally suited for a nursery or small child and features ample closet space and a window view. The vaulted third bedroom is spacious with generous closet space and a beautiful double window view. There is a hall linen closet and another linen closet is located in the shared hall bath which features a vanity space, toilet and a tub/shower combination. The master suite is elegantly designed with French door access into the master bedroom. The vaulted bedroom is spacious and there is an oversized master walk-in closet. The private master bath is highlighted with dual vanities, a separate shower, garden tub and a toilet area. The downstairs level features space for an optional fourth bedroom with ample closet space, a linen closet, an adjacent full bath and additional storage area. This home features an attractive exterior façade and an interior floor plan that is comfortable and versatile.
