Cabin Plan 035-00088

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,744
Beds 3
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 43' 6"
Depth 48'

Floorplan Drawings

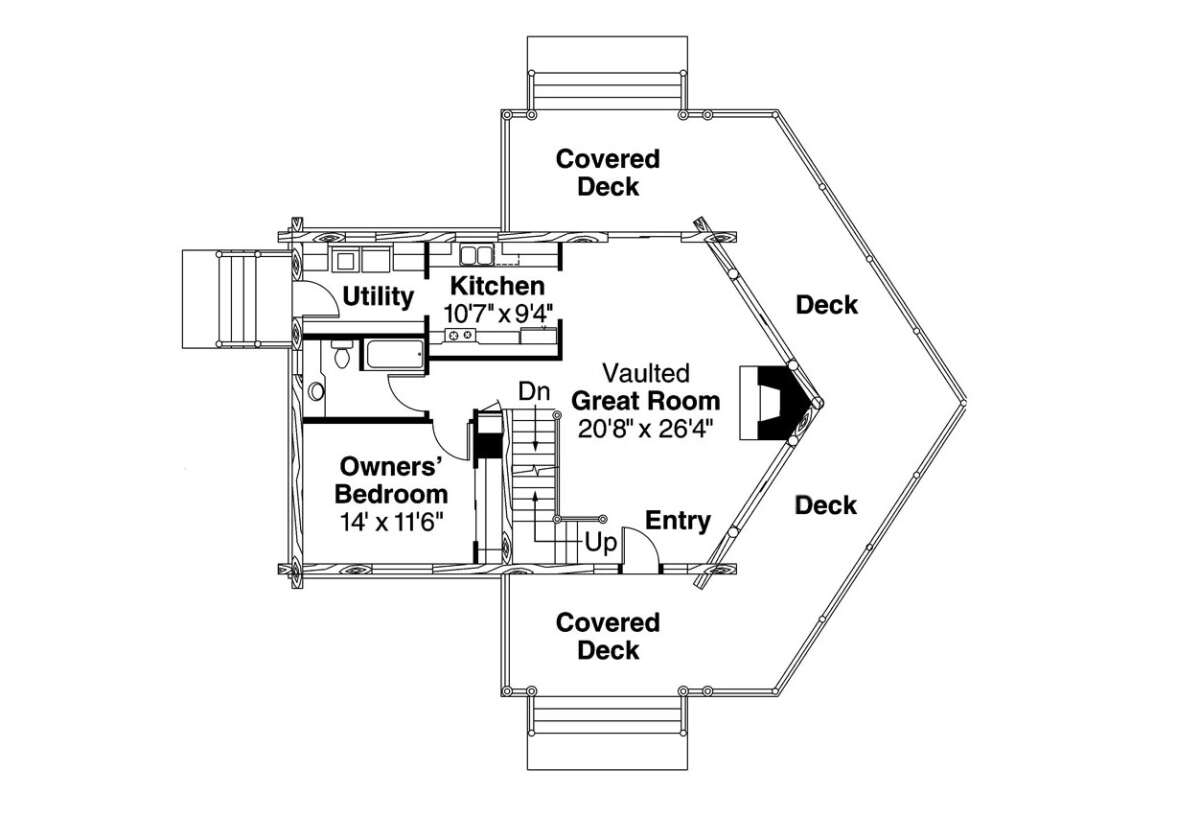

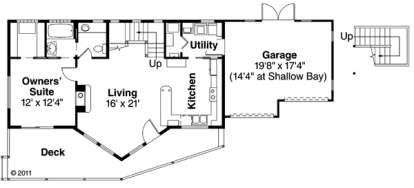

Main Floor
Main Floor  for House Plan #035-00088

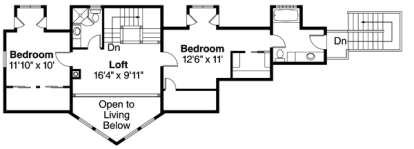

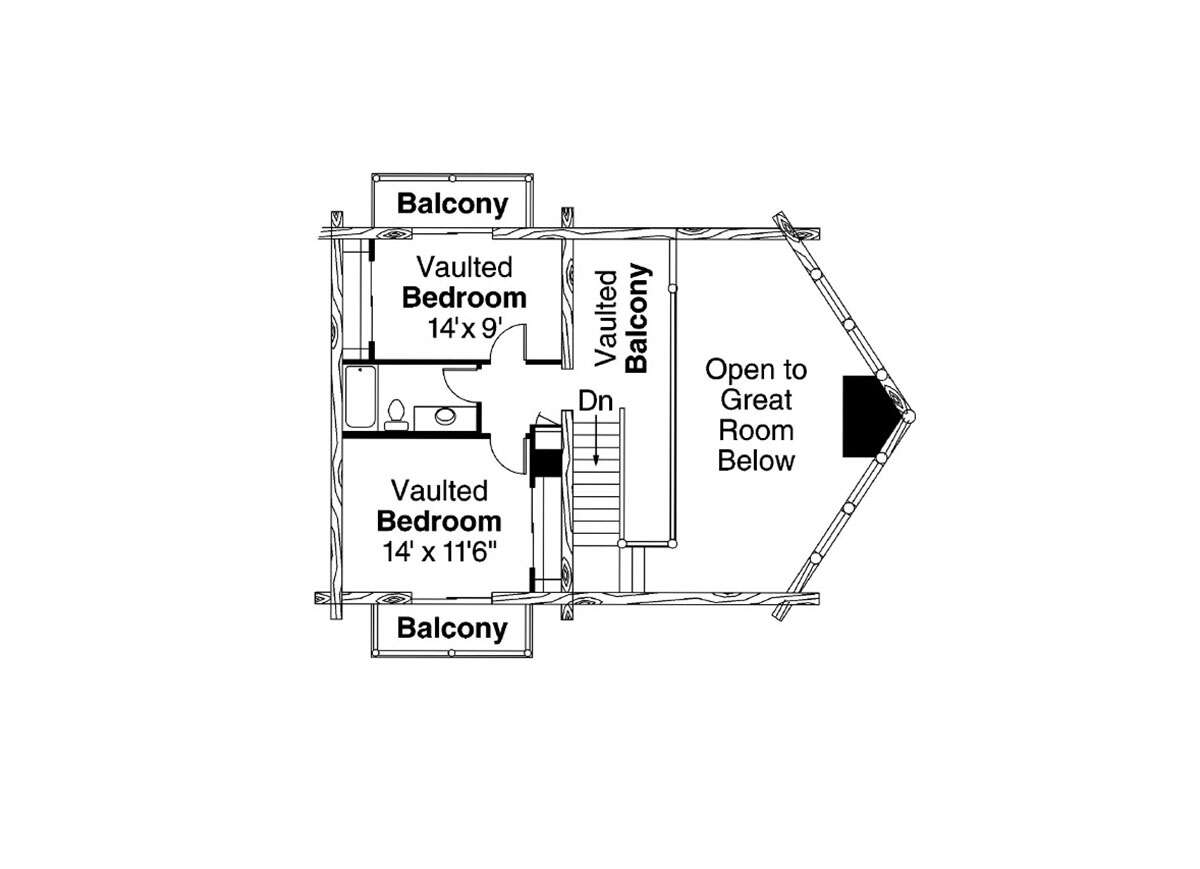

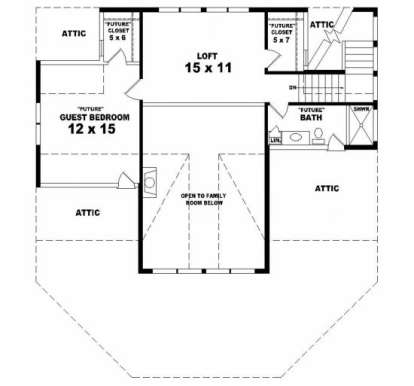

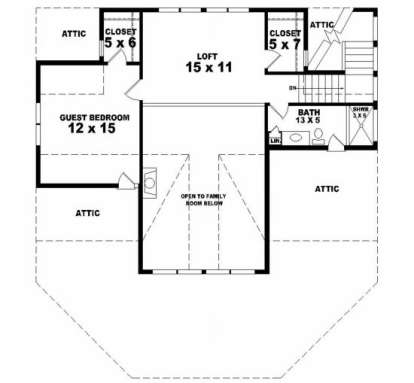

Second Floor
Second Floor for House Plan #035-00088

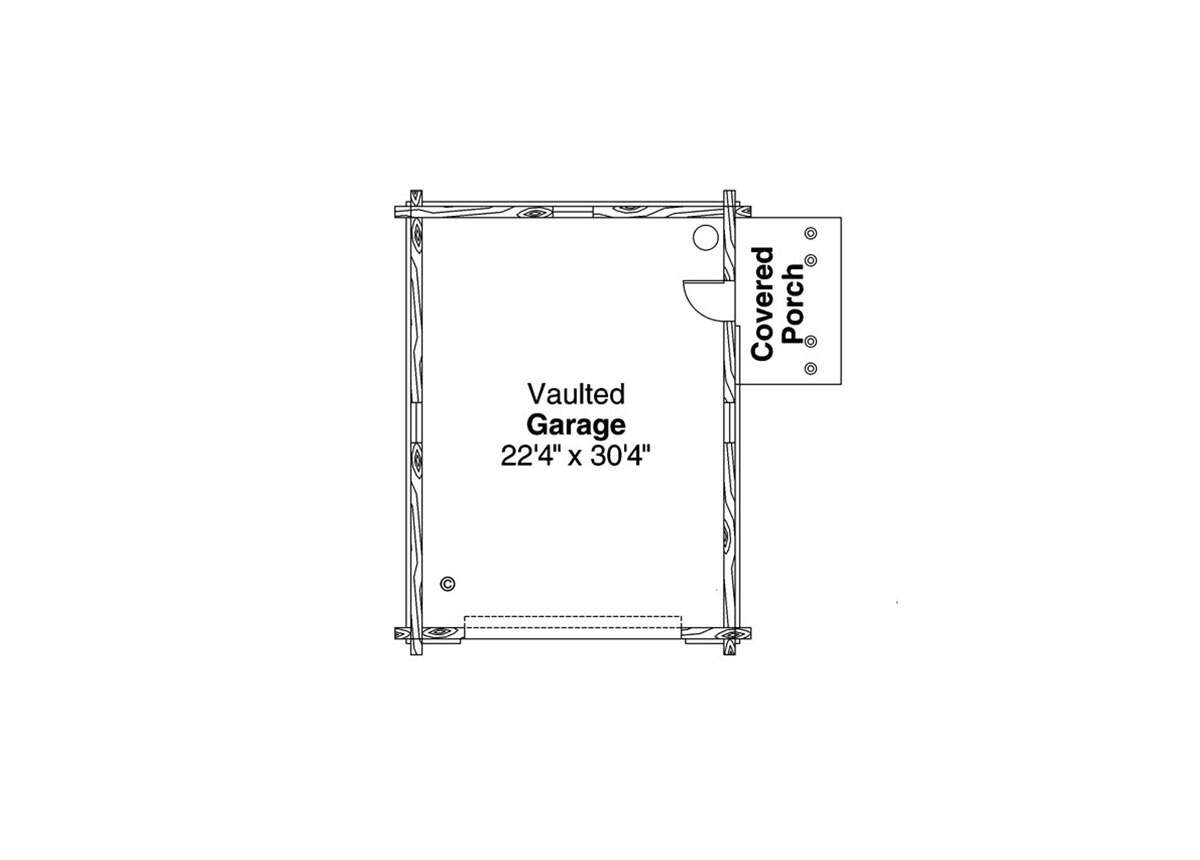

Detached Garage
Detached Garage for House Plan #035-00088

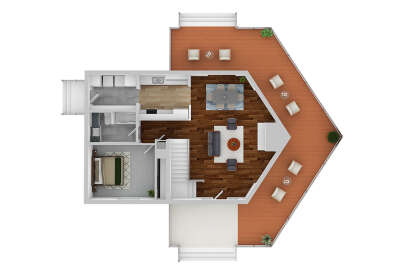

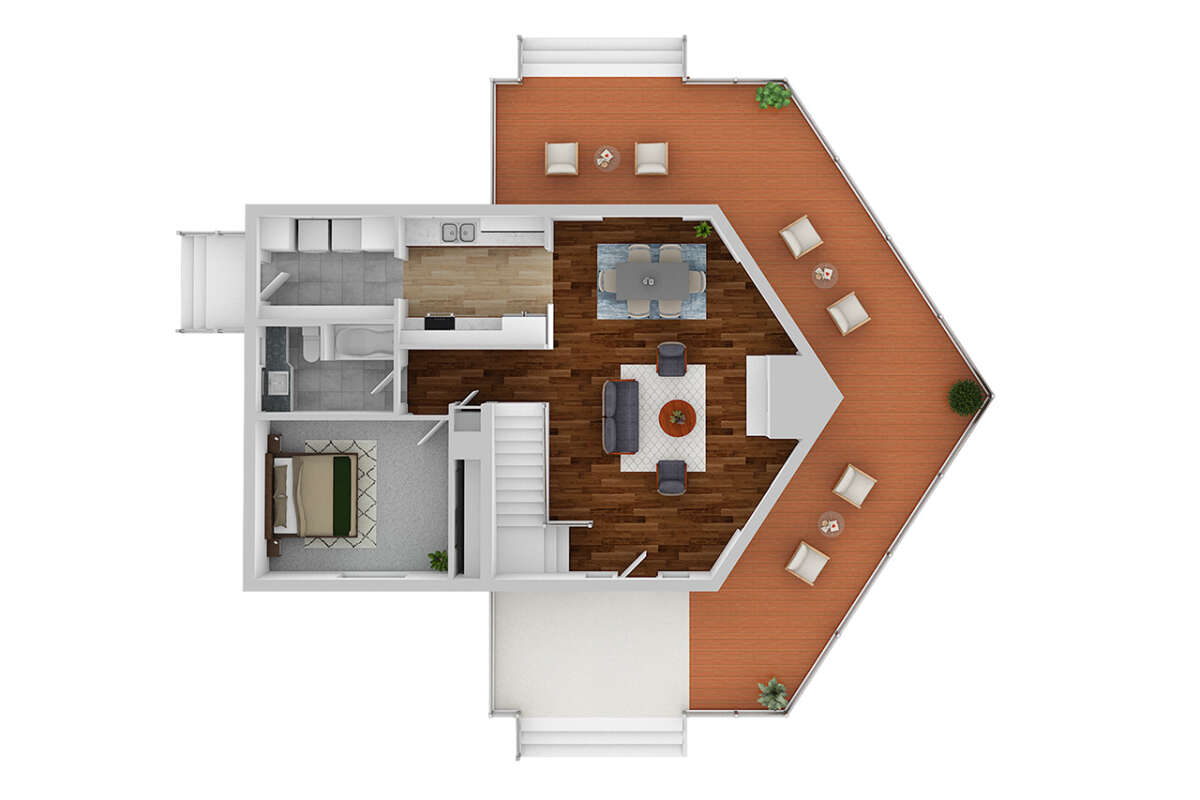

Overhead First Floor
Overhead First Floor for House Plan #035-00088

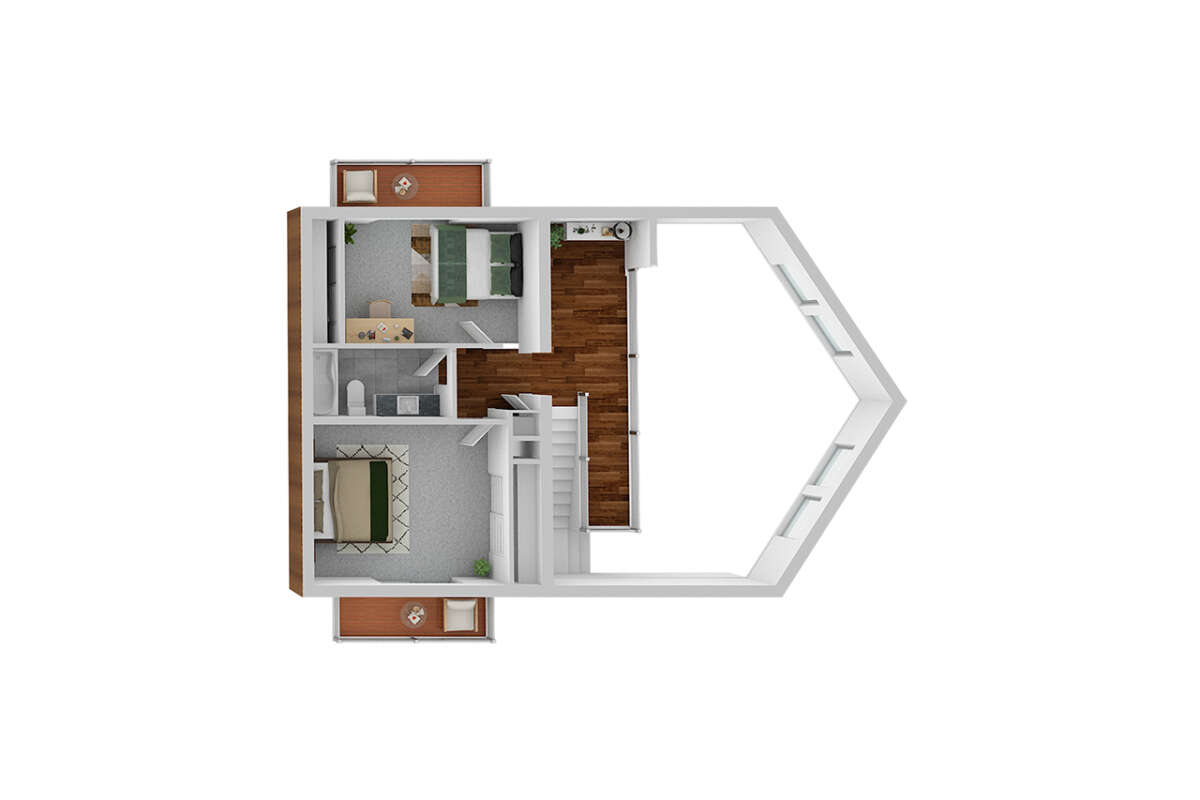

Overhead Second Floor
Overhead Second Floor for House Plan #035-00088

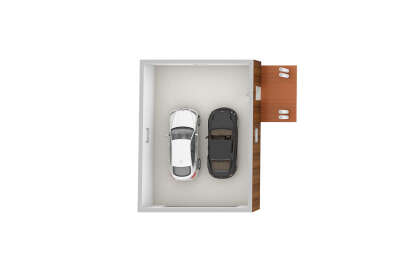

Overhead Detached Garage
Overhead Detached Garage for House Plan #035-00088


What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

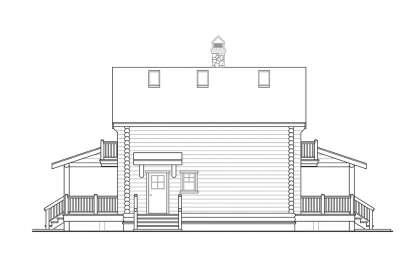

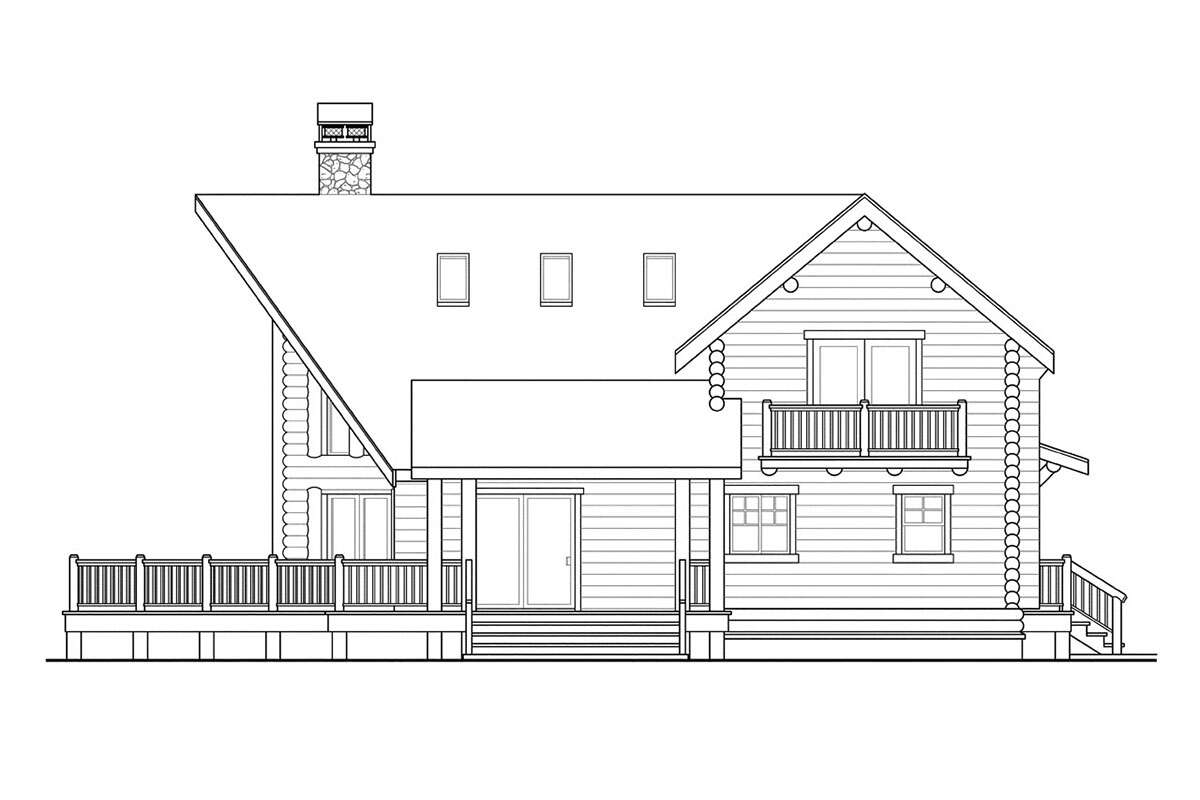

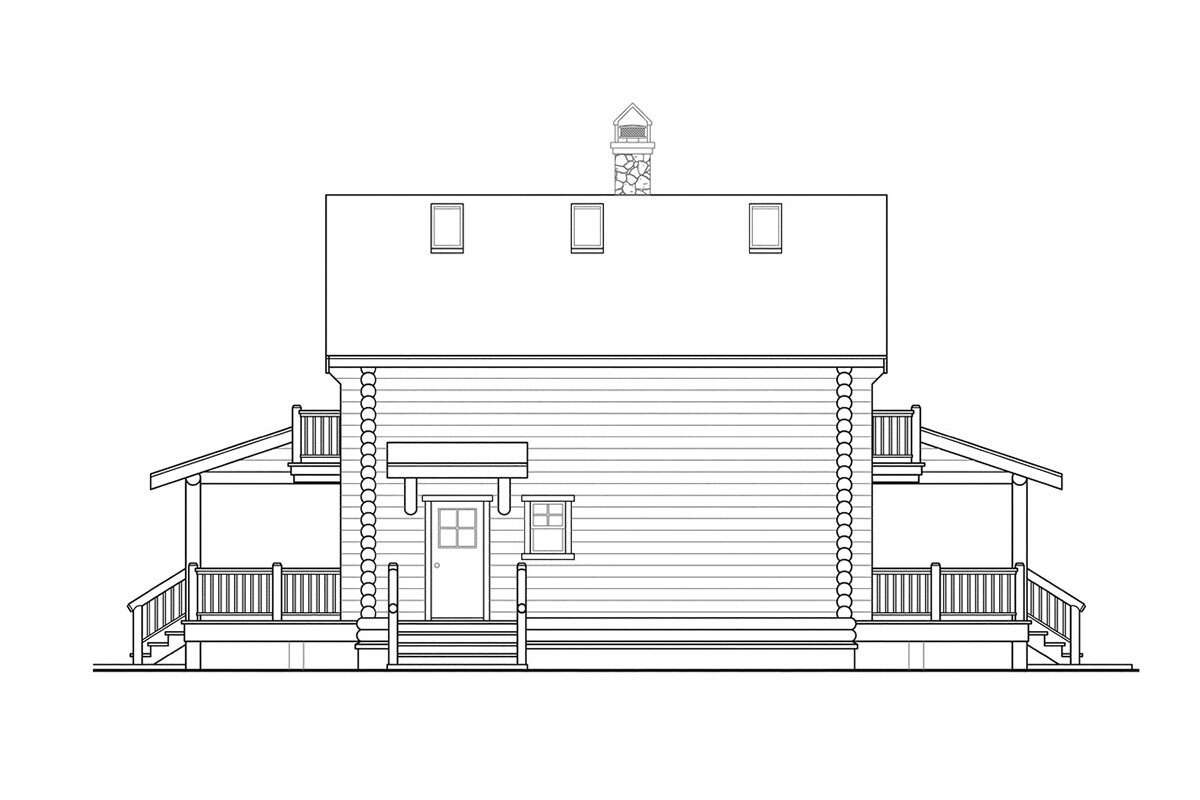

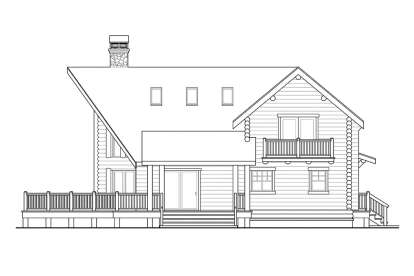

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

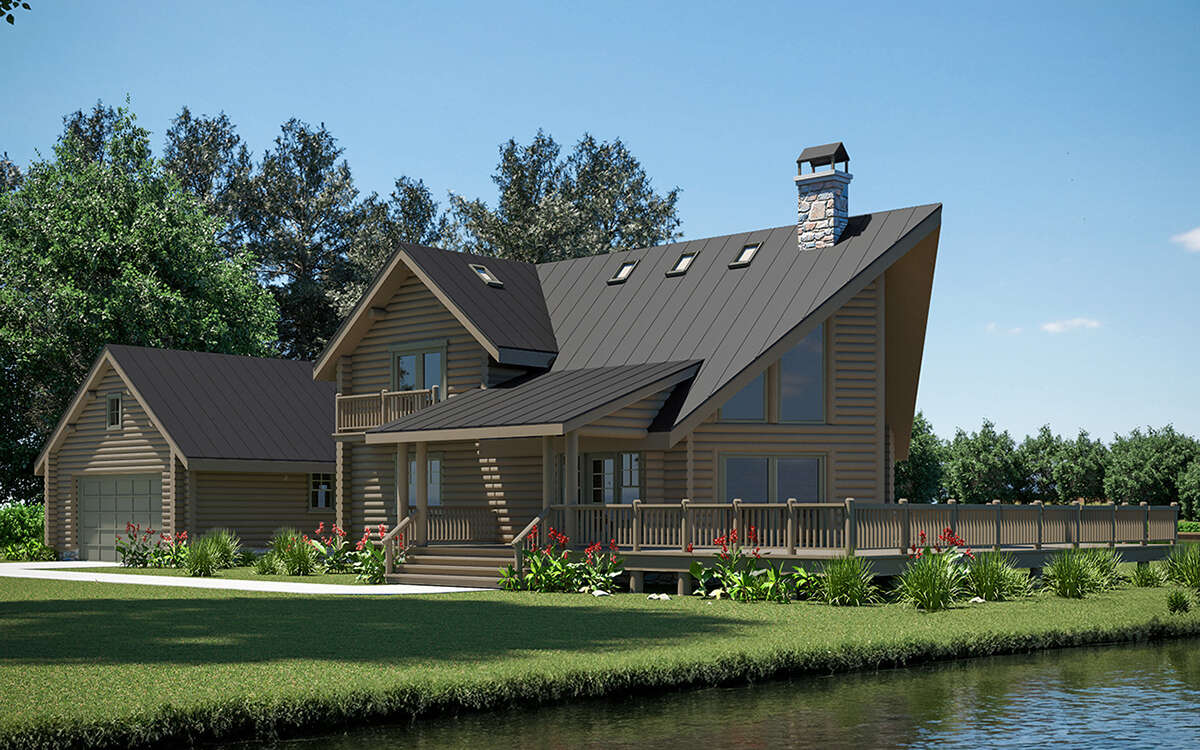

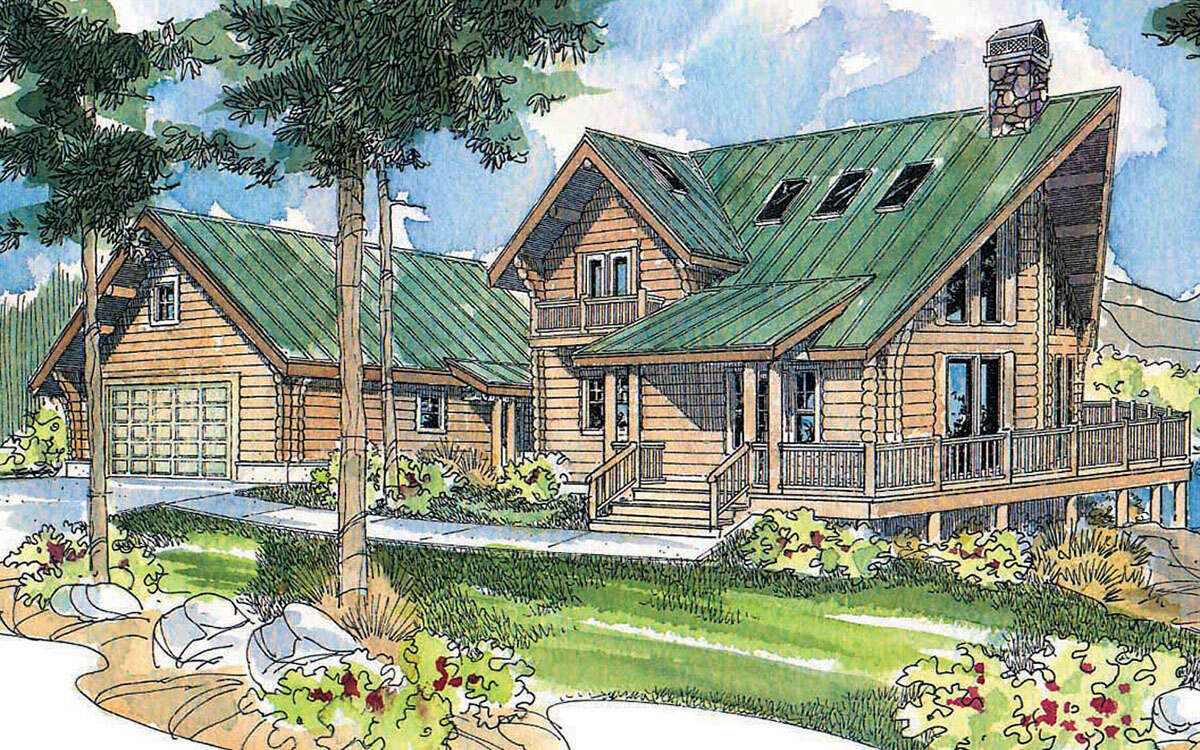

This cozy Cabin plan is highlighted by a wraparound deck, skylights, rough hewn timber logs and two second story balconies. This creative blend of architectural design features combine to form an attractive exterior façade where entertaining large gatherings of family and friends are welcome and hospitality is second nature. The surrounding deck is the perfect spot to enjoy “Mother Nature” and all her glory; the deck culminates in a triangular point and provides an expansive space in which to bar-b-que, relax or enjoy the company of family and friends. The interior floor plan features approximately 1,744 square feet of living space that incorporates three bedrooms and two baths into the two storied home. The home’s drawings include an unfinished basement for future expansion which substantially increases the home’s value and versatility. Front covered deck entry into the home reveals an enormous vaulted great room measuring in excess of 20’x26’, contains a warming fireplace and access to the rear covered deck. The galley style kitchen is highlighted with modern conveniences and there is an adjoining utility room which leads to a covered porch and the substantial two car vaulted garage featuring plenty of space for vehicles and other gear. The main level master bedroom contains a large bedroom with plentiful closet space and there is an adjacent full bath. The second story staircase features a vaulted balcony overlooking the great room below. Two spacious bedrooms each contain generous closet space and access to their own private balcony. There is a shared hall bath with a tub/shower combination and a hall linen closet, as well. This rustic Cabin design features outstanding outdoor space, a fully functional and spacious interior floor plan and an expansive garage with loads of vehicle and storage space.
