Lake Front Plan 957-00054

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,456
Beds 2-4
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 64' 4"
Depth 44'

Floorplan Drawings

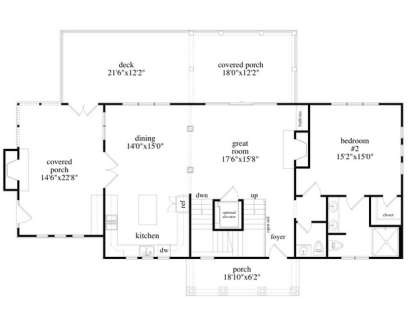

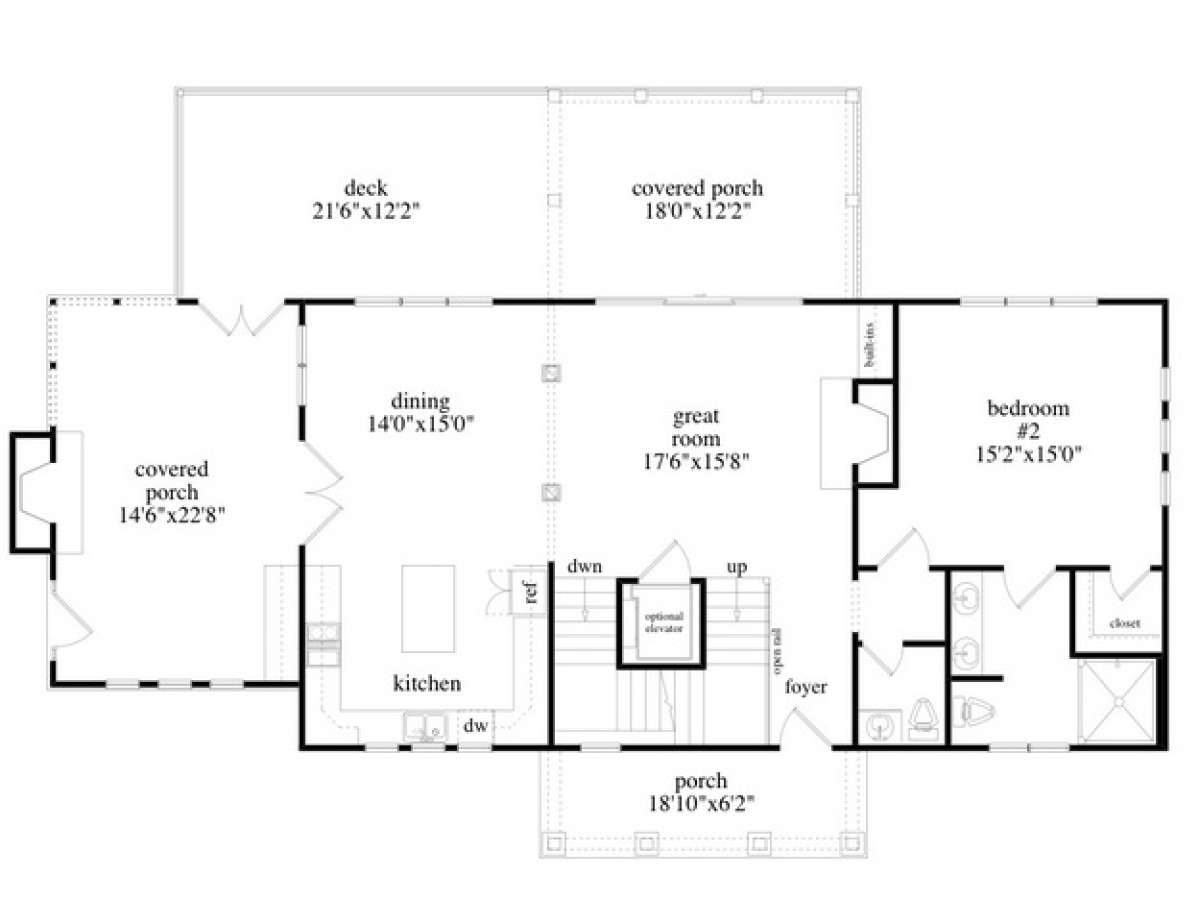

Floorplan 1
Floorplan 1 for House Plan #957-00054

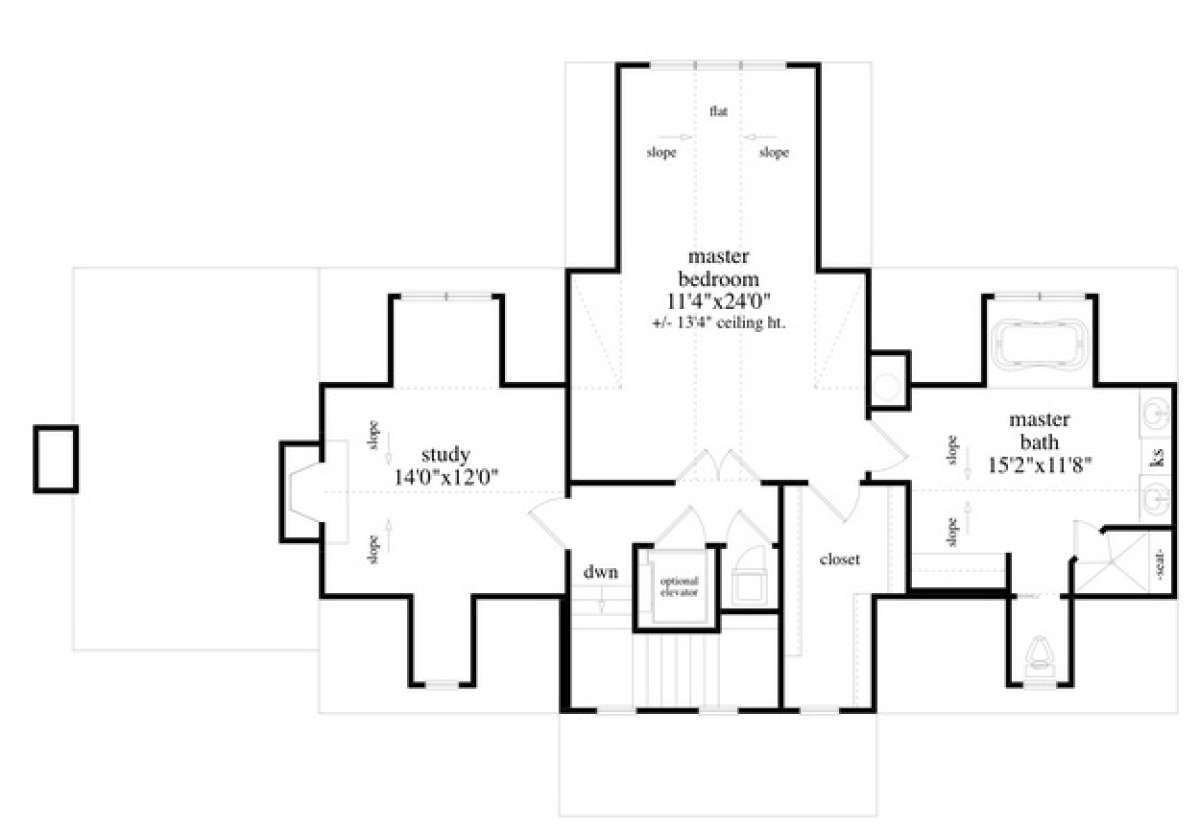

Floorplan 2
Floorplan 2 for House Plan #957-00054

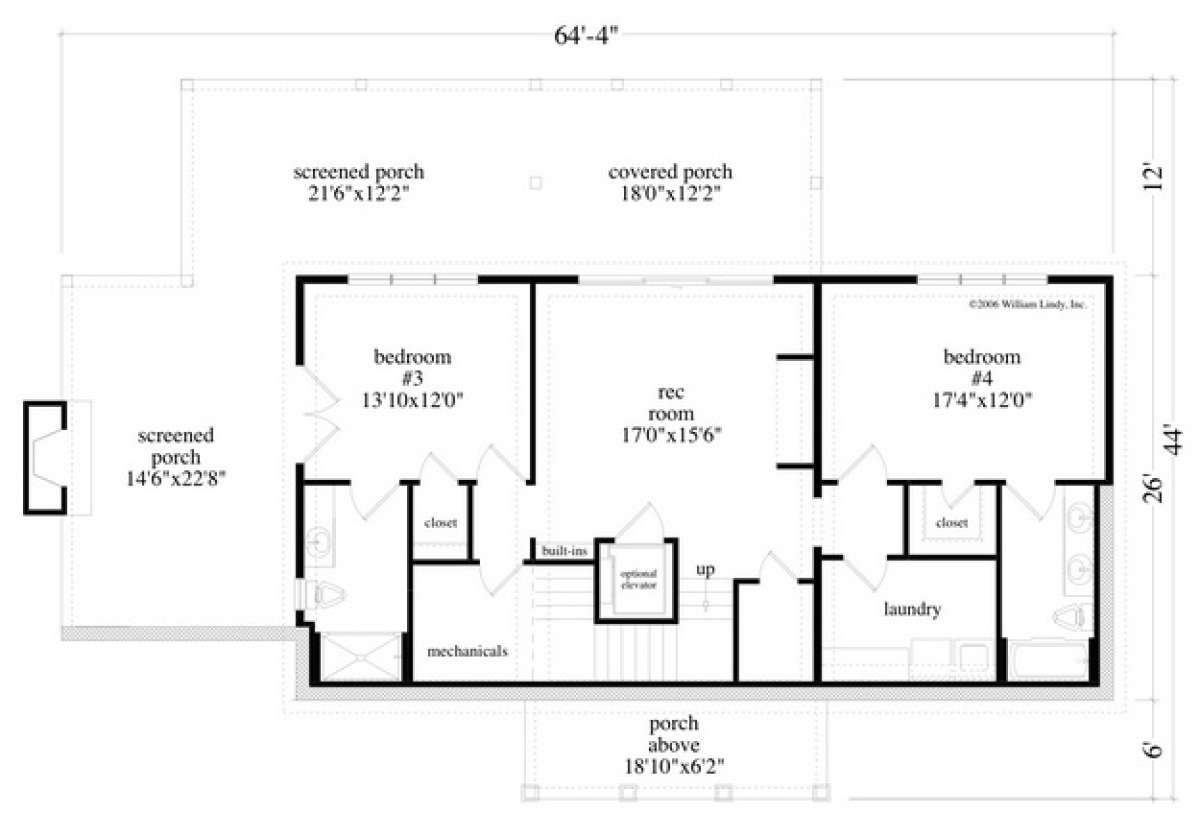

Floorplan 3
Floorplan 3 for House Plan #957-00054

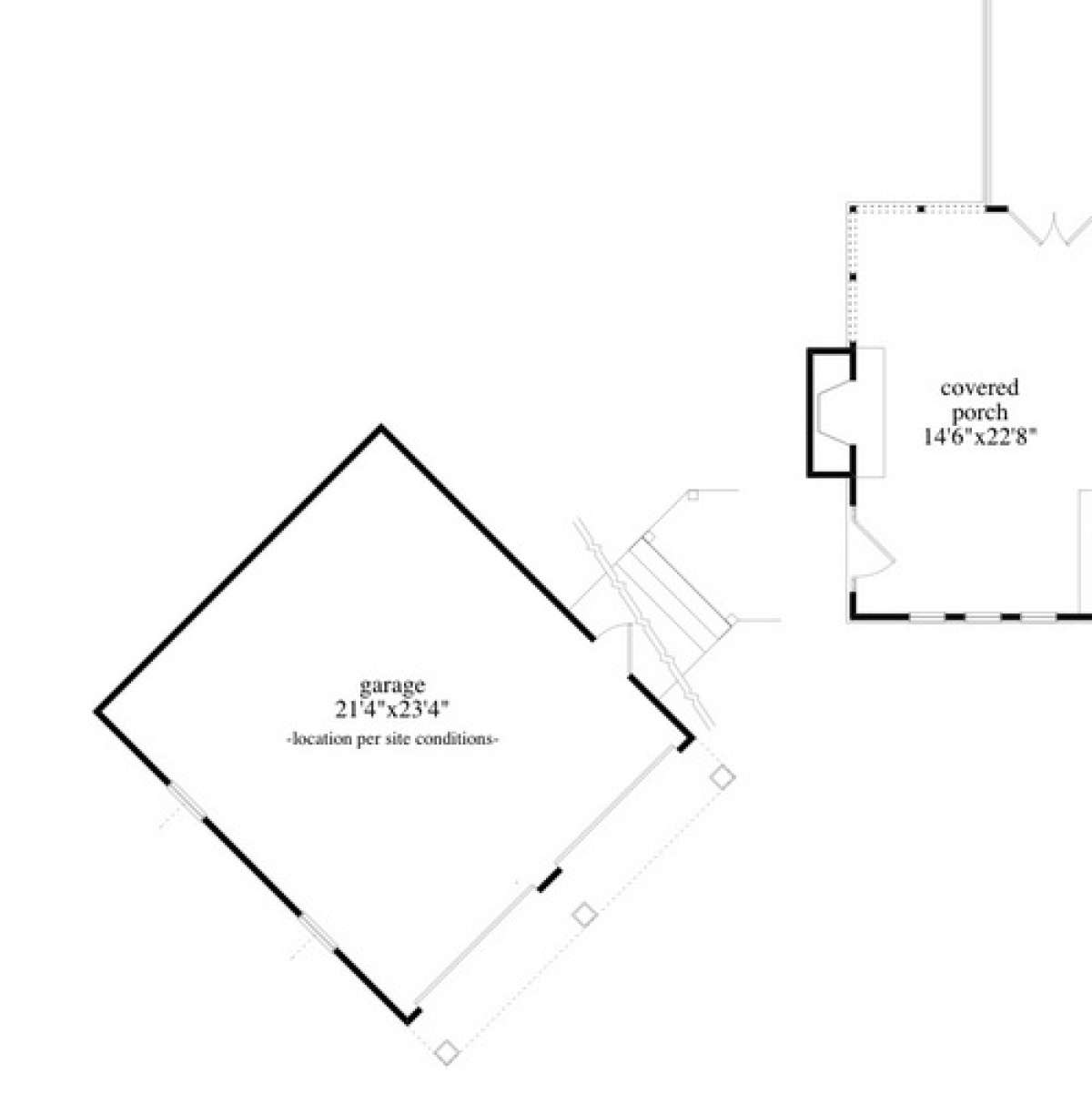

Garage
Garage for House Plan #957-00054


What's Included in these plans?

  • Cover Sheet:
    Includes a drawing index, square footage chart, and usually the front and rear elevations.

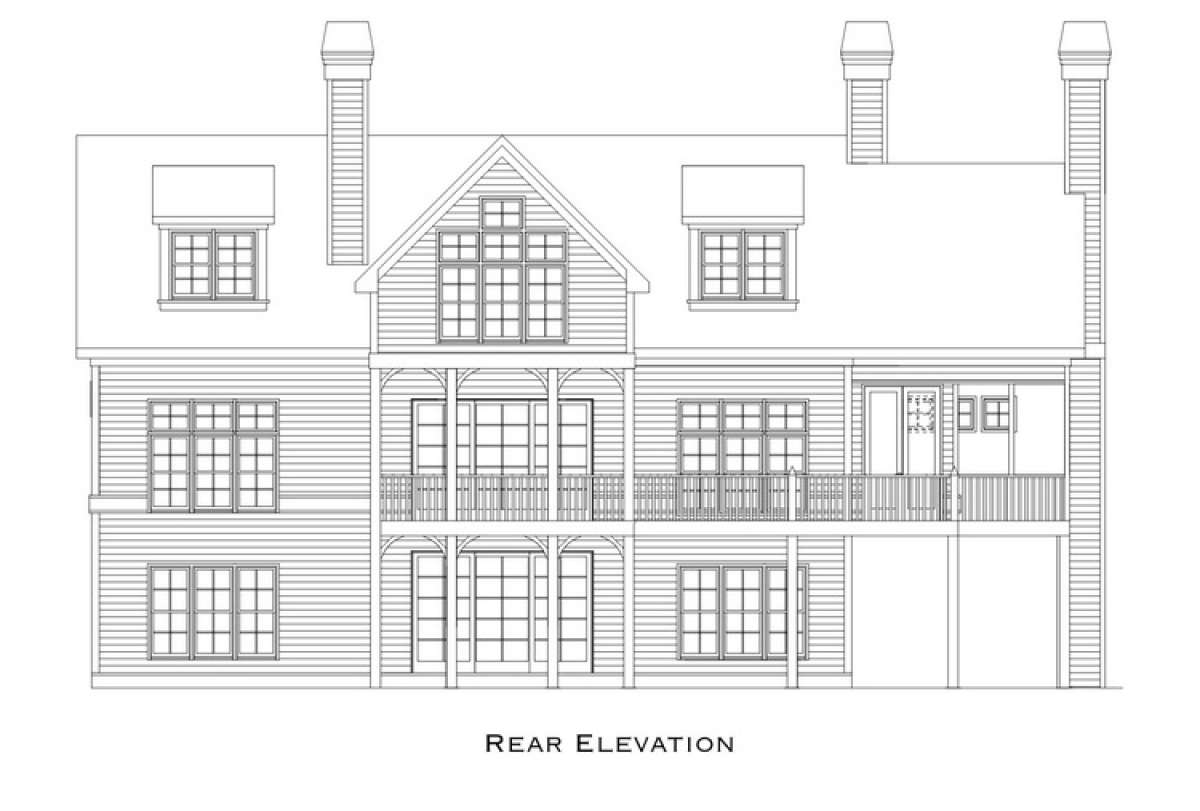

  • Exterior Elevations:
    All elevations are detailed and shown at ¼" scale, usually over two sheets.
  • Floor Plans and Square Footage:
  • This floor plan almost always come in ¼" scale with centerline dimensions and are most commonly shown with 4" walls. 6" exterior walls are available as an optional upgrade (Please call for pricing of 2x6 walls). Our square feet measurements only include heated floor space. The measurements are made from outside the exterior frame (brick is NOT included). Stairs are counted once. Walkways and overlooks in vaulted two-story areas are included in the square footage. Volume areas on the second floor are not counted. Additionally, a 2x floor framing example is provided.
  • Foundations:
    -Basement:
    They are almost always shown as walk-out basements with 10" walls (not counting framed walls).
    -Slab:
    Usually an optional upgrade, we show a typical turned down slab.
    -Crawl Space:
  • Usually an optional upgrade, we show crawl space foundations with 8" walls and ventilation calculations.
  • Roof:
    This plan includes a 2D and a 3-D roof overview showing all pitches and planes. A 2x framing roof plan is also provided as a framing example.
  • Typical Details:
    Each plans comes with typical details for the appropriate foundation, wall sections, roof framing, etc. Details, insulation specifications and any beam or rebar sizing is based on what is typical for the Atlanta, GA area.
  • Plans DO NOT include any electrical plan

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

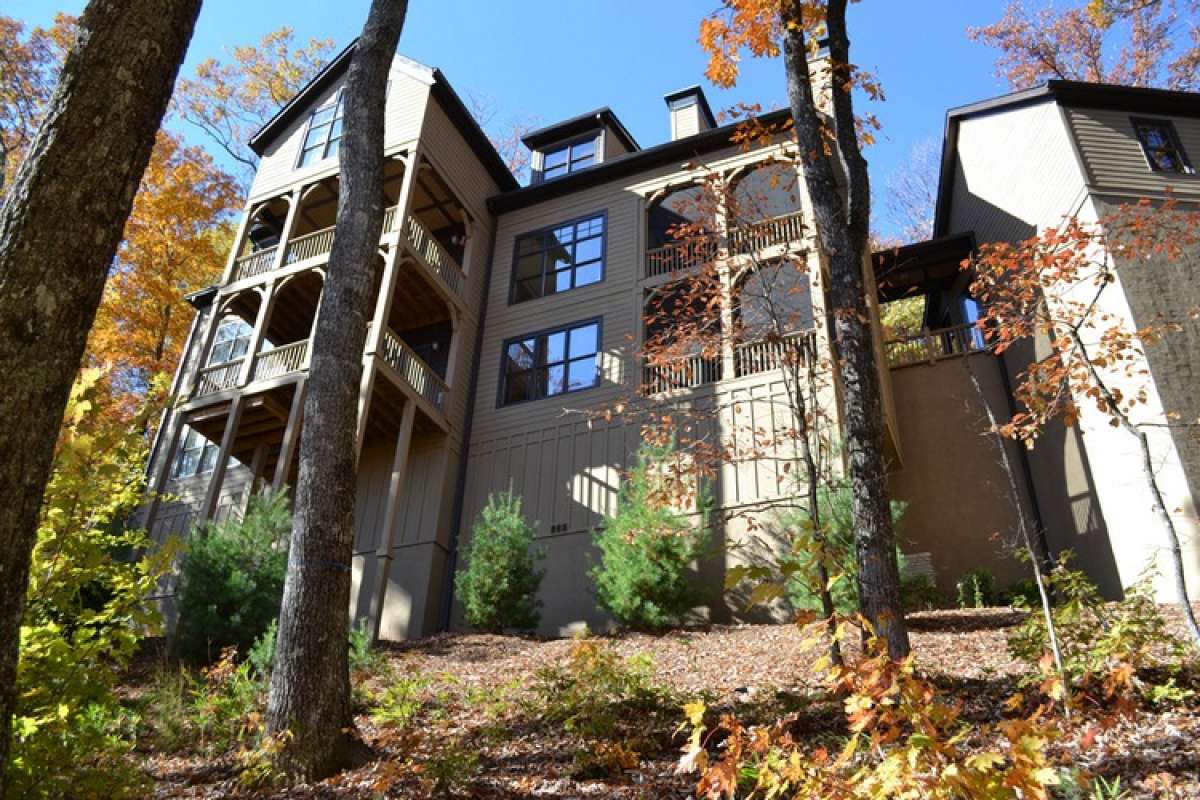

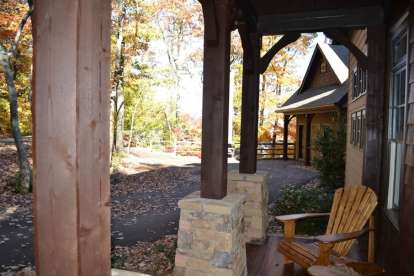

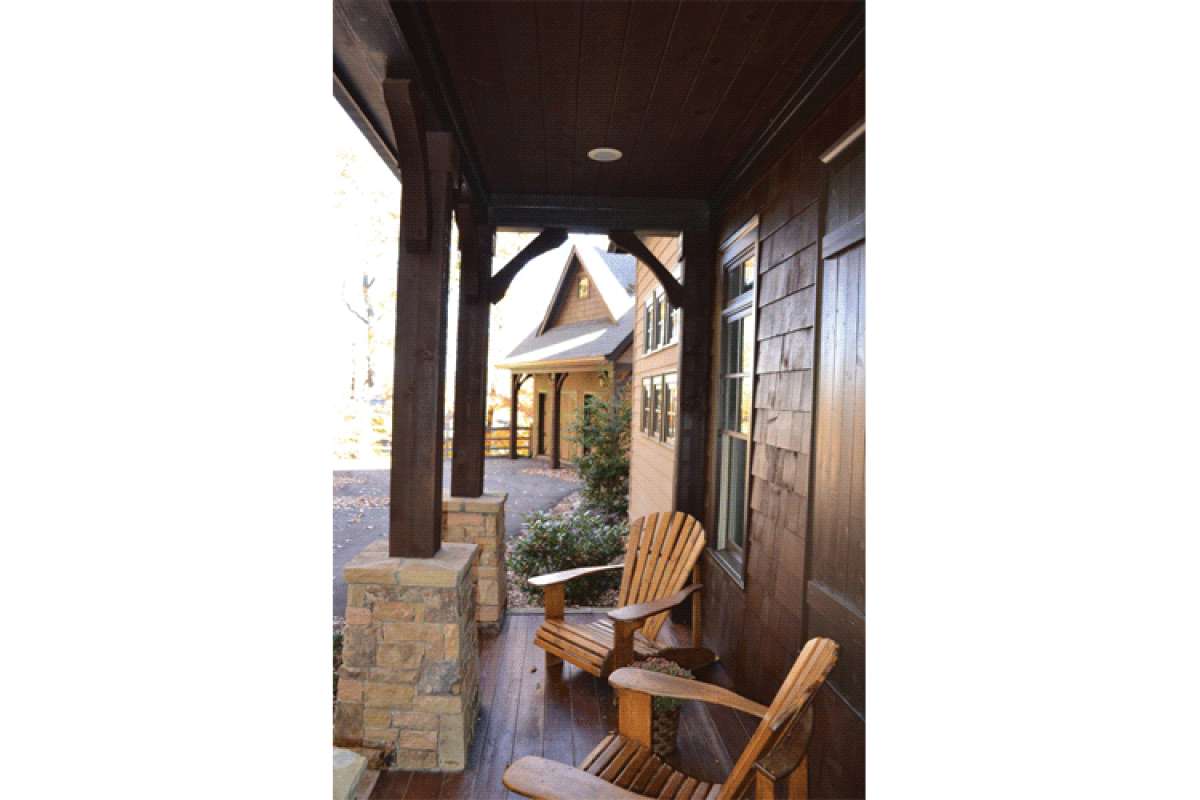

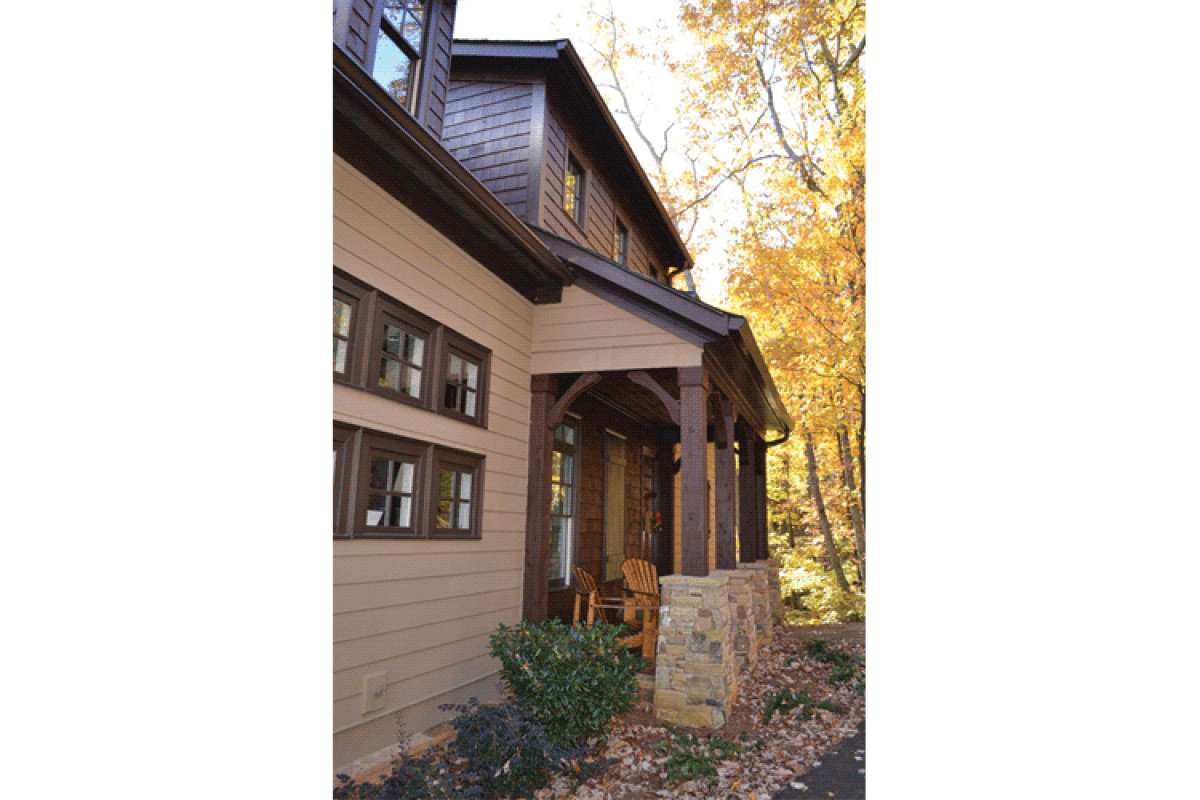

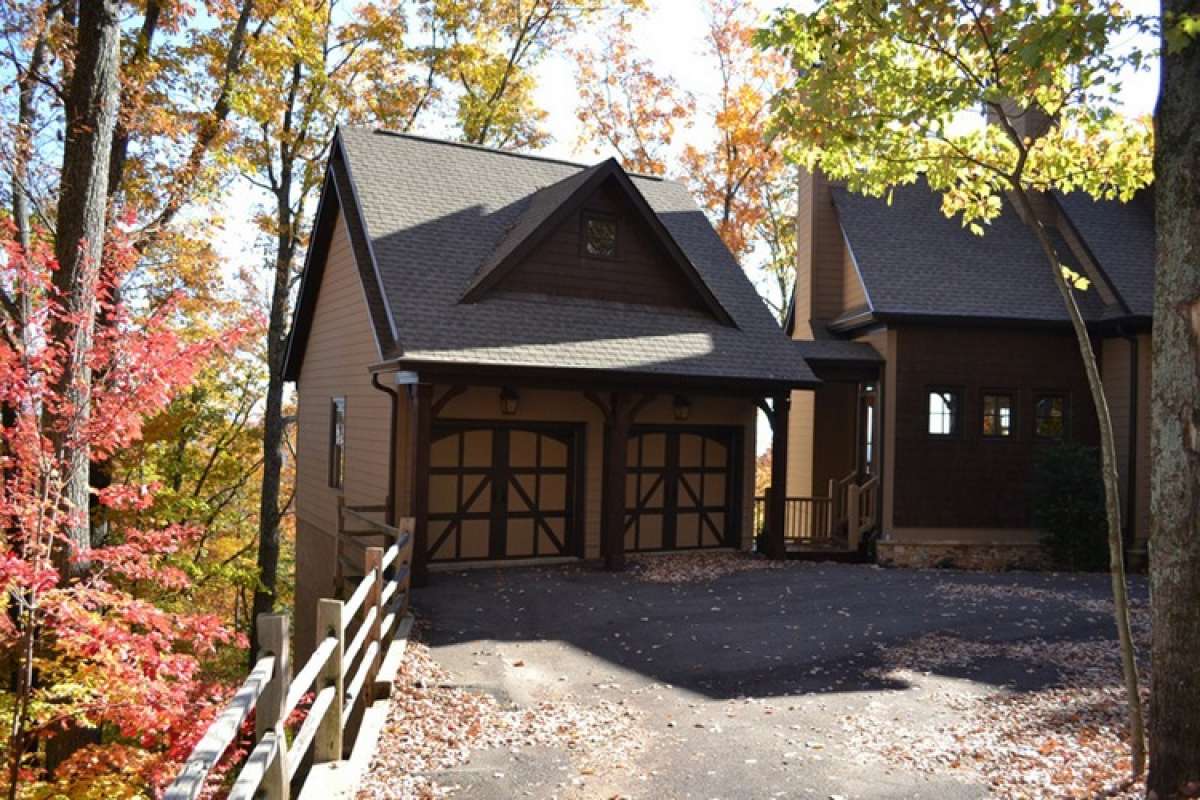

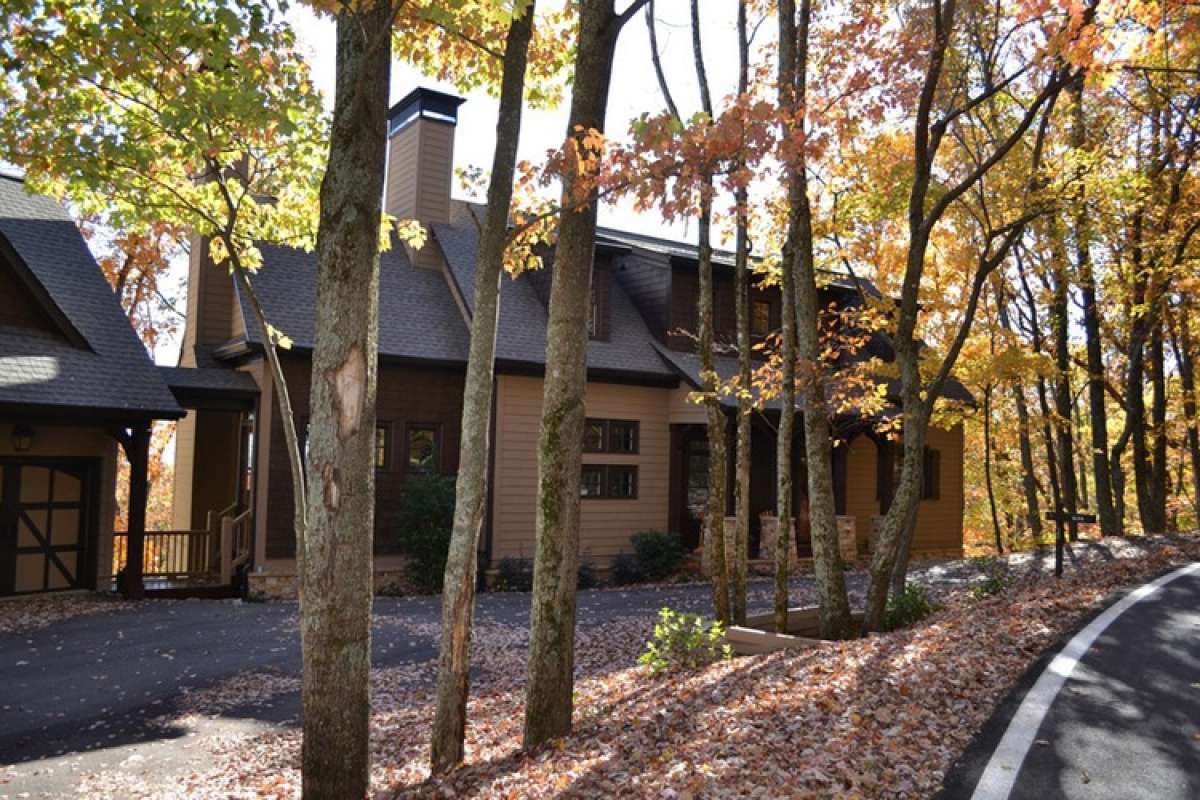

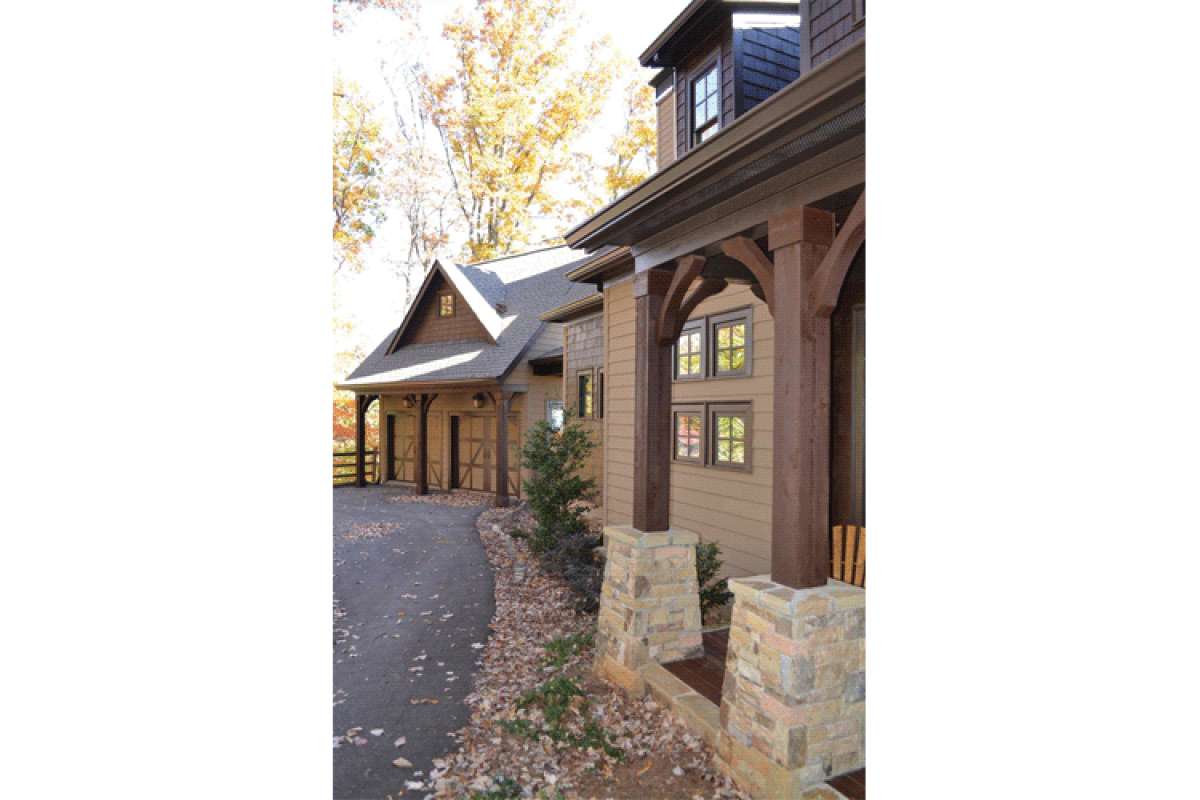

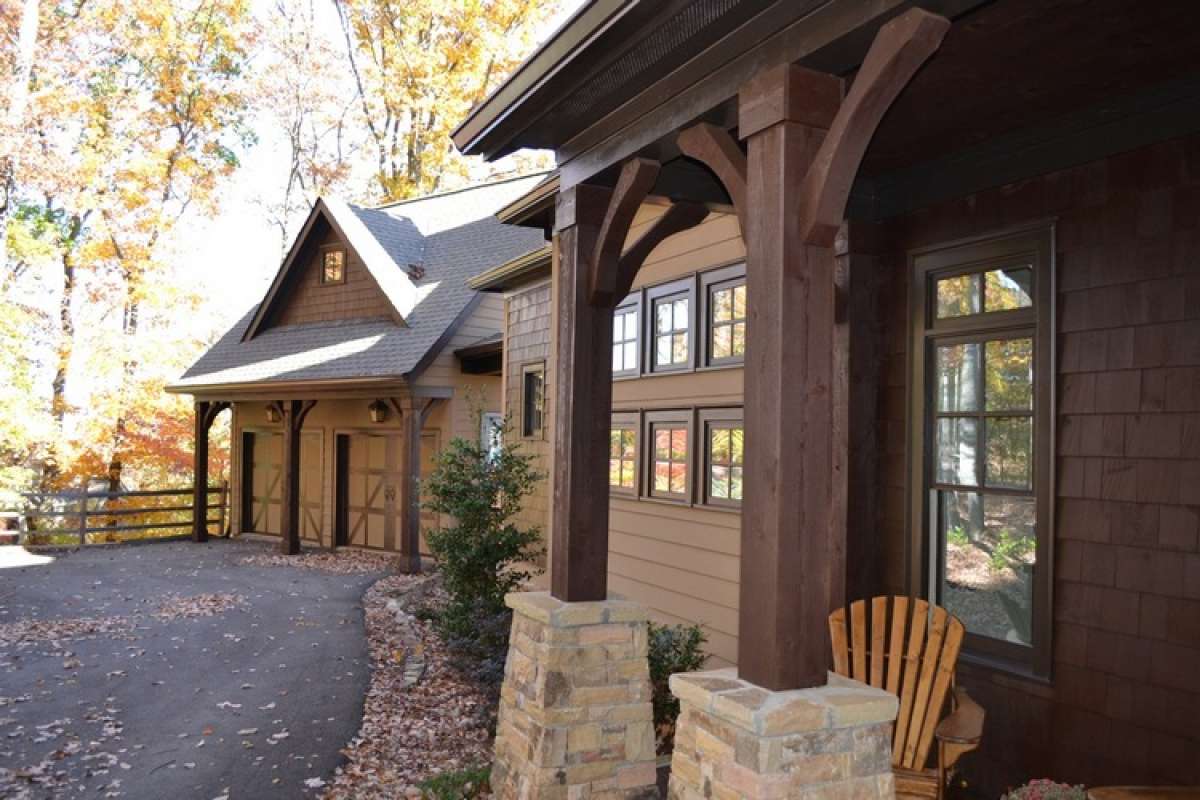

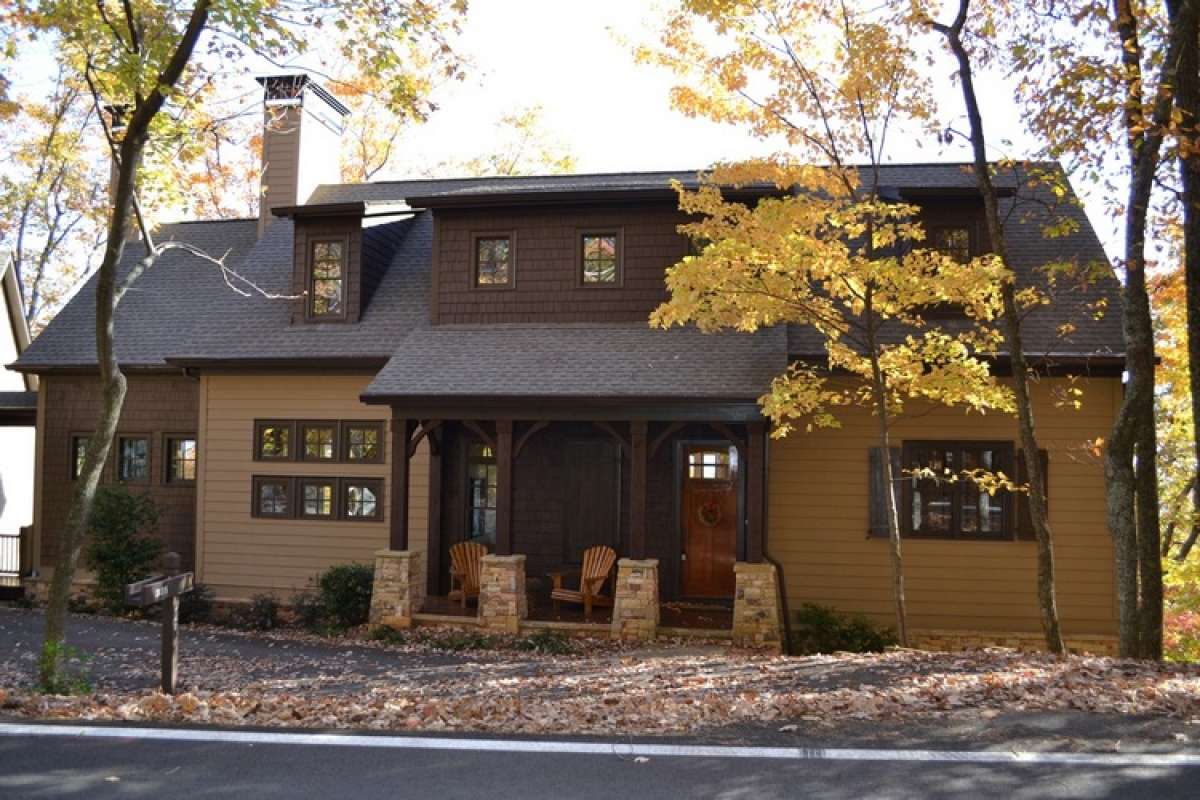

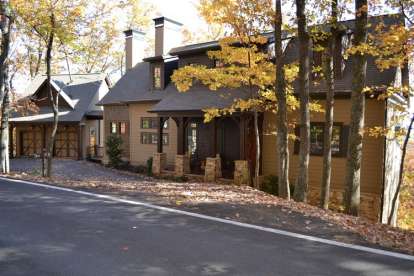

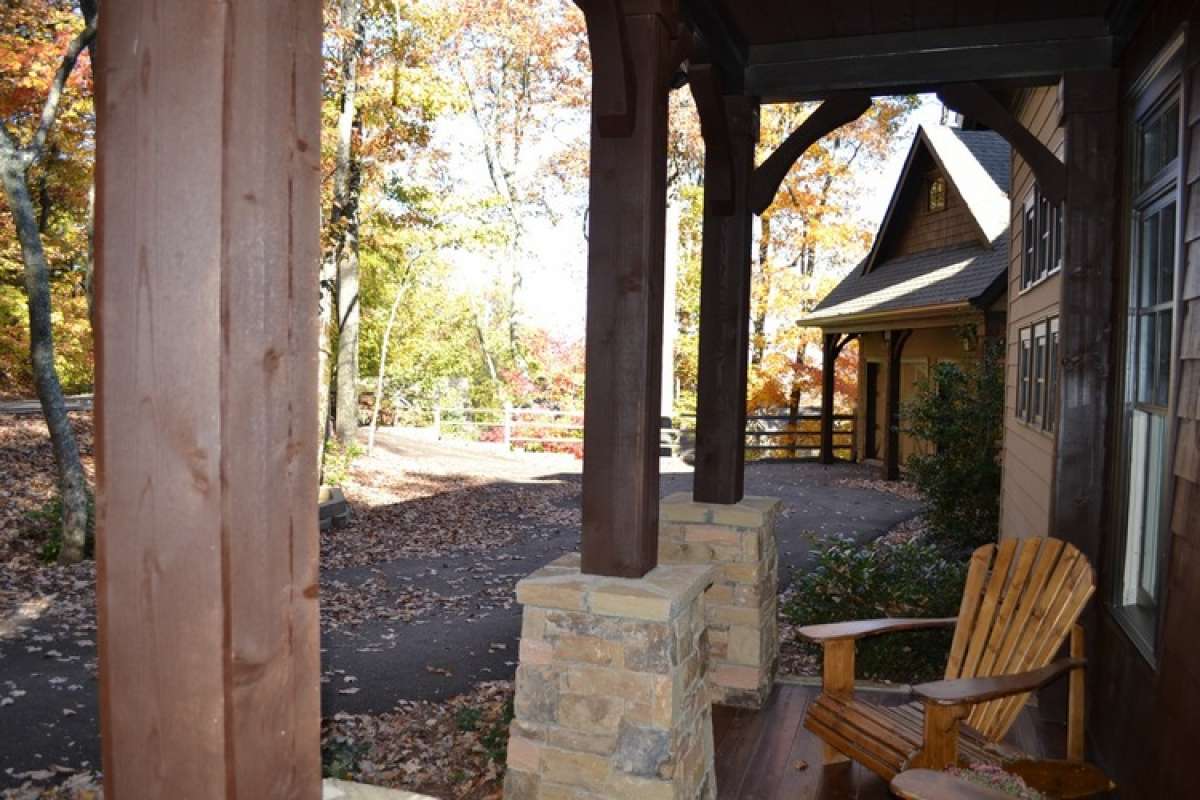

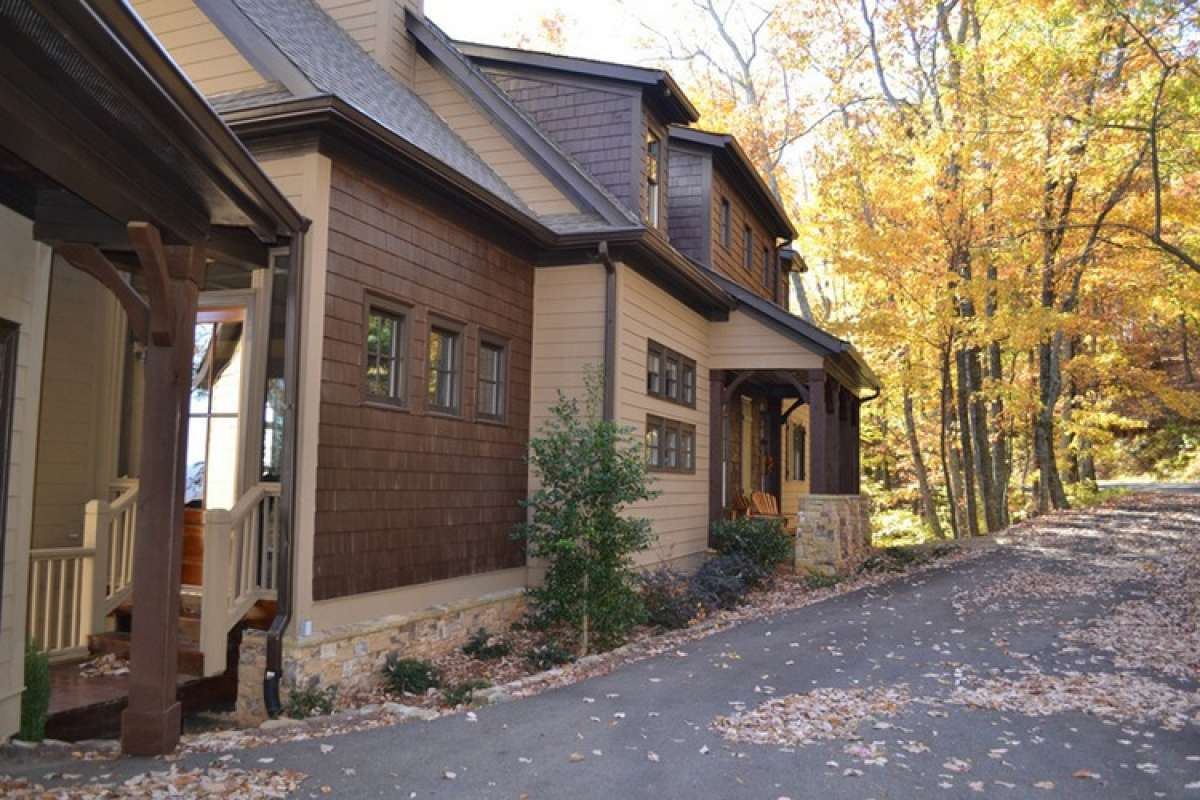

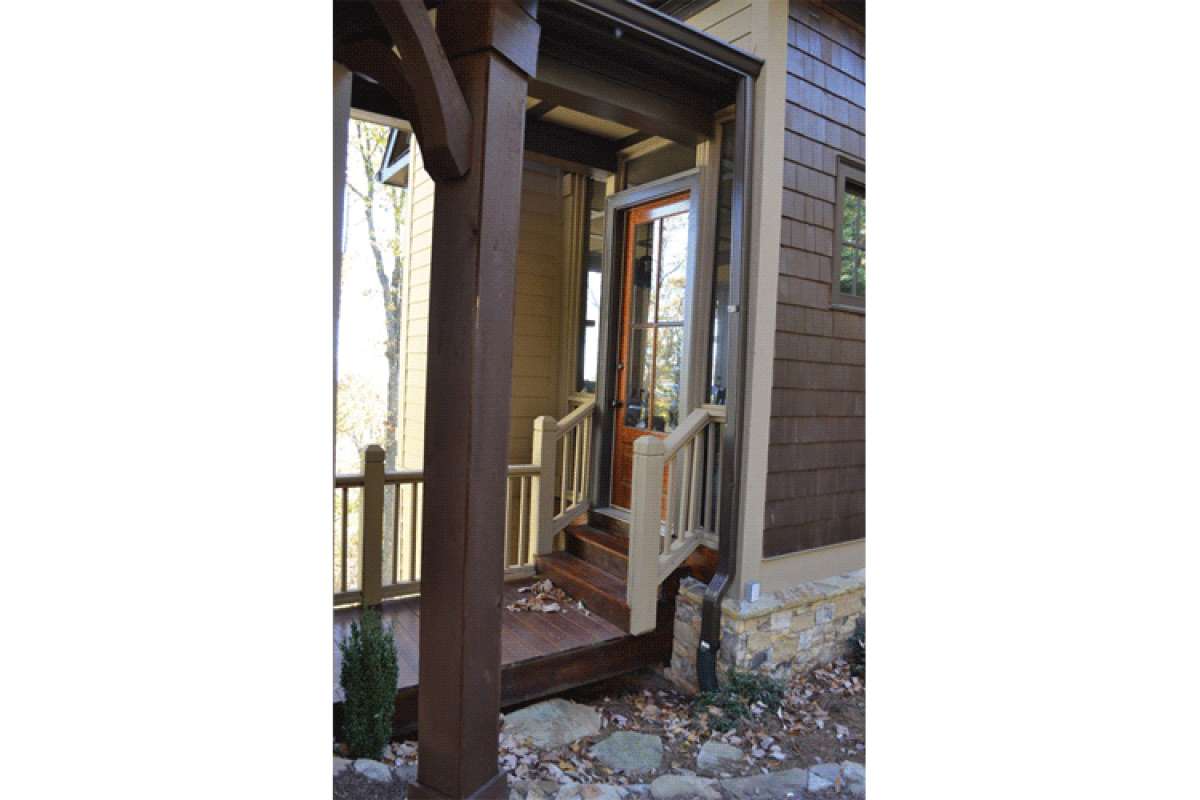

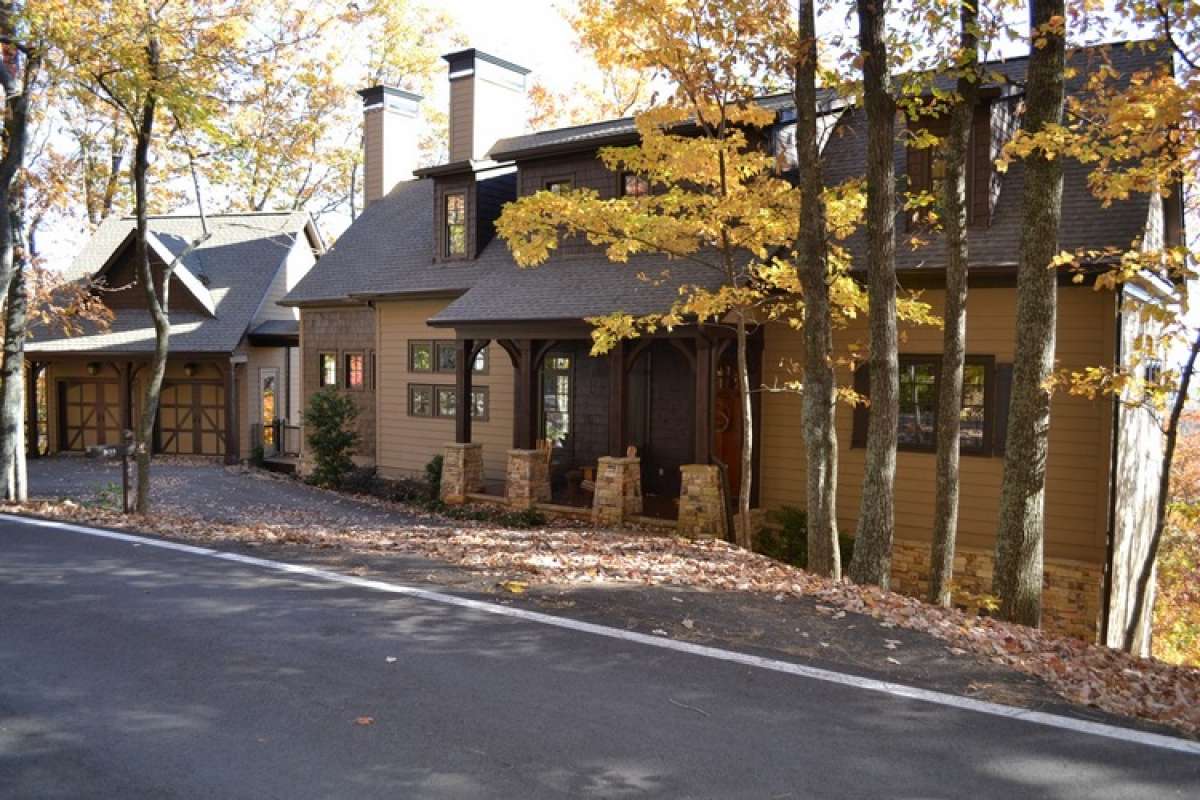

This rustic charmer has a comfortable and functional floor plan, an abundance of living space and loads of outdoor space and amazing window views. The Craftsman inspired front porch is highlighted with tapered beams on stacked stone and decorative brackets that form arched openings. Window dormers, siding and shakes blend beautifully to create a striking exterior and there is a covered walkway to the detached two car garage. The two story floor plan has in excess of 2,200 square feet of living space and the daylight basement has the potential to add an additional 1,204 square feet making this a grand home. You enter the home through the spacious foyer which houses the open railing staircase and optional elevator. The great room is an expansive size and features a handsome fireplace, built-in cabinetry and access to the covered porch. The dining room anchors the great room and kitchen and is highlighted by column detailing and a triple wall of windows overlooking the rear deck. Access to the second covered porch with an outdoor fireplace is through French doors off the dining room. The family friendly kitchen features a large center island and an impressive U-shape design with plenty of additional counter and cabinet space. This combination of open concept common areas is enveloped by three amazing outdoor spaces; a covered porch, deck and a second covered porch with fireplace are designed for spacious family living and entertaining purposes. A second family bedroom or guest suite is quite large and features a walk-in closet, wonderful window views and a private bath with dual vanities. There is an additional powder room for guest use to complete the main level of the home. Upstairs, there is a large private study with a fireplace and a laundry closet. The master suite is accessed through French doors and offers a spacious footprint. The bedroom measures approximately 11’x24’ and has a triple wall of windows at the rear of the space with an enormous walk-in closet. The master bath is elegantly designed with dual vanities, a separate shower, additional counter space, a private toilet area and a whirlpool tub with double window views. The terrace level has outstanding window views and outdoor access along the width of the rear walls, space for a large family recreation room and an enormous laundry room. Additionally, there is space for two oversized bedrooms; each with a private bath and one features dual vanities. This is a fantastic family home with plenty of living space and outstanding expansion possibilities.
