Lake Front House Plan 039-00160

Sq Ft3,304
Beds2
Baths3
1/2 Baths0
Stories1
Cars2
Width65' 0"
Depth56' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Basement Floor for House Plan #039-00160
Main Floor for House Plan #039-00160

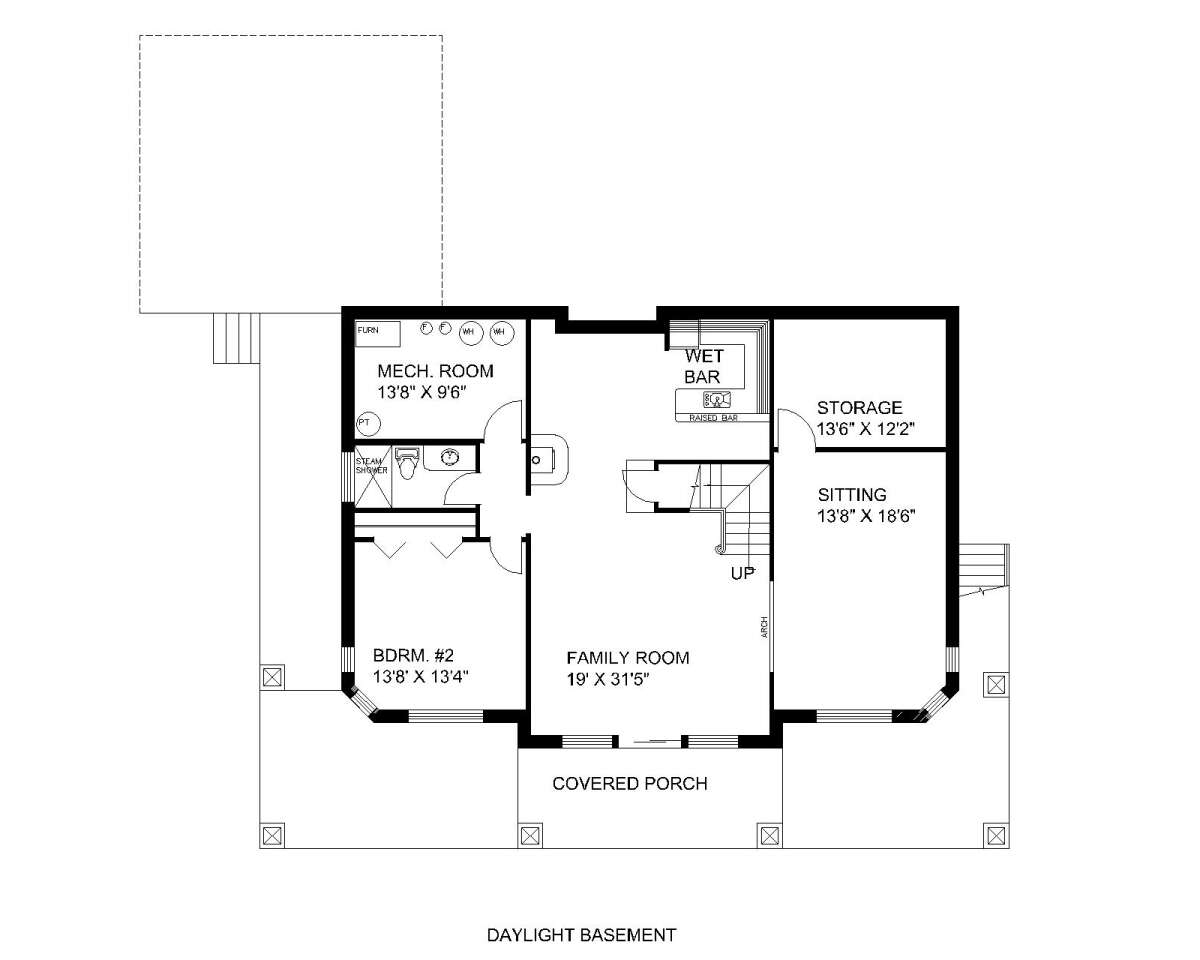

Basement Floor
Basement Floor for House Plan #039-00160

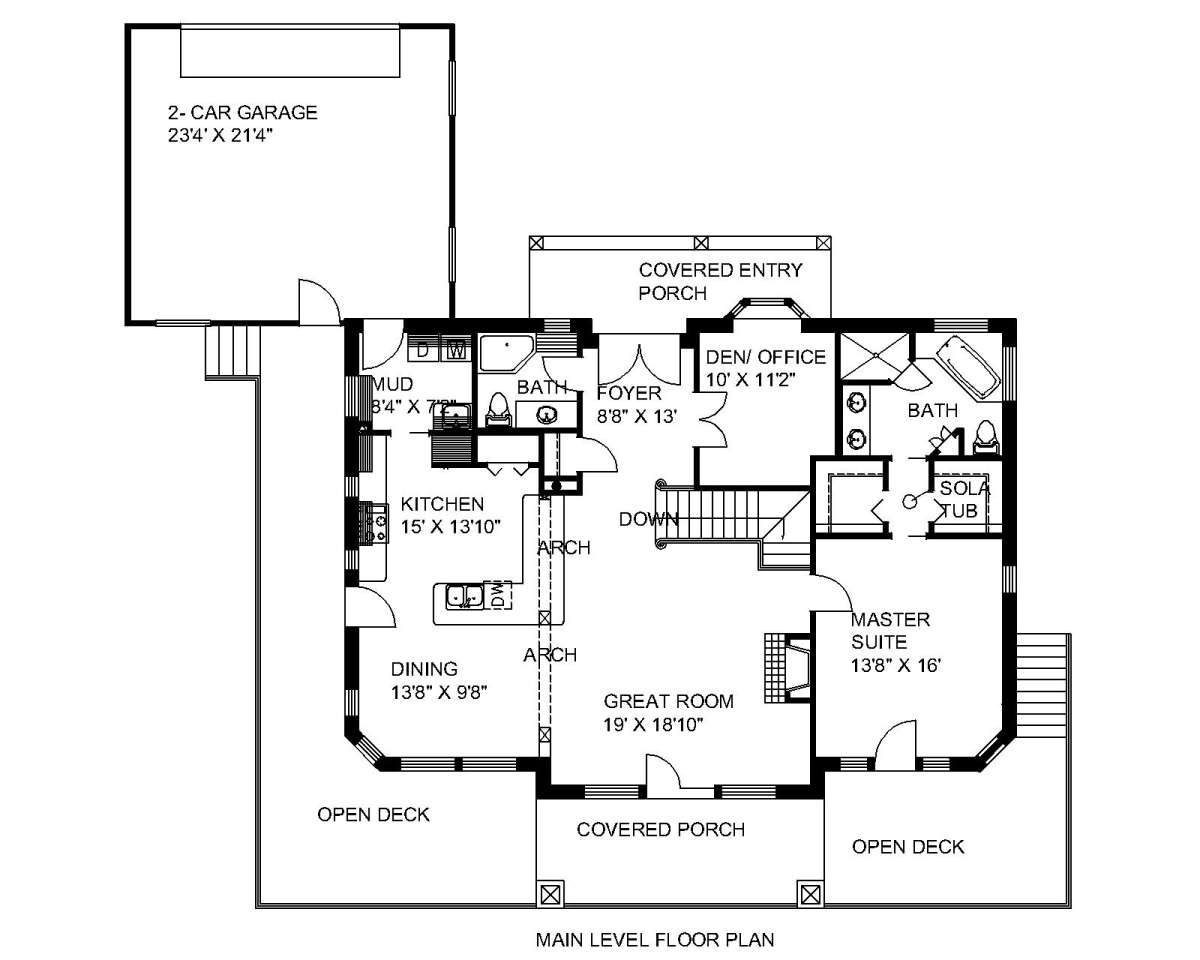

Main Floor
Main Floor for House Plan #039-00160


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

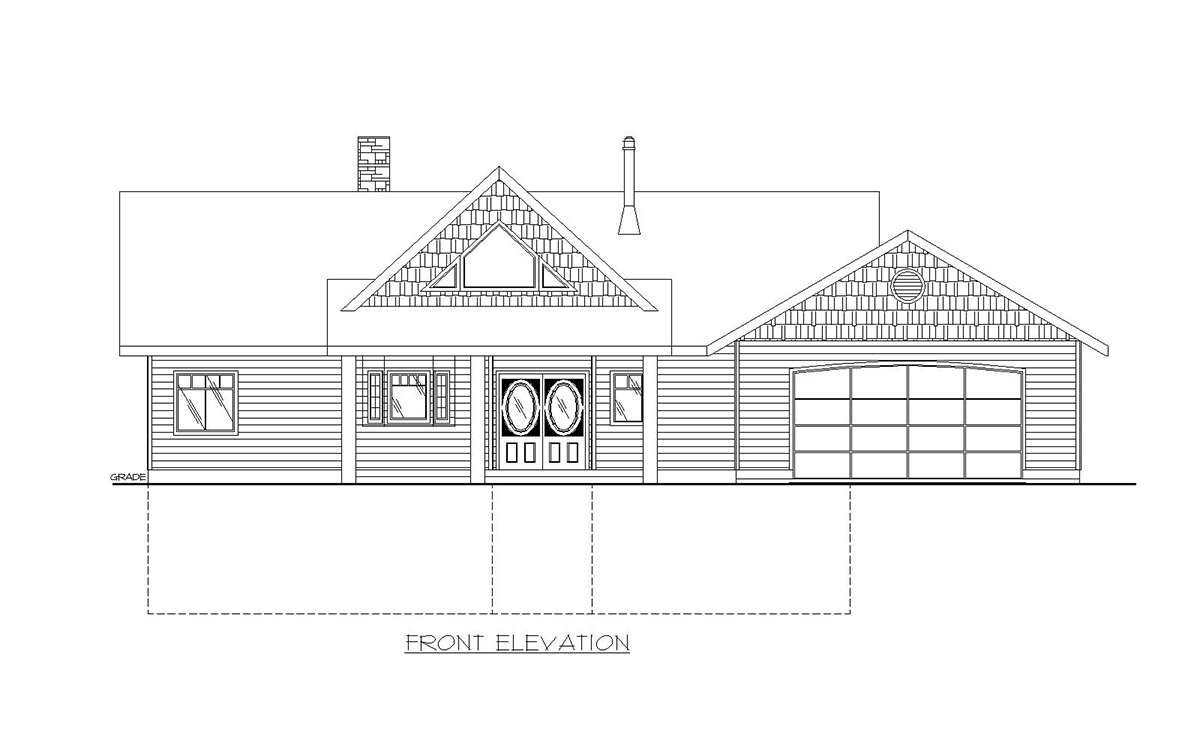

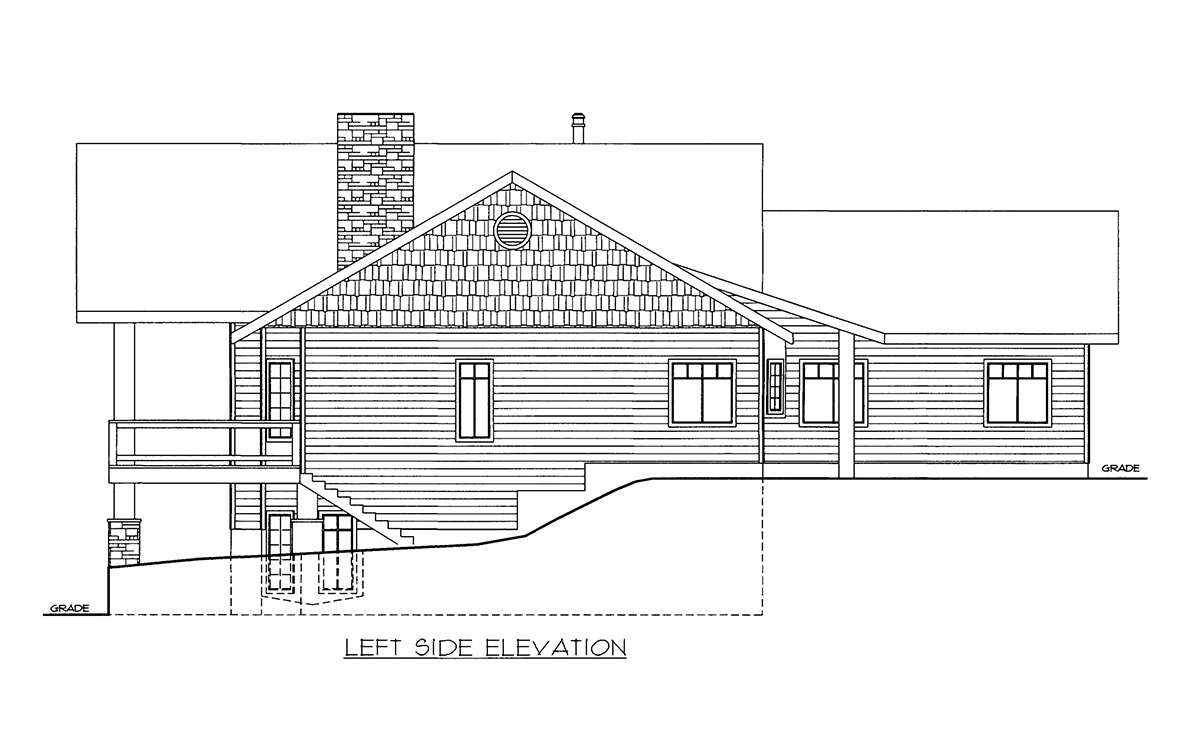

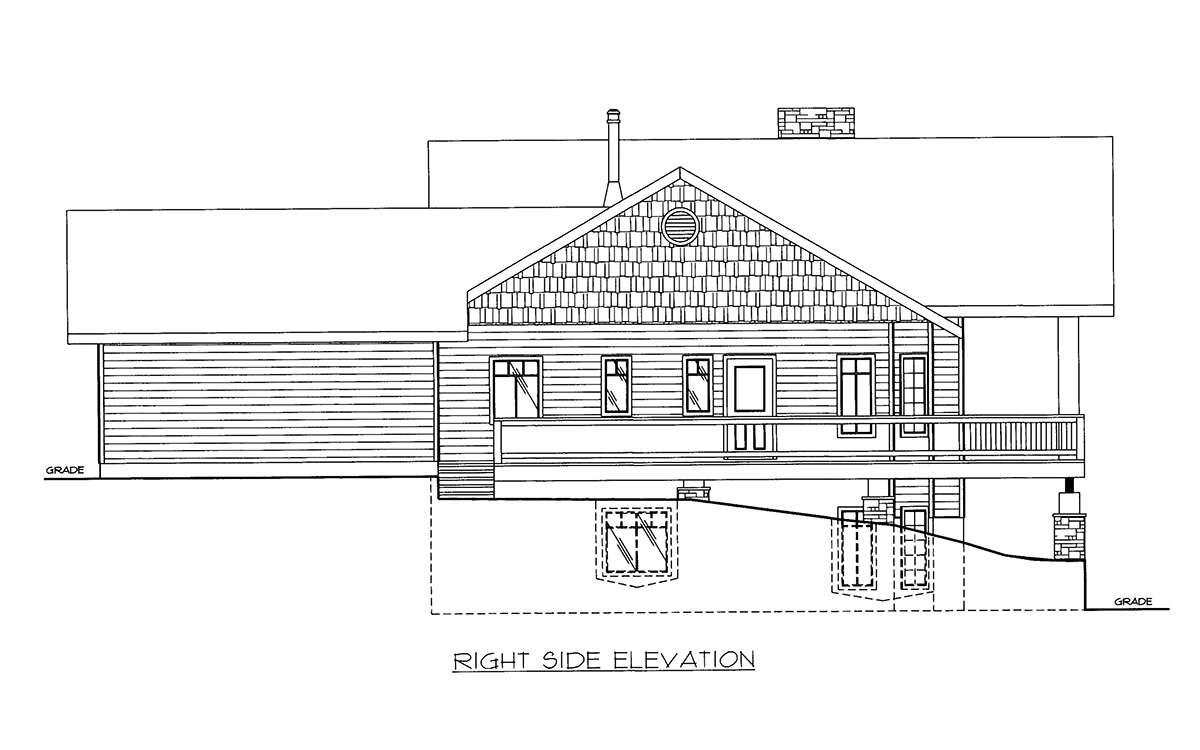

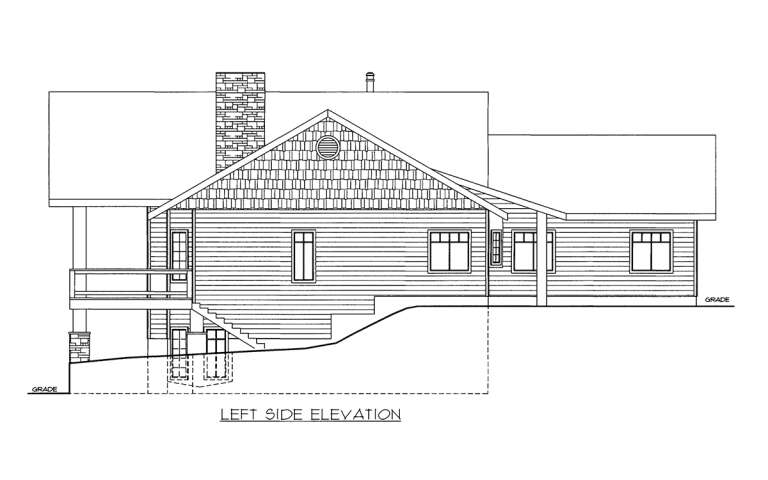

  • Exterior elevations: show the front, rear, and sides of the house to scale from a straight on perspective.
  • Detailed floor plans: show the placement and sizes of interior walls, rooms, doors, windows, and similar elements for each level of the house.
  • Foundation plans: include all necessary notations and dimensions to create the foundation of the house. If the plan you choose doesn't have the type of foundation you desire, we will create one for you at a reasonable fee.
  • Upper floor framing plans are included with two story homes or homes with lofts.
  • The roofing plan gives the layout of rafters, dormers, gables, and other roof elements, such as skylights.
  • Cross-sections: show details of the house as though it were cut in slices from the roof to the foundation. The cross sections give the construction, insulation, flooring, and roofing details.
  • Schematic electrical layouts: show the suggested locations for switches, fixtures, and outlets.
  • General specifications: provide instructions and information regarding excavation and grading, masonry and concrete work, carpentry and woodwork, thermal and moisture protection, drywall, tile, flooring, glazing, and caulking and sealants.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Superior quality exterior craftsmanship and an interior floor plan that is spacious and versatile highlight this Lakefront house plan. Whether situated on a lakefront or mountaintop property lot, this house design is sure to inspire and delight the senses with its spectacular outdoor space, stacked stone pillars, floor-to-ceiling window inserts and overhead A framed gable. Approximately 3,304 square feet of usable living space features two bedrooms, three baths and wide open spaces creatively designed for entertaining. There is a front covered porch entry which leads to the foyer and a French door accessible den/office that is situated in a bay window. Beyond the coat closet and staircase is the enormous great room with warming fireplace and arched openings line the space into the dining room and kitchen. The far end of the great room is a veritable showcase of striking window views and access to the covered porch that is flanked by wraparound open decking. One side of the deck completely encases the main living/dining spaces and comes to rest at the two car rear entry garage. The dining room is highlighted with abundant window views, deck access and the grand kitchen features a peninsula bar, a separate pantry and plenty of counter and cabinet space. There is a large interior utility/mudroom directly accessible from the garage and lying beyond the kitchen. The main level master suite is private and features a master bedroom with private access onto the rear deck, double attached his and her walk-in closets and an en suite bath. The master bath is highlighted with a bevy of modern amenities for the homeowner’s comfort.
The terrace level of the home features a centrally located large recreation room with covered porch access, a wood burning stove and a walk-in wet bar. There is a second bedroom with generous closet space and an adjacent full bath with shower. Directly off the recreation room is a large sitting room which could be utilized for quieter activities such as a reading library, a hobby/craft room and a movie viewing theatre. A huge storage room and mechanical space is available as well on this level. This is a beautiful blend of form and function where plentiful interior space and excellent outdoor space are featured highlights.
