Lake Front House Plan 5445-00231

Sq Ft2,911
1/2 Baths0
Width40' 0"
Depth50' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

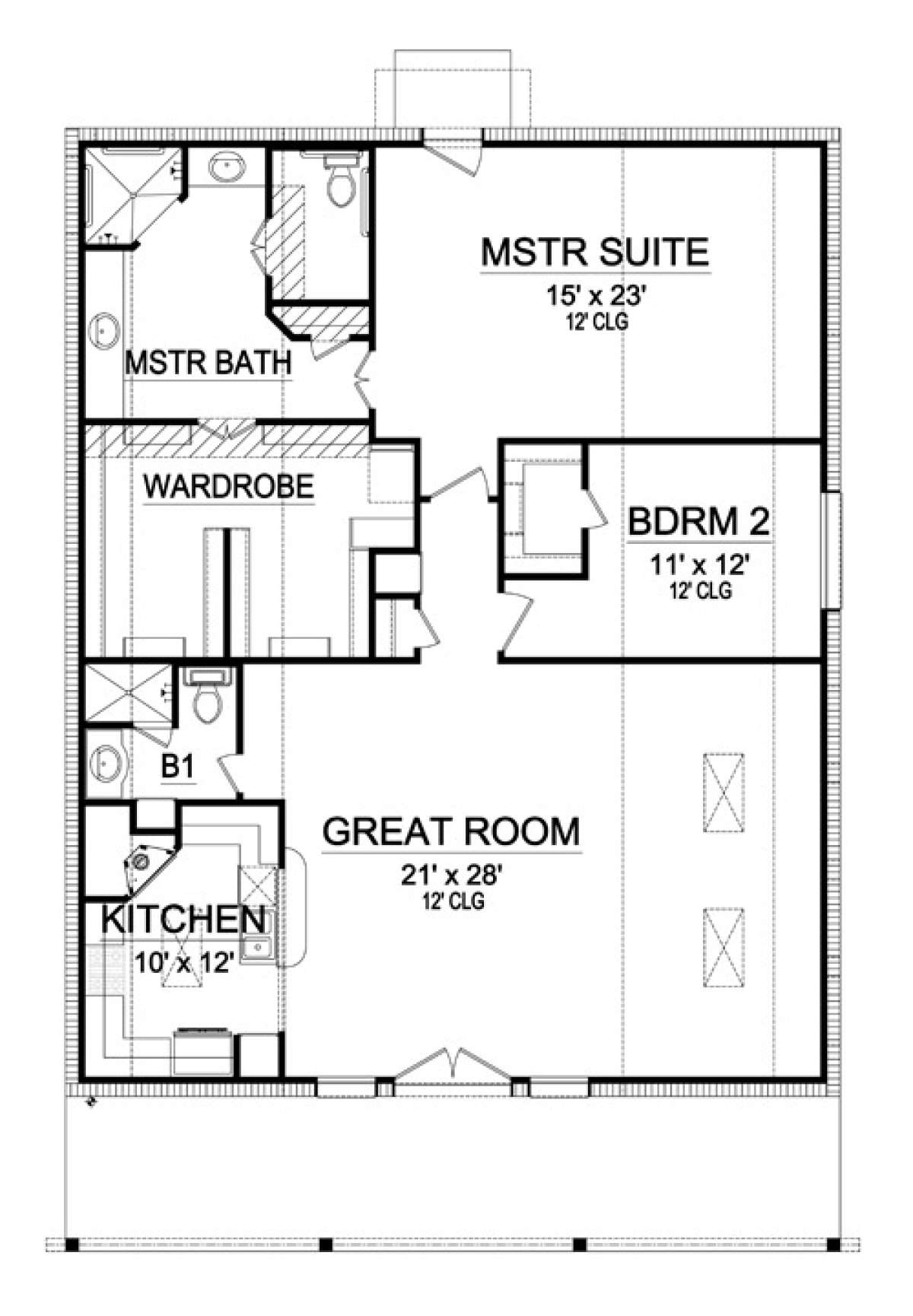

Floorplan 1 for House Plan #5445-00231
Floorplan 2 for House Plan #5445-00231
Floorplan 1
Floorplan 1 for House Plan #5445-00231

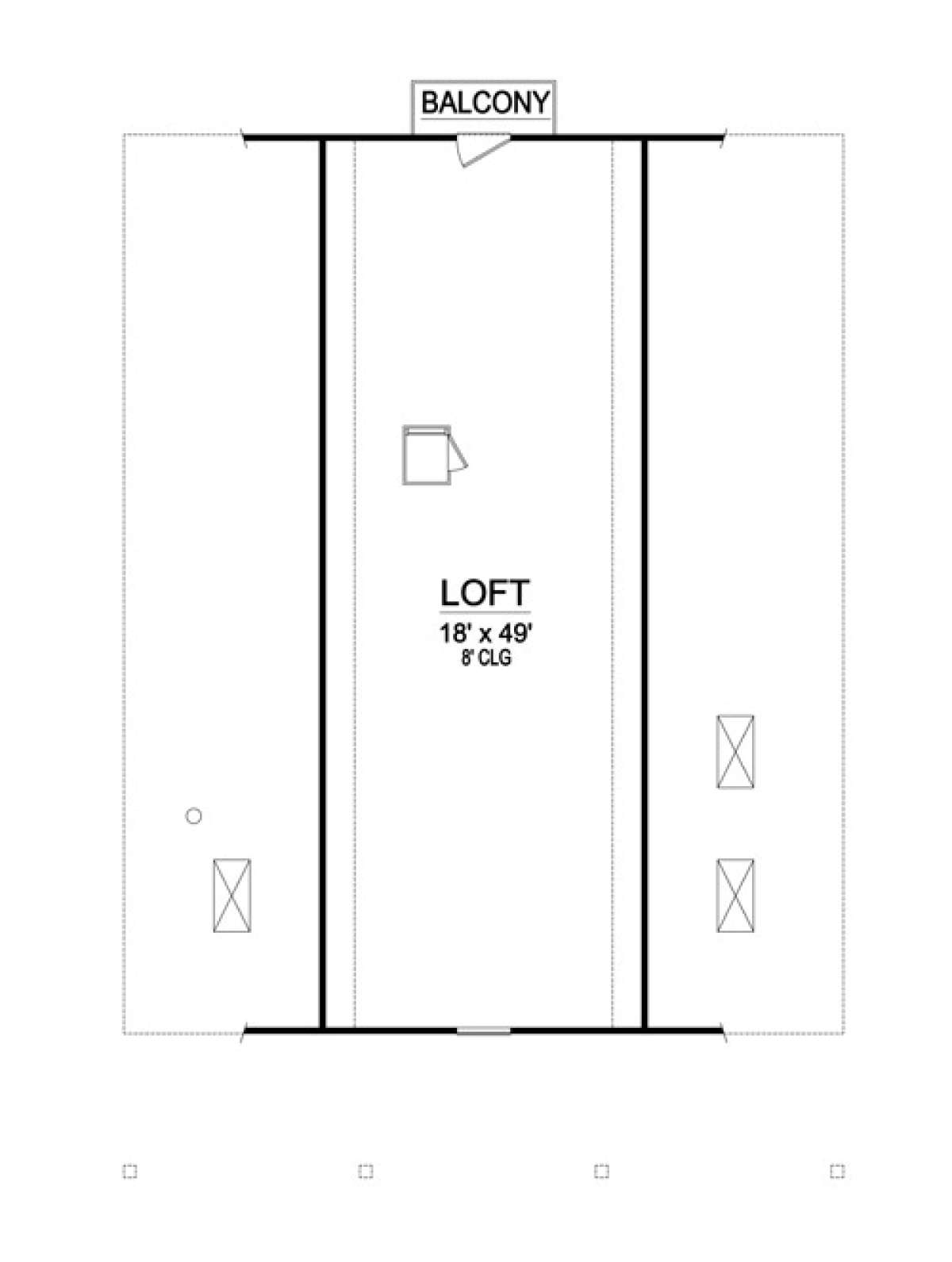

Floorplan 2
Floorplan 2 for House Plan #5445-00231

Frequently Asked Questions


What's Included in these plans?

  • Cover Page:
    Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
  • Foundation Plan
  • Floor Plan(s):
    The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
  • Electrical Plan:
    Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.

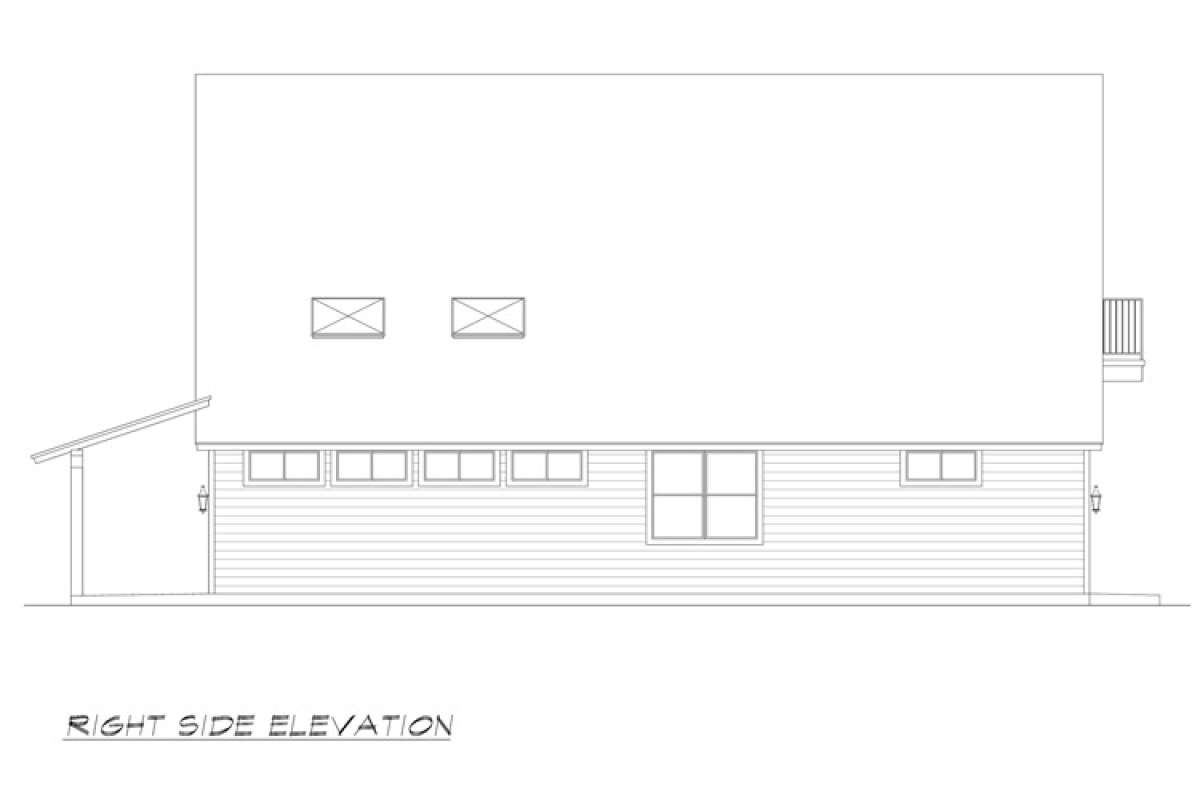

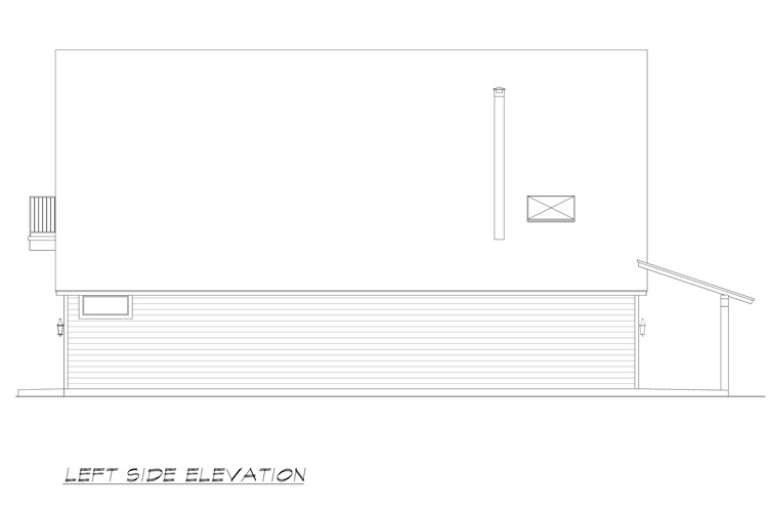

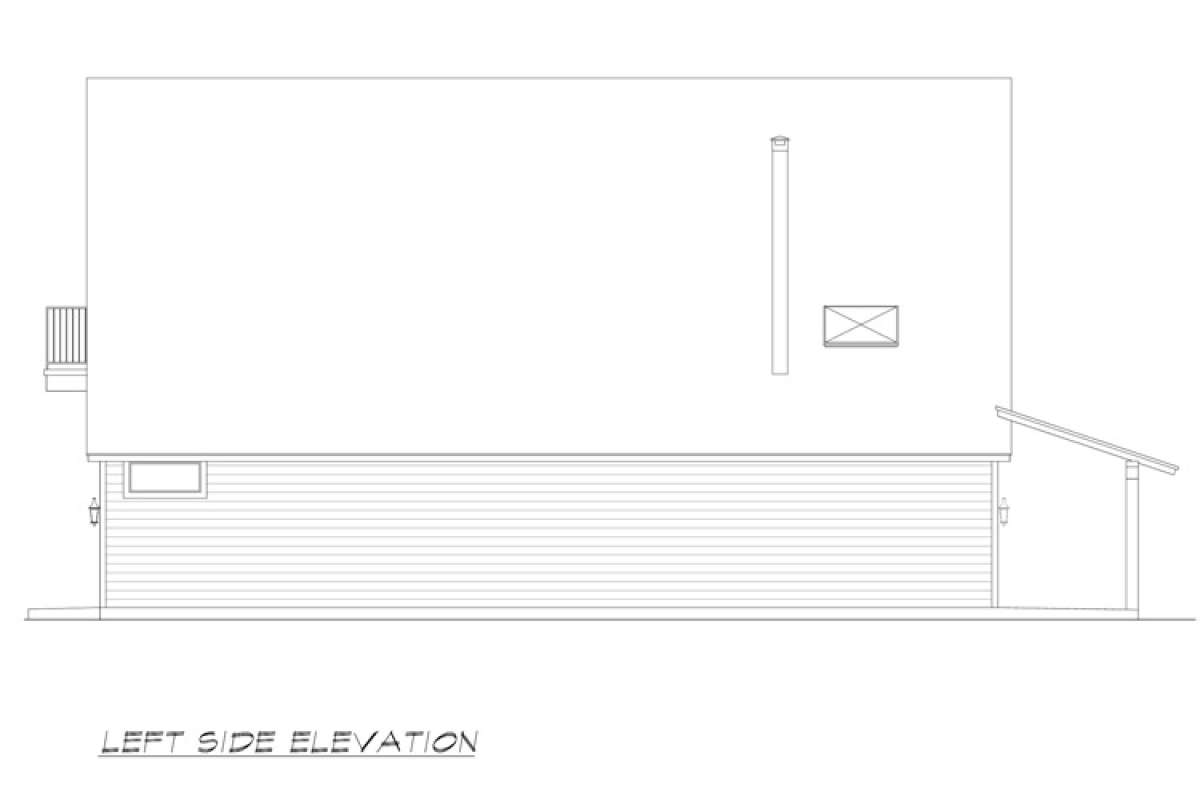

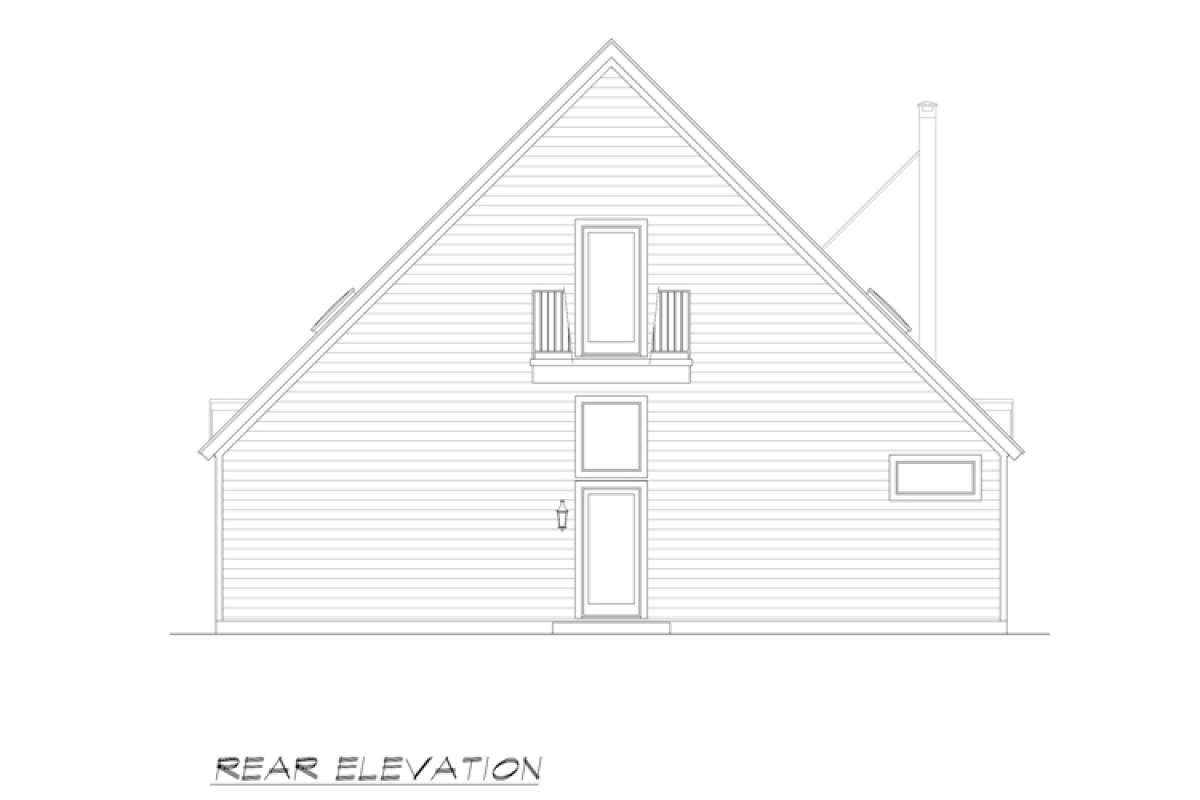

  • Elevations:
    Front, side and rear elevations with notes and exterior dimensions.  All elevations are drawn to 1/4 scale.
  • Roof Plan:
    Drawn to 1/4 scale.
  • Sections Page


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Simple construction with a steeply pitched roof line and covered porch overhang are perfect accompaniments to this Lakefront house design. The front covered porch is further enhanced with the addition of multiple beams spanning the elevation for a tidy look and there is horizontal siding, boxed window views and a double door entrance as well. The interior is quite spacious with approximately 2,911 square feet of space that incorporates two bedrooms, two baths and wide open entertaining spaces. The overall quality of the home’s spacious interior is highlighted with 12’ ceiling heights on the first floor and the second floor features 8’ ceiling heights. The home’s drawings are perfectly suited for a narrow and/or small property lot, respectively 40’ width and 50’ depth dimensions; whether situated on a tranquil lake front lot or tucked deep inside a wooded lot.

The great room is revealed once the home is entered; it is largely perfect for entertaining and casual dining. Additional dining space is available at the open peninsula bar and there is plenty of counter and cabinet space within the adjacent kitchen. There is a second bedroom with good floor space, great window views, plentiful closet space and a nearby full bath. The master suite is situated at the rear of the home for privacy and offers an enormous master bedroom with a private porch, a huge walk-in closet separated into his and her sections and lined with amazing storage space for clothing, shoes and assorted other accessories. The en suite bath is accessed through French doors and features modern amenities and up-to-date conveniences. The second level loft space is hugely popular as a multi-functional space whether a home office, an artist’s studio or casual second story living space; it contains in excess of 900 square feet and a rear balcony. This house plan is great as a vacation home or forever home for a young family, a professional couple or empty-nesters.
