Mountain Rustic House Plan 8504-00122

Sq Ft2,886
1/2 Baths1
Width79' 0"
Depth82' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

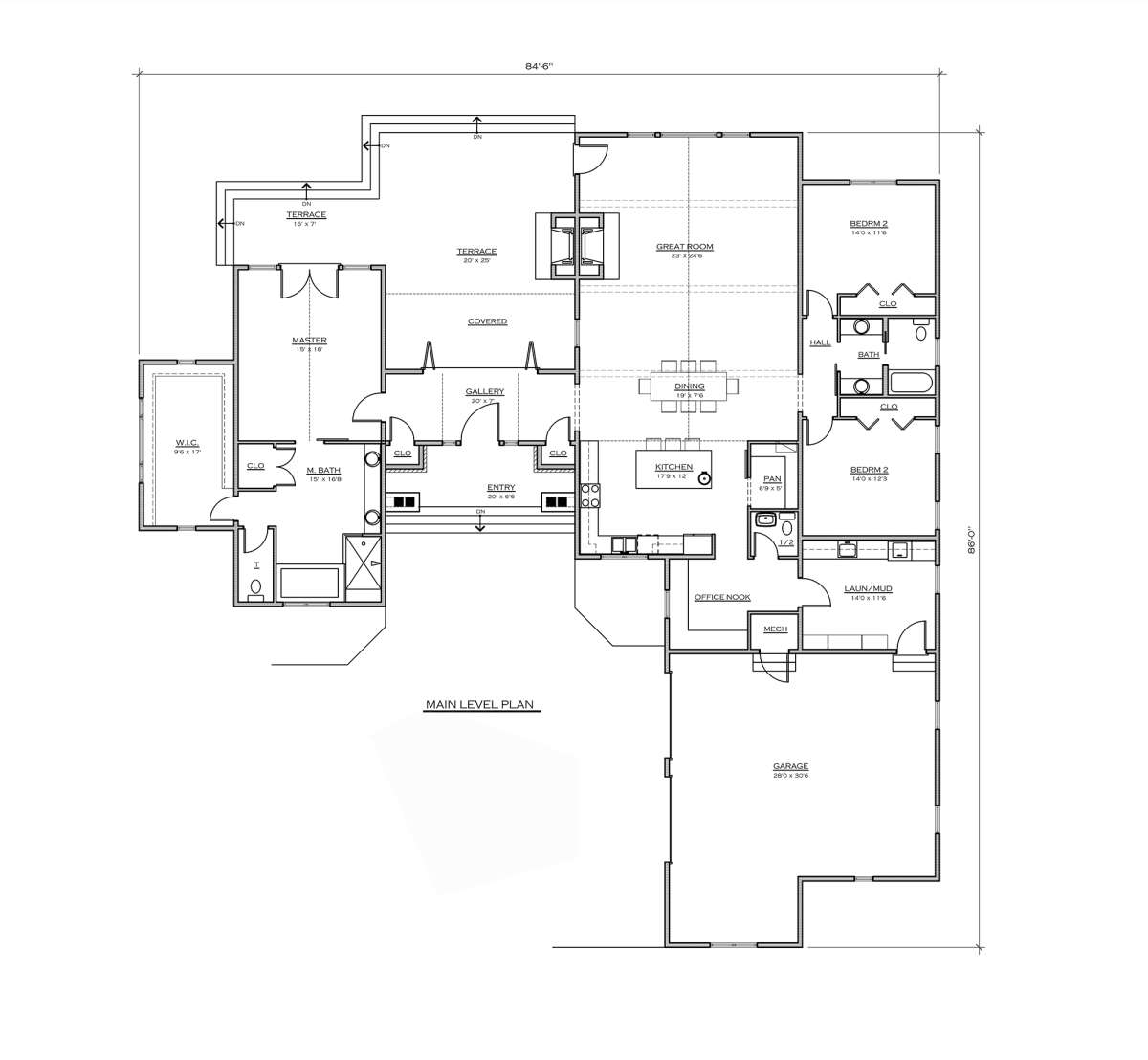

Floorplan 1 for House Plan #8504-00122
Floorplan 1
Floorplan 1 for House Plan #8504-00122

Frequently Asked Questions


What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

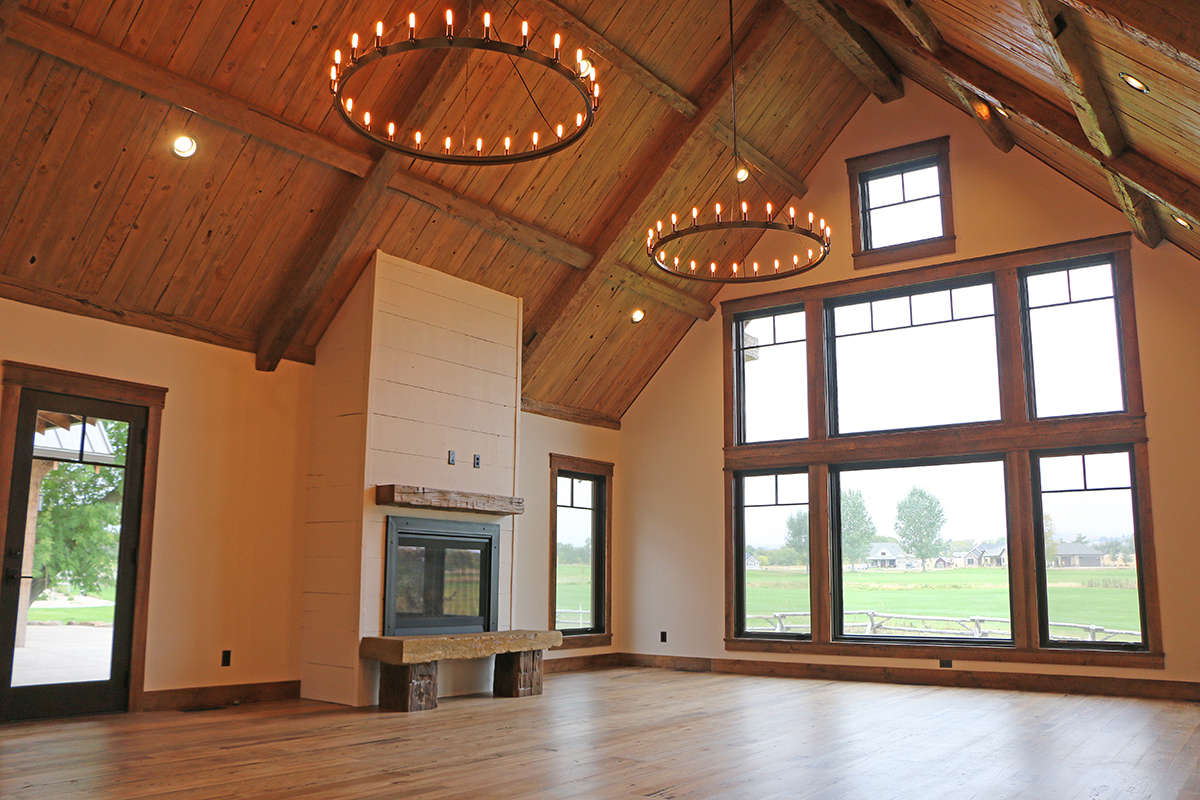

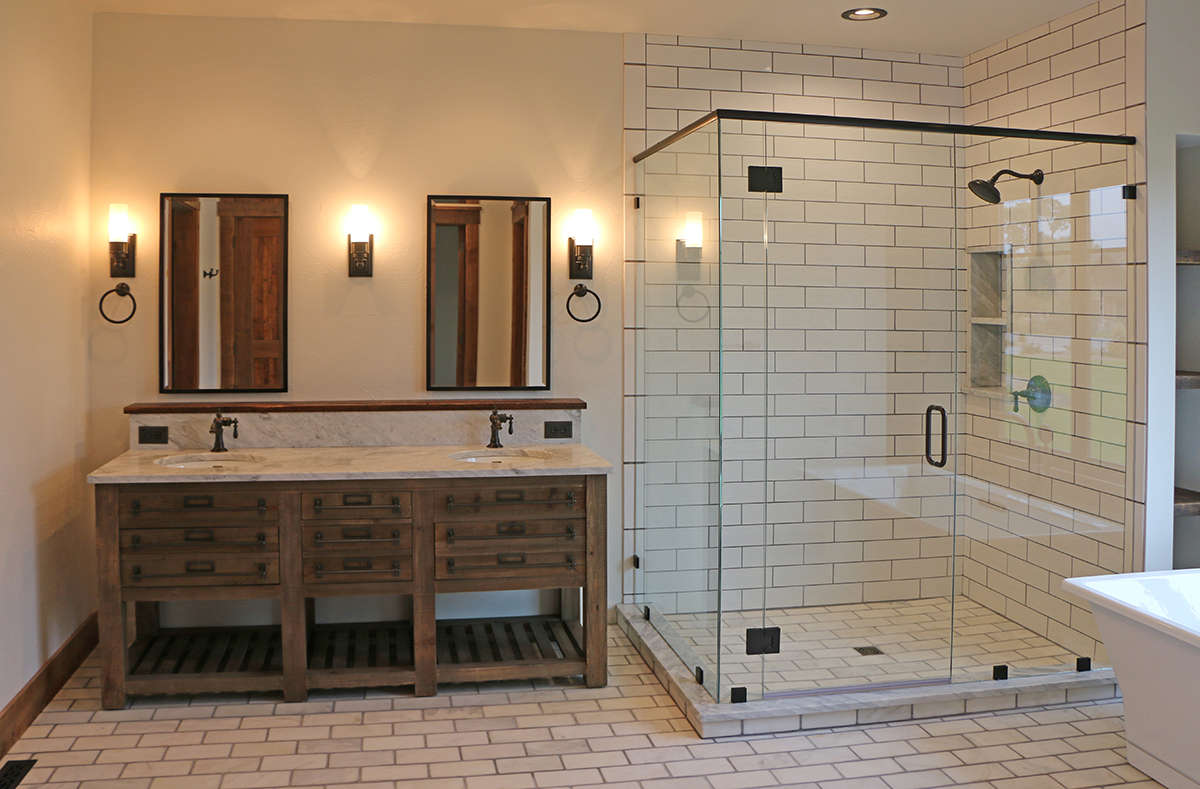

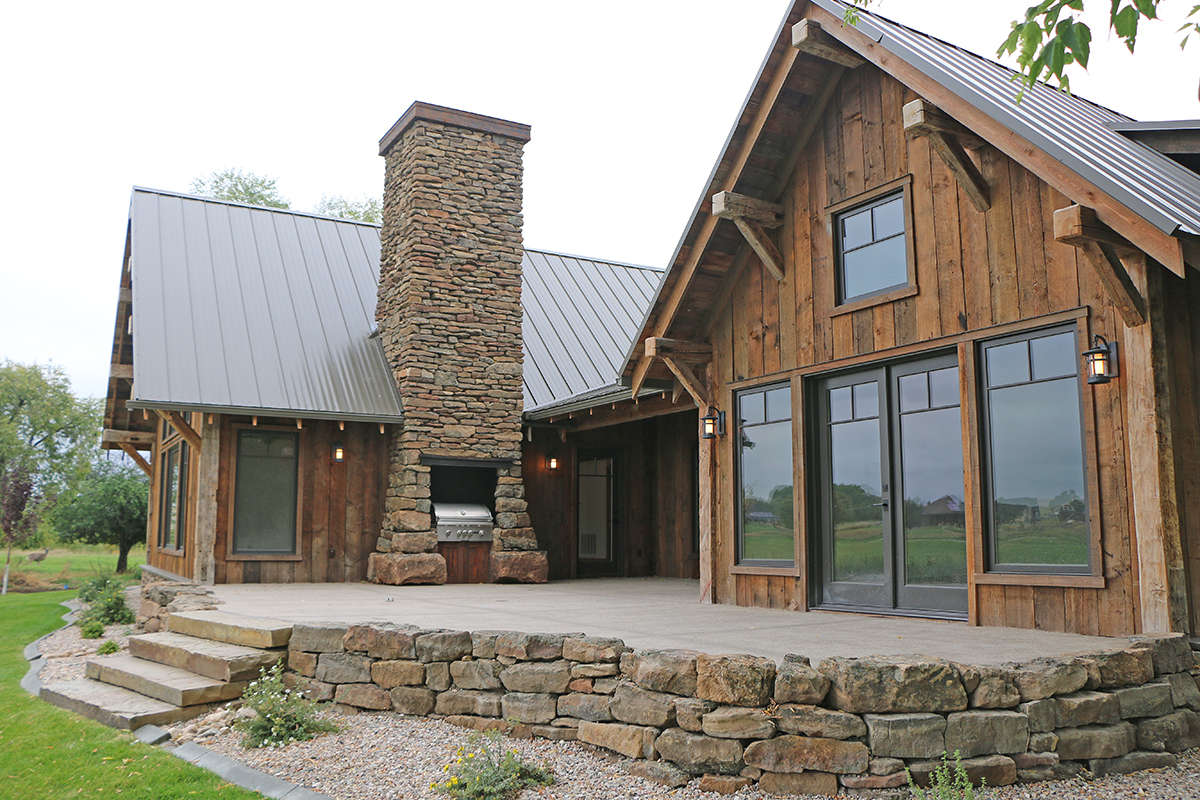

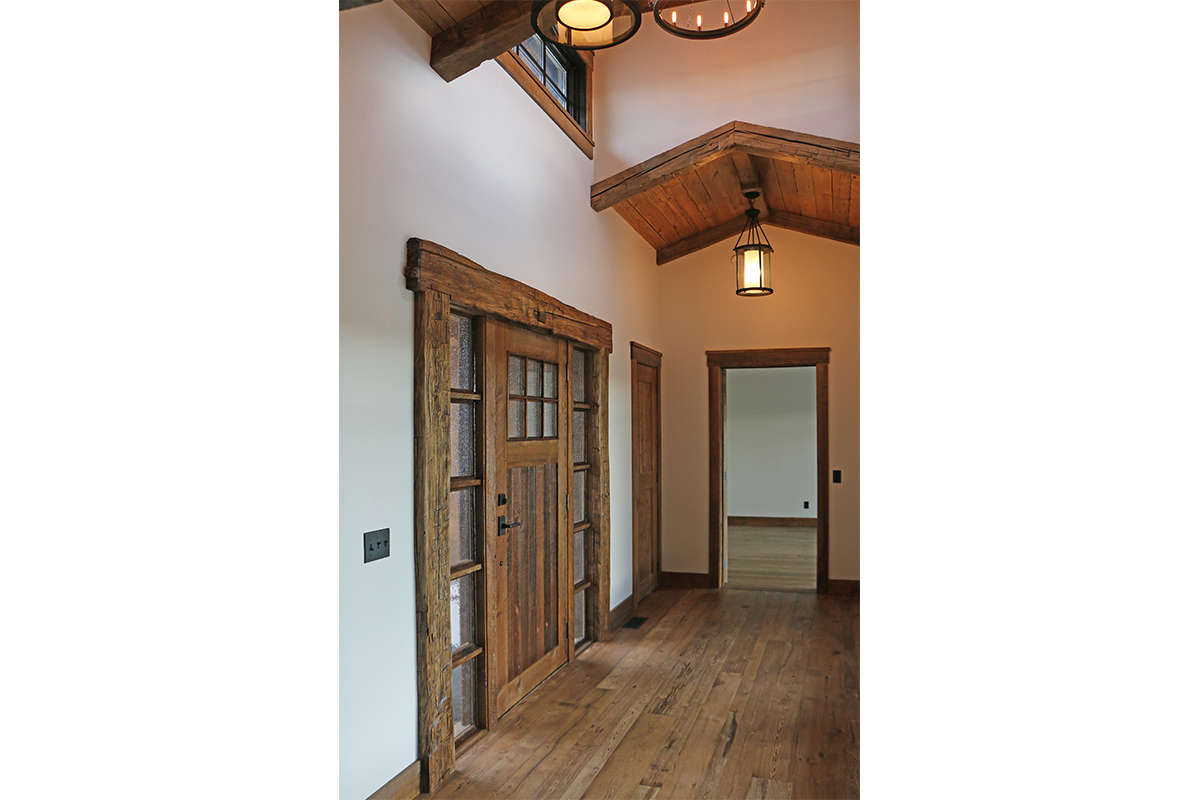

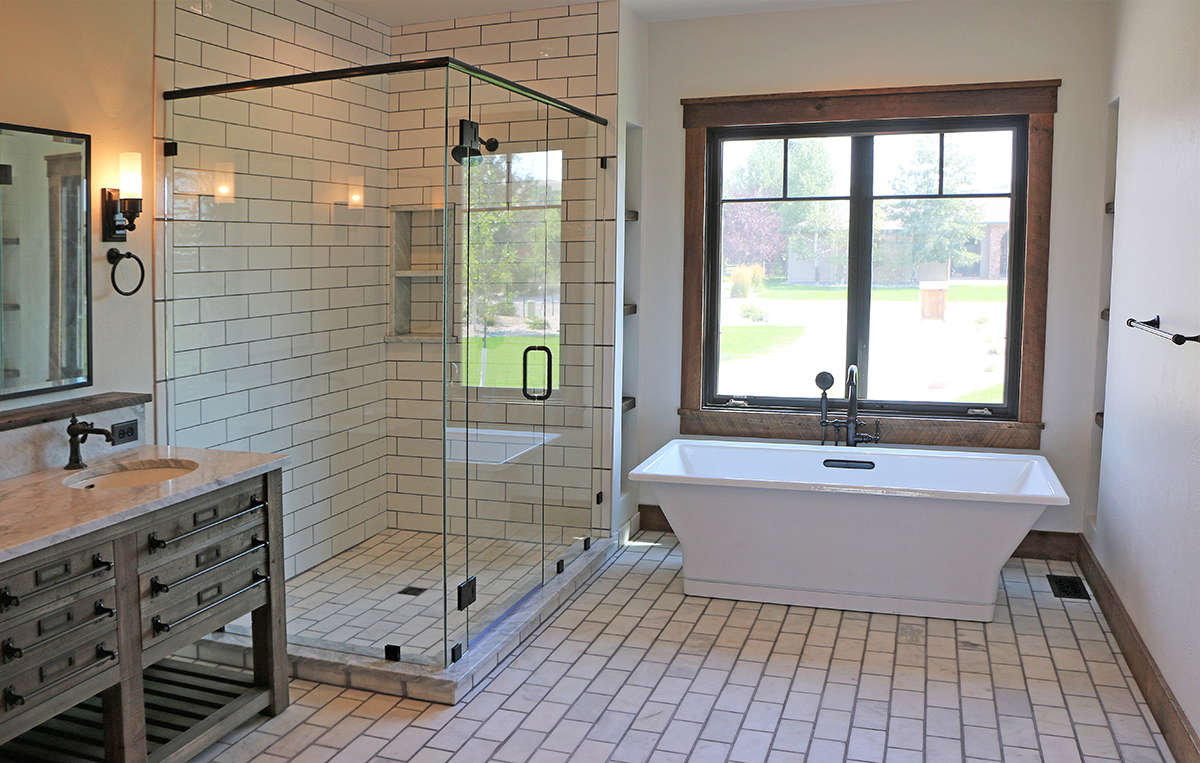

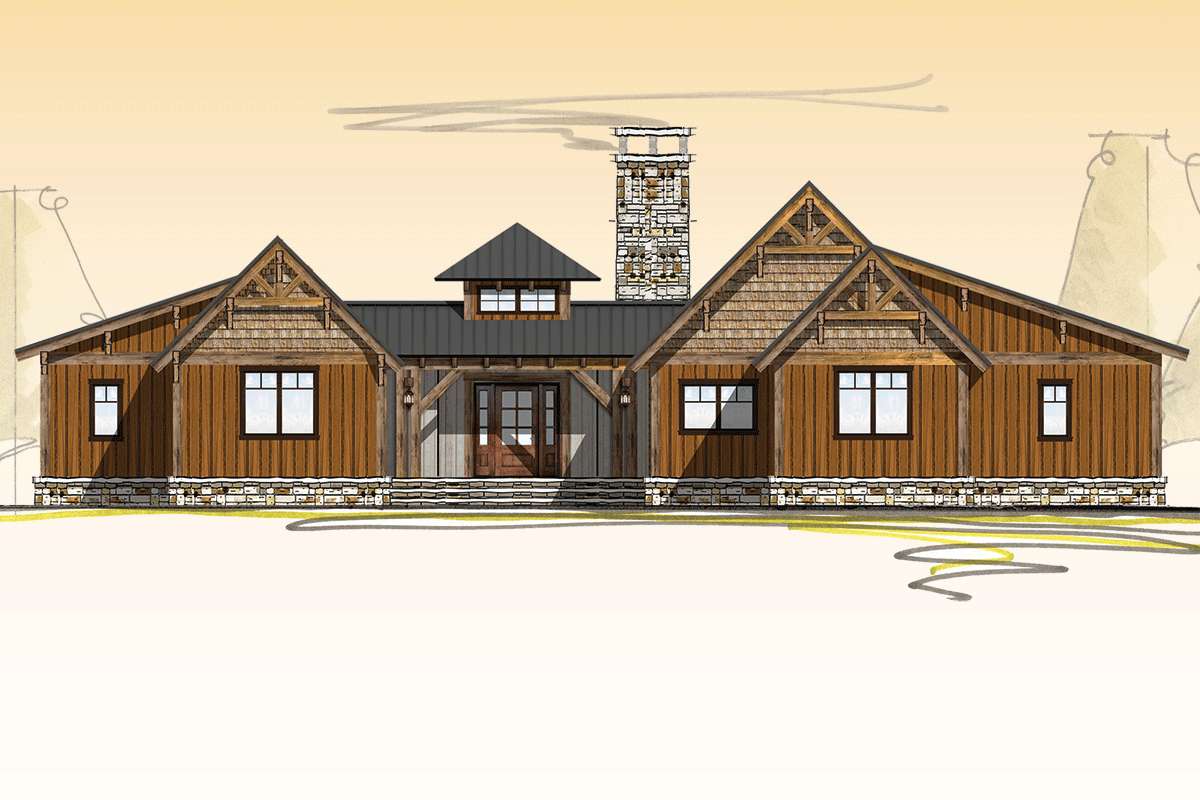

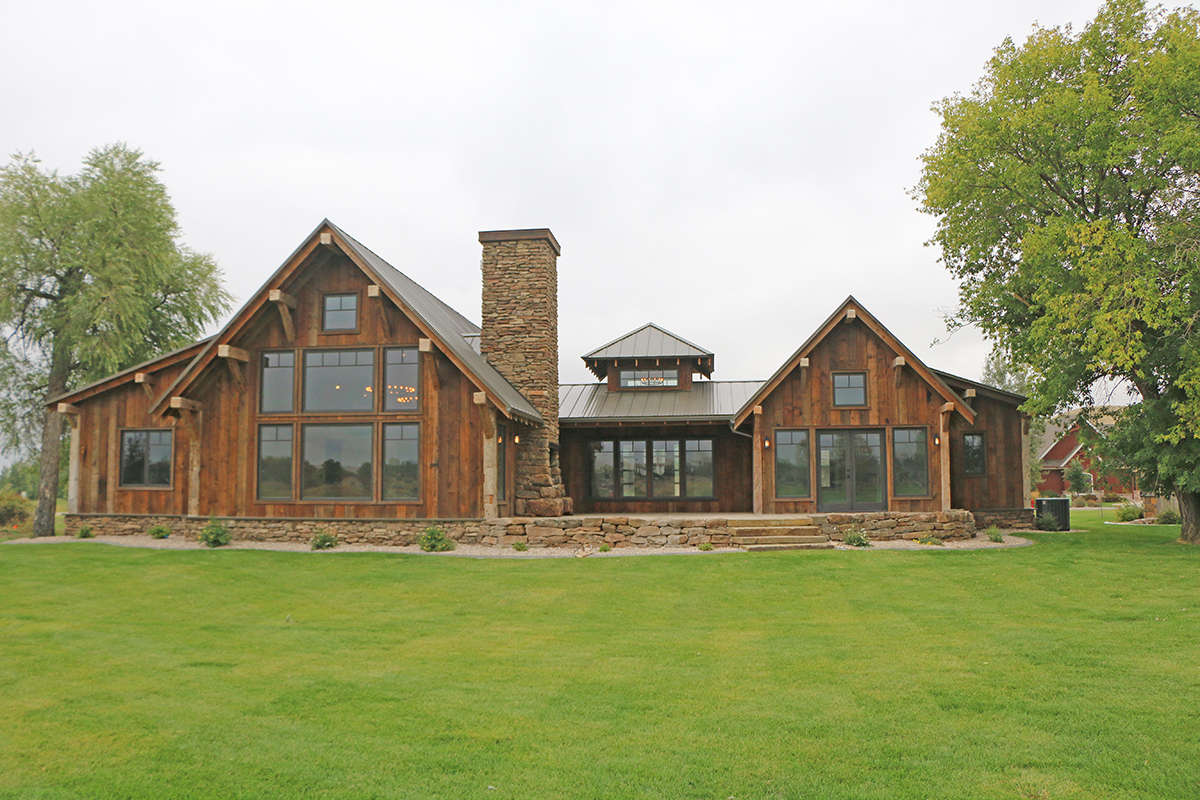

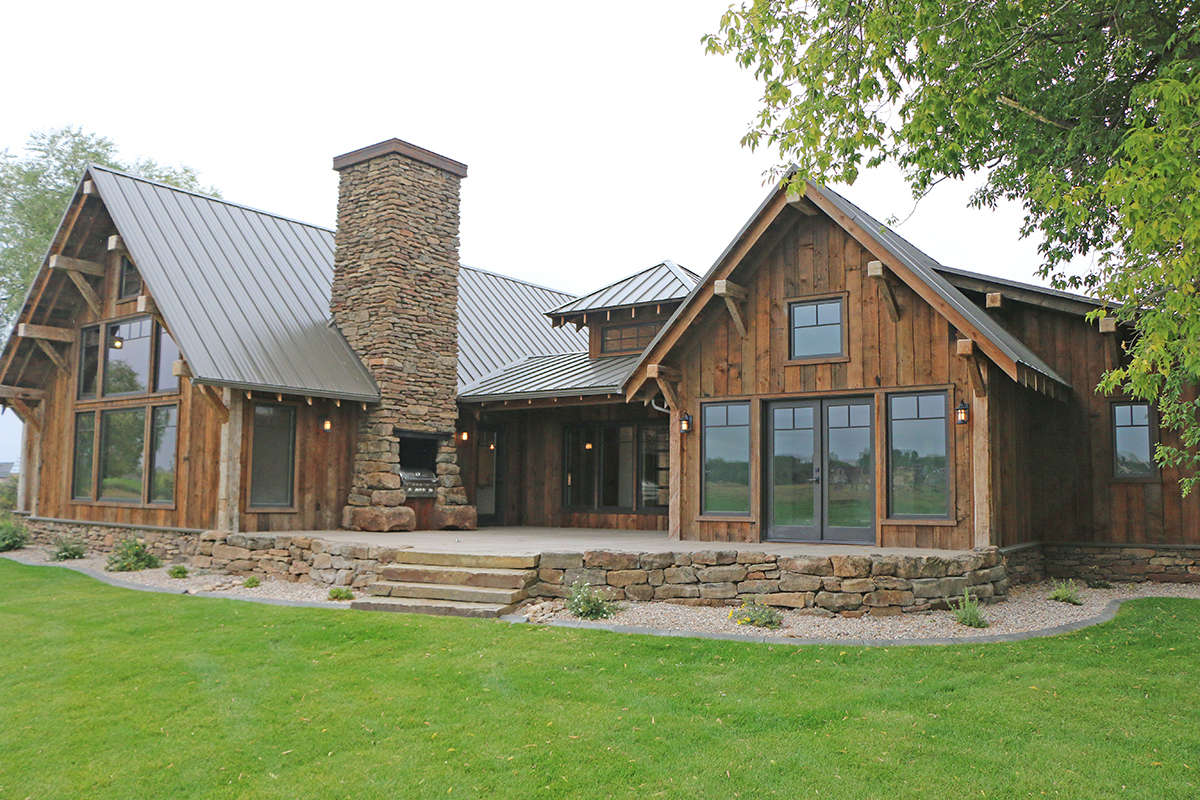

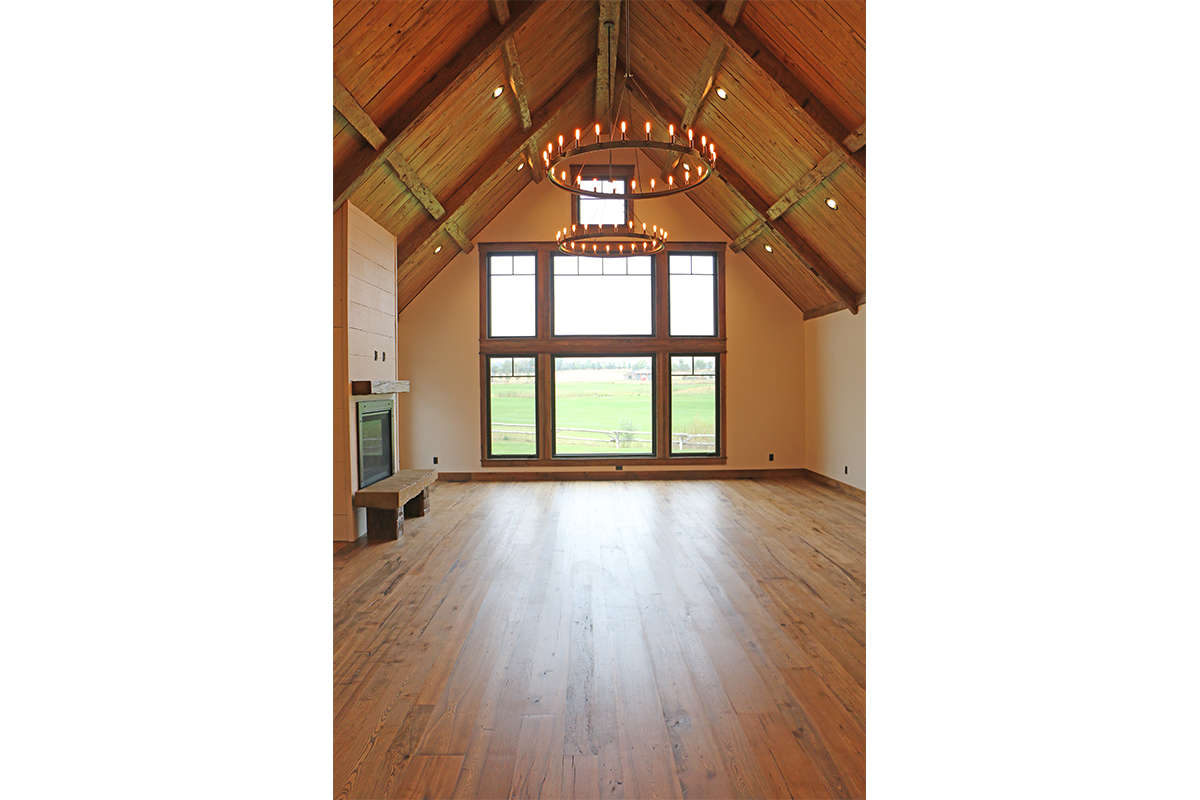

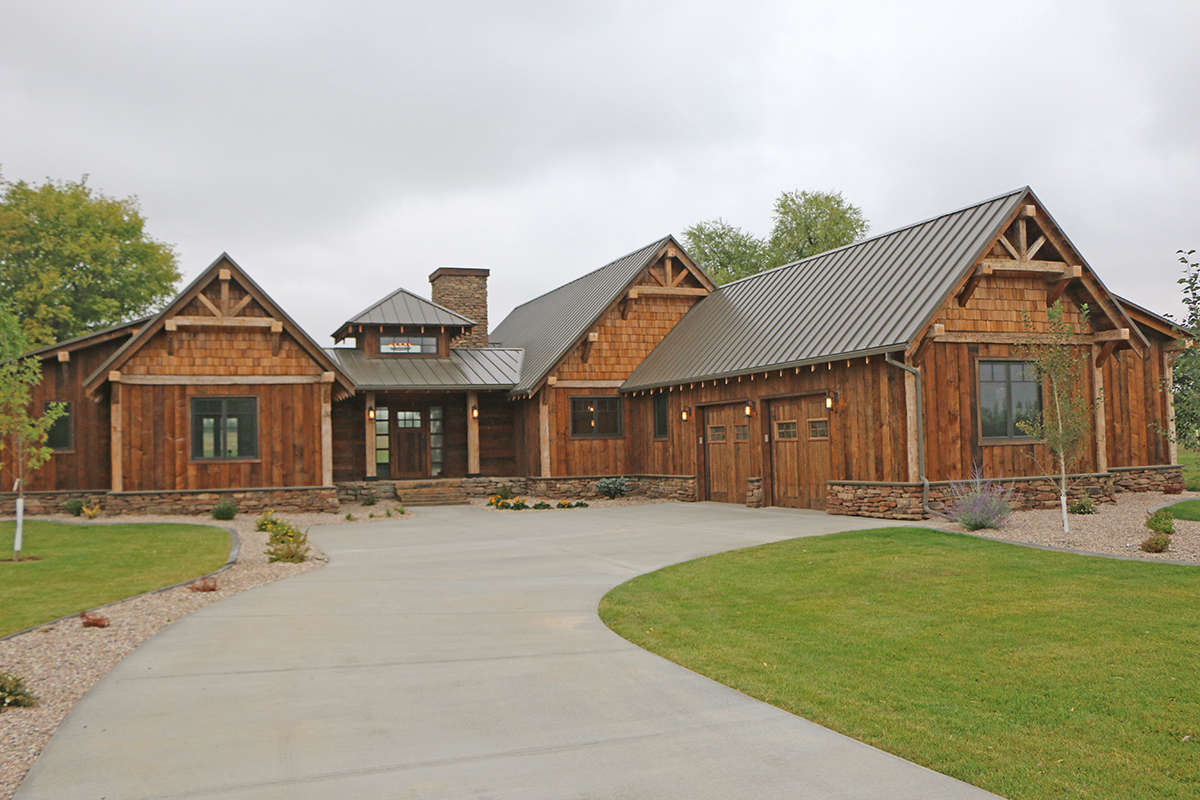

This beautiful Mountain Rustic house plan features a warm inviting exterior, fantastic outdoor entertaining space and rear window views for lovely daydreaming possibilities. The interior floor plan is a one story, split bedroom plan with approximately 2,886 square feet of living space that includes three bedrooms and two plus baths. Honey tone woods, cedar shakes, and decorative gables are highlighted on the exterior of the home and the addition of exposed rafters, a stone perimeter skirt and rising stone chimney balance the home beautifully. The front covered porch is expansive and features warm wood beam posts, an overhead cupola and a gorgeous front entry with window inserts. The rustic exterior continues onto the two car courtyard entry garage which features great space for multiple vehicles and storage. Entering the home from the main front entry, there is a gallery hall with double flanking coat closets and gorgeous views onto the rear covered porch. The master suite is on one side of the gallery hallway while the open floor plan and secondary bedrooms are located on the opposite side of the home. The master suite is highlighted with generous floor space and French door access onto the outdoor entertaining space. There is an oversized his and her walk-in master closet and the en suite bath features a linen closet, a private water closet, garden tub, a separate shower and dual vanities. Travelling the gallery hall to the opposite side of the home are the open common rooms where you will find a great room, dining room and the kitchen. The dining room is centered between the two and features comfortable space for family and friends to gather along with access onto the outdoor space. The outdoor space features a covered porch and the subsequent terrace features an enormous amount of relaxing and entertaining space with a built-in gas grill. The interior great room houses a handsome fireplace and rear wall window views for majestic viewing. The grand kitchen is highlighted with a center island and additional seating, great counter and cabinet space and a massive walk-in food storage pantry. Adjacent to the garage entry is the laundry room with double closets, a guest powder room and an office space, measuring 14x9, which could be used as office space, a playroom for small children or a homework station for older children; perhaps, even a command center for the family.

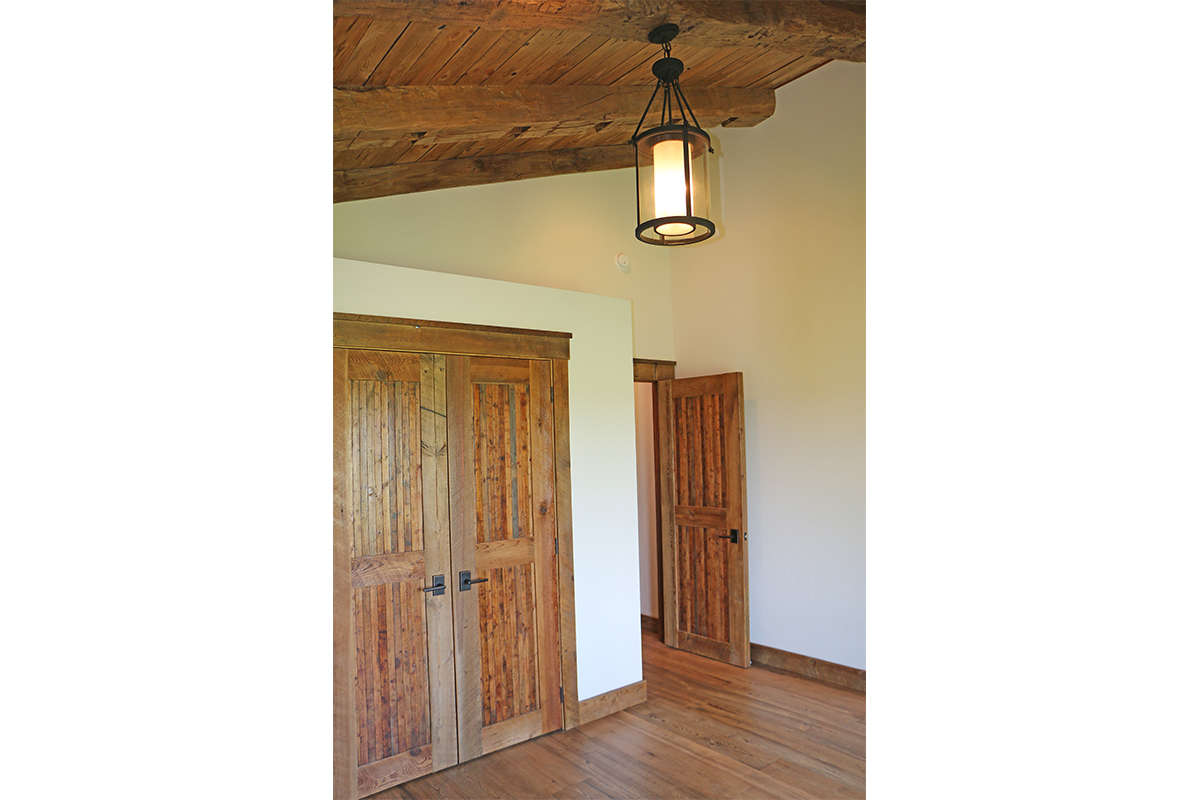

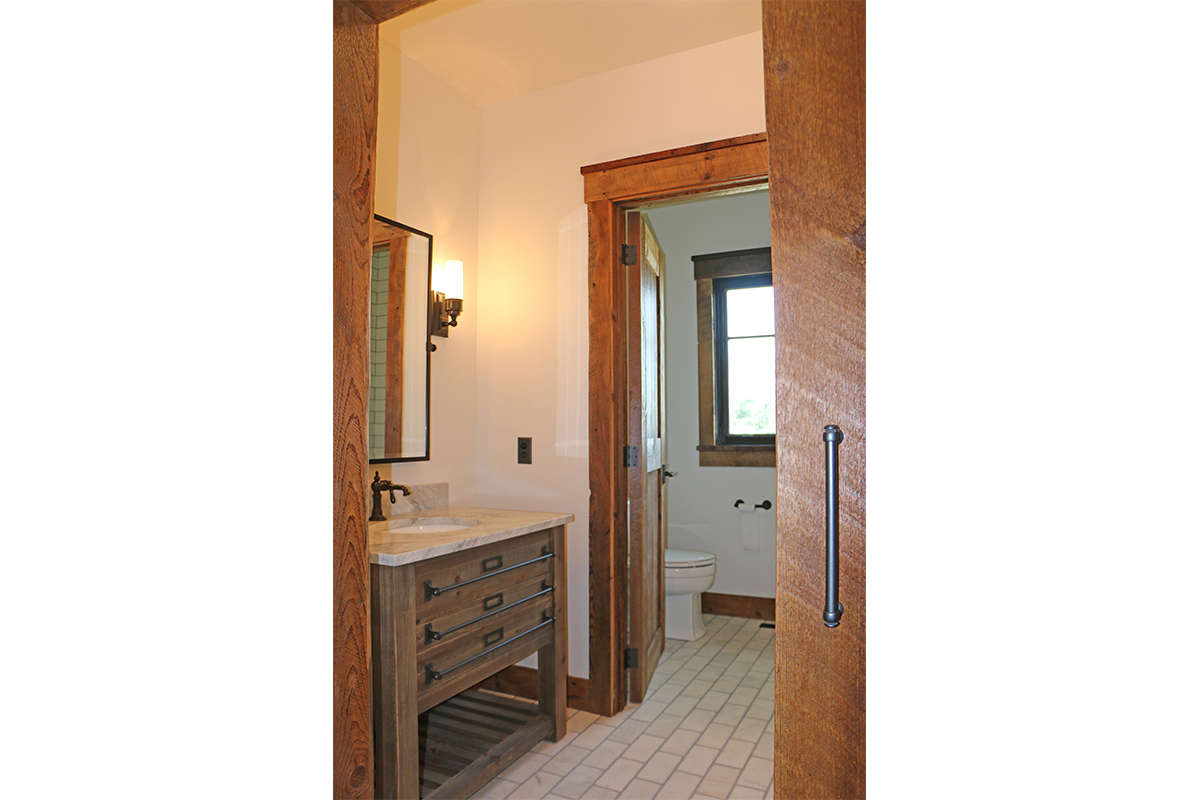

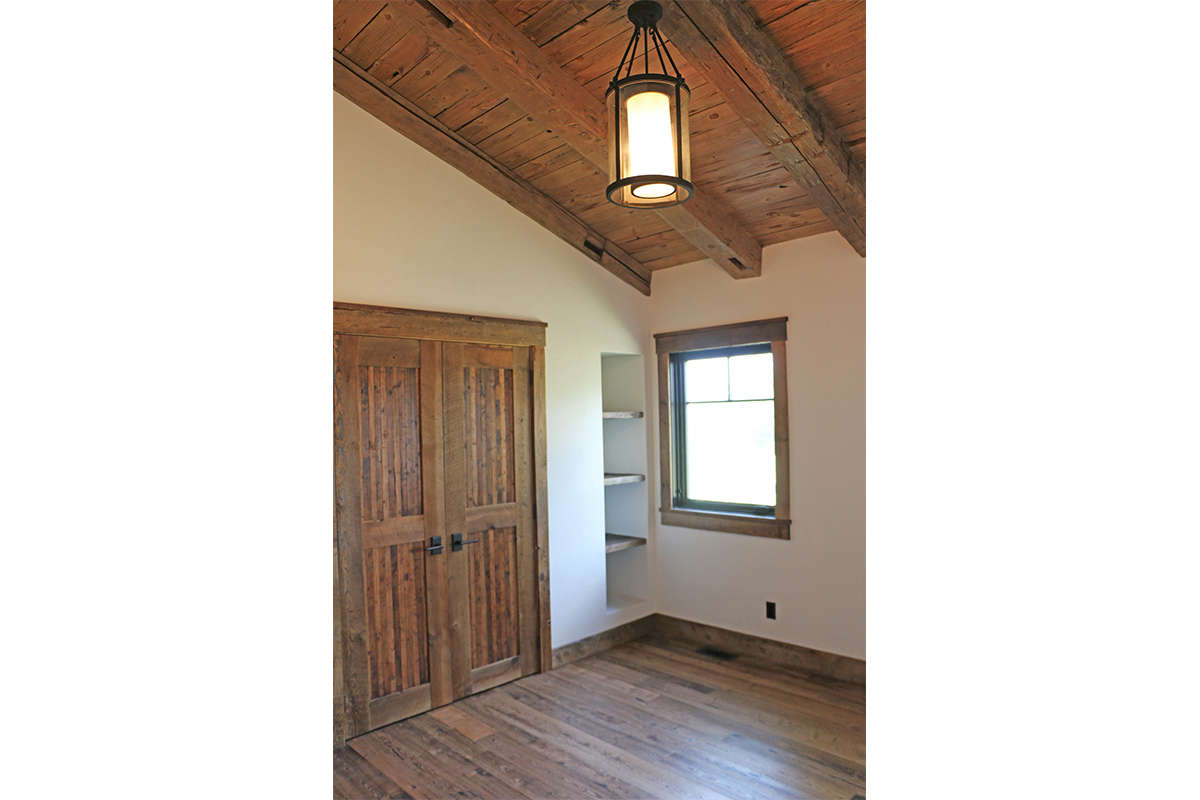

The two secondary bedrooms and bath are situated off a small separate hallway; both bedrooms are of equivalent size, contain built-in shelving and offer great window views and plentiful closet space. The shared hall bath is highlighted with separate double sinks, a toilet space and a tub/shower combination. This beautiful Mountain Rustic house plans features a handsome exterior, amazing outdoor space and a great family layout.
