Cottage House Plan 8504-00090

Sq Ft1,940
Beds2
Baths2
1/2 Baths0
Stories2
Cars2
Width68' 0"
Depth22' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.
Floorplan 1 for House Plan #8504-00090
Floorplan 2 for House Plan #8504-00090
Garage for House Plan #8504-00090

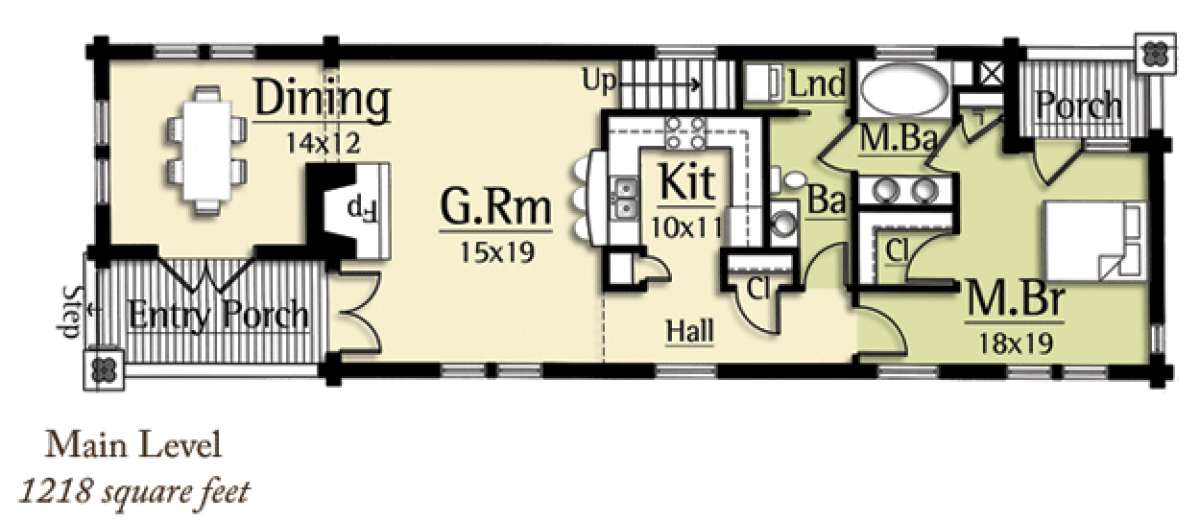

Floorplan 1
Floorplan 1 for House Plan #8504-00090

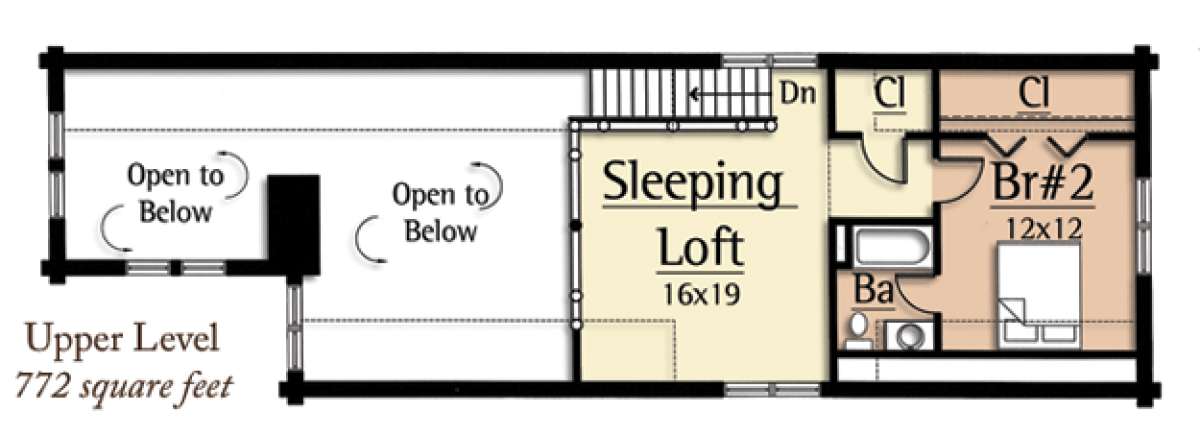

Floorplan 2
Floorplan 2 for House Plan #8504-00090
Garage
Garage for House Plan #8504-00090


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This handsome Cottage plan is highlighted with a plethora of rustic and charming exterior design features. The home’s façade is highlighted with an exposed brick chimney, beautiful window views and a front covered porch with two sets of French door entry points; one into the dining room and the other leads to the great room. There are two stories of living space with a combined square footage of approximately 1,940 square feet. An open floor plan, two bedrooms and two baths are found in the home’s interior. There is a detached two car garage with the plan that features approximately 624 square feet and plenty of vehicle storage room. This is a good plan for a small property lot with its 22’ depth. The main living floor is highlighted with an open floor plan that features a spacious dining room and surrounding window views for a bright and sunny addition to the home. The adjacent great room is also quite spacious and opens to both the dining room and nearby kitchen. There is a warming fireplace and pretty window views overlooking the front yard. The grand kitchen is highlighted with a breakfast bar, a separate pantry and U-shaped counter and cabinet space. The hallway leading to the main level master suite holds a coat closet and entry into the main floor bath where there is a toilet area, vanity space and the stackable washer and dryer. On the other side of the bath is private vanity space, a garden tub and an enclosed linen closet belonging to the master suite. The master suite, itself, features a bedroom with generous floor space, beautiful window views and there is an attached master walk-in closet with good clothing space. A private porch is located off the master bedroom as well for relaxing and privacy.

The upper floor of the cottage is highlighted with a sleeping loft which can be used for overnight guests or it could be utilized as an artist’s studio, home office or a playroom for the children. Conversely, the entire second floor could be used as a second master suite with a sitting room in lieu of the loft, a bedroom and a private bath. The loft measures 16’ x 19’ and overlooks the main common rooms below and there is a second bedroom which features good floor space, double window views and there is wall-to-wall closet space. A second closet is situated outside the bedroom and the adjoining bathroom is highlighted with vanity space, a toilet area and a tub/shower combination. This beautiful Cottage plan is uniquely designed with beautiful exterior features, an open and versatile floor plan as well as a two car detached garage.
