Mountain Rustic Plan 8504-00029


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,077
Beds 2
Bath 2
1/2 Baths 0
Car 2
Stories 2
Width 36'
Depth 56'

Floorplan Drawings

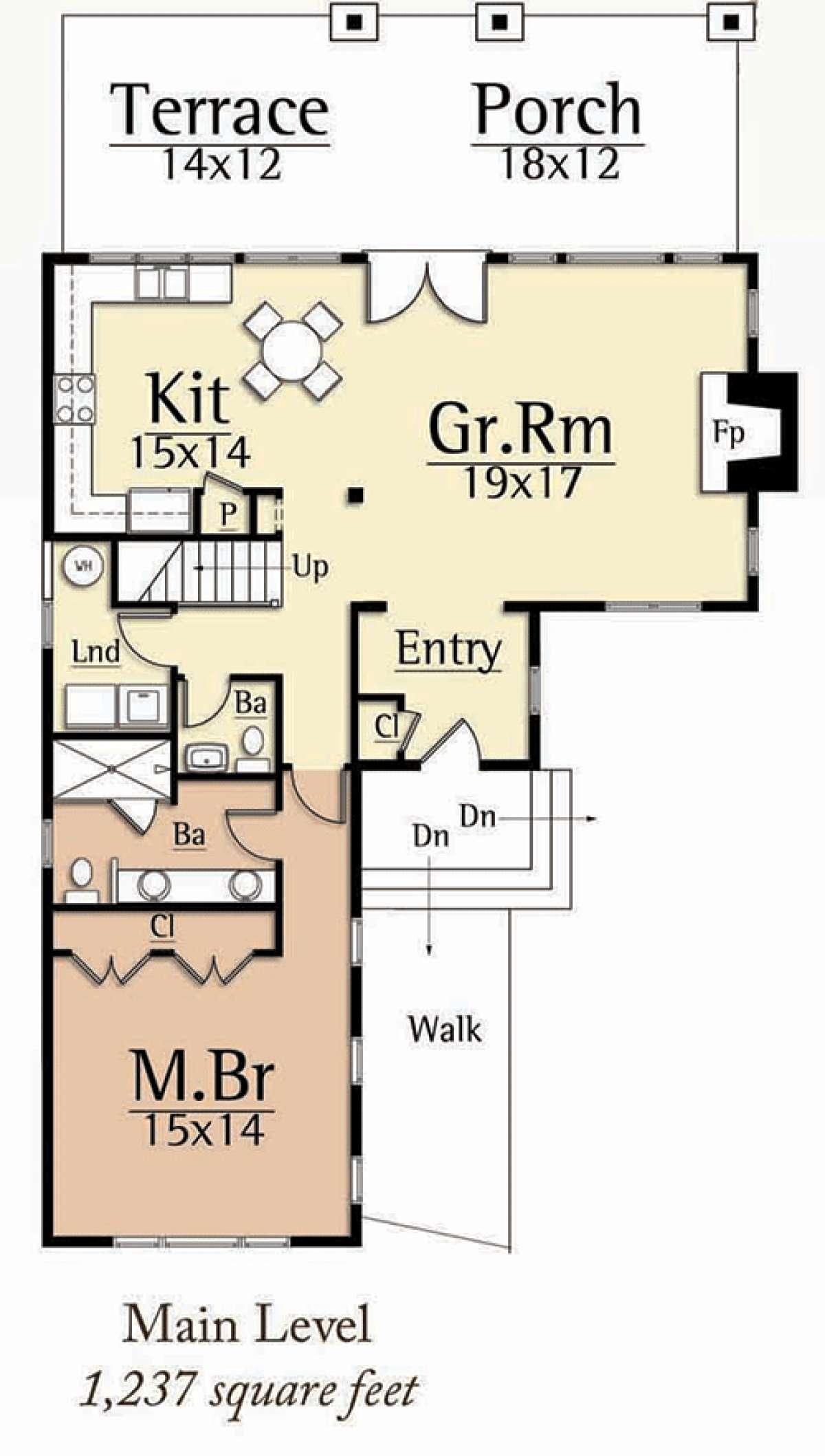

Floorplan 1
Floorplan 1 for House Plan #8504-00029

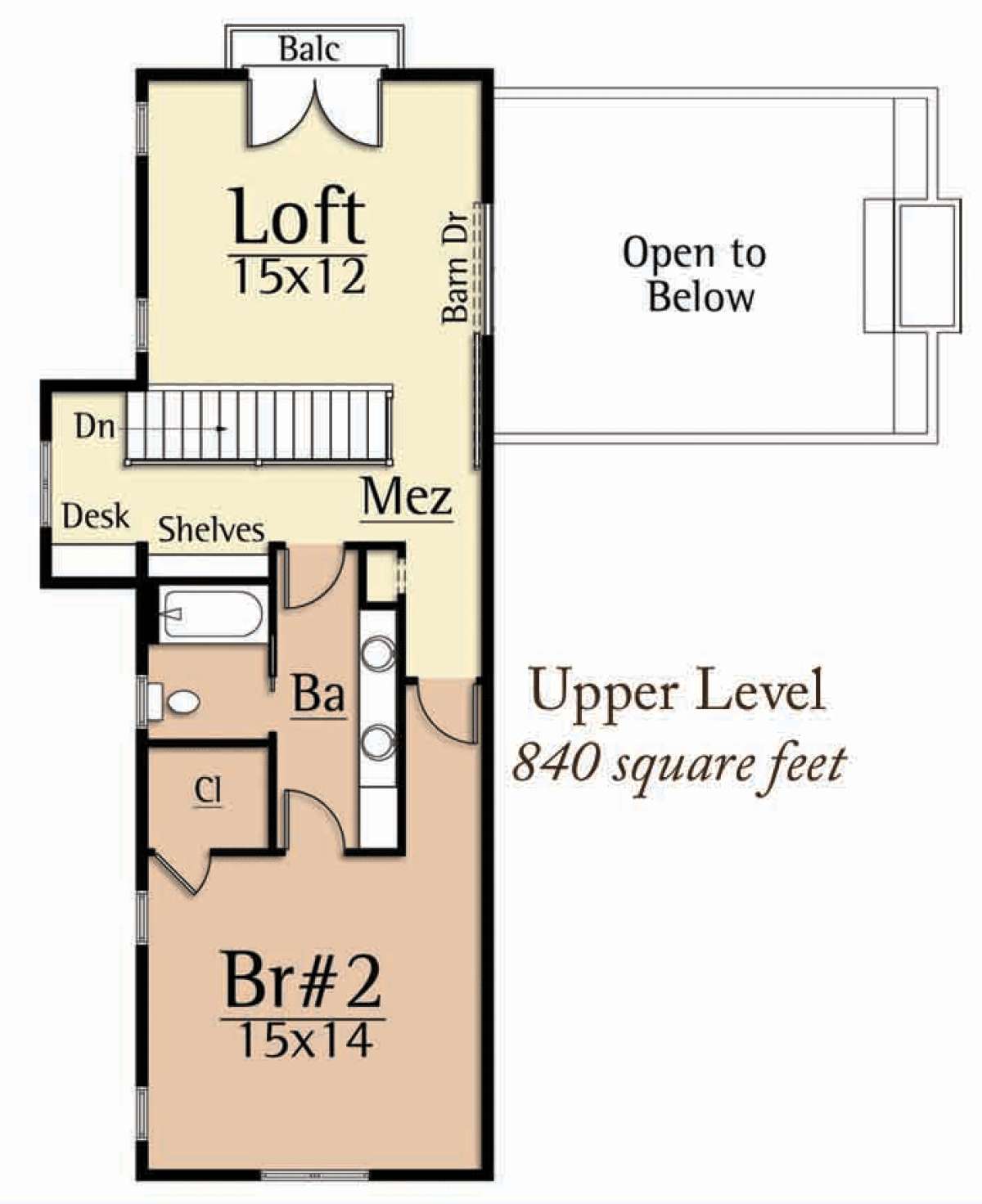

Floorplan 2
Floorplan 2 for House Plan #8504-00029
Garage for House Plan #8504-00029

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

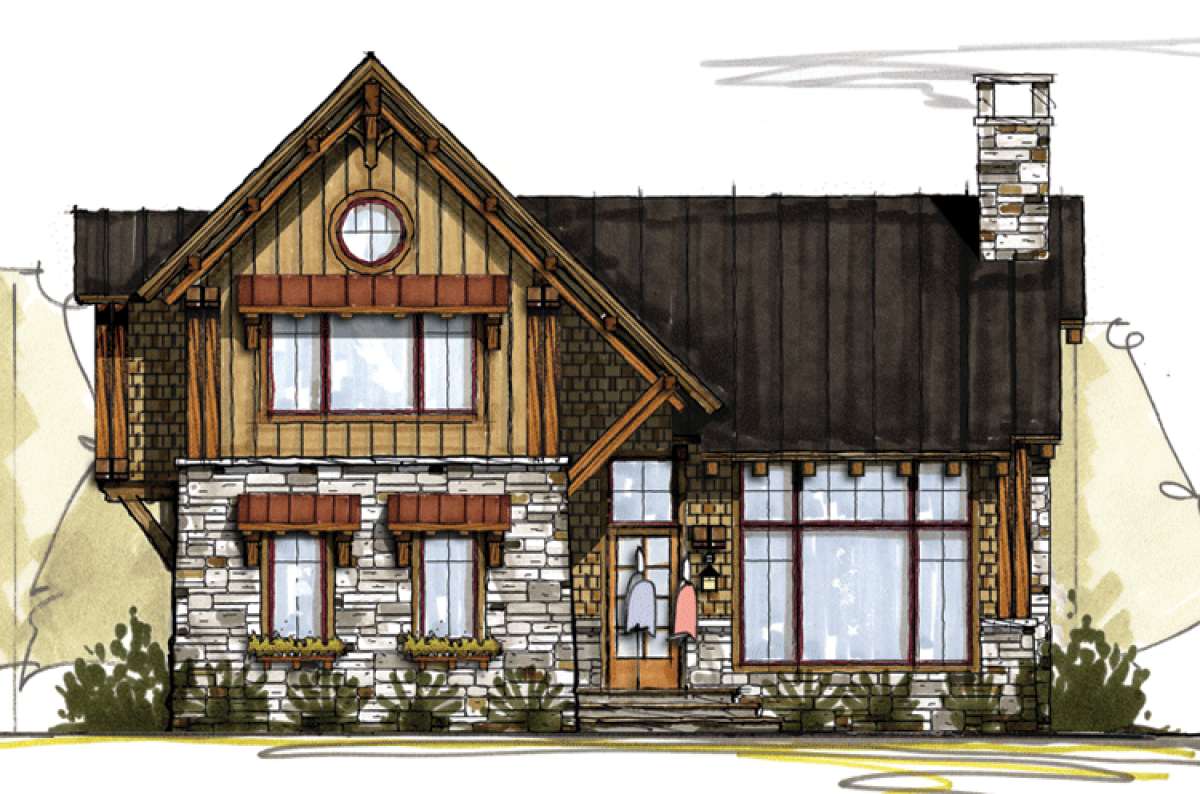

This Mountain Rustic house plan features beautiful and warm architectural design elements and an interior floor plan that is smartly laid out to maximize the home’s square footage. Gorgeous warm woods, cedar shakes and stacked stone complement the home’s beauty wonderfully. There is a front wood walk to the home’s entrance and the gabled overhangs add structure and symmetry to the home. Amazing window views abound making this house plan a delightful experience for panoramic mountain viewing while adding a heightened sense of relaxation with “Mother Nature.” The interior floor plan is highlighted with approximately 1,757 square feet of living space that houses three bedrooms, two baths and an open floor plan. There is a two car detached garage, measuring 26’ x 24’ that offers good vehicle space and there is a breezeway to the home’s interior. This house plan is a great design for a narrow mountain property lot with its 36’ width dimension. The front walkway to the home features double step access points and leads to the interior foyer where the coat closet is located. Beyond the foyer, the home opens up beautifully; there is a large great room, dining space and the kitchen. The great room is surrounded with window views and a warming fireplace takes center stage for those chilly mornings and evenings. French doors lie off the great room and feature access to the outdoor space which includes a large covered porch and open terrace. This space is terrific for entertaining, relaxing after the day’s adventure or simply star gazing. The kitchen is open to the great room and features dining space as well as a separate pantry and plentiful counter and cabinet space. There is a laundry room and guest powder room on the main floor hallway. The master suite is located on the first floor and features a large master bedroom with fantastic window views and generous floor space. Double closets nearly span the width of the bedroom and the master bath is highlighted with dual vanities, a toilet area and a large walk-in shower. Accessing the second floor of the home’s mezzanine hallway is a desk area and built-in cabinetry for a small home office or family command center. A loft is located on one side of the floor and features great space, barn door overlooks onto the great room below and French door access onto the outdoor balcony. The second bedroom lies on the opposite side of the floor and is highlighted with great square footage, wonderful window views and an attached walk-in closet. There is private entrance into the bathroom which offers an enormous double sink vanity, toilet space and a tub/shower combination. This house plan is ideal as a vacation home, a small family permanent residence or an empty-nester’s dream home.
