Cottage House Plan 8318-00017

Sq Ft1,559
Beds3
Baths2
1/2 Baths0
Stories1.5
Cars0
Width45' 0"
Depth53' 8"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main for House Plan #8318-00017
Upper for House Plan #8318-00017
Main

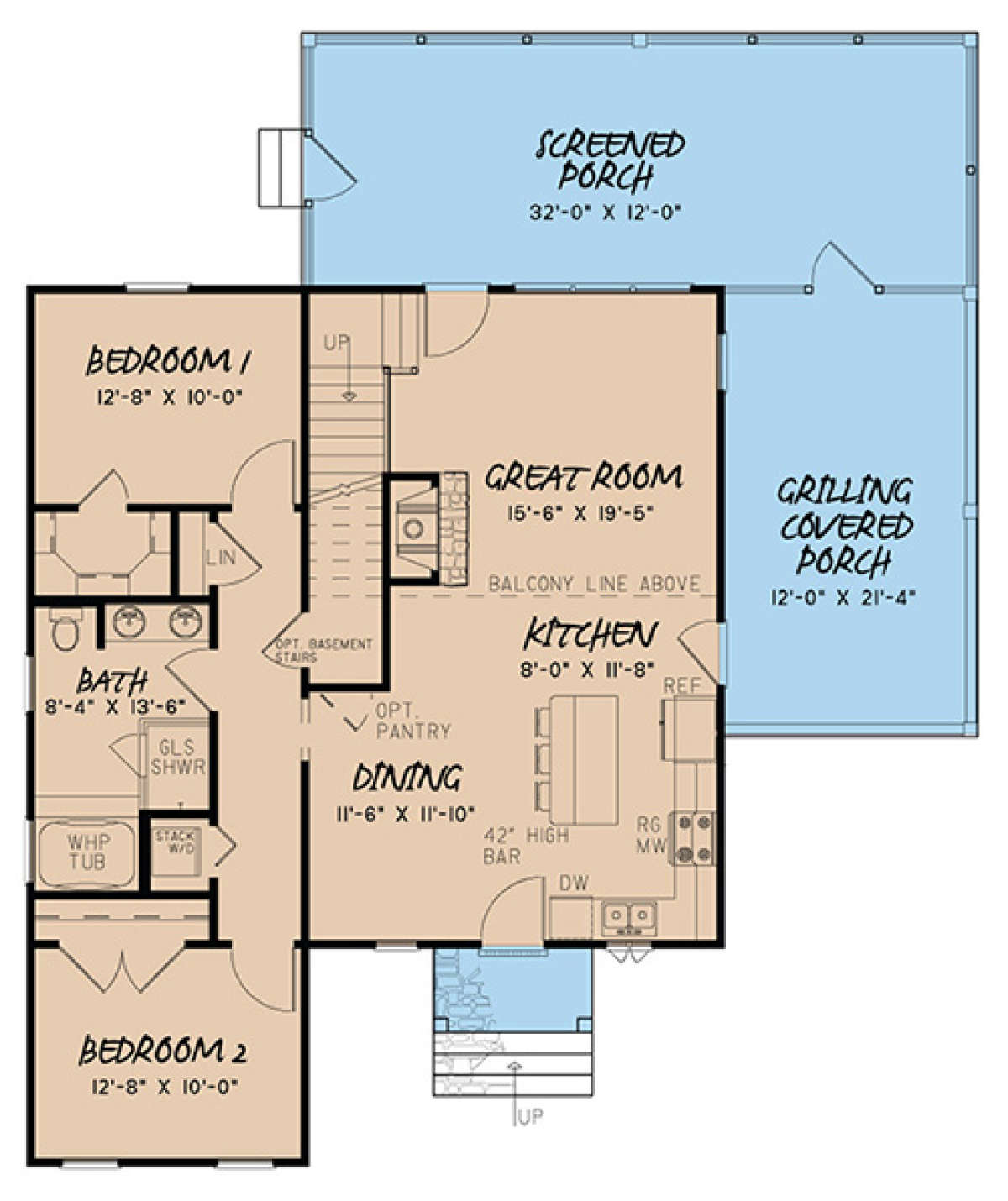

Main for House Plan #8318-00017
Upper

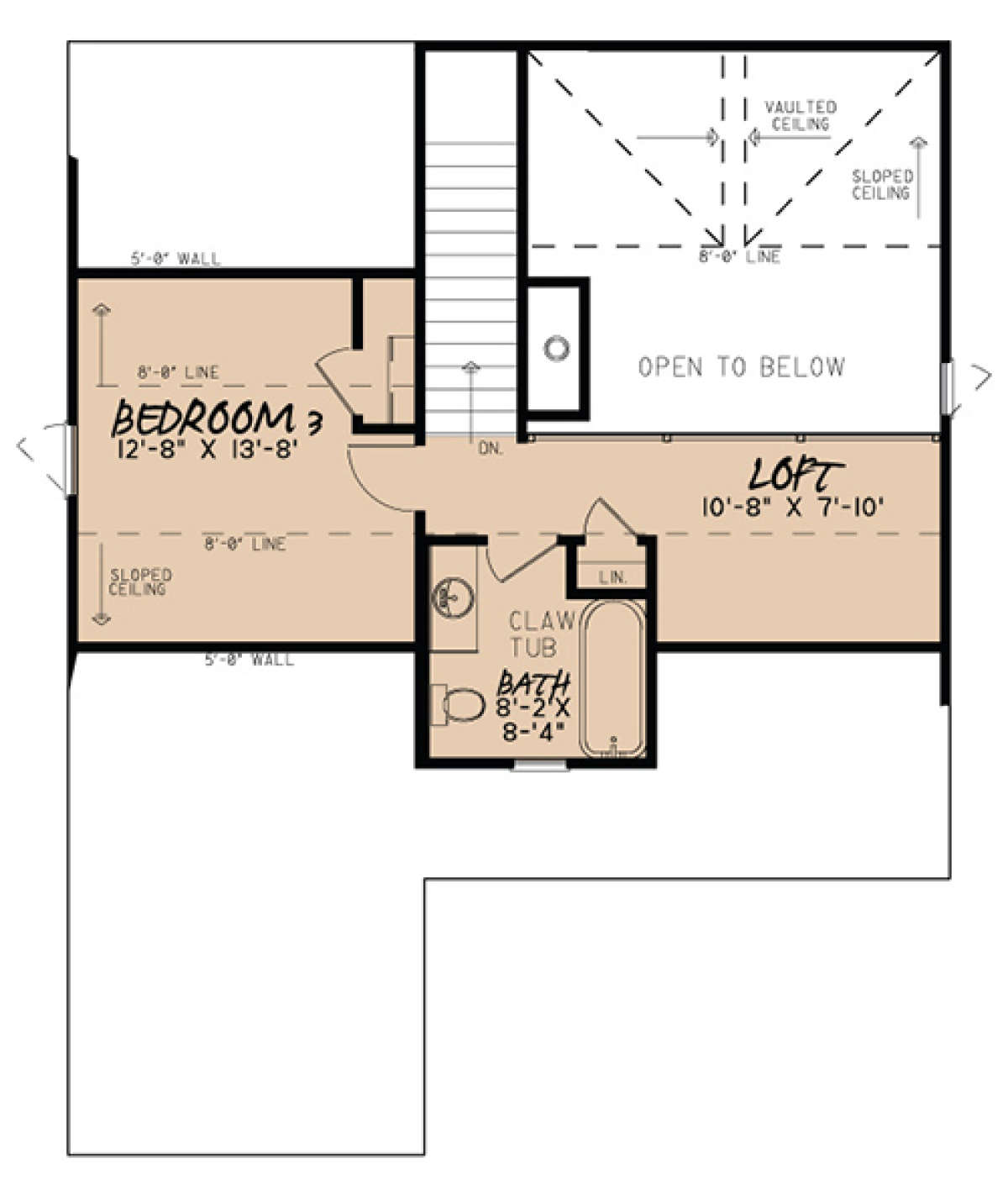

Upper for House Plan #8318-00017


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

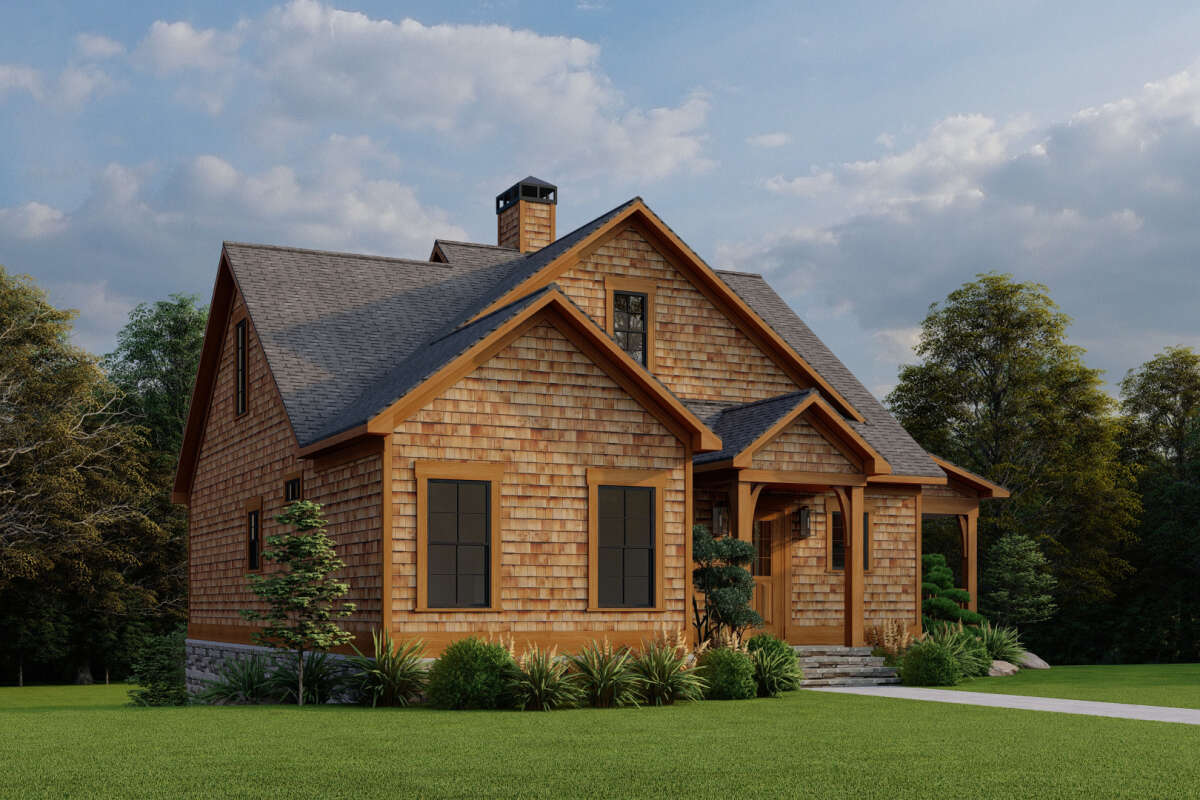

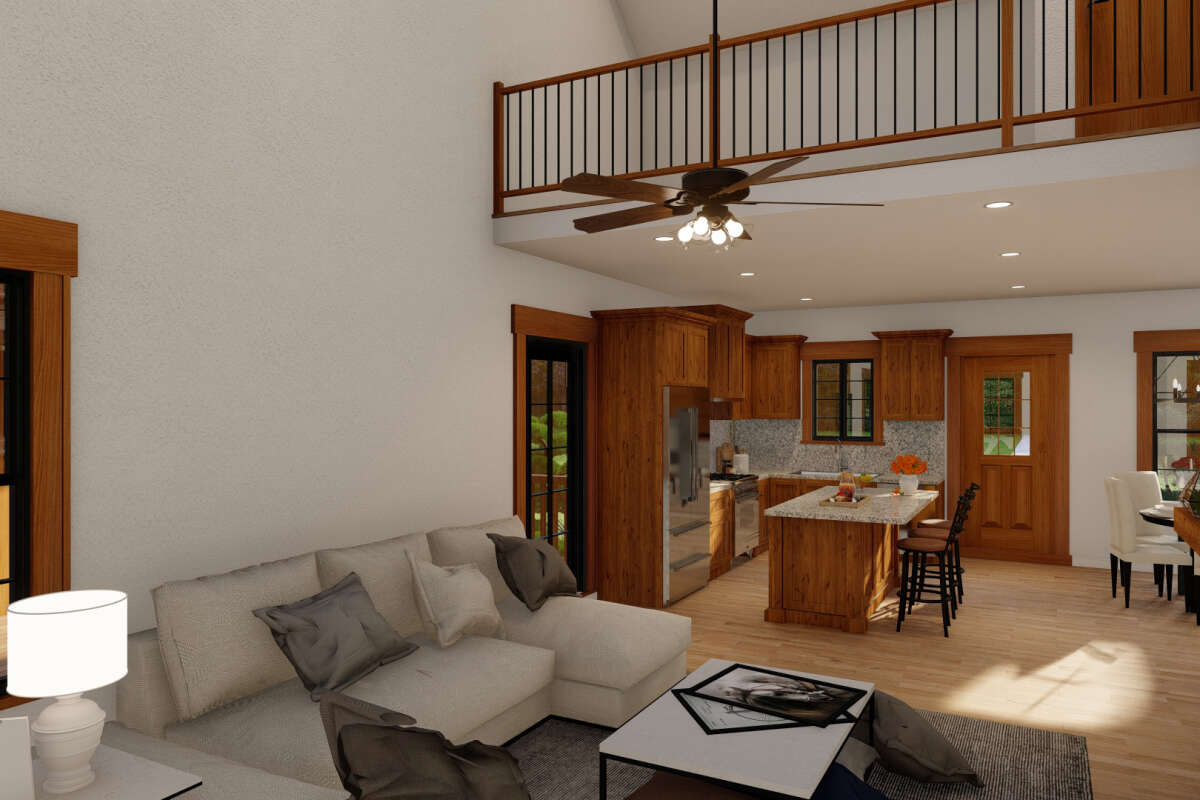

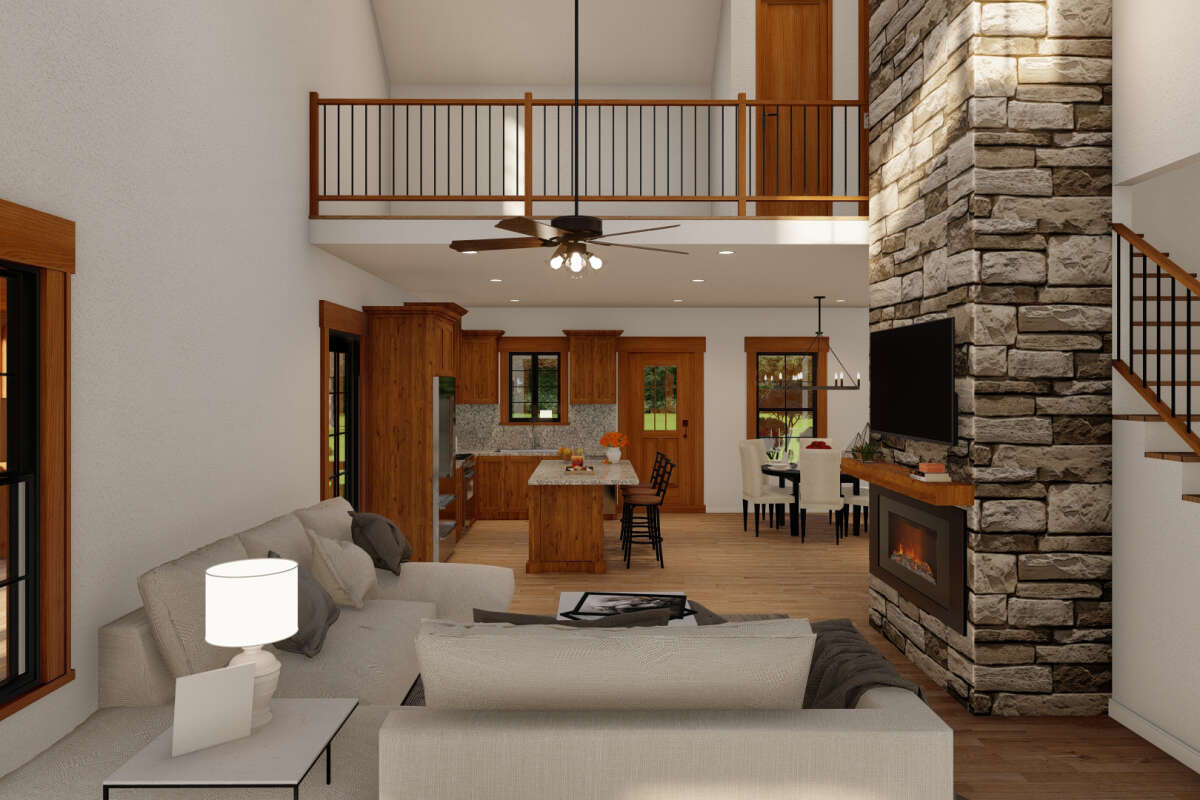

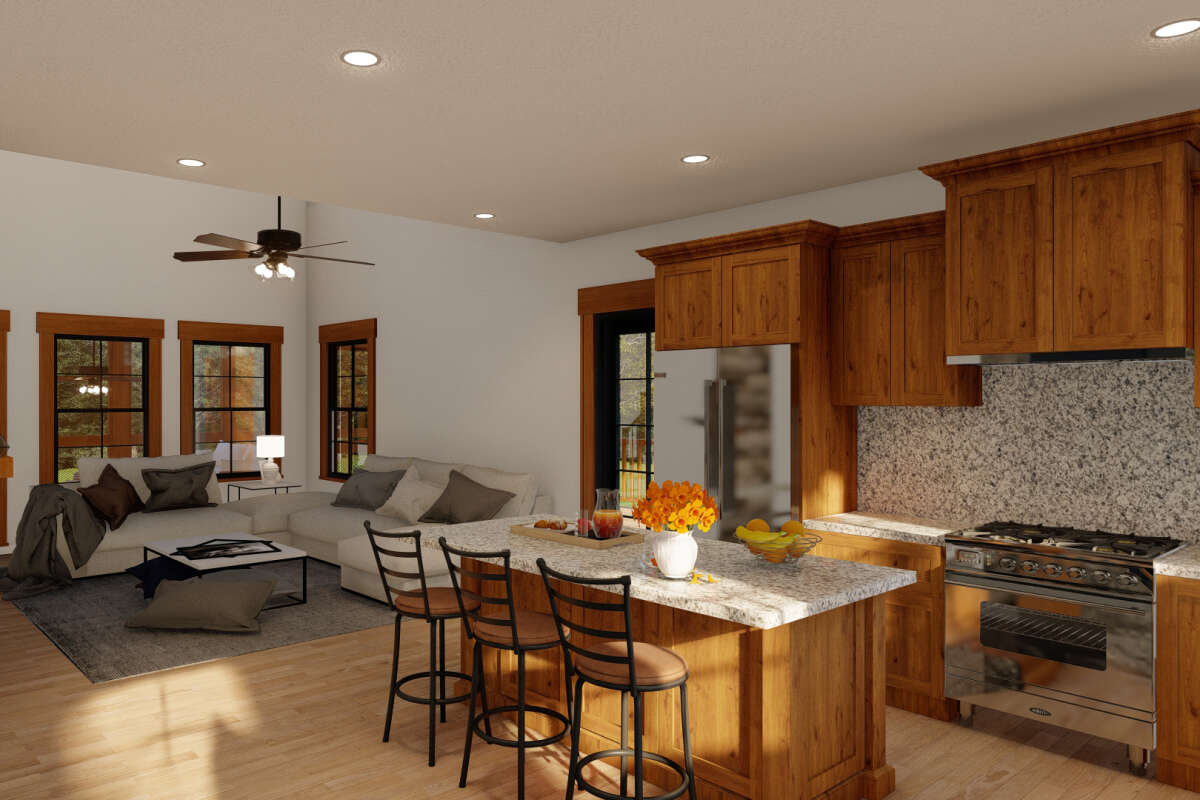

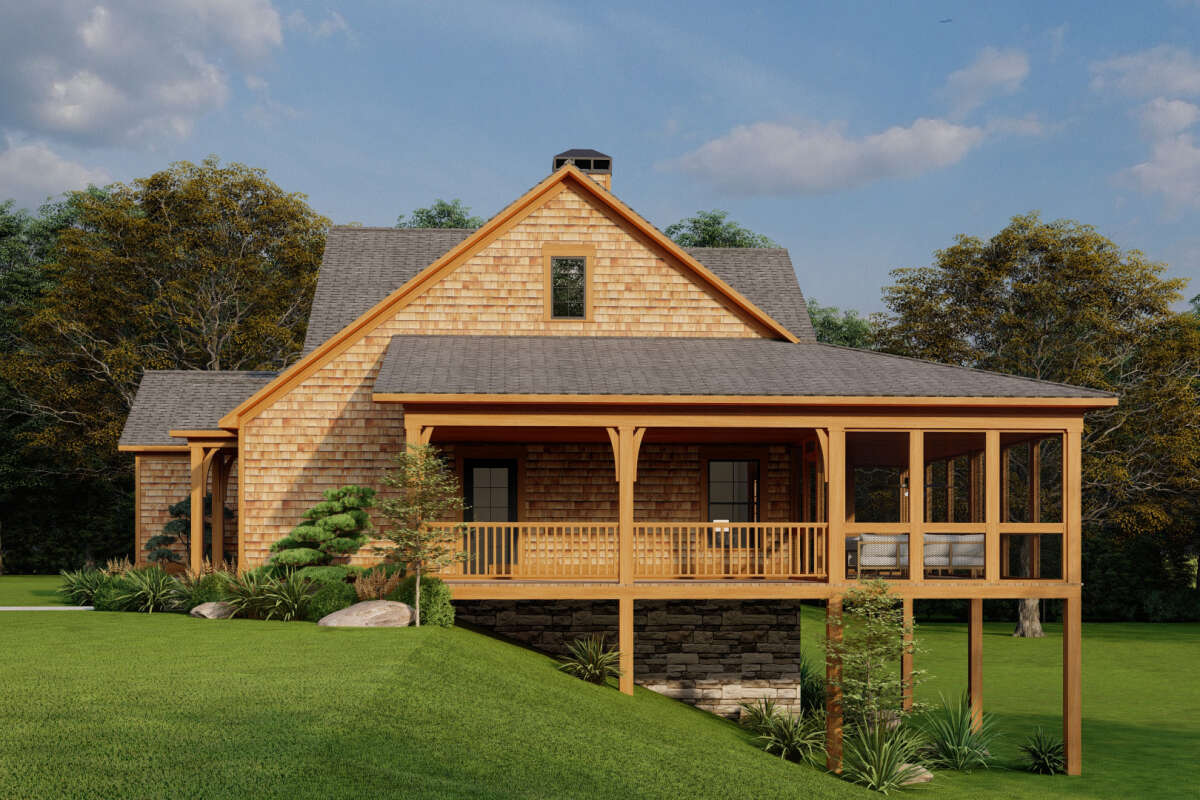

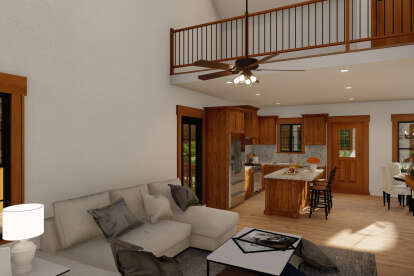

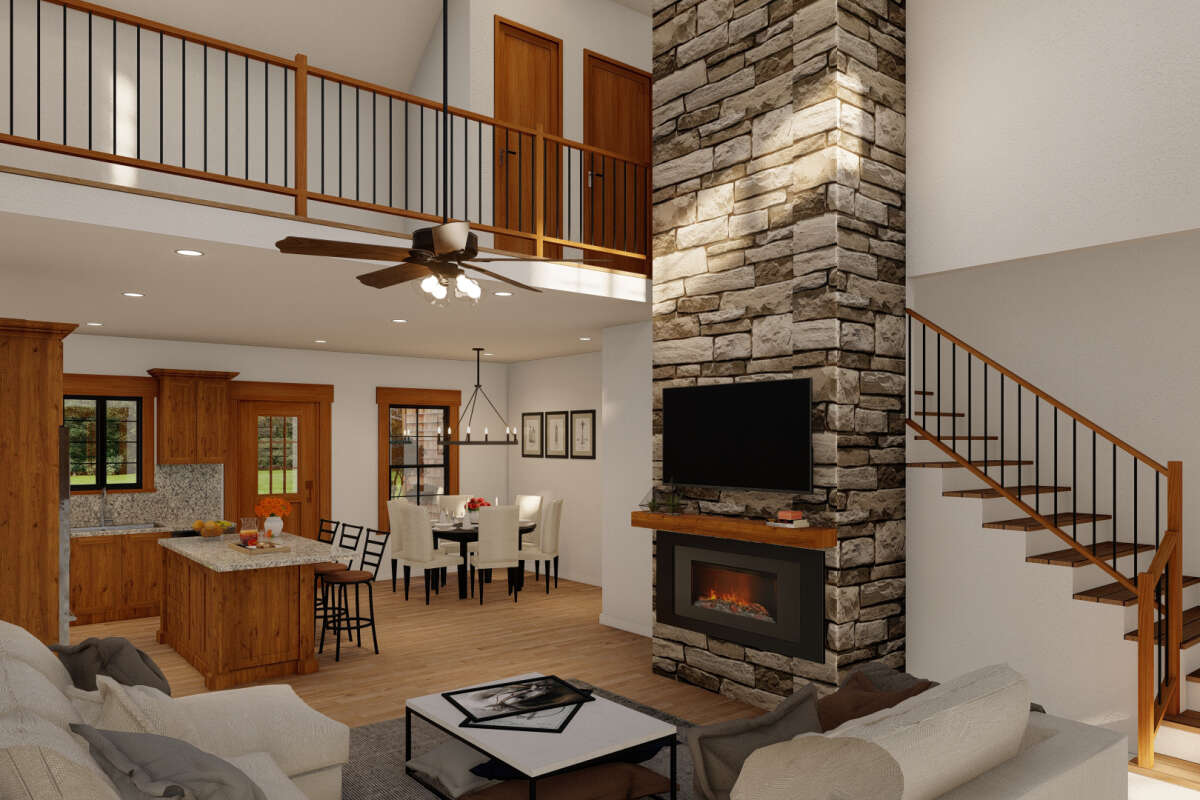

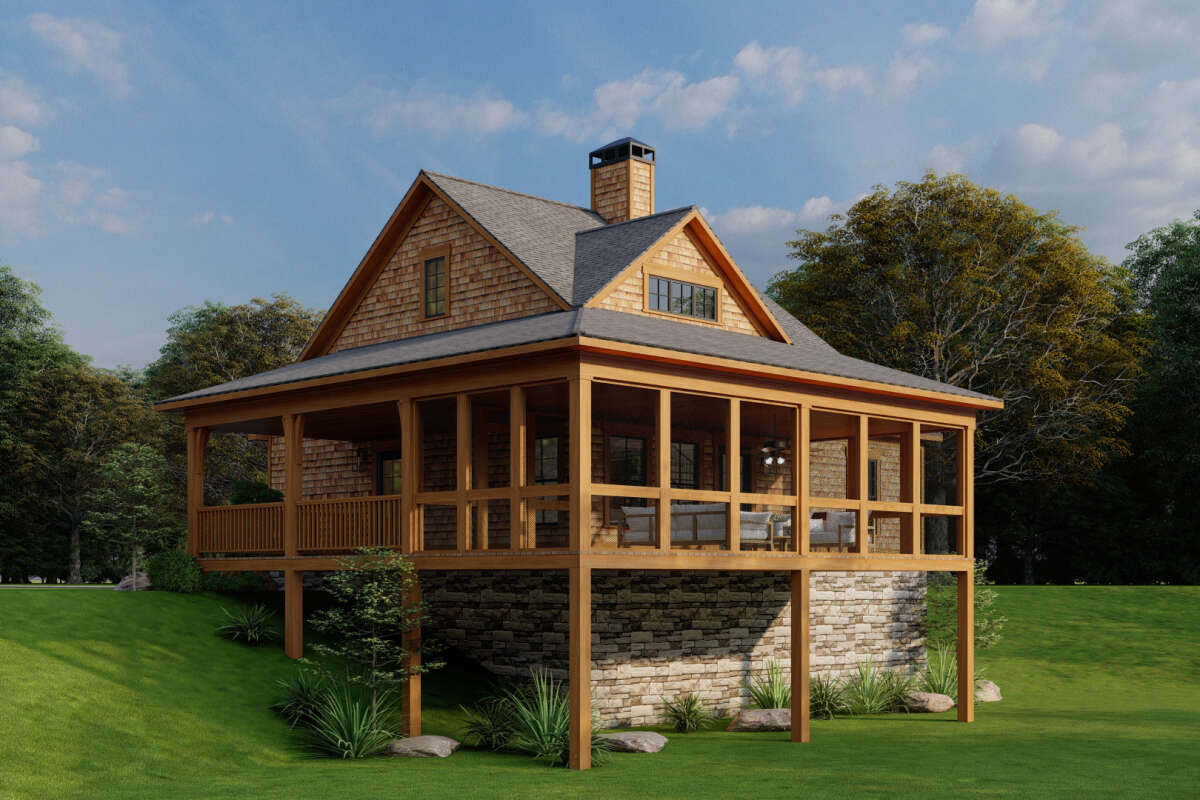

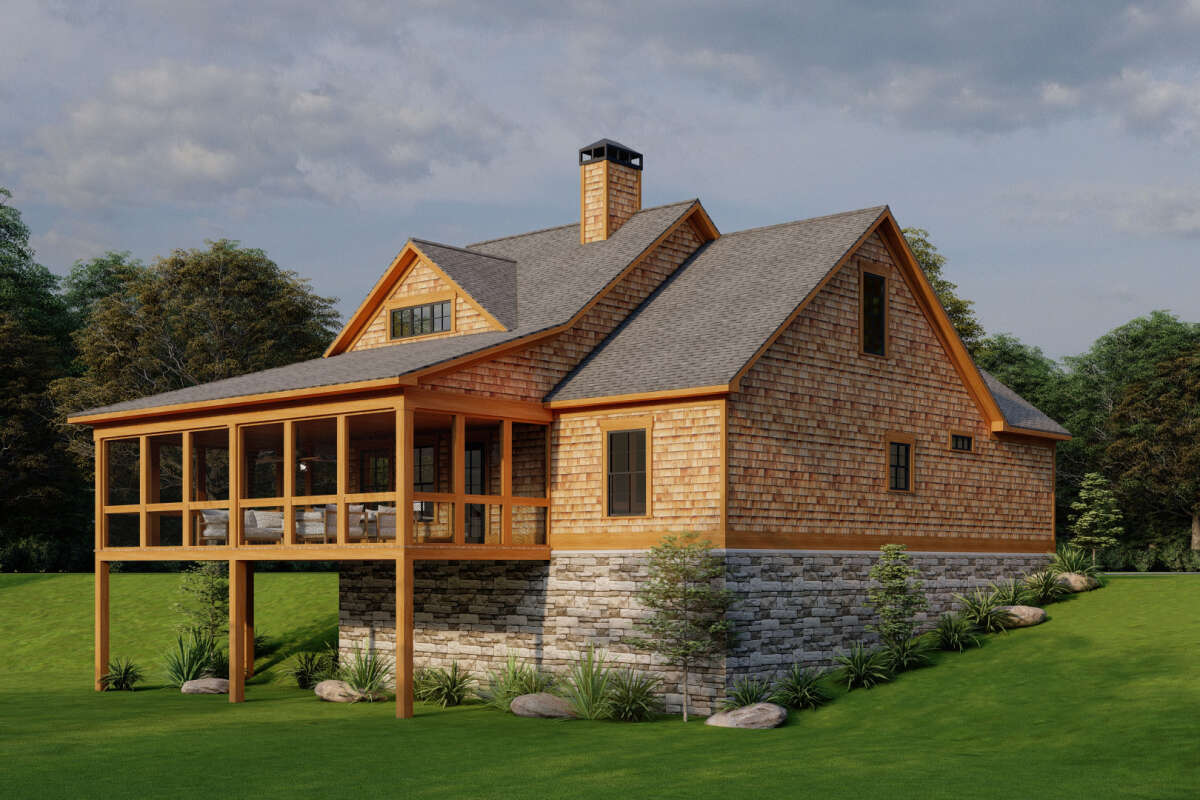

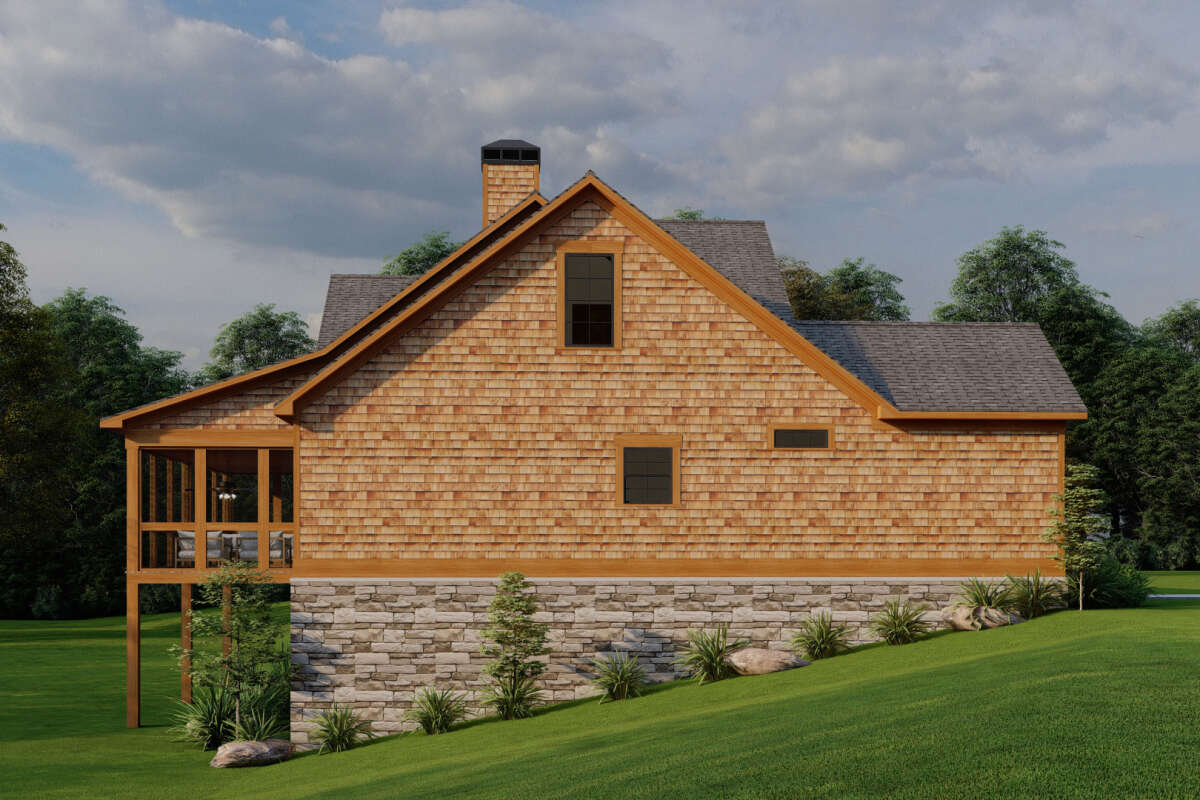

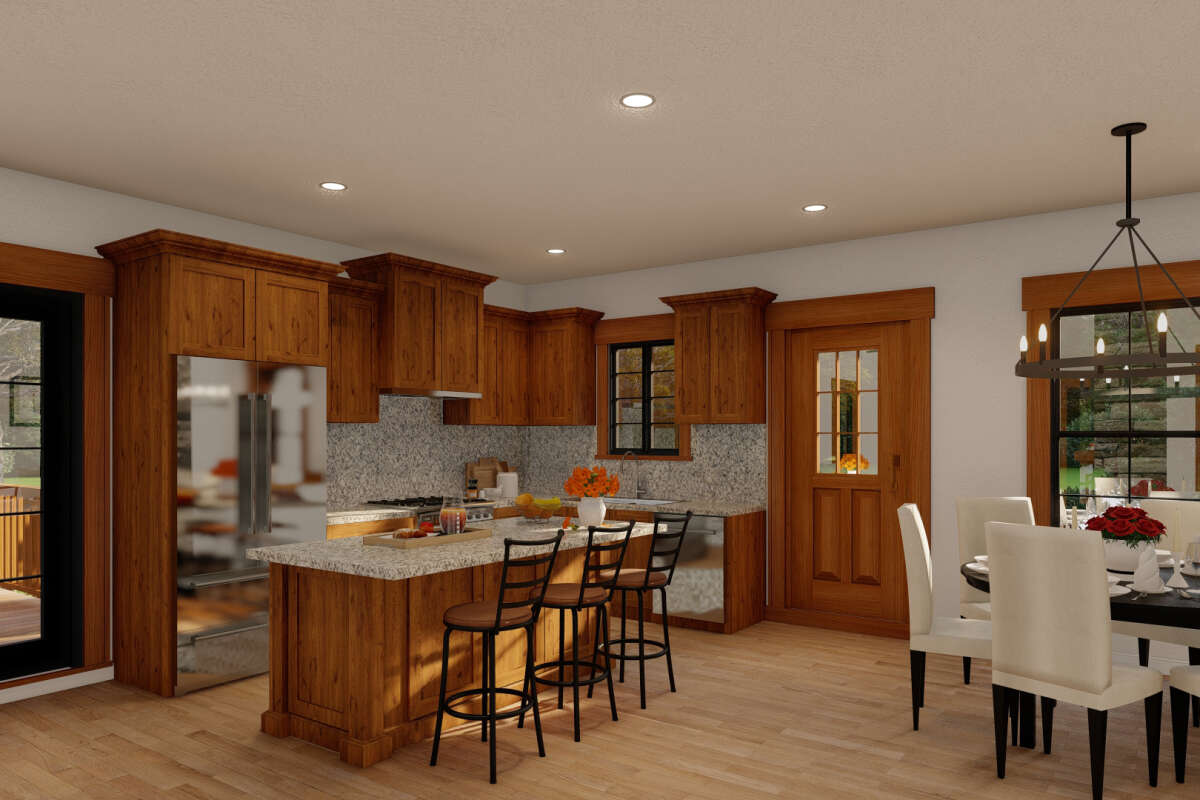

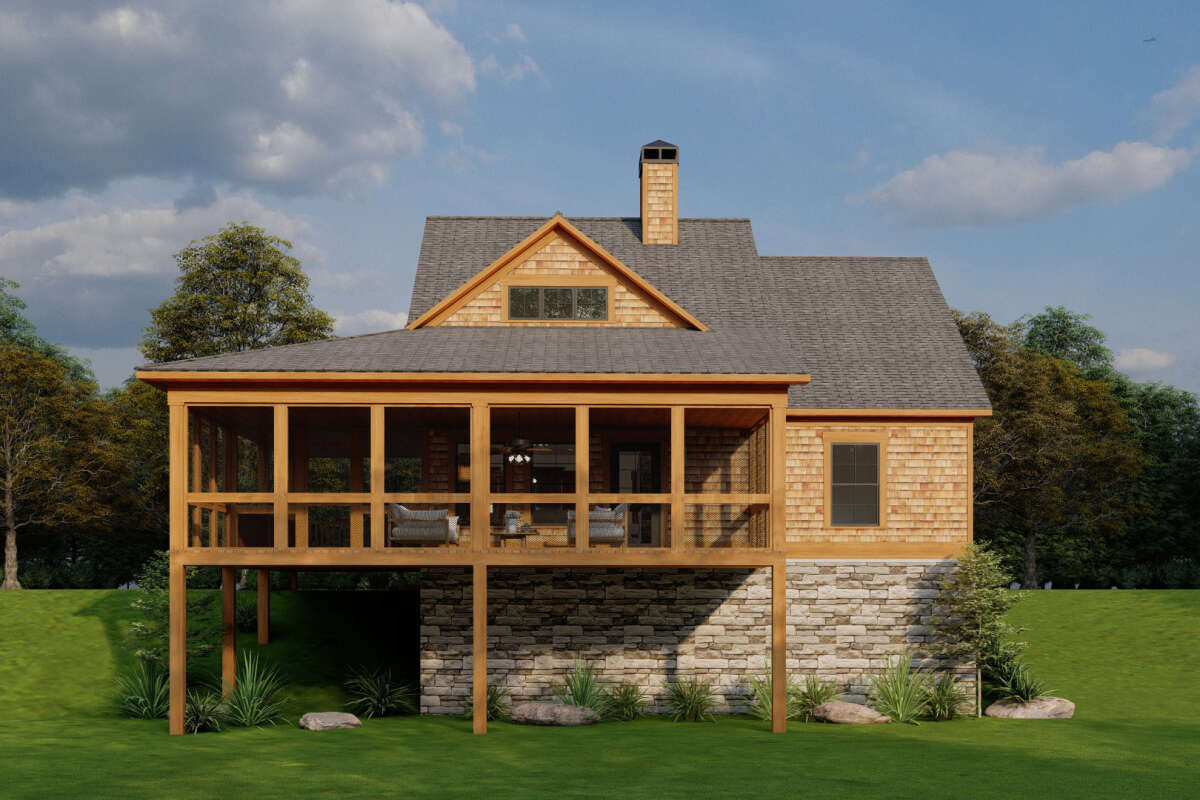

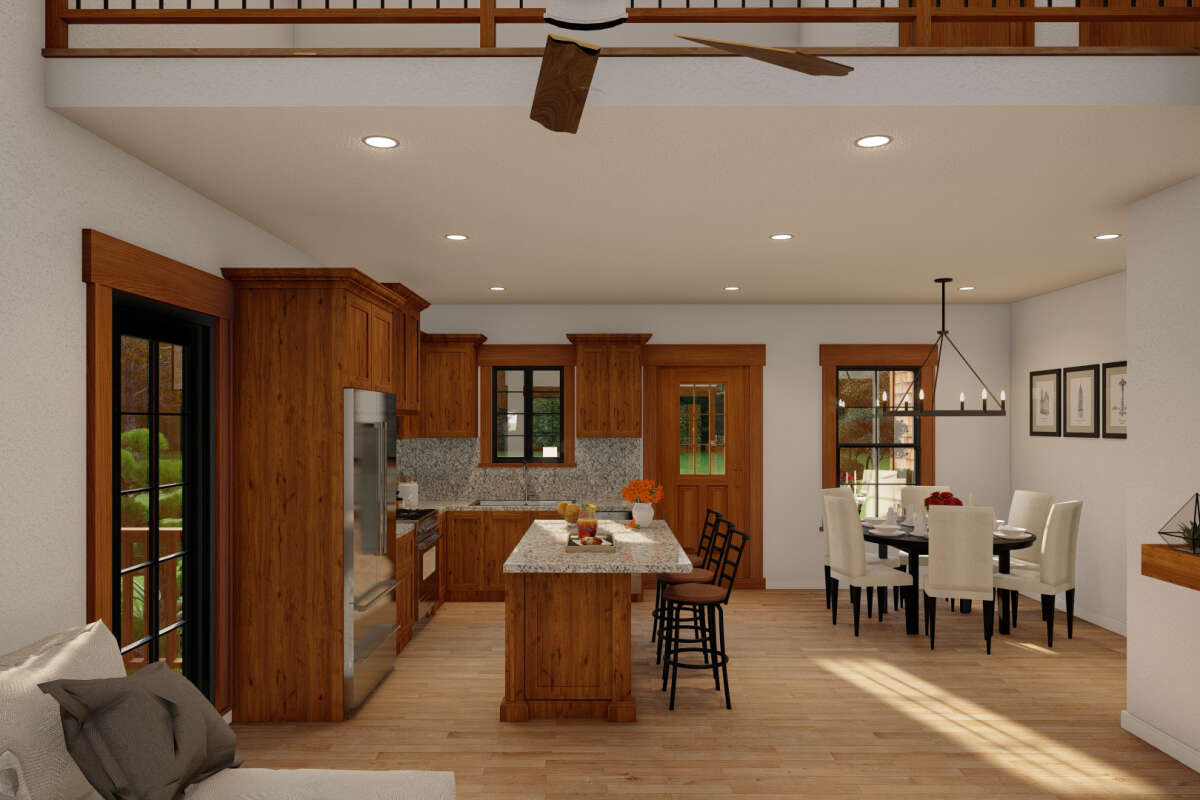

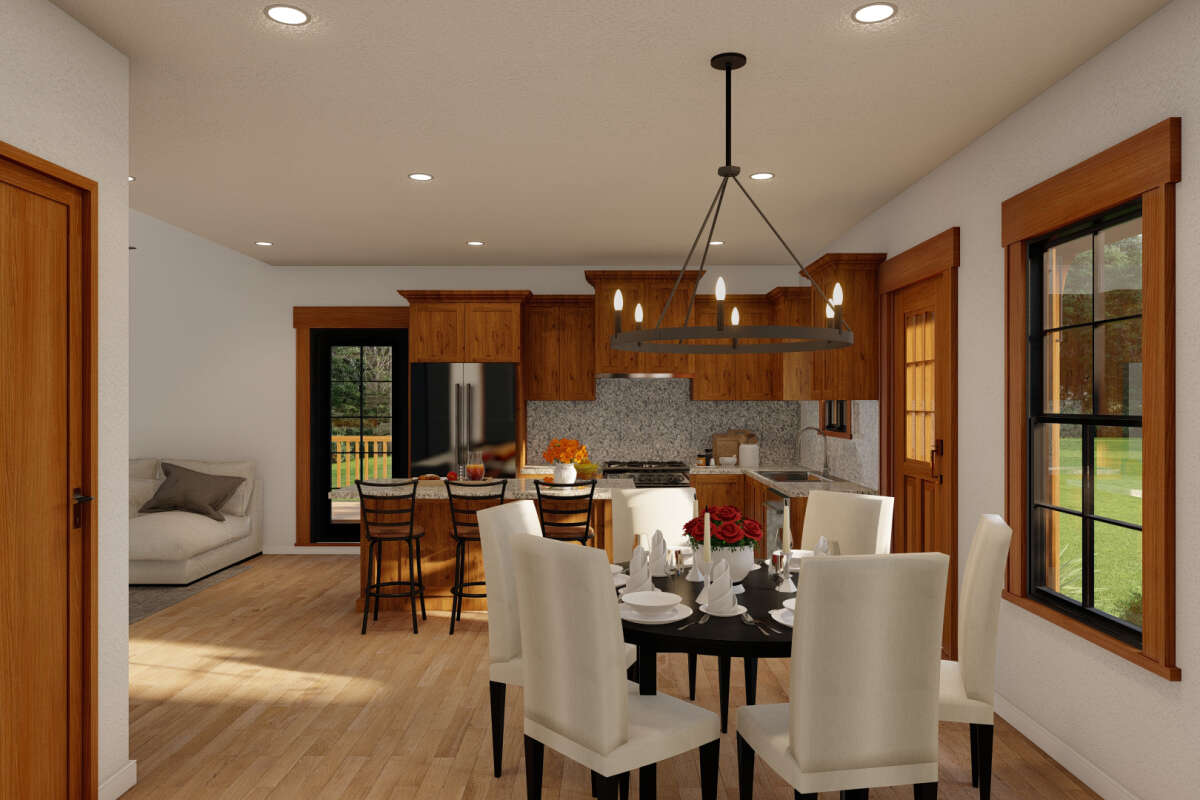

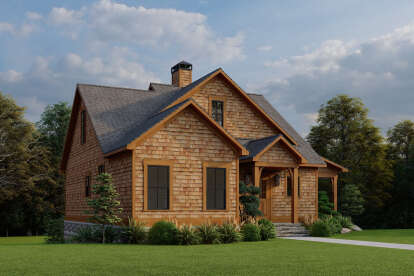

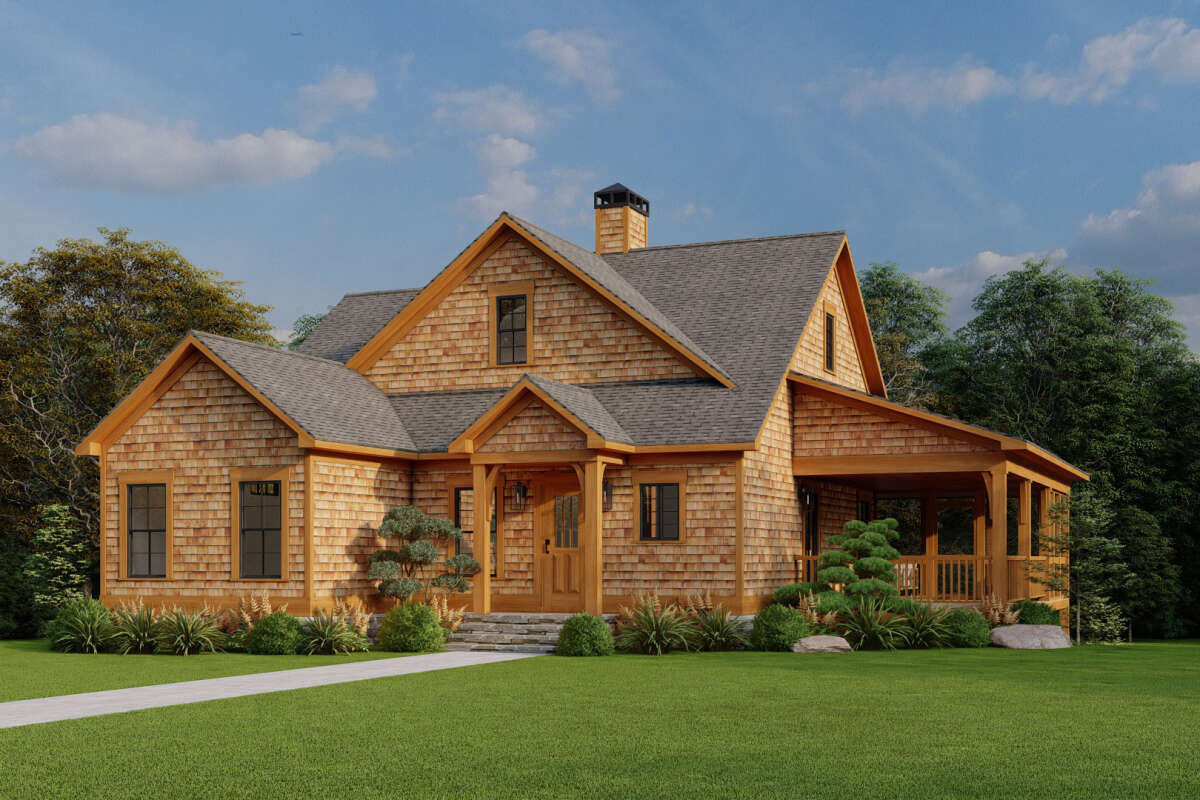

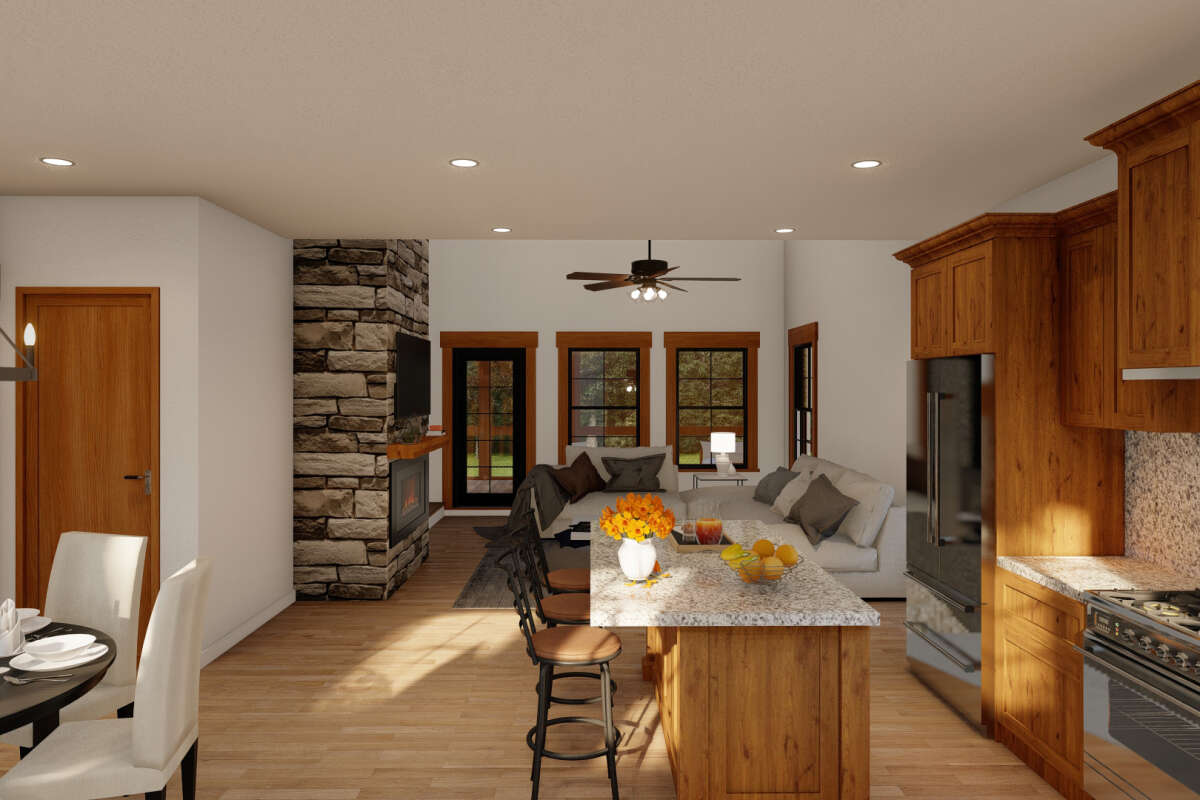

This beautiful Cottage plan features great outdoor space, a lovely exterior and an open floor plan. The exterior of the home is highlighted with cedar shakes, warm woods, beautiful window views and a covered porch as well as a screened porch. The interior of the home offers approximately 1,559 square feet of living space on two floors with an open floor plan, three bedrooms and two baths. Perfectly designed for a narrow lot, the home’s width is 45’ while the depth is 53’plus and there is a foundation choice of either a slab, crawl or basement; wonderful options and the basement is ideal for additional living space, an in-law or teen-age suite or recreation space for family and close friends. The front entrance immediately opens onto the living spaces where there is a dining room, kitchen and great room. The great room is located at the rear of the home for maximum viewing potential onto a lakefront or mountain property lot and features a warming fireplace, a rear window wall and access onto the screened porch and subsequent covered porch. This plethora of outdoor space is heavily influenced by its “Cottage” status and the potential for all those heavenly views. Back inside, the home features a dining space and an eat-in kitchen bar with additional seating arrangements. This combination space is arranged to provide maximum appeal, work and prep space as well as dining space for family and special occasion meals. The grand kitchen also contains good counter and cabinet space as well, optional pantry space and access onto the outdoor space making dining al fresco easy and enjoyable.

Two identical sized bedrooms are located on the main floor; each is highlighted with window views and great closet space. There is a linen closet located in the small hallway along with space for a stackable washer and dryer. The shared hall bath features double sinks, a toilet area, a glass enclosed shower and a whirlpool tub. The second floor of the home could be utilized as the master suite or space for overnight guests or children. There is a loft that could function as a sitting room for the suite or a sleeping loft for guests. A traditional enclosed bedroom with closet space and window views is also located on the floor and there is a full bath with toilet area, vanity space, tub/shower combination and a hall linen closet as well. This Cottage home features a lovely exterior, great outdoor space and a versatile floor plan.
