Cottage Plan 110-00987


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,792
Beds 3
Bath 3
1/2 Baths 0
Car 0
Stories 1.5
Width 48'
Depth 48' 4"

Floorplan Drawings

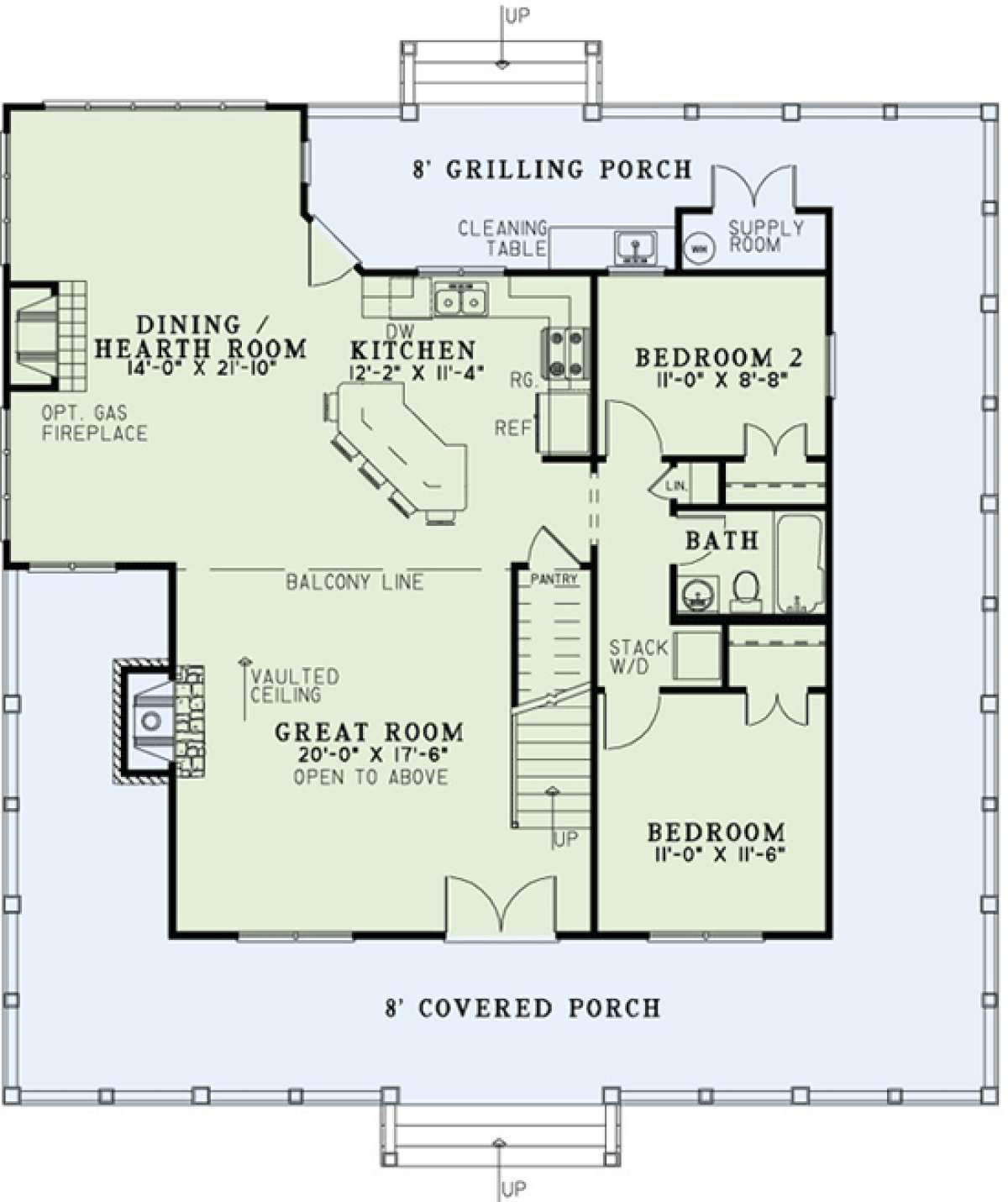

Floorplan 1
Floorplan 1 for House Plan #110-00987

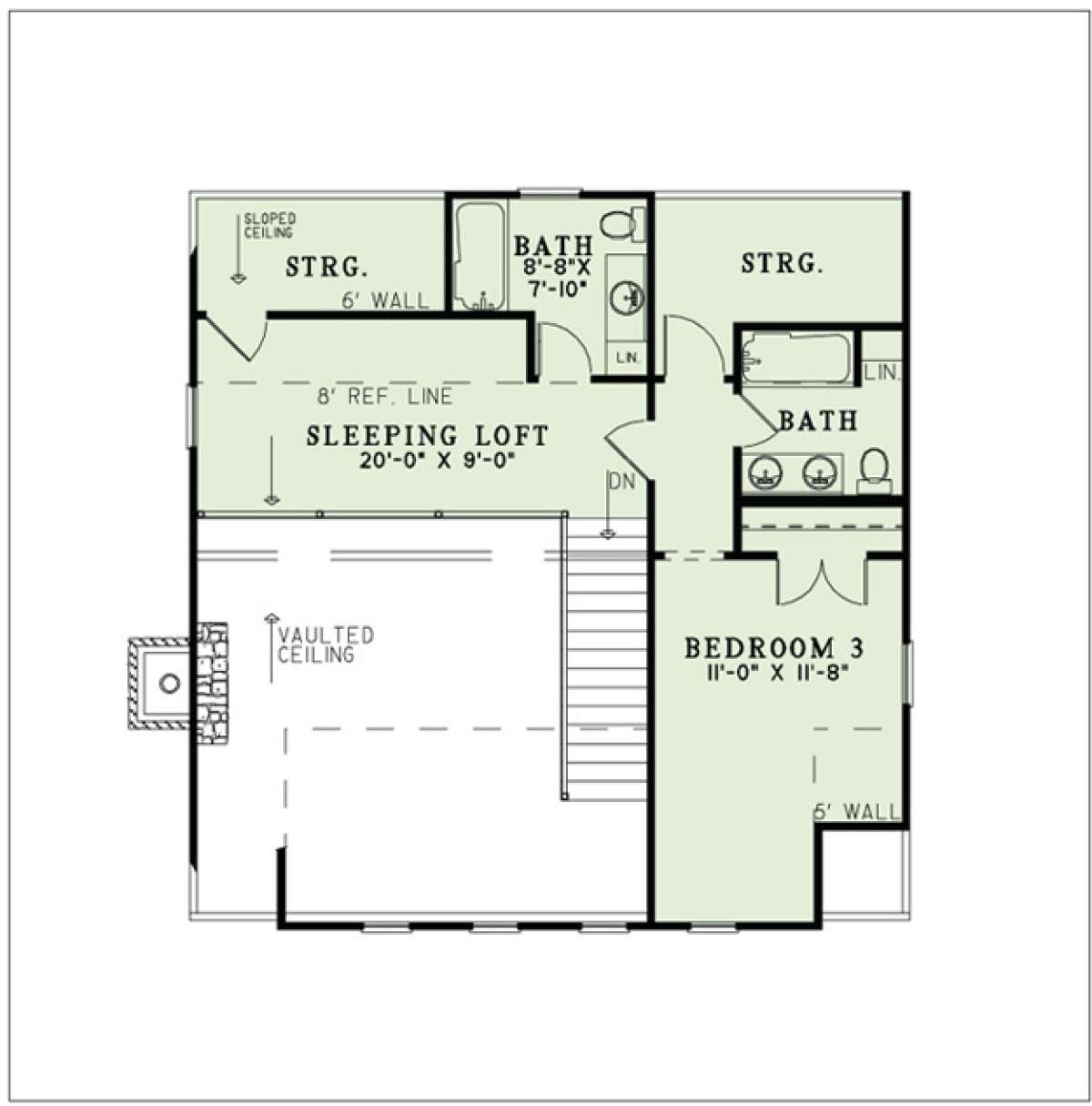

Floorplan 2
Floorplan 2 for House Plan #110-00987

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

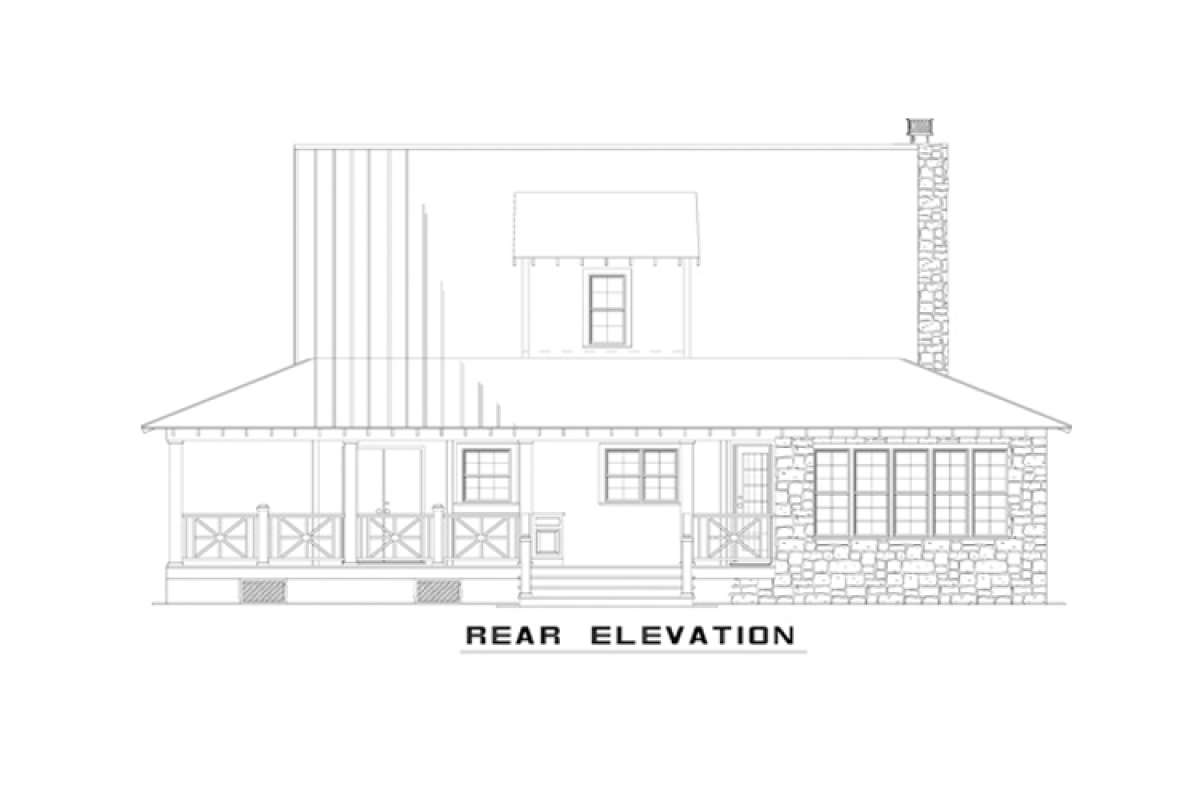

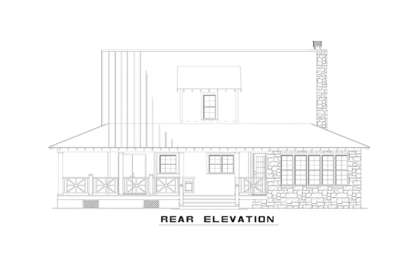

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

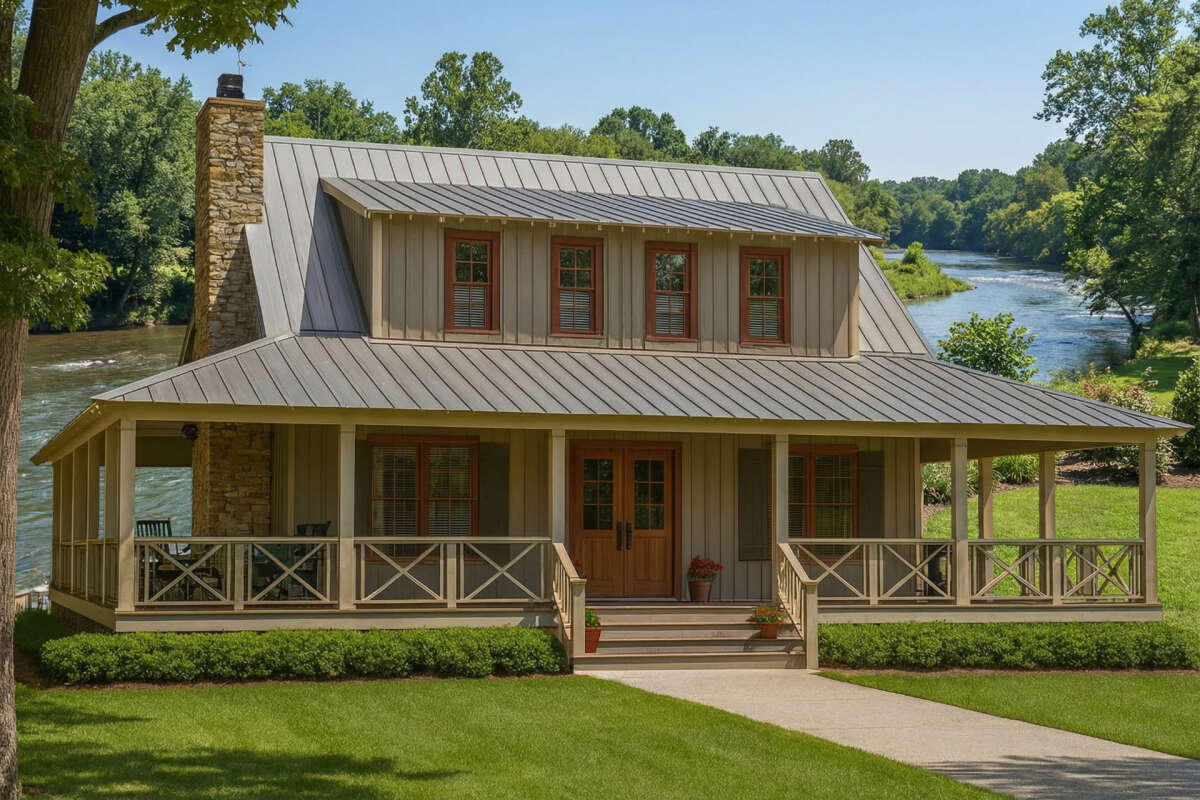

This delightful Cottage house plan features an exterior that is custom designed for those who value their outdoor space. An awesome wraparound covered porch adds valuable real estate to the exterior of the home and features a spot to greet family and friends as well as entertain large gatherings of people comfortably. The wraparound porch is highlighted with warm columned beams, decorative open railing, and overhead exposed rafters. One side of the porch wraps deeply around the side of the home while the other spans to the rear, turns the corner and culminates into the rear grilling porch with an outdoor table and sink area; functional, versatile and completely necessary for those who love their outdoor space. The lovely exterior is further enhanced with an overhead dormer shed and an exposed stoned chimney on the front face. The 1.5 storied Cottage is highlighted with approximately 1,792 square feet of living space that features three bedrooms, three baths and an open floor plan. Walking into the double entry doors, there is a large great room with vaulted ceilings, a handsome fireplace and window views overlooking the front porch. The grand kitchen and dining/hearth space are situated beyond the great room and both feature great space to prep and enjoy meals. The kitchen is highlighted with an angled breakfast bar, a separate pantry and double sink window views. The dining/hearth room is quite spacious and features an optional gas fireplace, surrounding window views and access onto the rear grilling porch. Two bedrooms are located on the main floor as well; located off the small hallway, bedroom one is the larger of the two and features window views and plentiful closet space. The second bedroom features a window view and closet space as well. There is a shared hall bath with vanity space, a toilet area, a tub/shower combination and a linen closet and stackable washer and dryer space flank the bath.

Upstairs, is a sleeping loft; perfect for overnight guests, grandchildren or as a multi-purpose room. Conversely, this entire second floor could be converted into a master suite with the loft becoming a sitting room. There is a nearby bedroom with closet space and window views as well as a full bath that features dual vanities, a toilet area and a tub/shower combination within the suite. At the rear of the bath is a large storage room and there is a matching storage area at the opposite end of the floor. A second bath is located on this level as well to be shared with the loft space. This Cottage house plan is a lovely assortment of outdoor and interior rooms designed to maximum casual family living.
