Cottage Plan 110-00816

Sq Ft 1,374
Beds 3
Bath 2
1/2 Baths 0
Car 0
Stories 1.5
Width 40' 4"
Depth 41' 6"

Floorplan Drawings

Floorplan 1

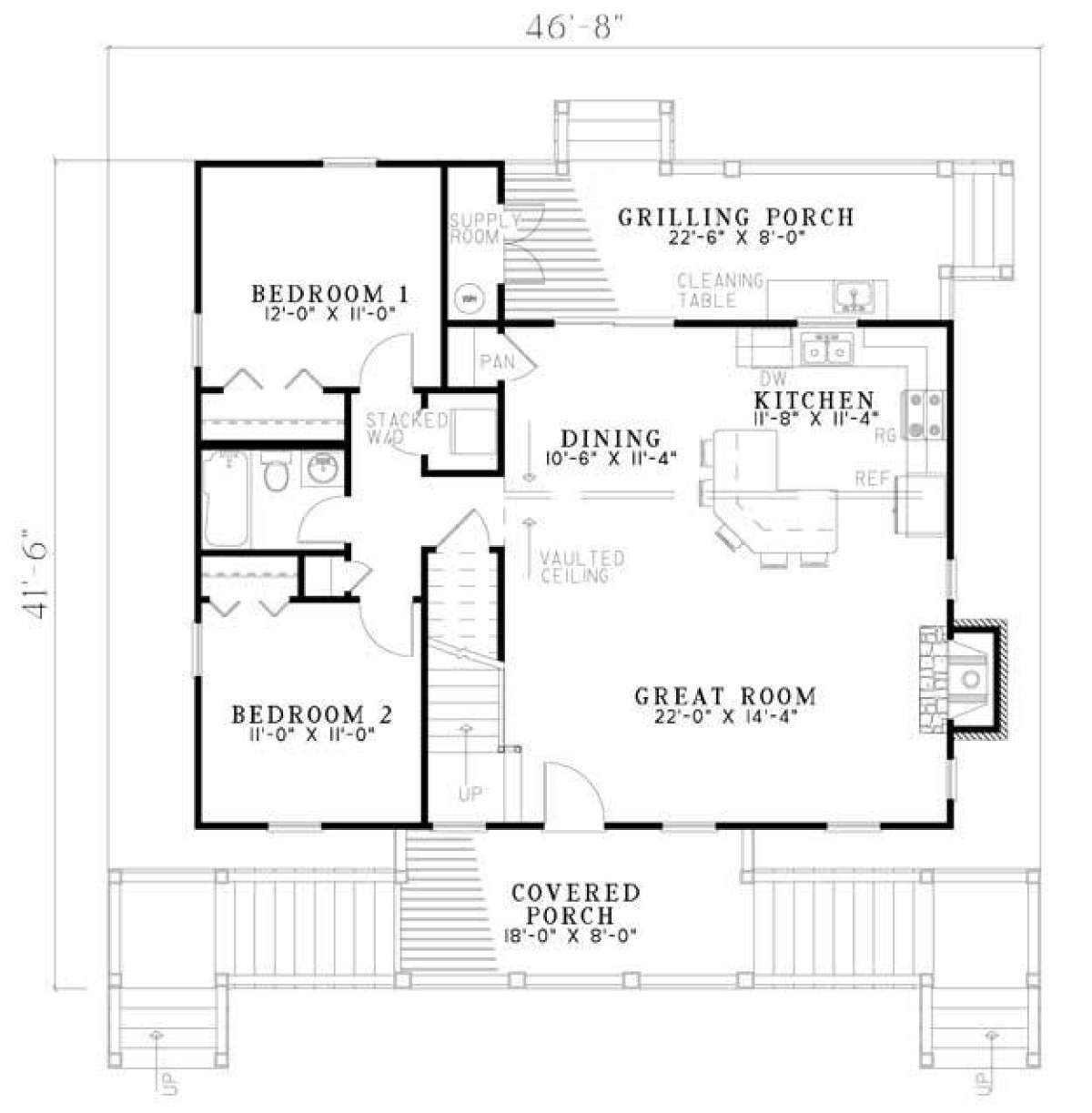

Floorplan 1 for House Plan #110-00816
Floorplan 2

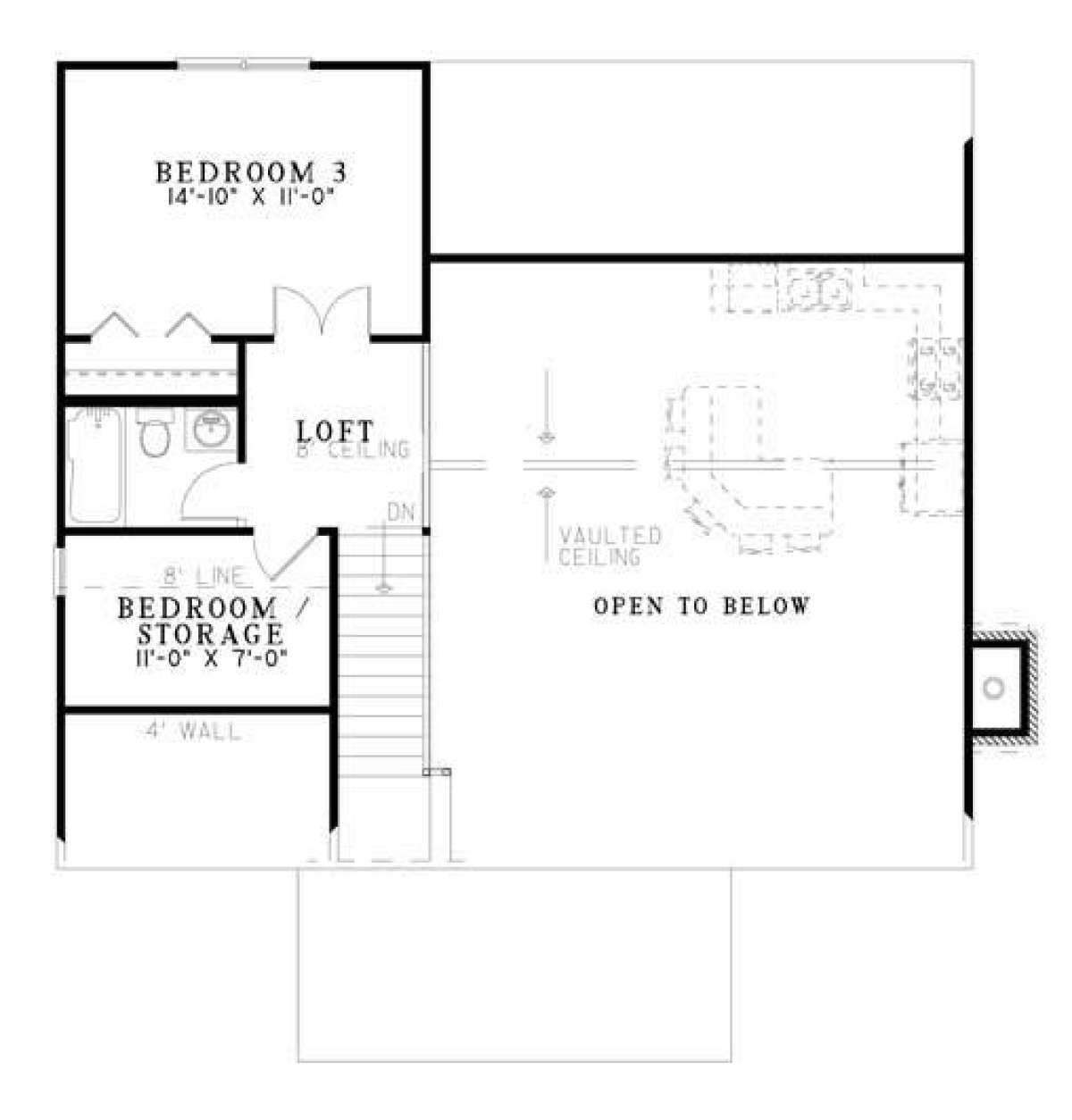

Floorplan 2 for House Plan #110-00816
Images copyrighted by the designer.

What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    These are included for many interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This lovely Cottage house plan is highlighted with a varied assortment of exterior design elements that captures the imagination and offers great visual appeal. There is a bridge walkway supported by vertical stone pillars with double walk-up staircases to the front entry of the home. Columned beams, beautiful open railing and window views that span the width of the home add character and charm to the home’s elevated front exterior. Approximately 1,374 square feet of living space is found within the home’s interior that offers three bedrooms and two baths in the 1.5 storied home. The plan is perfect for a narrow and/or small property lot with its respective width and depth dimensions of 40’ plus by 41’ plus. Whether utilized as a vacation home for the family or a permanent residence, the plan is highlighted with a great layout that is efficient and functional. The centrally located front entrance grants access into the great room where there is generous floor space, vaulted ceilings, wonderful window views, a warming fireplace and the second story staircase. The dining space and kitchen are situated beyond the great room along with rear sliders onto the covered grilling porch. The kitchen features an angled breakfast bar, double sink window views and there is a separate pantry. The grilling porch is perfect for entertaining, relaxing and cook outs plus there is a large supply/storage room located directly off the porch. There are two bedrooms on the main floor as well as a shared bath and a stacked laundry nook. Both bedrooms are similar in size, have window views and plentiful closet space. The shared bathroom is situated between the bedrooms and is highlighted with vanity space, a toilet area and a tub/shower combination. The second floor staircase overlooks the open floor plan below and offers loft space at the landing which also overlooks the main floor. There is French door access into the third bedroom where double window views and an attached closet are available. A fourth bedroom or storage room is available on the other side of the second bathroom where there is vanity space, a toilet area and a tub/shower combination. This entire second floor could be configured as a master suite with a sitting room, a large walk-in closet and plenty of bath and bedroom space or could be left as is for family and guests to comfortably enjoy an extended stay. This Cottage house design features a lovely exterior, large front and rear covered porches and a functional and versatile floor plan.
