Northwest House Plan 699-00057

Sq Ft4,941
1/2 Baths1
Width98' 0"
Depth59' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

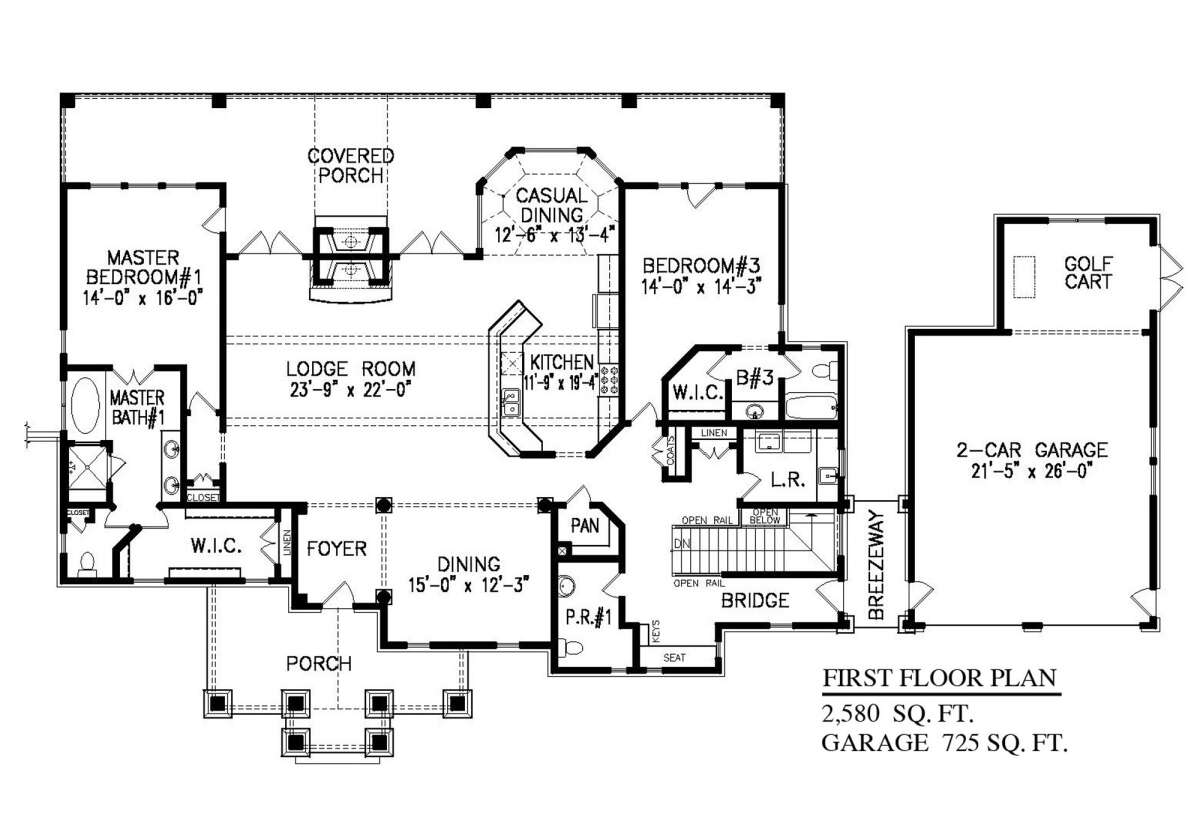

Main Floor for House Plan #699-00057

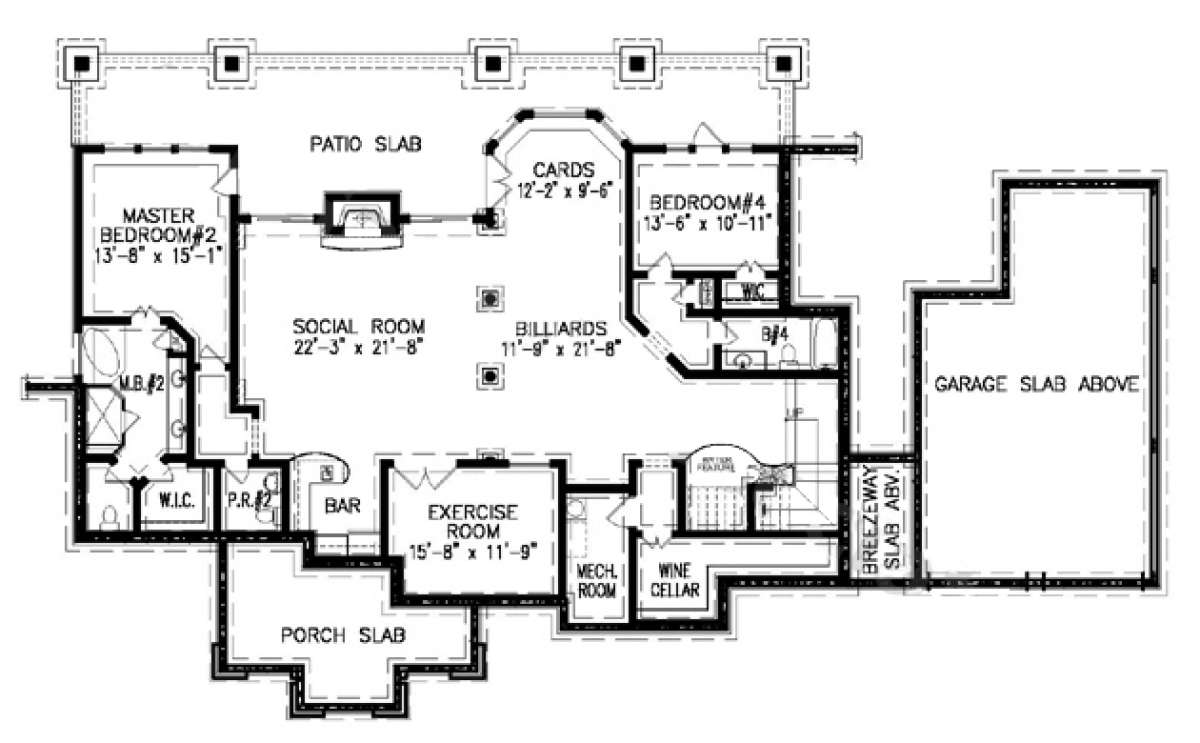

Basement for House Plan #699-00057
Main Floor
Main Floor for House Plan #699-00057
Basement for House Plan #699-00057

Frequently Asked Questions


What's Included in these plans?

  • Front, Rear, & Side Elevations
  • Floor Plans (1st and 2nd)
  • Foundation Plan (Whatever we have available for that particular plan being either basement, crawlspace, or slab)
  • Roof Plan
  • Building Section and Detail Pages
  • Electrical Pages


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This striking and beautifully designed Northwest house plan features an alluring exterior and an interior floor plan that is equally captivating. Board and batten, cedar shakes and a stone skirt perimeter highlight the exterior along with multiple gables and window views. The front covered porch features a strong architectural presence with its use of complementary stone pillars and the substantial beams add structure and balance to the home’s exterior. There is a small breezeway connecting the home’s interior with the two car front loading garage and accompanying golf cart space which includes a separate and interior entrance into the garage. Located off the breezeway into the home is a bridge hallway to the guest powder room, a coat closet, linen closet and the laundry nook. The interior layout is comprised of approximately 4,941 square feet of living space with a basement foundation, four bedrooms and four plus baths. A spacious foyer and open floor plan are found once you enter the home’s interior with the adjacent dining room outlined in columns that offers great space for family and special occasion meals. The centrally located lodge room is huge and highlighted with a rear wall warming fireplace and two flanking sets of French doors onto the outdoor space. The rear covered porch nearly stretches wall-to-wall with the interior floor plan, is perfectly designed for outdoor entertaining and features an outdoor fireplace for chilly mornings and evenings. The casual dining space is ensconced in a brightly lit bay window and the adjoining kitchen features an elongated breakfast bar, plenty of counter and cabinet space and a separate walk-in pantry. Two bedrooms are located on the main floor of the home; one is a self- contained suite with generous floor space, a private full bath, walk-in closet and private access to the rear covered porch. The main floor master suite is situated on the opposite side of the home for privacy and is highlighted with a spacious master bedroom offering a rear triple wall of window views and access onto the rear porch. The elegant master bath is highlighted with dual vanities, a separate shower, garden tub and a private water closet. The master walk-in closet lies adjacent to the bath and features great storage space for clothing and other accessories.

The terrace level of the home features an almost exact match in terms of square footage as the main living floor. The open concept continues with space for a recreation/social room, a billiards space as well as a game room/cards space; plenty of space for entertaining and family fun. Conversely, the space could be used as an in-law or teenage suite of living spaces. The large outdoor covered patio is perfect for relaxing and outdoor fun. Two bedroom suites lie on opposite sides of the entertaining space; bedroom four features good closet space, a private bath and a trey ceiling bedroom along with private access onto the patio. The second master suite replicates the design features of the main master suite; a large bedroom, access onto the patio, an elegant bathroom with an almost identical set up as the main master bath and a large closet space. To complete the terrace level of the home, there is an exercise room, a wine cellar, an open bar area, a mechanical room and storage space. This gorgeous home is highlighted with outstanding exterior architectural elements, a functional and versatile interior floor plan and beautiful outdoor space for family living.
