Northwest Plan 5631-00057


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,936
Beds 4
Bath 4
1/2 Baths 1
Car 3
Stories 1
Width 94'
Depth 85'

Floorplan Drawings

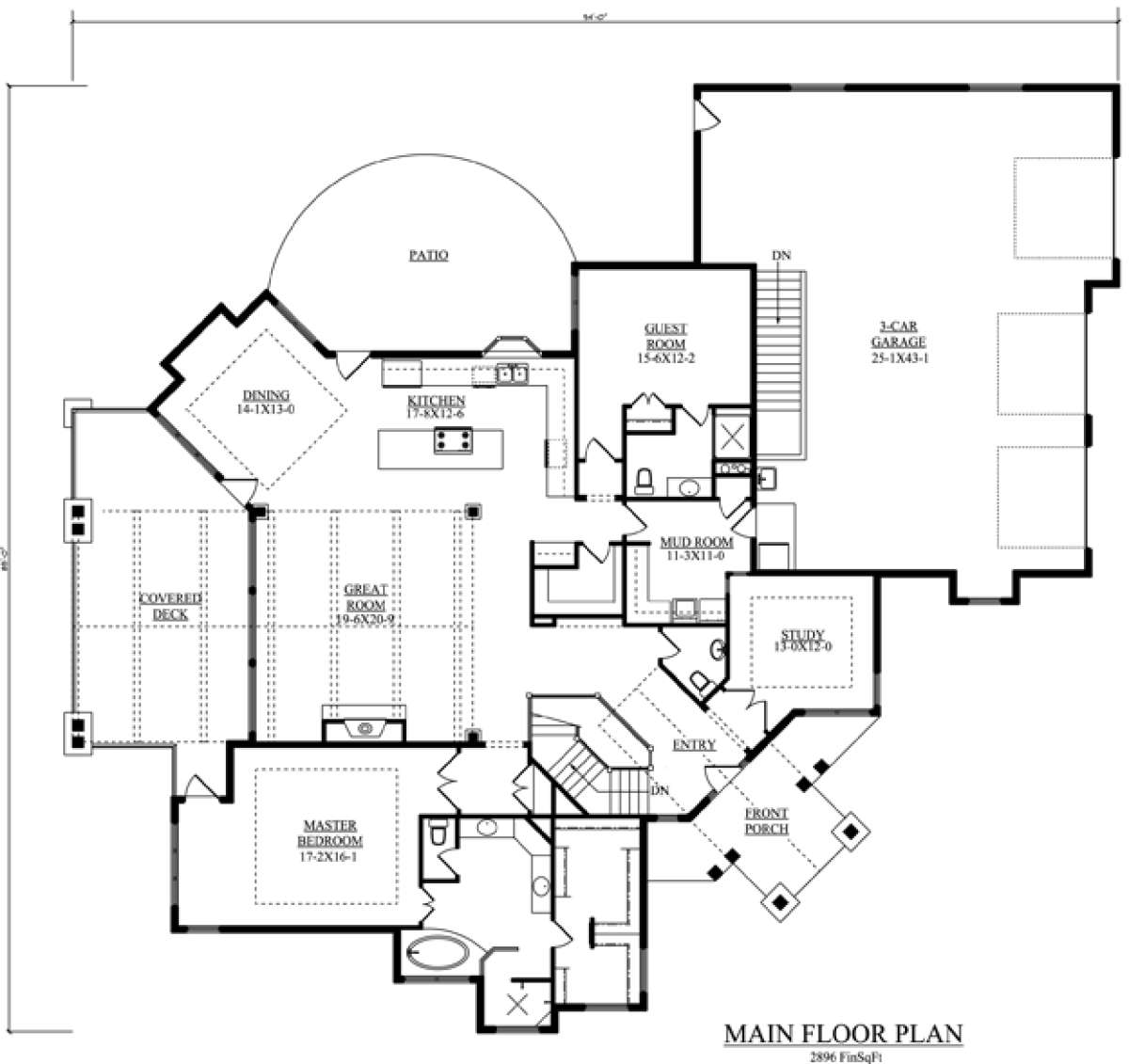

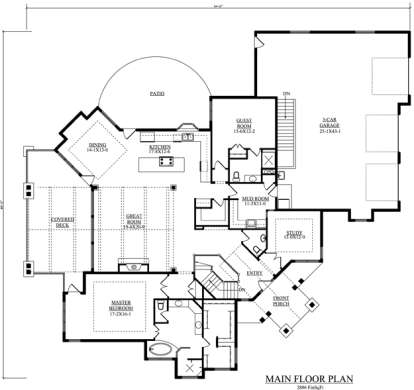

Floorplan 1
Floorplan 1 for House Plan #5631-00057

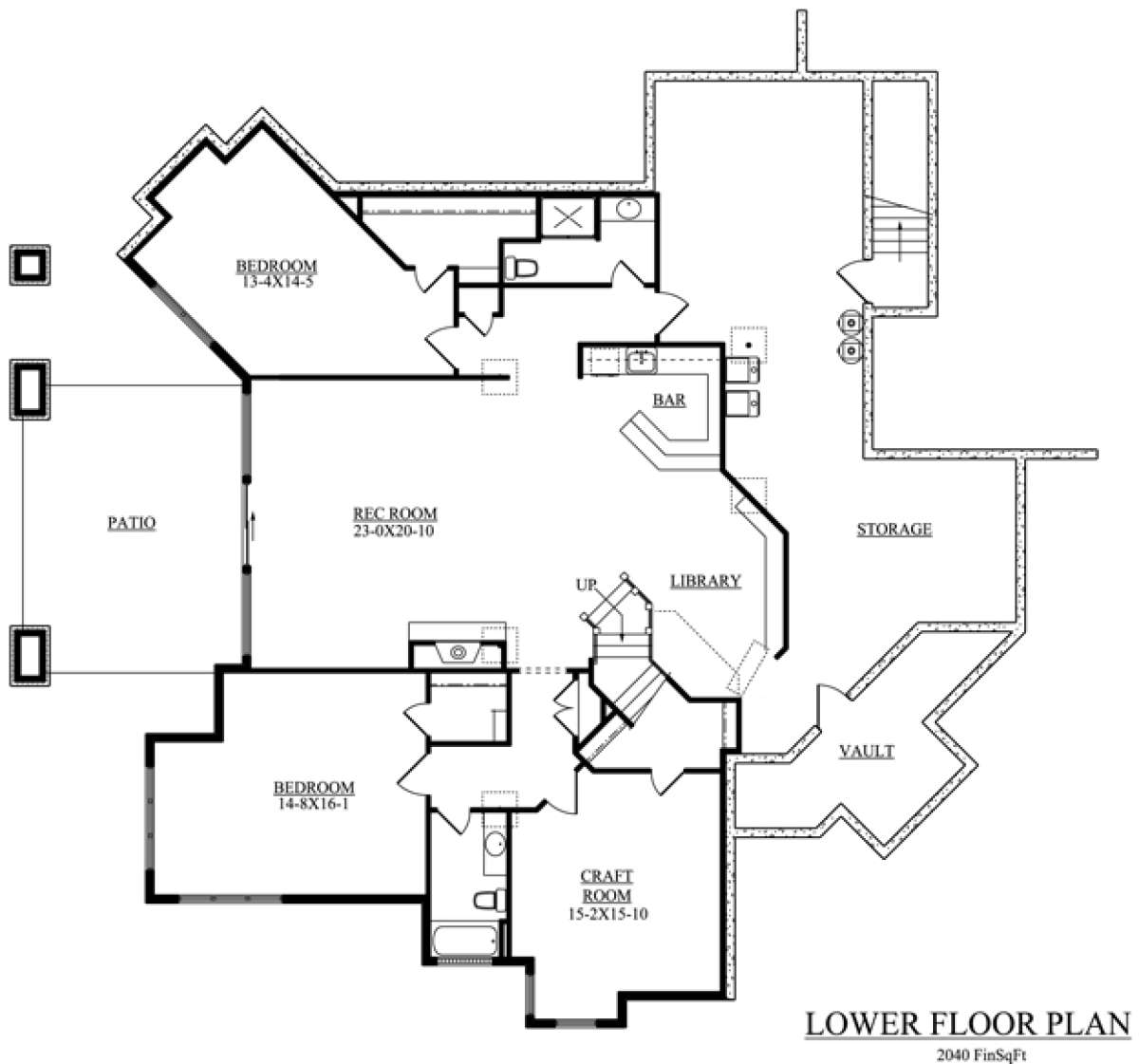

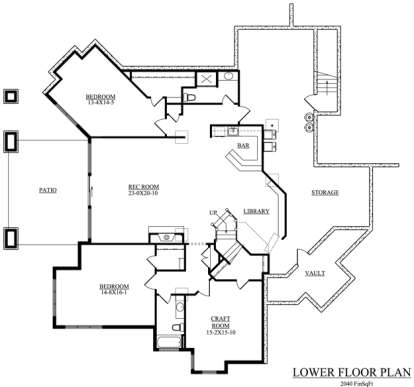

Basement Floor Plan
Basement Floor Plan for House Plan #5631-00057

What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

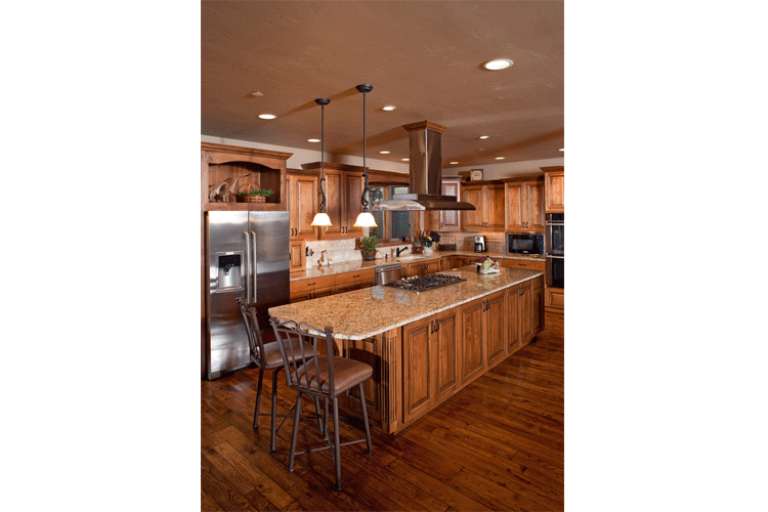

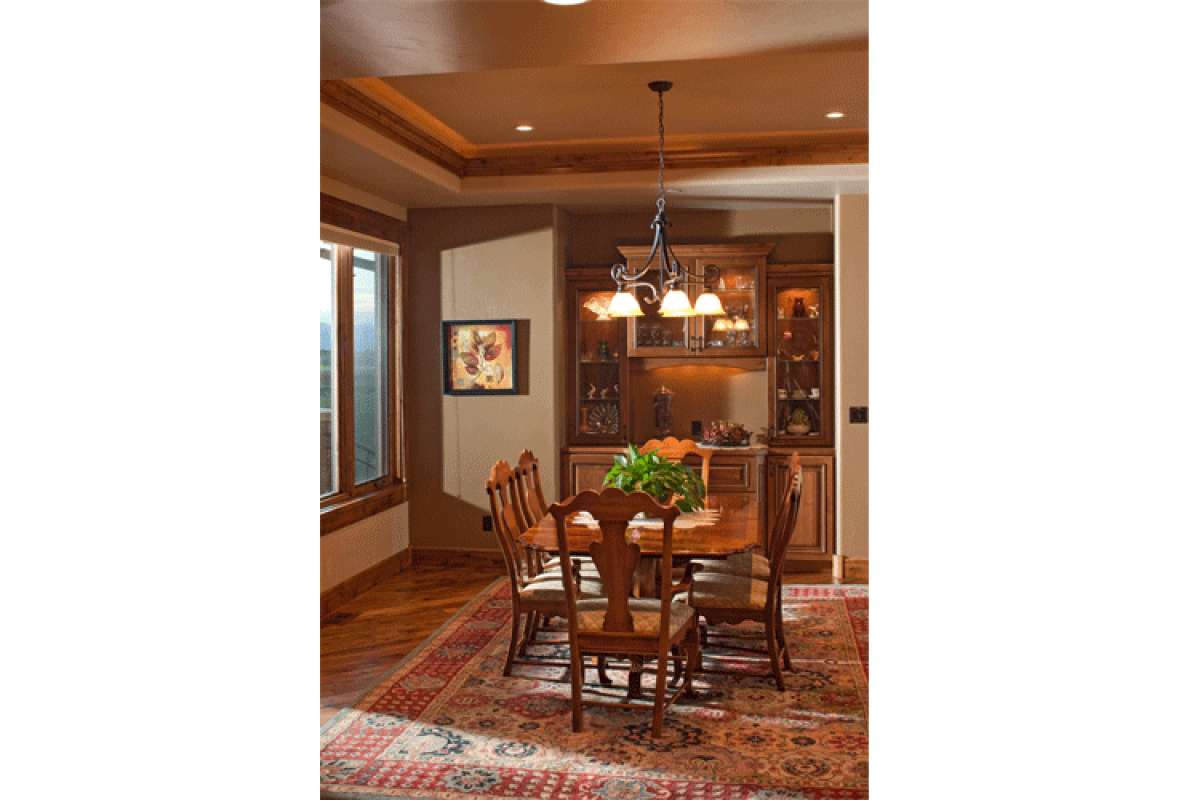

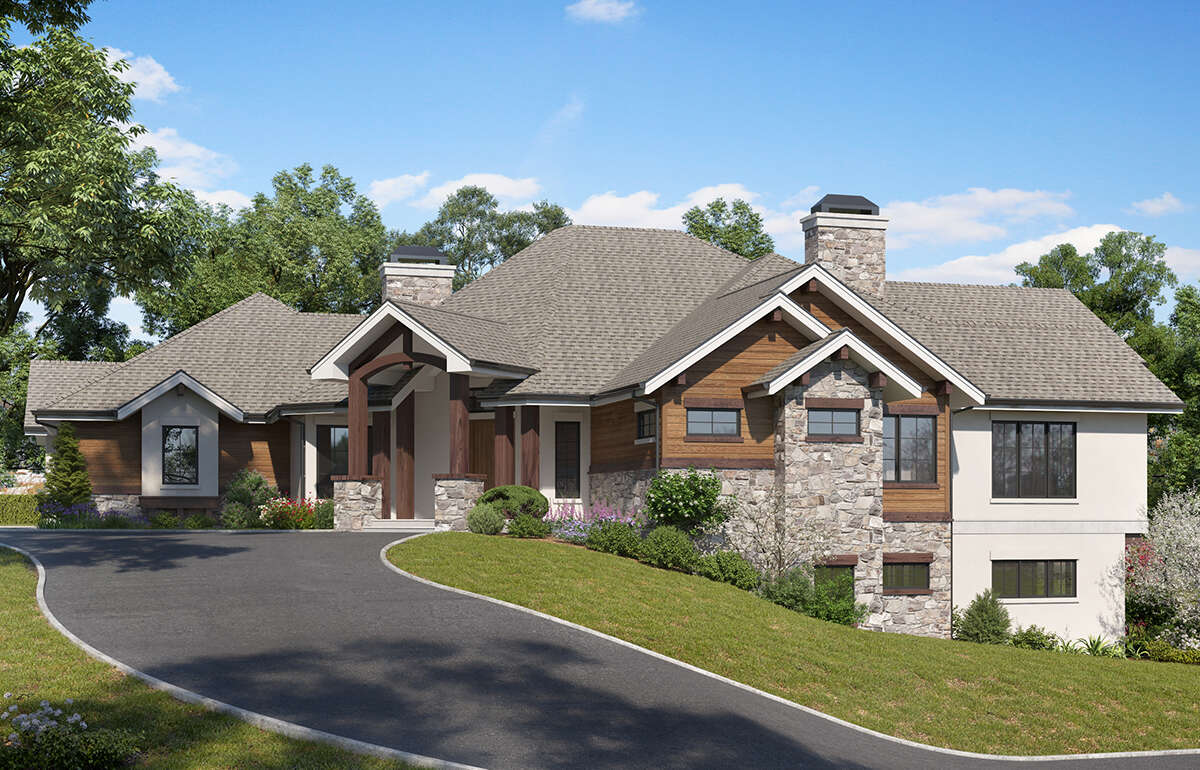

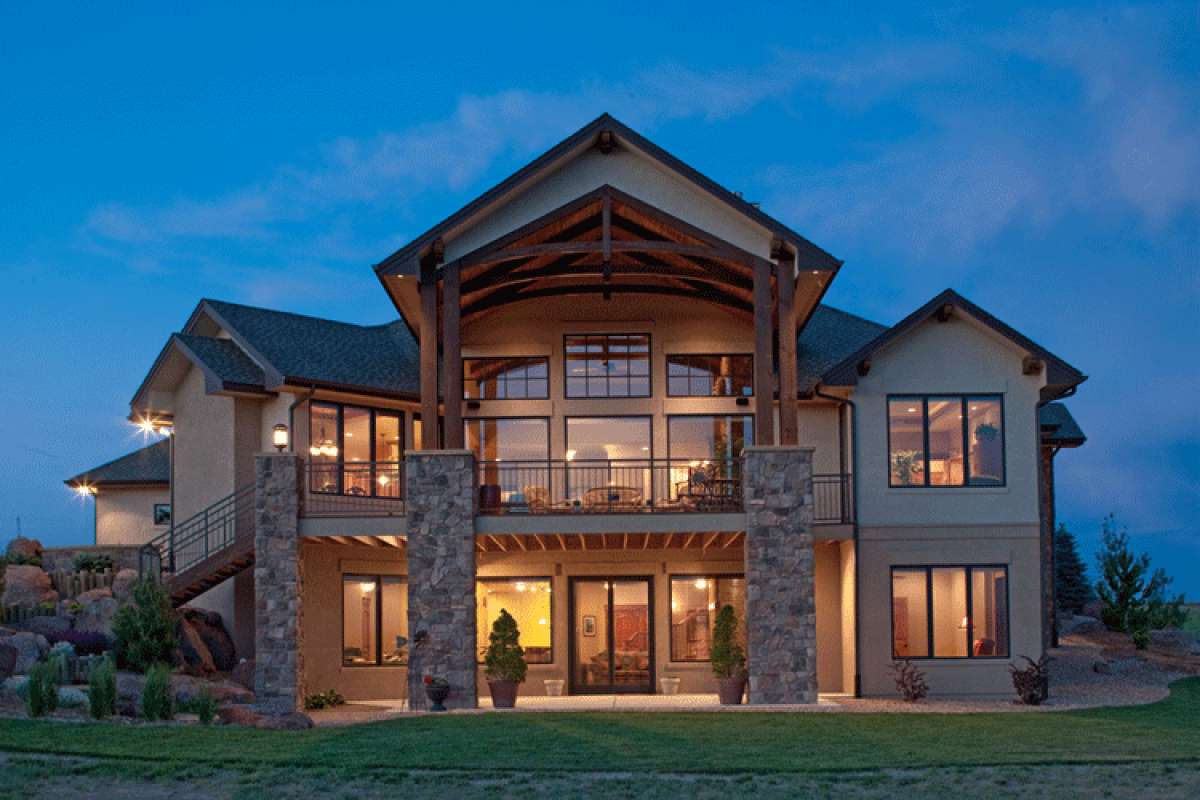

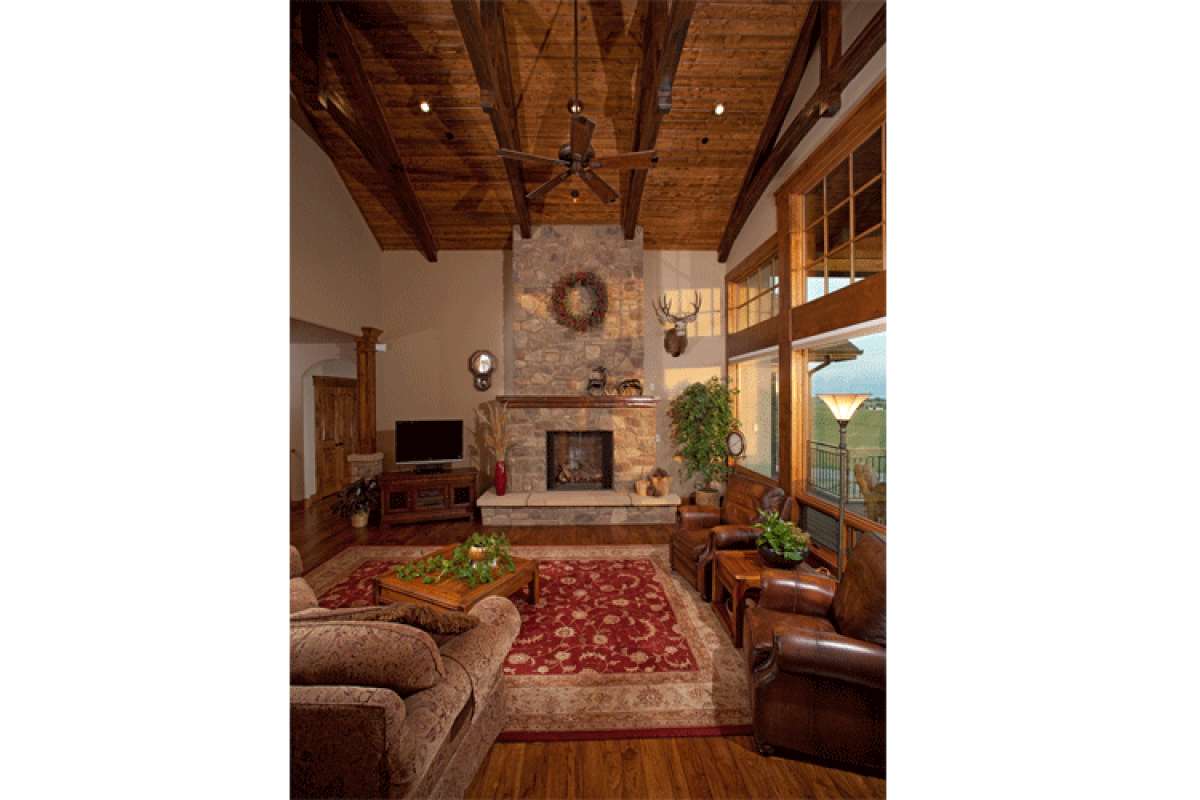

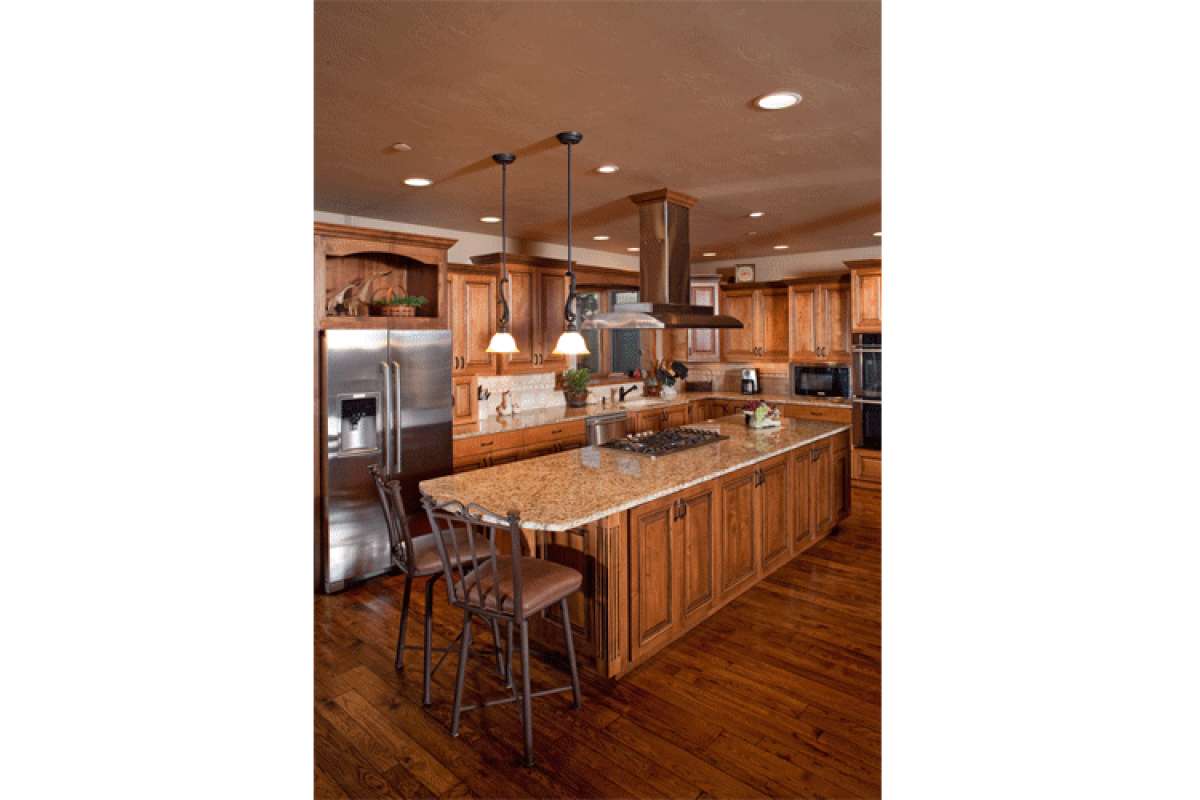

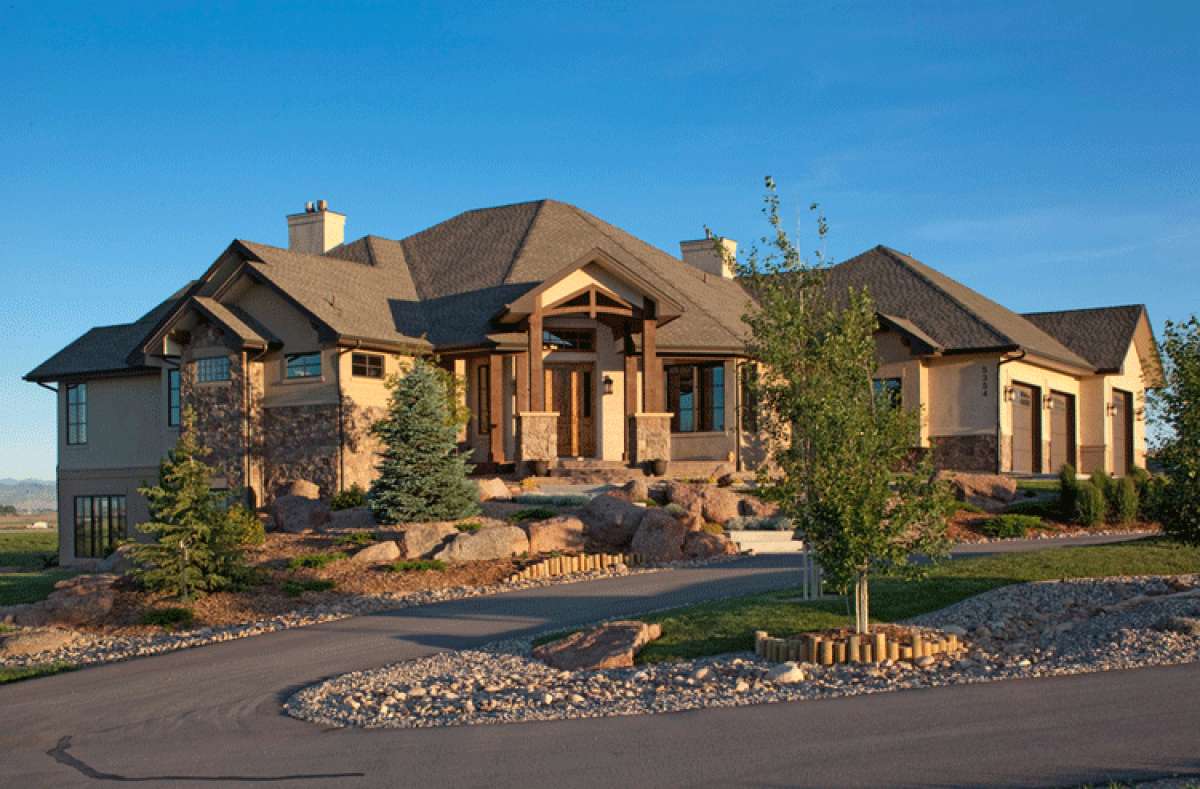

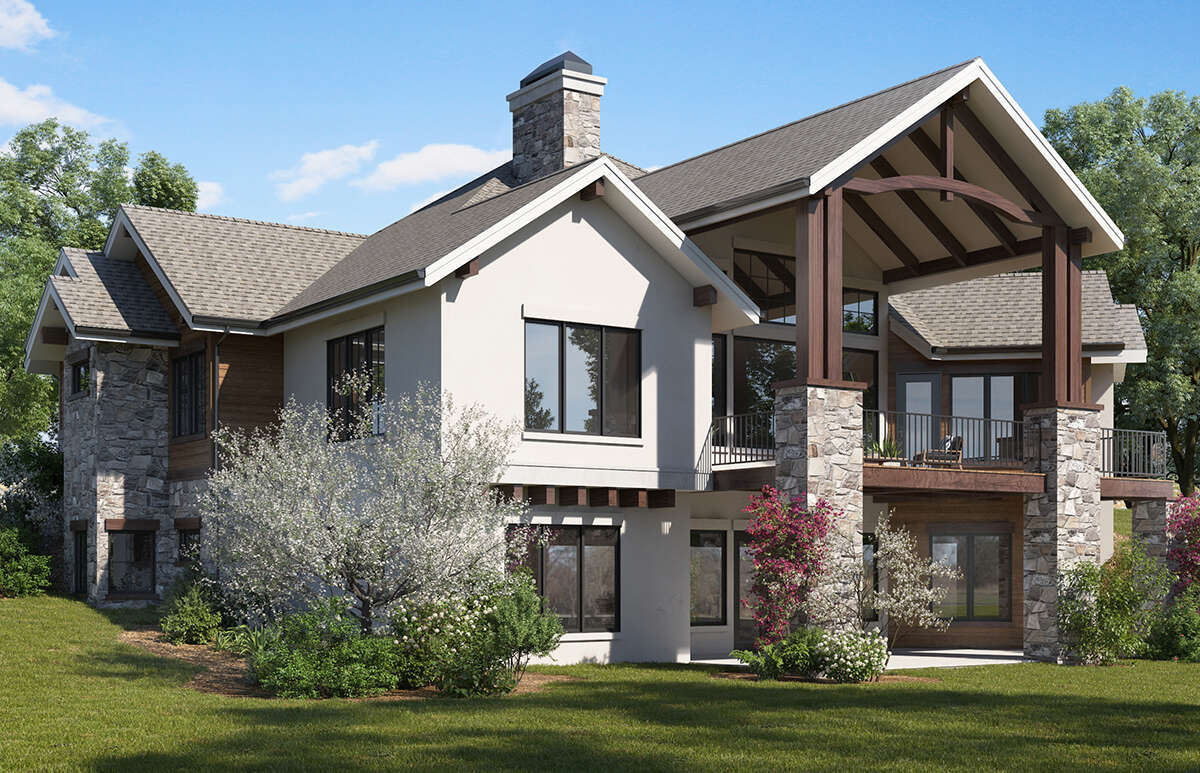

This sprawling Northwest house design spans approximately 94’ in width and houses an incredible 4,936 square feet of living space which includes a walkout basement foundation. Stacked stone and smooth stucco walls highlight the exterior along with a soaring front entrance and the rear exterior of the home is a gorgeous design with an expansive covered porch, impressive stone pillars and a wood beam cathedral inspired ceiling. Four bedrooms, four plus baths and a spectacular open layout line the interior of the home. The front covered porch leads into the spacious foyer which houses the lower level staircase and features French door entry into the private study, perfect for meeting with business associates and intimate friends. The open layout boasts of a huge great room with warming fireplace and overhead timber trusses, a grand kitchen with a center island cook top and adjacent pantry, and a large dining room perfect for hosting special occasion meals and family celebrations. The dining room features double entry/exit points onto the rear patio area and covered deck for superior entertaining space. There is a main level guest suite with spacious closet room and a private bath. An enormous mudroom is conveniently located off the three car garage; both of which are oversized and conducive to storing winter gear and other storage items. The master suite is highlighted with a large bedroom with private access onto the outdoor covered deck, an en suite bath filled with elegant modern amenities and a rear split his and her oversized master walk-in closet. The terrace level features a reading library, a recreation room with a walk-in bar, a separate craft/hobby room as well as a vault room and loads of storage space. Additionally, there are two bedroom suites; one bedroom features great floor space, a walk-in closet and private bath while the other is clearly oversized with an enormous attached walk-in closet and adjacent full bath. This elegantly styled home features uncompromising outdoor space, a lovely exterior and an interior floor plan that offers an amazing amount of space for a large family who values their private space and entertaining space.
