Northwest House Plan 035-00856

Sq Ft5,558
Beds4
Baths4
1/2 Baths2
Stories1.5
Cars3
Width127' 8"
Depth111' 11"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

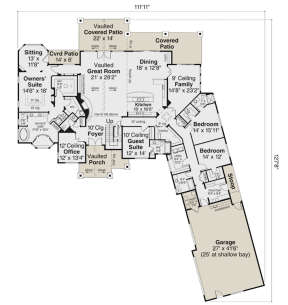

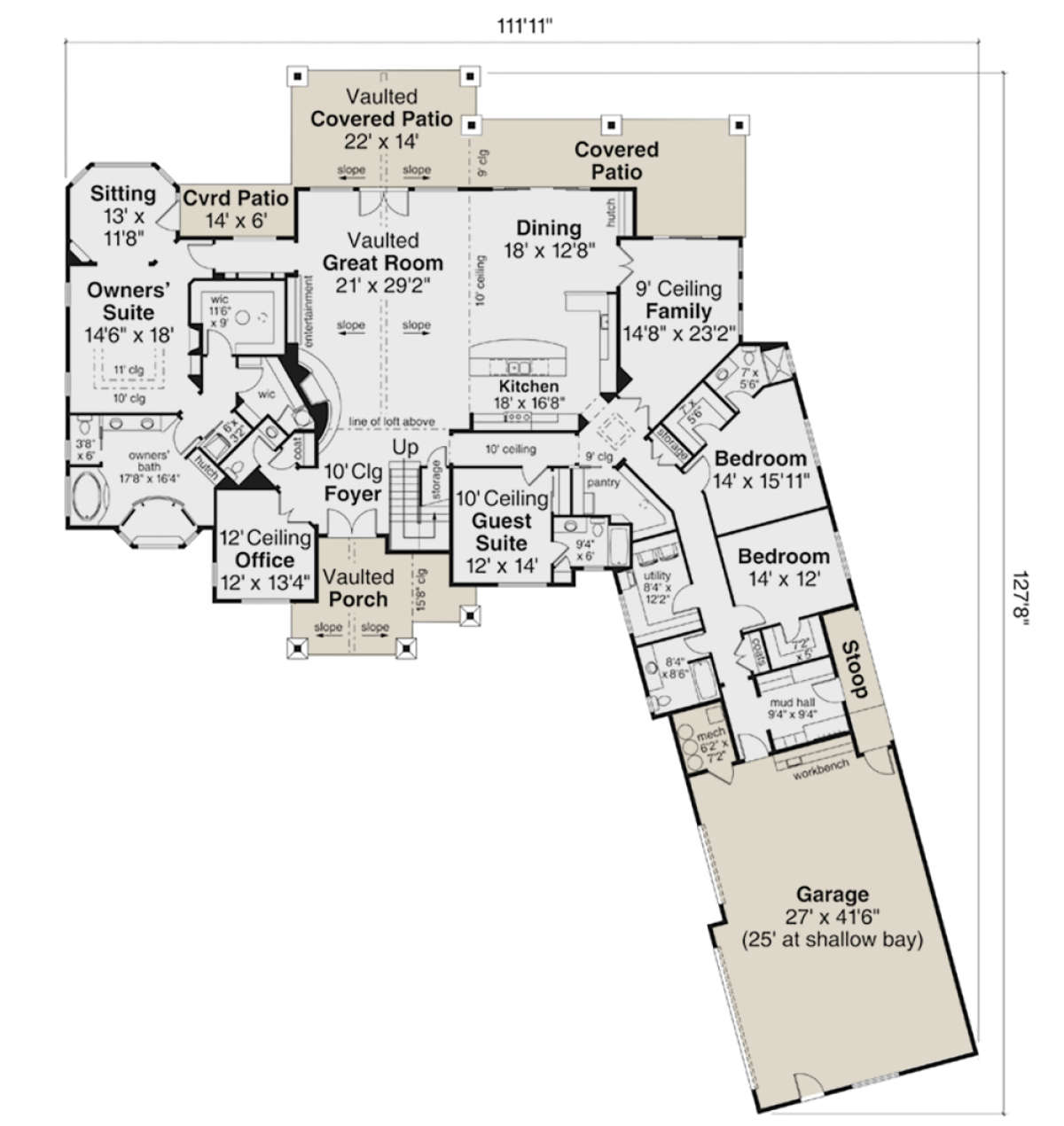

Main Floor for House Plan #035-00856

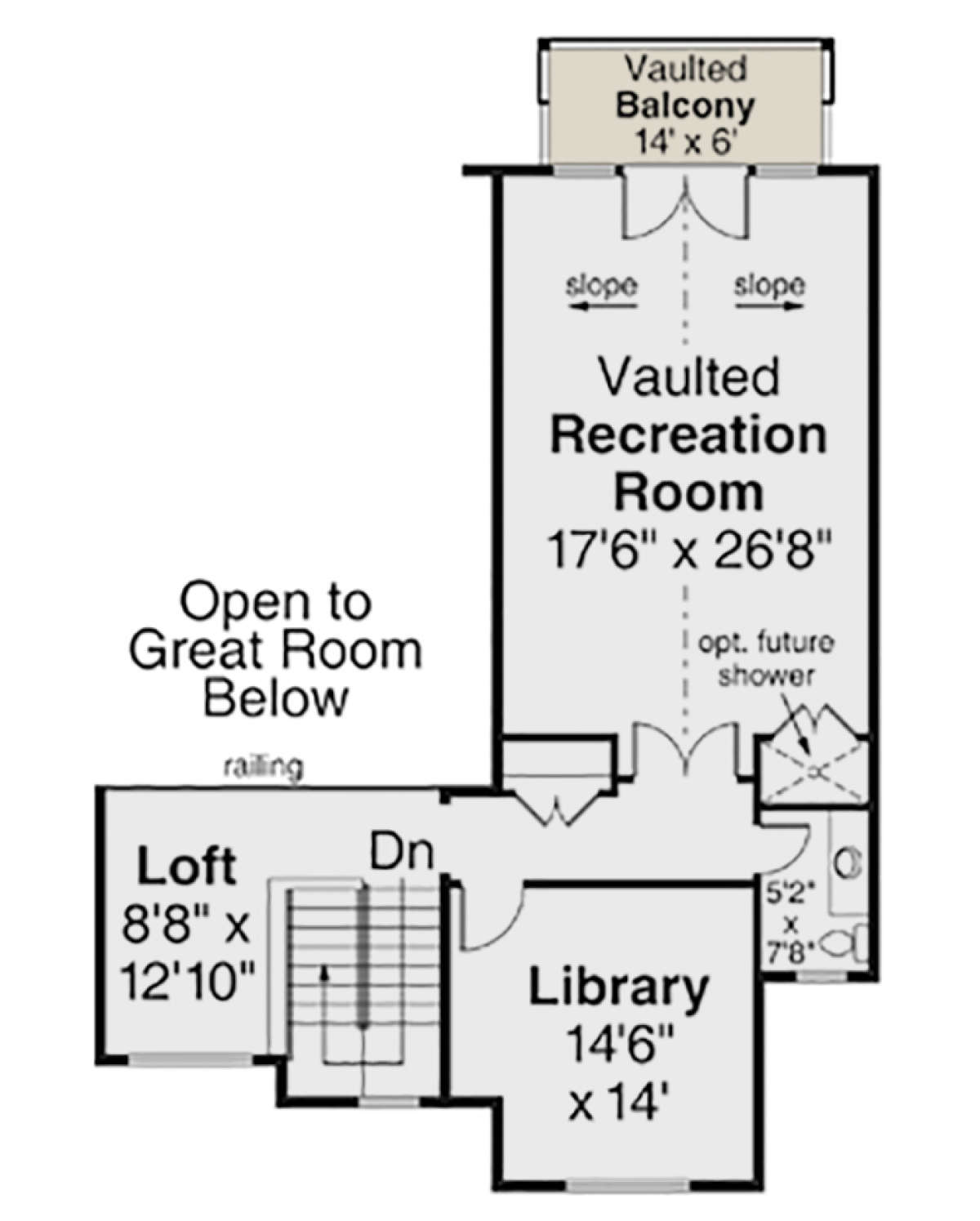

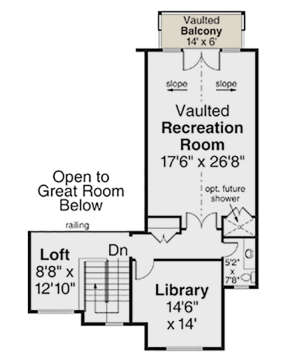

Second Floor for House Plan #035-00856
Main Floor
Main Floor for House Plan #035-00856
Second Floor
Second Floor for House Plan #035-00856


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Each plan set is drawn at 1/4" = 1' scale and includes the following drawings:
  • Artist Rendering: An artist's drawing of the home, usually viewed from the front and general construction notes.

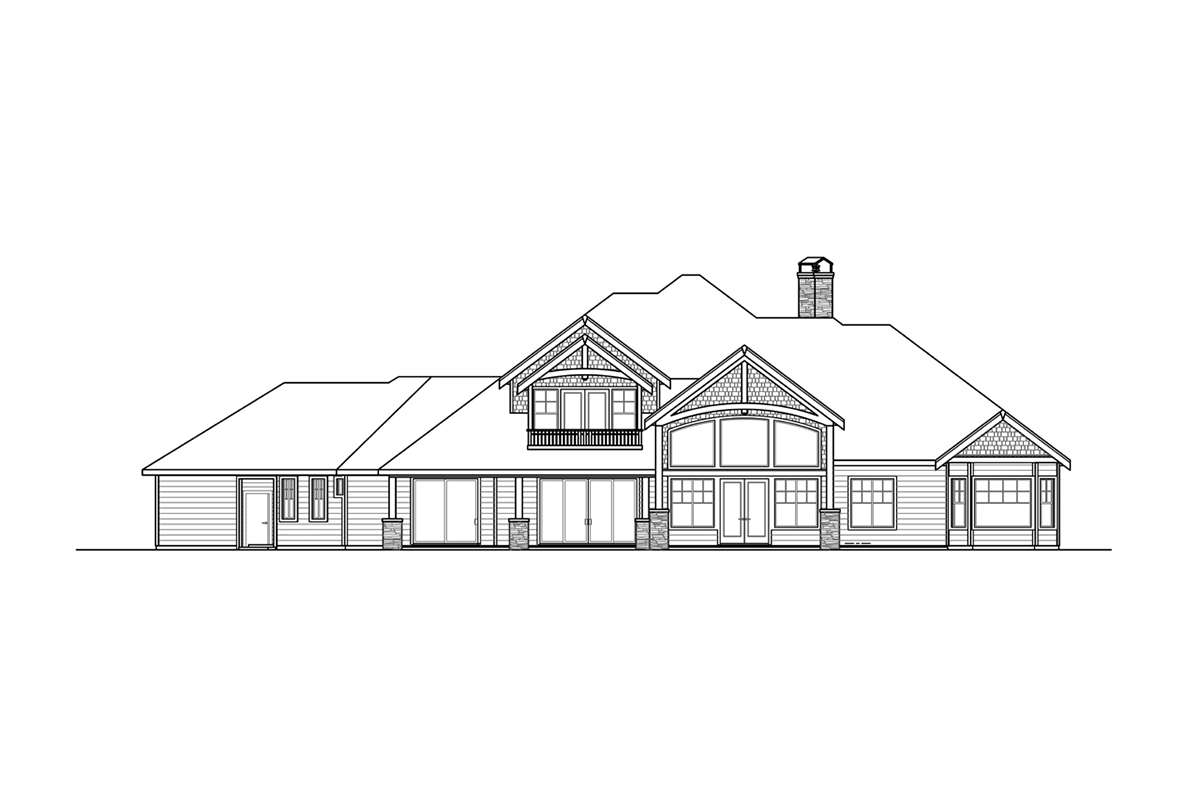

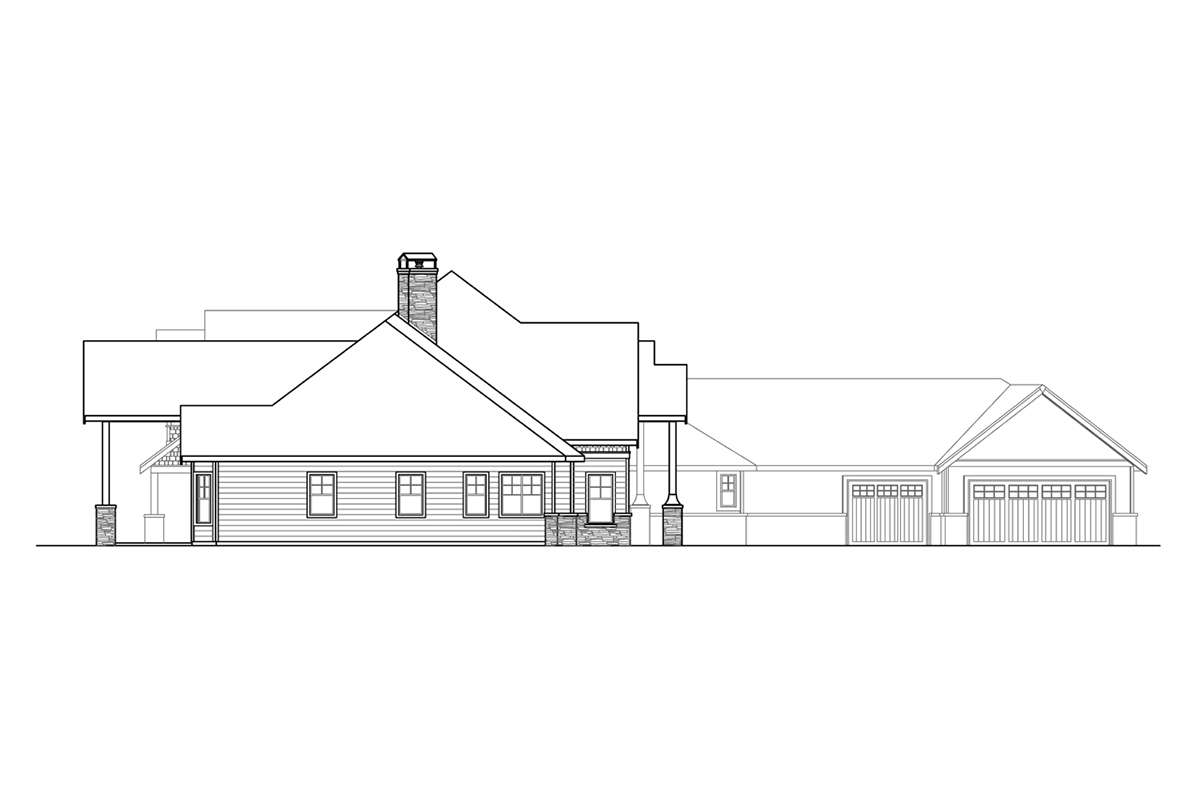

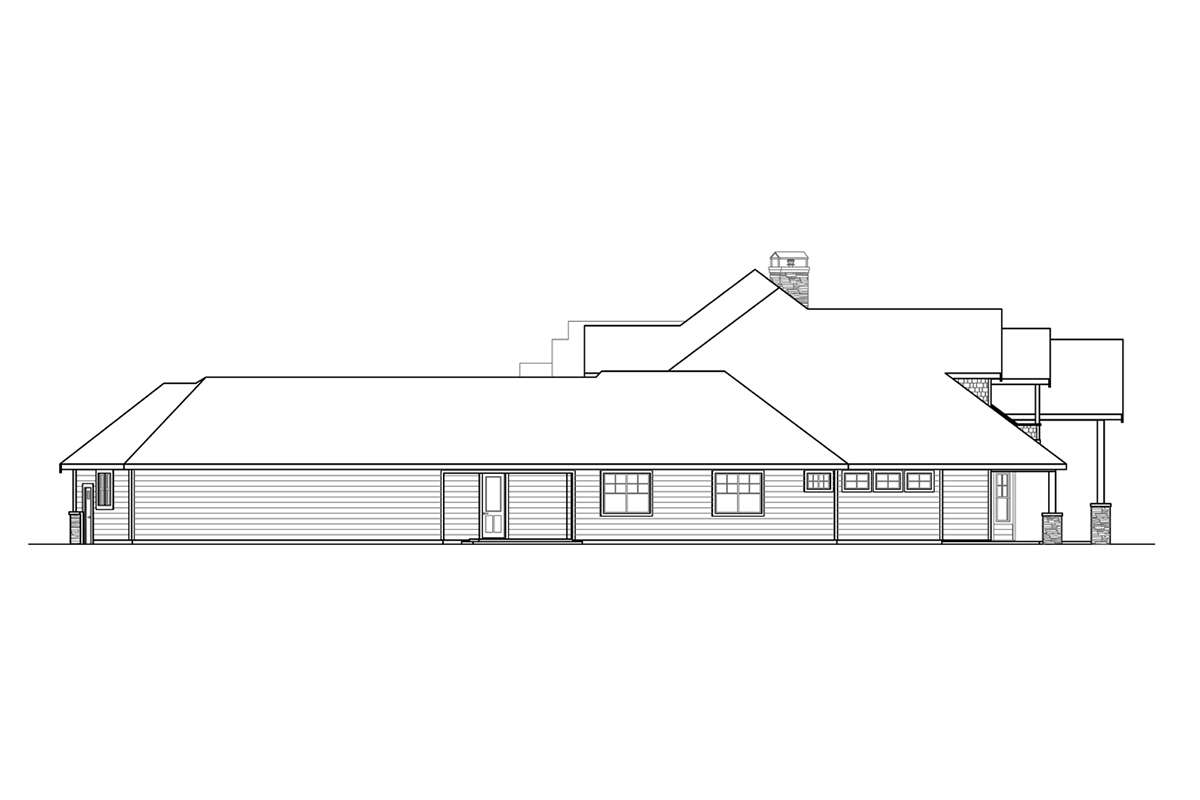

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any) Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • Roof Framing: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Details specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
  • *Wall framing and foundation options vary please call or email to confirm framing or foundation options of the plan you are interested in.
  • *Single Build License is included with plan packages of 5 sets or more.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Northwest house plan matches an excellent luxurious open floor plan with an exceptional exterior façade comprised of a well-blended mix of natural materials and siding. The grand courtyard entry leads to the side-entry garage with ample space for three cars, a mechanical room, and a workbench for a mini shop, as well as a stoop off the mudroom. The rear outdoor spaces offer wonderful entertaining areas. The master suite provides private access to a private covered patio, while the main patio features a vaulted ceiling and an open portion of patio that wraps around to the family room. There are four bedrooms and four-plus bathrooms in this expansive 5,558 square foot house plan.

The front vaulted porch leads to the 10-foot ceiling foyer and opens to the 12-foot ceiling corner office, coat closet, and guest bathroom. The two-story, vaulted great room is the start of the open-concept and features a corner fireplace, a central built-in entertainment system, and access to the rear patio. The corner island kitchen features a walk-in pantry around the corner of the kitchen, so you can drop your groceries down as you come in from the garage. The family room and dining room are two sunlit rooms providing sliding door access to the rear patio.

The master suite enjoys its own wing of the home and is complete with a sun-soaked sitting room, two fireplaces, his and her walk-in closets, and a luxurious en suite with a built-in hutch for linen storage. The secondary bedrooms share the wing with the garage and laundry room. The main secondary bedrooms both have a walk-in closet and side window views. One of the bedrooms has a private en suite while the other has a hall bathroom. The guest bedroom has a private bathroom with ample closet space.

Journey up to the second floor where there is a loft, a library, and a vaulted recreational room with a half bathroom and a vaulted balcony.
