Early American Plan 6471-00041

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,319
Beds 4
Bath 3
1/2 Baths 2
Car 2
Stories 2
Width 89'
Depth 74'

Floorplan Drawings

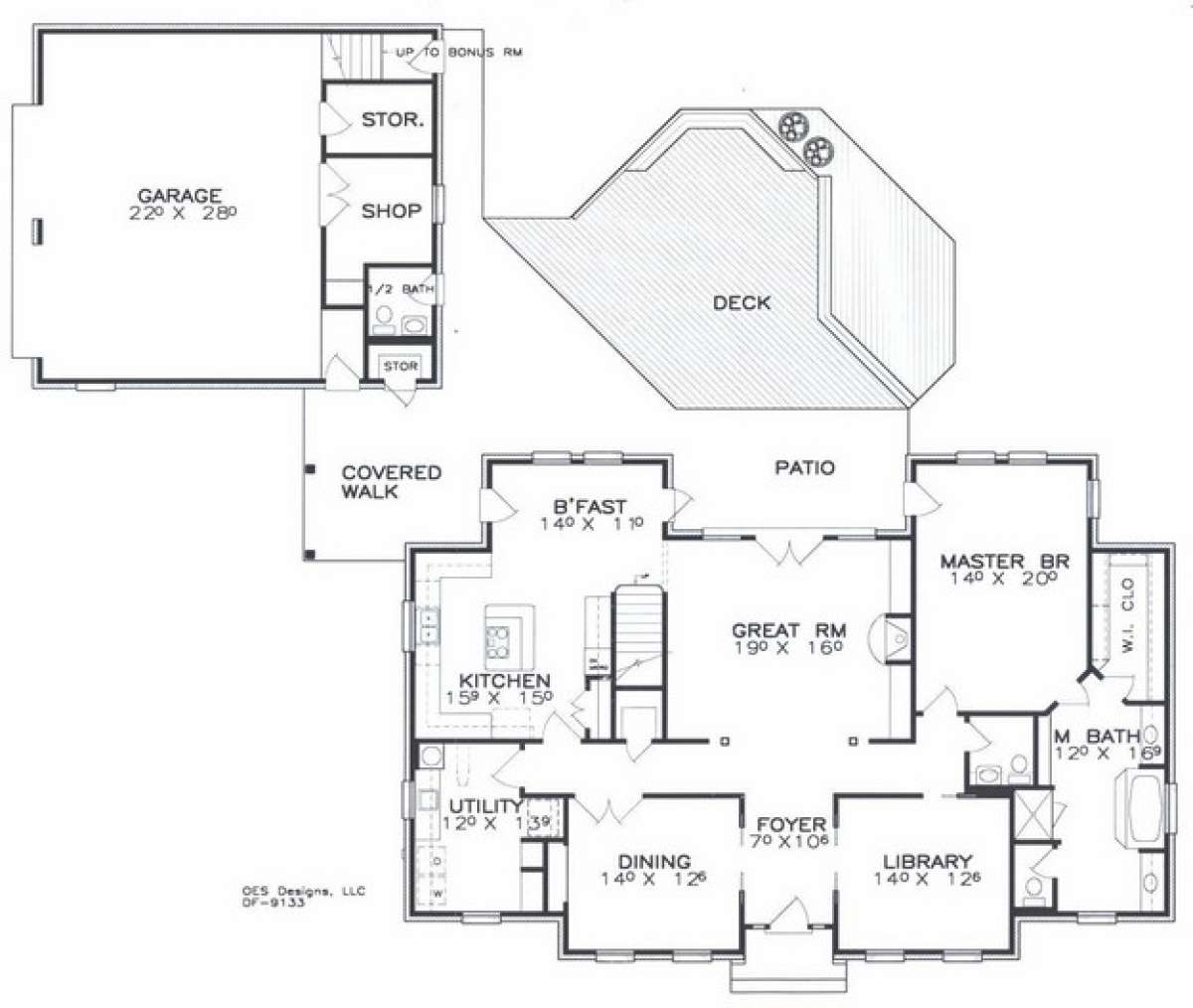

Floorplan 1

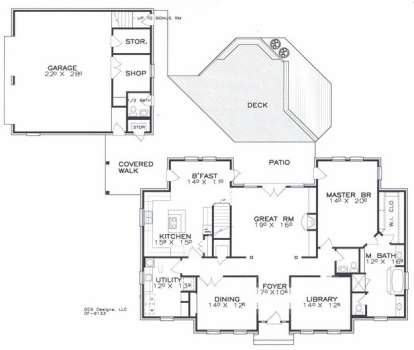

Floorplan 1 for House Plan #6471-00041

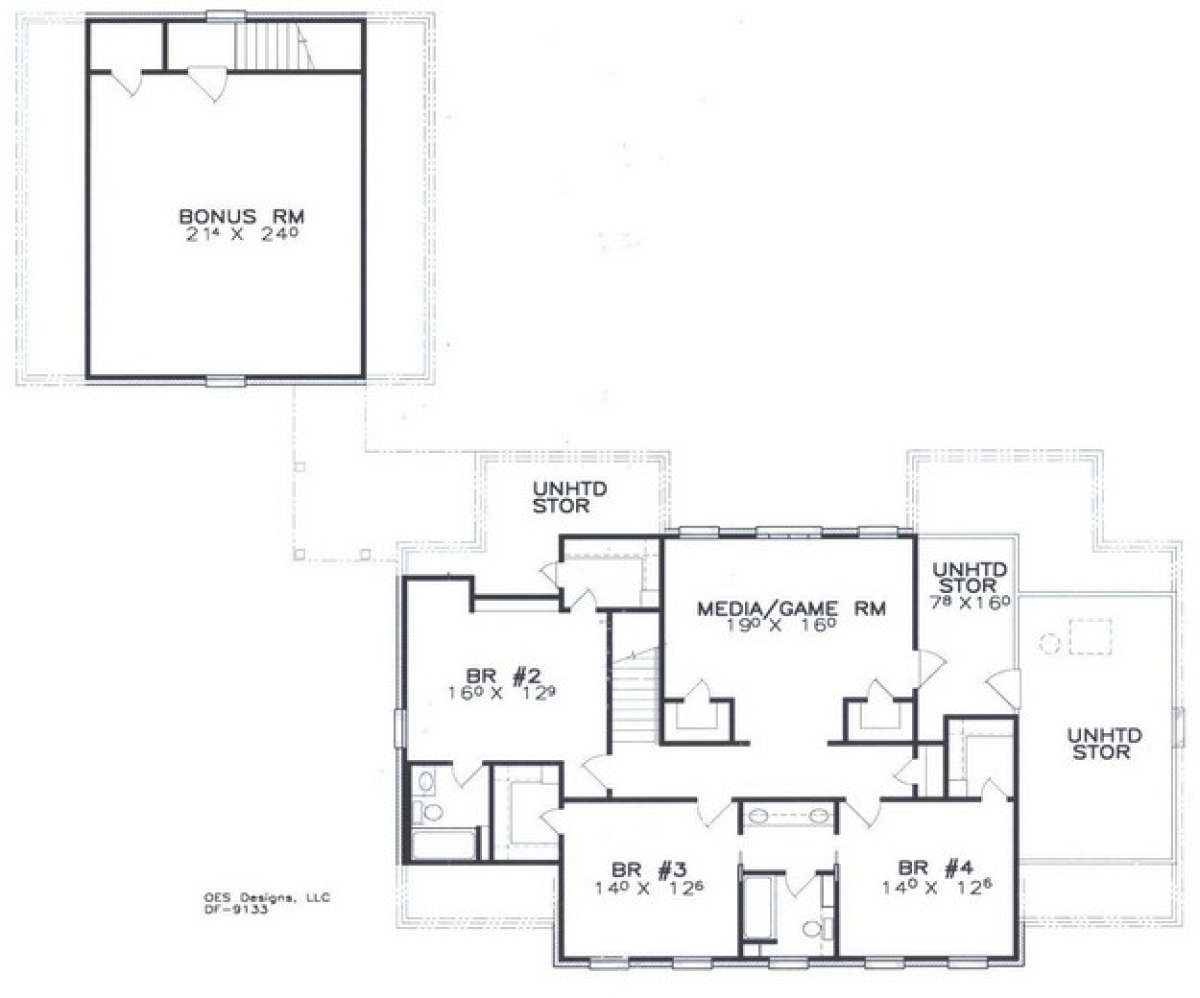

Floorplan 2
Floorplan 2 for House Plan #6471-00041


What's Included in these plans?

Title Sheet      3D line drawing of the residence, plan number.

Foundation Plan

  • Plan showing dimensional layout of slab foundation of the home.
  • Necessary notations pertaining to foundation.
  • Keyed section marks of footings, piers, etc.
  • If optional conventional plan, floor joist type and direction. (Post-Tension slabs, basements by others.)

    Detail Sheet
  • This sheet has standard section details for the particular type of foundation chosen.
  • Typical masonry fireplace details
  • Typical cornice sections and symbol schedule.
  • Typical wall sections.
  • Above details may be on other sheets

    Floor Plans
  • All wall placements with dimensions.
  • Door & window sizes and descriptions.
  • Room labels.
  • Stairway dimensions, sections and layout. (May be shown on other sheets)
  • Notes relating to vaults, electrical floor outlets, location of beams, headers.
  • Suggested mechanical equipment locations.

    Elevations

  • Front, rear and all sides of the exterior elevations. (Scale - ¼" equals 1"-0)
  • These sheets will include all necessary dimensions, material labels, roof slopes.
  • All architectural elements relating to the exterior of the home.
  • Dormer locations on two story homes, if any.

    Electrical Schematic
      Suggested light switch, outlet, ceiling fan locations, electrical symbol chart.

    Section Drawings
           All necessary cross sections of the home showing floor-ceiling heights, insulation, flooring and roofing details, as necessary.

    Millwork Elevations
         Suggested cabinet, fireplace elevations as well as any distinctive architectural elements.

    Roof Plan & Roof Framing Plan
          Shows the roof slopes & suggested rafter layouts.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 3 bathroom Early American house plan features 3,319 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.

Browse Similar PlansVIEW MORE PLANS
