15% off your favorite Plan + Free Shipping!

Limited plans not eligible for discounts

Early American House Plan 5633-00064

Sq Ft2,730
Beds4
Baths2
1/2 Baths1
Stories2
Cars3
Width62' 0"
Depth51' 8"

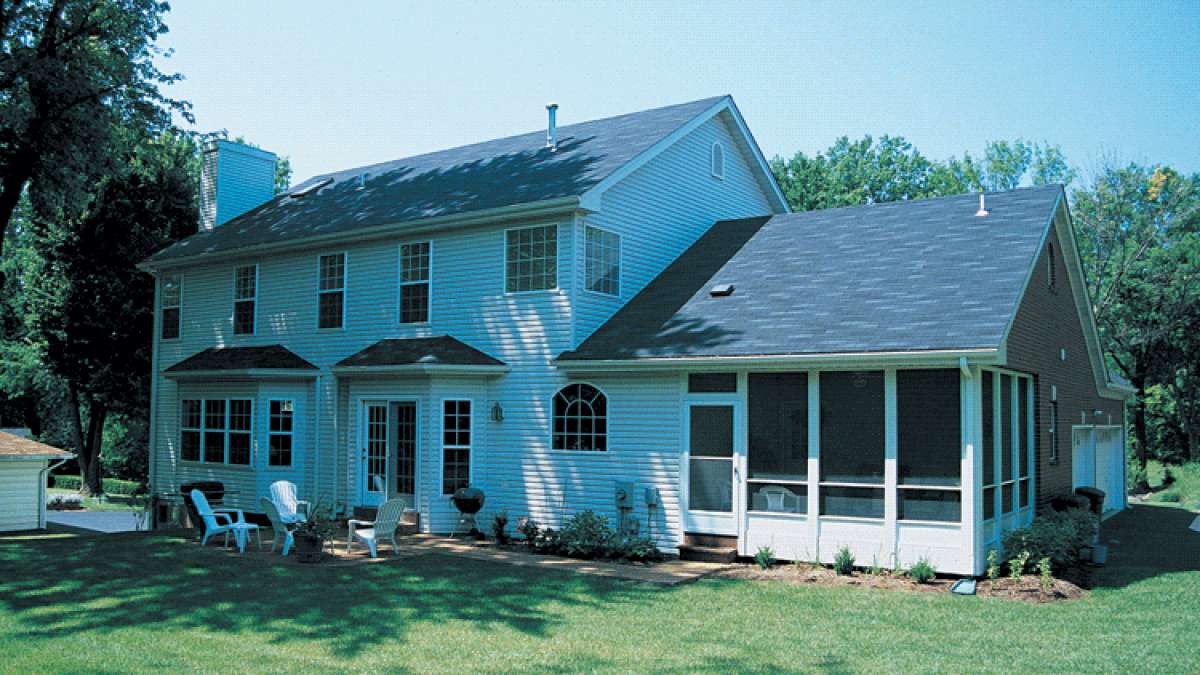

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00064
Floorplan 2 for House Plan #5633-00064

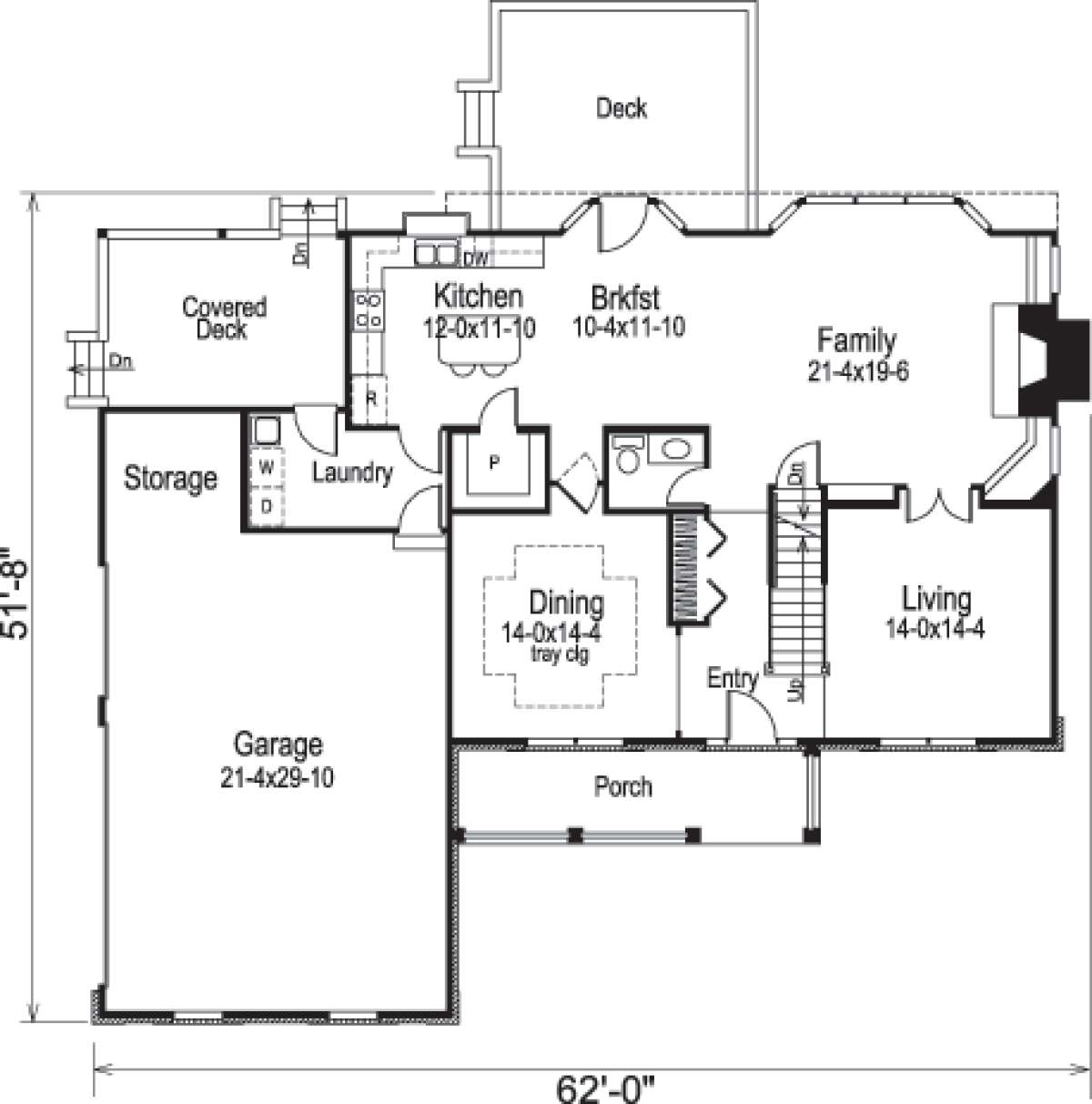

Floorplan 1
Floorplan 1 for House Plan #5633-00064

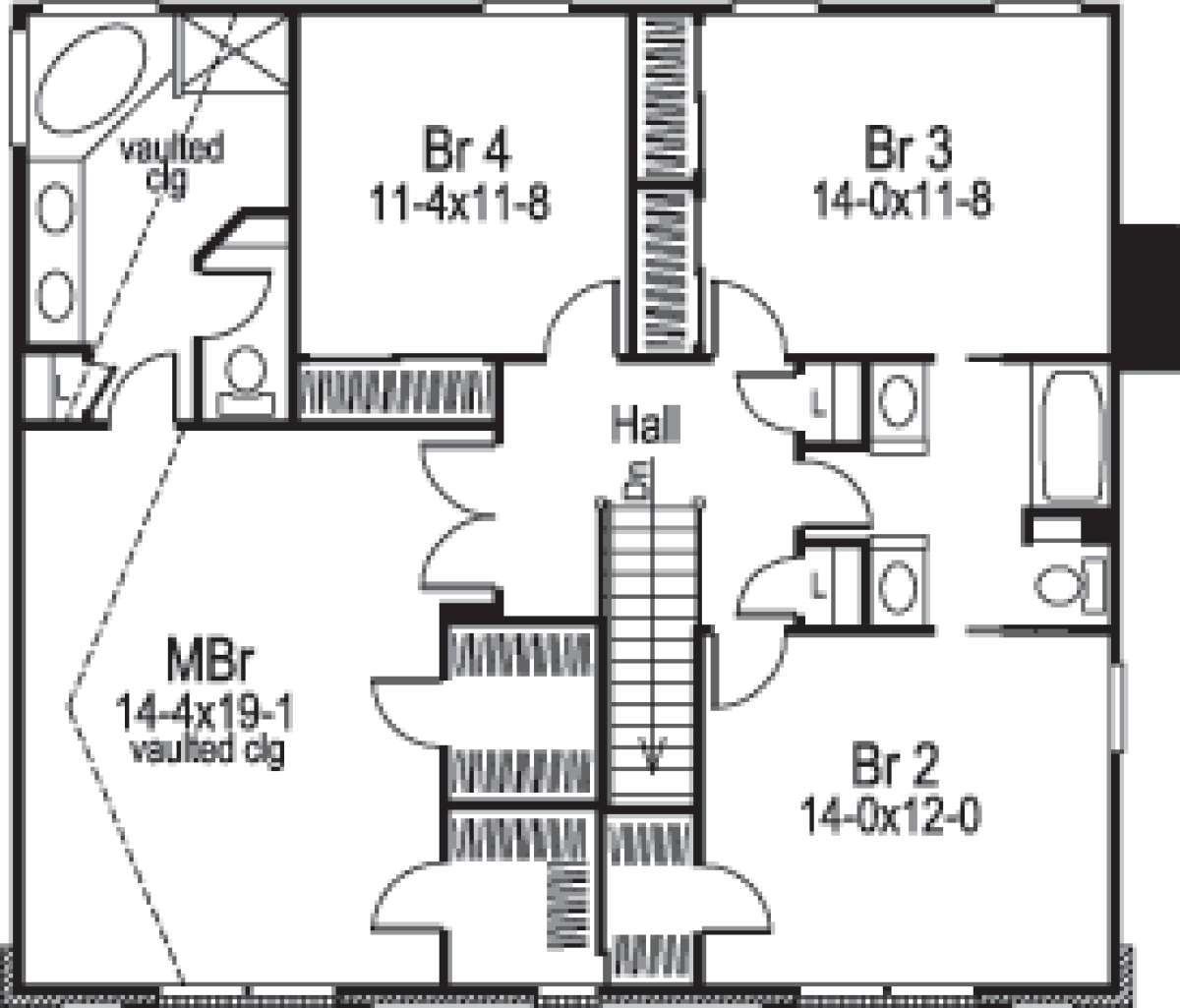

Floorplan 2
Floorplan 2 for House Plan #5633-00064


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

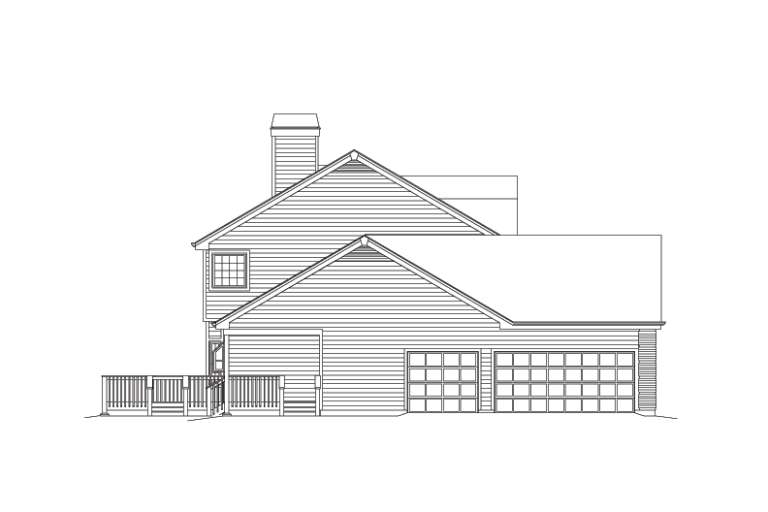

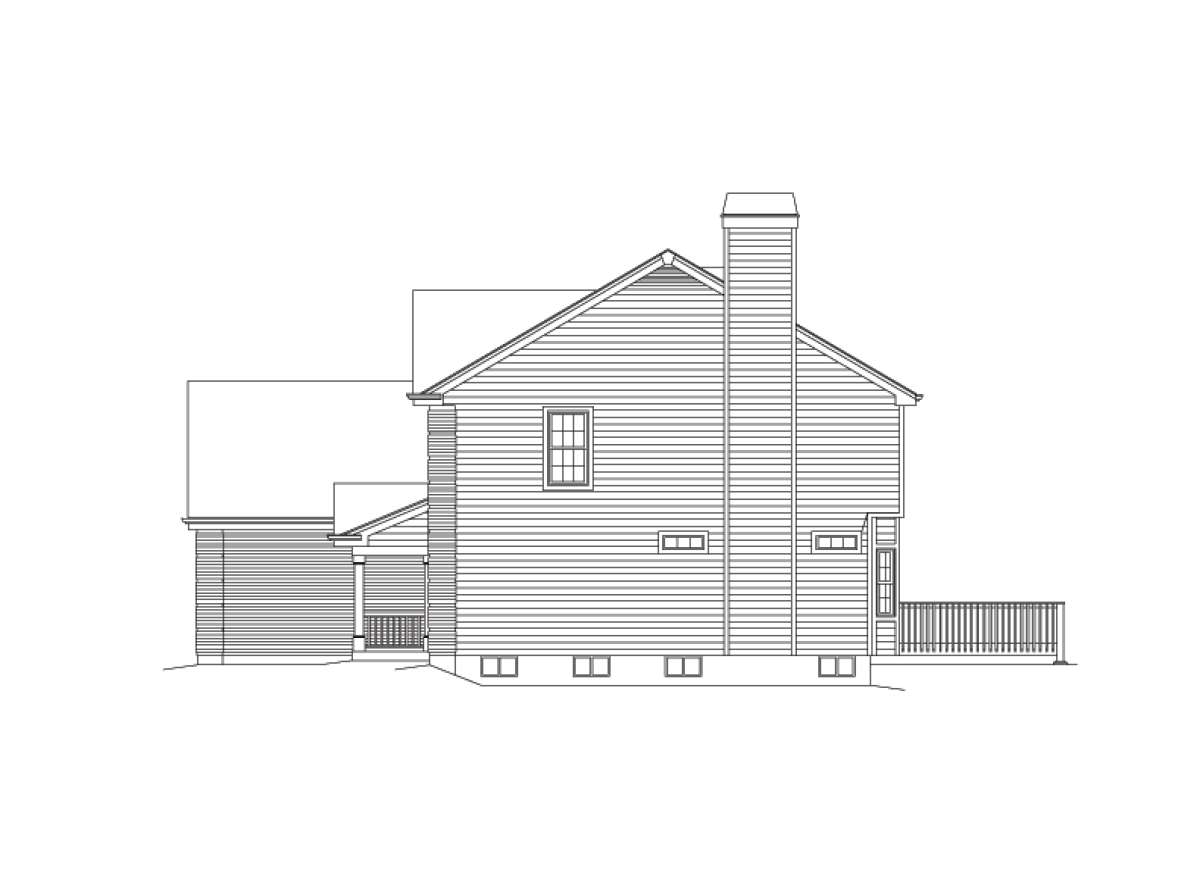

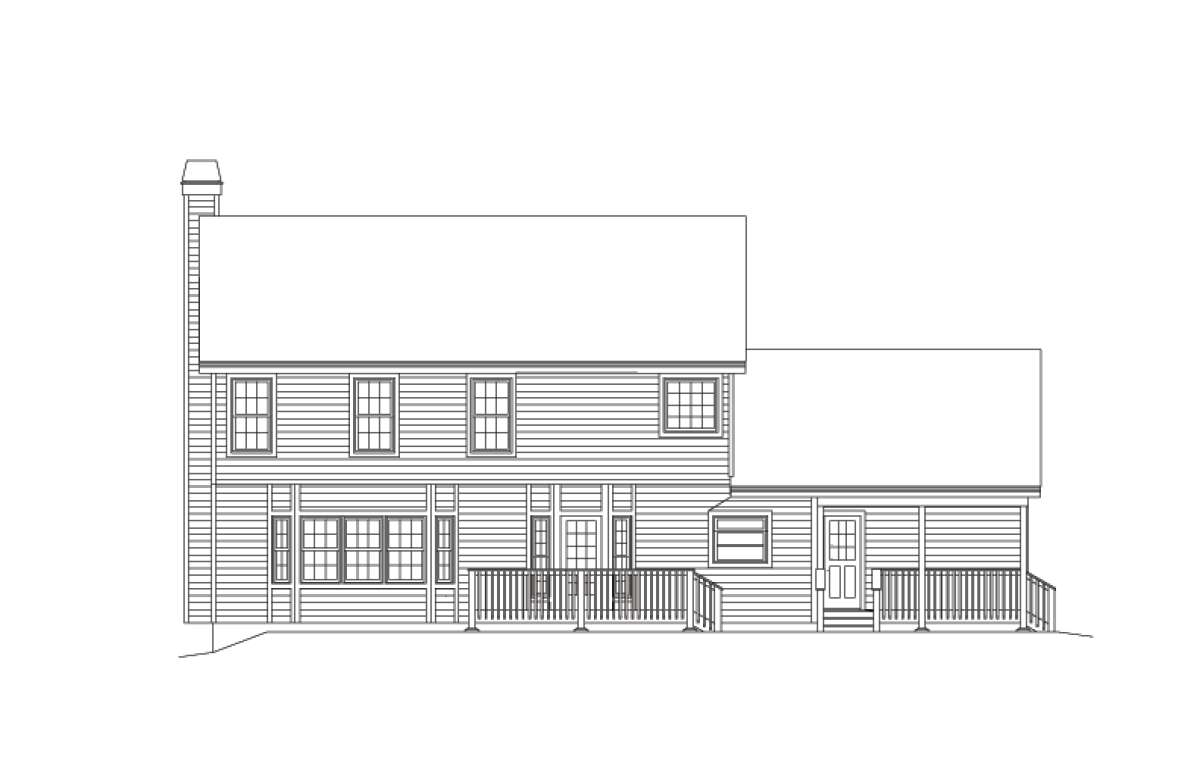

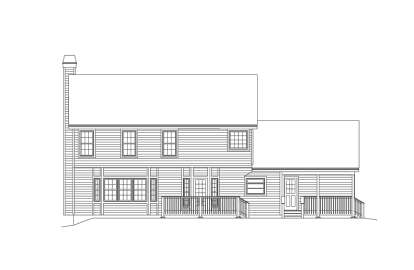

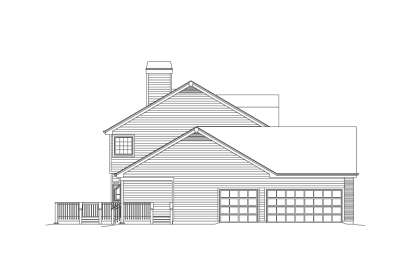

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

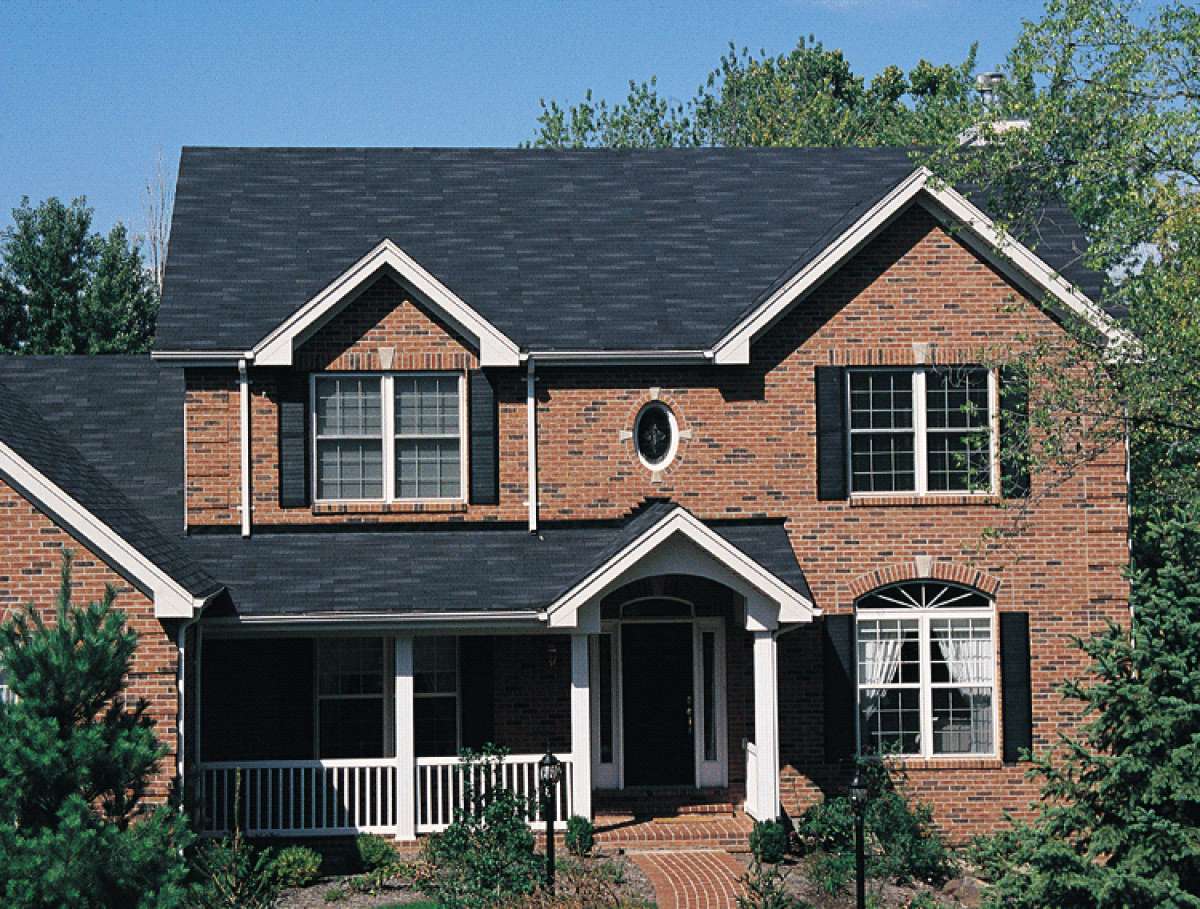

This stylish two storied home features amazing curb appeal and an interior layout that is functional and versatile. The brick front blends beautifully with the double gables and barrel vault front entrance that adorns the front covered porch. An interior floor plan that is in excess of 2,700 square feet features four bedrooms and two plus baths and the basement foundation and three car garage provides superior storage and expansion options. The spacious foyer entrance is bordered by the formal living and dining rooms. The living room is spacious and features French door access into the rear family room where a warming fireplace, built-in cabinetry and a large bayed window is featured. The focal point of the dining room is an attractive trey ceiling and there is a pass-thru to the state-of-the-art kitchen. The kitchen is modern and spacious with a center island with breakfast bar, an oversized walk-in pantry and opens onto the casual breakfast room with rear deck access. In addition to the open sundeck off the breakfast area, there is a side covered deck which provides superb entertaining and family outdoor dining options. There is a powder room for guests and the interior laundry room is conveniently located off the three car garage which houses additional storage room.
There are three family bedrooms, two baths and a master retreat located on the second floor of the home. Two bedrooms have exceptional closet space and share a jack and jill bathroom featuring dual vanities and double linen closets line the hallway. The fourth bedroom has generous floor space and ample closet space. French door access into the master retreat reveals a large, vaulted bedroom with his and her walk-in closets at the rear of the space. The elegantly designed master bath contains double vanities, a compartmentalized toilet, a separate shower, linen closet and a corner garden tub encased in window views. This home is ideal for a large and active family who values their private space and enjoys entertaining.
