Mountain House Plan 5829-00002

Sq Ft3,959
1/2 Baths1
Width81' 9"
Depth95' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Main Floor for House Plan #5829-00002

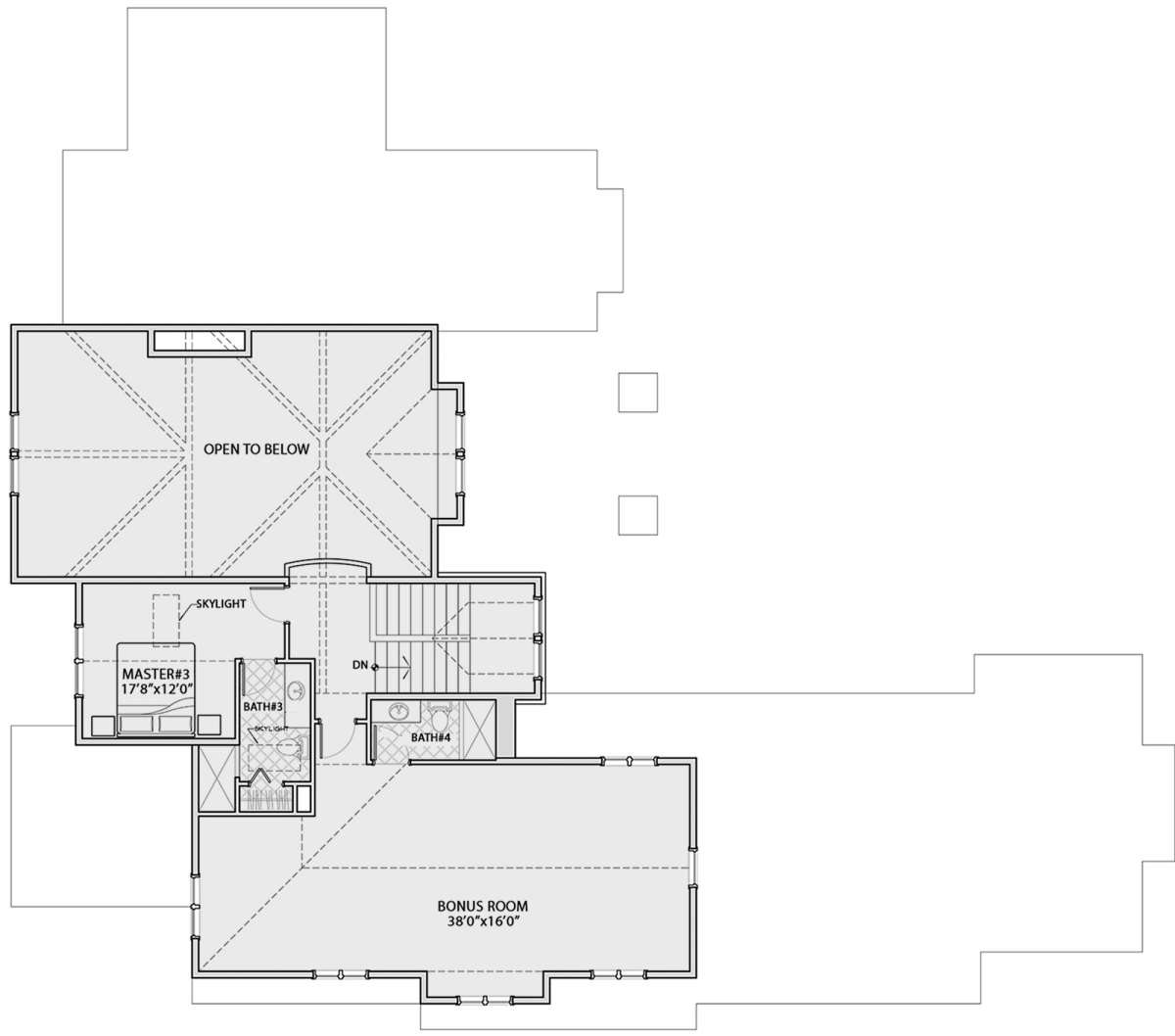

Second Floor for House Plan #5829-00002

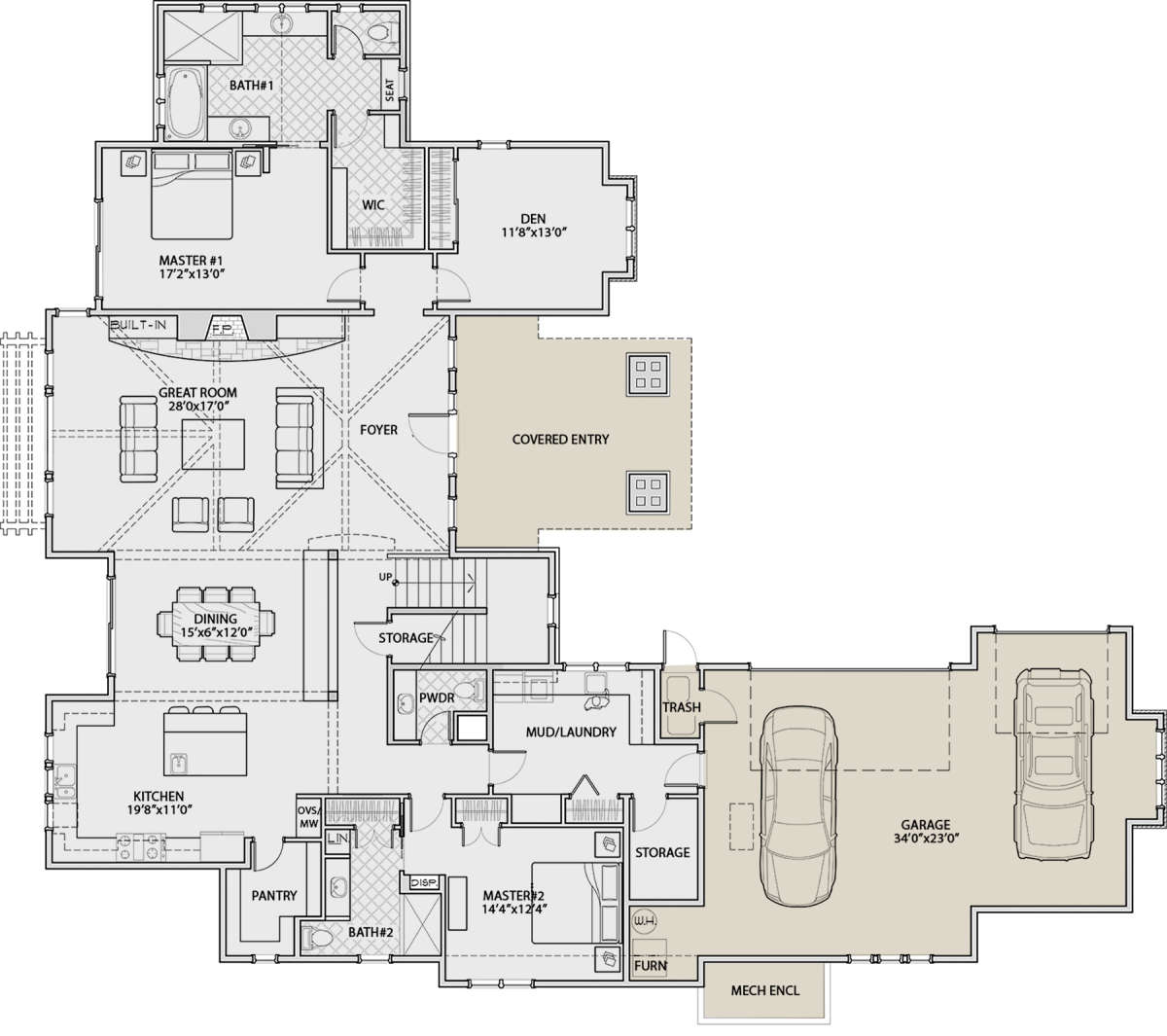

Main Floor
Main Floor for House Plan #5829-00002
Second Floor
Second Floor for House Plan #5829-00002

Frequently Asked Questions


What's Included in these plans?

  • Cover Sheet
    Showing architectural rendering or photos of residence.
  • Original site plan
    each house plan set includes the site plan of the original build location for reference only. The roof plan is depicted on this sheet, along with pertinent building areas and original design criteria.
  • Floor Plan(s)
    In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 6" exterior walls, but sometimes 8”. Be sure to verify
  • Exterior Elevations
    In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
  • Building sections
    In general, each house plan set includes 4 to 7 building sections showing all wall, ceiling and floor framing along with plate elevations. Interior elevations may be depicted in the section background.
  • Details
    In general each house plan set contains pertinent structural and architectural details
  • Foundation Plan
    Each house plan set includes one foundation type. .
  • Foundation types typically offered: (each type may or may not be available for a given design)
    -Crawlspace: Crawlspace is the most typical foundation which includes an accessible space with limited headroom, typically between the soil and the bottom of the first floor of a home.
    -Slab: a few of our plans reflect a "raised slab" which consists of a stemwall perimeter filled with compacted fill and a reinforced slab poured on top. No accessible space exists underneath slab construction.
  • Floor and roof framing plans
    In general, each house plan set includes roof framing, as well as upper floor framing for two story plans.
  • Electrical Plan with electrical symbols legend
    In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc. Some plans do not include this sheet, please verify.
  • License to Build
    Each set of construction plans includes ONE license to build.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

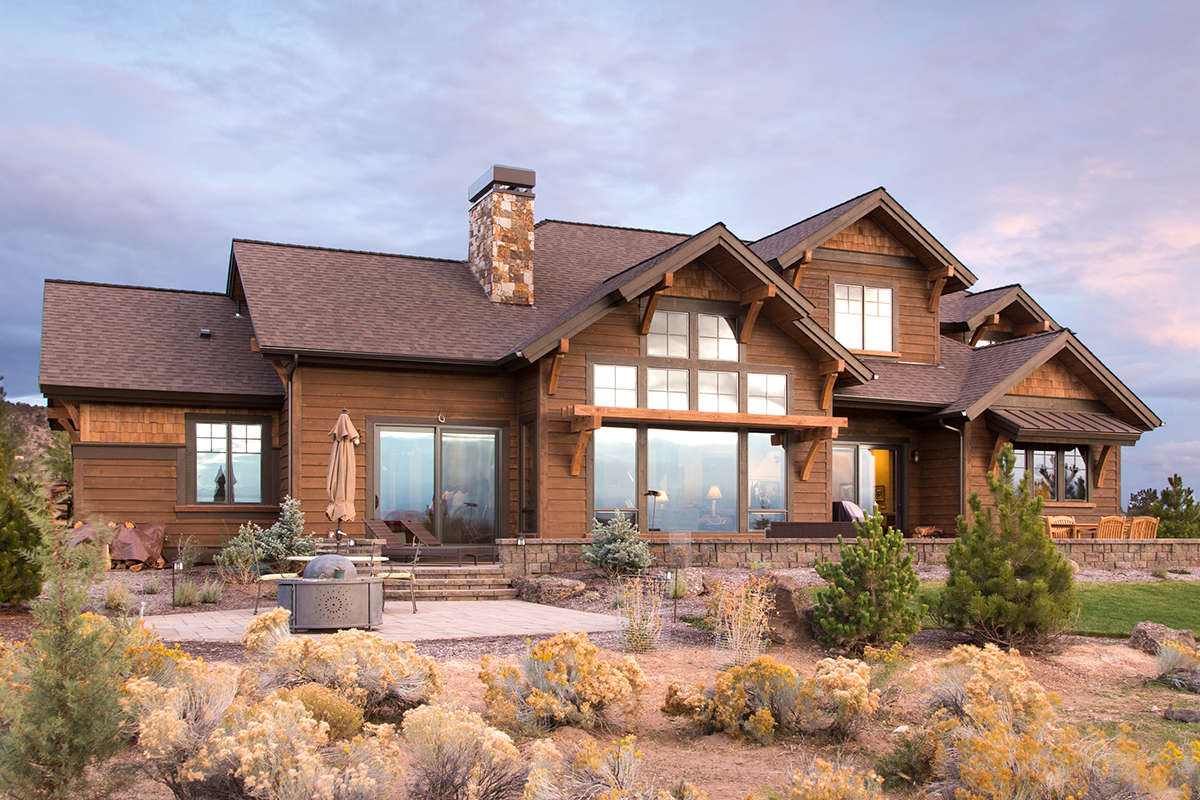

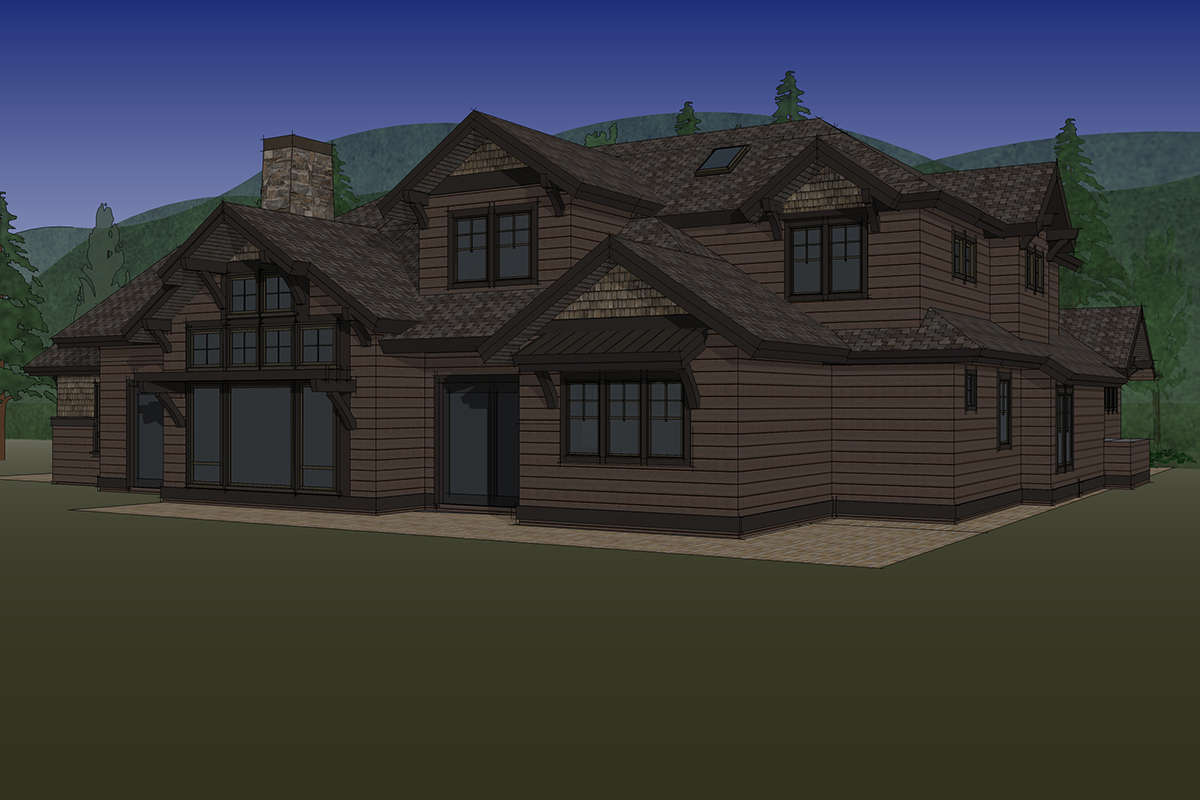

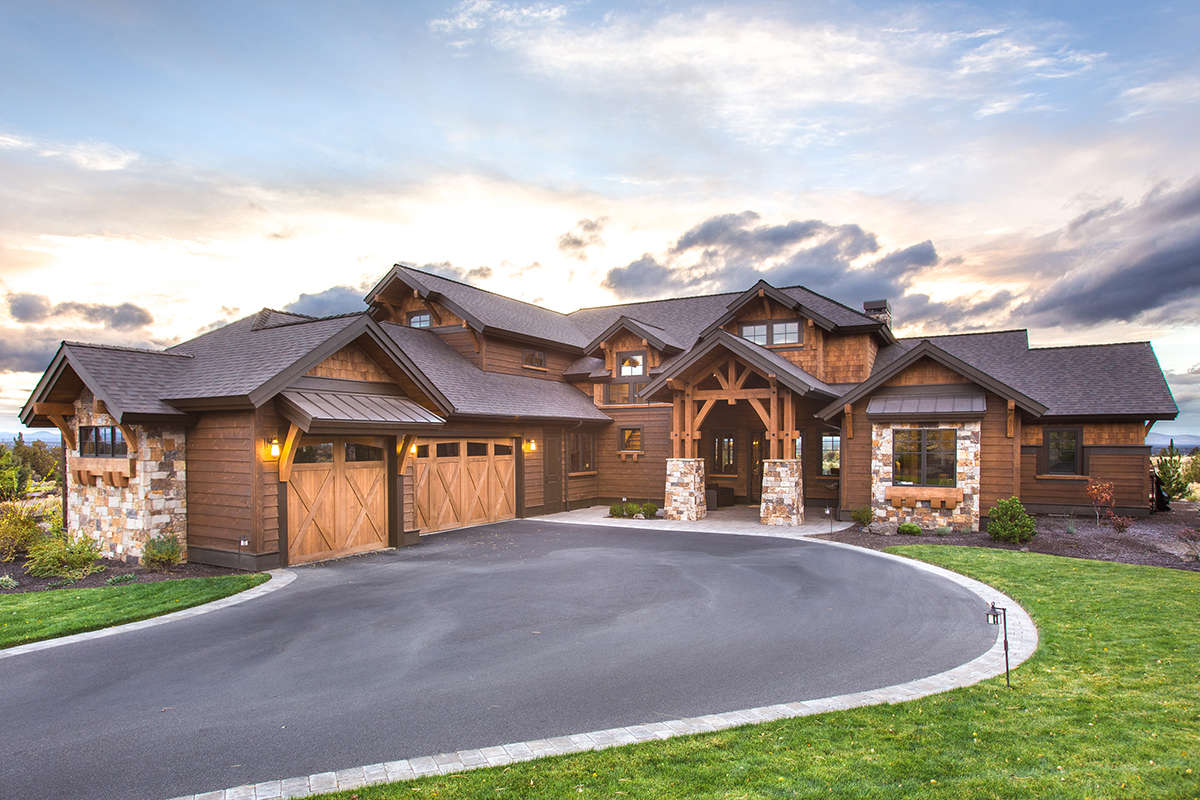

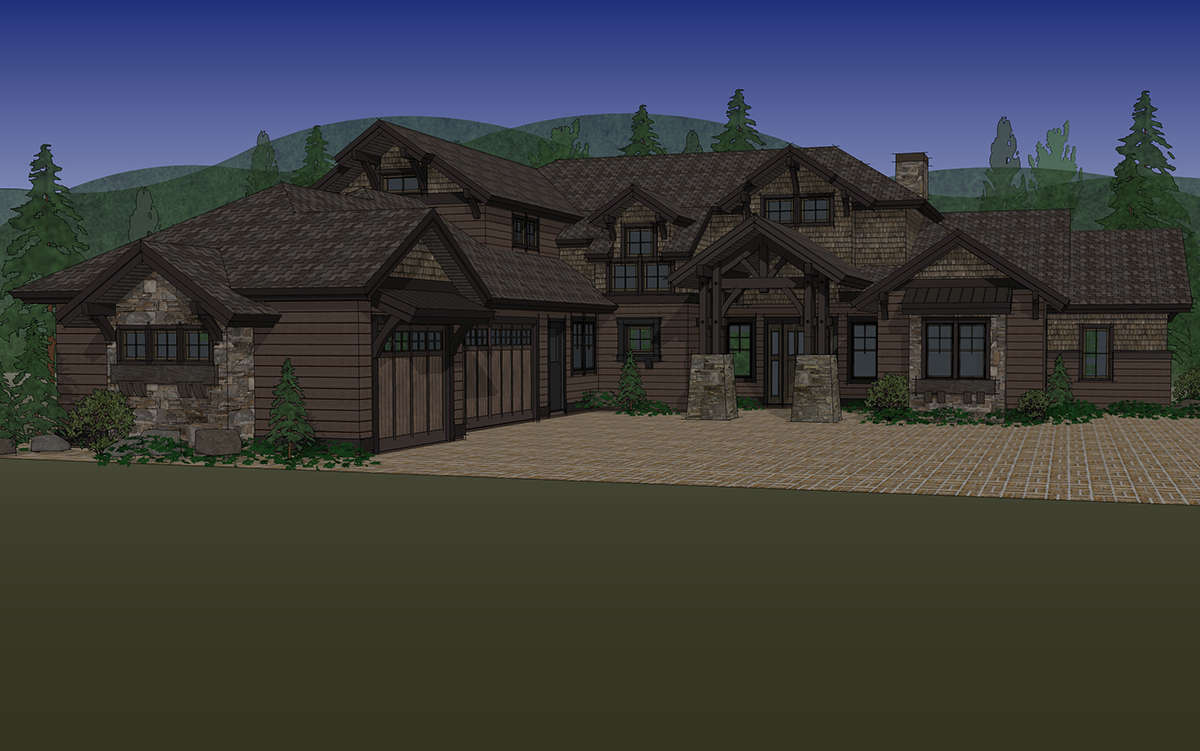

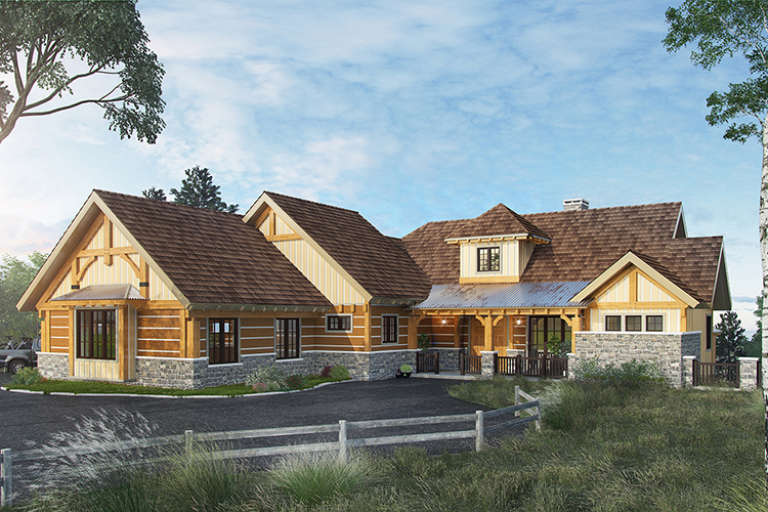

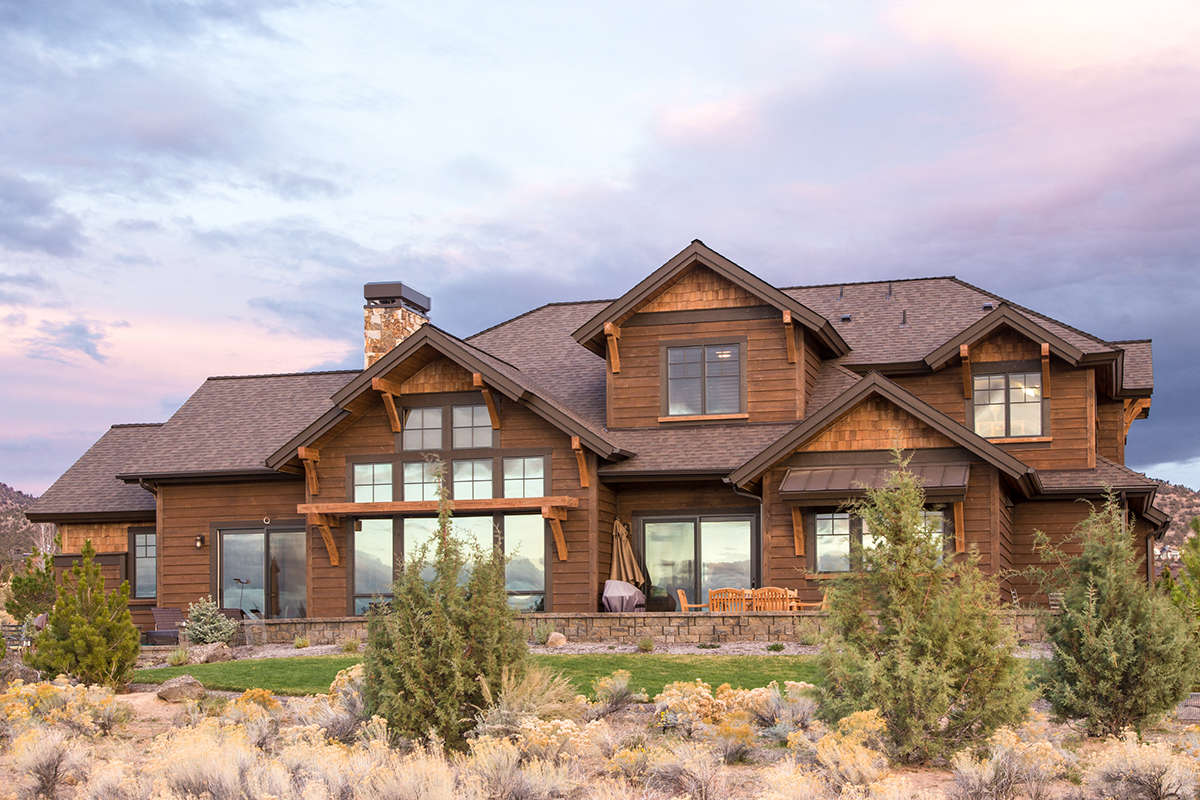

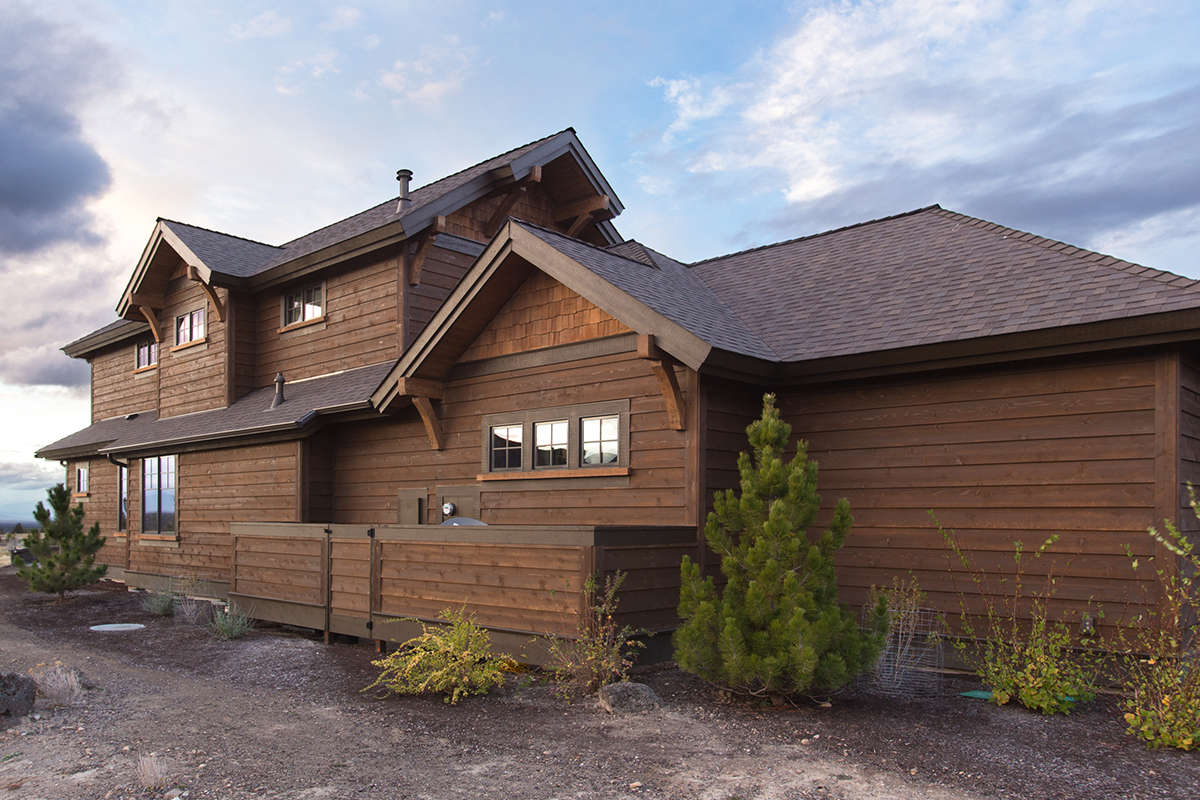

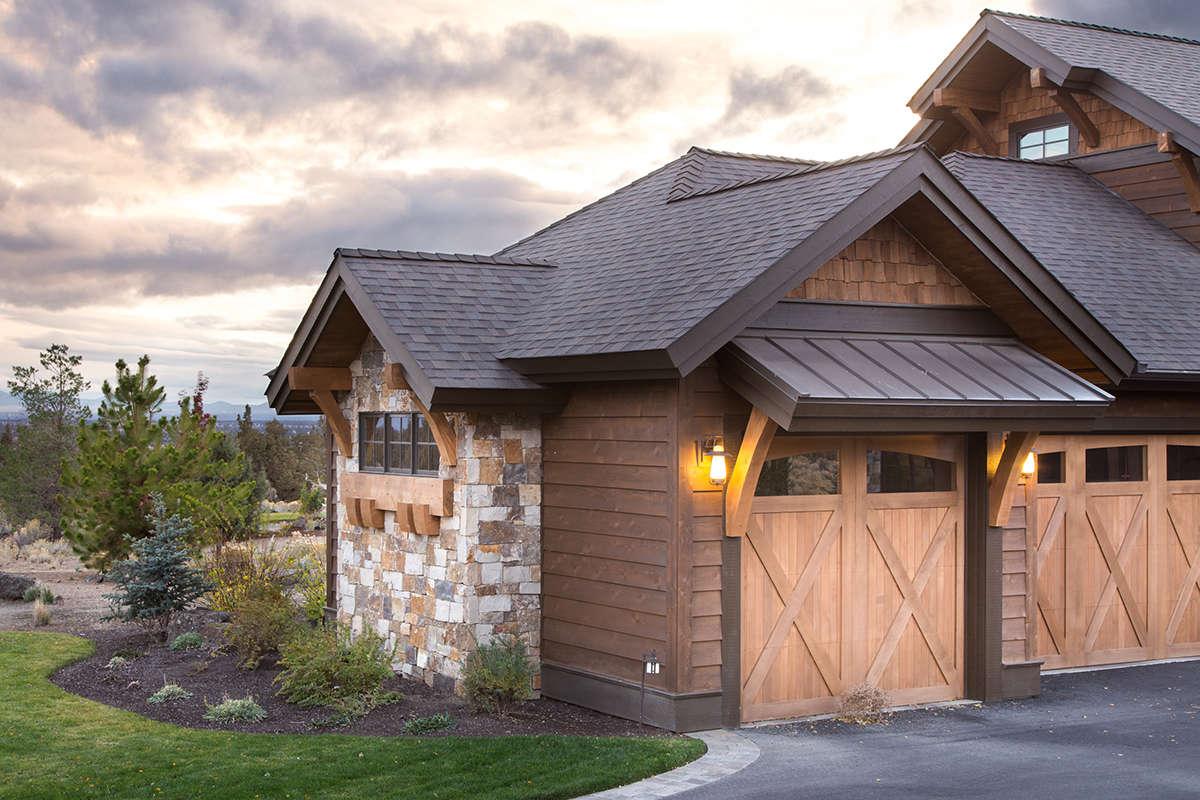

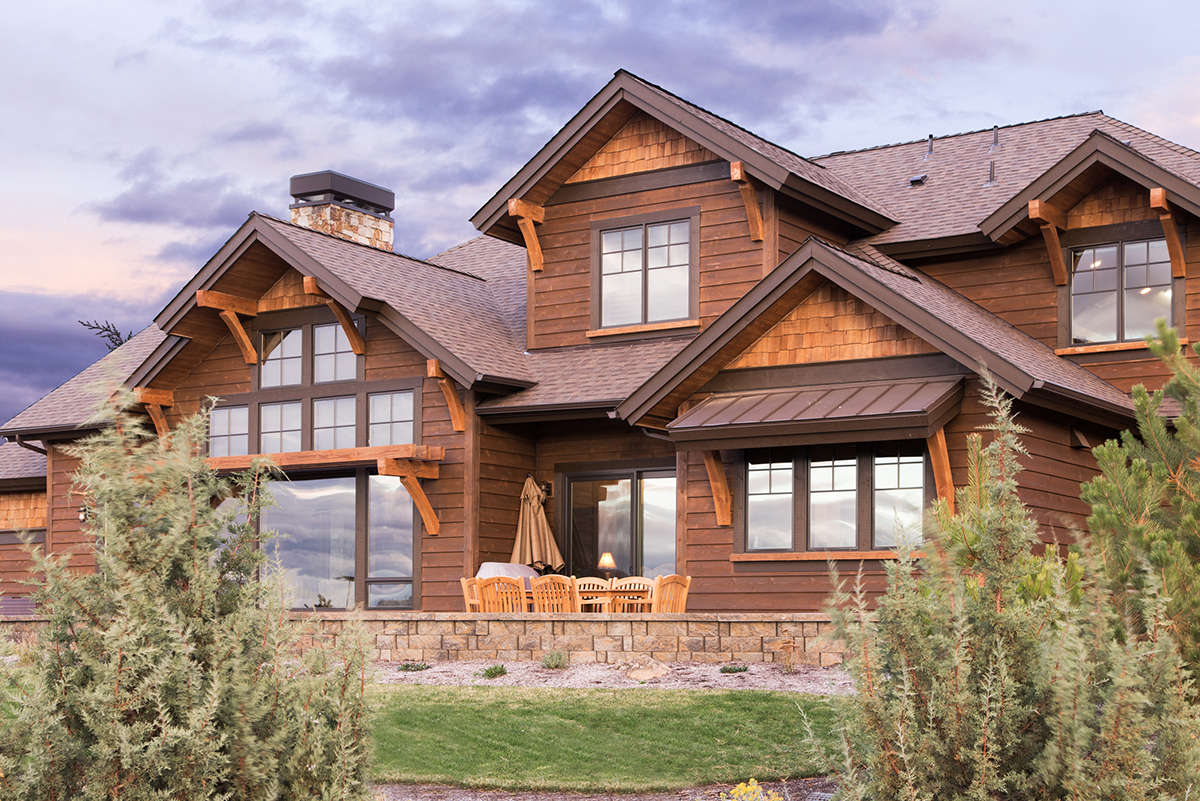

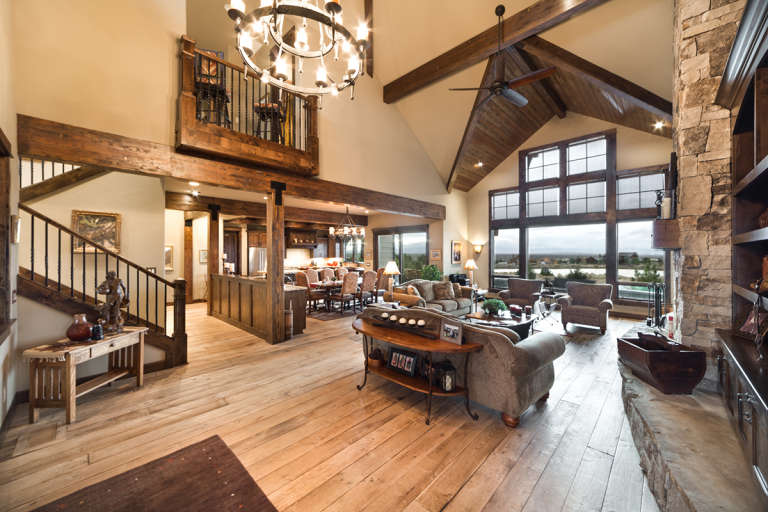

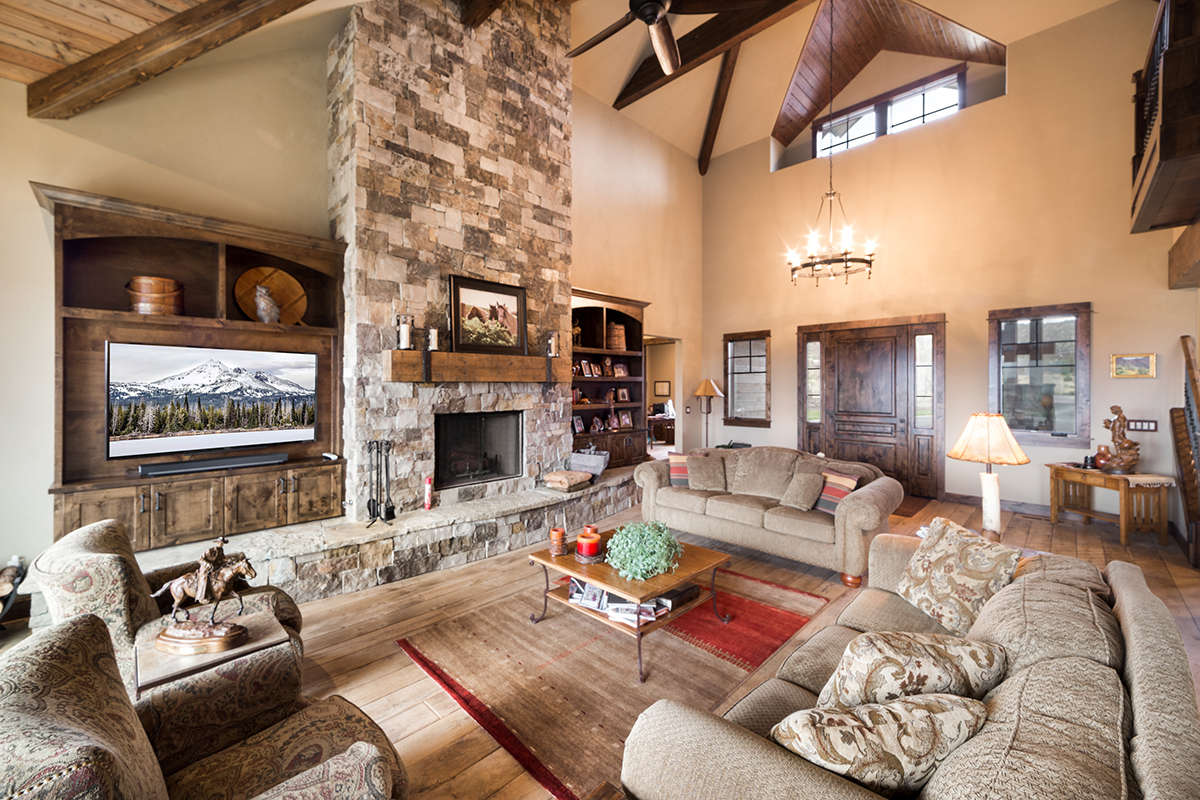

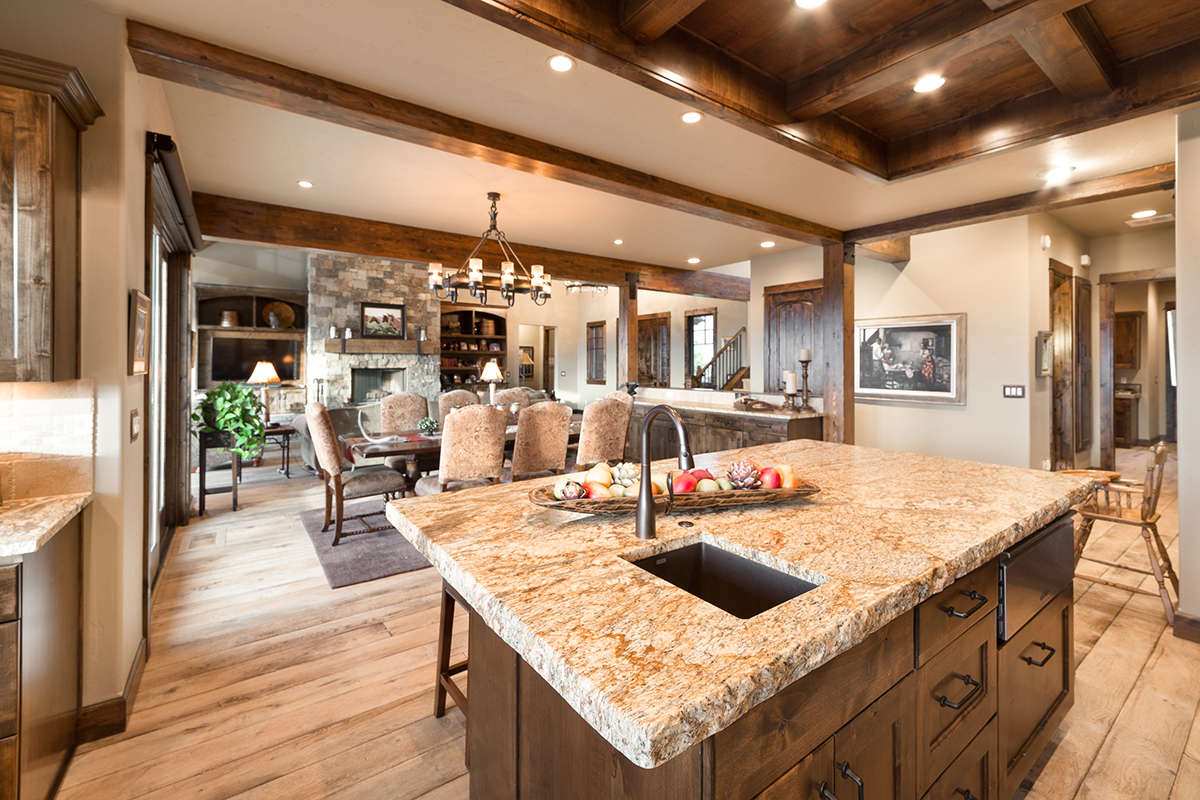

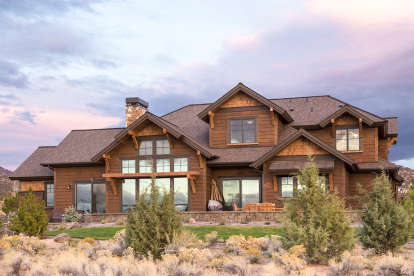

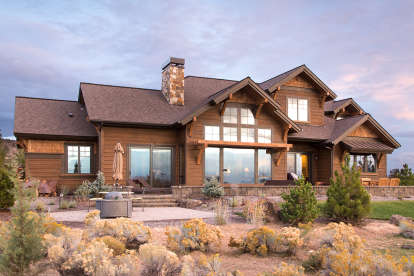

Rustic charm, panoramic window views and warm interior elements are found in this Mountain house plan. The front façade highlights warm decorative wood and stone accents along with varying rooflines and a beautiful covered entrance into the home. Substantial stone pillars add a sturdy feature to the overhead wood open gabled beams before entering the home. There is a three car courtyard entry garage which is perfect for a large family and maintains the design integrity of the exterior façade. The rear of the home is made for picturesque viewing from either the interior or exterior of the home. Expansive window views span the exterior of the home and the outdoor living areas are ideal for enjoying the gifts of “Mother Nature.” A sense of calm and peace will certainly be yours upon your return from hiking, fishing or numerous other outdoor activities as your home comes into view. Along with the lovely exterior, the interior features an amazing amount of interior space designed for entertaining and spectacular family living. There are approximately 3,959 square feet of living space in the home’s interior which includes three-to-four bedrooms and four plus bathrooms in two stories. The main living floor is highlighted with an impressive foyer which spills over into the massive great room which is highlighted with a handsome fireplace, built-in cabinetry and loads of window views leading to the outdoor space. The dining room is spacious with a slider set and window views and is open both to the great room and gourmet kitchen. The kitchen is an awesome display of creative spaces for the family chef; there is a large center island, plenty of additional counter and cabinet space and a huge walk-in food storage pantry. Two master suites are found on the main floor; one is located on the garage wing of the home and offers a spacious bedroom, a large private bath and double closets. A powder room, mud/laundry room and a huge storage closet line the hallway leading to the garage. At the opposite corner of the home is the second master suite which features a slightly larger master bedroom with a slider exit, an elegant master bathroom with dual vanities, a separate shower and tub and a private water closet. The master walk-in closet is situated beyond the bath for convenience and privacy. Down the hall from the master is a den which wonderful window views and a large closet; this space could be used as an additional bedroom, if needed or a home office/study.

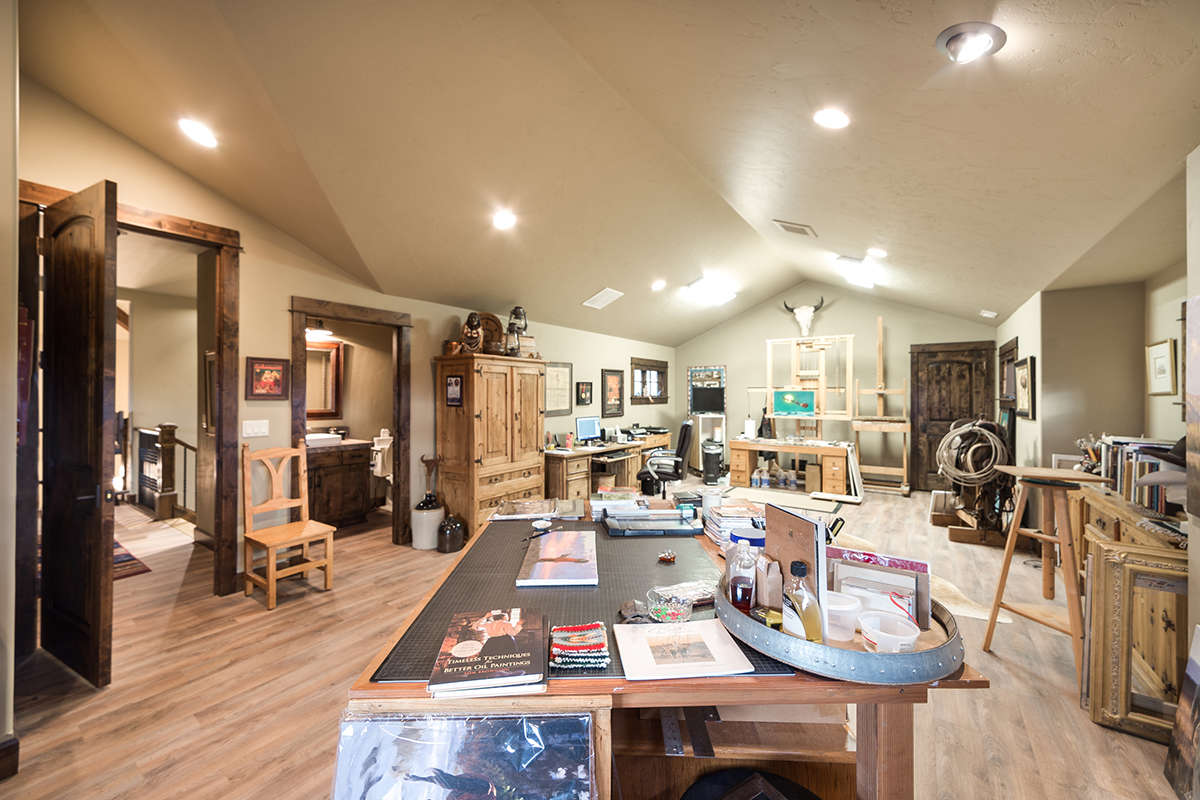

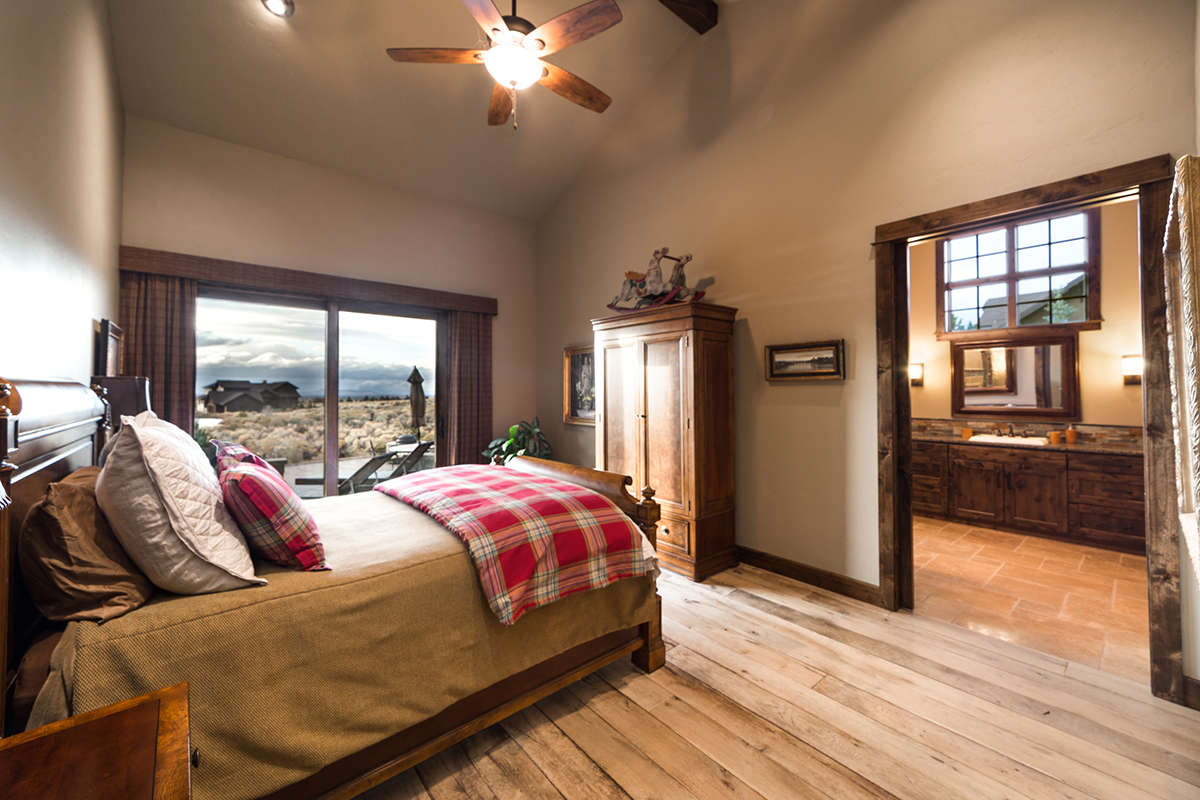

Upstairs, is a third master suite; another self-contained private space with a large bedroom, a skylight and window views and an adjacent bath with extended vanity and walk-in closet. An enormous bonus room, measuring 38’ x 16’ is also located on the upper level along with the fourth bathroom. This space could be utilized as a bunk room for overnight guests, a multi-purpose family room, an artist’s studio or the children’s playroom/lounge. This beautiful home features an amazing array of private family spaces as well as entertaining space, a gorgeous exterior and lovely outdoor space.
