Greek Revival Plan 5633-00176

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,767
Beds 3
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 89' 4"
Depth 53'

Floorplan Drawings

Floorplan 1

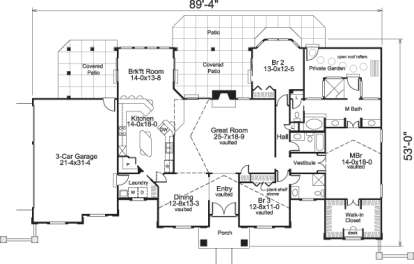

Floorplan 1 for House Plan #5633-00176


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

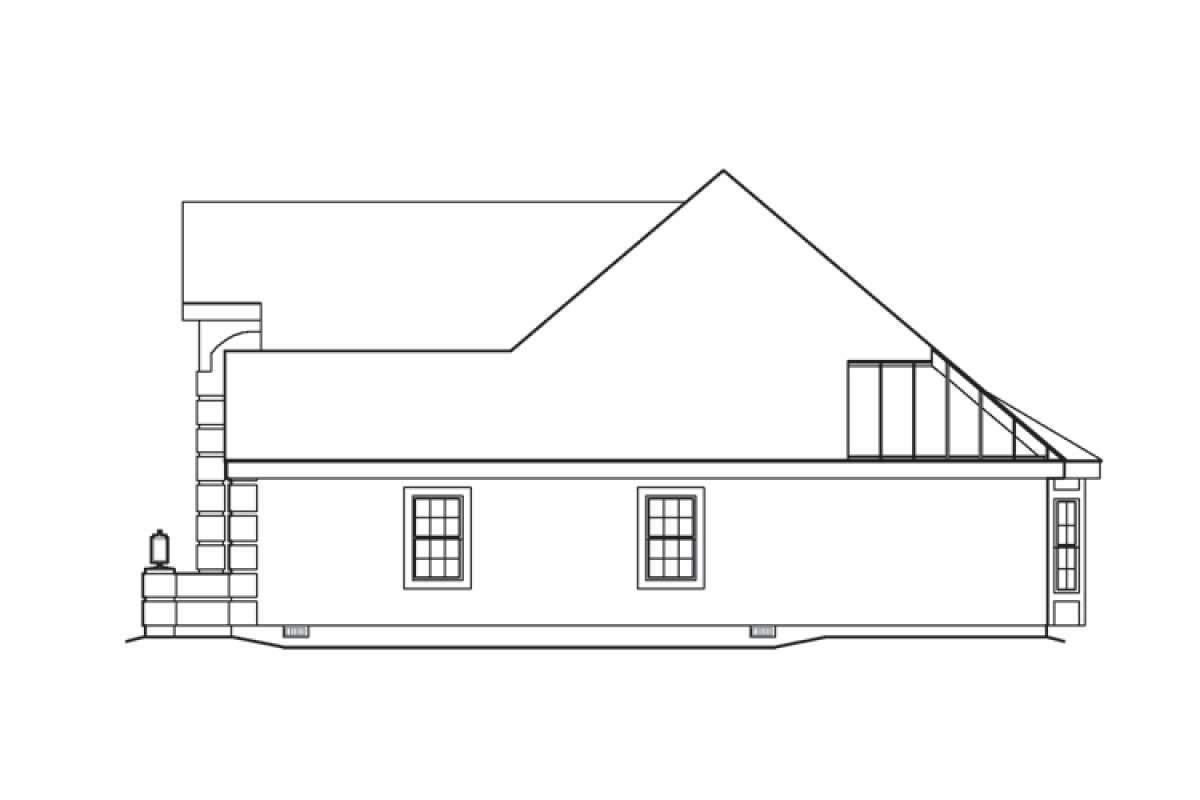

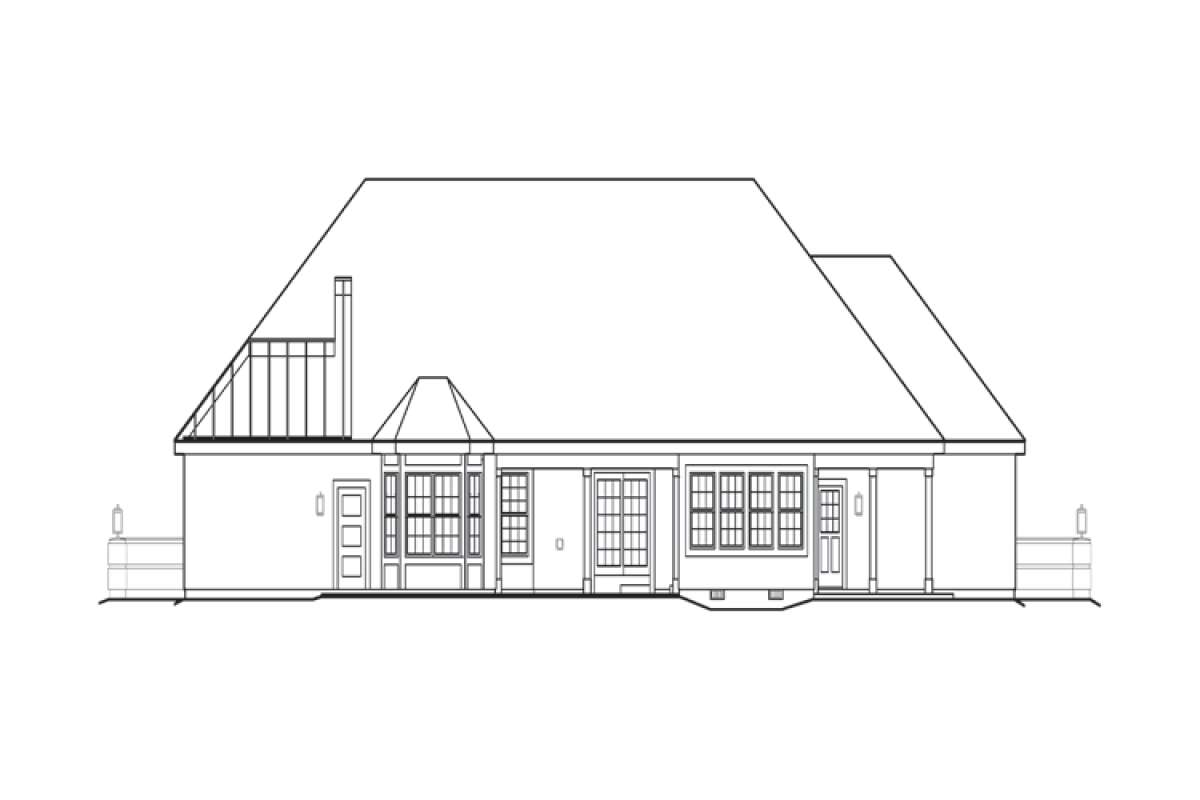

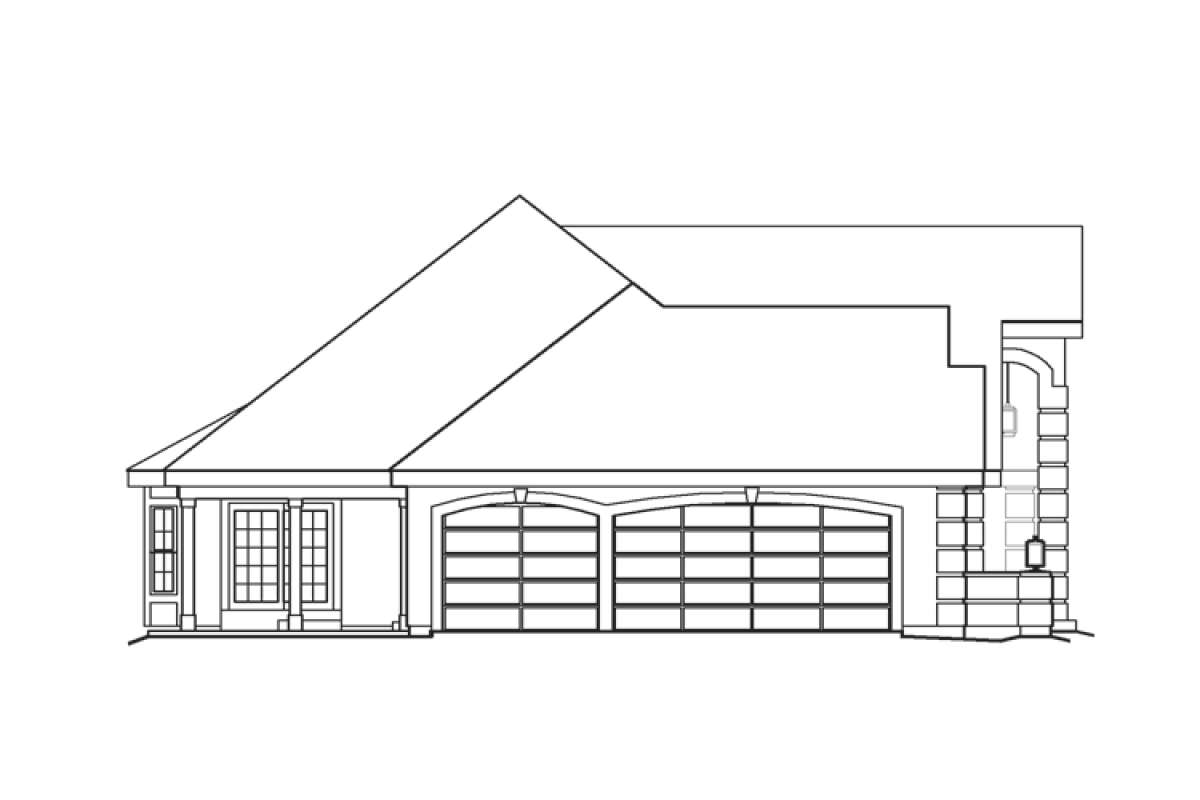

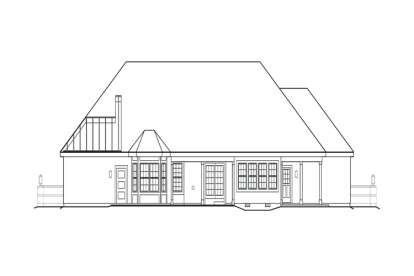

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Abundant architectural design features are highlighted in the European house design consisting of a stucco exterior, multi-gabled roof lines and a grand entrance. This one story ranch house plan features a fully functional and comfortable interior floor plan which incorporates three bedrooms and three baths into the space. The home’s drawings include a slab, crawl space and basement foundation which provides versatility and value. There is a three car, side entry garage which conveniently leads to the interior laundry room and a rear patio provides access into the garage for tidy cleanup of the lawn and sporting equipment. Double door entry into the vaulted foyer showcases the home’s interior and subsequently opens onto the vaulted living and dining spaces. The great room measures in excess of 25’x18’, has a center wall fireplace and rear patio overviews and access. The patio is an excellent space for entertaining and relaxing with its double space of covered and open patios which envelop the rear of the home. A wraparound eating bar is featured in the gourmet kitchen along with a center island and walk-in pantry. The casual breakfast room is drenched in natural light with triple walls of windows overlooking and accessing the rear yard and patio.
Two family bedrooms are situated on each end cap of the elongated hallway. Both are quite spacious with plentiful closet space; bedroom three features vaulted ceilings and a plant shelf while the second bedroom is ensconced in sunlight due to a large bay window and private patio access. Bedroom three has a private full bath while the second bedroom has an adjacent full bath and there is a hall linen closet. The vestibule leads to the master suite where the vaulted master bedroom is revealed along with an enormous walk-in master features a built-in desk area. French doors highlight the master bath’s entrance which is truly a luxurious oasis; there are dual vanities, a garden tub, compartmentalized toilet and linen closet and a private shower surrounded by a beautiful private garden. This spacious layout provides excellent exterior features and an interior floor plan designed with luxurious accommodations and design features.
