European Plan 5633-00196


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,465
Beds 4
Bath 3
1/2 Baths 1
Car 3
Stories 2
Width 81' 8"
Depth 54' 8"

Floorplan Drawings

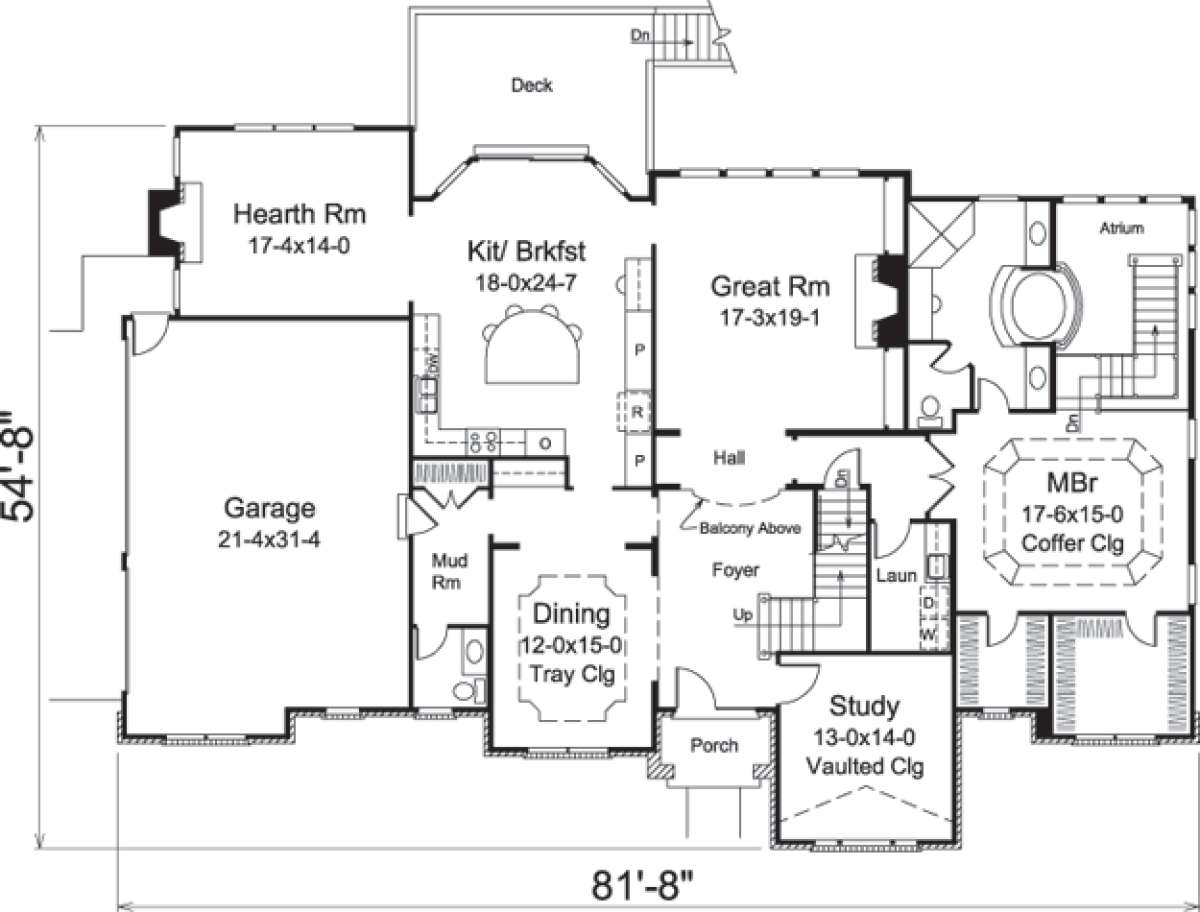

Floorplan 1
Floorplan 1 for House Plan #5633-00196

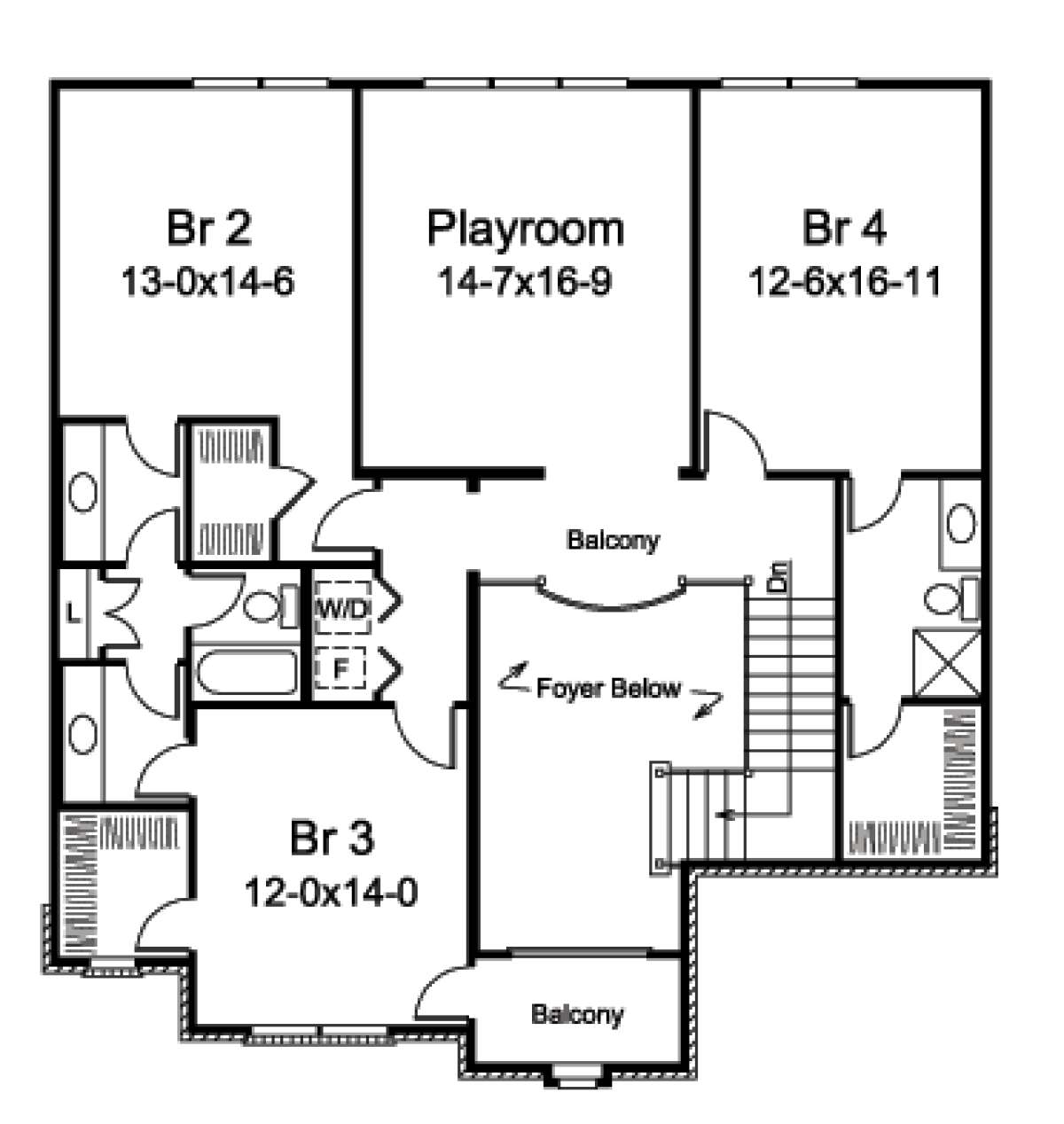

Floorplan 2
Floorplan 2 for House Plan #5633-00196

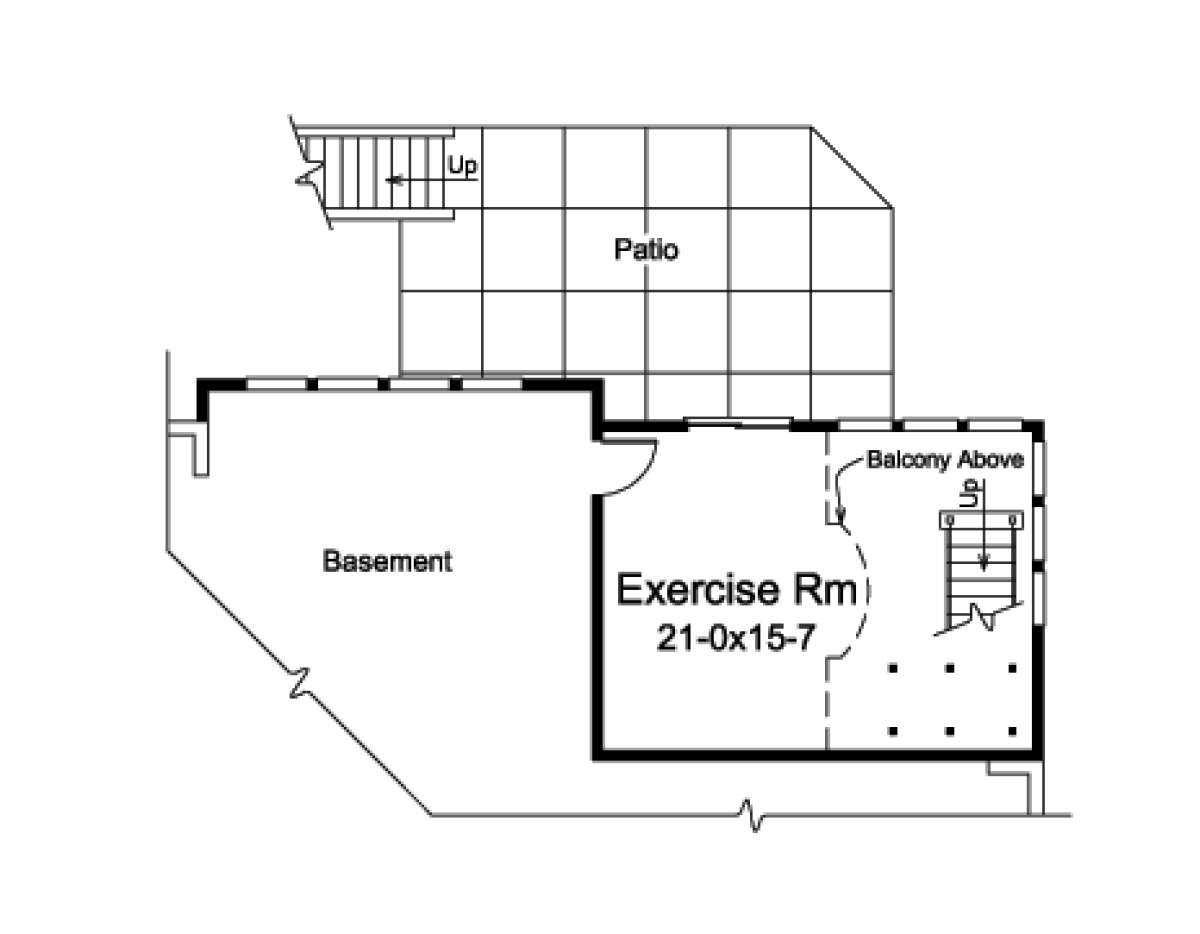

Basement for House Plan #5633-00196

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This majestic manor features cathedral inspired roof lines, a brick front exterior and an amazing amount of interior floor space. The intersection of form and function is defined in this elegant home where beautiful architecture meets a comfortable and versatile floor plan. There are approximately 4,465 square feet of living space in the home which incorporates four bedrooms and three plus baths into the space. The home’s drawings includes a walk-out basement foundation where an additional 200 square feet of space is located; this space could be used as an exercise room, home office or artist’s studio. This prestigious home has double door entry into the stately foyer which features a gorgeous staircase and two overlooking second floor balconies. The dramatic foyer is flanked by a private vaulted study accessible through French doors and the formal dining room with a trey ceiling. The great room is centrally located and is highlighted by a handsome fireplace, built-in cabinetry and a rear wall of windows spanning the length of the room. The state-of-the-art gourmet kitchen and breakfast room is enormous and features a huge semi-moon breakfast bar, double pantries, menu desk and a bayed breakfast nook with deck access. The adjacent hearth room is warm and cozy with a center fireplace and surrounding window views making this room ideal for “hanging out”, watching a movie and relaxing as a family. A mudroom is conveniently located off the three car garage and there is a powder room for guests. The amazingly appointed master retreat is “second to none” and is comprised of double entry doors, a large coffered ceiling bedrooms and double walk-in master closets. The en suite master bath enjoys a large footprint and luxurious design where dual vanities, a compartmentalized toilet, separate shower and a lavish whirlpool tub overlooking the two story atrium is revealed.
Ascending the second story staircase onto the landing are the balcony overlooks, three bedrooms and well designed bathrooms. All the bedrooms are generously proportioned with walk-in closets; bedrooms two and three share a jack and jill bath with double vanities while the fourth bedroom has a private full bath. There is a centrally located flex space which could function as a playroom or homework/media station for the children. This executive home has a bold and striking exterior façade and an interior floor plan designed for a large family who values their entertaining and private family space.
