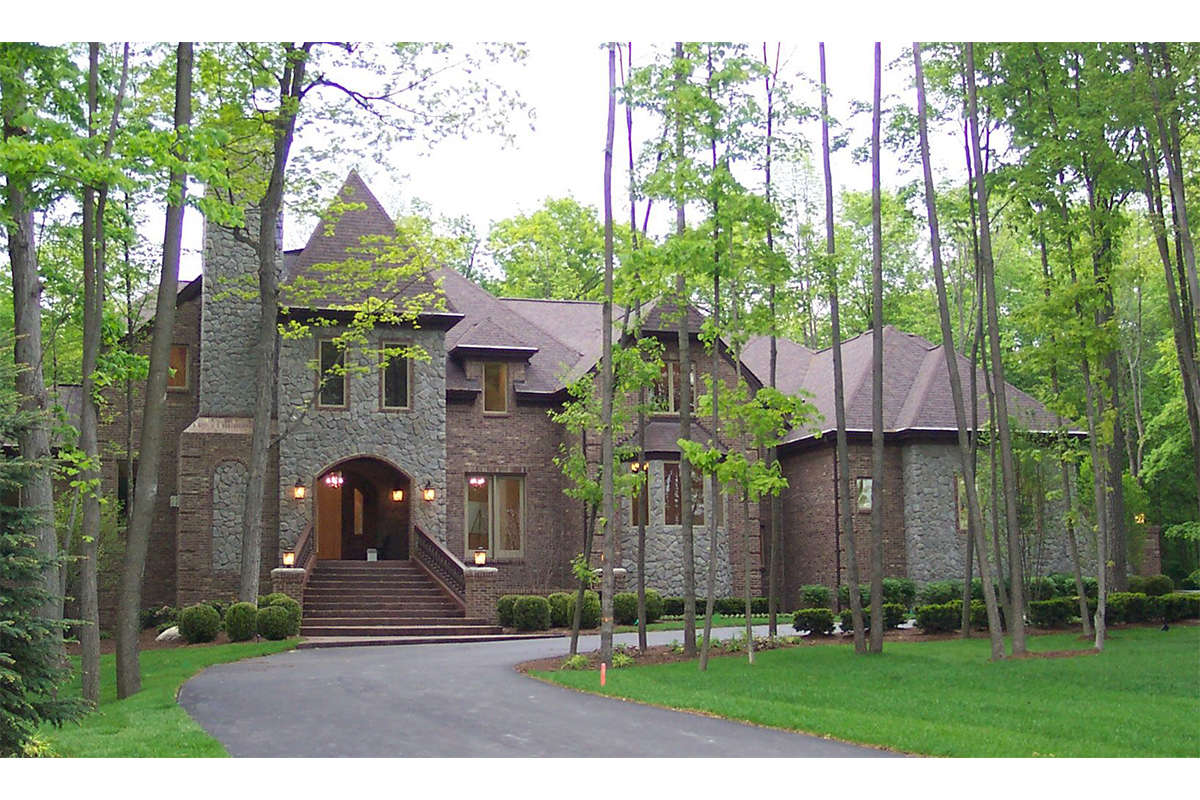

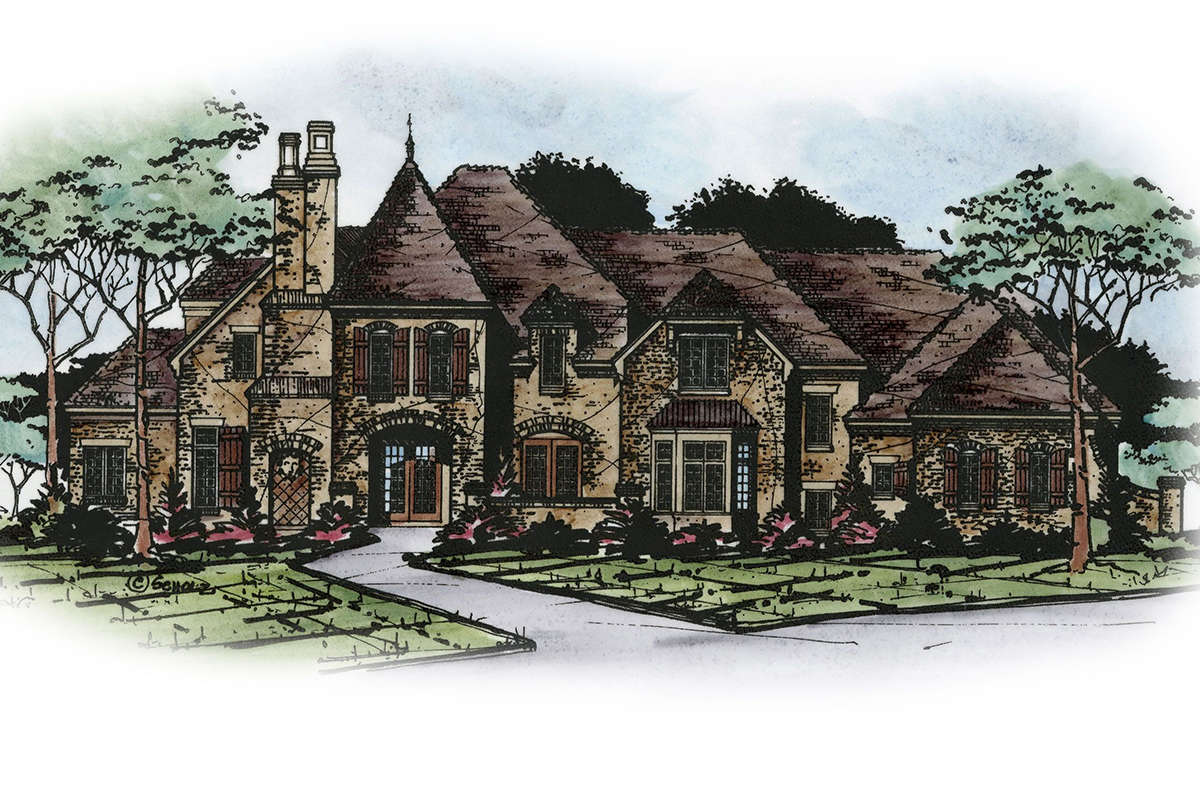

European House Plan #402-01517 Elevation Photo

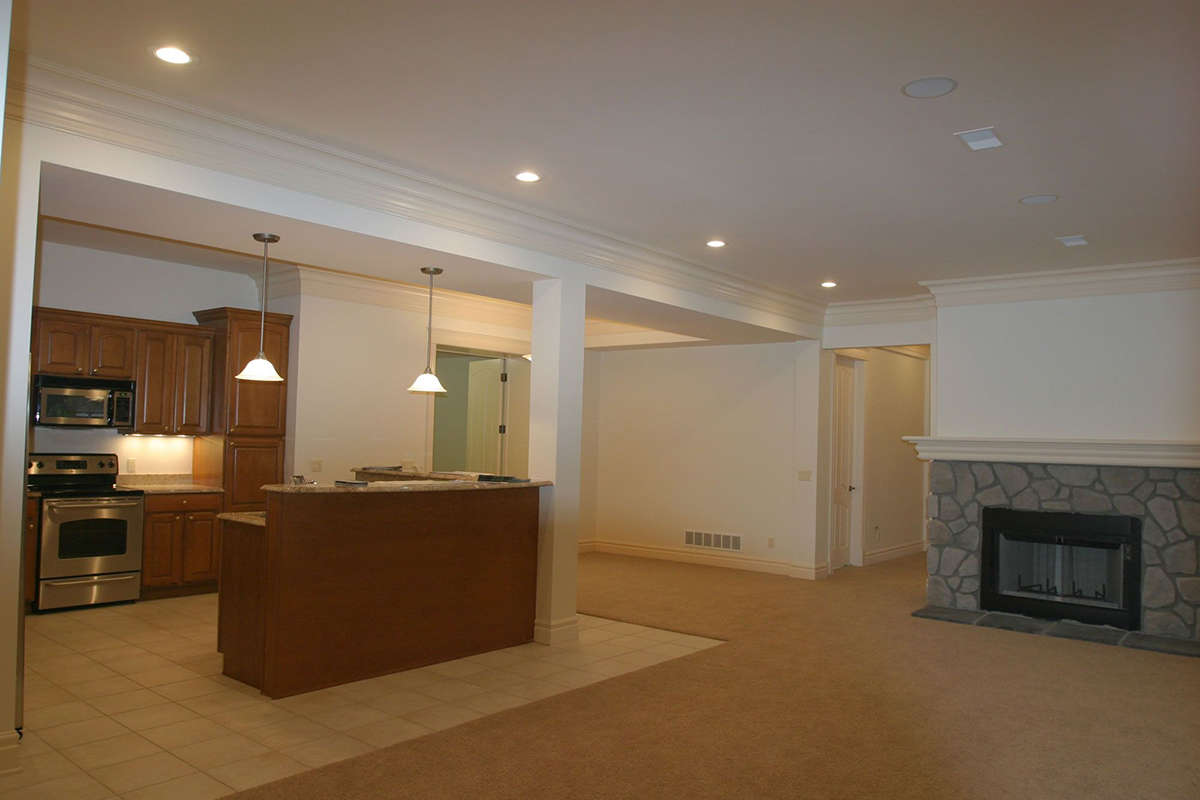

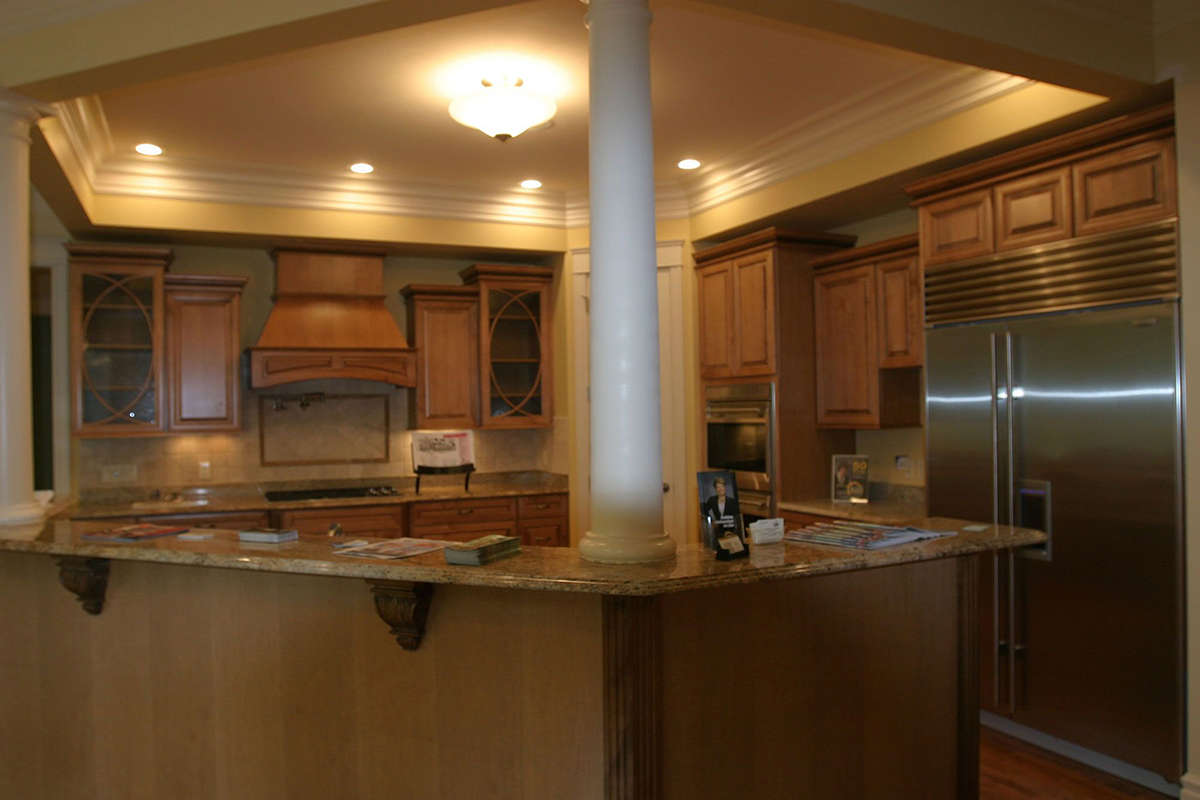

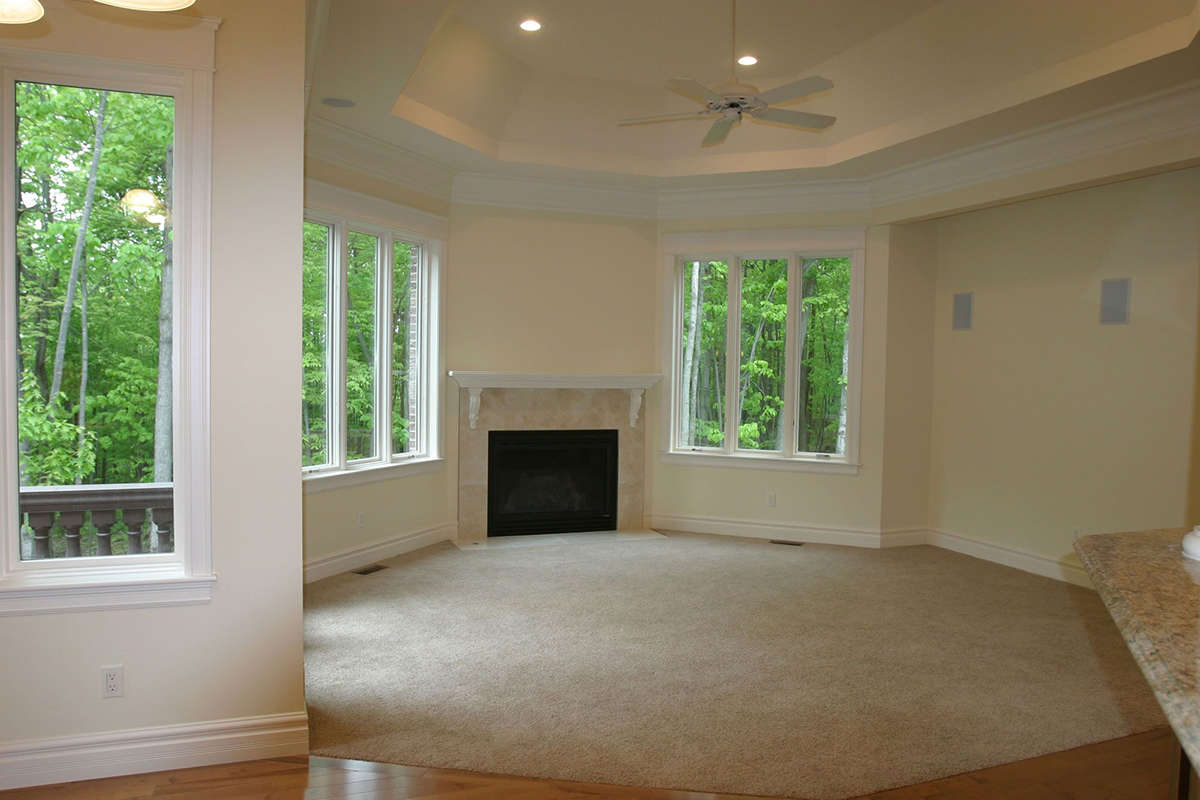

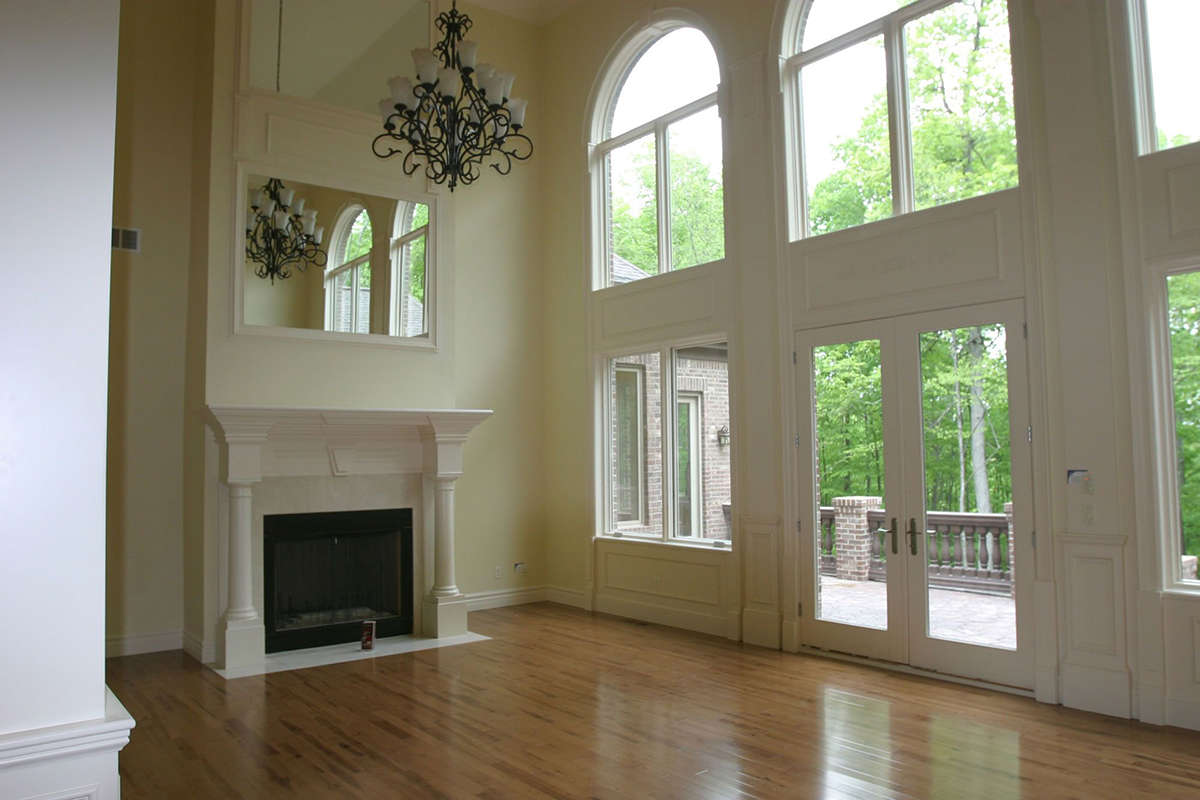

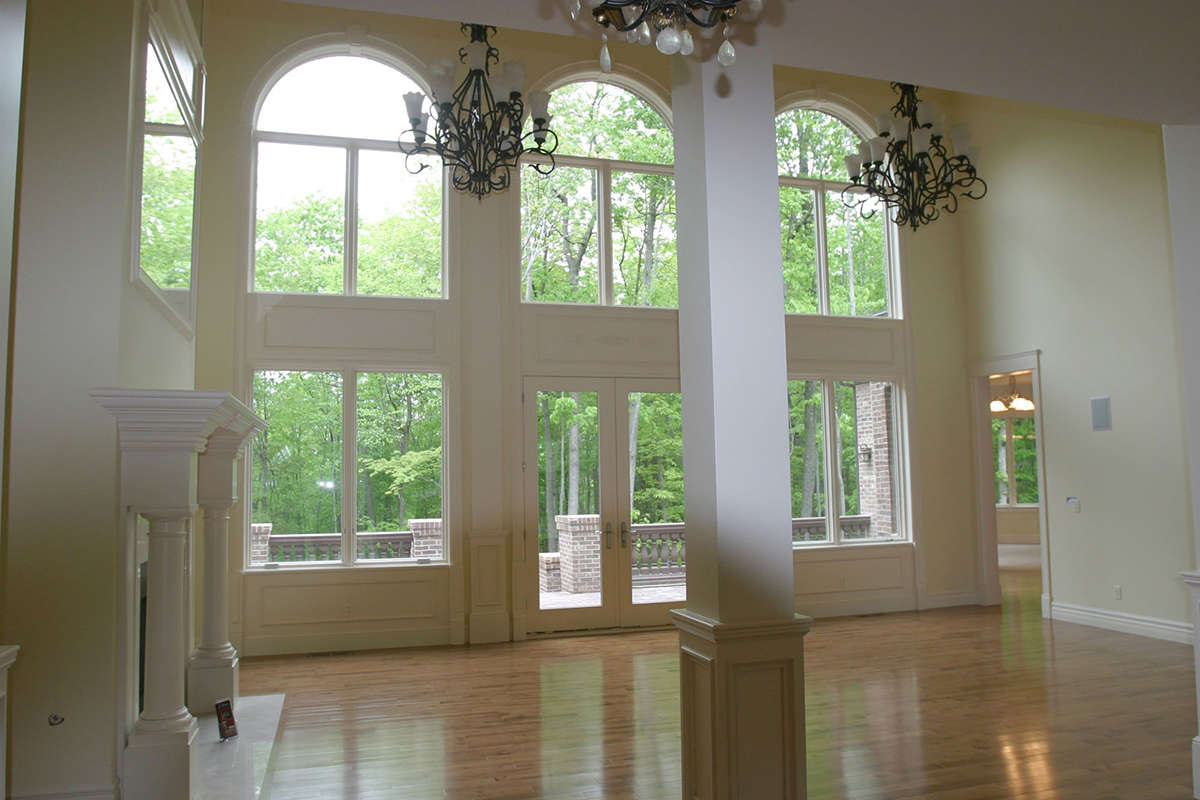

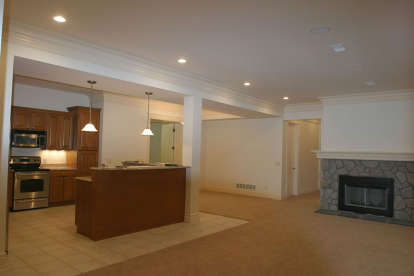

European House Plan #402-01517 Additional Photo

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Sq Ft 4,683

Beds 4

Bath 4

1/2 Baths 1

Car 3

Stories 2

Width 99' 4"

Depth 64' 1"

See What's Included

Select Package

PDF (Single Build)

$3,215.00

ELECTRONIC FORMAT Recommended
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. This package comes with a license to construct one home and a copyright release which allows for making copies locally and minor changes to the plan.

PDF (Unlimited Build)

$3,715.00

ELECTRONIC FORMAT
One Complete set of working drawings emailed to you in PDF format. Most plans can be emailed same business day or the business day after your purchase. Comes with a copyright release which allows for making copies locally and minor changes to the plan. This package comes with a multi-use license that allows for the home to be built more than once.

CAD Files (Plus PDF, Single Build)

$4,460.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package also includes a PDF set and comes with a license to construct one home.

CAD Files (Plus PDF, Unlimited Build)

$4,950.00

ELECTRONIC FORMAT
A CAD file is a set of construction drawings in an electronic format. The CAD file can be used to make minor or major modifications to our plans. The CAD files come with a copyright release so you can customize the plan however you like. CAD files can also be emailed to avoid shipping costs. Most plans can be emailed same business day or the business day after your purchase. This package comes with a multi-use license that allows for the home to be built more than once and also includes a PDF set!

Select Foundation

Basement Foundation $0.00

Need a different foundation?

Get a free modification quote

Additional Options

Right Reading Reverse $295.00

Reverses the entire plan including all text and dimensions so that they are reading correctly.

2x4 Conversion $245.00

Convert the exterior framing to 2x4 walls.

Material List $195.00

A complete material list for this plan. House plan must be purchased in order to obtain material list.
Important Notice: A complete material list for this plan plus purchased options excluding right reading reverse and any modifications. PDF or CAD purchase required. Product requires up to one week to prepare.

View Sample Material List

Return Policy, Building Code & Copyright Info

Floorplan Drawings

REVERSE PRINT DOWNLOAD

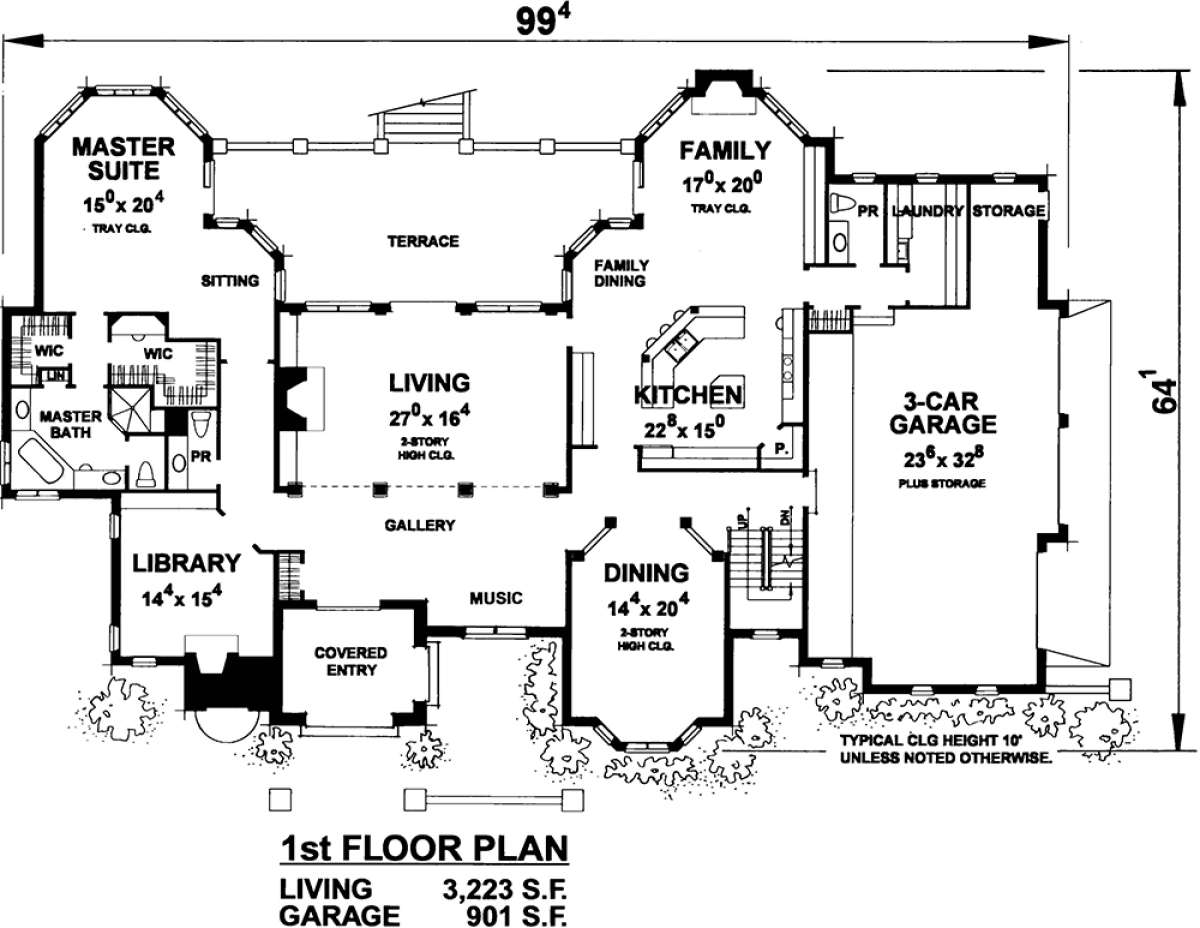

Main Floor

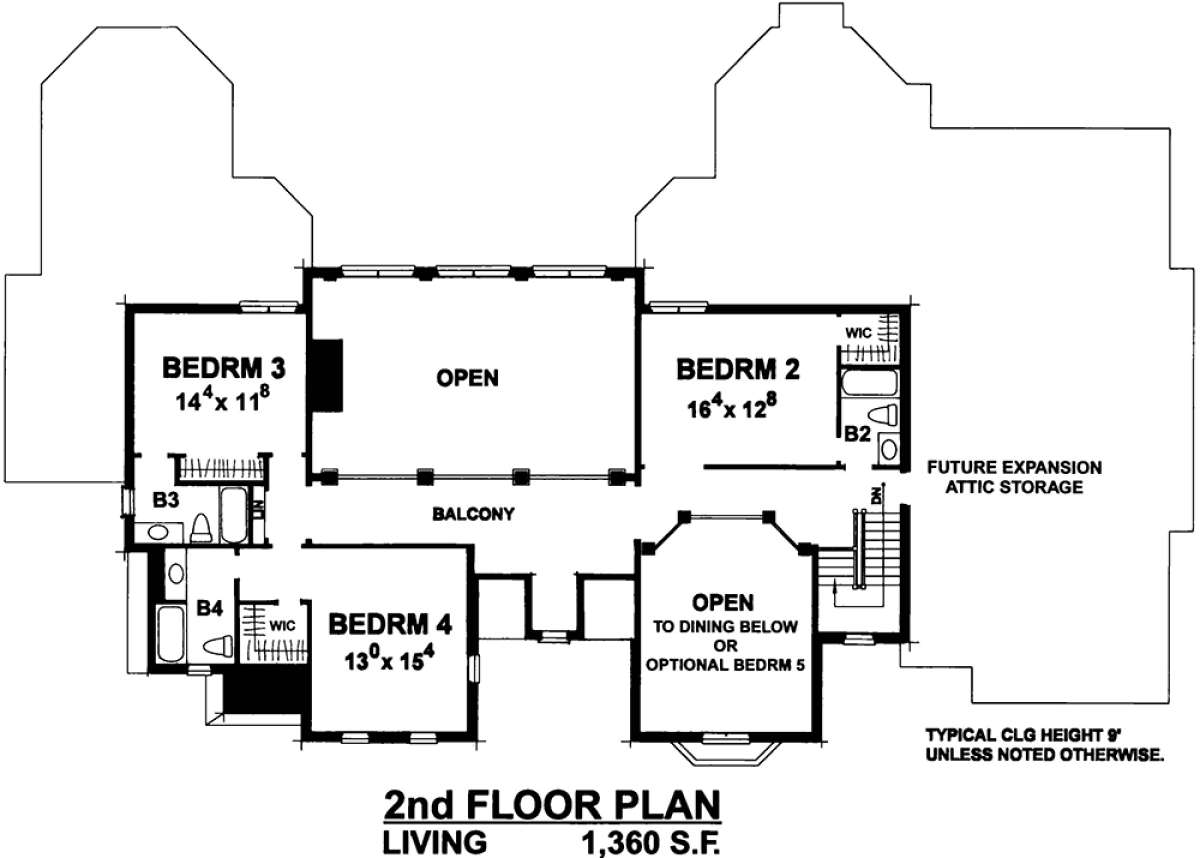

Second Floor

Images copyrighted by the designer.

What's Included in these plans?

Most plans include the following:
Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
Foundations. Foundations are engineered for each design, whether slab or basement, however they may not meet the requirements of your local code and may need additional engineering.
Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.
Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*
Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Full technical support is provided to purchasers of each plan to answer your plan-related questions.
*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Ask Us A Question

About This Plan

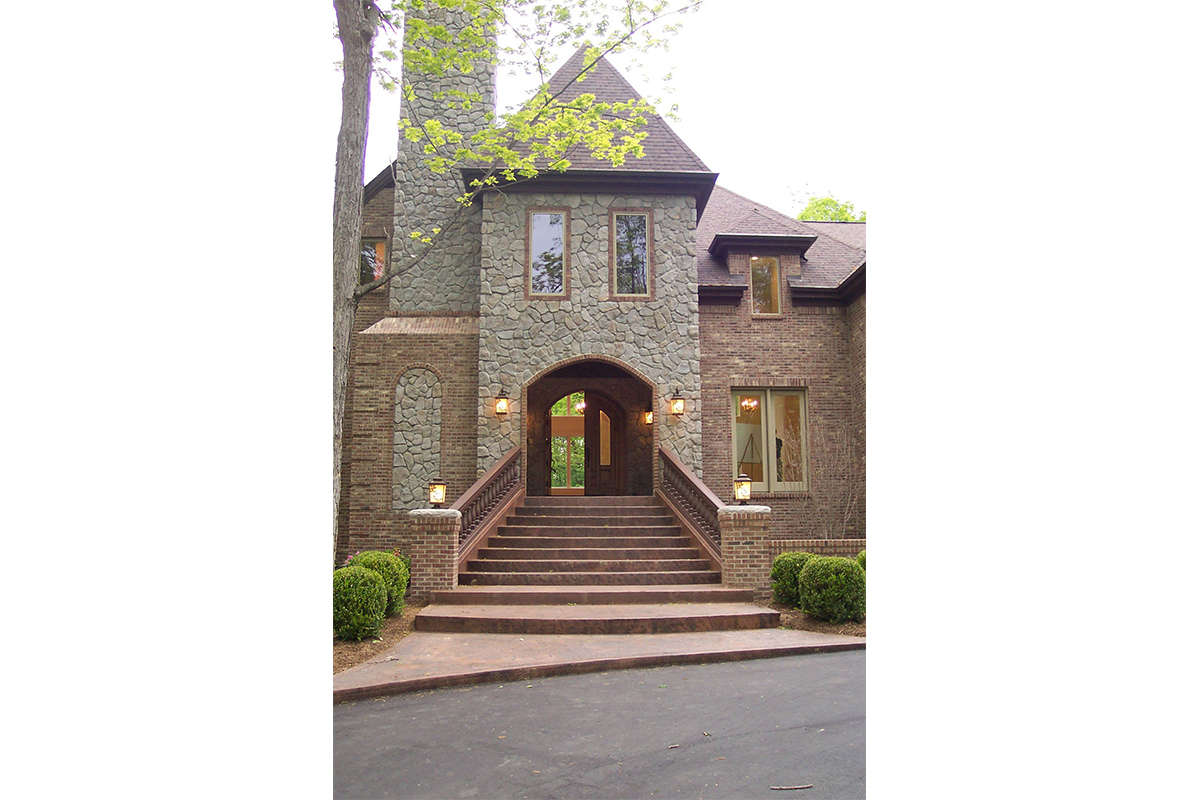

This European manor features an exterior that is both stylish and inviting; the combination of stone and brick work offers a visual pleasing façade along with a low maintenance exterior. Beautiful window inserts, a substantial balustrade walk-up staircase and double door entry presents a welcoming spot to greet family and friends as they enter the home. The interior living space is comprised of approximately 4,683 square feet of living space which includes four bedrooms and four plus baths. The home is situated on a basement foundation enhancing the potential for expansion space; either currently or in the future as family needs arise. There is a three car side loading garage with plenty of vehicle and storage space as well. The main living floor offers a gallery hallway with an adjacent music room and a two storied living room. The living room features a warming fireplace, built-in cabinetry and access to the rear terrace for excellent outdoor entertaining space. Flanking the front hallway is a warm and comfortable library for cozy entertaining and a formal dining room with bay window views and two storied ceiling heights. One wing of the main floor continues with family space including the grand kitchen, casual dining space and a family room with terrace access. Beyond the family living space is a guest powder room as well as the family laundry room. Located across the home is the main level master suite which is highlighted with generous floor space, an adjoining sitting room, his and hers walk-in closets and an elegant master bathroom which offers dual vanities, a garden tub, a separate shower and a toilet area.

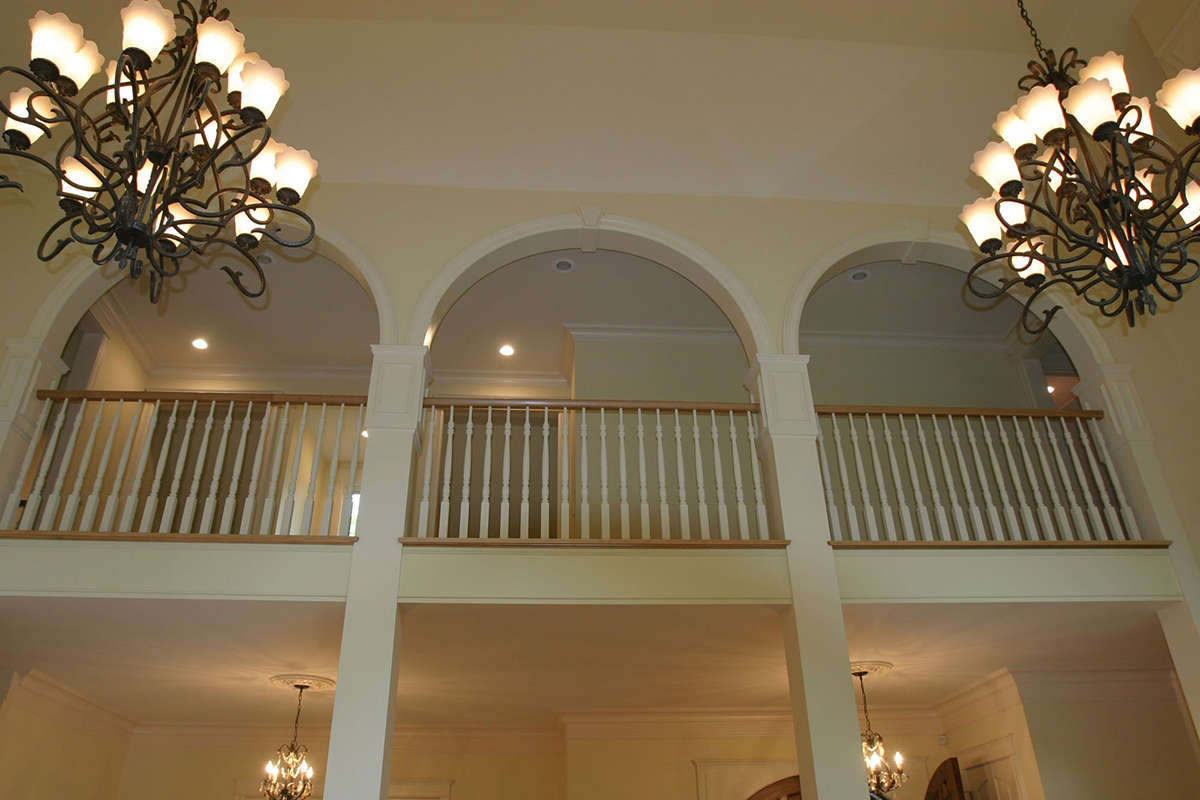

The second floor of the home features a balcony hallway and overviews below along with three bedrooms and three baths. Bedroom two is quite spacious and includes double window views, a walk-in closet and private access to the bathroom. The third and fourth bedrooms are located at the opposite end of the hallway; each is spacious, with window views and private bathrooms. One features a walk-in closet and the other, plenty of closet space. There is a large attic space near the second bedroom; perfect for future expansion or as use for storage. This beautiful European house plan is highlighted with a lovely exterior, an enormous amount of expansion space and a functional family layout.
