Your Dream Home is Waiting! Save 15% Off & Free Ground Shipping

Limited plans not eligible for discounts

Traditional House Plan 5633-00142

Sq Ft3,888
Beds4
Baths3
1/2 Baths1
Stories2
Cars3
Width81' 8"
Depth72' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

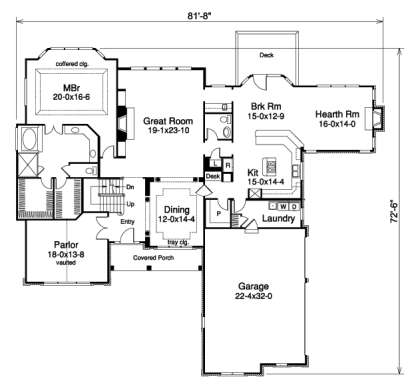

Floorplan 1 for House Plan #5633-00142

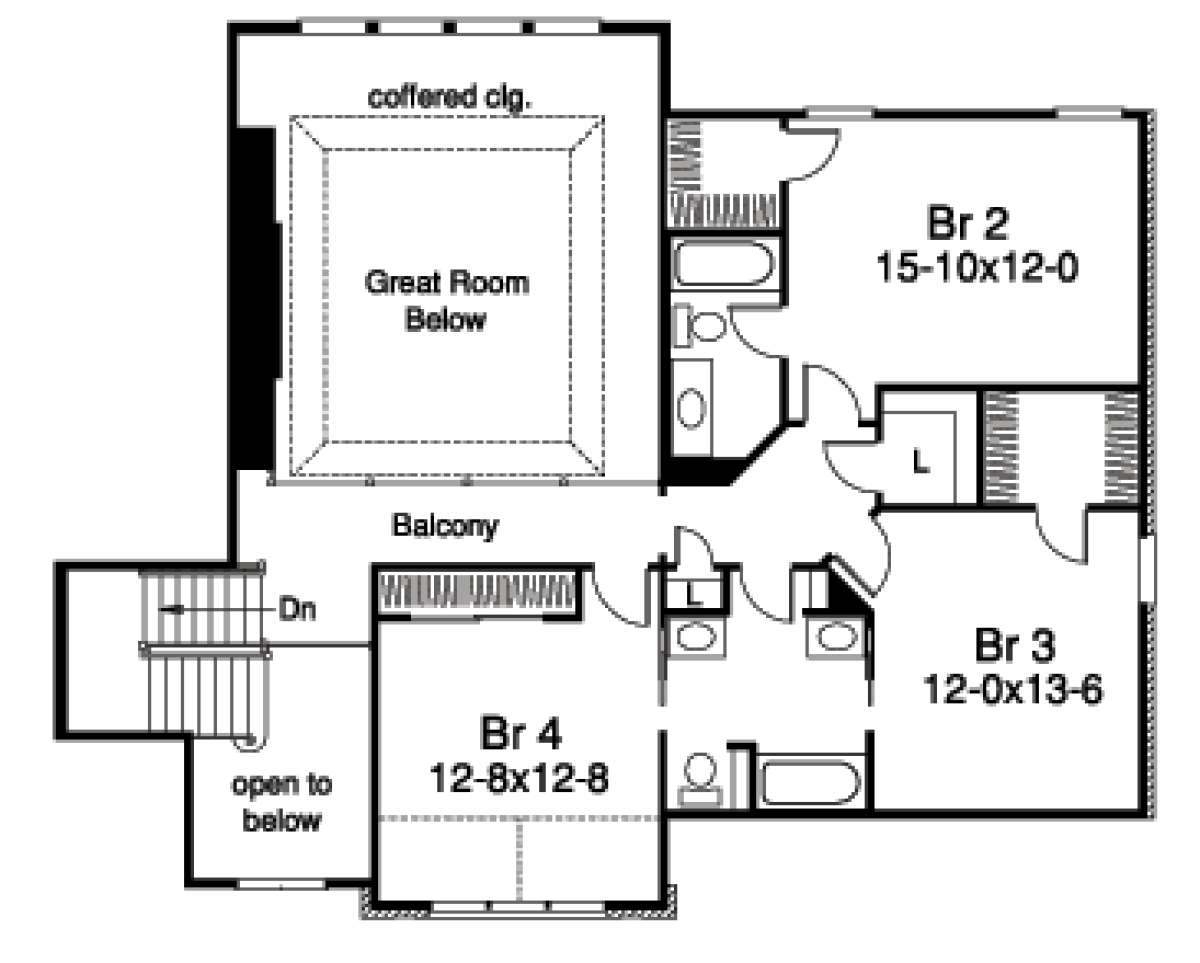

Floorplan 2 for House Plan #5633-00142
Floorplan 1
Floorplan 1 for House Plan #5633-00142

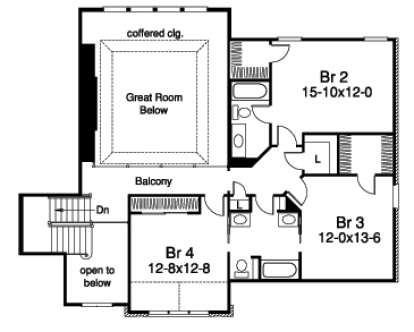

Floorplan 2
Floorplan 2 for House Plan #5633-00142


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.

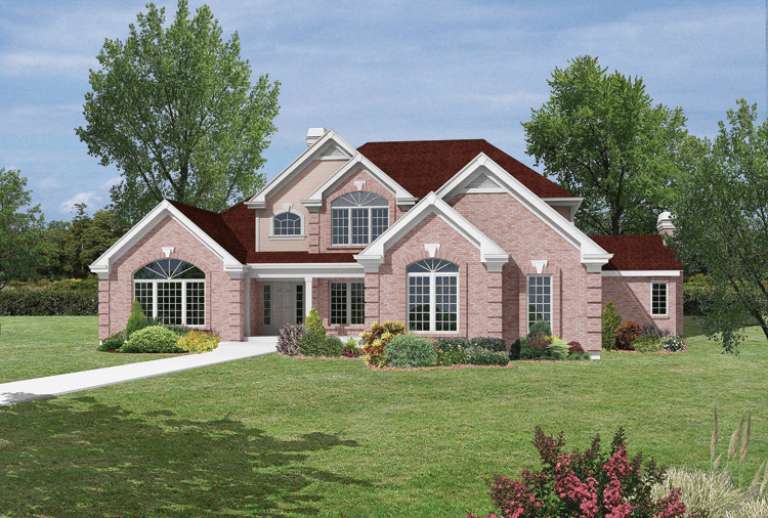

  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

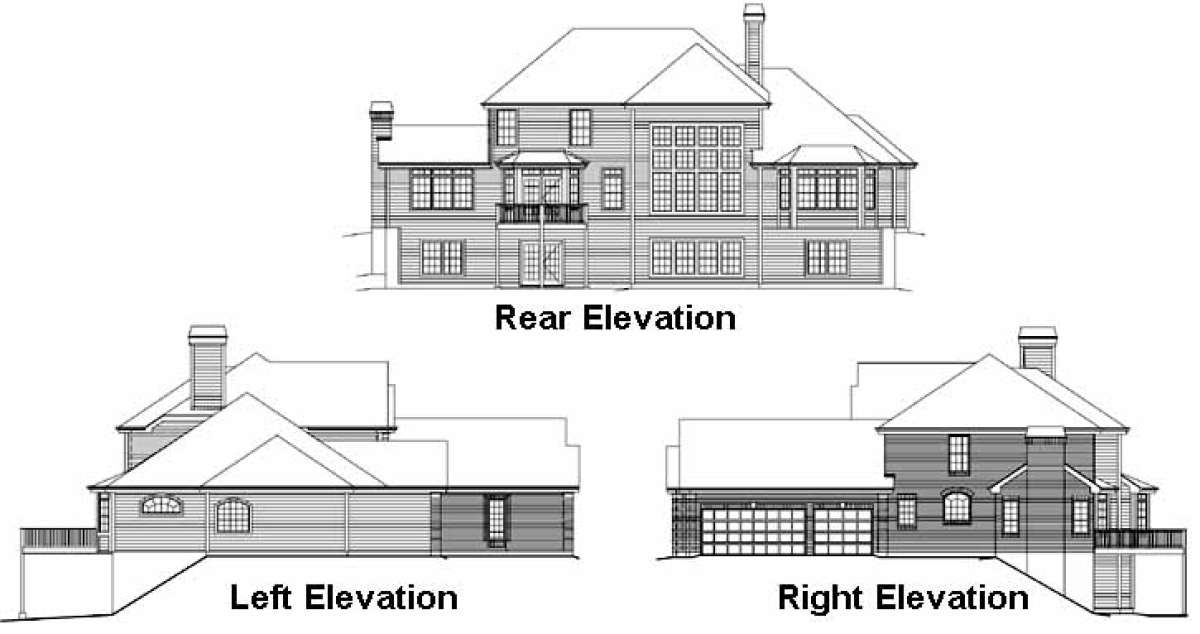

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

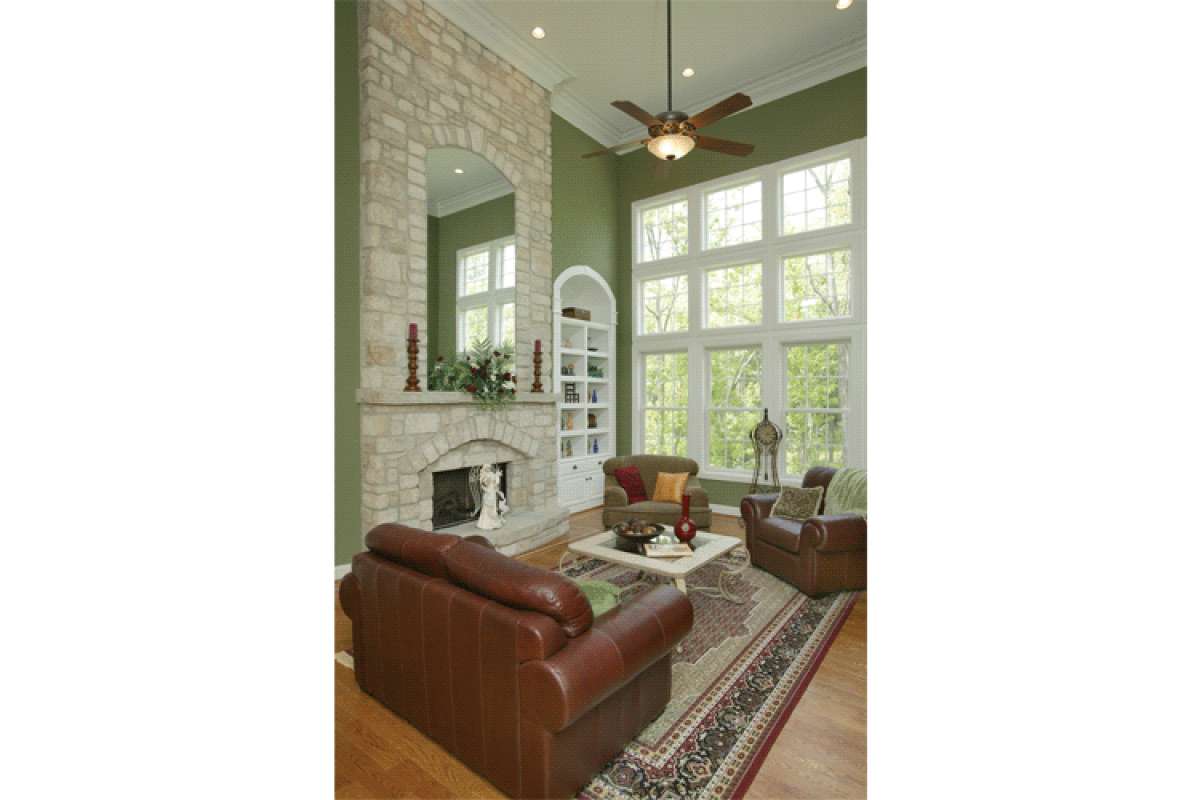

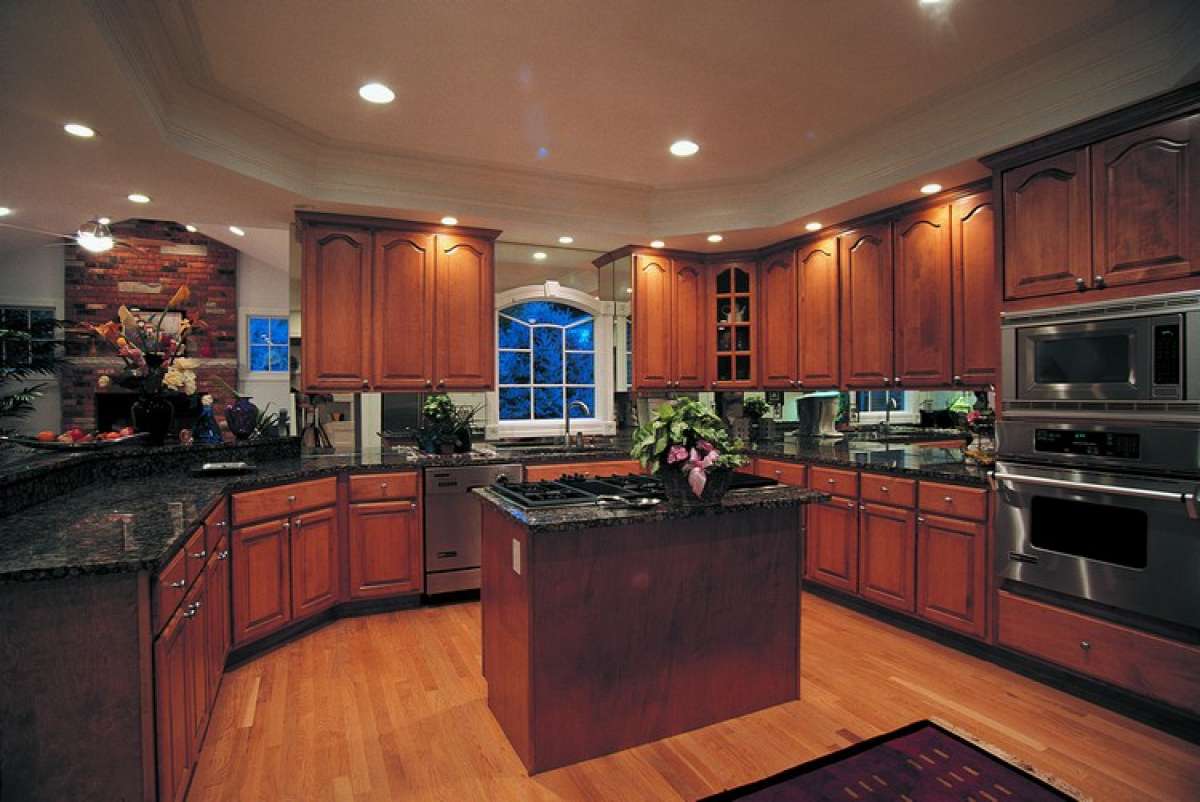

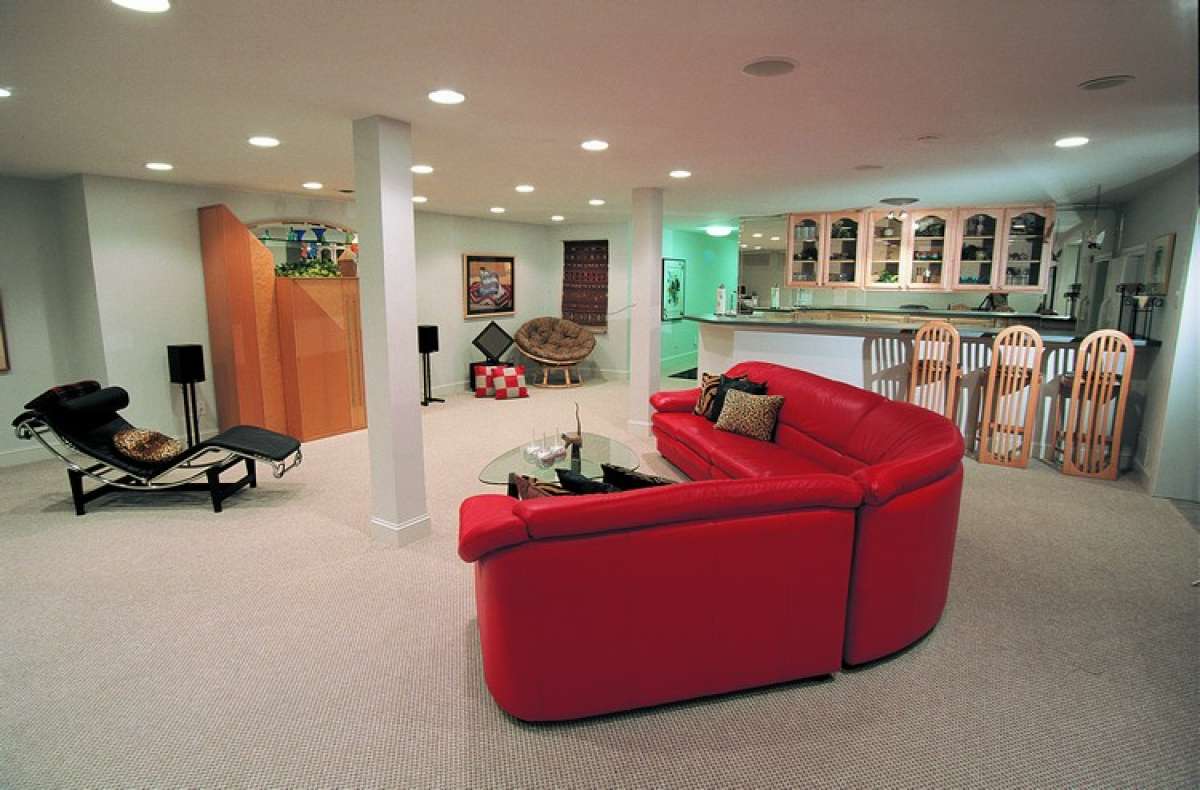

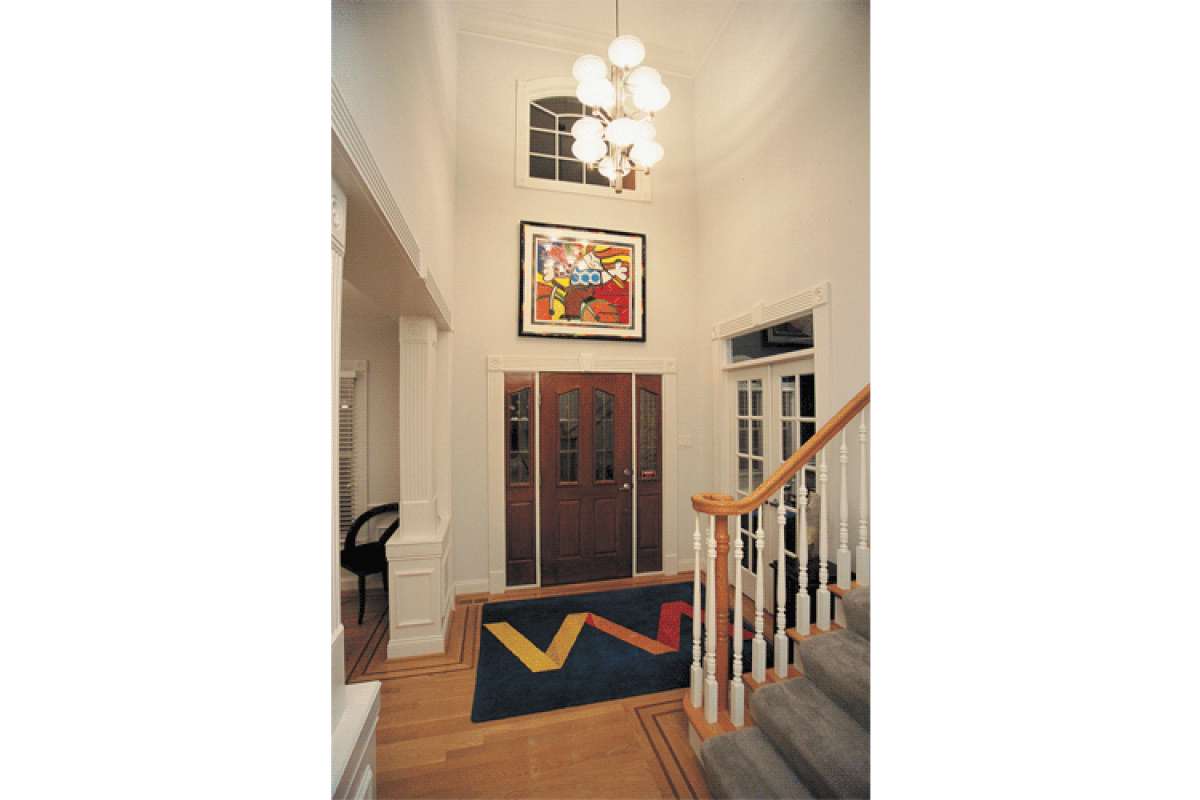

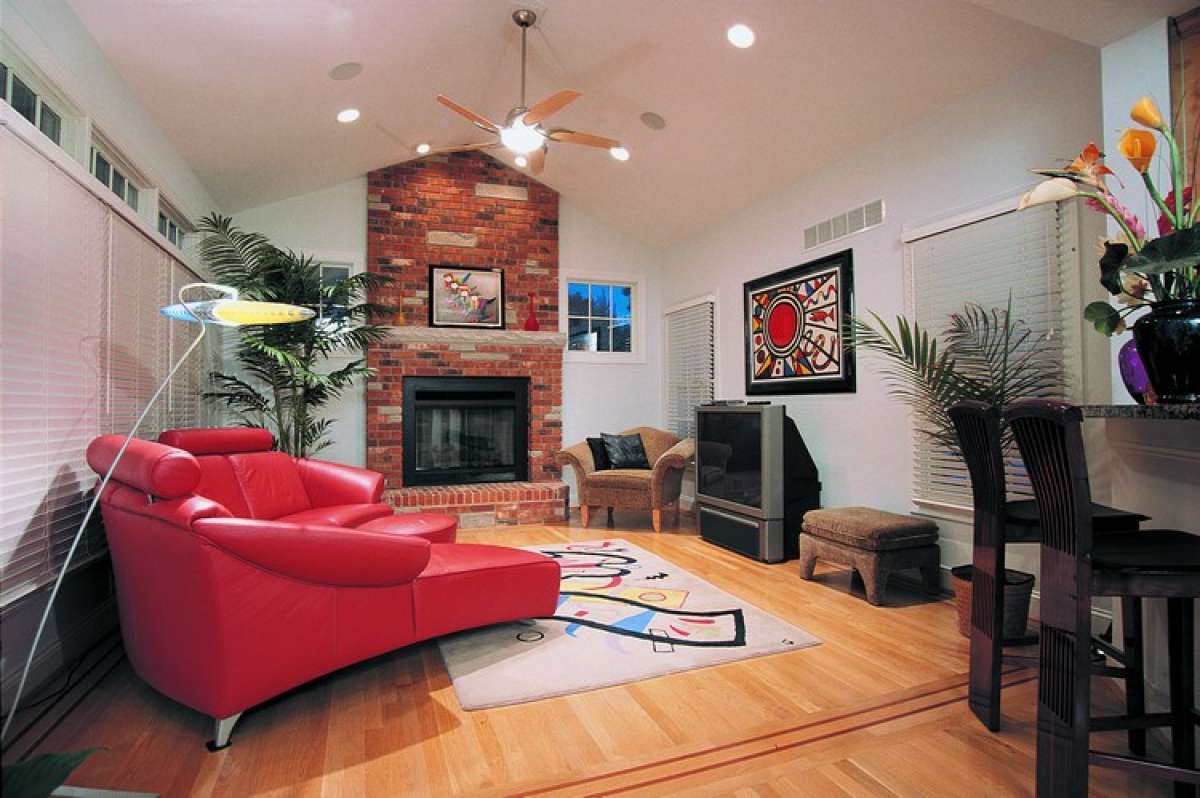

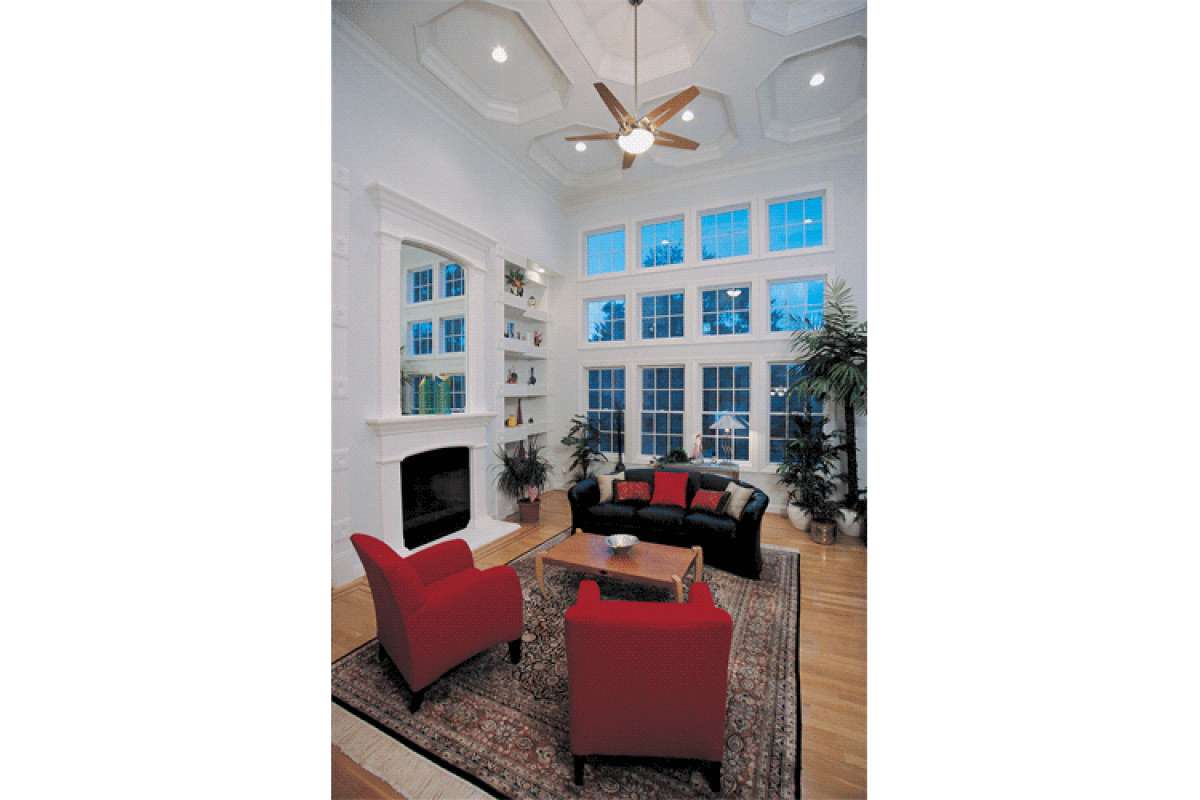

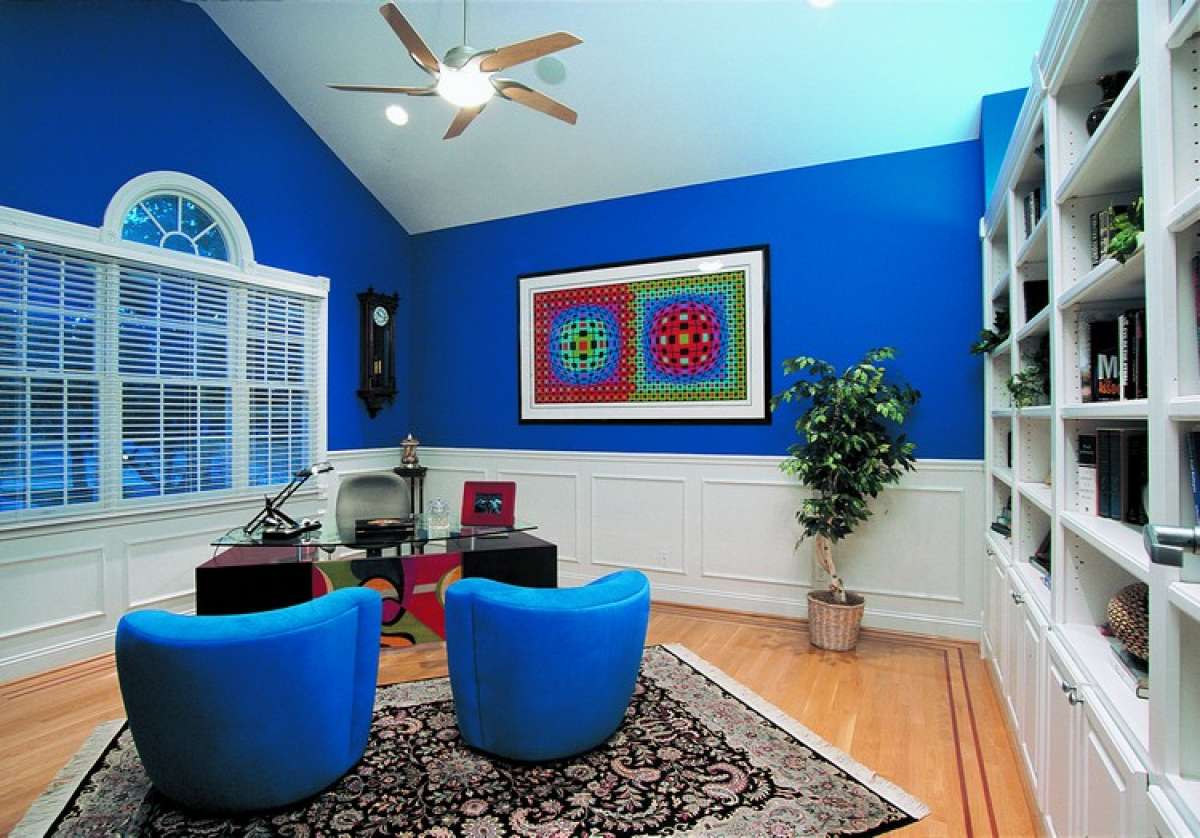

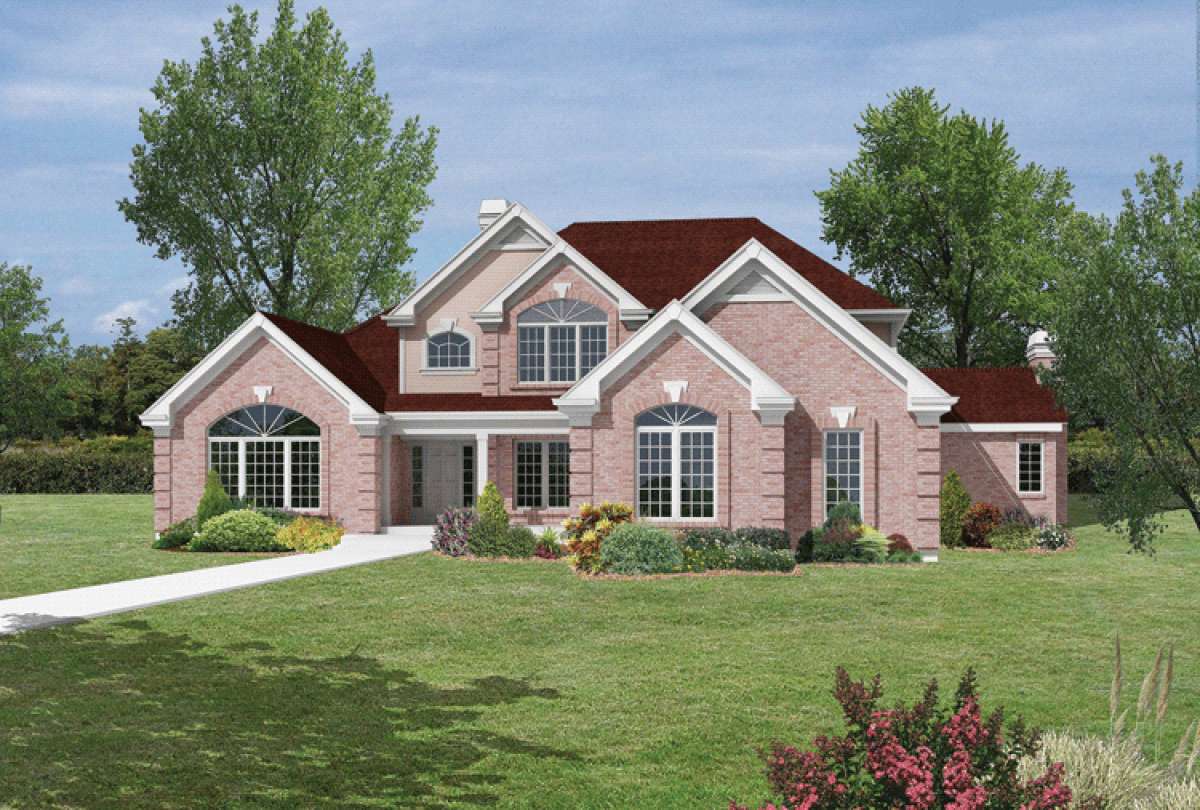

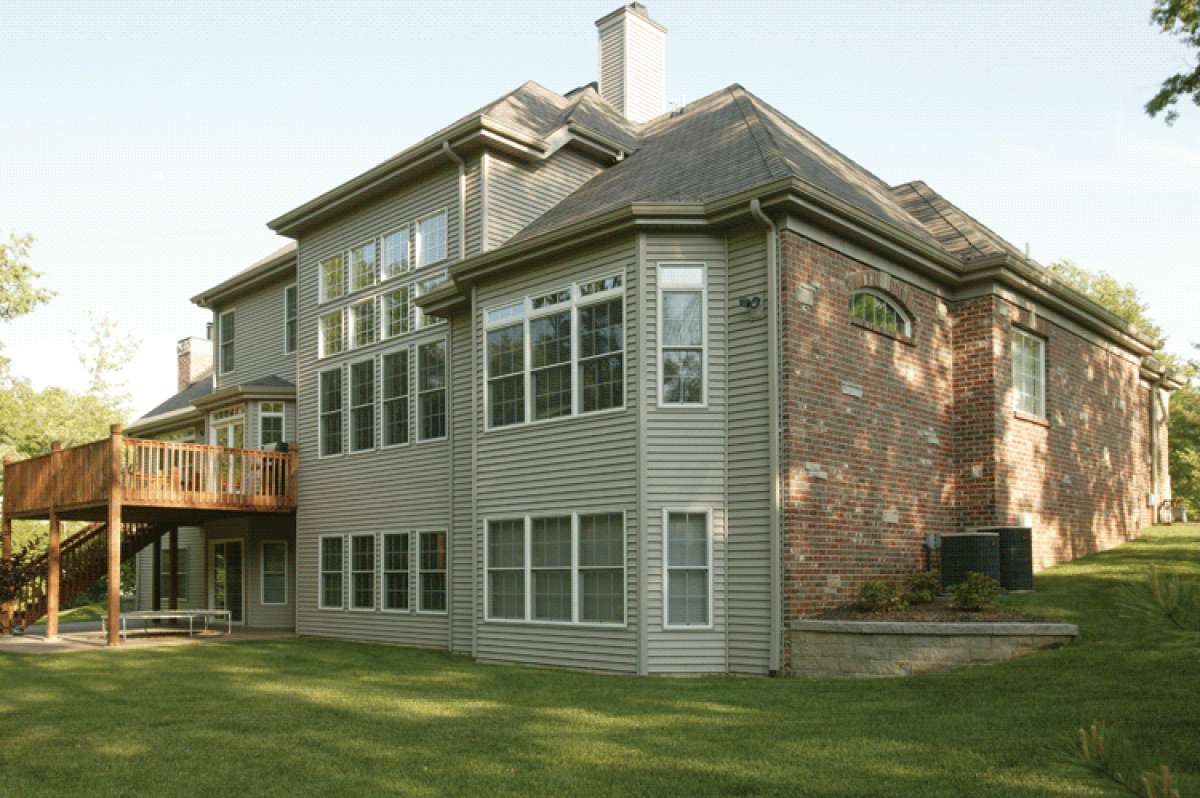

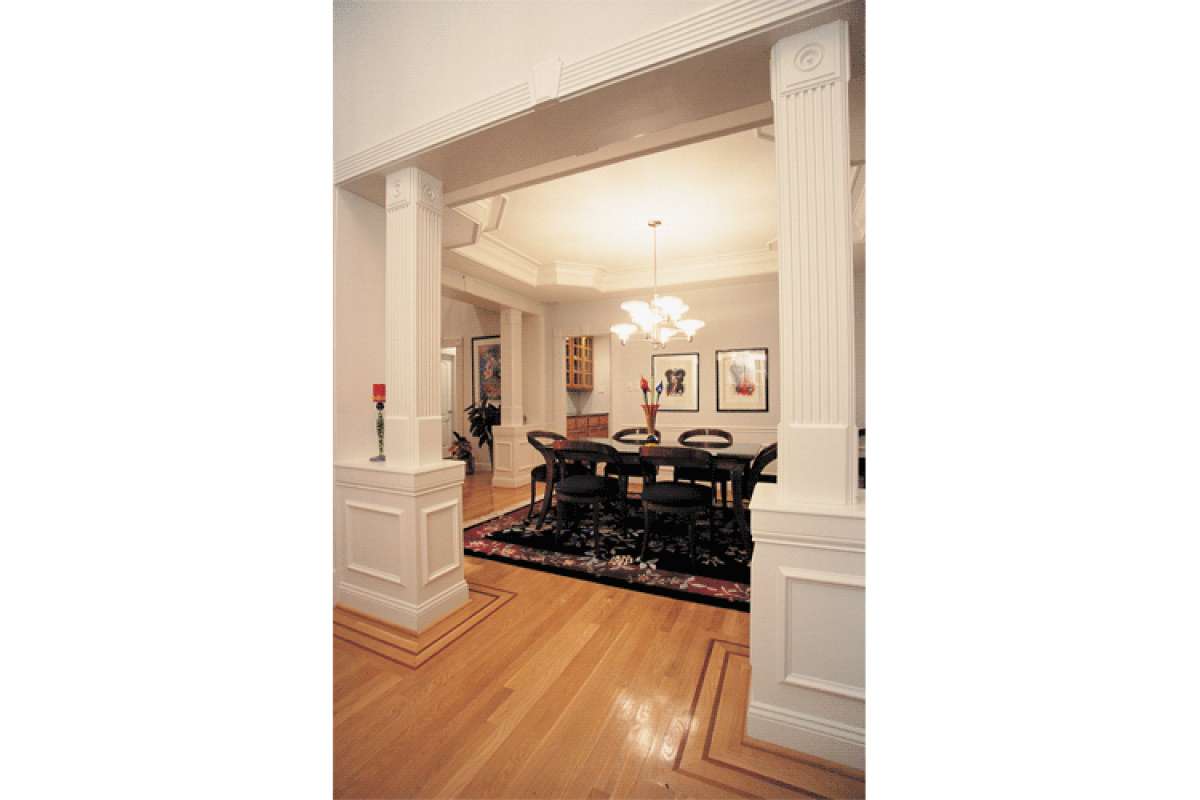

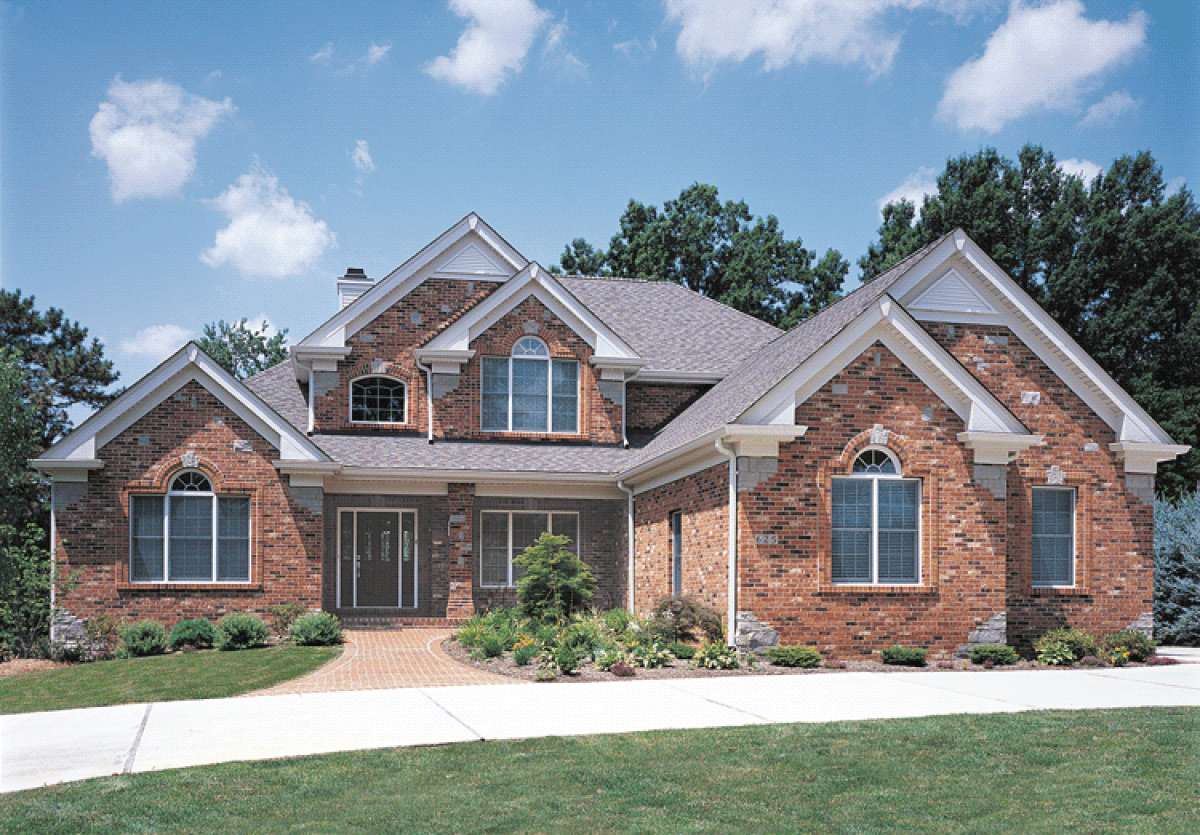

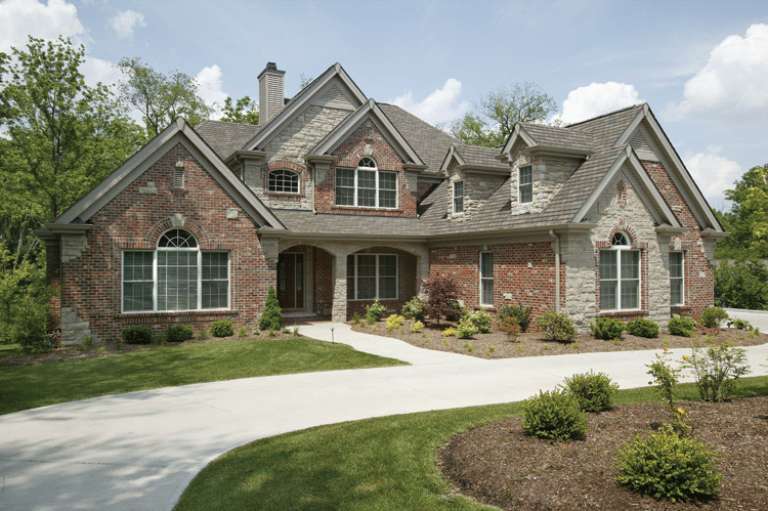

This home has a timeless and classic exterior thanks to detailed brickwork surrounding the arched windows and quoin corners. There is a sophisticated elegance assigned to the exterior which includes multiple gables, exquisite window detailing and a stylish front covered porch. The walk-out basement foundation features an additional 2,621 square feet of expansion space in the already impressively sized home where there are four bedrooms and three plus baths in approximately 3,888 square feet. There is a two story foyer and great room which features a large fireplace, flanking bookshelves, a massive window wall and a balcony overlook. The formal dining room is adorned with a trey ceiling and columned detailing while the formal parlor is accessible through French doors resulting in a private retreat for working or entertaining business associates. This executive home continues to impress with its state-of-the-art kitchen which is highlighted by an island cook top, an oversized walk-in pantry, a menu desk and an angled breakfast bar. The kitchen opens onto the breakfast and hearth room where additional living space is evident. The breakfast room features a large bay window with rear deck access and the hearth room contains a warming fireplace and multitude of windows. The three car garage leads to the interior laundry room and there is a powder room for guests off the great room. The main level master retreat is true luxury with a coffered ceiling master bedroom and large bayed window. The elegantly designed master bath features French door access, dual vanities, a separate shower, garden tub and a compartmentalized toilet.

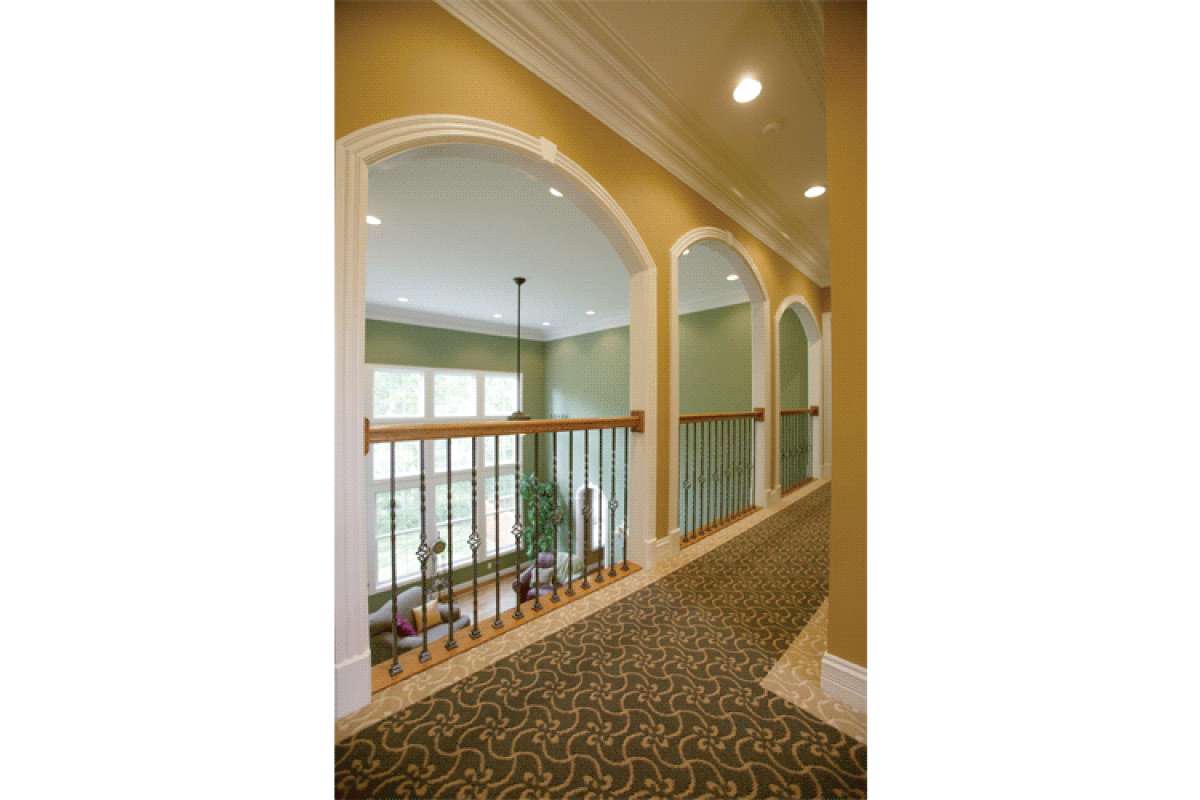

The second story landing features balcony overlooks onto the foyer and great room in addition to three bedrooms and two baths. Bedroom two is enjoys a large footprint with a walk-in closet and private full bath. Bedrooms three and four are generously sized as well and the third bedroom features a walk-in closet while bedroom four has plentiful closet space. A jack and jill bathroom is located between them with double sinks and there are two hall linen closets, one of which is enormous. This family friendly home features a striking exterior façade and a comfortable and fully functional interior floor plan.
