Greek Revival Plan 5633-00097


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,034
Beds 4
Bath 2
1/2 Baths 1
Car 2
Stories 2
Width 70'
Depth 45' 8"

Floorplan Drawings

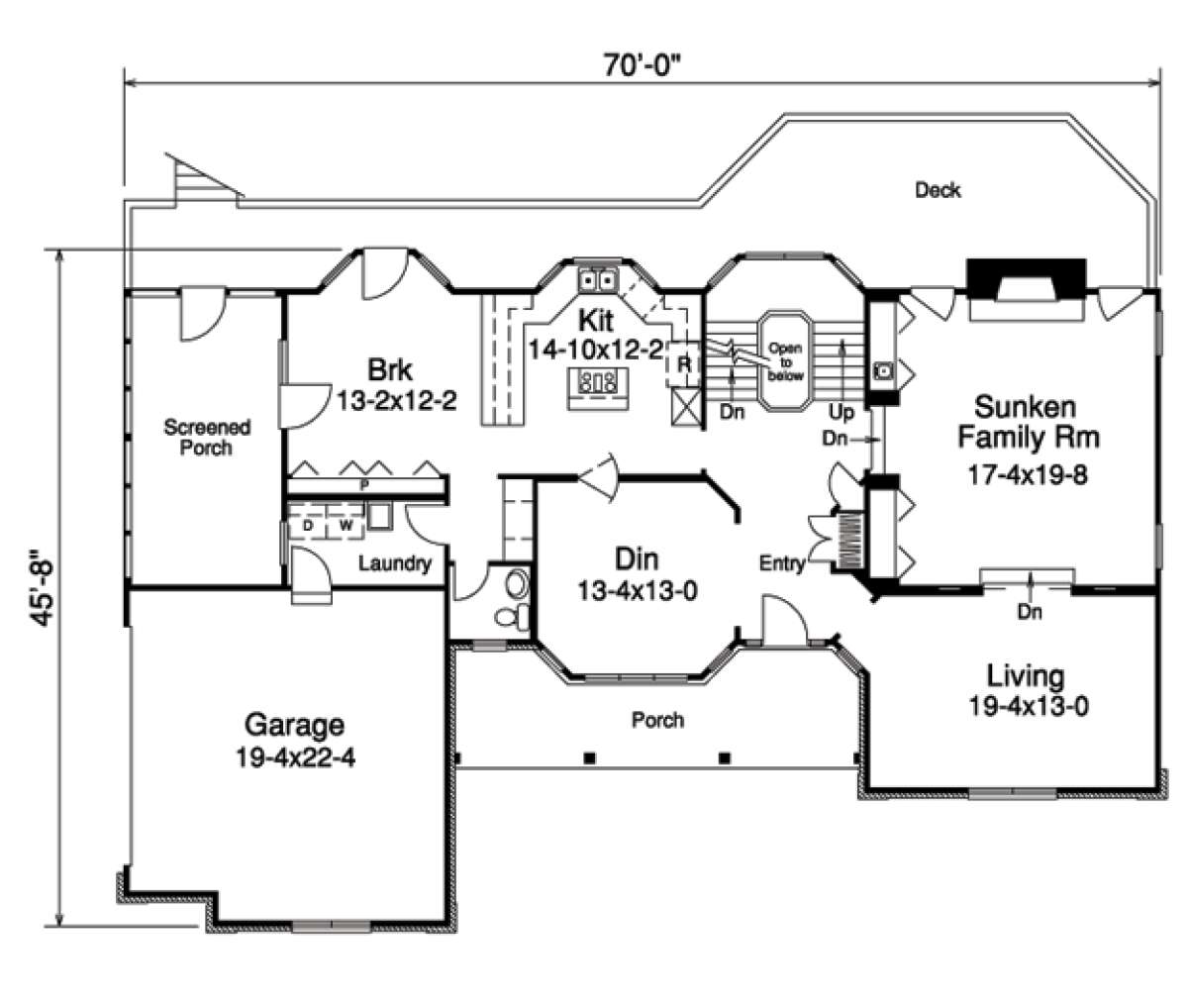

Floorplan 1
Floorplan 1 for House Plan #5633-00097

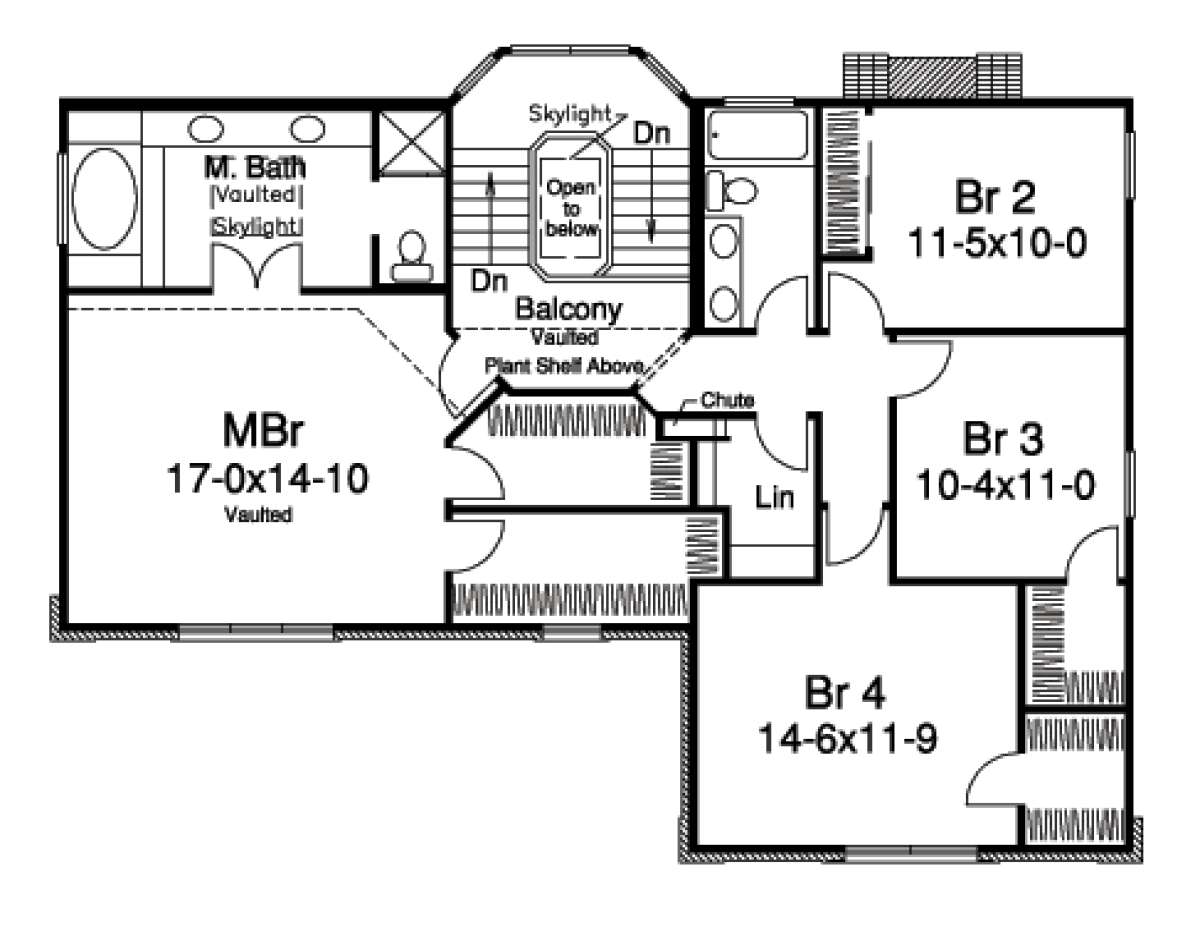

Floorplan 2
Floorplan 2 for House Plan #5633-00097

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

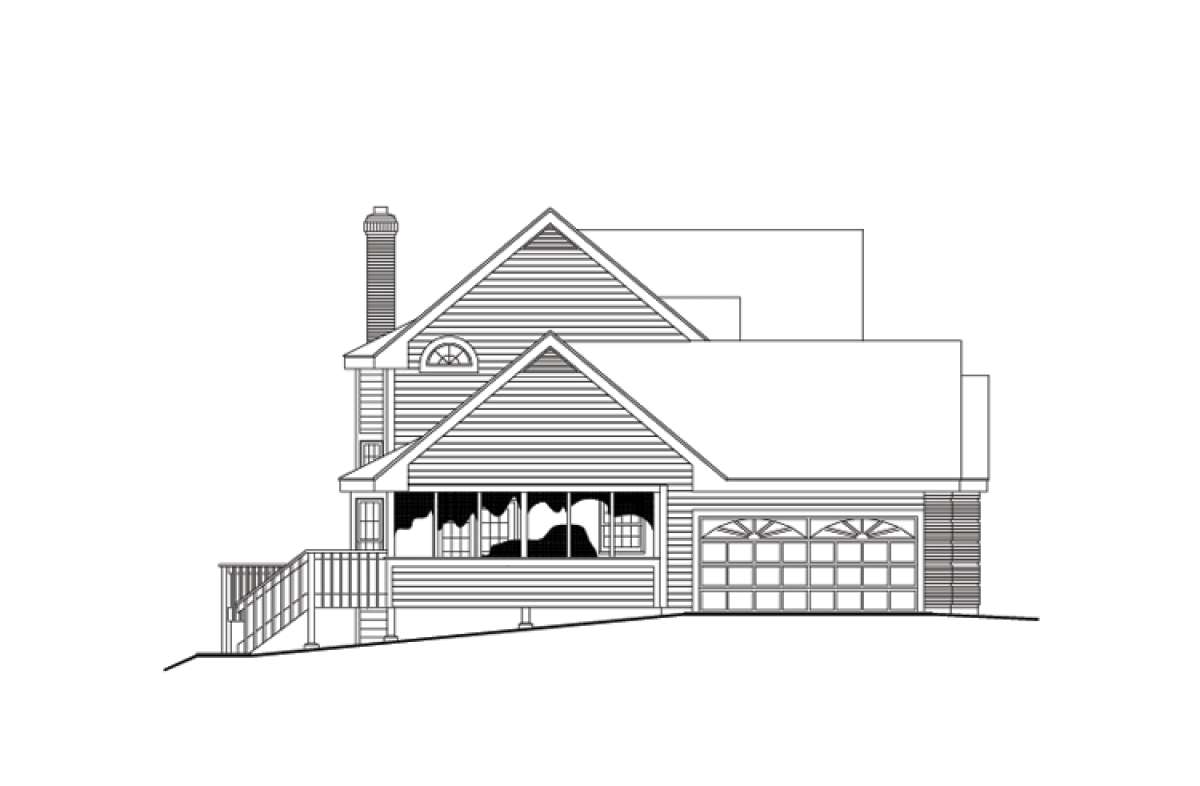

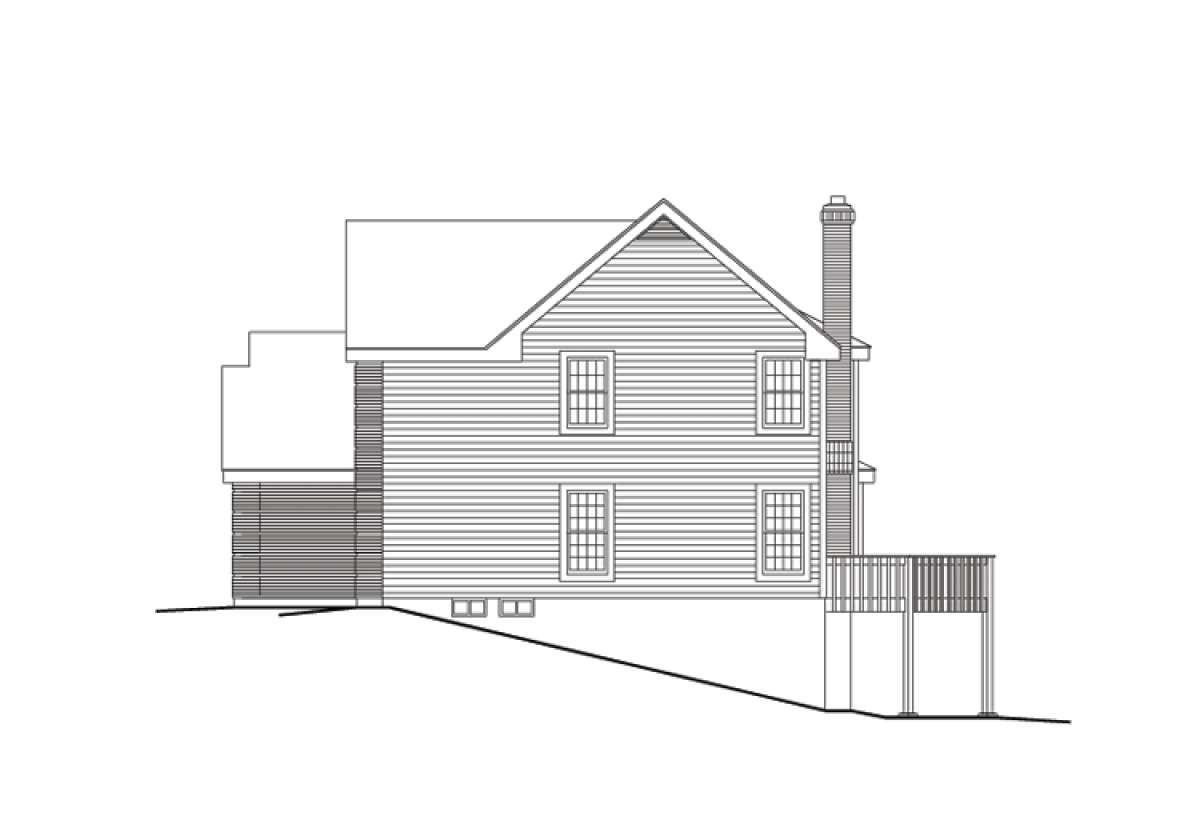

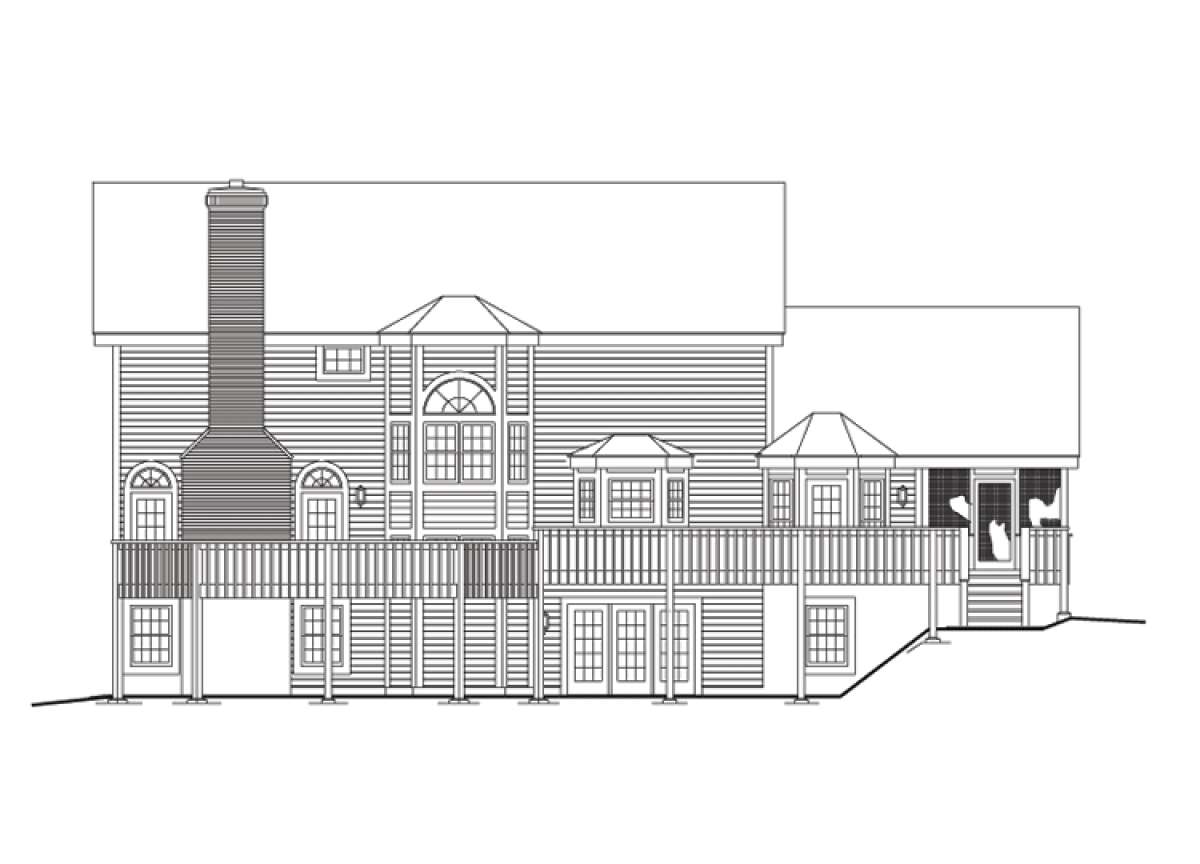

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Classic brick, double stacked windows and an extensive front covered porch align to create a trademark traditional exterior façade. The interior floor plan is in excess of 3,000 square feet and contains exciting entertaining space and great family space including four bedrooms and two plus baths. A walk-out basement foundation encourages expansion possibilities and adds value and versatility to the home. Upon entering the home, a spectacular staircase in a bay window is highlighted at the far end of the foyer which leads to the lower and upper levels of the home. Fine dining is encouraged in the formal dining space where there is a large bay window and a pass-thru to the family friendly kitchen. The U-shaped kitchen is built into a second bayed space and features a peninsula breakfast bar that adjoins the casual breakfast area where an extended pantry is situated. Again, this space is cleverly built into a bay window and provides rear deck access and side screened in porch access allowing for outdoor eating and entertaining. Double living spaces are created with the formal living room and adjacent step-down sunken family room a handsome fireplace, built-in cabinetry and deck access reside. There is a powder room for guests and a large laundry room is conveniently located off the two car, side entry garage.
The second level of the home features the family’s sleeping and bathing quarters. Bedrooms two and three are spacious and the second bedroom features ample closet space while the other contains a walk-in closet. The fourth bedroom is clearly oversized and features a walk-in closet. There is a shared hall bath with double sinks, an enormous hall linen closet and a laundry chute for the family’s convenience. The staircase is a piece of art with its skylights, bayed window and light drenched balcony overlooking the first floor below. The master suite features a large vaulted bedroom with attached double walk-in master closets. The en suite bath is sunny and bright with French door access into the space which is highlighted with skylights and modern amenities. Double rear wall vanities, a private toilet area, separate shower and gorgeous garden tub are provided in the master bath. This classic exterior home has an abundance of space; both for entertaining and private family purposes which set the home apart from the ordinary.
