Country Plan 5633-00152


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 480
Beds 1
Bath 1
1/2 Baths 0
Car 1
Stories 1
Width 38'
Depth 30'

Floorplan Drawings

Floorplan 1

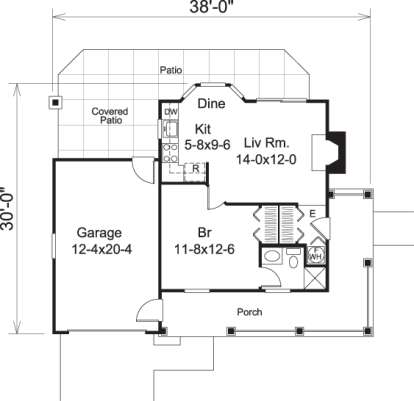

Floorplan 1 for House Plan #5633-00152

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

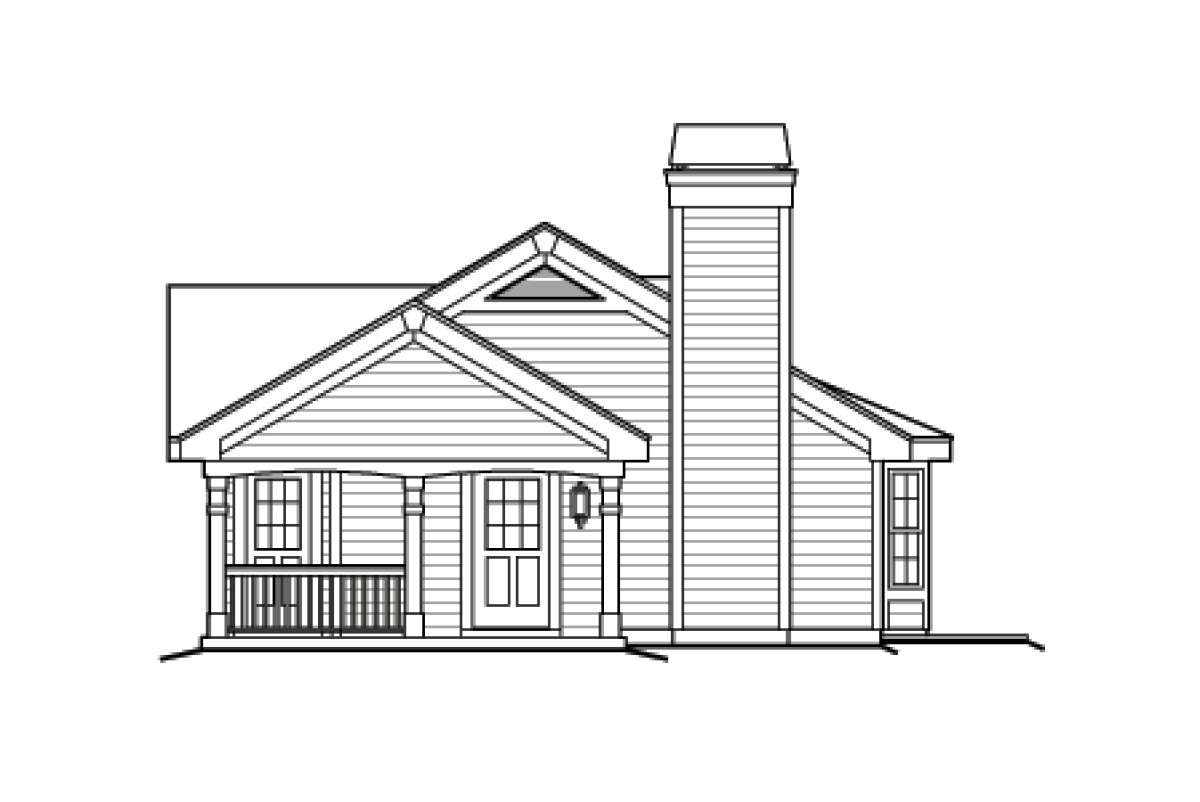

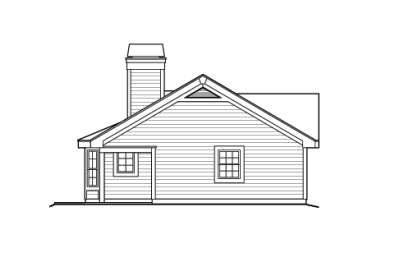

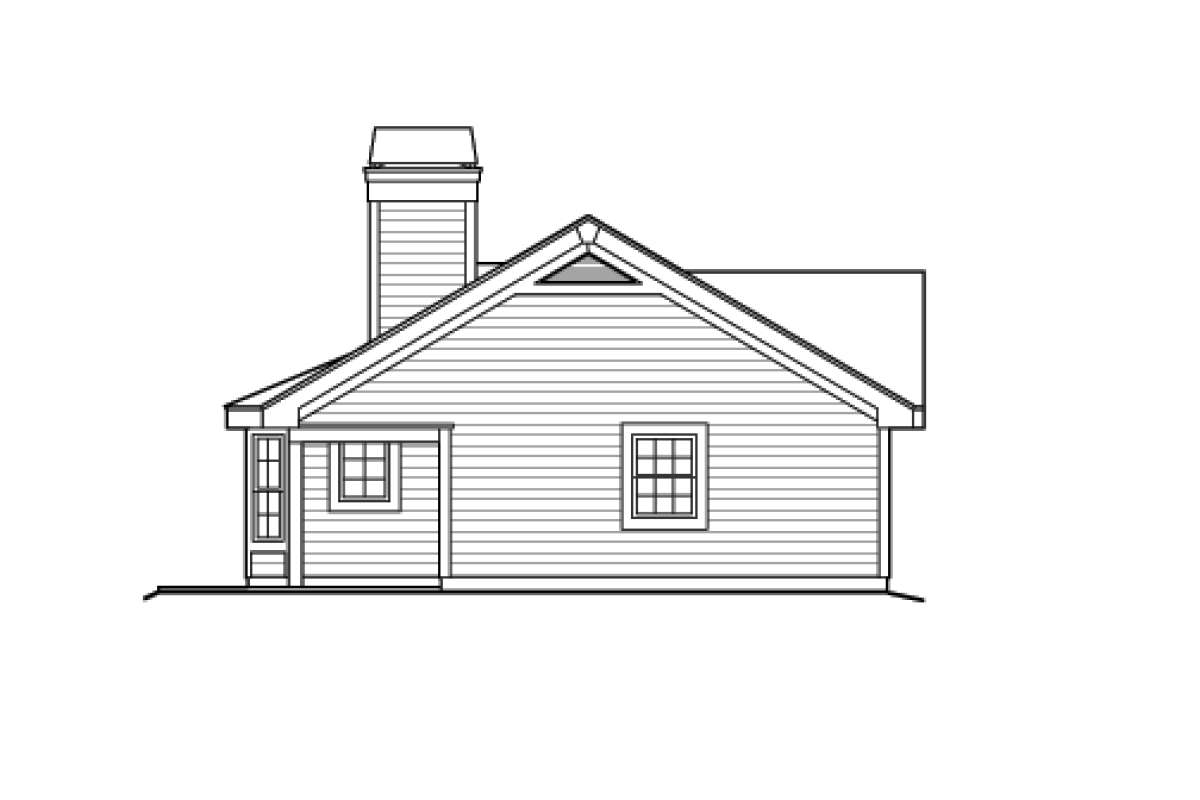

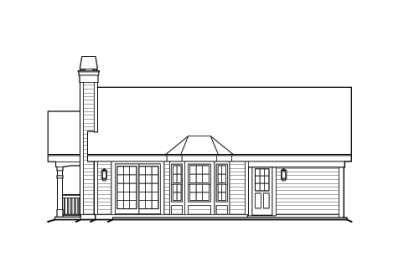

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Country cottage house plan is ideal for weekend getaways, extended vacations or a small home for empty-nesters. The simple design of the exterior delivers a big impact with its expansive front covered porch, open railing and gentle arches atop columned beams. There are approximately 480 square feet of living space in the home which is comprised of one bedroom and one bath. The one car garage adds an additional 251 square feet and is perfect for vehicle and maintenance storage items. The wraparound porch extends around the side of the home and is a great entertaining and relaxing feature of the house. There is a greeting foyer which spills into the main living spaces; a large and spacious living room features a handsome fireplace and access to the rear patio while the dining nook is highlighted by a triple bay window. The kitchen features attractive and modern cabinetry and appliances, and is a friendly space in which to cook and visit with family and friends. The combination of indoor and outdoor common spaces makes entertaining and relaxing in this home effortless and enjoyable. There is a spacious bedroom with ample closet space and a private bath attached. This is a comfortable small home ideal for weekend getaways and adventurous living.
