Traditional House Plan 5633-00243

Sq Ft421
Beds1
Baths1
1/2 Baths0
Stories1
Cars1
Width27' 0"
Depth27' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

  REVERSE     PRINT     DOWNLOAD   Images copyrighted by the designer.

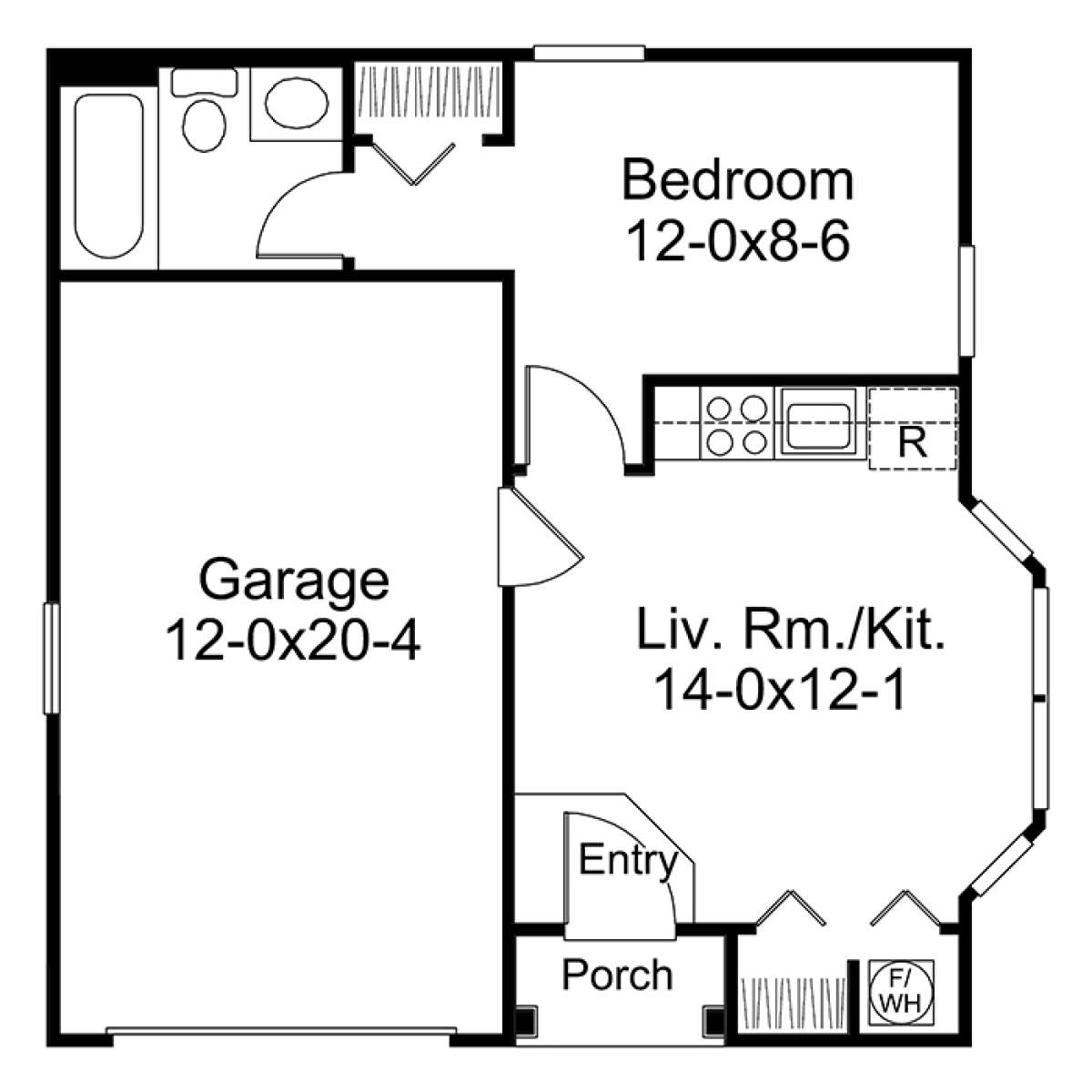

Main Floor Plan for House Plan #5633-00243
Main Floor Plan
Main Floor Plan for House Plan #5633-00243


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.
  • SET OF ELEVATIONS

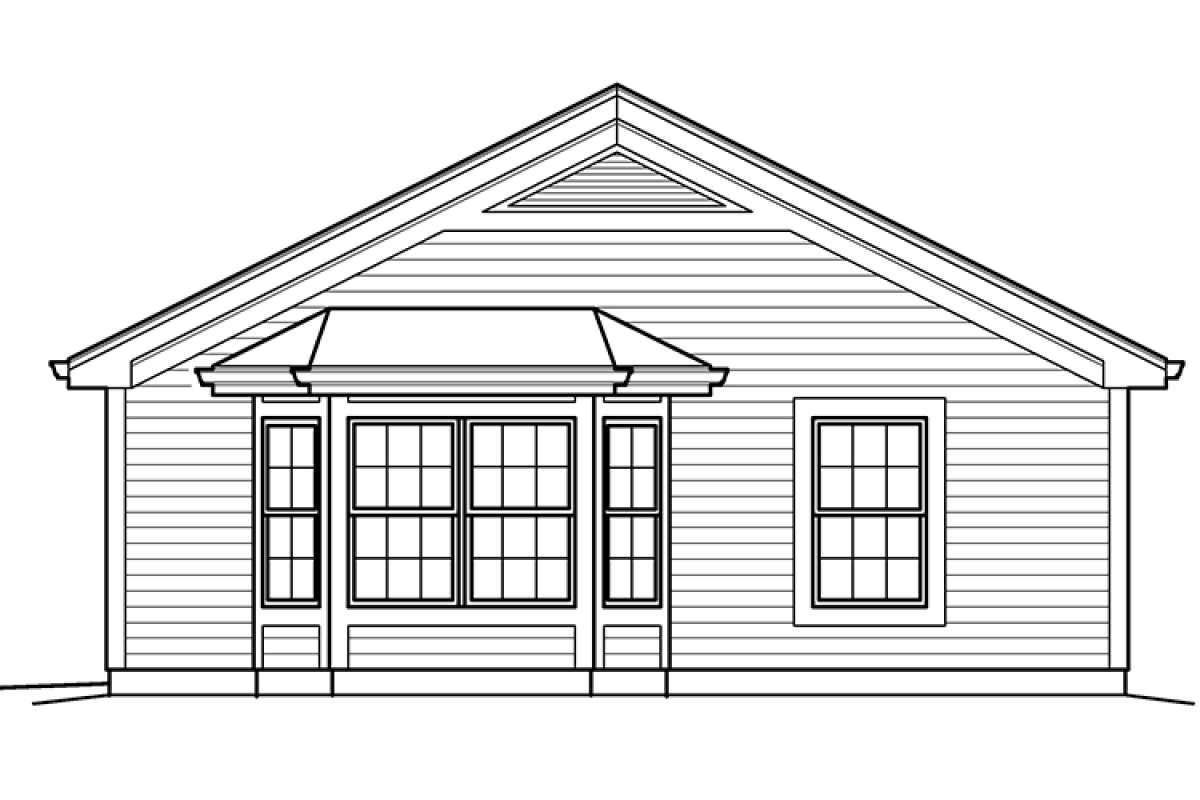

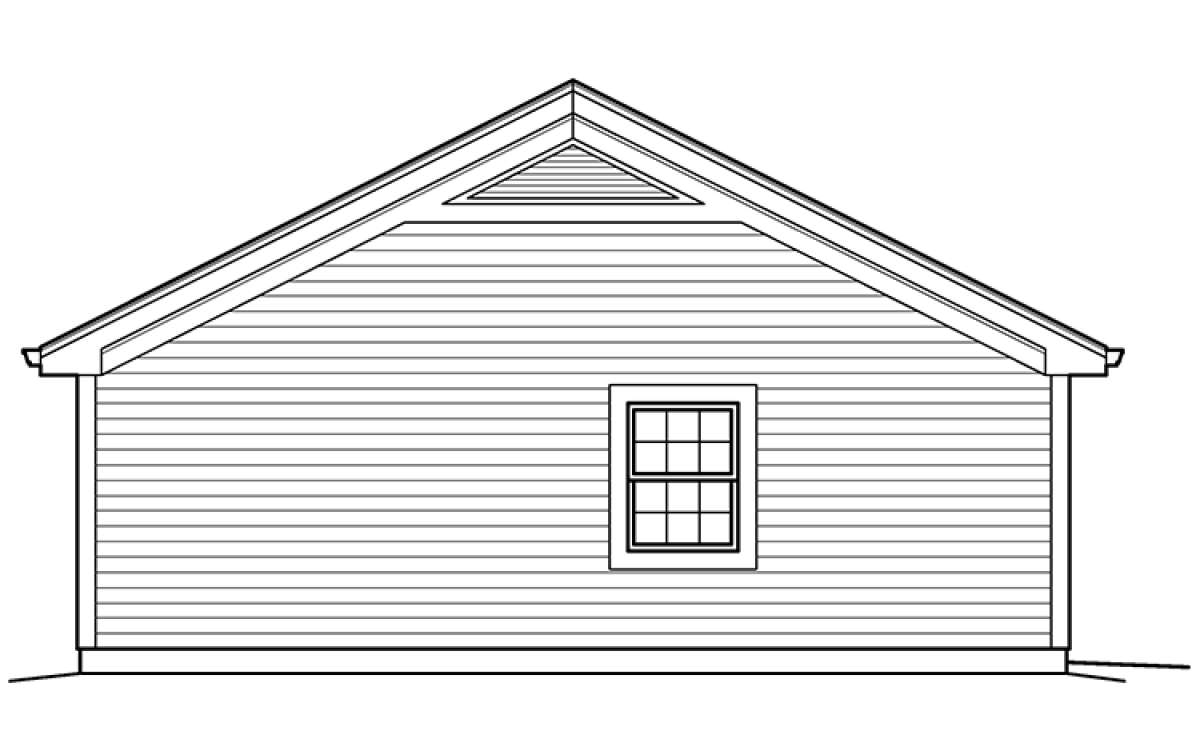

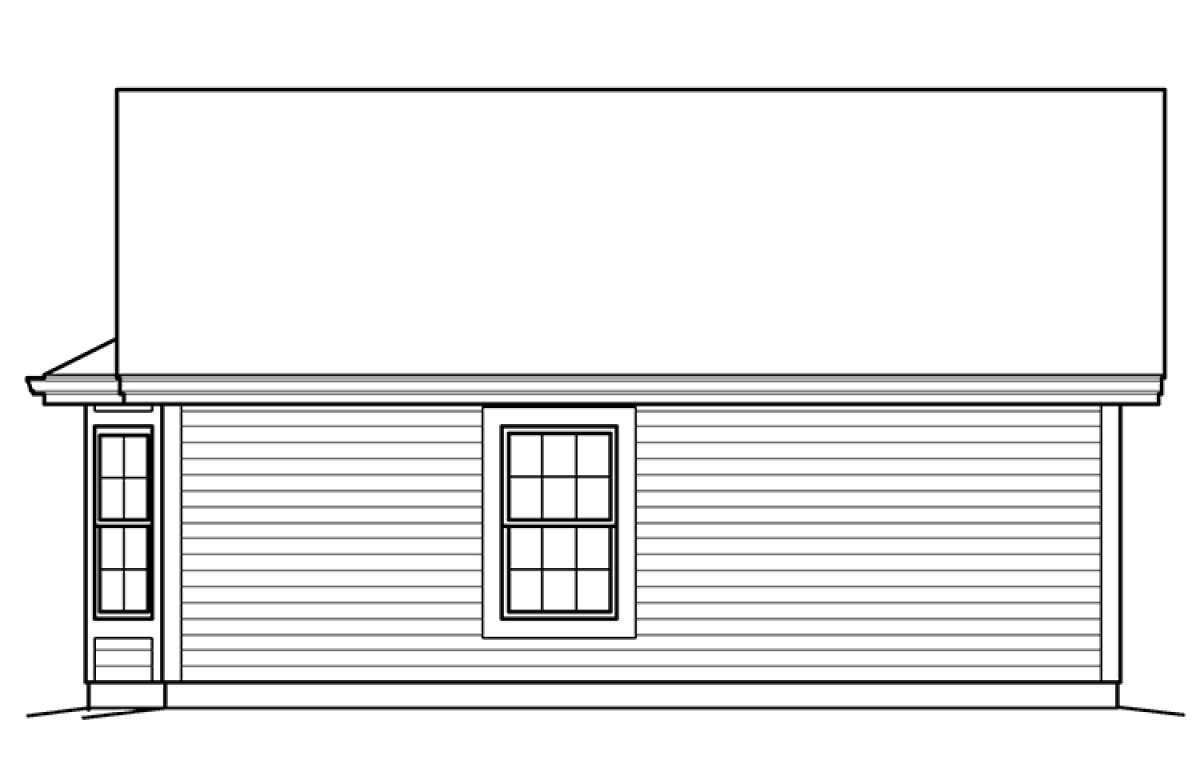

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This attractive Traditional house plan features an exterior with beautiful curb appeal and an interior that is compact yet, offers an efficient and functional floor plan. The façade of the home is highlighted with a welcoming front covered porch featuring columned beams and an overhead arch. Simple construction, a tidy roof line and bay window add charm and character to the exterior. This home is ideally designed as a retreat for a young couple, empty nesters or a single professional. Whether used as a permanent residence, a small vacation home or an art or design studio, this floor plan features good use of space and minimal waste of square footage. The house plan is perfect for a narrow and/or small property lot whether situated on an in-town urban lot or a secluded wooded lot; respectively the width and depth dimensions are of equal value – 27’. There are approximately 421 square feet of living space on one floor with an open concept floor plan, one bedroom and one bath. The one car garage is a great addition and offers a side window view and good vehicle and storage space. There is a garage entrance into the home’s interior as well as a front foyer entrance that immediately opens onto the living/dining and kitchen combination. This space measures 14’ x 12’1” and is situated in a large bay window opening adding to the spaciousness of the rooms and offering access to plenty of sunlight. There is a nearby coat closet and mechanical room. The kitchen is compact with sink access, counter space, space for a range/oven as well as refrigerator space.

The rear of the home houses the bedroom and bath for privacy and convenience. The bedroom, while small, is perfectly sized for a couple, a single person or perhaps, could hold a double bed and a bunk bed. There are two window views and an ample closet nearby. The attached bathroom features a vanity space, a toilet area and a tub/shower combination. This small but, efficient, Traditional house plan offers an attractive exterior and a floor plan that is open and suitable for purposeful living.
