European Plan 5633-00126

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,500
Beds 3
Bath 3
1/2 Baths 0
Car 3
Stories 1
Width 80' 8"
Depth 78'

Floorplan Drawings

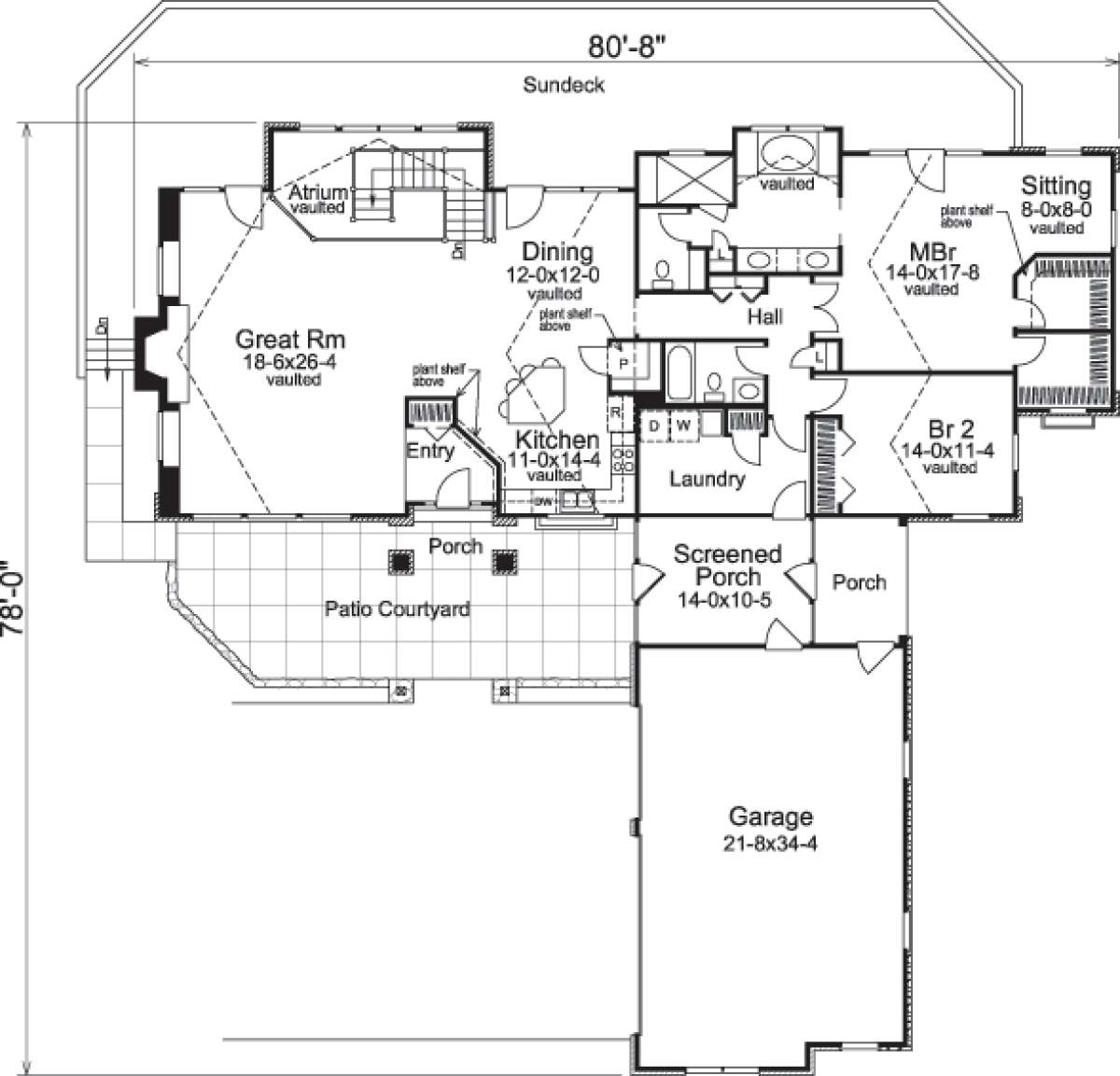

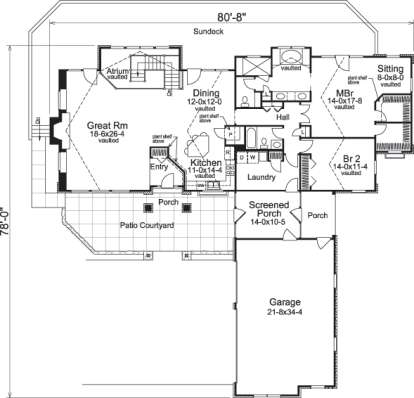

Floorplan 1
Floorplan 1 for House Plan #5633-00126

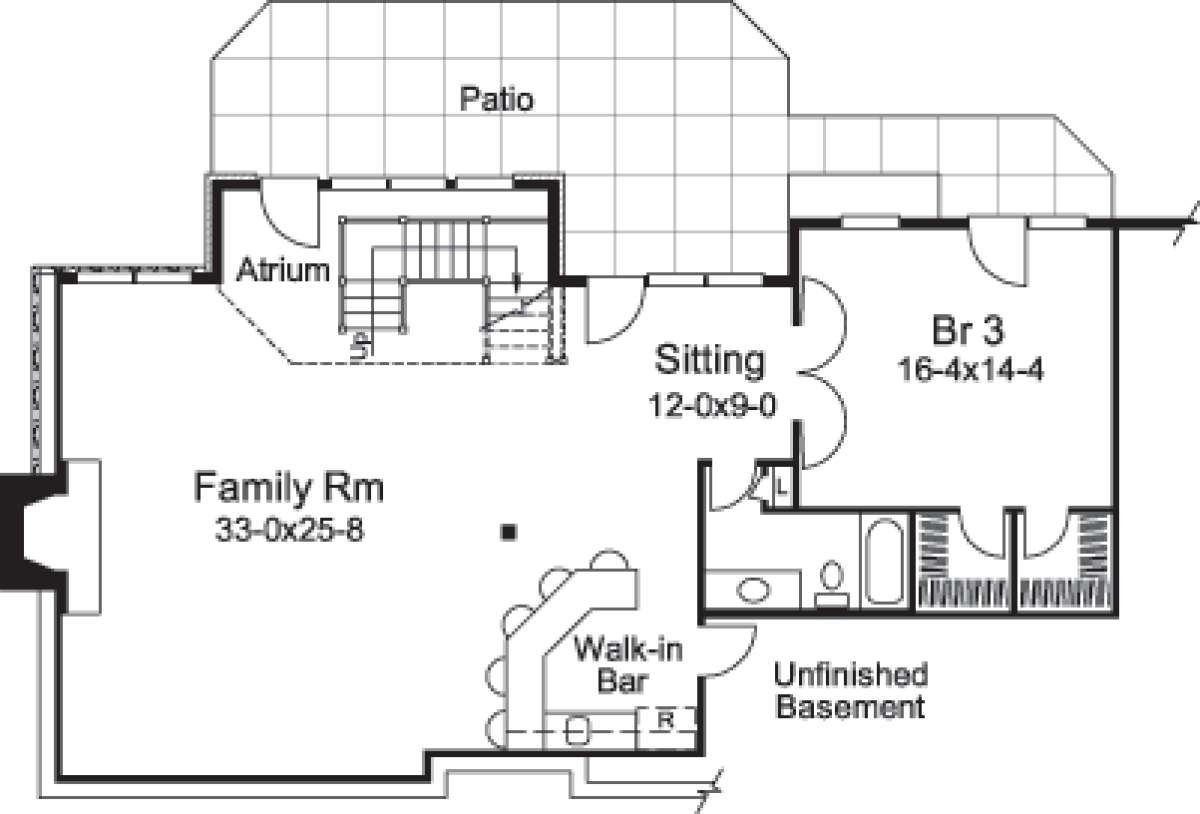

Floorplan 2
Floorplan 2 for House Plan #5633-00126


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

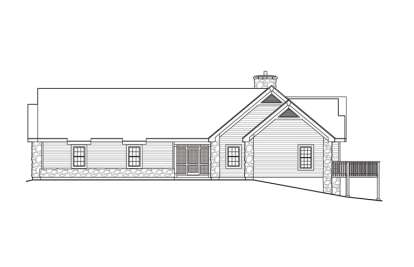

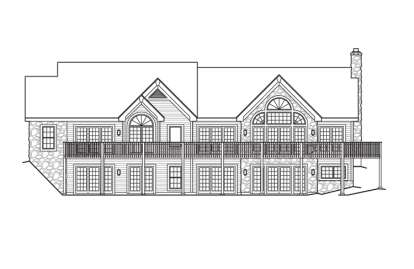

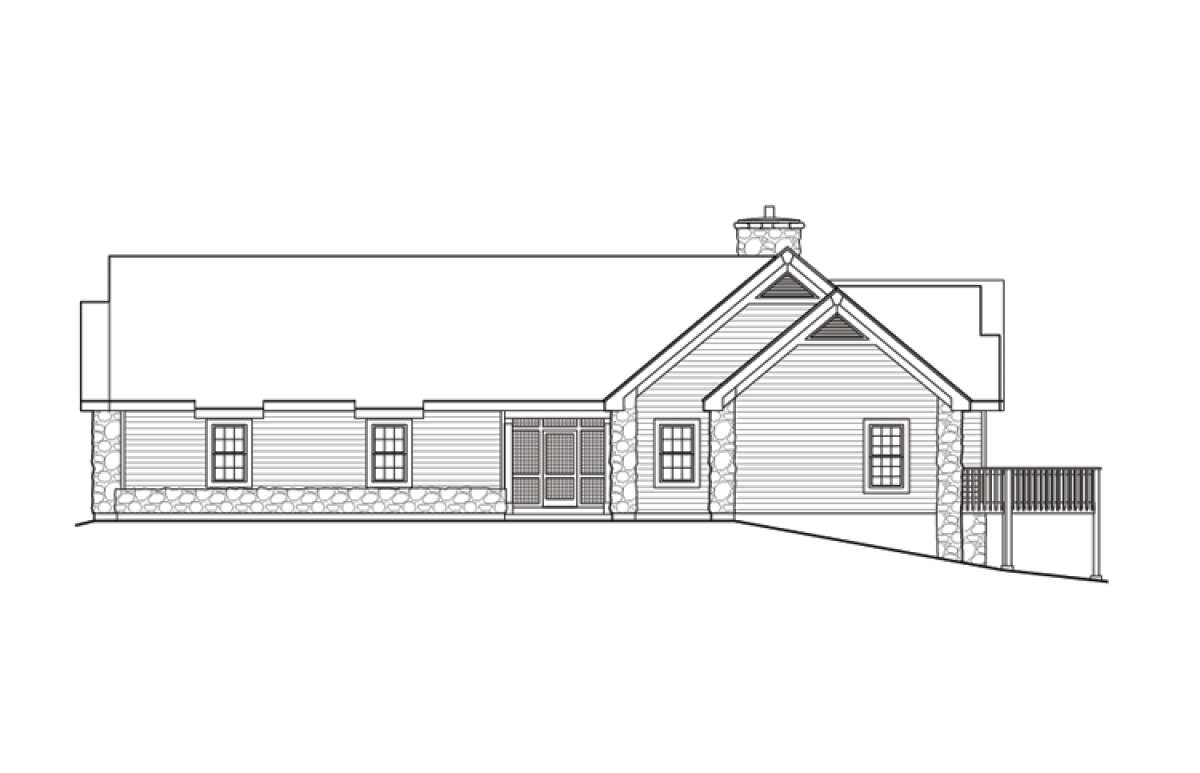

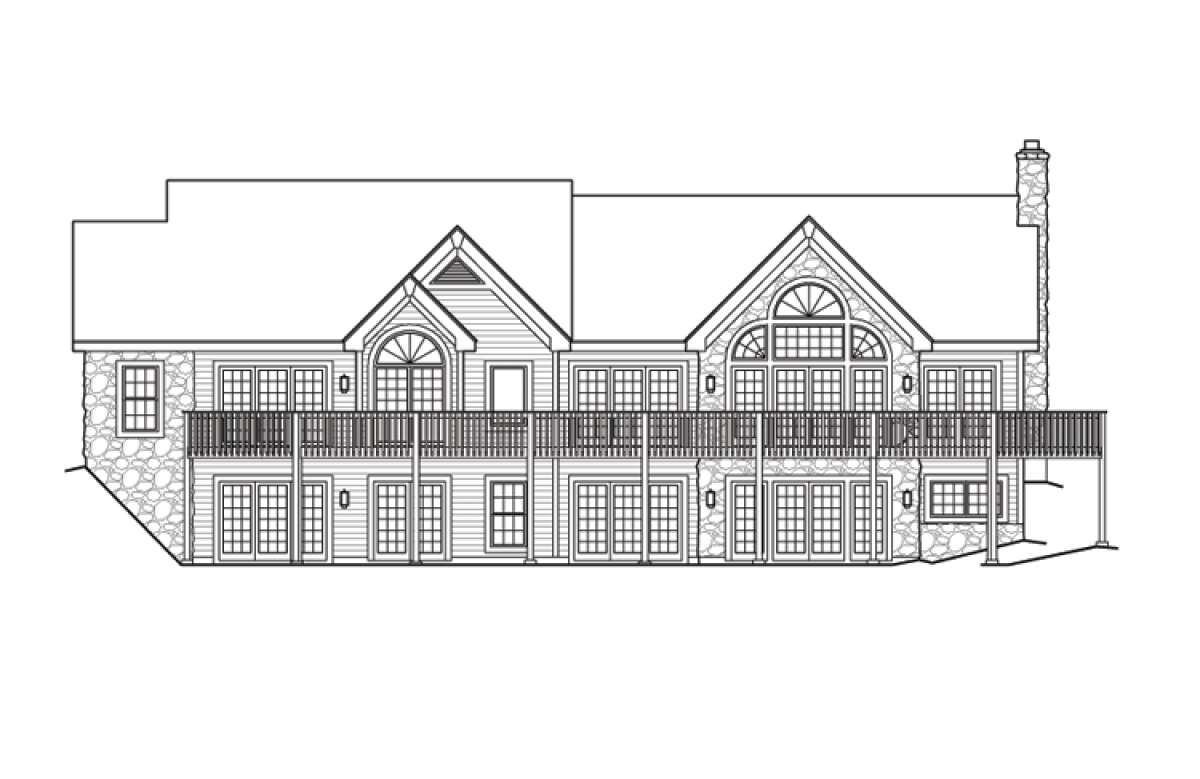

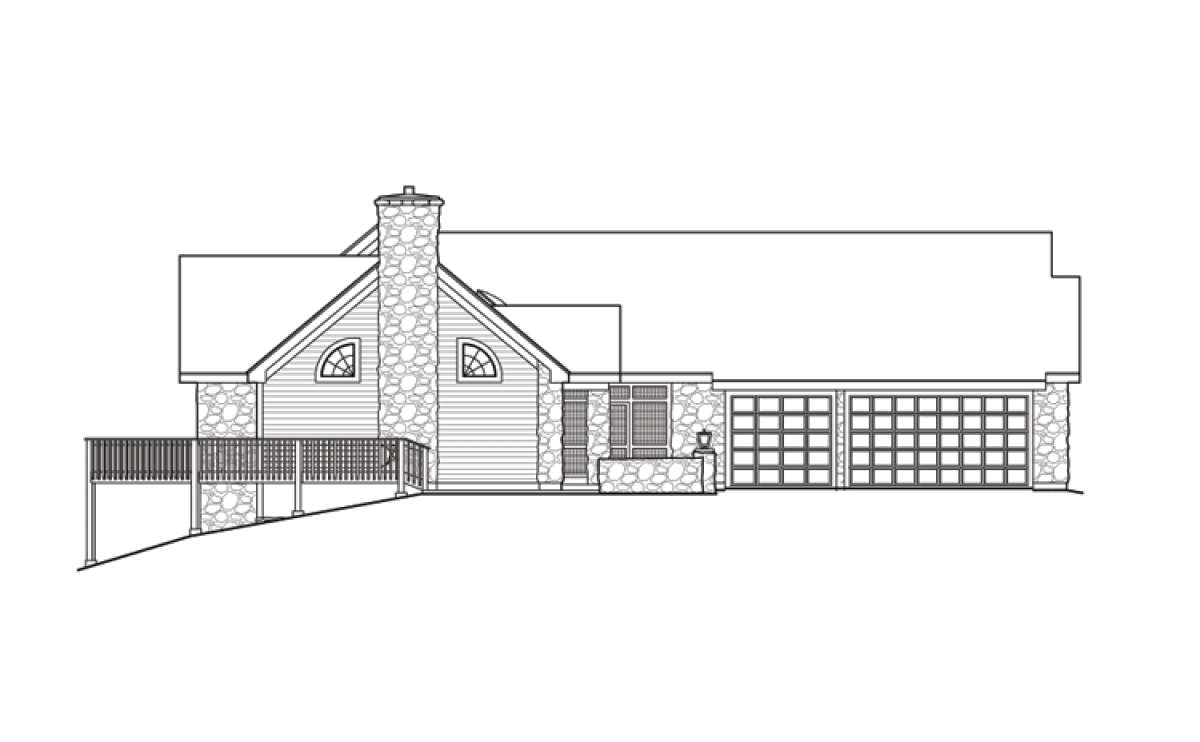

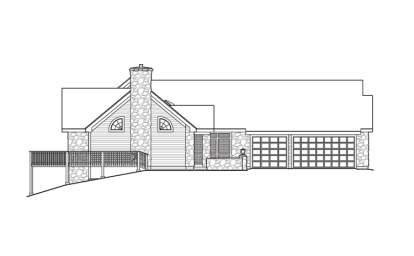

  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

Thirty-five hundred square feet of living space is highlighted in this European Ranch styled house plan. In addition to the abundant interior space, the home features dramatic country architecture with a tidy courtyard entrance. The large courtyard exterior encompasses superior design features which include stone walls, lantern columns and a welcoming front covered porch. There is a screened in porch and additional porch off the front courtyard which allows for outstanding outdoor dining and entertaining space. The open concept floor plan introduces wide open spaces which are perfectly conducive to superior entertaining; the vaulted great room spans the width of the home and features a handsome stone fireplace, built-in cabinetry and an atrium with a dramatic staircase and two and a half story window walls. A vaulted dining room is sun drenched and features access to the expansive rear deck. The grand scaled kitchen is highlighted with a center casual eat-in bar, a separate pantry and double sink windows views. Two bedrooms are situated on the main floor; the second bedroom is spacious with generous closet space and provides access to the adjacent hall bath and linen closet. The main level master suite provides privacy and includes a vaulted master bedroom with adjoining sitting room and private access to the rear deck. There are his and her oversized walk-in closets and the master bath is a work-of-art with beautifully designed amenities and floor space. There are dual vanities, a separate shower, a compartmentalized toilet, a linen closet and soaring ceiling heights along with double window views which preside over the garden tub.
The walk-out basement level features an enormous family room with walk-in bar and patio access. There is a third bedroom which enjoys a spacious footprint and double walk-in closets along with a sitting room and private full bath. This lower level space could function as family space or as an in-law or teen-ager suite as well. This home enjoys a multitude of entertaining and private family spaces along with a striking exterior façade.
