Country Plan 5633-00130


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,914
Beds 4
Bath 3
1/2 Baths 0
Car 2
Stories 1
Width 63' 8"
Depth 55' 4"

Floorplan Drawings

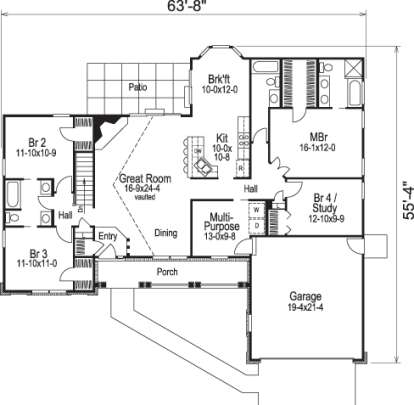

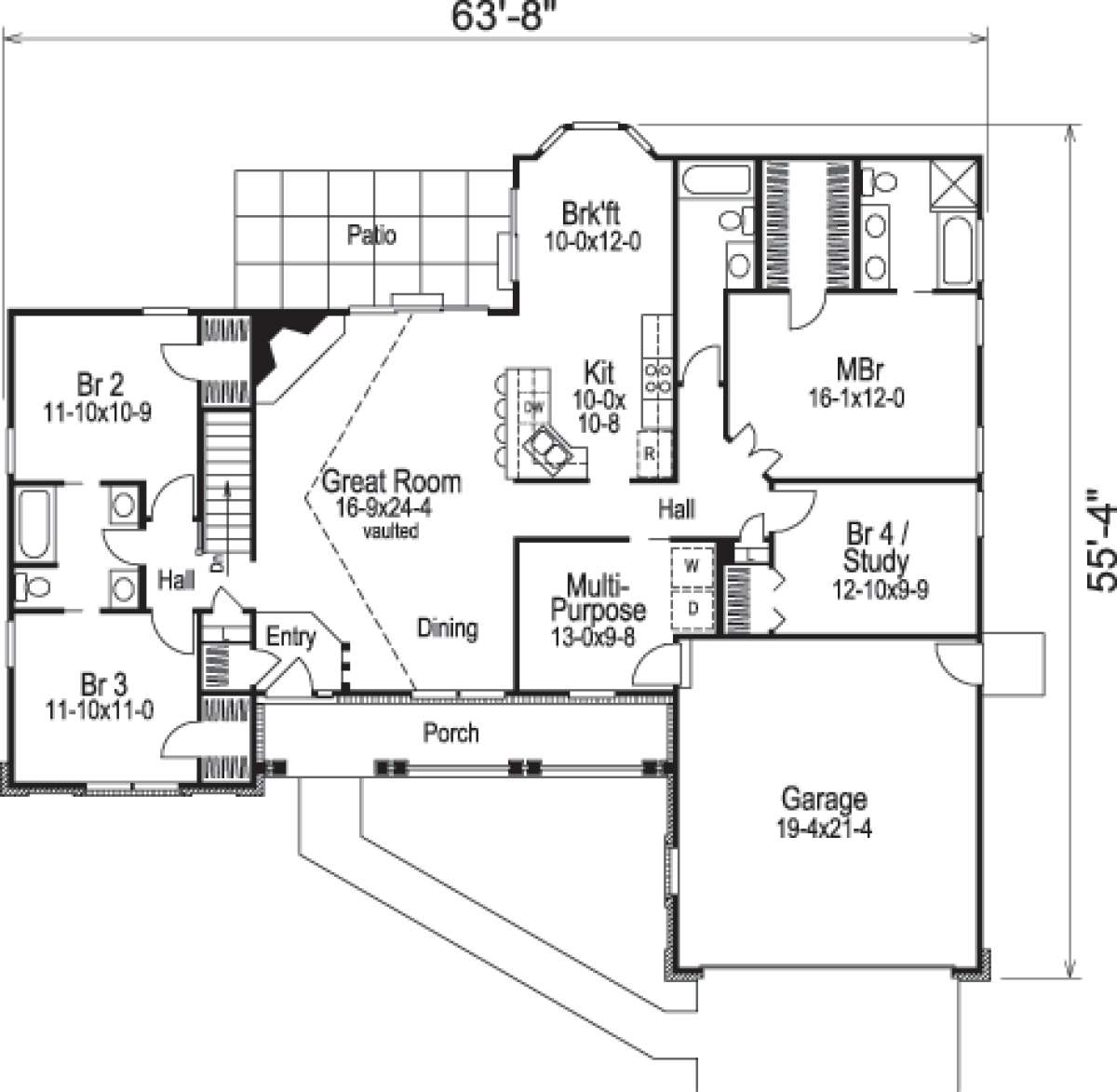

Floorplan 1
Floorplan 1 for House Plan #5633-00130

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

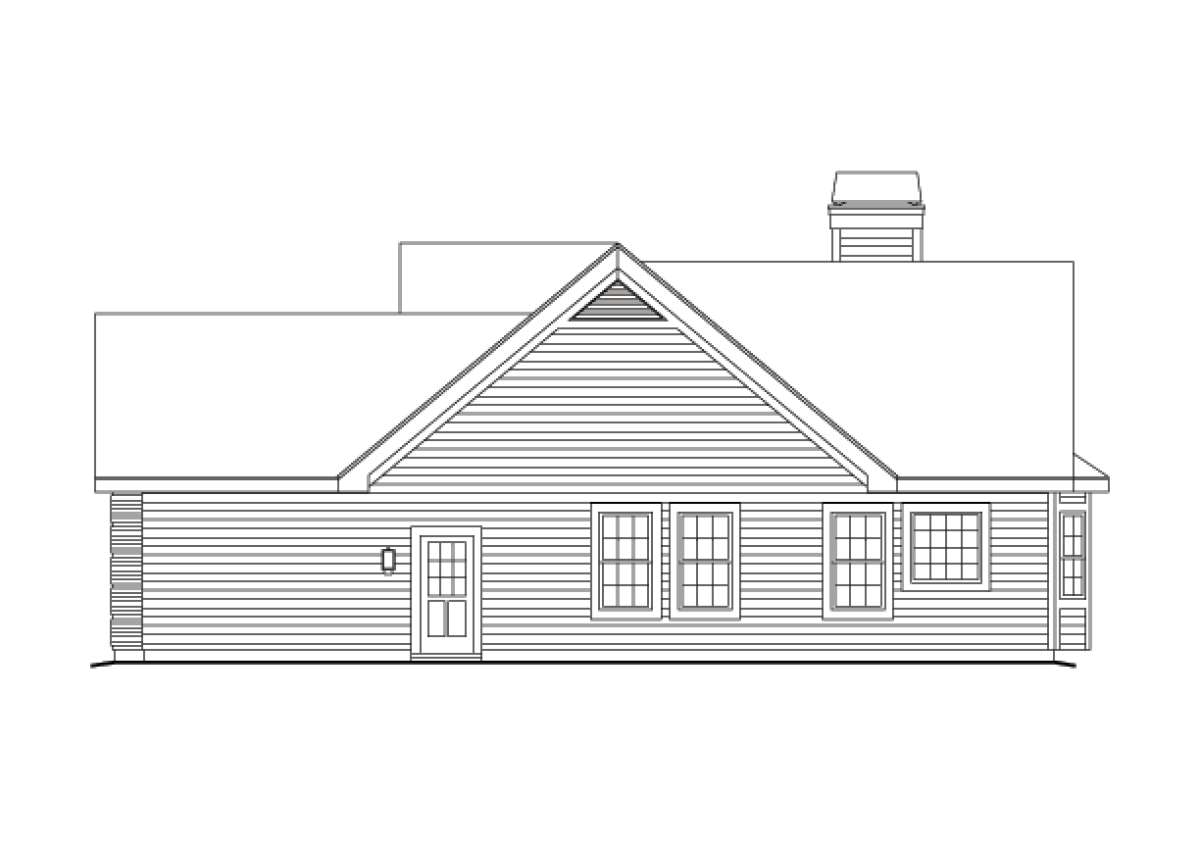

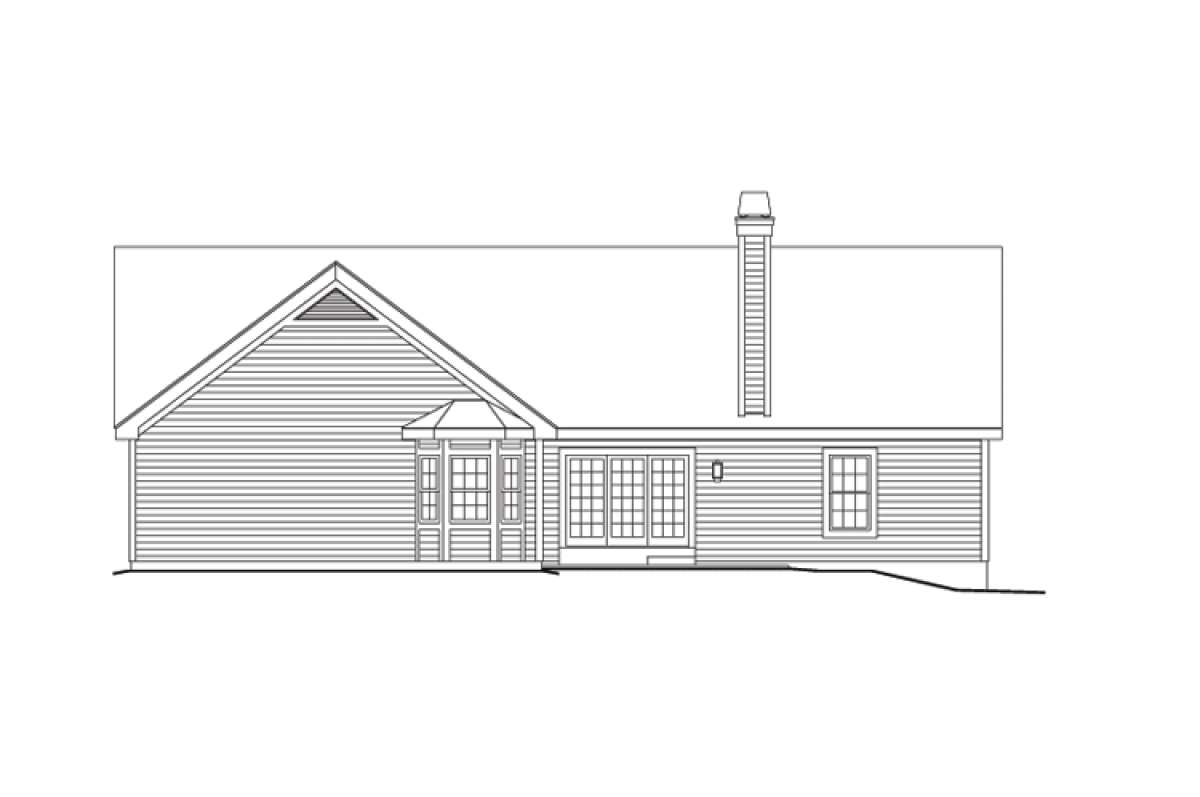

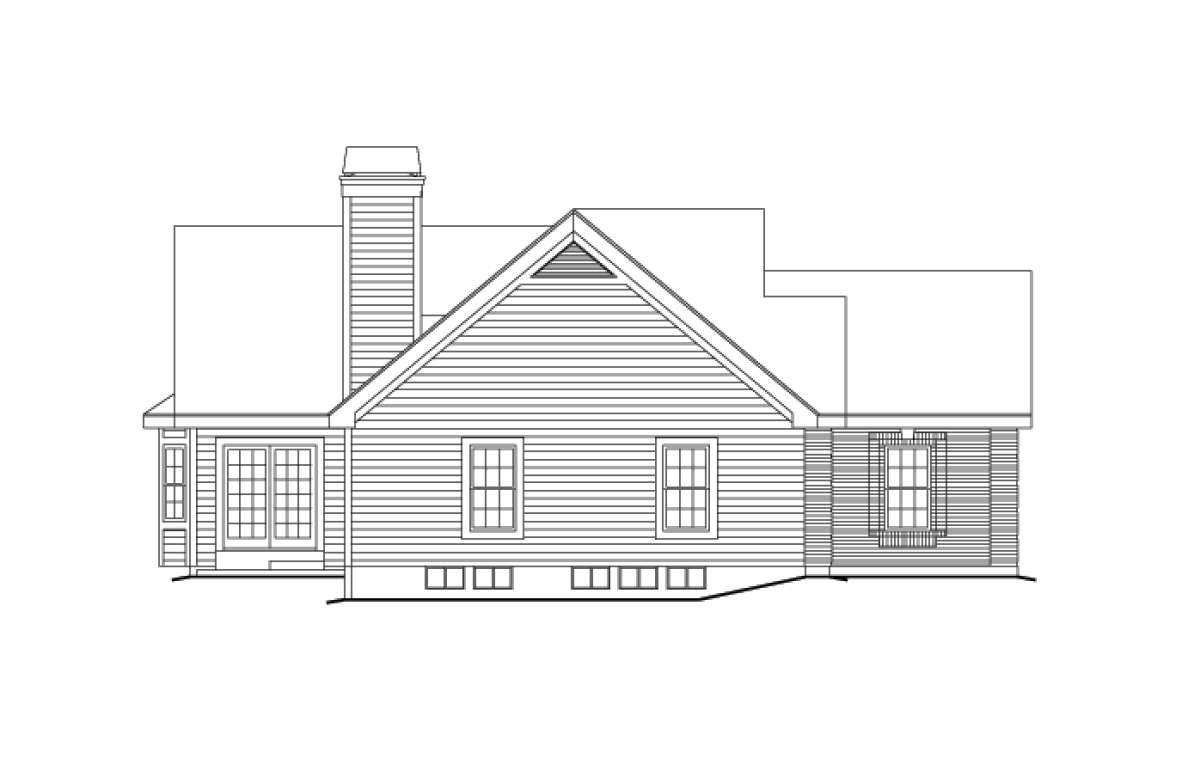

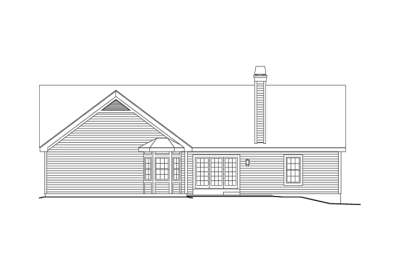

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This sprawling Ranch styled home has four bedrooms and three baths in approximately 1,914 square feet of living space. The home’s drawings are situated on a basement foundation which adds an additional 1,902 square feet making this home versatile and brimming with expansion options. There is a two car, front loading garage with 412 square feet of vehicle and storage space. The exterior façade is highlighted by brick, a Palladian style window feature and an expansive front covered porch. The greeting foyer features a coat closet for convenience before opening onto the main living areas. This open concept design features soaring ceiling heights in both the great room and dining space. There is a corner fireplace and rear patio access in the great room. A large breakfast bar and plenty of counter and cabinet space is featured in the gourmet kitchen while the adjoining breakfast room is tucked into the triple bay window space. A flex space provides the ideal spot for a multi-purpose family room or hobby room. There is a powder room for guests, hall linen closet and laundry facilities, as well.
Two bedrooms are situated on one side of the home and both feature large walk-in closets and great window views. There is a jack and jill bath with dual vanities, a private toilet area and tub/shower combination along with a hall linen closet. The master suite is situated on the opposite side of the home for privacy and features French door access into the master bedroom. This is a comfortably large space with an attached, oversized master walk-in closet. The master bath is highlighted by dual vanities, a separate shower, toilet area and a large soaking tub. The fourth bedroom with plentiful closet space is adjacent to the master suite and would function nicely as a nursery or study. This home offers a fully functional and comfortable floor plan on a basement foundation.
