Traditional House Plan 5633-00083

Sq Ft3,342
1/2 Baths0
Width75' 8"
Depth52' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

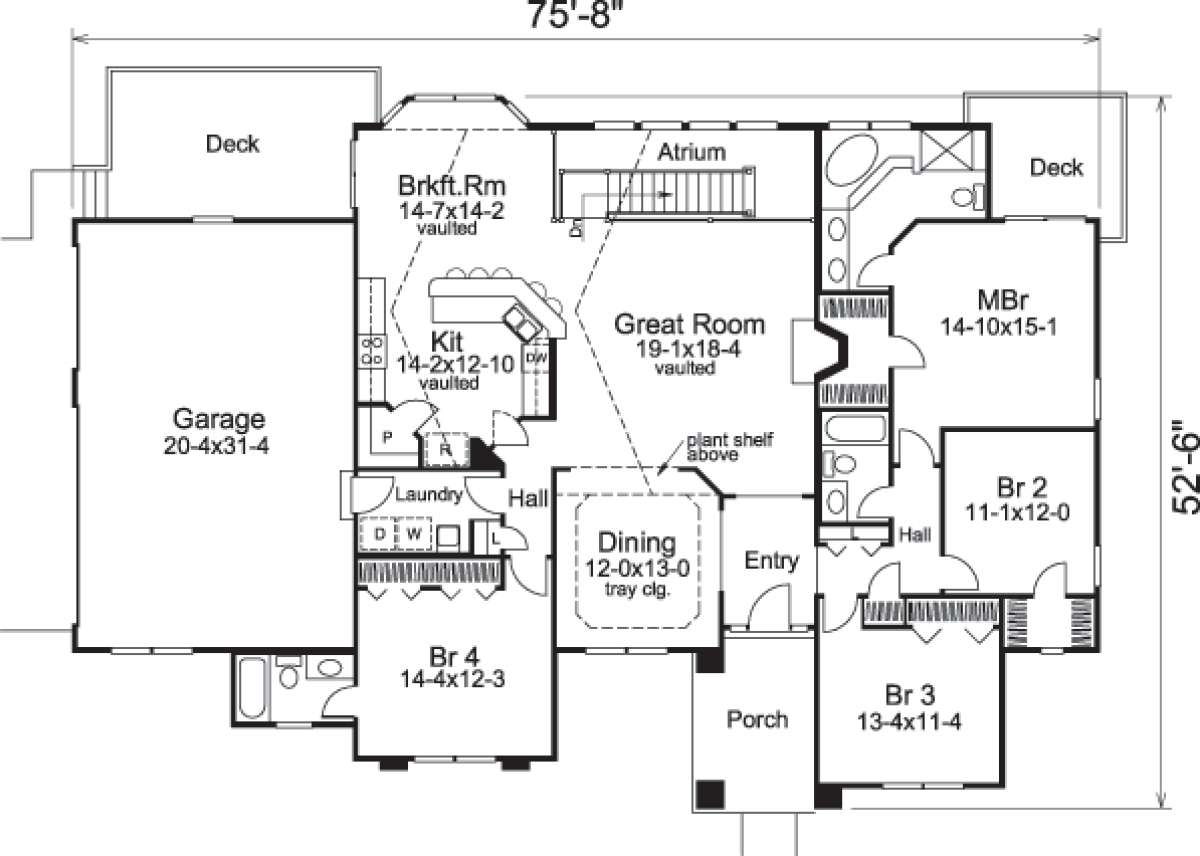

Floorplan 1 for House Plan #5633-00083

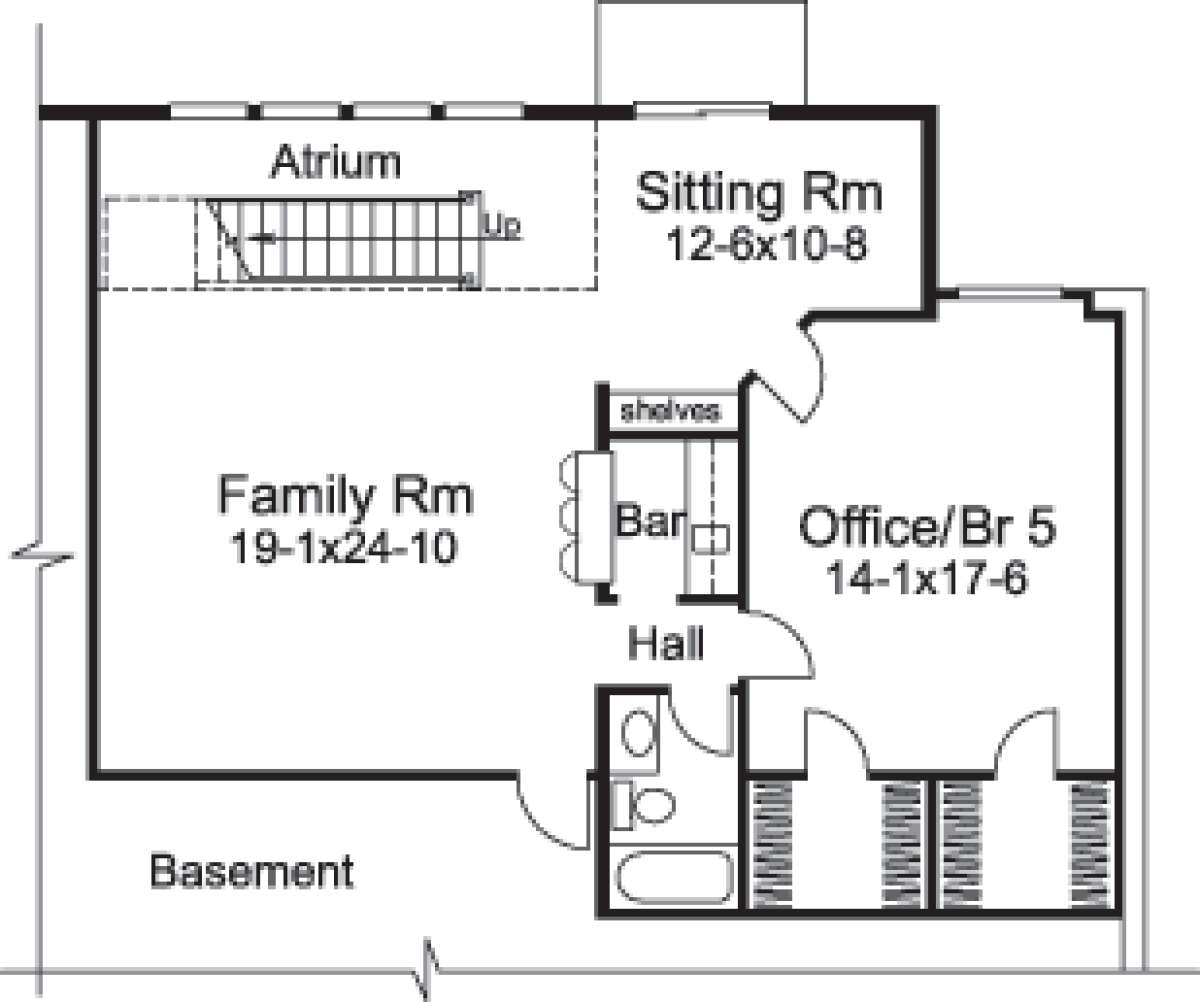

Floorplan 2 for House Plan #5633-00083
Floorplan 1
Floorplan 1 for House Plan #5633-00083
Floorplan 2
Floorplan 2 for House Plan #5633-00083

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

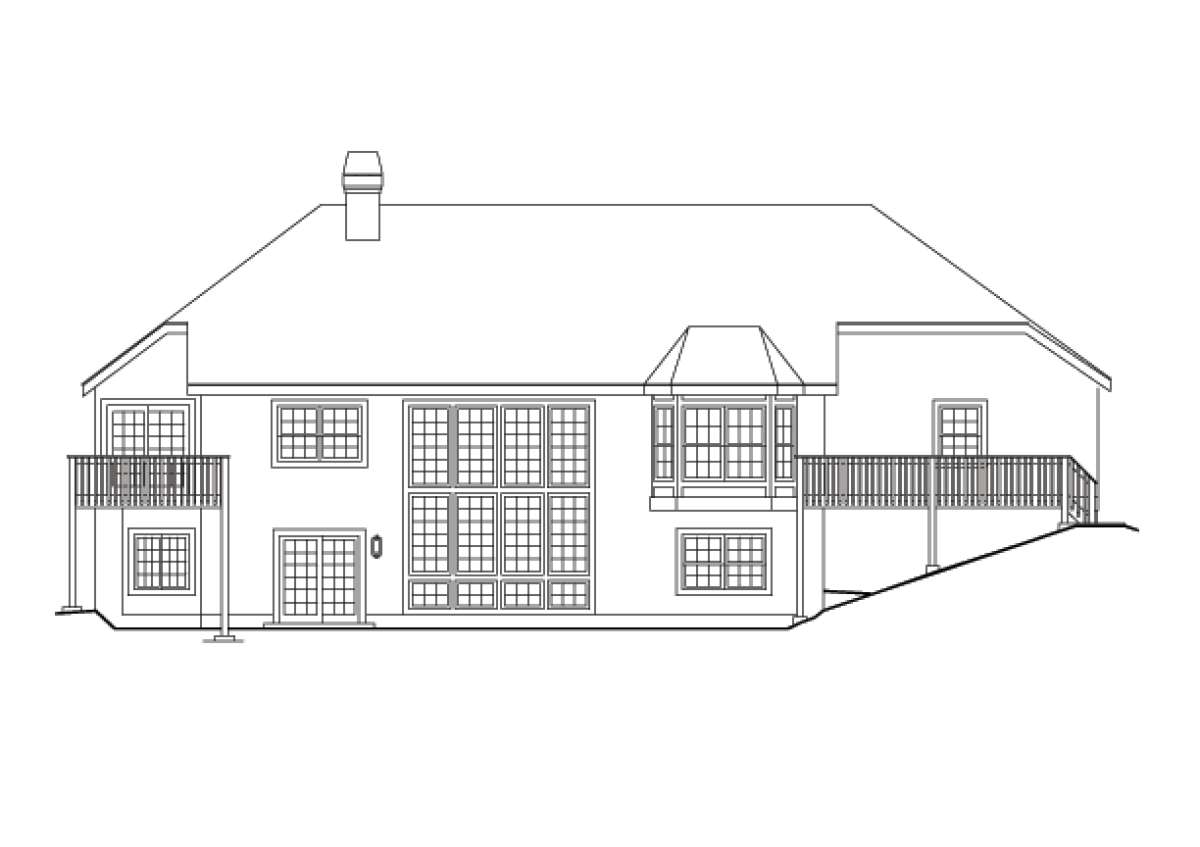

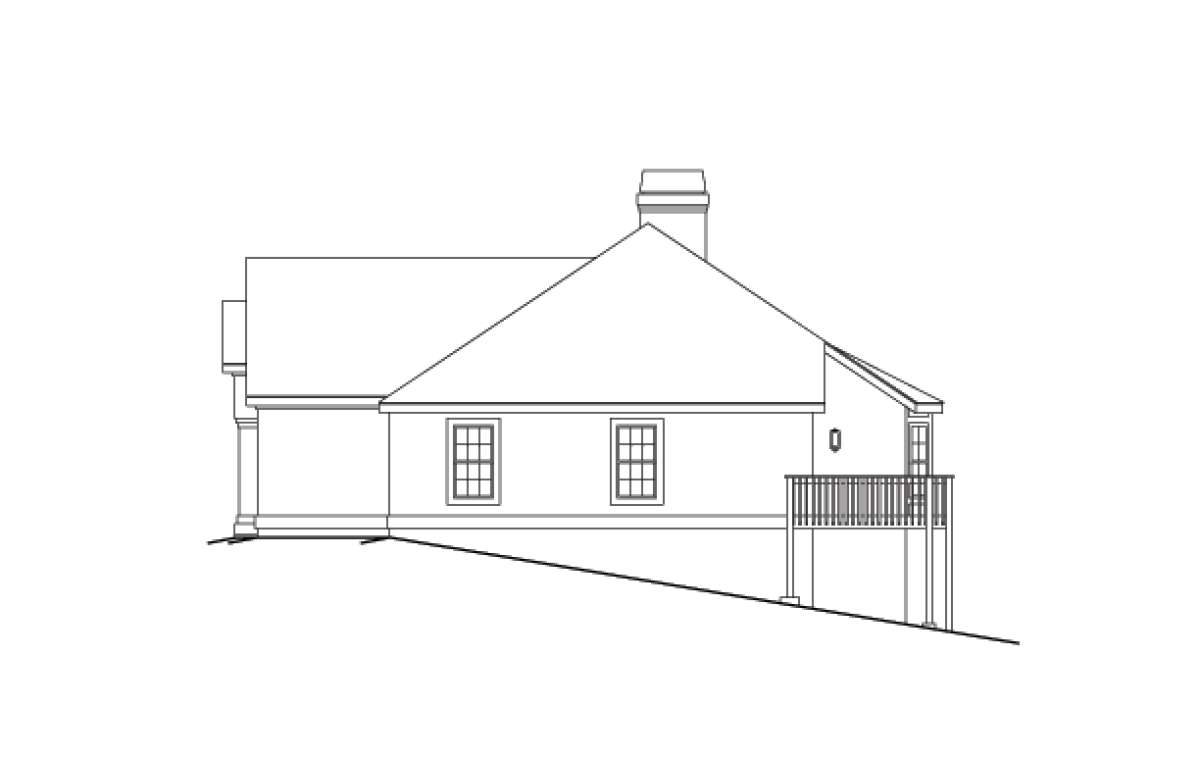

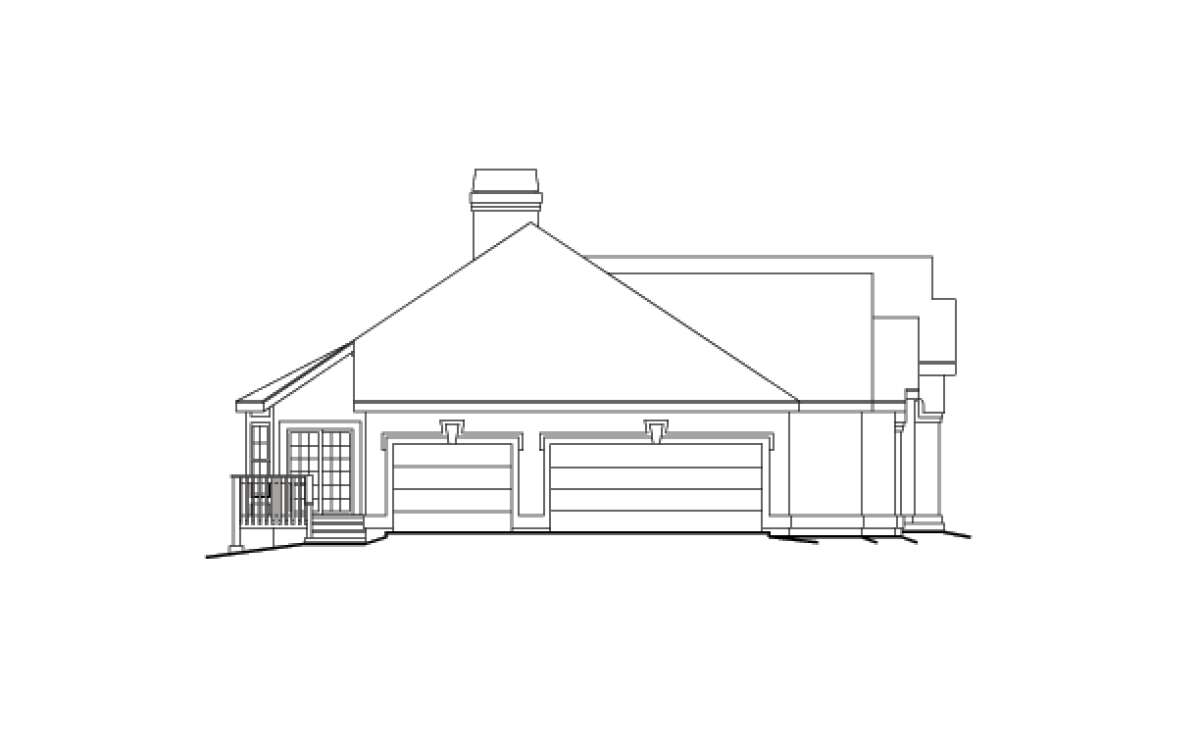

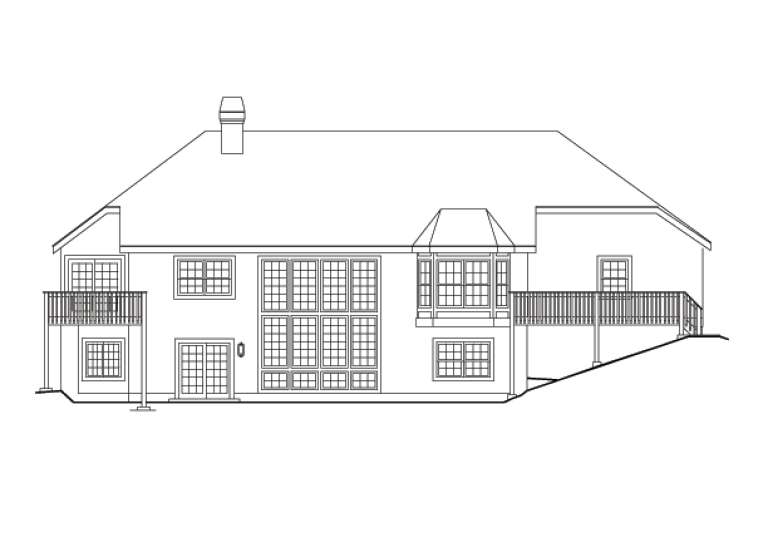

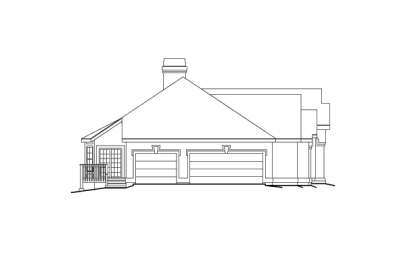

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

Superior quality craftsmanship is evident in the exterior façade of the home along with an interior layout which comfortably supports a large family’s needs. An incredibly stylish exterior consisting of stucco and Floridian architecture highlights the front façade of the home resulting in tremendous curb appeal. The home’s square footage is in excess of 3,340 square feet of living space and includes a walk-out basement. The lower level is ideal for an in-law or teen-age suite; there is a fifth bedroom with double walk-in closets, a private full bath and an adjacent sitting room. A large family room with walk-in bar basks in sunlight from the rear wall atrium window and could used as multi-purpose family room or living area adjoining the separate bedroom suite. An open concept floor plan features soaring ceiling heights throughout the space which includes the great room with handsome fireplace and formal dining room with trey ceiling. The gourmet kitchen and breakfast room are vaulted as well and the grand kitchen features the absolute best in modern conveniences and amenities; there is a corner walk-in pantry, a peninsula breakfast bar and loads of additional counter and cabinet space. The breakfast room is nestled into a large bayed window resulting in a bright and sunny space to casually dine and there is access to the rear deck. The three car, side entry garage provides access into the interior laundry room that offers a sink area.
