Traditional House Plan 5633-00076

Sq Ft3,169
Beds4
Baths2
1/2 Baths1
Stories1
Cars3
Width55' 8"
Depth51' 8"

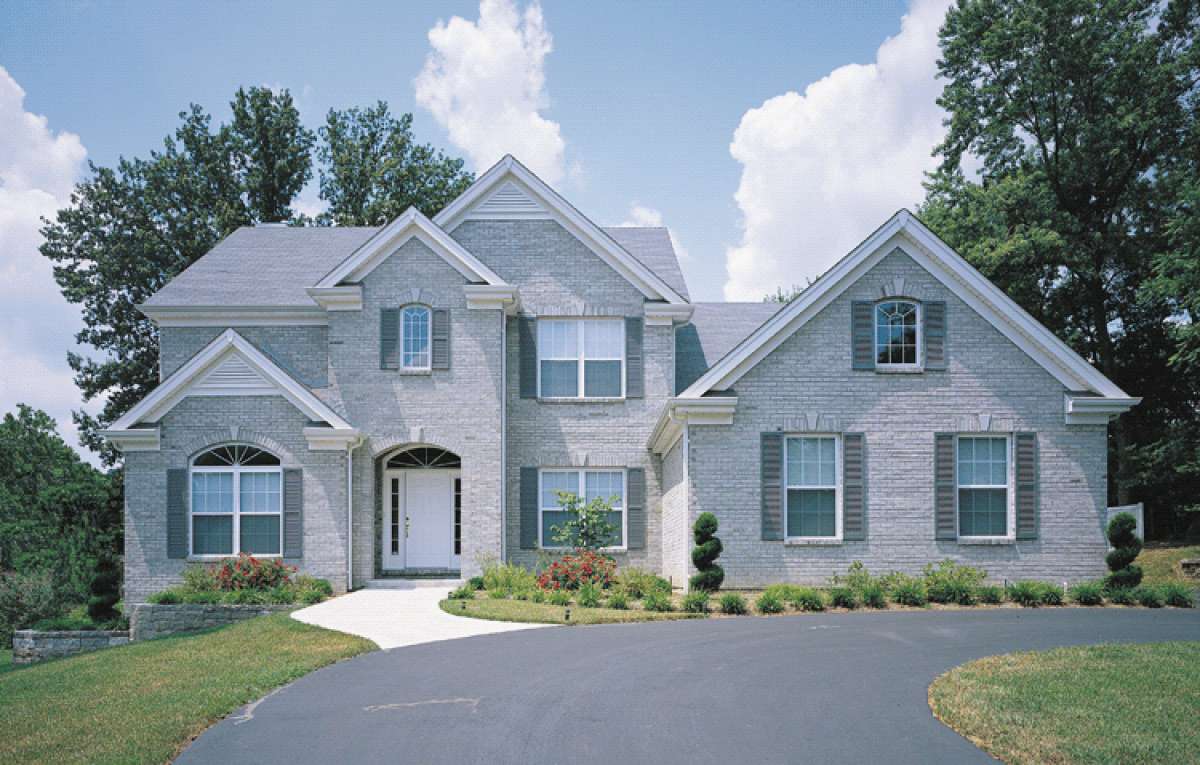

Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5633-00076
Floorplan 2 for House Plan #5633-00076

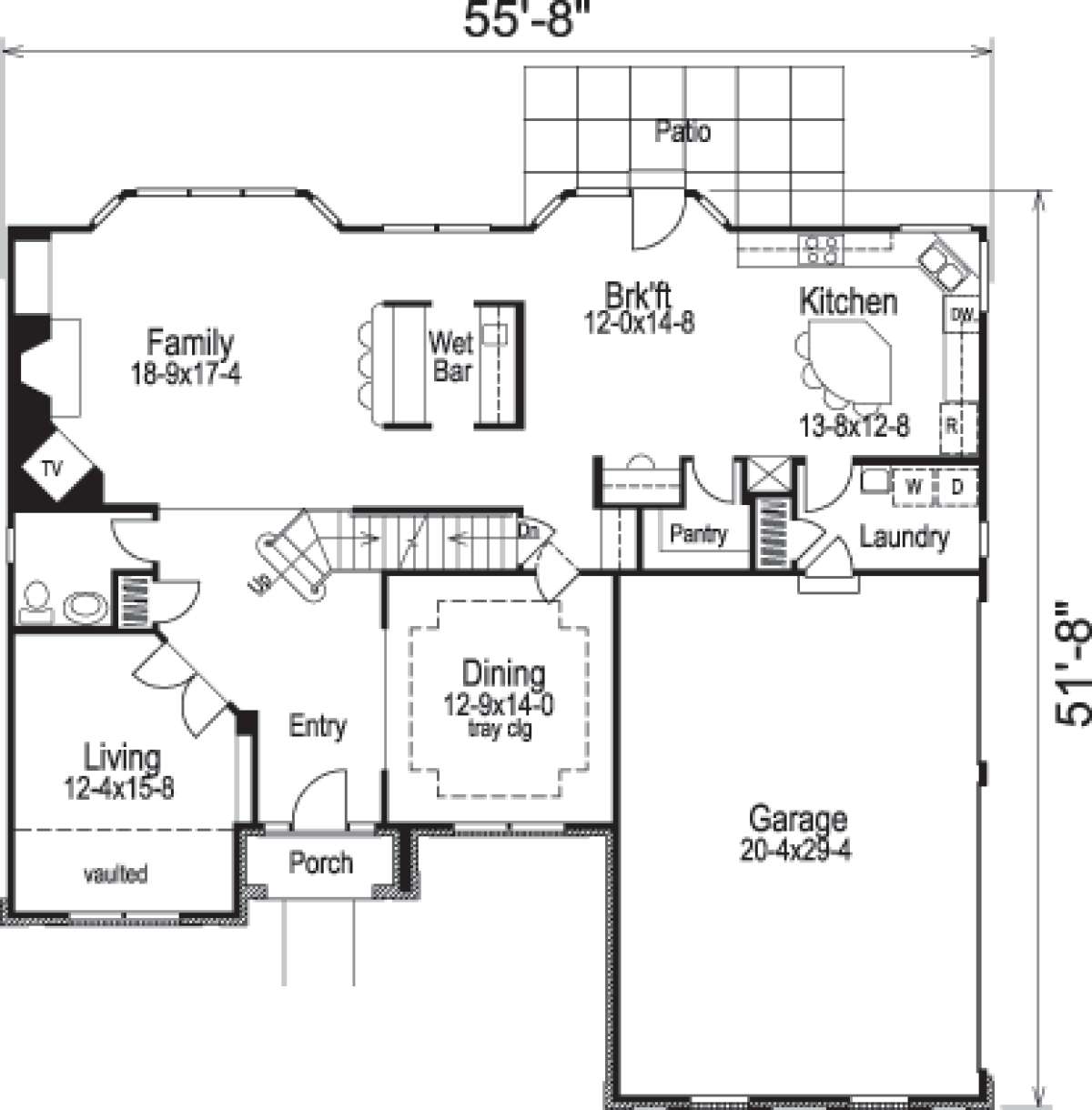

Floorplan 1
Floorplan 1 for House Plan #5633-00076

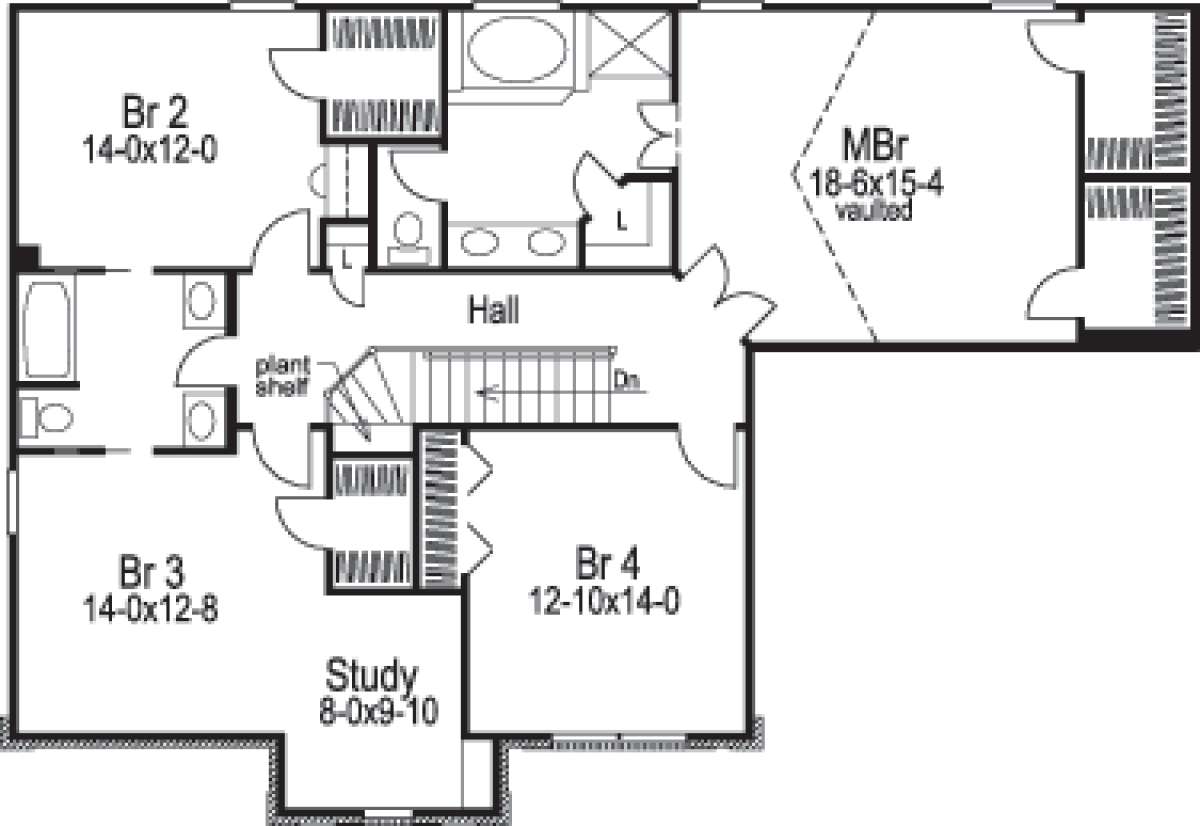

Floorplan 2
Floorplan 2 for House Plan #5633-00076


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

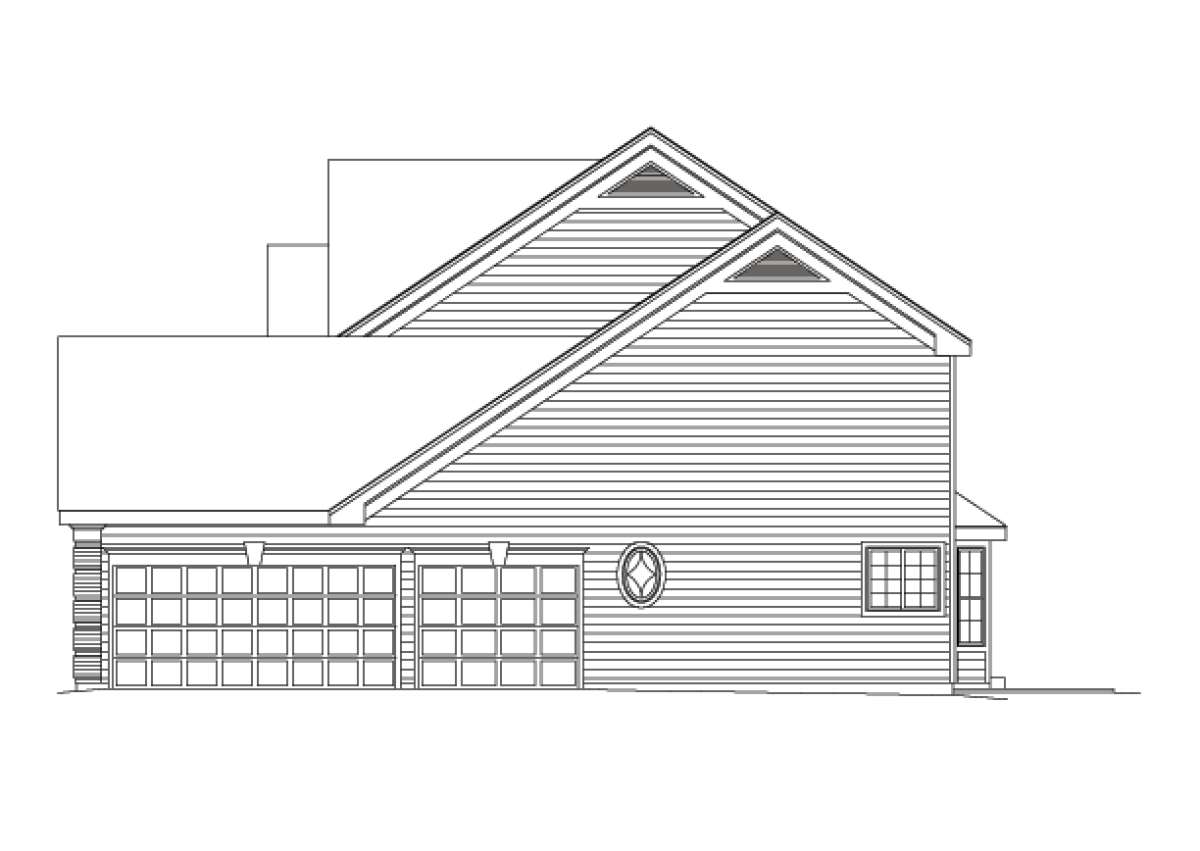

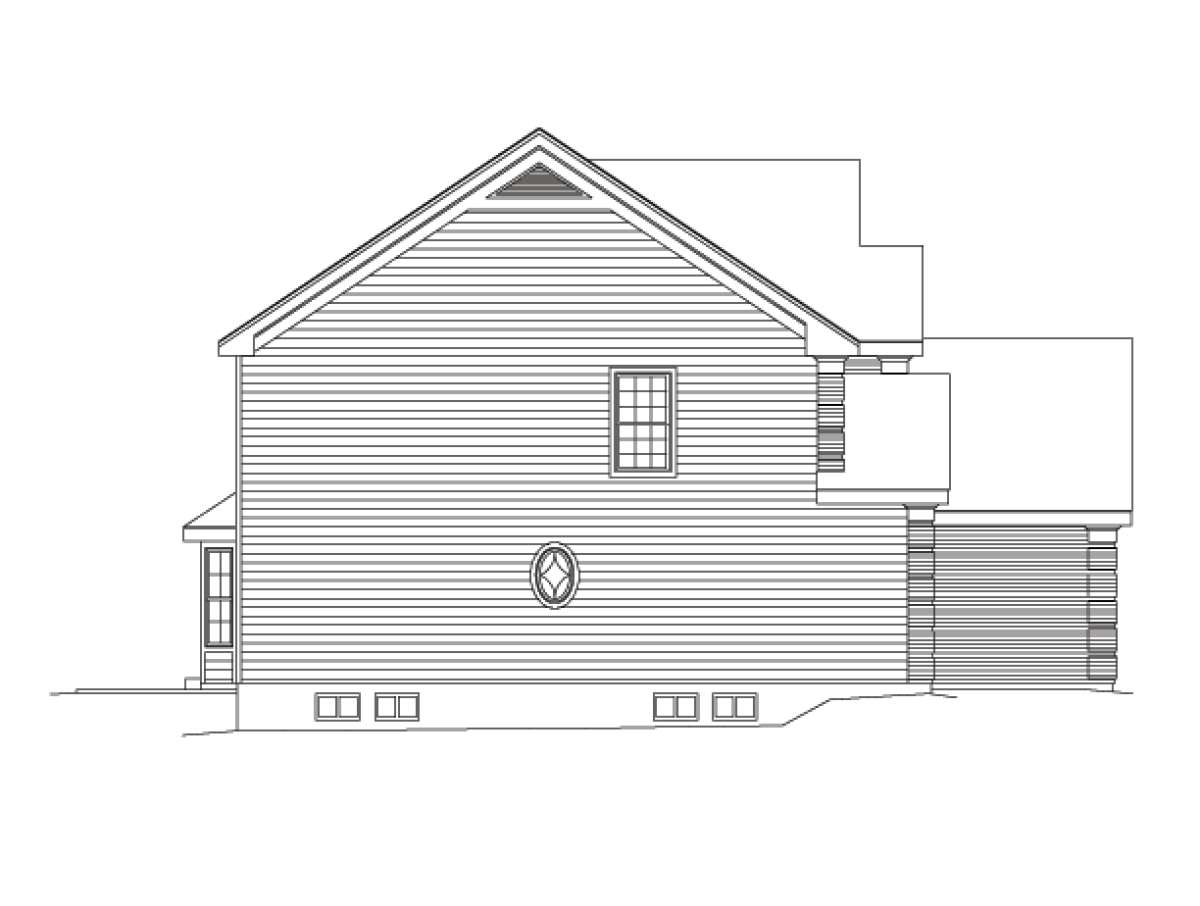

  • SET OF ELEVATIONS

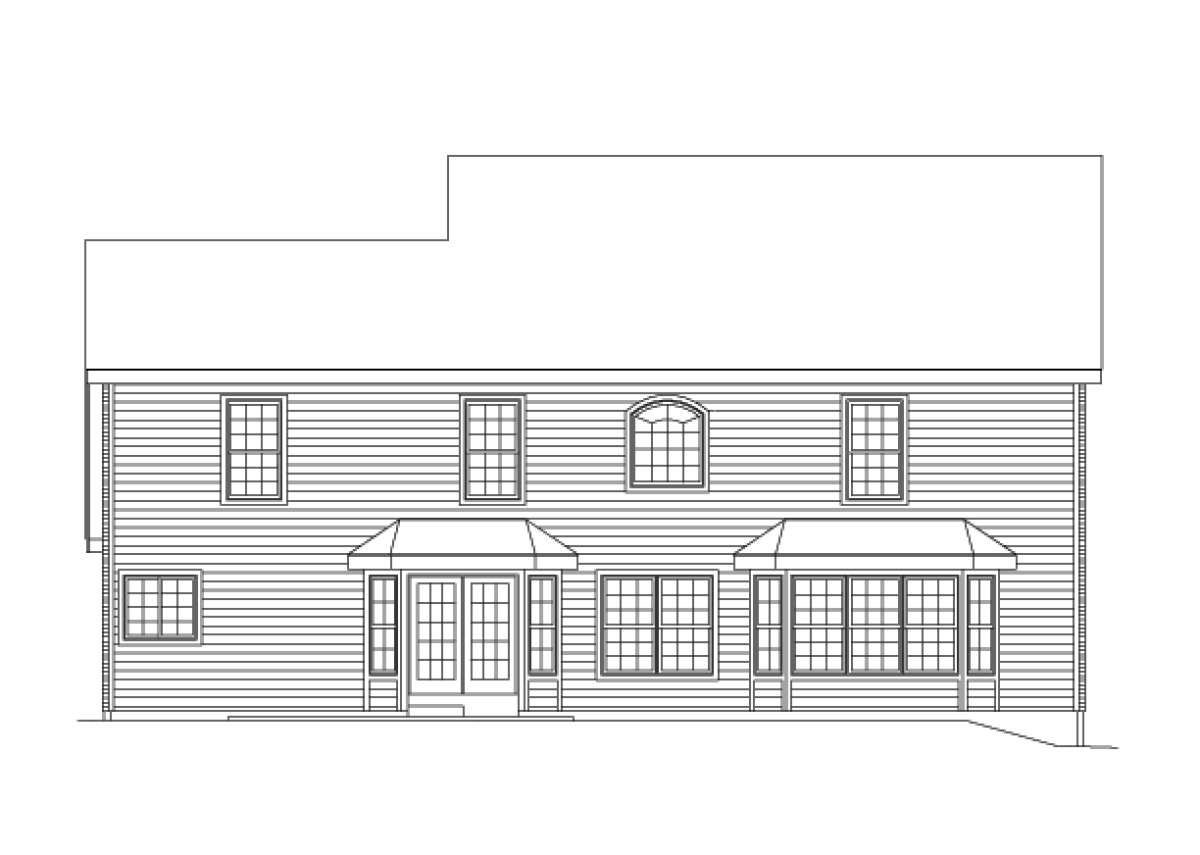

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    KITCHEN AND BATH ELEVATIONS
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • MISCELLANEOUS DETAILS
    Some details are included for interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This brick and siding beauty enjoys architectural detailing commiserate with its sizable character and professional station in the housing industry. A graceful and attractive exterior features considerable gabled eaves and a grand scale entrance indicative of the luxurious interior layout. The home’s square footage is in excess of 3,160 square feet of total living space and there is a basement foundation which has the potential to substantially increase the home’s value and versatility. The formal areas of this home include an enormous entry adorned with a handcrafted stairway and powder room, French doors to the vaulted living room and an open dining area topped with a trey ceiling. The less formal areas of this home consist of a large family room with a bay window, a handsome fireplace, walk-in wet bar and entertainment niche. Additionally, there is a grand scale kitchen with center island eating bar, menu desk and an oversized walk-in pantry. The kitchen is open to the bay window breakfast room which provides rear patio access. There is a large utility room which is conveniently located off the three car, side entry garage.
Private family spaces adorn the second level of the home where bedroom two features a generous footprint and a walk-in closet. The third bedroom is clearly oversized, has an adjoining study and walk-in closet. Bedroom four features a large space, double window views and plentiful closet space. There is a jack and jill bathroom with double vanities and a hall linen closet. An elegant master retreat comes complete with a large, vaulted master bedroom, French door access and double walk-in closets. The master bath includes dual vanities, a separate shower, compartmentalized toilet and a garden tub with window views. This elegant home exceeds industry standards while offering exceptional exterior architectural design features and a functional interior floor plan.
