Traditional Plan 5633-00095


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 2,900
Beds 4
Bath 2
1/2 Baths 1
Car 3
Stories 1
Width 78' 4"
Depth 69' 2"

Floorplan Drawings

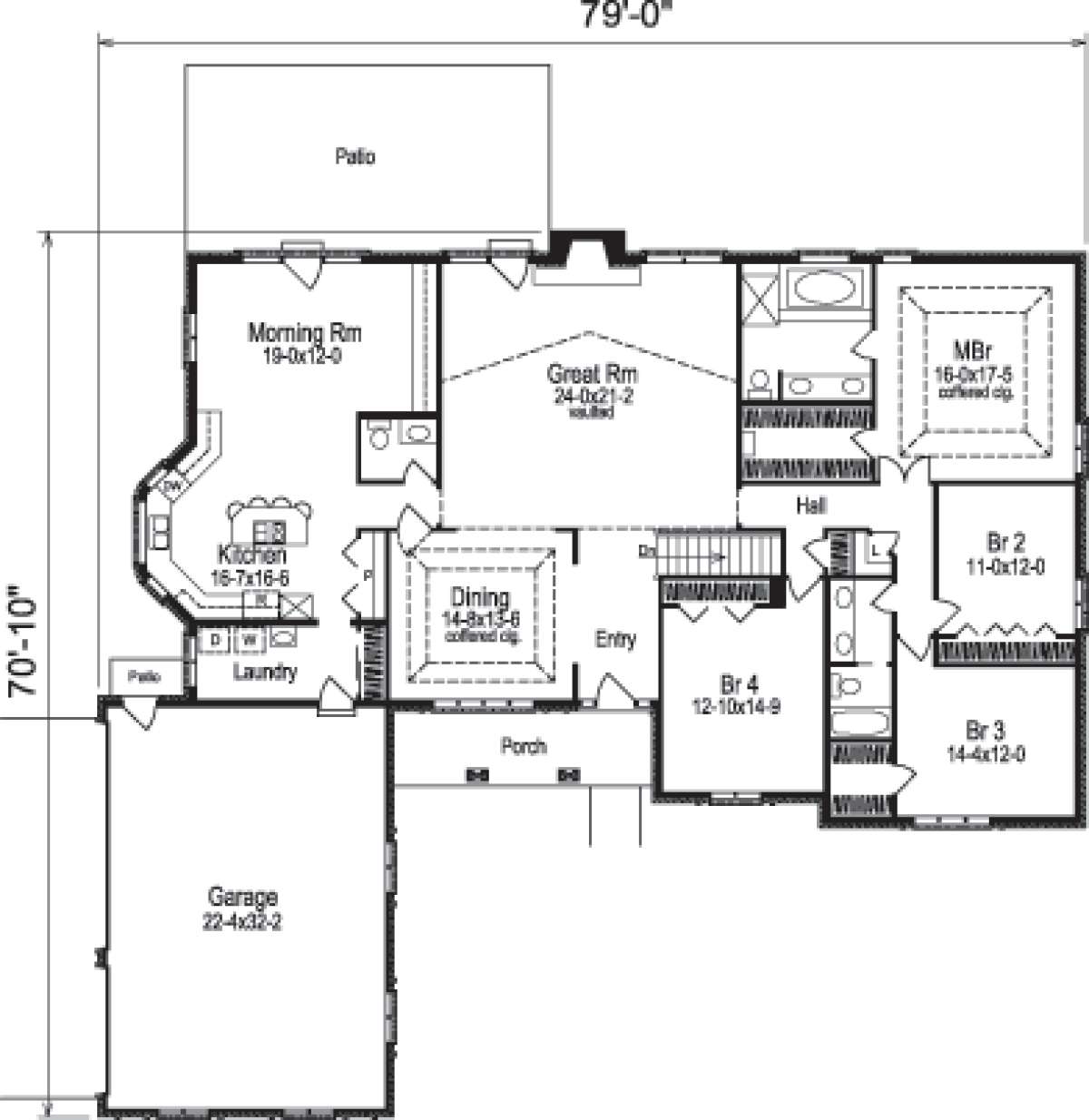

Floorplan 1
Floorplan 1 for House Plan #5633-00095
Floorplan 2
Floorplan 2 for House Plan #5633-00095

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

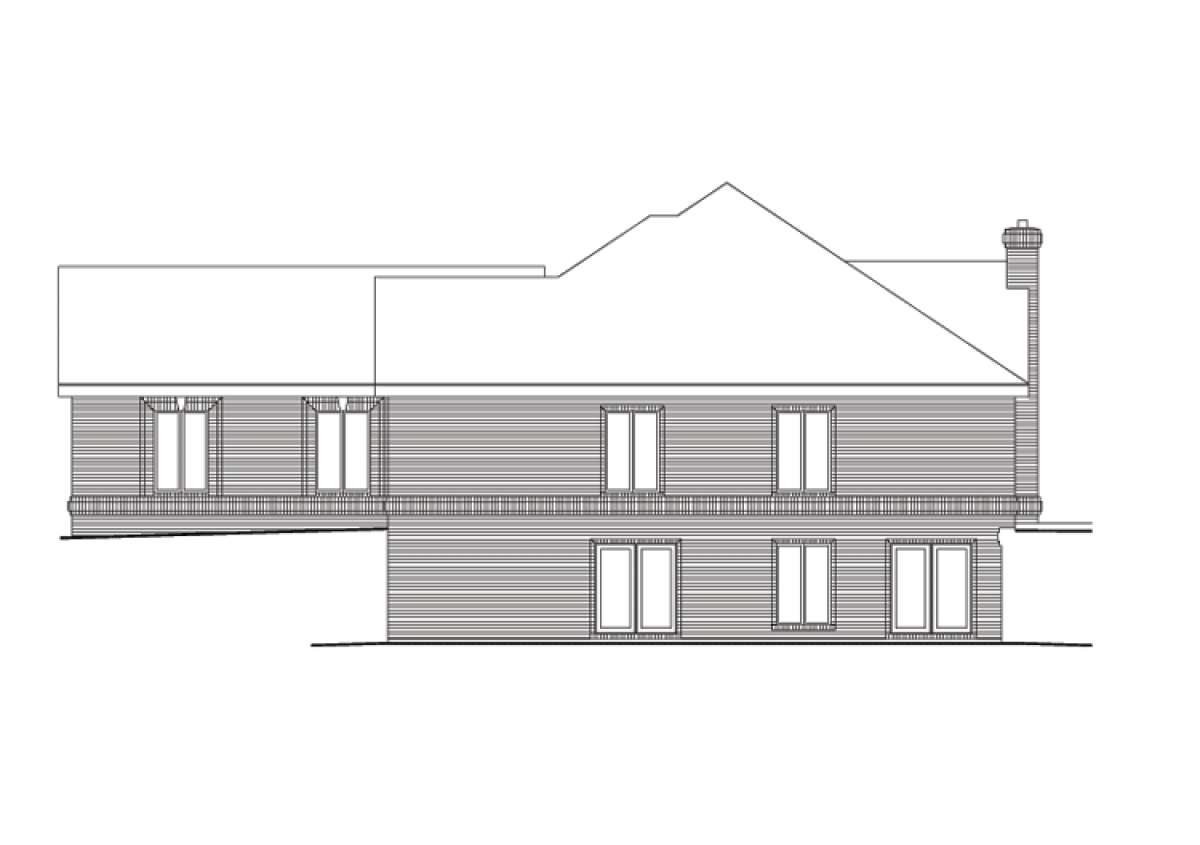

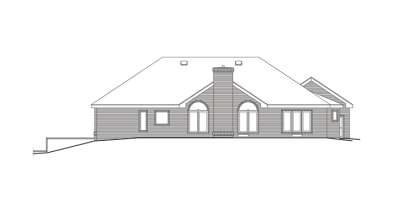

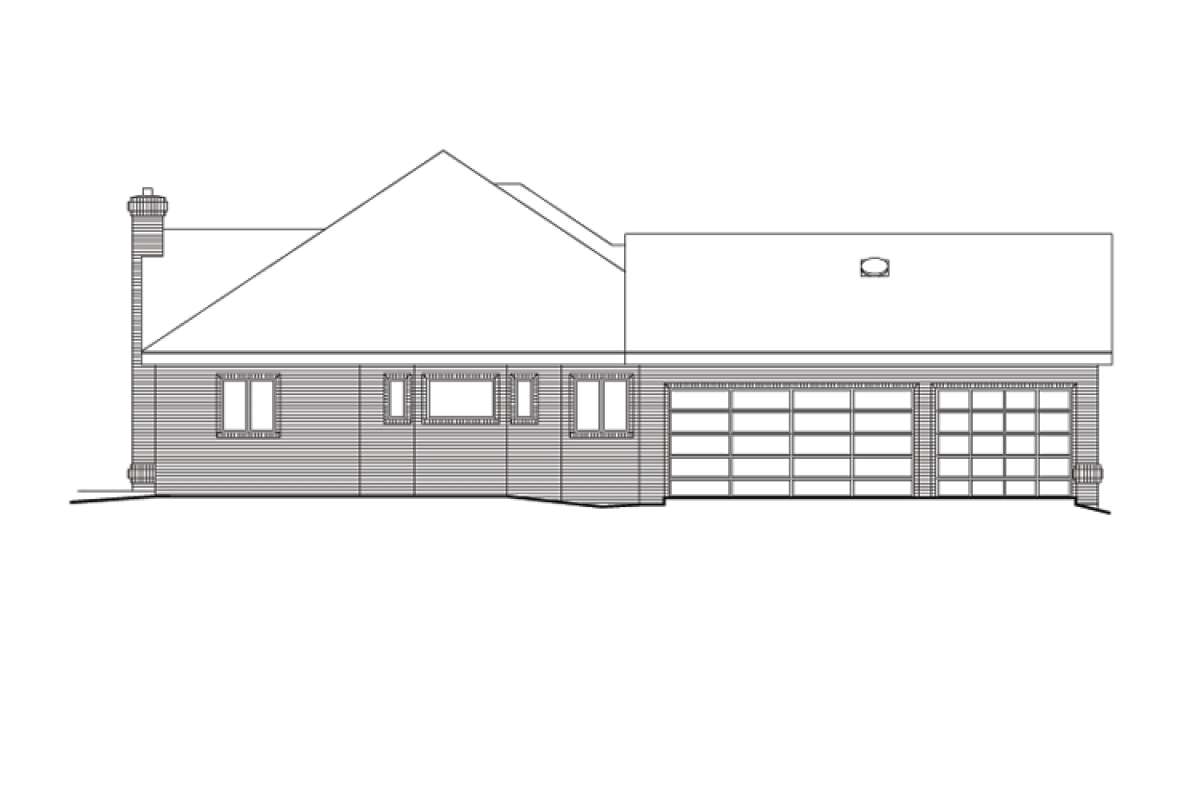

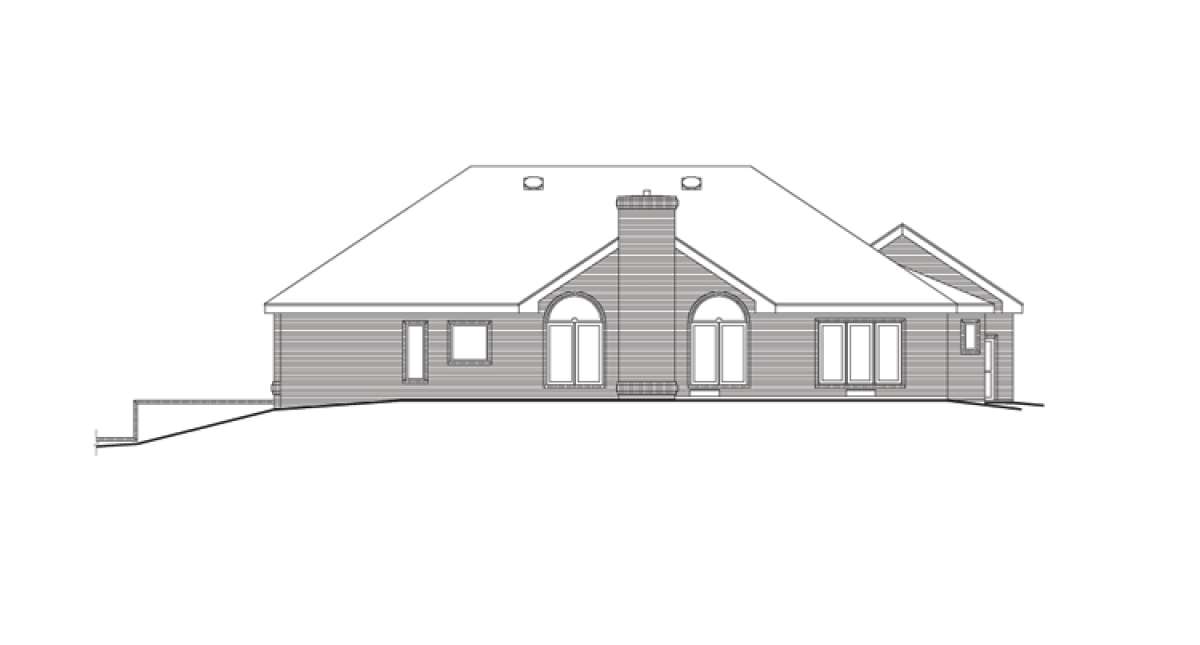

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

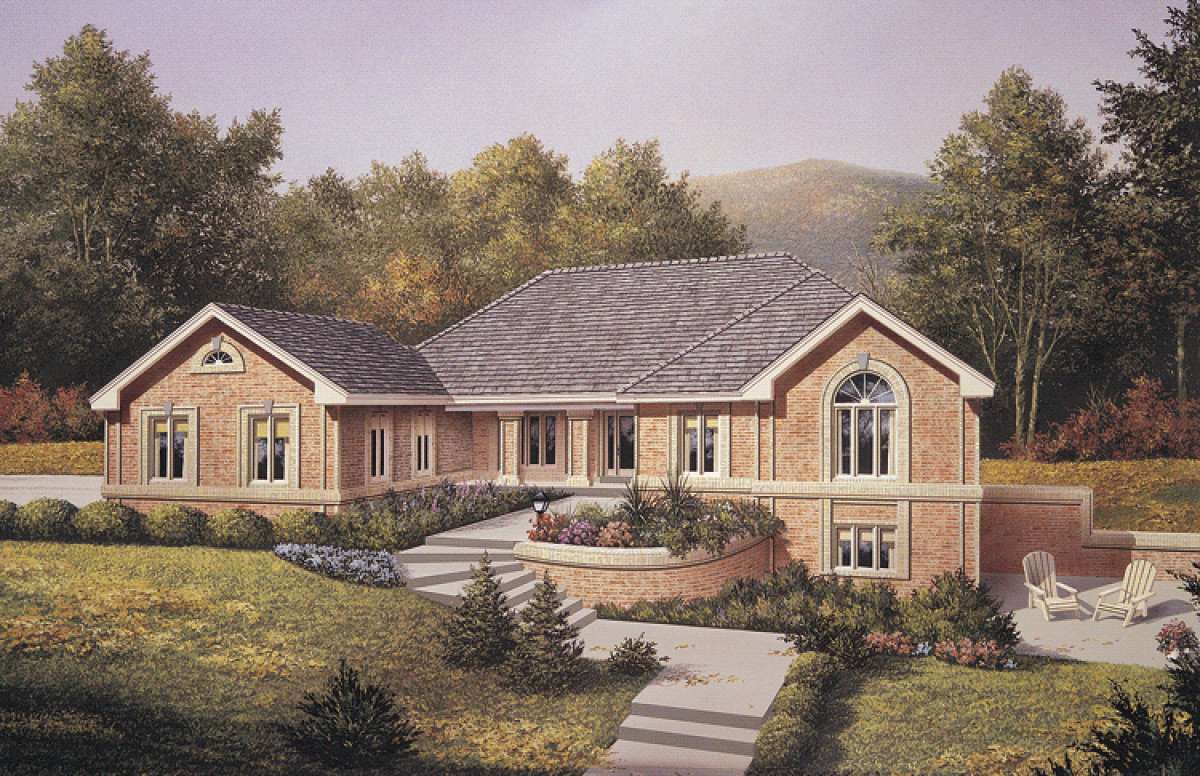

This classic Contemporary home is wrapped in brick and boasts of a low maintenance exterior. The front covered porch is highlighted with substantial columns and the simple roof lines and Palladian style window add elegance and warmth to the home’s exterior. Almost 3,000 square feet of living space is found on the home’s interior which incorporates four bedrooms and two plus baths into the space. A walk-out basement foundation adds additional square footage, value and versatility to the home. The spacious vaulted great room is ideal for entertaining with Palladian windows flanking an 8’ wide brick fireplace. The coffered ceiling dining room is open to the foyer and great room providing outstanding formal dining space. The smartly designed kitchen is built into a bay and features a center cook top island, a huge pantry, a picture window above the sink and opens onto the morning room with 12’ of cabinetry and rear patio access. There is a three car, side entry garage with plenty of vehicle and other gear storage space along with a side porch for tidiness. The interior laundry room is conveniently located off the garage for ease and tidiness.

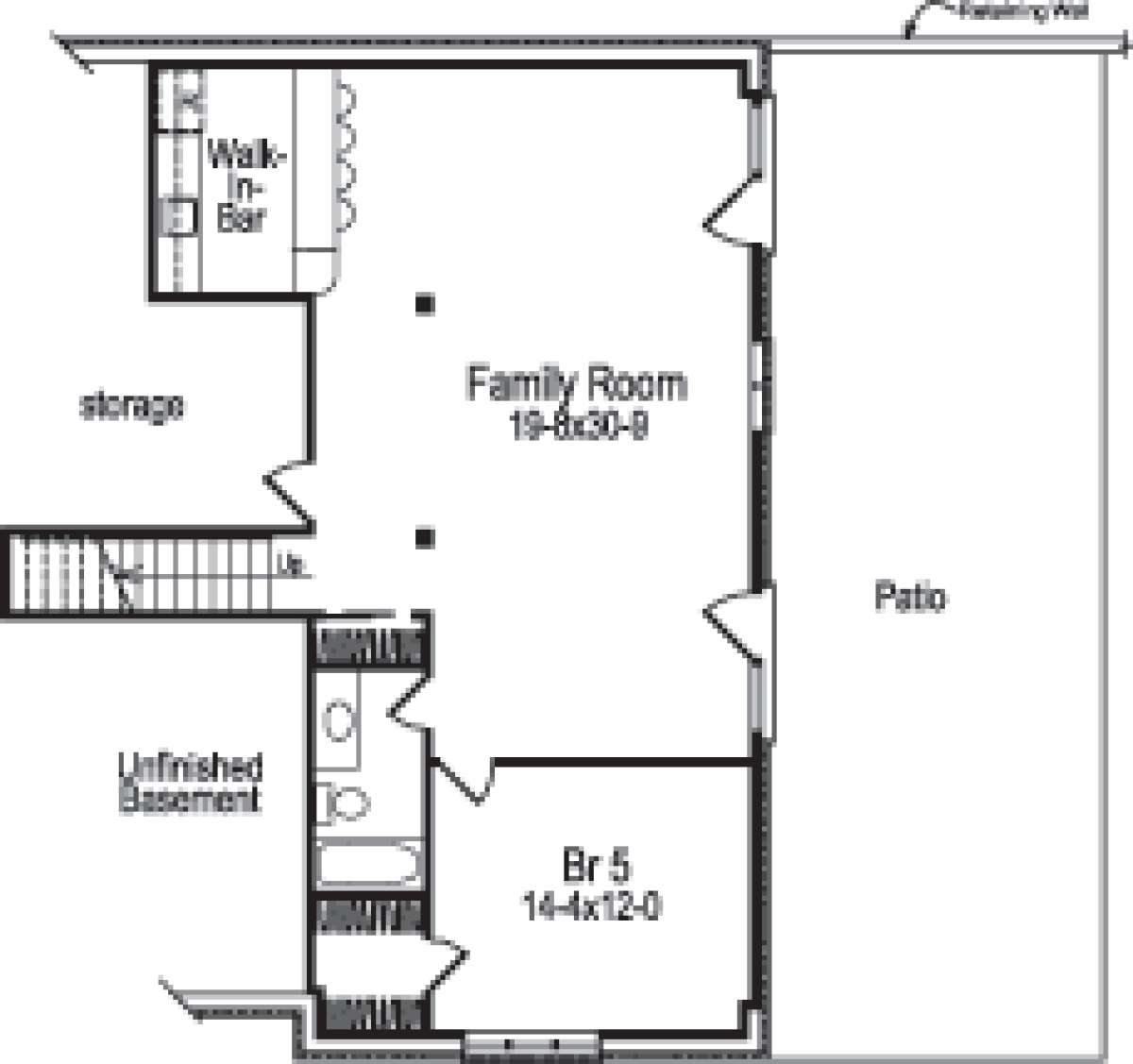

Three generous sized bedrooms all have excellent closet space and there is a shared hall bath with double vanities and a hall linen closet. The master suite is situated at the rear of the home for privacy purposes and includes a large coffered ceiling master bedroom with an attached oversized walk-in master closet. The superb en suite bath features dual vanities, a separate shower and gorgeous garden tub with a window view. The lower level features 1,018 square feet of optional living space featuring a family room, walk-in bar and a fifth bedroom with walk-in closet and full bath. This space could function as an in-law or teen-age suite or supply additional entertaining and family space. This brick home is ideally suited for a large family who enjoy “creature” comforts and plenty of room to enjoy life.
