Cottage House Plan 5633-00045

Sq Ft1,711
1/2 Baths1
Width40' 8"
Depth36' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

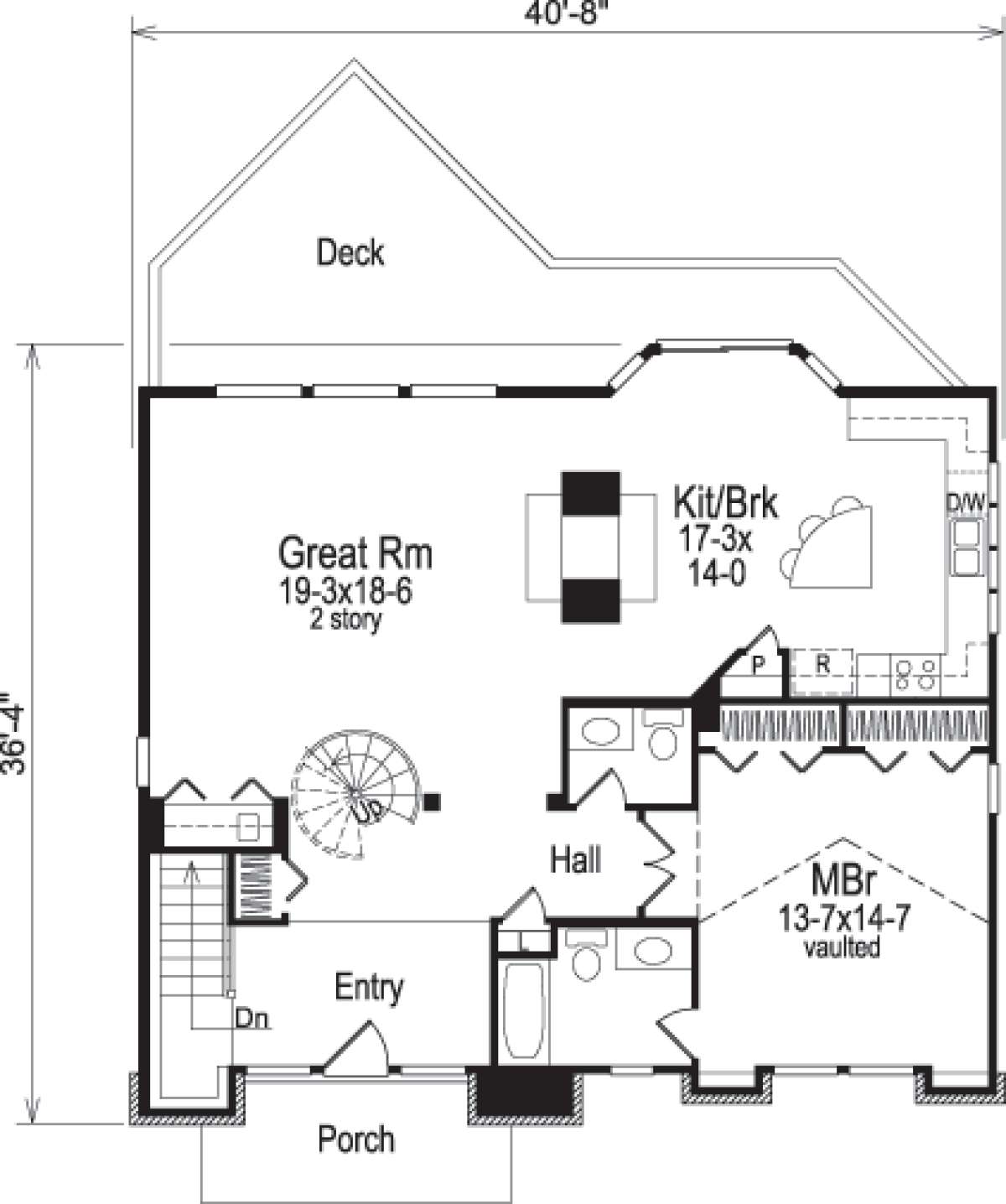

Floorplan 1 for House Plan #5633-00045

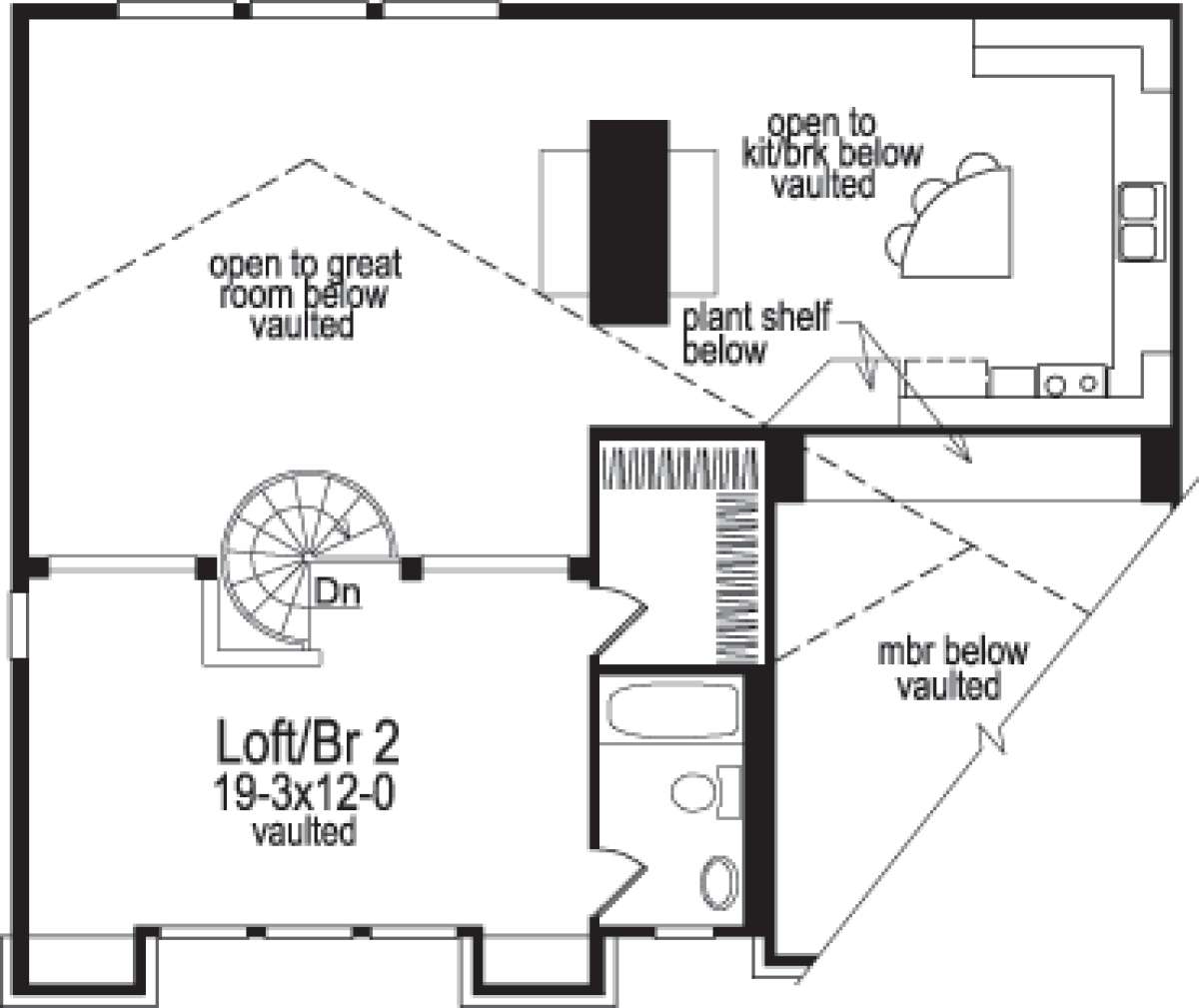

Floorplan 2 for House Plan #5633-00045
Floorplan 1
Floorplan 1 for House Plan #5633-00045
Floorplan 2
Floorplan 2 for House Plan #5633-00045

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

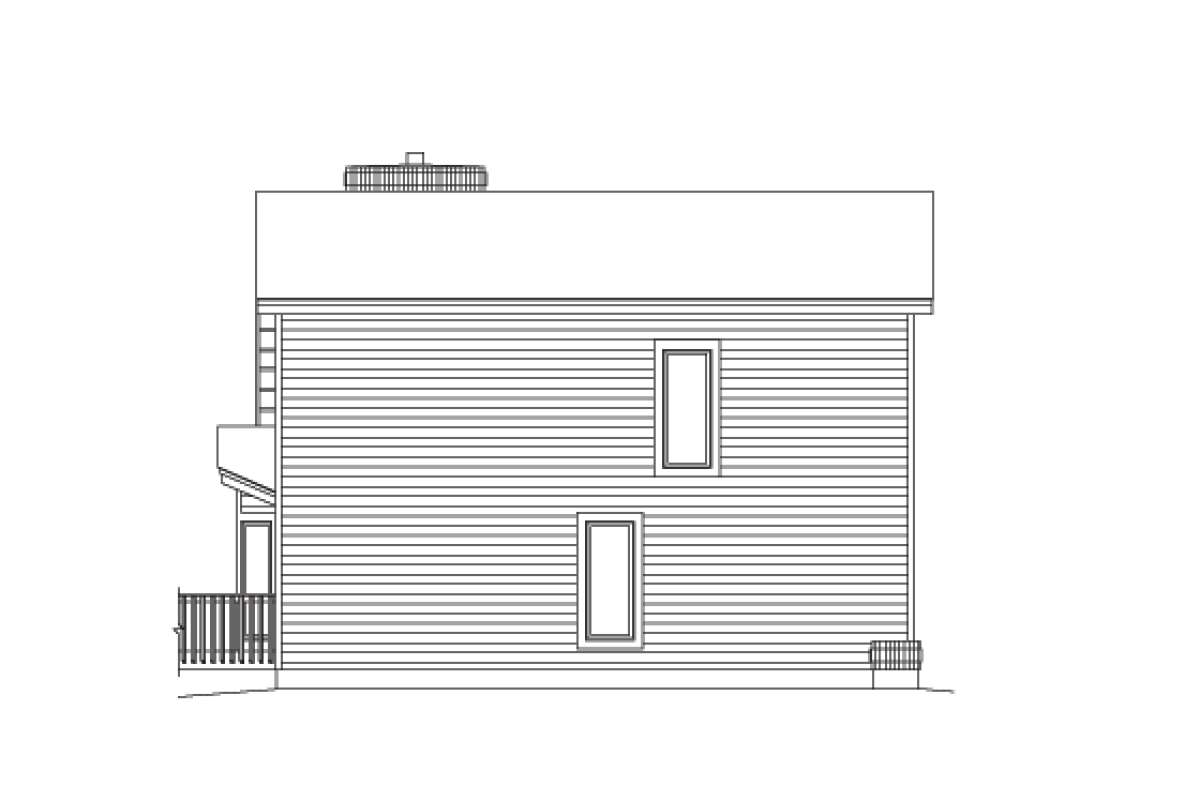

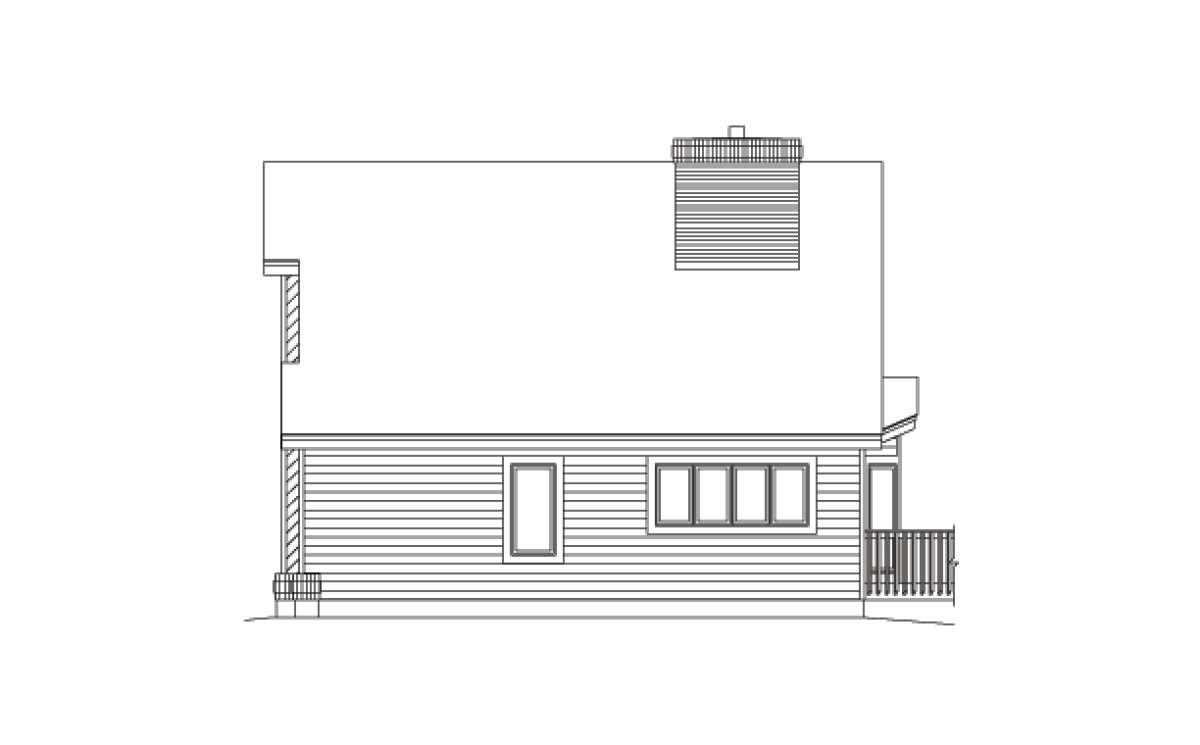

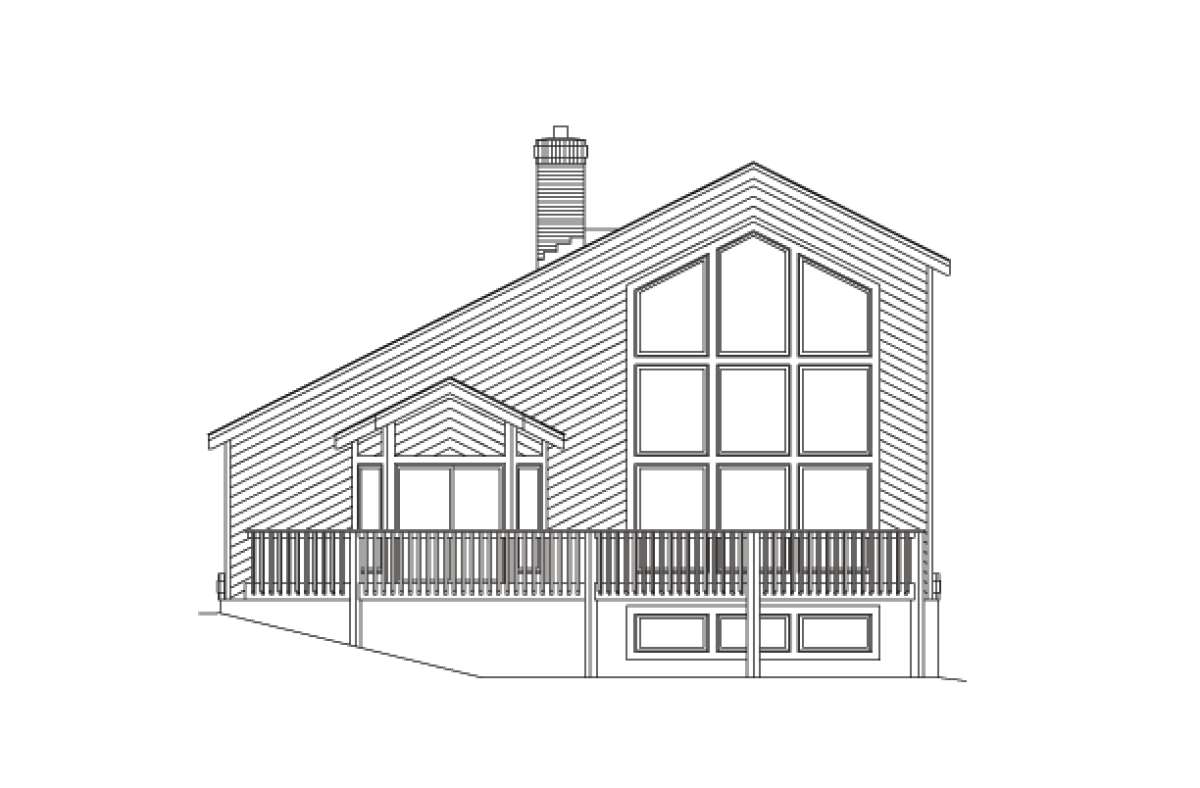

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cottage plan features a chalet inspired façade with focal window features and a wood exterior that is cut on the bias. This home is ideally suited for a lakefront or mountain view lot in order to take advantage of both the front and rear window inserts and rear outdoor space. There are approximately 1,711 square feet of living space in the home which incorporates two bedrooms and two plus baths in the 1.5 storied house design. The home’s drawings are on a basement foundation which substantially increases the home’s square footage, value and versatility. The front entry is spacious, houses the lower level staircase and a coat/storage closet before opening onto the richly designed great room. The vaulted great room is enormous, measuring in excess of 19’x18’, and features exposed beams, a two story window wall, see-thru fireplace, wet bar and spiral staircase to the second floor. The two story window wall is the “showpiece” of the room and offers excellent views to the expansive rear deck. The open fireplace offers delineation between the living and dining spaces before opening onto the kitchen and casual dining space. The gourmet kitchen features loads of counter and cabinet space and a separate pantry. This combination open concept plan and generous outdoor space is great entertaining and family relaxing space. There is a powder room and hall linen closet for guests and the master suite is situated on the main floor for privacy. The vaulted master bedroom is accessible through French doors and features a spacious bedroom with great window views, built-in cabinetry and a back wall of generous closet space. There is an en suite master bath which offers a large vanity space, toilet area and a tub/shower combination.
The spiral staircase features a spectacular balcony overlook which dramatizes the second level loft. This vaulted loft area is oversized with fabulous window views and overviews into the lower level great room. This room could function as a second bedroom, artist’s studio or home office/study as there is an attached walk-in closet, which is quite large, and a full private bath. This unique home offers an exciting and bold exterior façade, generous floor space and a basement foundation brimming with expansion possibilities.
