Cottage Plan 110-00311

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,400
Beds 2
Bath 2
1/2 Baths 0
Car 0
Stories 1.5
Width 32'
Depth 42'

Floorplan Drawings

Main Floor

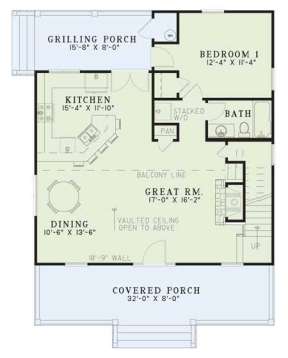

Main Floor  for House Plan #110-00311
Second Floor

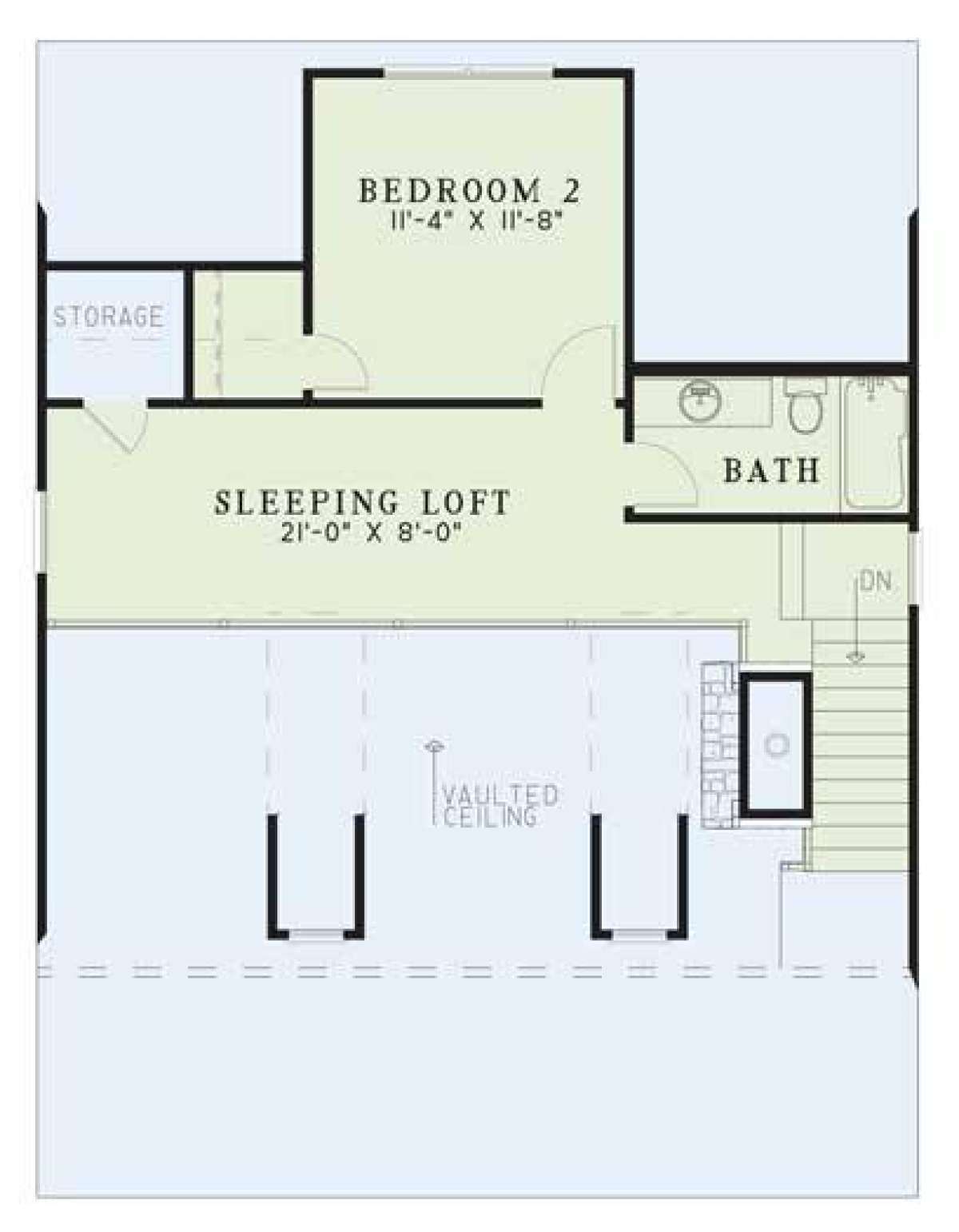

Second Floor for House Plan #110-00311


What's Included in these plans?

  • Foundation Plan (1/4" or 1/2"=1')
  • Floor Plans (1/4"=1')
  • Set of Elevations (1/4"=1')
  • Building Sections (1/4" or 1/2"=1')
  • Miscellaneous Details (3/4"=1')
  • Roof Overview Plan (1/4"=1')
  • IRC Page, Specifics and Legends
  • Code Compliance: This plan is drawn to meet the International Residential Code. Many states and counties amend the codes to adapt to their area. Consult your local building officials to determine the plan, code and site requirements.
  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, basements, attics, fireplaces, etc. We include two story and vaulted areas only once in the calculations of the first floor. Stairs are counted once. Balconies and open walkways in two-story and vaulted areas are included in the square footage of the second floor.
  • FLOOR PLANS
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • SET OF ELEVATIONS
    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • MISCELLANEOUS DETAILS
    These are included for many interior and exterior conditions that require more specific information for their construction.
  • ROOF OVERVIEW PLAN
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This Cottage styled home offers an array of aesthetically pleasing architectural design features combining charm and character. The simple gabled roof with double window dormers highlighted with window boxes along with an expansive front covered porch featuring open railing and exposed rafters create a visually interesting and welcoming exterior façade. The interior floor plan captures the essence of cottage styling and incorporates two bedrooms and two baths into the approximate 1,400 square feet of living space. The 1.5 storied home is ideally proportioned for a narrow and/or small lot with its 32’ width and 42’ depth dimensions.


Stepping off the front covered porch into the home’s open concept living plan reveals an abundance of entertaining and family relaxing space. The great room features a cavernous space with soaring ceiling heights, a handsome fireplace and built-in cabinetry. The adjoining dining room enjoys wonderful window views and opens onto the family friendly kitchen. The kitchen displays casual dining space with a wraparound breakfast/snack bar, loads of additional cabinet and counter space, a separate pantry along with French door access onto the rear grilling porch. This is a great space for hosting large groups of family and friends and/or enjoying special family events and occasions. The main level bedroom is spacious with an attached walk-in closet and private access to the full bath and there is an adjacent laundry nook. The second story staircase meanders onto the loft area where there is an overlook balcony onto the main living spaces below. The loft space is large enough to accommodate additional sleeping space for guests and family alike or could function as a second living space. There is attic storage beyond this space and a second bedroom with walk-in closet and a full bath. This Cottage charmer employs characteristic embellishments reminiscent of its styling which provides an inviting exterior and an interior floor plan designed for everyday living or a vacation home.
