Cottage House Plan 8504-00083

Sq Ft2,030
Beds2-3
Baths2
1/2 Baths1
Stories1.5
Cars2
Width49' 0"
Depth52' 0"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

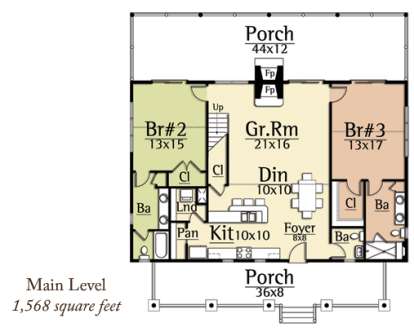

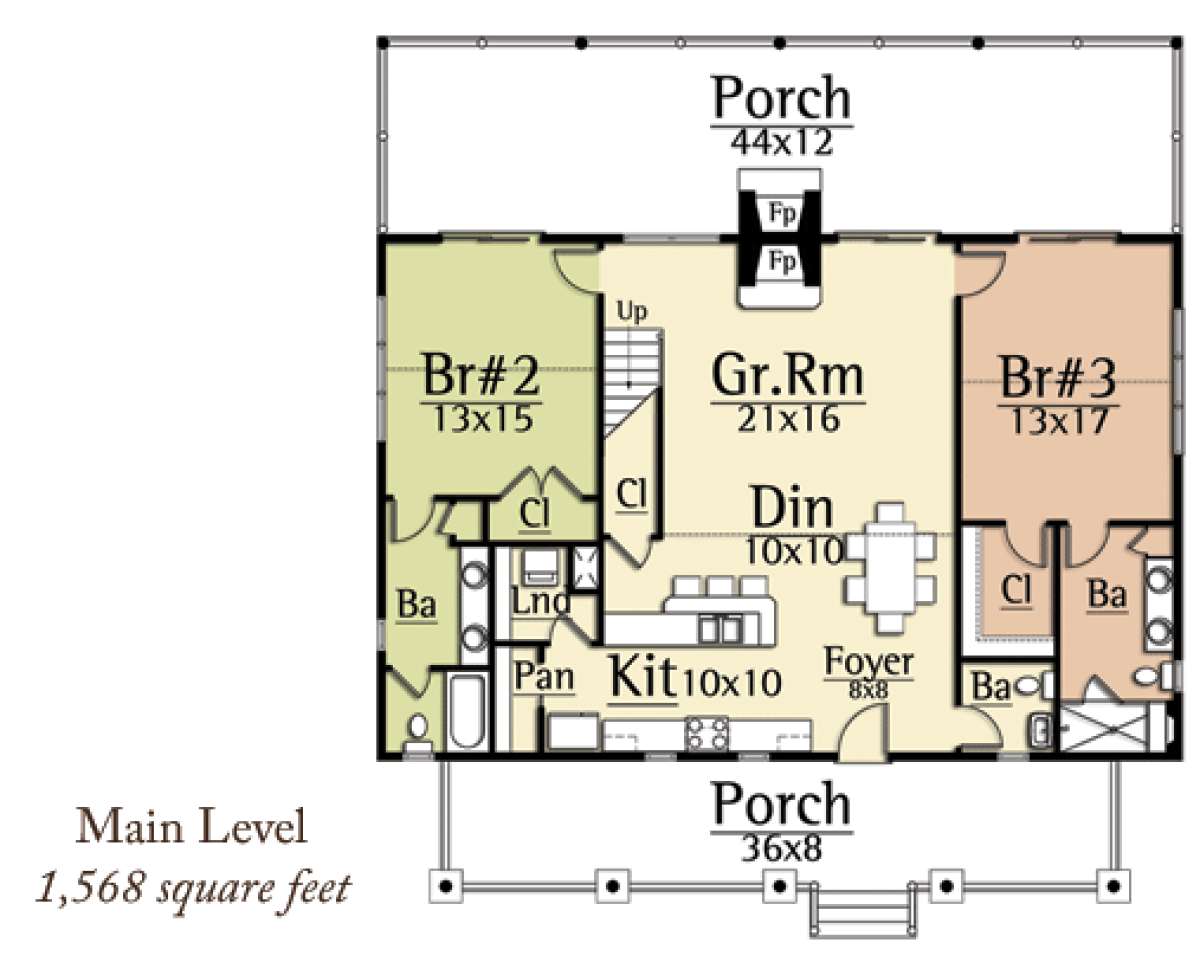

Floorplan 1 for House Plan #8504-00083
Floorplan 2 for House Plan #8504-00083
Floorplan 1
Floorplan 1 for House Plan #8504-00083
Floorplan 2
Floorplan 2 for House Plan #8504-00083


Frequently Asked Questions

COST TO BUILD REPORT

What's Included in these plans?

  • The purchase of these plans authorizes the Purchaser to build the home one time only.  All other copyrights are retained by the designer.
  • Room dimensions shown in marketing materials have been rounded and may differ slightly from the construction documents for the same house.
  • Primary square footage notations refer to heated areas only.  Non-conditioned spaces such as garages and porches are listed separately.
  • Plumbing, electrical, or structural engineering plans are not included.  On occasions where these are needed, these should be obtained from a local professional to insure area specific requirements have been met.
  • This plan is designed based on typical standard building codes in general effect when the plans were prepared.  Building codes and code enforcement can vary widely from jurisdiction to jurisdiction.  It is important for you to have these plans reviewed by a licensed general contractor and/or a residential design professional prior to construction to effect compliance to/with your local regulations.

Each set contains the following drawing contents:

  • Dimensioned and detailed floor plans
  • Working drawings of front, sides, and rear elevations
  • Roof plan
  • Building sections at unique conditions
  • Wall sections at unique conditions
  • Framing plans and details
  • Foundation layout plan
  • Major exterior details
  • Door and Window schedules
  • Key interior elevations and major focal areas
  • Light and switch location plan
  • Misc. interior details

ASK US A QUESTION

Name:
E-mail Address:
Password: (for robots)
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

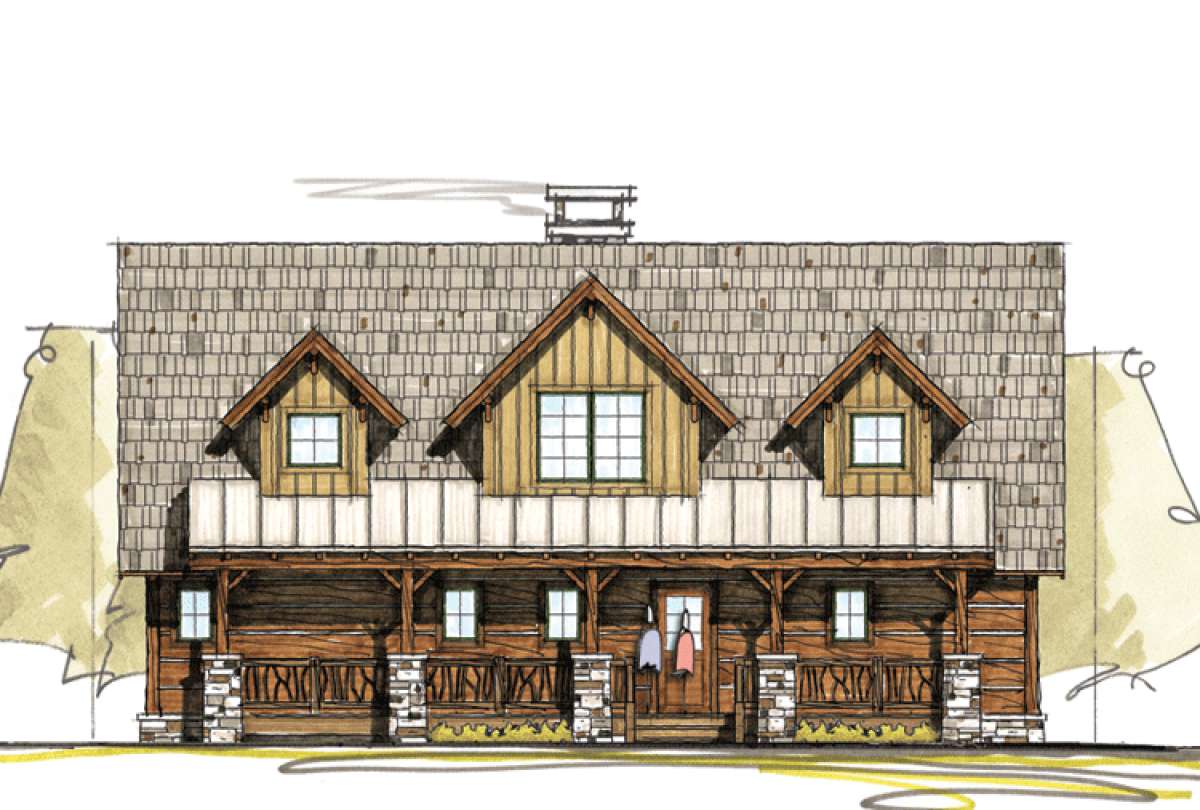

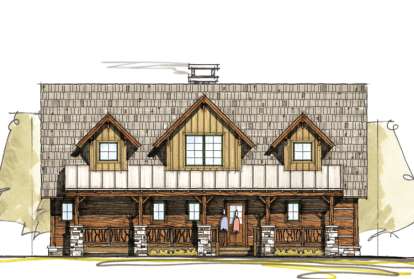

This two-to-three bedroom Cottage house design features an attractive exterior and spacious interior floor plan. The exterior of the home is highlighted with rustic lodge design elements, overhead window dormers and an extended front covered porch. Warm woods, large stone pillars and wood beam detailing offer an inviting and welcoming front entrance for guests and family alike. The interior floor plan features approximately 2,030 square feet of living space, two-to-three bedrooms and two plus baths in 1.5 stories. The open floor plan is revealed once you step into the home off the front porch with views from front to the rear of the floor plan. There is an entry foyer and guest powder room before accessing the common rooms. The kitchen is highlighted with plentiful counter space that includes a peninsula bar for additional seating and there is a separate pantry. The laundry nook is located directly off the kitchen and is enclosed for noise control. Situated between the kitchen and great room is the dining space which is comfortably sized for family and guest meals. The great room is quite large and features a rear wall warming fireplace with sliders onto the rear covered porch. The covered porch spans the width of the home and features an outdoor fireplace for those chilly mountain mornings and evenings. A large closet is situated under the second floor staircase for additional storage space. A detached two car garage features good vehicle space and offers similar exterior detailing.

There are two large bedrooms located on either side of the common rooms; bedroom two measures 13’ x 15’ with sliders onto the rear outdoor space. There is a triple side window wall as well and plentiful closet space. The private bath offers dual sinks and a compartmentalized toilet area and tub/shower combination. The third bedroom is slightly larger, measuring 13’ x 17’ and also has sliders onto the rear covered porch. There is an attached walk-in closet and the private bath features double vanities, a toilet area and a large shower. The upstairs area contains a huge loft area with a two window gable view and overviews onto the great room below. There is an adjacent bunk room with sleeping room for overnight guests and grandchildren. The second story bathroom features generous floor space, an oversized vanity, toilet area and a large shower. This lodge inspired Cottage is highlighted with an attractive exterior, a large open floor plan and double master suites along with a loft and bunk space.
