Farmhouse House Plan 5633-00022

Sq Ft1,400
1/2 Baths0
Width72' 0"
Depth34' 4"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.

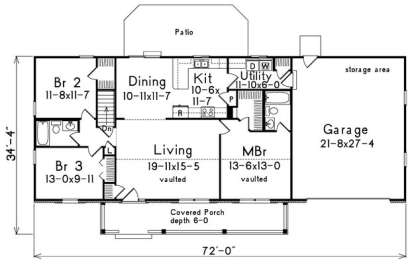

Floorplan 1 for House Plan #5633-00022
Floorplan 1
Floorplan 1 for House Plan #5633-00022

Frequently Asked Questions


What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

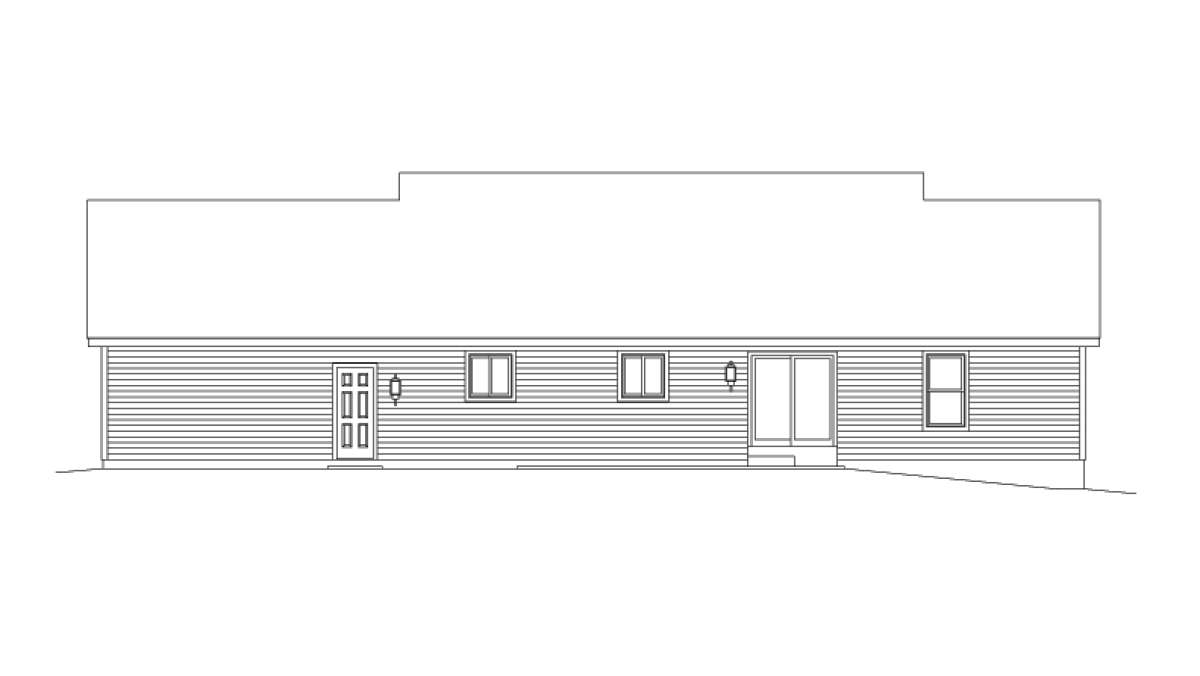

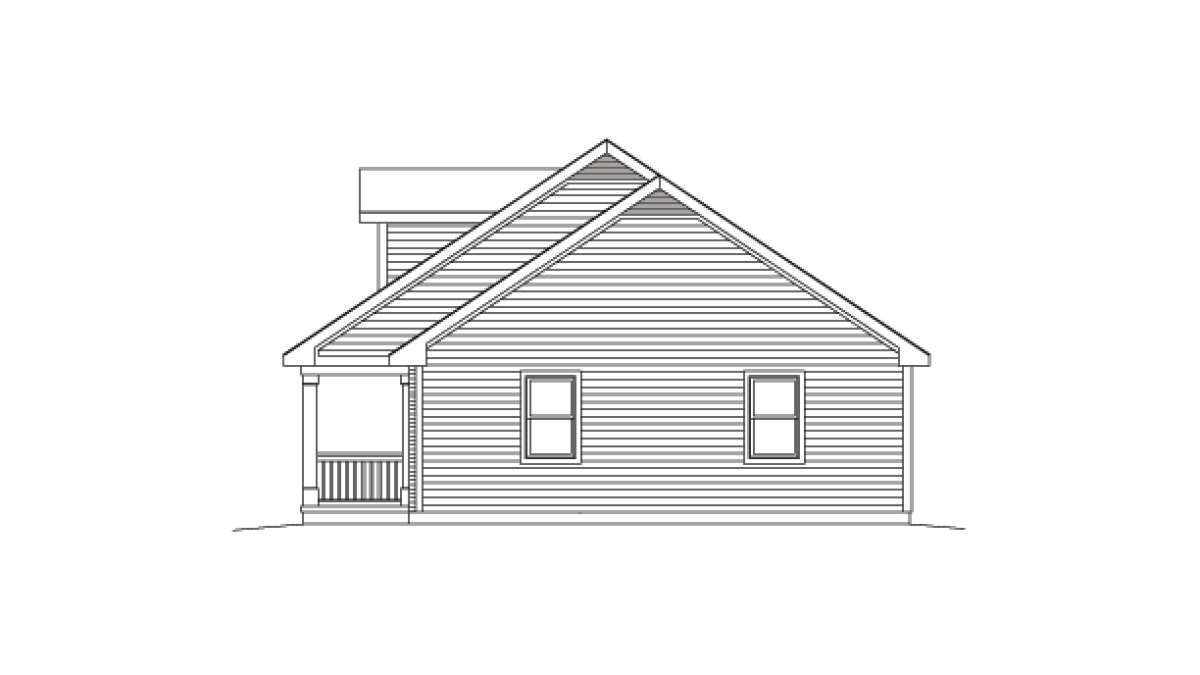

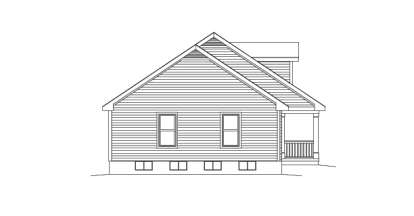

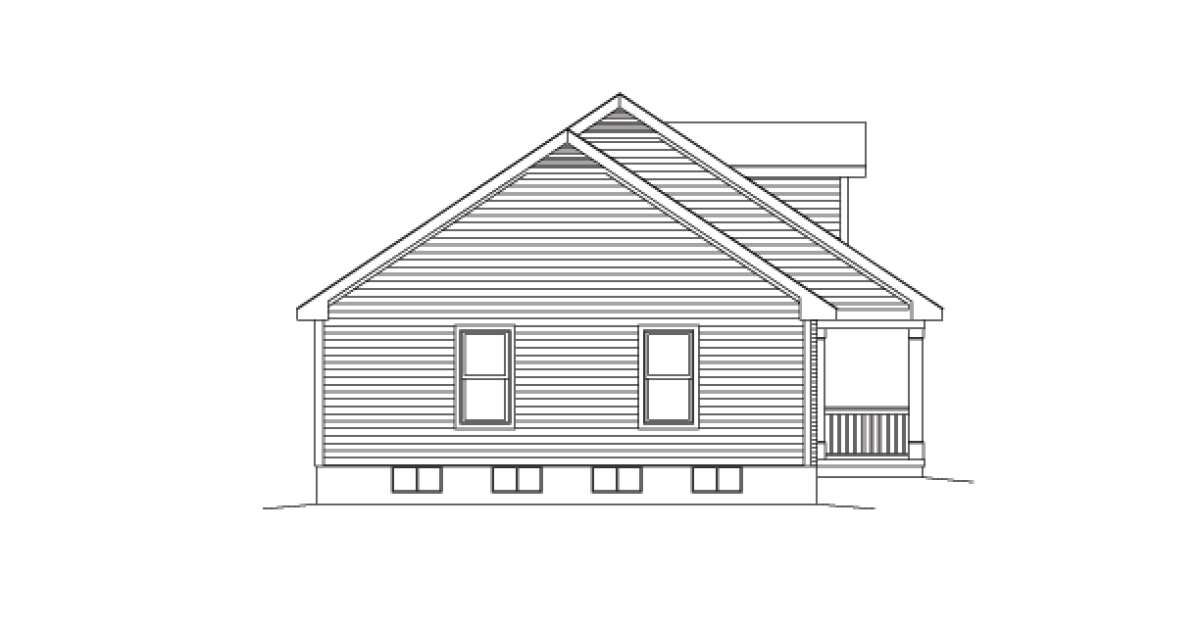

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

This inviting Ranch home has a traditional façade which incorporates a brick front exterior with siding. Triple window dormers and the expansive front covered porch with open railing and columned beams enhance the charm and character of the home’s exterior. There are approximately 1,400 square feet of living space in the home’s interior which contains three bedrooms and two baths. The home’s drawings include a basement foundation which would further add 1,324 square feet to the floor plan along with increased value and versatility. Add in a 616 square foot garage which is roomy and a rear storage area and this modest Ranch becomes a comfortable home for a large family. Entrance into the home off the front covered porch is through the enormous living space. The vaulted living room measures in excess of 19’x15’, houses a generous coat closet and opens onto the dining room. The dining room is spacious and provides rear patio access. The U-shaped kitchen features a casual breakfast bar, a separate pantry and plenty of additional counter and cabinet space. There is a large interior utility room situated off the garage for ease and convenience that contains additional cabinet space for organizational needs.
The split bedroom plan features two bedrooms and a bath on one side of the home. Both bedrooms are spacious and feature double window views. Bedroom two features a walk-in closet while the third bedroom has generous closet space. There is a hall linen closet, a lower level staircase and a shared hall bath which offers a vanity space, a toilet area and a tub/shower combination. The master suite is located on the opposite side of the home for privacy. The master bedroom is spacious and vaulted, has great window views and an oversized walk-in master closet sits at the rear of the space. The en suite master bath features a vanity space, toilet area and a tub/shower combination. This home has a handsome exterior façade and a fully functional and comfortable interior floor plan. This plan is also available with energy efficient R-Control SIPs (Structural Insulated Panels); please contact for more information.
