Farmhouse Plan 4848-00236

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 1,628
Beds 3
Bath 2
1/2 Baths 1
Car 2
Stories 1
Width 57'
Depth 44'

Floorplan Drawings

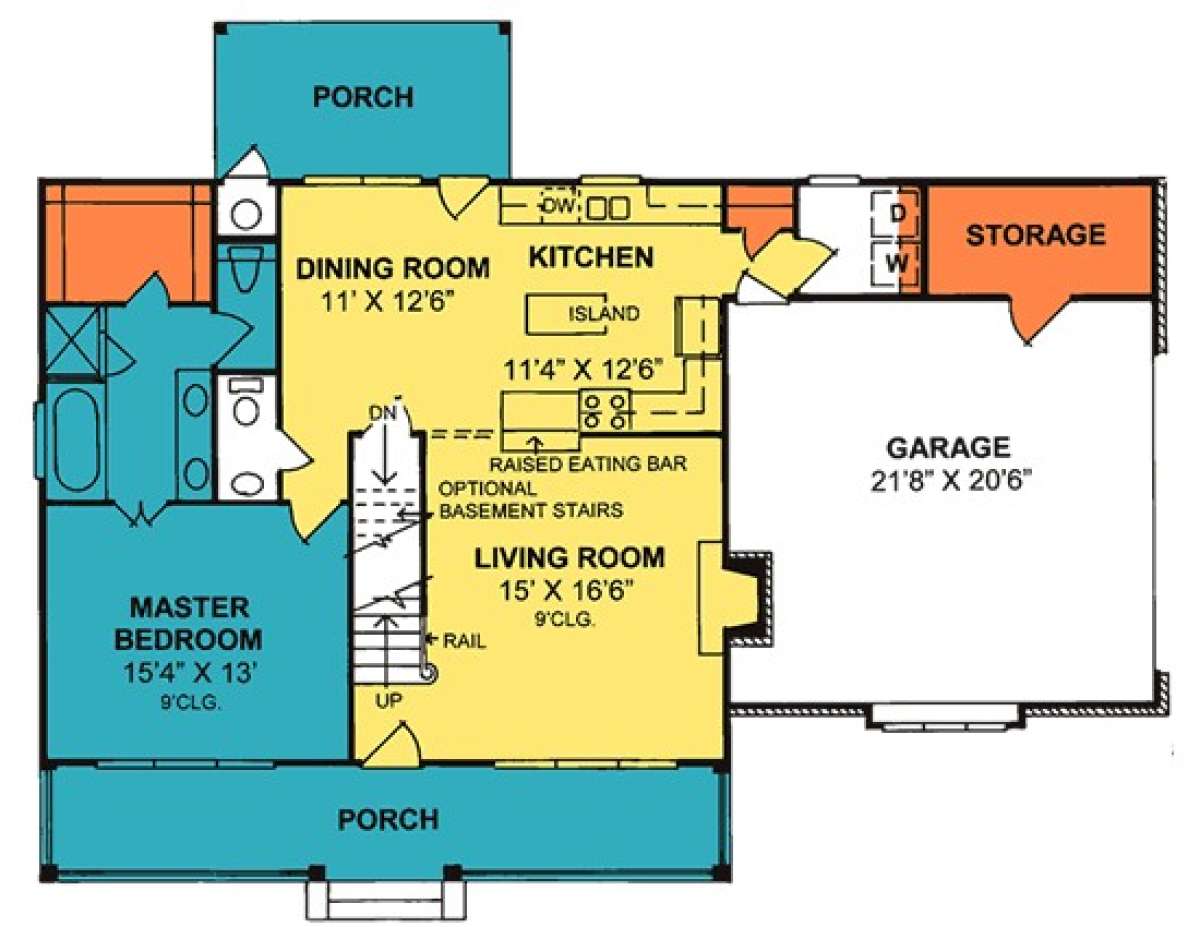

Floorplan 1
Floorplan 1 for House Plan #4848-00236

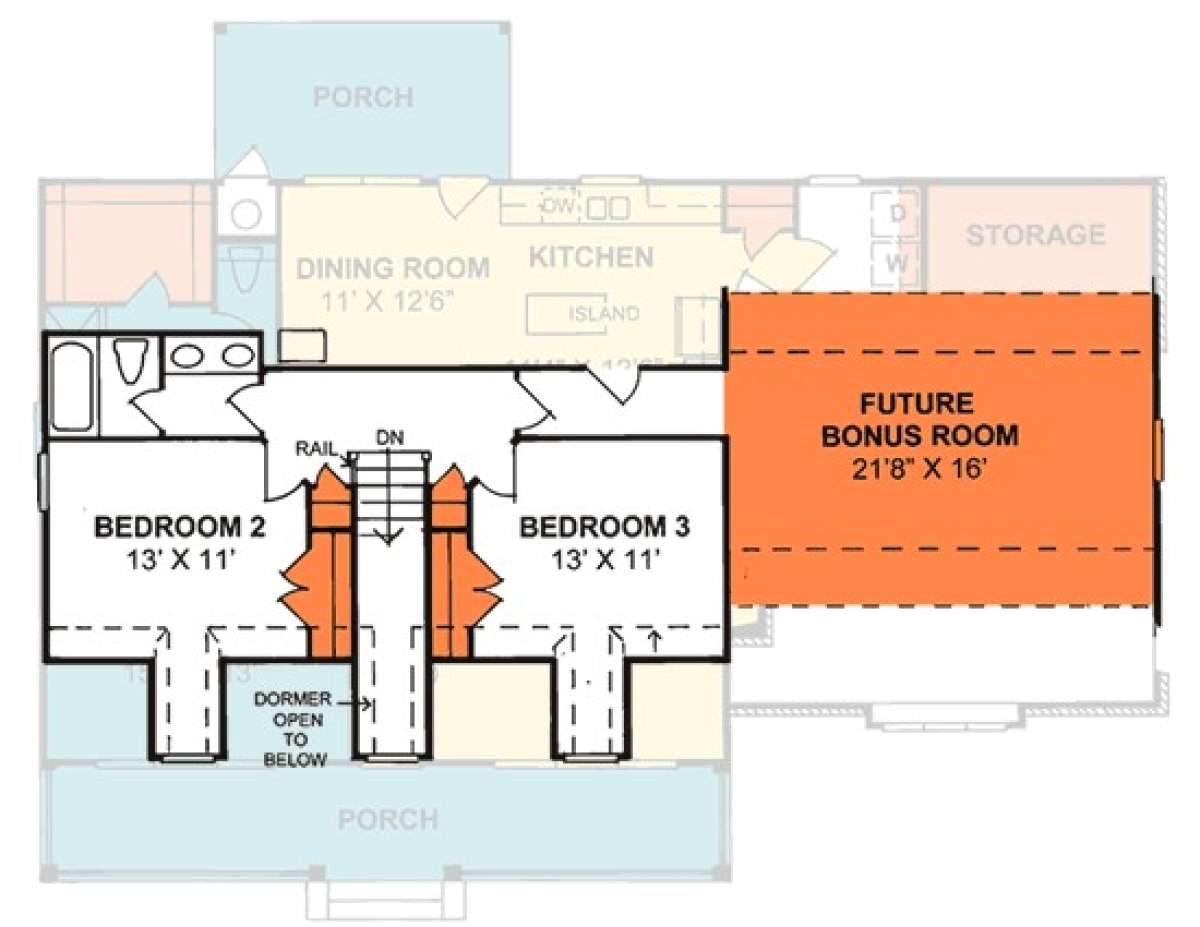

Floorplan 2
Floorplan 2 for House Plan #4848-00236


What's Included in these plans?

  • Cover Page
    This home plan features the front elevation and informative reference sections including general notes and design criteria.

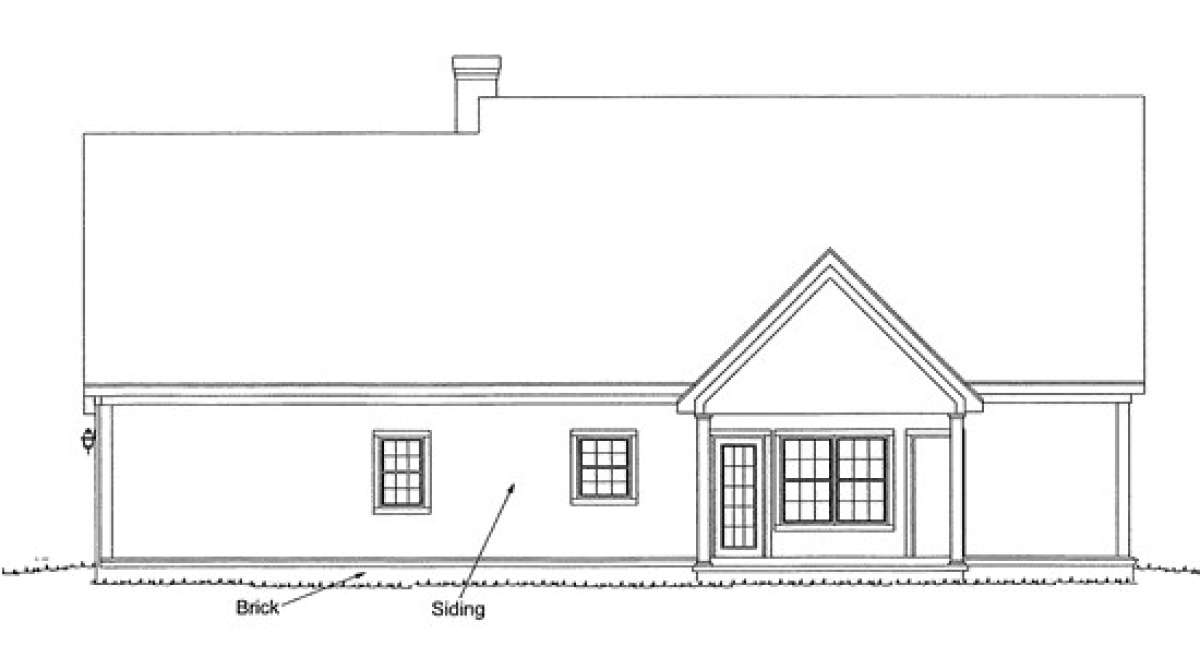

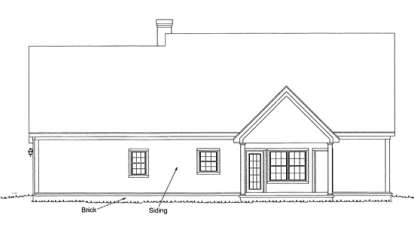

  • Elevations
    Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All exterior elevations are shown.
  • Foundations
    Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan
    Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as window and door sizes, electrical, floor joist span direction, dimensions and notes as required for construction.
  • Second Level Floor Plan
    Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Sections
    The plans include two pages of sections; a typical wall section, stair section and foundation details.
  • Roof Plan
    A Roof plan showing roof pitches, valleys, ridges and rafters.
  • No Re-use Fee
    As the original purchaser of this home plan, the Construction License permits you to build the plan as many times as you like.

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

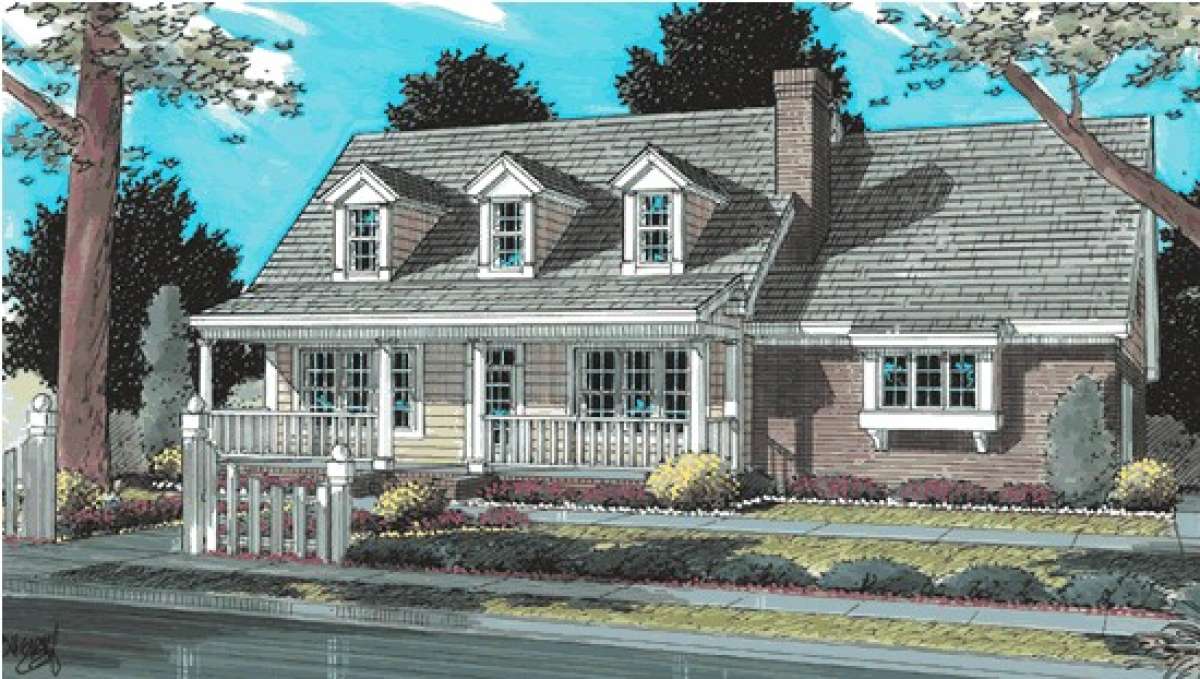

A comfortable and inviting façade lines the exterior of this farmhouse design. There are a triple set of overhead dormer windows, great window views and an extensive front covered porch with open railing. The home’s interior features approximately 1,628 square feet of usable living space that includes three bedrooms and two plus baths. Additionally, there is an upstairs bonus room, measuring 21’8” x 16’; this is great space for an additional bedroom, a home office or a dual purpose family room. Entrance into the home off the front covered porch reveals a centrally located staircase to the second floor and the open concept floor plan. The living room is massive, offering plenty of space for family relaxing and entertaining. The room features nine foot ceiling heights, a warming fireplace, a triple set of window views overlooking the front porch and is open to the kitchen and dining room. The family friendly kitchen is highlighted with a raised breakfast bar, a center island for prep and work space, separate pantry and plenty of counter and cabinet space. The dining room adjoins the kitchen and there is access to the rear covered porch for enjoyable outdoor dining. The laundry room is directly accessible from the two car side loading garage for ease of clean up and a tidy home. A huge storage room is located in the garage allowing for the storage of lawn and sporting equipment. The main level master suite occupies one wing of the main floor and features a well-laid out suite of rooms. The master bedroom is spacious with window views overlooking the front covered porch. A master bath is highlighted with modern amenities which include dual vanities, a separate shower, a garden tub with a view and a compartmentalized toilet area. The oversized walk-in closet is situated at the rear of the master bath.

The middle dormer highlights the second story staircase and allows for plenty of sunlight to enter the space. There are two bedrooms on either side of the staircase, each also highlighted with dormer window views. Both bedrooms feature equivalent square footage, offer generous closet space and are in close proximity to the shared hall bath. The bath features double sinks for ease of morning chaos, a toilet area and a tub/shower combination. The opposite hall endcap features access into the large bonus room. This family friendly home is highlighted with a welcoming exterior, front and rear covered porches, a functional interior and good family space.
