Bungalow House Plan 5631-00023

Sq Ft3,339
1/2 Baths1
Width74' 0"
Depth64' 6"
Images copyrighted by the designer. Photographs may reflect a homeowner modification.

Floorplan Drawings

 REVERSE  PRINT  DOWNLOAD Images copyrighted by the designer.
Floorplan 1 for House Plan #5631-00023
Floorplan 2 for House Plan #5631-00023

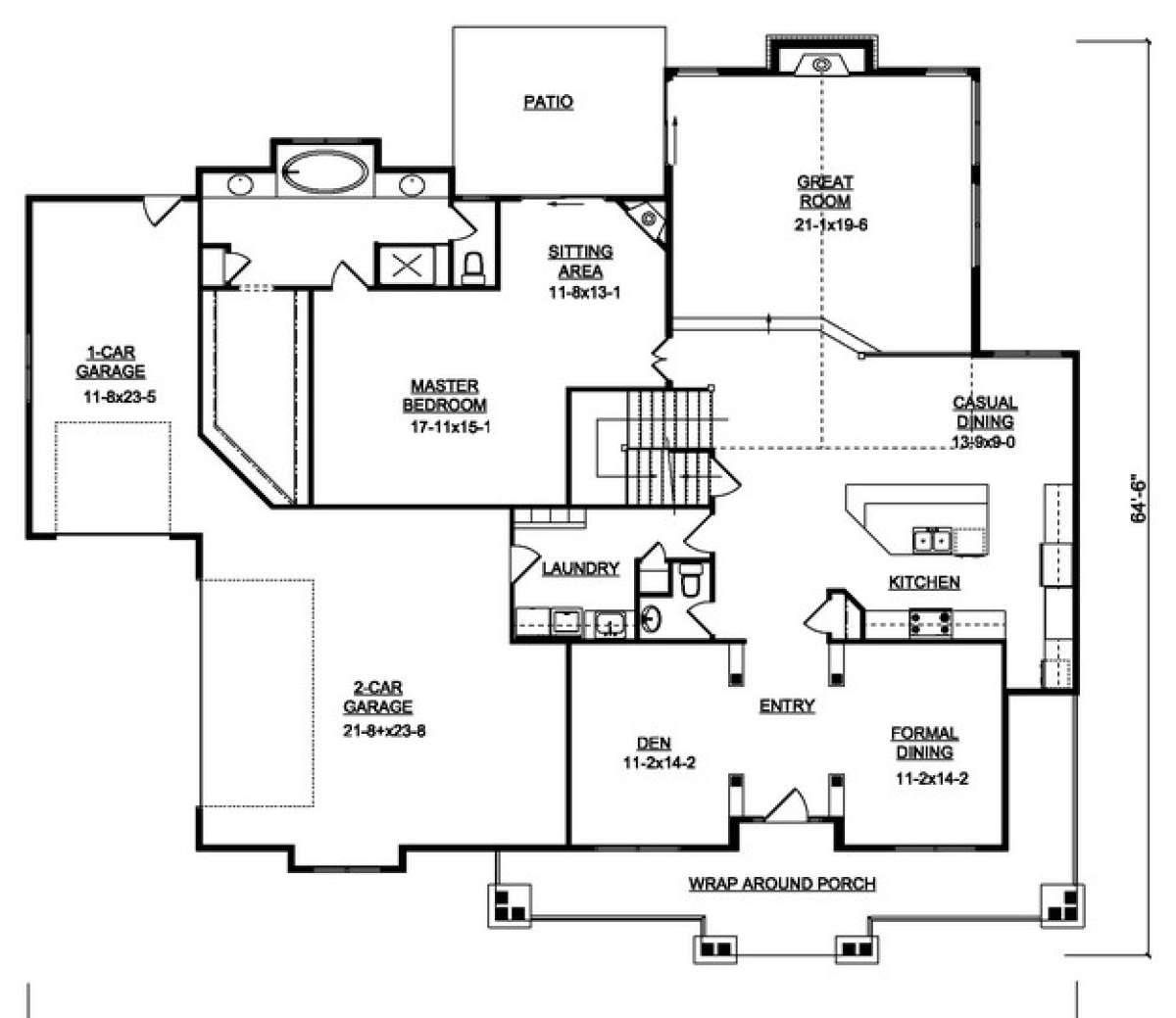

Floorplan 1
Floorplan 1 for House Plan #5631-00023

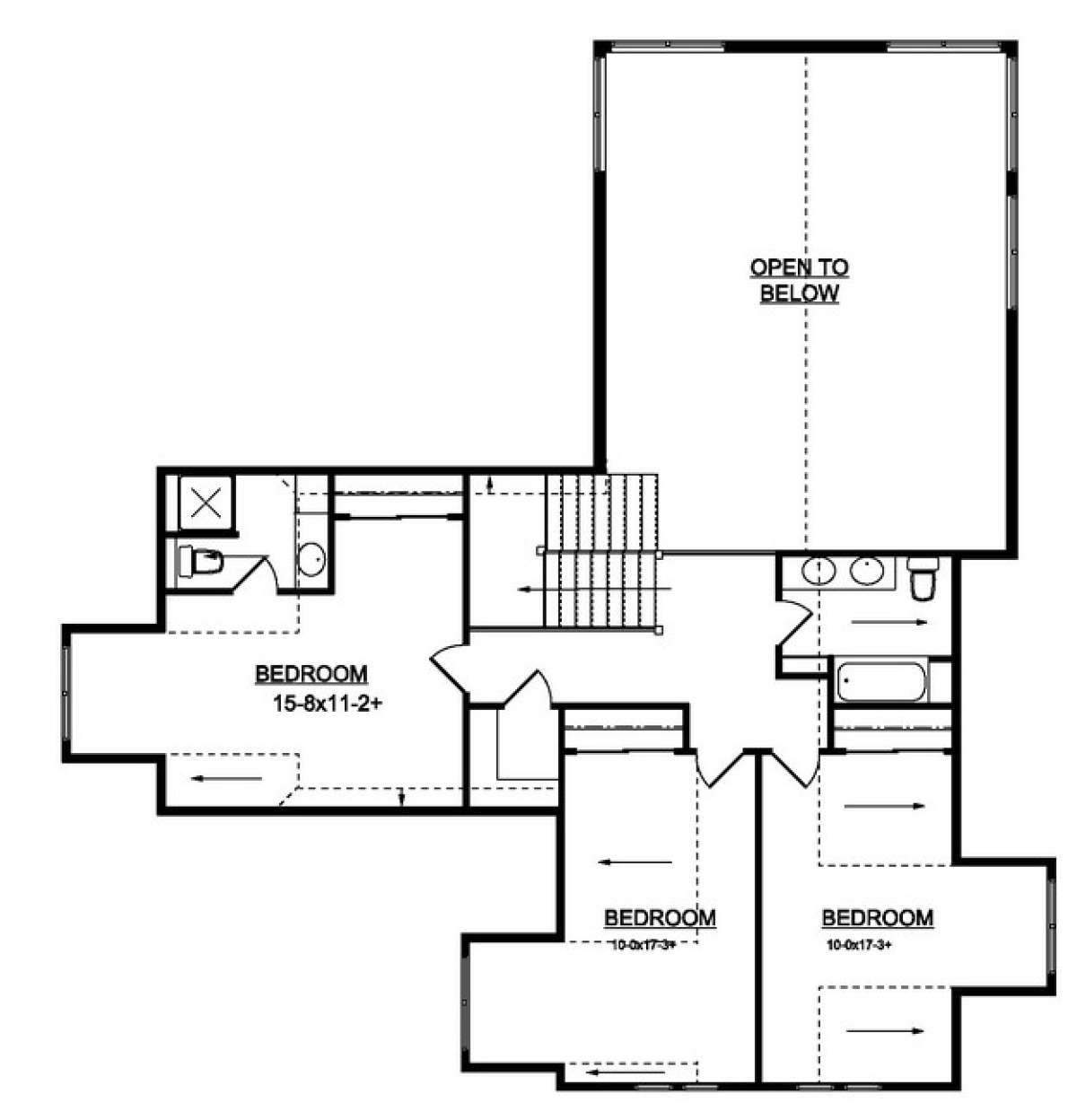

Floorplan 2
Floorplan 2 for House Plan #5631-00023

Frequently Asked Questions


What's Included in these plans?

  • Cover Page- includes plan schedule, general notes and square footages
  • Front and Back Elevations- Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Left and Right Elevations-Showing roof lines, exterior materials and wall heights. Scale varies per size of home
  • Floor Plans (floors per each design)- Scale varies per size of home
  • Foundation Plan (Architectural)- Foundation wall layout and post and beam layouts
  • Roof Plan- Birdseye view showing ridges and valleys
  • Section(s)
  • Electrical Plans


E-mail Address:
Please leave blank:
Your Question:

To request a modification quote, please use the Modification Request Form.

About This Plan

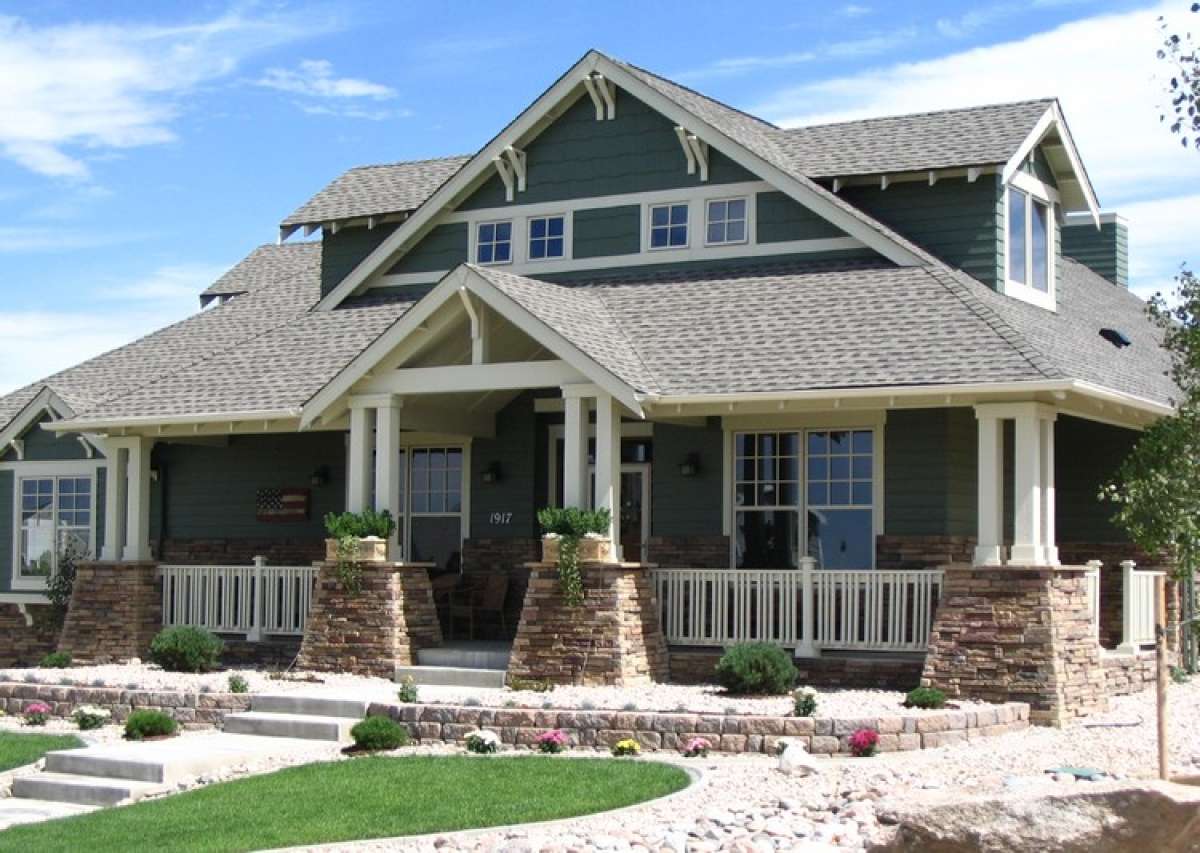

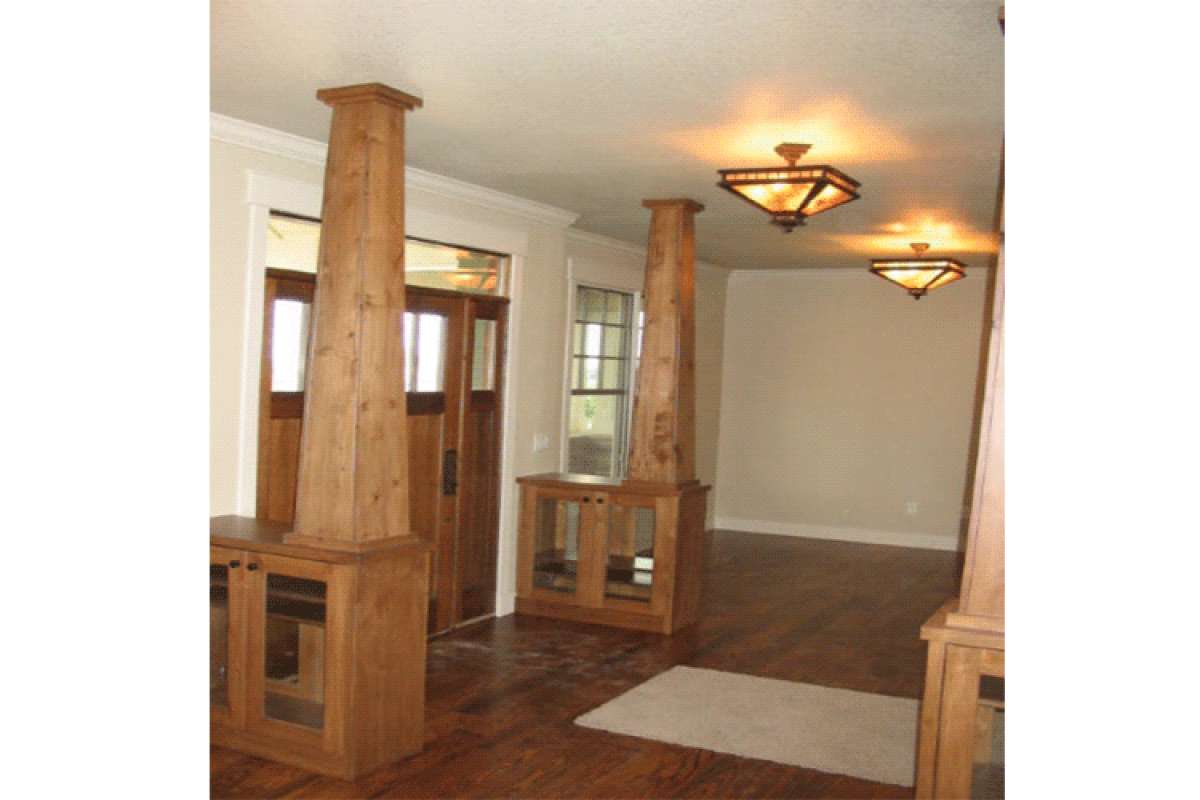

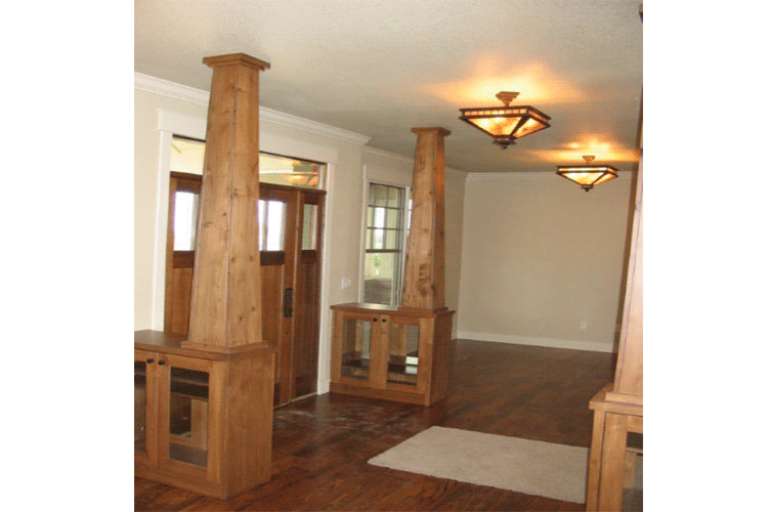

A quintessential styled Craftsman bungalow home with classic architectural features is highlighted in this approximate 3,339 square foot home. The gorgeous exterior is comprised of tapered stacked stone supported beams lining the wraparound porch and a gabled window dormer with decorative eaves. The interior floor plan incorporates well appointed and spacious rooms into the floor plan which includes open concept main living and entertaining spaces, four bedrooms and three plus bathrooms. The home’s drawings include a basement foundation in excess of 2,369 square feet of space; imagine the unlimited possibilities for further expansion within this space. There is a three car garage; the double bay features side entry while the single bay is situated straight ahead. Entrance into the home is into the extended foyer flanked by the formal dining room and den on either side. Further along the foyer is the gourmet kitchen and casual breakfast room before stepping into the great room. The kitchen is highlighted with an enormous center island breakfast bar with plenty of prep/work space. There is loads of additional counter and cabinet space and the adjacent breakfast room provides plenty of casual dining space. A massive great room is situated at the rear of the home featuring vaulted ceilings, a handsome fireplace and access to the rear patio. A guest half bath and large laundry room are conveniently located off the garage for ease of clean-up and a tidy environment. There is a main level master at the back rear of the home for privacy which includes a large bedroom; the adjoining sitting room features a warming fireplace and private access to the patio. The en suite master bath enjoys a large footprint and boasts of dual vanities, a separate shower, linen closet, a compartmentalized toilet and a garden tub. Situated at the rear of the bath for privacy is an oversized master walk-in closet.

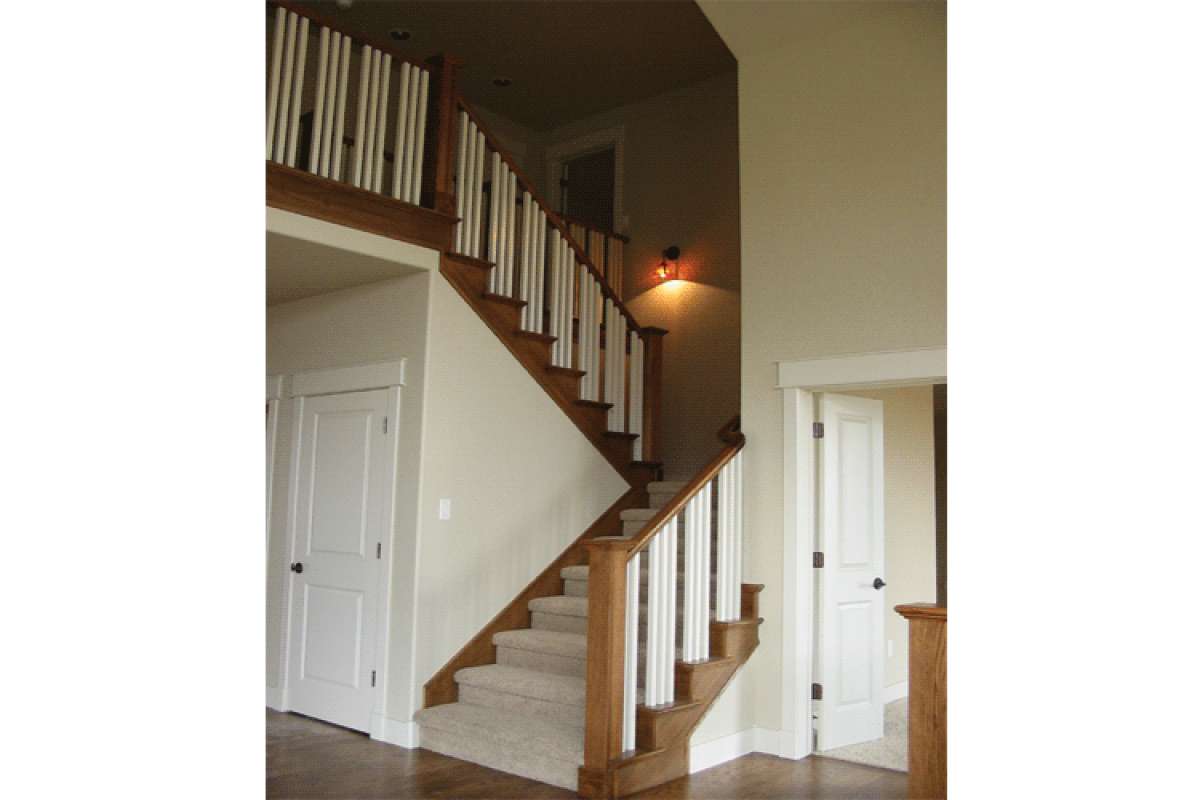

The second story staircase provides overviews into the lower level main living spaces along with additional bedrooms and baths. There are two spacious bedrooms of equal size which contain generous closet space and they share a hall bath with double lavatories and a linen closet. The oversized third bedroom is huge with plentiful closet space and a private full bath. This beautifully designed home is representative of an All-American styled Craftsman bungalow exterior and a fully functional and comfortable interior with future expansion possibilities.
