Contemporary Plan 5445-00478

IMPORTANT NOTICE

To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 4,770
Beds 4
Bath 4
1/2 Baths 1
Car 3
Stories 1.5
Width 82'
Depth 100'

Floorplan Drawings

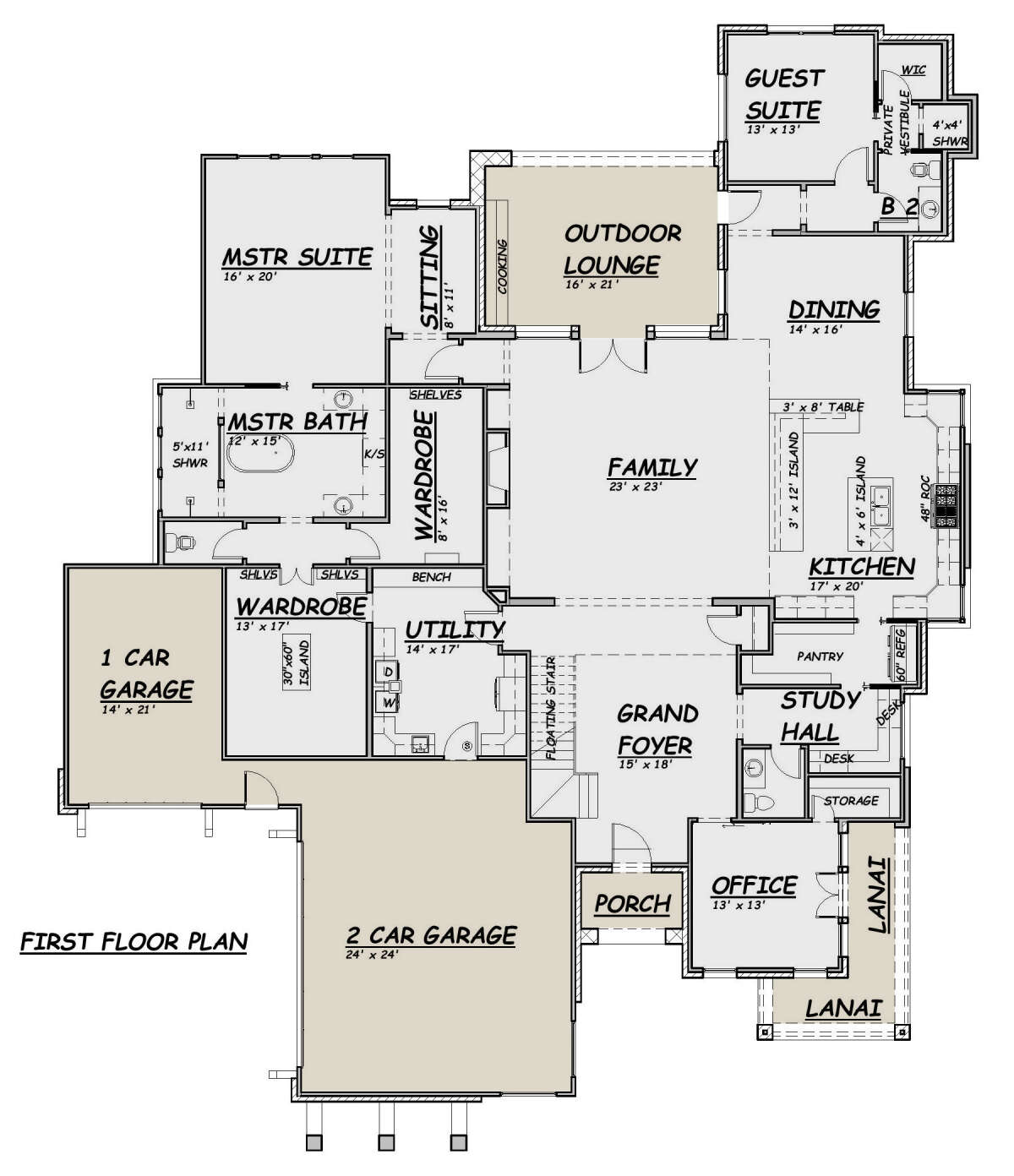

Main Floor
Main Floor for House Plan #5445-00478

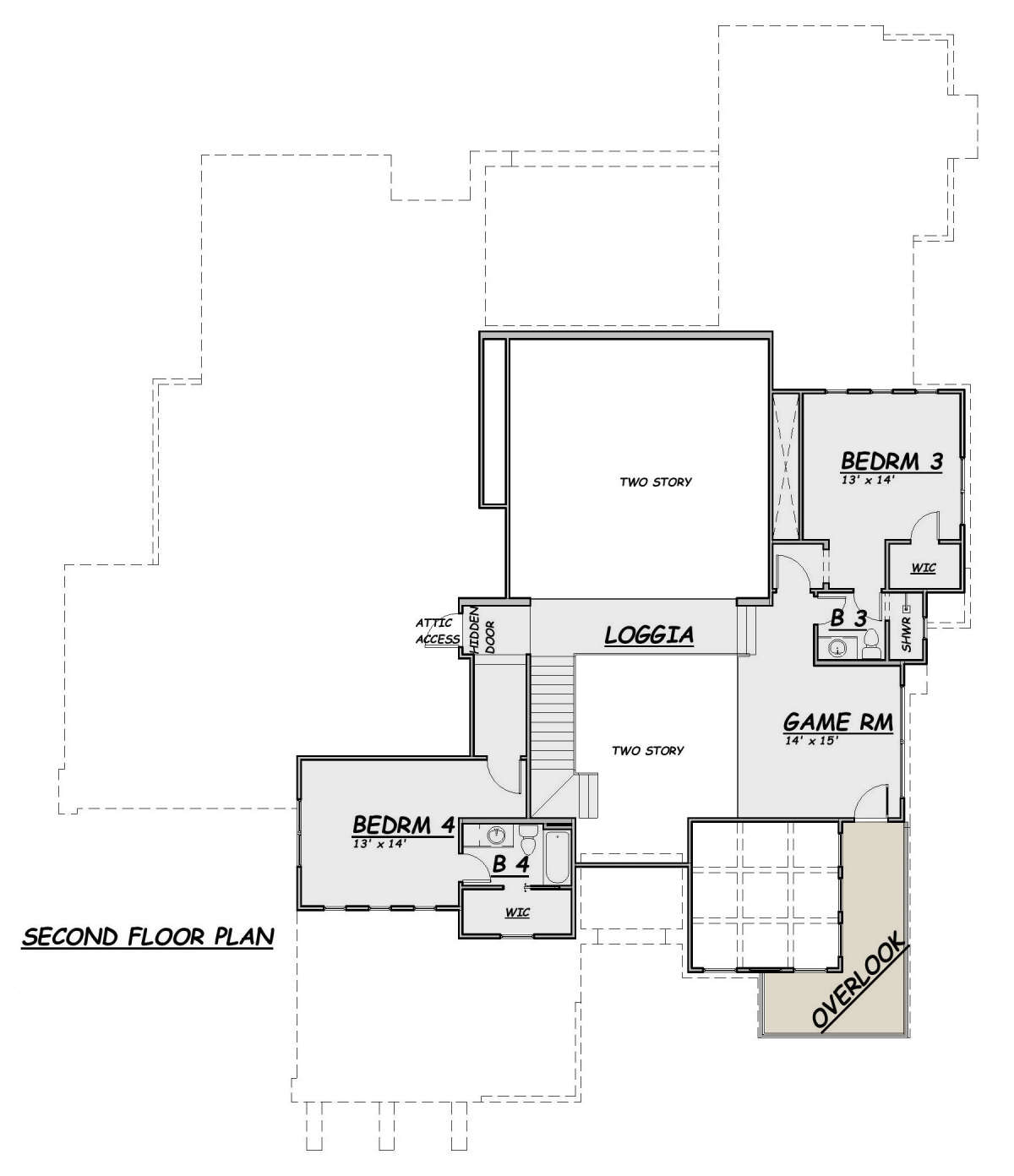

Second Floor
Second Floor for House Plan #5445-00478


What's Included in these plans?

  • Cover Page:
    Showing the house plan name, an elevation or rendering of the plan, and the designers contact information.
  • Foundation Plan
  • Floor Plan(s):
    The floor plans provide all dimensions and notes for the first and second floor (If plan has a second floor).
  • Electrical Plan:
    Schematic layout of lights, electrical plugs, phone locations and code items such as smoke detectors.

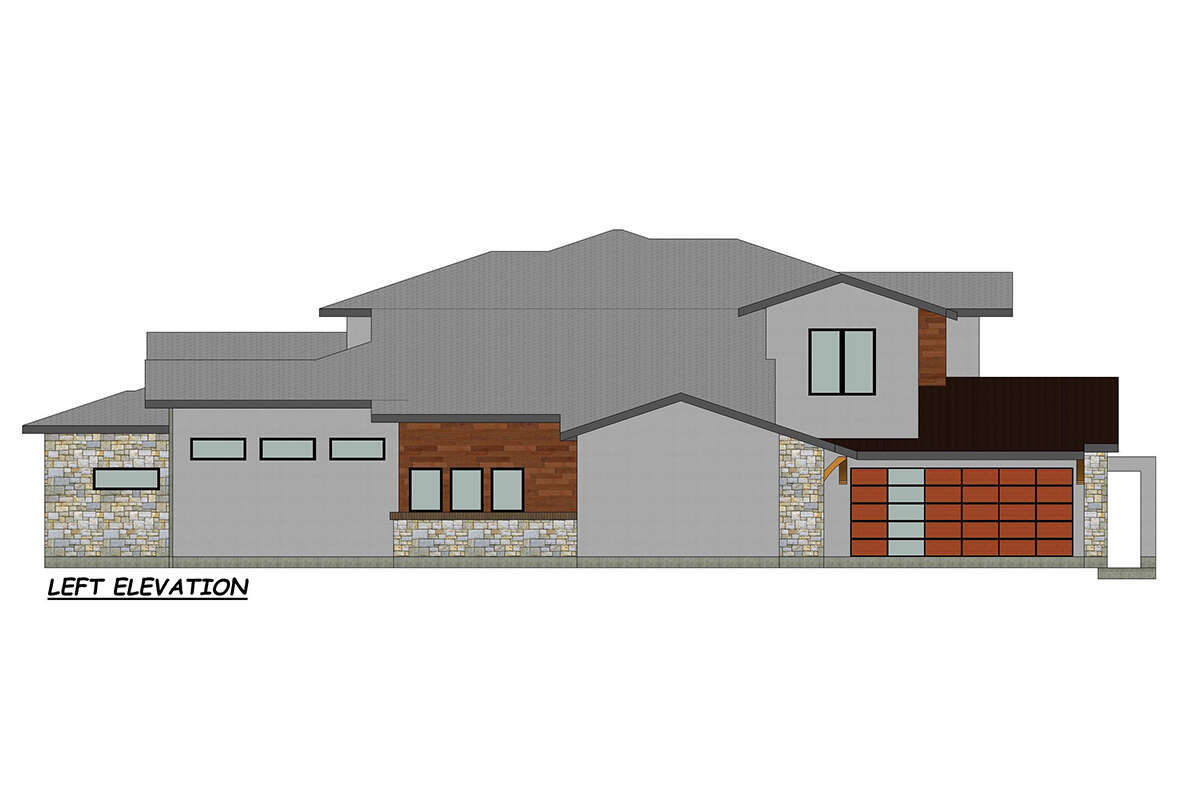

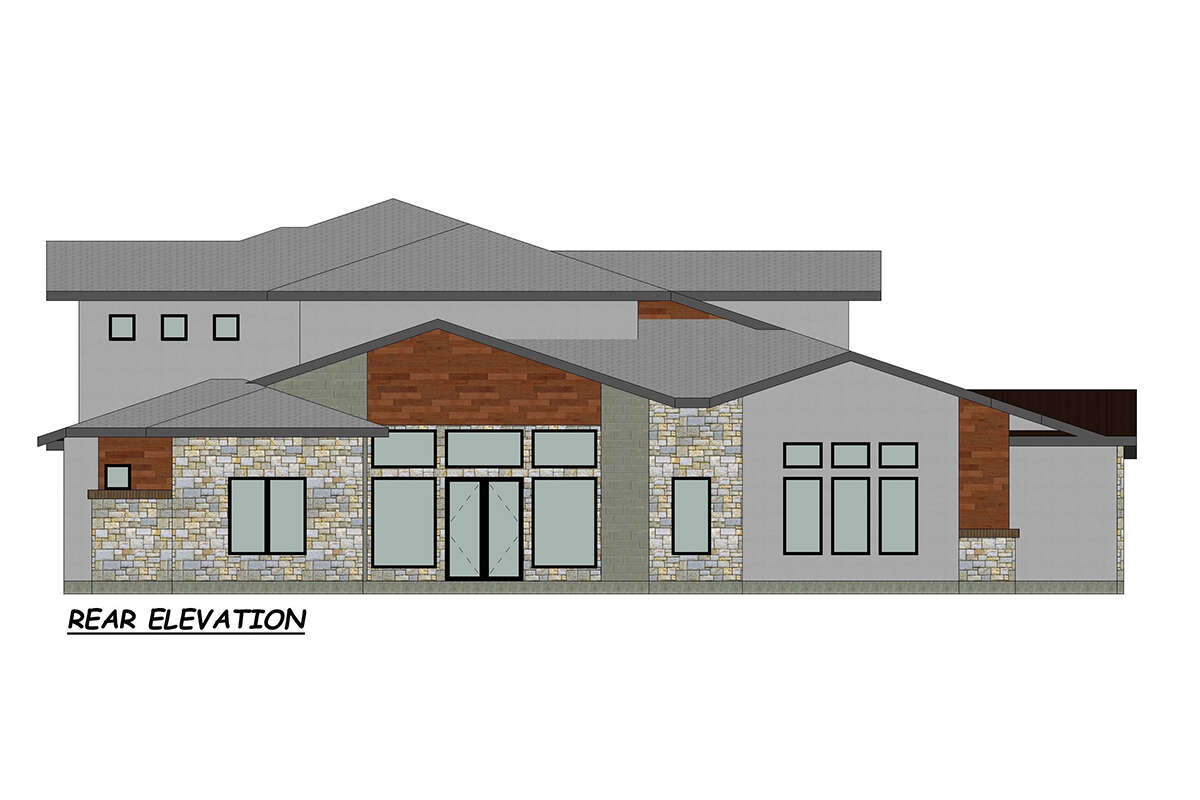

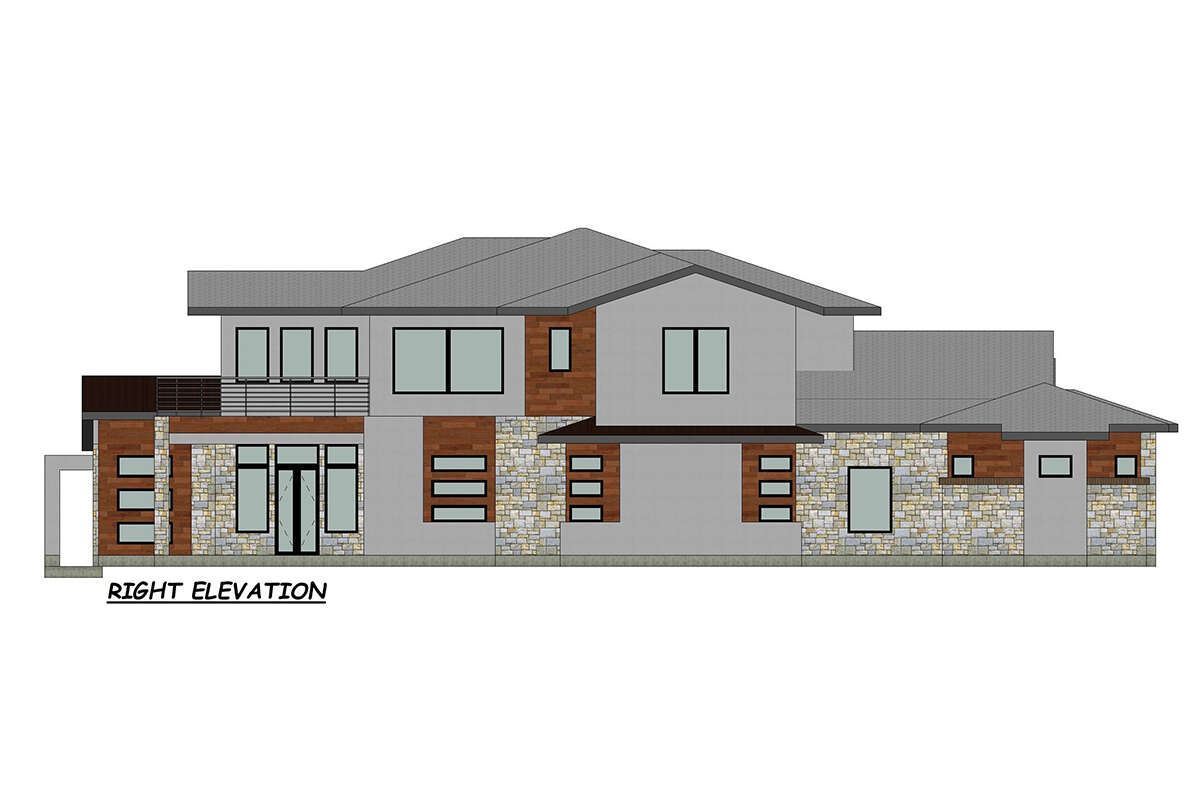

  • Elevations:
    Front, side and rear elevations with notes and exterior dimensions.  All elevations are drawn to 1/4 scale.
  • Roof Plan:
    Drawn to 1/4 scale.
  • Sections Page

What's not included:  House plans do not typically include mechanical, plumbing, or truss drawings. Additionally, some jurisdictions require a local architect or engineer to make adjustments to the plan to comply with local building codes. We advise you to check with your local building department regarding codes. For more information, visit the What's Included in Our Plans page.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This 4 bedroom, 4 bathroom Contemporary house plan features 4,770 sq ft of living space. America's Best House Plans offers high quality plans from professional architects and home designers across the country with a best price guarantee. Our extensive collection of house plans are easy to read, versatile, and affordable, with a seamless modification process available if your plans need to be changed to suit your lifestyle and personal choice.
