Traditional Plan 5633-00023


To purchase a reversed plan, please select Right Reading Reverse under Additional Options.
Sq Ft 3,222
Beds 4
Bath 3
1/2 Baths 1
Car 2
Stories 1.5
Width 87' 8"
Depth 46' 10"

Floorplan Drawings

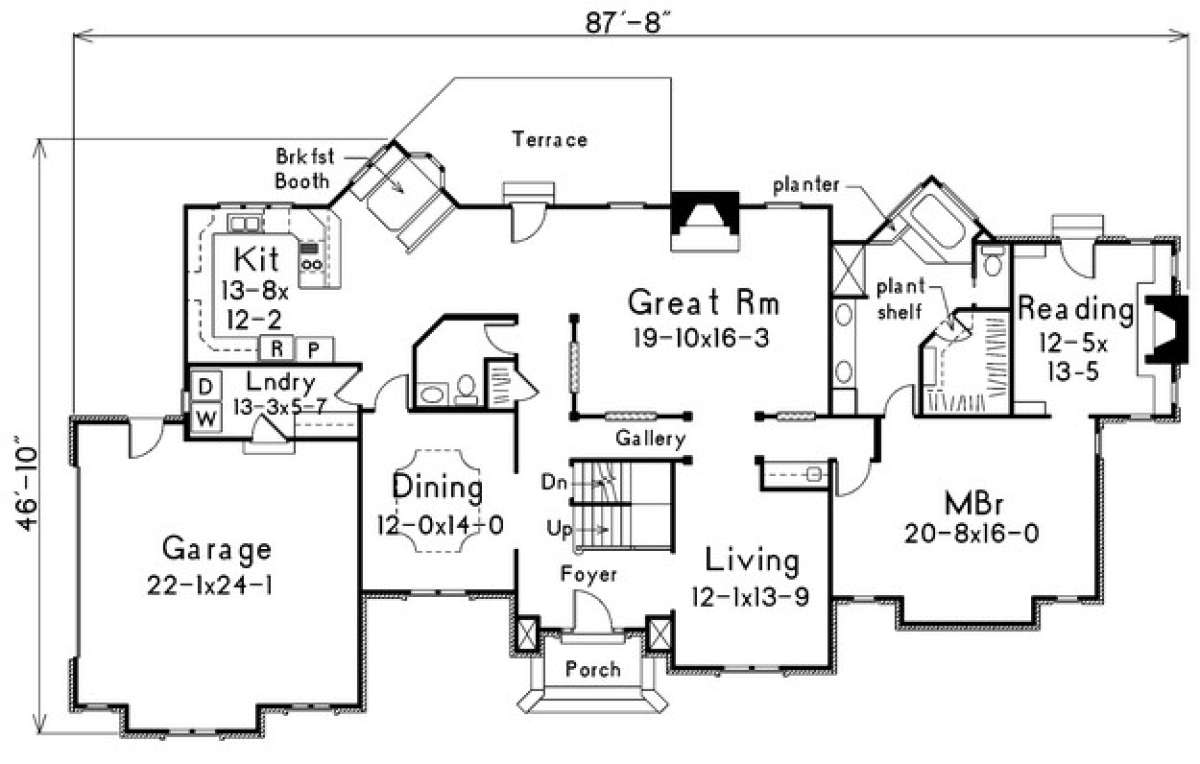

Floorplan 1
Floorplan 1 for House Plan #5633-00023

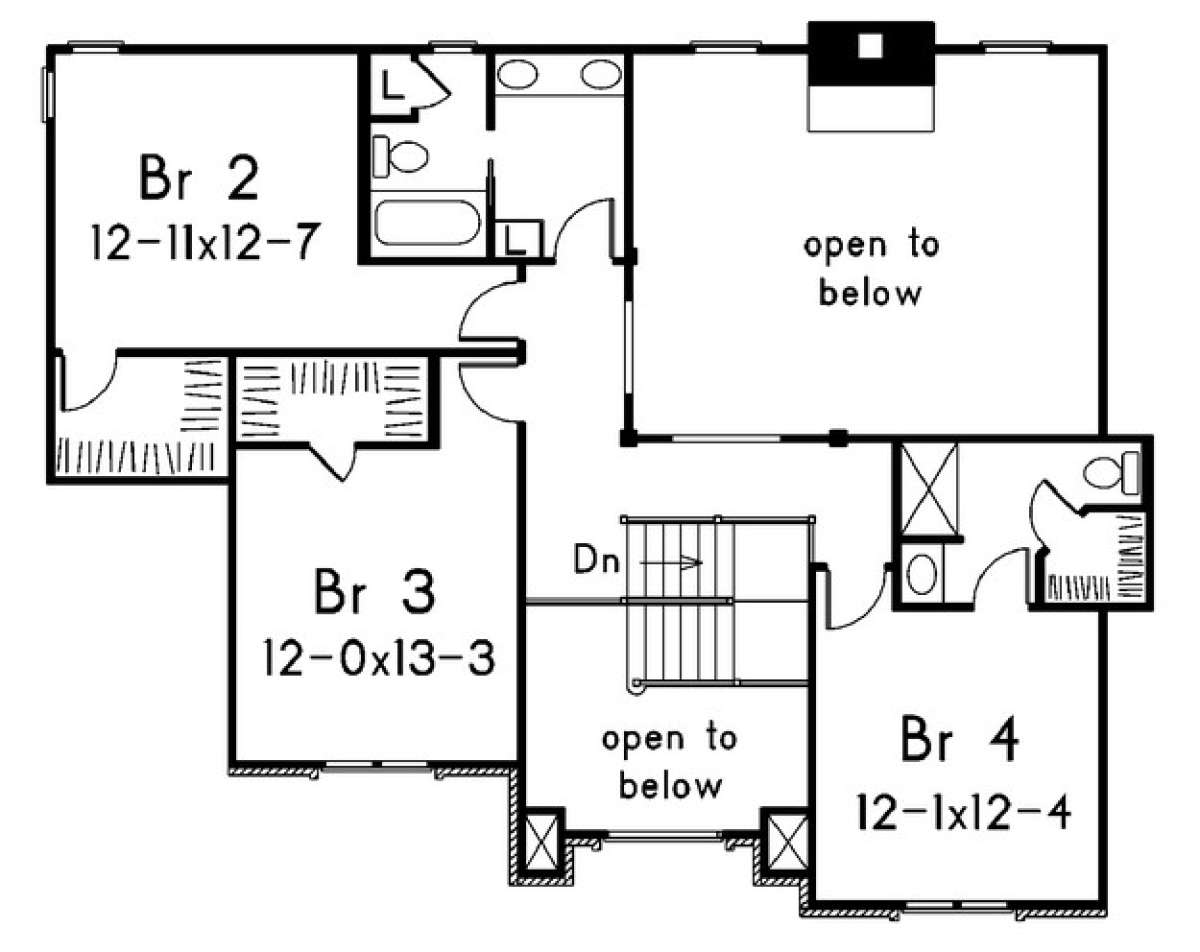

Floorplan 2
Floorplan 2 for House Plan #5633-00023

What's Included in these plans?

  • Heated and Cooled Square Footage calculations are made from outside the exterior frame wall and do not include decks, porches, garages, unfinished basements, bonus or attic space.
  • Artist Rendering
  • Foundation & Floor Plans (1/4"=1')
  • Front Elevations (1/4"=1'), Sides & Rear Elevation (1/8" or 1/4" = 1")
  • Kitchen and Bath Elevations (1/4"=1') **
  • Miscellaneous Details (1/4" to 3/4"=1')
  • Stair Section (1/4" to 3/8" = 1')
  • Roof Overview Plan (scale varies) **
    ** Some plans in this series do not provide cabinet elevations or roof overview.  Please call to verify.
    This home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as suggested locations for light fixtures, outlets and switches.

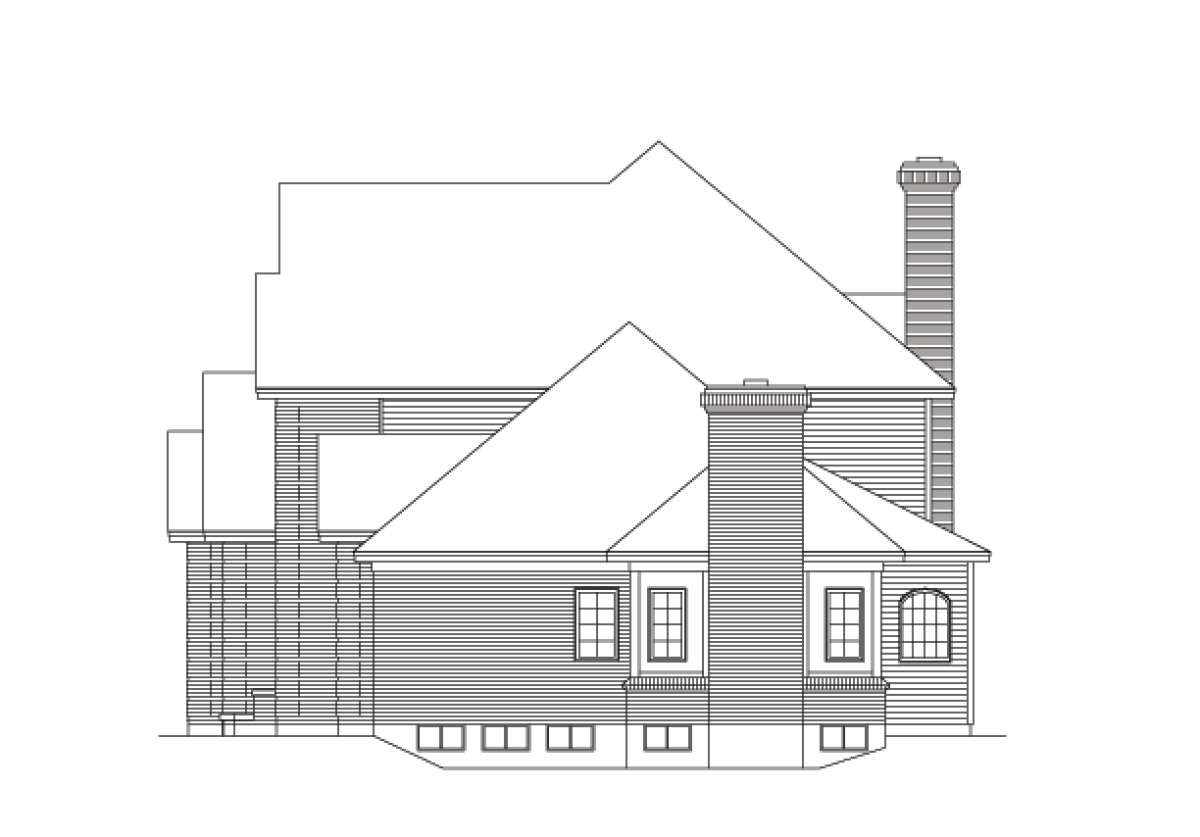

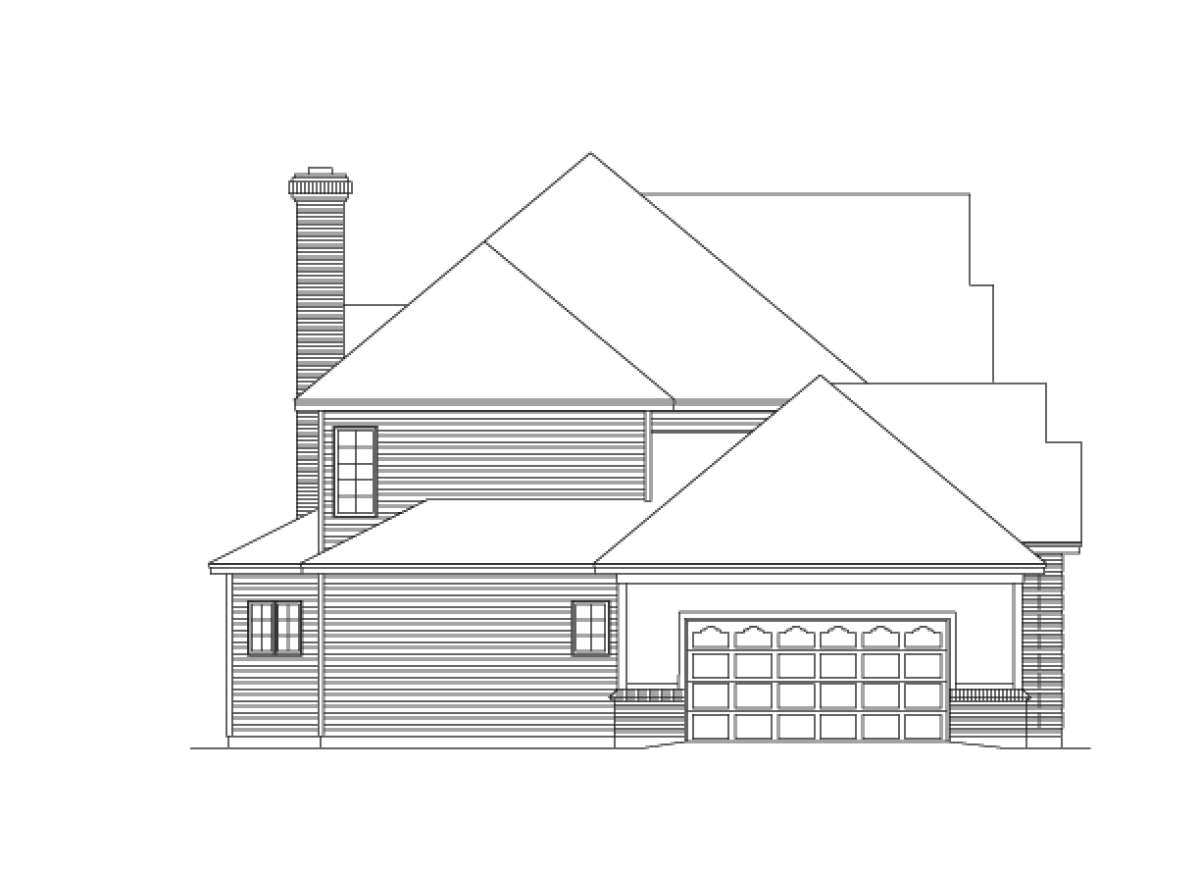

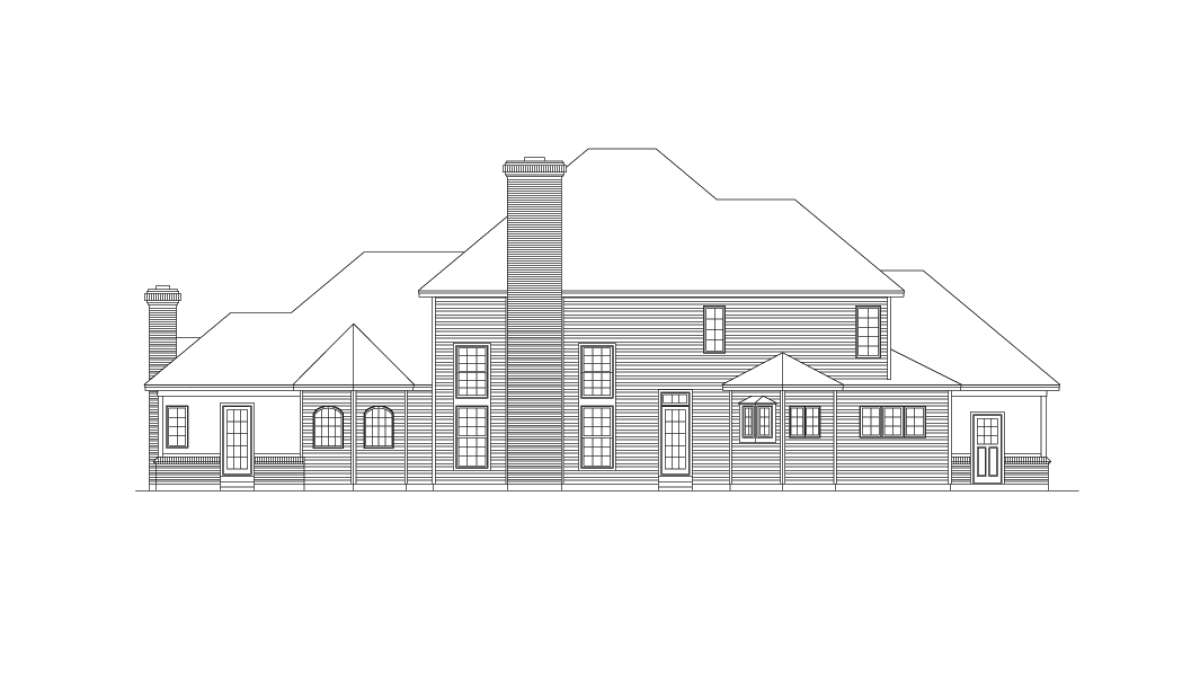

    This plan includes the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
    The kitchen and bath elevations show the arrangement of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
    Some details are included for interior and exterior conditions that require more specific information for their construction.
    This is a "bird's eye" view showing the roof slopes, ridges, valleys and any saddles.

Ask Us A Question

To request a modification quote, please use the Modification Request Form.

About This Plan

This sophisticated traditional home features a soaring grand entrance highlighted by a low maintenance brick exterior. The combination of generously scaled architectural design features contribute to the overall sense of grandeur and luxury. The home’s interior layout consists of 3,222 square feet of spacious and well appointed rooms including four bedrooms and three plus baths. Incorporated into the home’s drawings are a slab, crawl space and basement foundation; the latter has the potential to increase the home’s square footage and versatility. Commanding window views are highlighted from double stacked window insets and the two story foyer features generous space housing the upper and lower level staircases. The formal dining and living rooms are open to the foyer; the dining room boasts of a trey ceiling accent while the living room has a wet bar and generous entertaining space. The great room provides amazing family space with a center wall fireplace and access to the rear terrace. Stylish design elements and efficiency are hallmarks of the state-of-the-art kitchen where a breakfast bar, separate pantry and a breakfast booth is tucked into a bay window. An awesome laundry room is conveniently situated off the two car, side entry garage. The master suite is located on the main floor for privacy and includes an oversized master bedroom with an adjoining reading room which boasts of a warming fireplace. Dual vanities, a separate shower, garden tub and private toilet area are encased in the en suite bath and there is a large master walk-in closet.
The striking second level staircase is highlighted with balcony overlooks into the foyer and main living area. There are three spacious bedrooms and two baths on the second level; bedrooms two and three each have a walk-in closet and access to the shared hall bath which features double sinks and double linen closets. The fourth bedroom includes a private full bath and walk-in closet. This traditional home enjoys a spectacular exterior and equally stunning interior floor plan.
